Heliatos RV Freeze Protected Solar Water Heater Kit with External Heat Exchanger

Heliatos RV Freeze Protected Solar Water Heater Kit with External Heat Exchanger

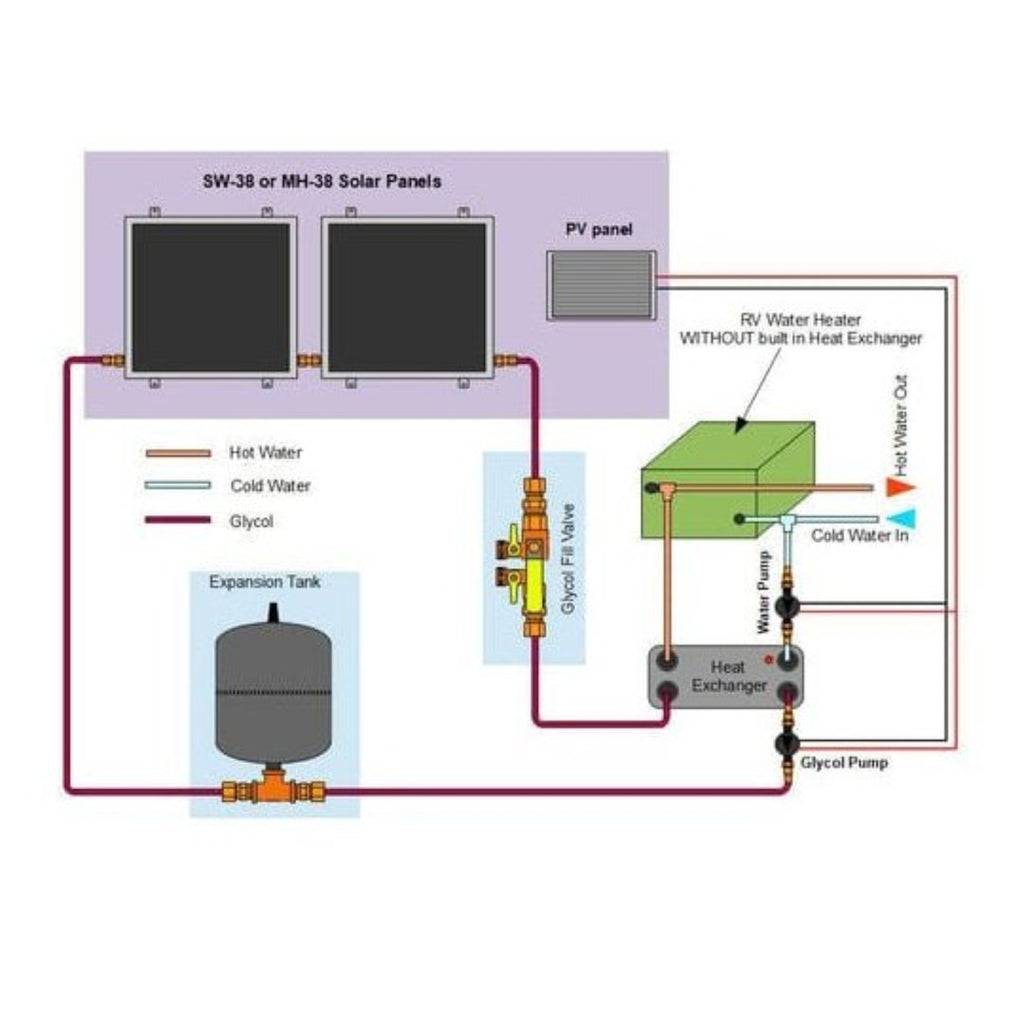

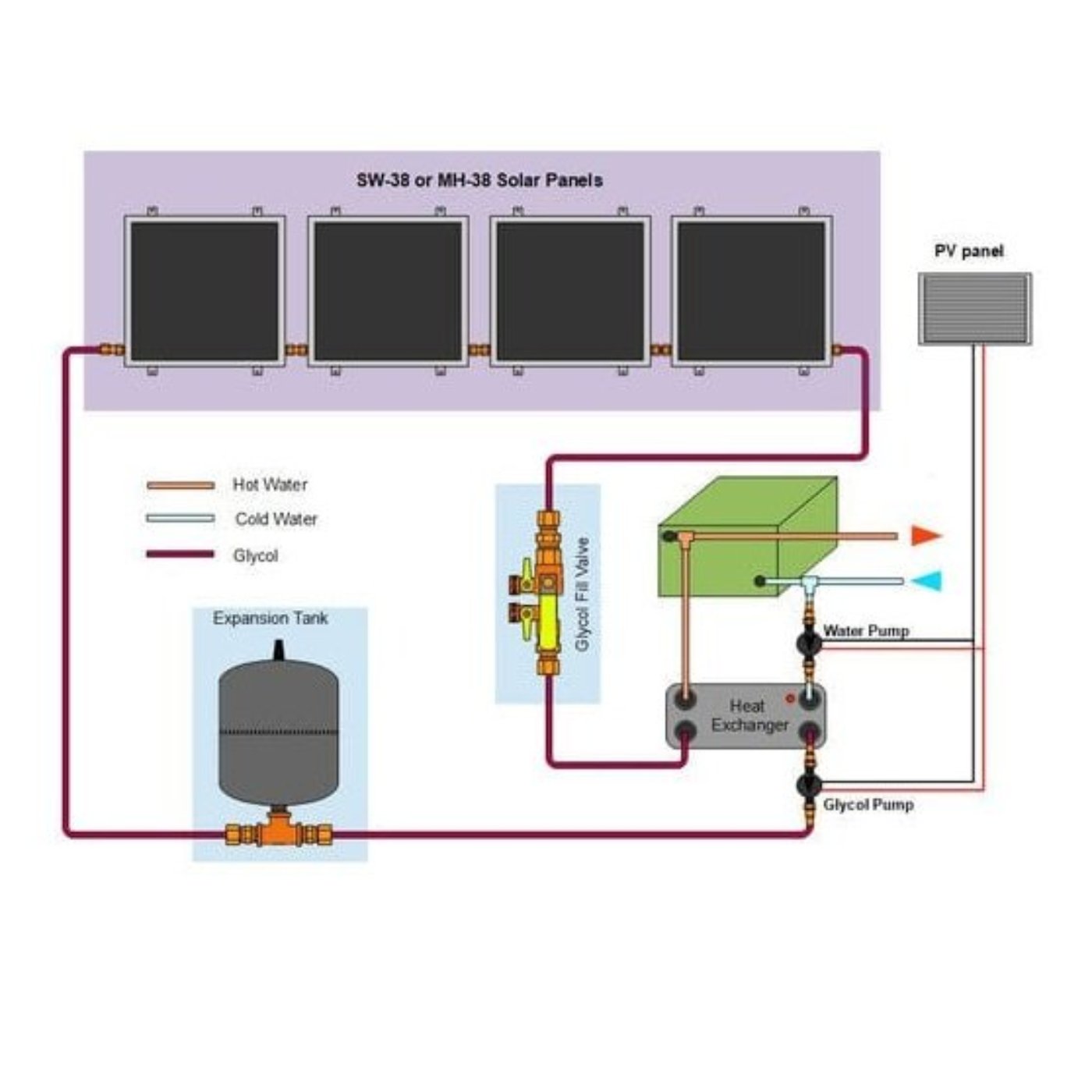

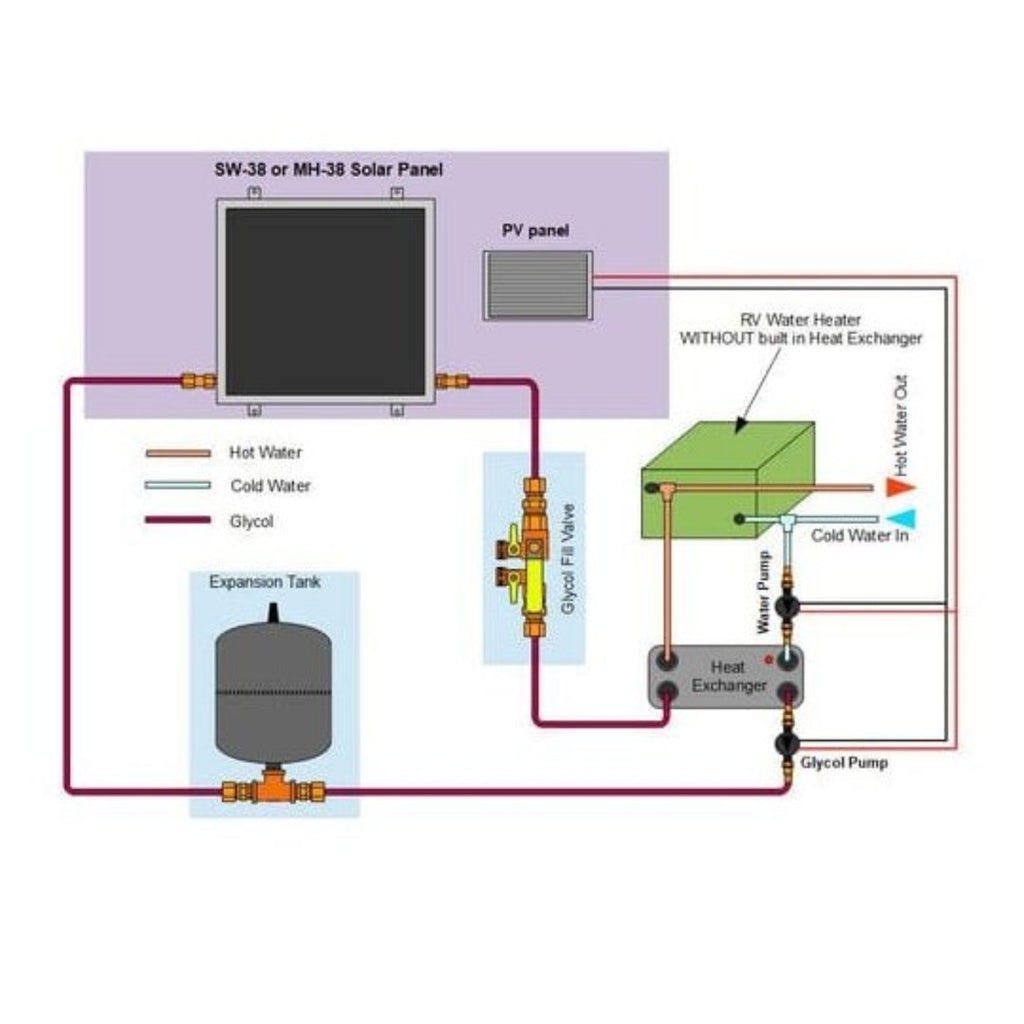

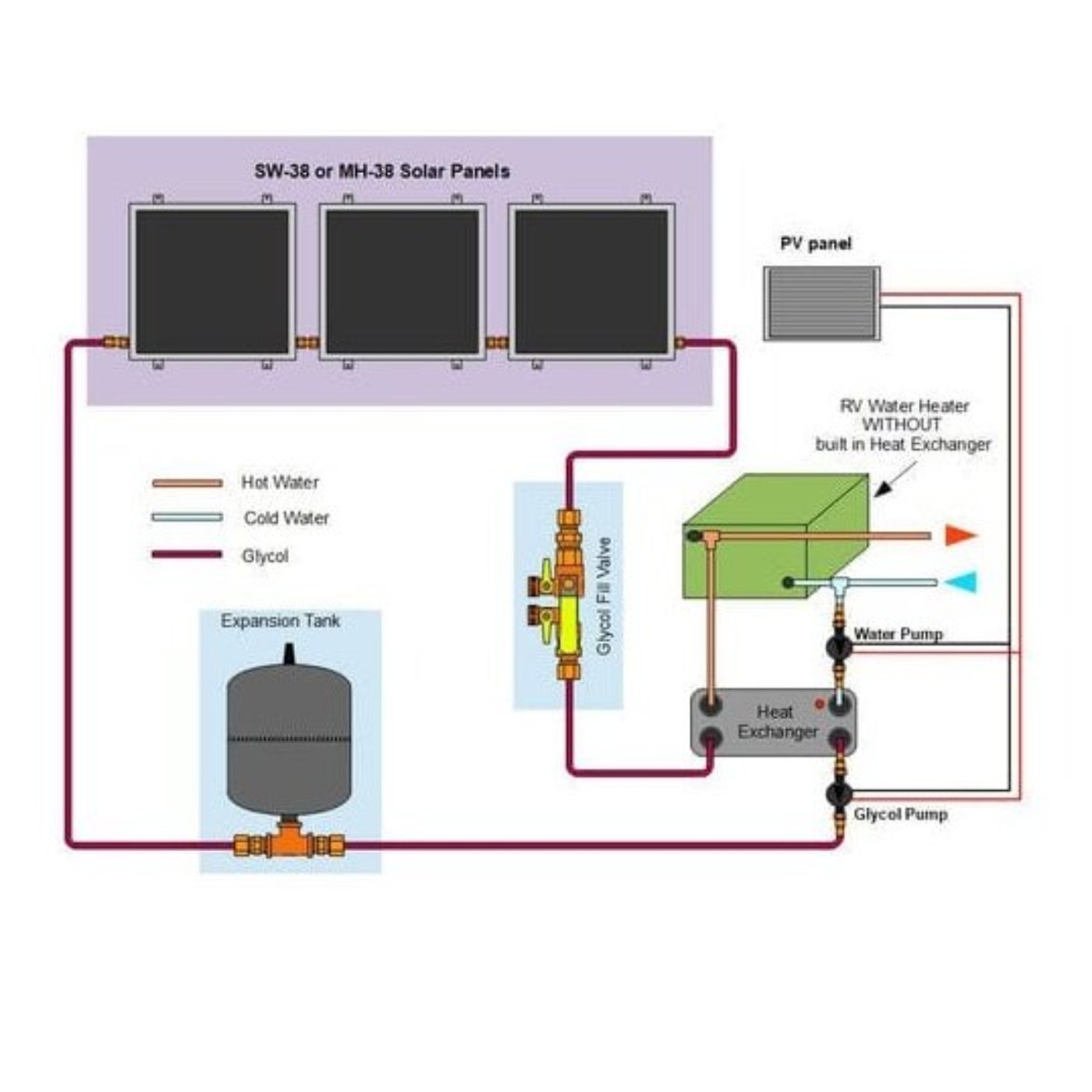

If your RV water heater does not have a built-in heat exchanger but you still want to install a freeze protected (closed loop) system this kit is for you. It contains everything you need to add a high quality freeze protected solar water heater to your RV. Included is a compact stainless steel heat exchanger (316 alloy) and all other parts required for a closed loop system. The antifreeze in the solar loop is heated by Heliatos SW-38 solar water heating panel. This panel is robust enough to be mounted on a vehicle at highway speeds, has unbreakable twinwall polycarbonate glazing, and a strong aluminum frame, yet only weighs 12 lbs.

Specifications

SW-38 Solar Panel

Materials

• Glazing: UV resistant twin wall polycarbonate
• Frame: Architectural grade aluminum alloy 6063
• Insulation: Polyiso foam (meets requirements for ASTM-C1289, Type 1
• specification)
• Water Conduit: Copper Tubing (Alloy C12200 certified for public water supplies
• meeting EPA Lead and Copper Rule 56 FR26460, June 7th, 1991)
• Fittings: Brass, Lead Free compliant with Federal Reduction of Lead in
• Drinking Water Act , Dezincification resistant
• Seals: Butyl Rubber

Physical

• Length: 24.0 Inches
• Width: 25.25 Inches
• Height: 2.125 Inches
• Active Collector Area: 3.674 ft2
• Mounting Hole Spacing: 24.75 x 17.00 Inches x Inches
• Volume of Liquid in Collector: 7.7 fl. oz.
• Total Panel Weight: 11.6 lb.
• Input and Output Connections: 3/8 “ Compression Fitting

Maximum Ratings

• Pressure: 150 Psi
• Collector Temperature: 203 ºF
• Mounting Surface Unevenness: ¼ Inch (corner to corner)

In the Box

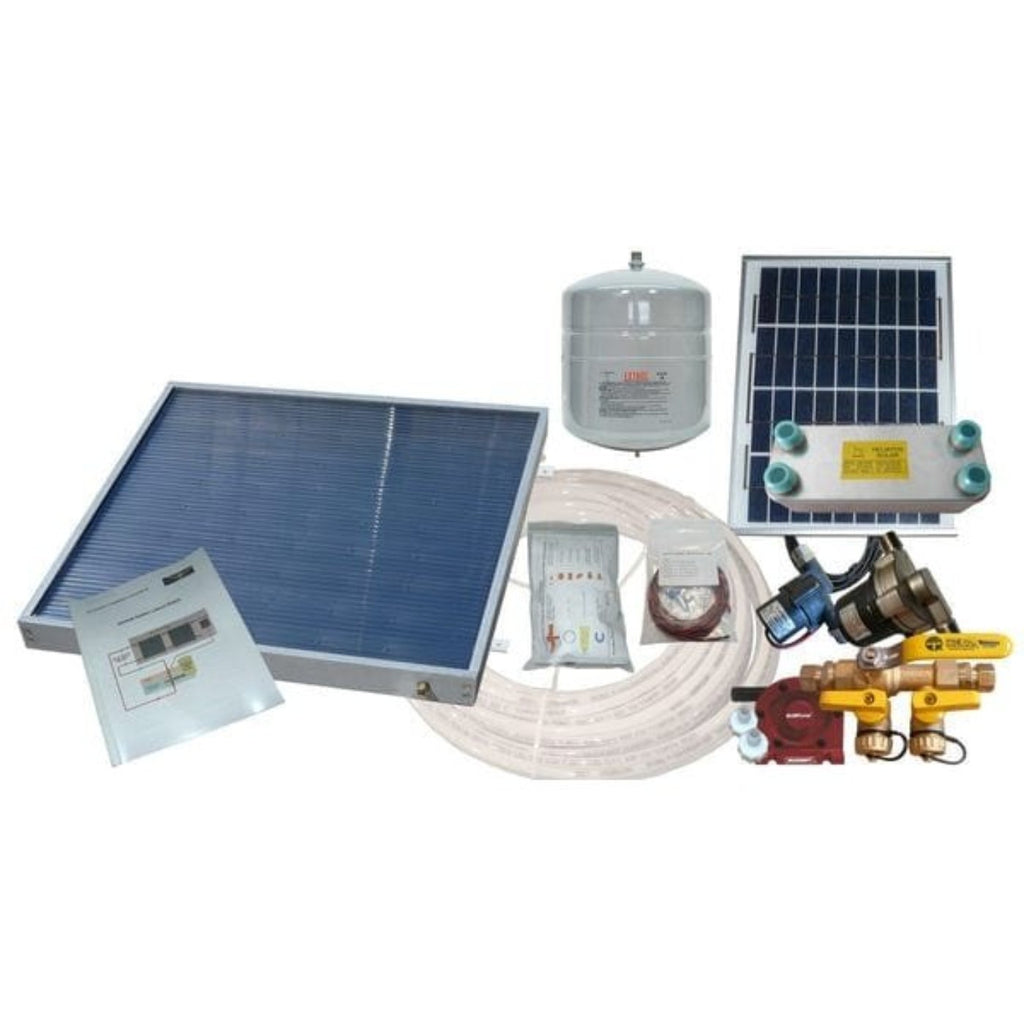

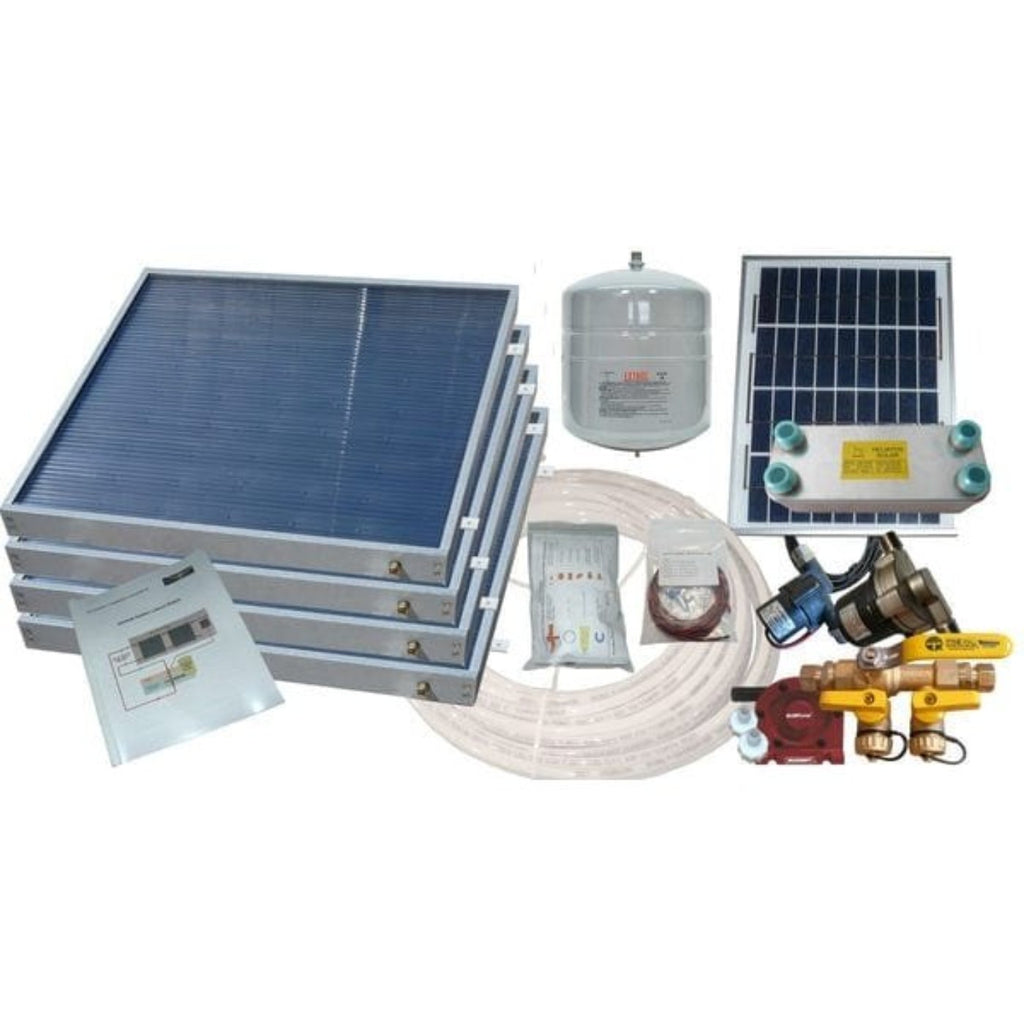

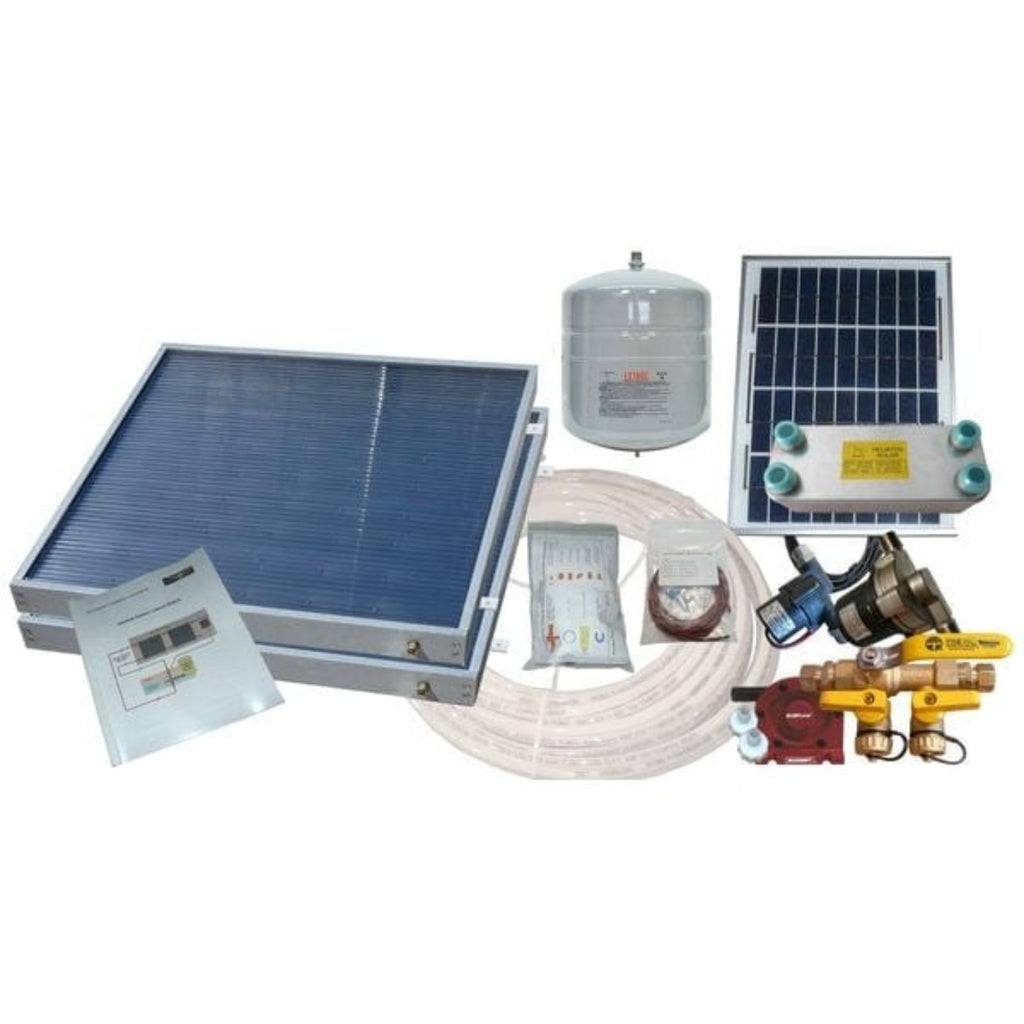

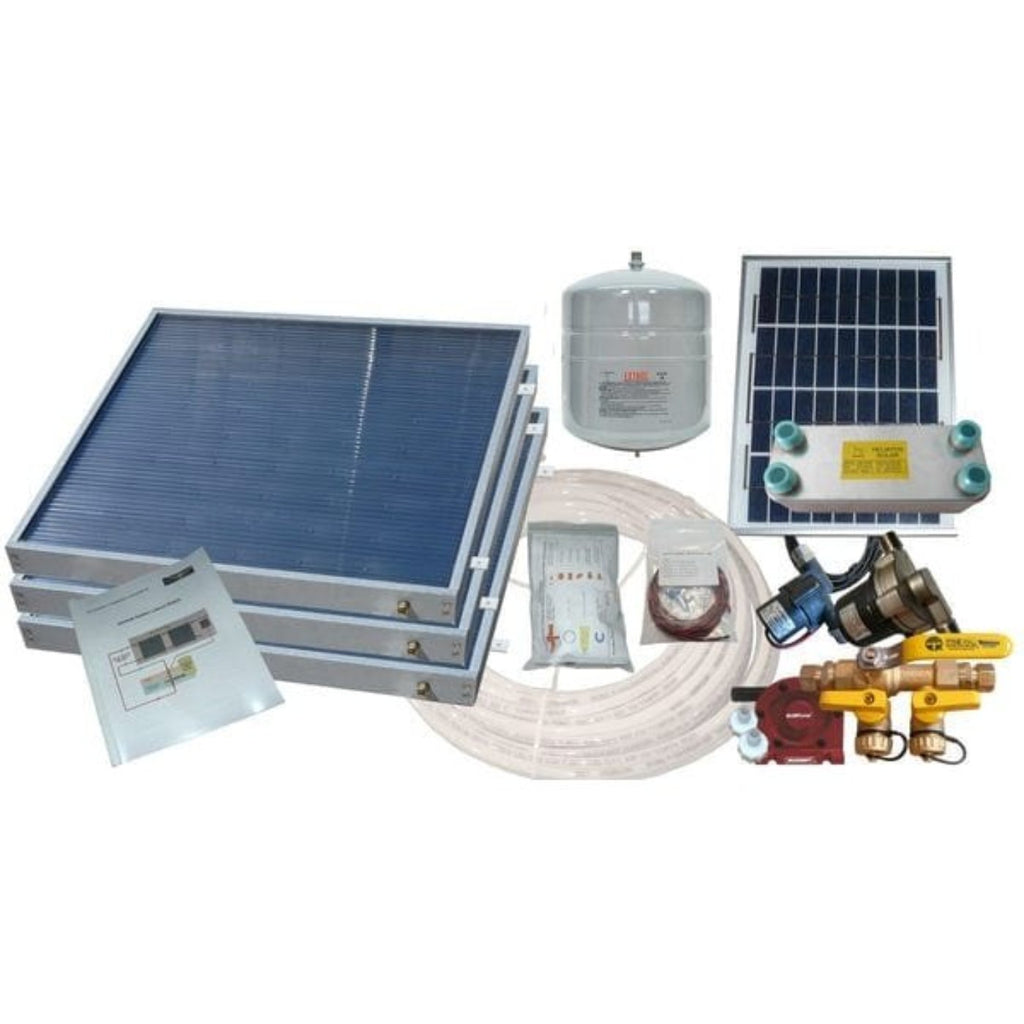

• Your selected quantity of Heliatos SW-38 Solar Water Heating Panel

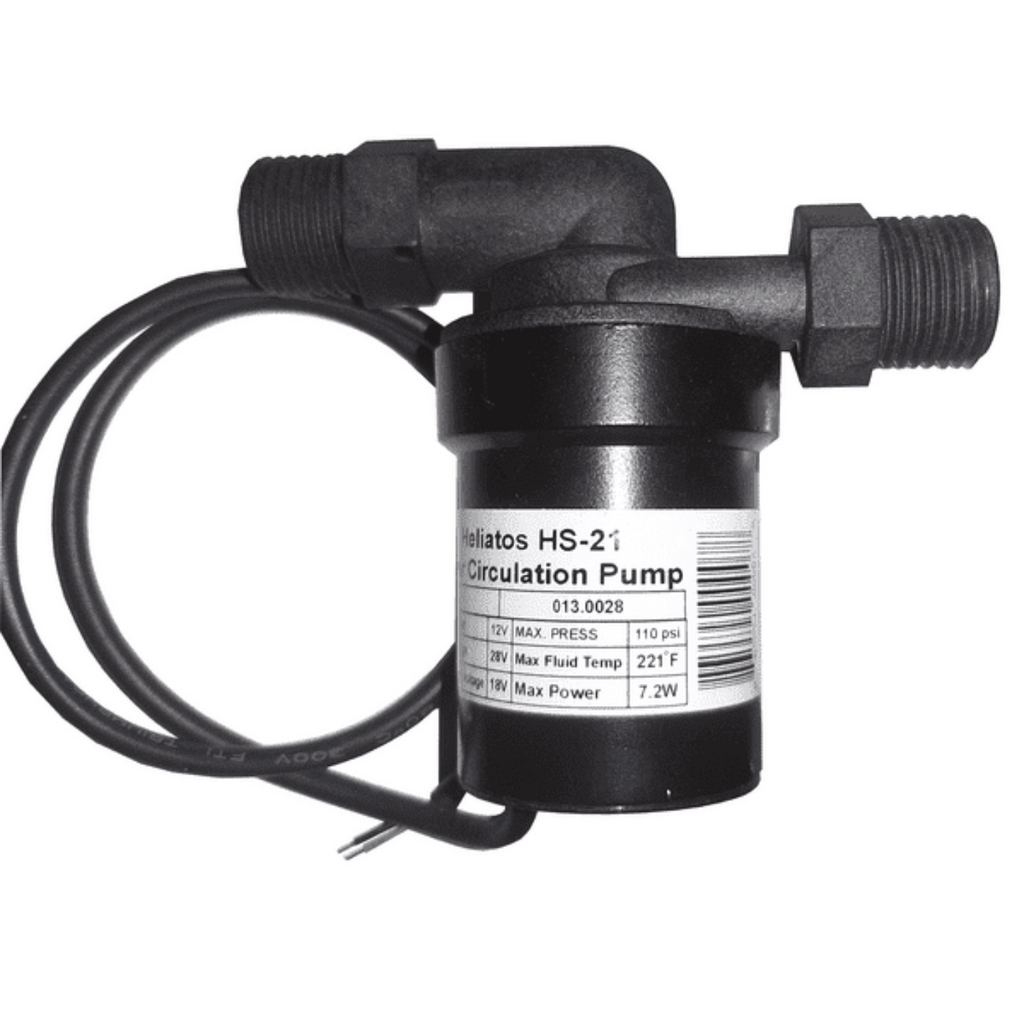

• 1 Heliatos HS-21 solar circulation pump

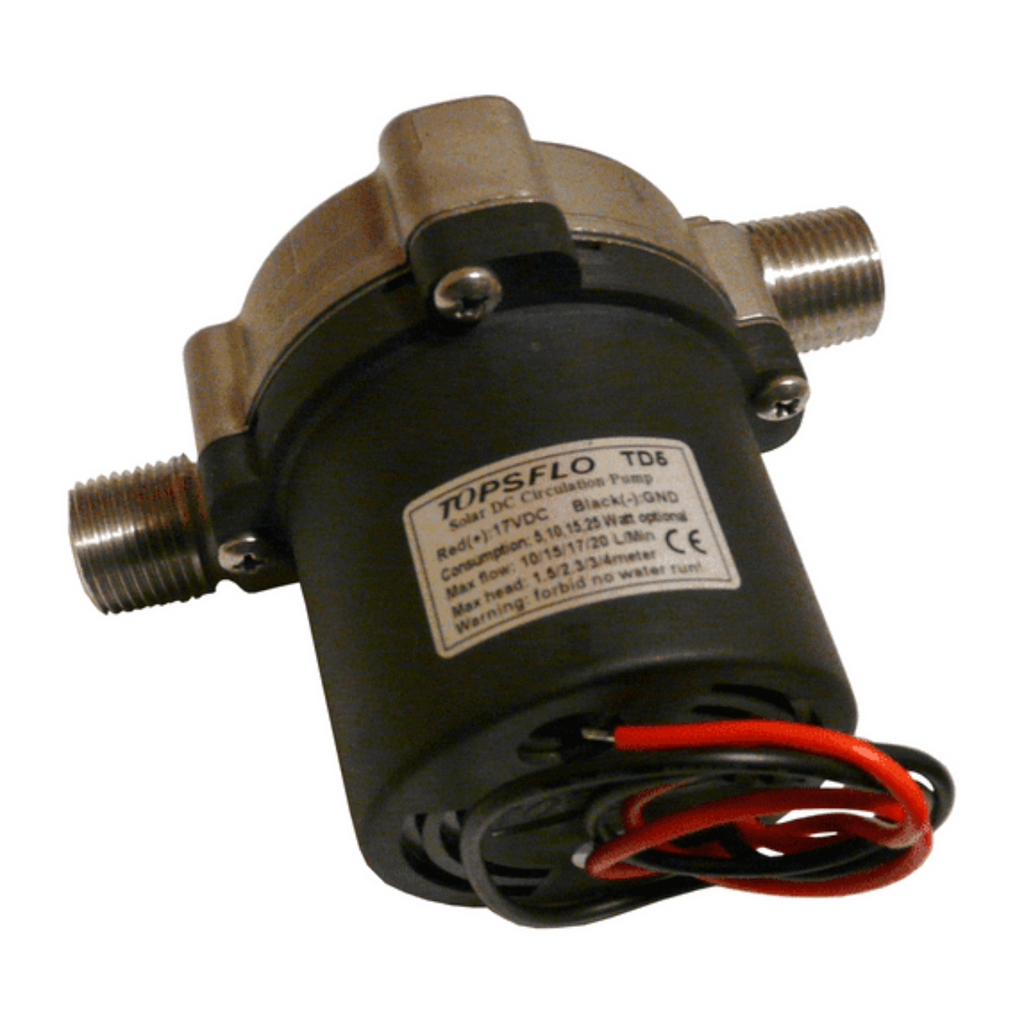

• 1 TopsFlo TD5 Stainless Steel Circulation Pump
• 1 25 Watt PV Solar panel to power the pump
• Wire and PV panel mounting tabs
• 25 ft of 1/4' PEX tubing
• Amtrol #15 Expansion Tank
• RV Glycol Fill and Purge Valve with Drill Pump and Instructions
• Compact Stainless Steel (Alloy 316) Heat Exchanger
• 1 Complete Set of Fittings and Adapters
• Assumes RV water heater with 1/2' NPT ports (most common)
• Contact us for non-standard Water Heaters or Connections
• Clear and easy to follow installation instructions

Video

Manual

• Installation Instructions

What Our Experts Think

• Freeze Protection & Reliability: The Heliatos RV Freeze Protected Solar Water Heater Kit is specifically designed to operate in colder temperatures, with freeze protection ensuring continuous, reliable hot water, even in freezing conditions.
• External Heat Exchanger: The built-in external heat exchanger maximizes efficiency, transferring heat from the solar panels to your water, providing optimal heating performance with minimal energy use.
• Durable & Marine-Grade: Made with corrosion-resistant, high-quality materials, the kit is perfect for RVs, boats, or cabins, offering durability and longevity in challenging environments.
• Eco-Friendly & Cost-Efficient: Solar energy powers the system, significantly reducing electricity or propane reliance and offering an eco-friendly solution to heating water.
• Compact & Space-Saving: Designed for RVs, the system offers space-saving features without compromising on performance or water heating capacity.
• Easy Installation & Low Maintenance: With simple installation and minimal upkeep, this kit provides an effortless solution for heating water while you're on the road or at your remote location.

Q&A

Q: What is the Heliatos RV Freeze Protected Solar Water Heater Kit with External Heat Exchanger?
A: The Heliatos RV Freeze Protected Solar Water Heater Kit with External Heat Exchanger is a high-efficiency solar water heating system designed for RVs. It features freeze protection to ensure hot water in cold temperatures and an external heat exchanger for optimal heat transfer from solar energy to your water supply.

Q: How does the external heat exchanger work?
A: The external heat exchanger allows solar-heated fluid to transfer heat to your RV’s water system, ensuring fast and efficient heating while keeping the water temperature regulated.

Q: Can I use this system in cold weather?
A: Yes, the freeze protection feature ensures that the system works even in freezing temperatures, providing reliable hot water year-round.

Q: Is the kit easy to install in my RV?
A: Yes, the Heliatos RV Freeze Protected Solar Water Heater Kit is designed for easy installation and is compatible with most RV models, with all necessary components included.

Q: What are the benefits of using a solar water heater in my RV?
A: Solar water heaters are environmentally friendly, energy-efficient, and reduce your reliance on propane or electricity, providing sustainable hot water for your RV while on the road.

Q: Is the Heliatos RV Freeze Protected Solar Water Heater Kit backed by a warranty?
A: Yes, the kit comes with a warranty to ensure long-lasting performance and peace of mind.
