Heliatos Standard Solar Water Heater Kit

Heliatos Standard Solar Water Heater Kit

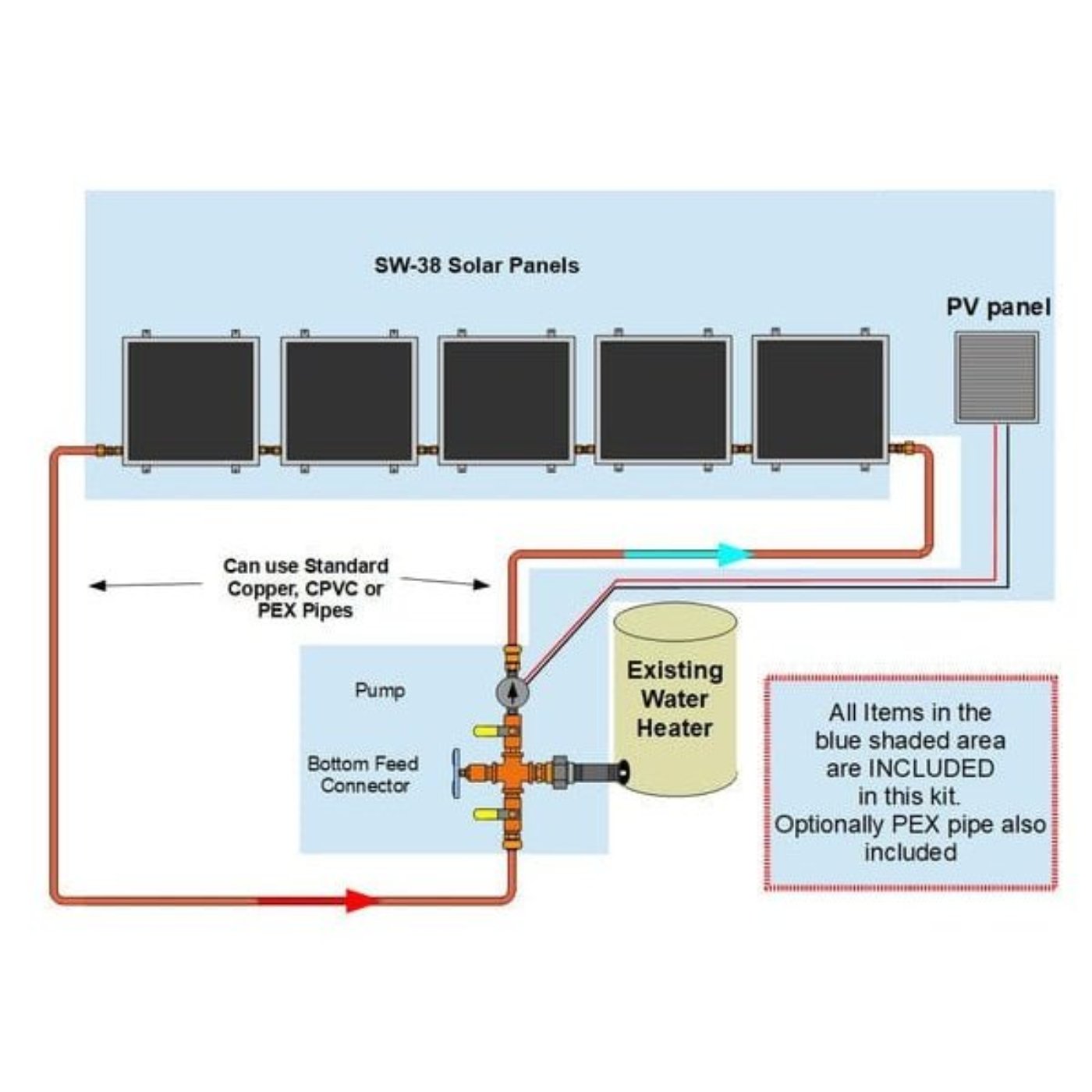

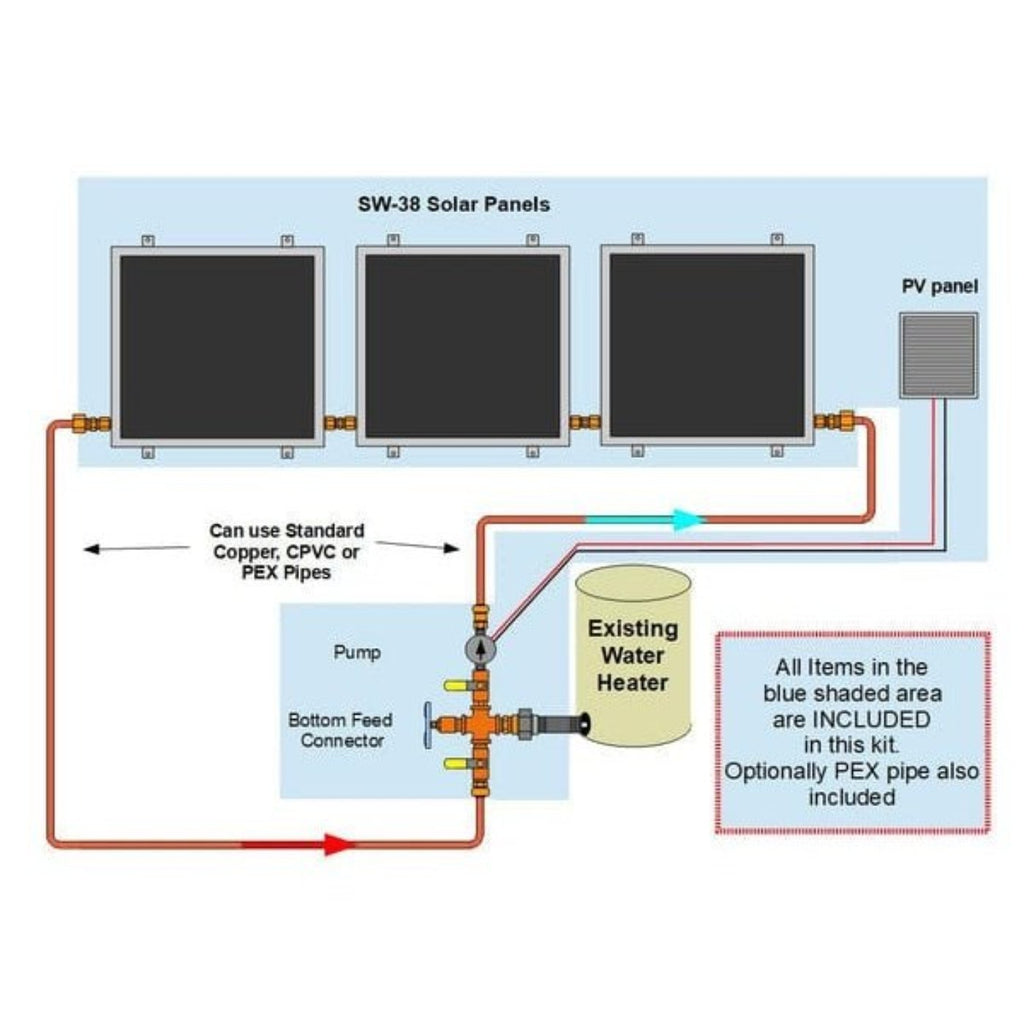

Our Standard Solar Water Heating Kit comes with all the parts needed to install your solar water heater system on your house or cabin. As with all our systems, they connect directly to your existing water heater and don't interfere with existing source of heat (gas or electric). This way you can enjoy hot water even during long cloudy periods. Using our SW-38 Solar Water Heater panels you can simply thread the panels together. No more external connection pipes for multi panel installations! Each panel weighs 12 lbs. and is 24' by 24' but can still provide you with ample hot water. You can begin your system with a few panels and add more if you need more. With this kit you DO NOT have to solder at all!

Specifications

Materials

• Glazing: UV resistant twin wall polycarbonate
• Frame: Architectural grade aluminum alloy 6063
• Insulation: Polyiso foam (meets requirements for ASTM-C1289, Type 1
• specification)
• Water Conduit: Copper Tubing (Alloy C12200 certified for public water supplies
• meeting EPA Lead and Copper Rule 56 FR26460, June 7th, 1991)
• Fittings: Brass, Lead Free compliant with Federal Reduction of Lead in
• Drinking Water Act , Dezincification resistant
• Seals: Butyl Rubber

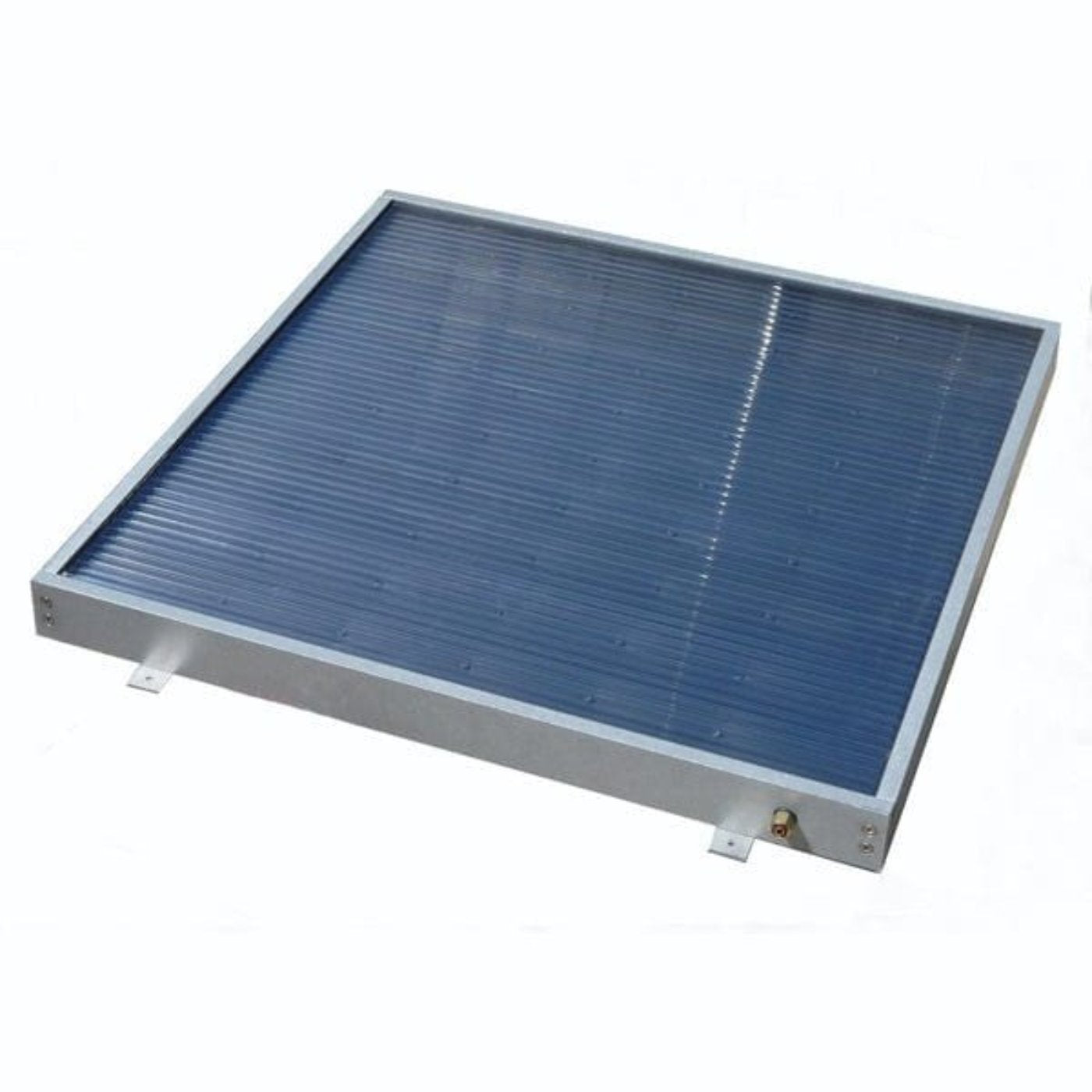

Physical

• Length: 24.0 Inches
• Width: 25.25 Inches
• Height: 2.125 Inches
• Active Collector Area: 3.674 ft2
• Mounting Hole Spacing: 24.75 x 17.00 Inches x Inches
• Volume of Liquid in Collector: 7.7 fl. oz.
• Total Panel Weight: 11.6 lb.
• Input and Output Connections: 3/8 “ Compression Fitting

Maximum Ratings

• Pressure: 150 Psi
• Collector Temperature: 203 ºF
• Mounting Surface Unevenness: ¼ Inch (corner to corner)

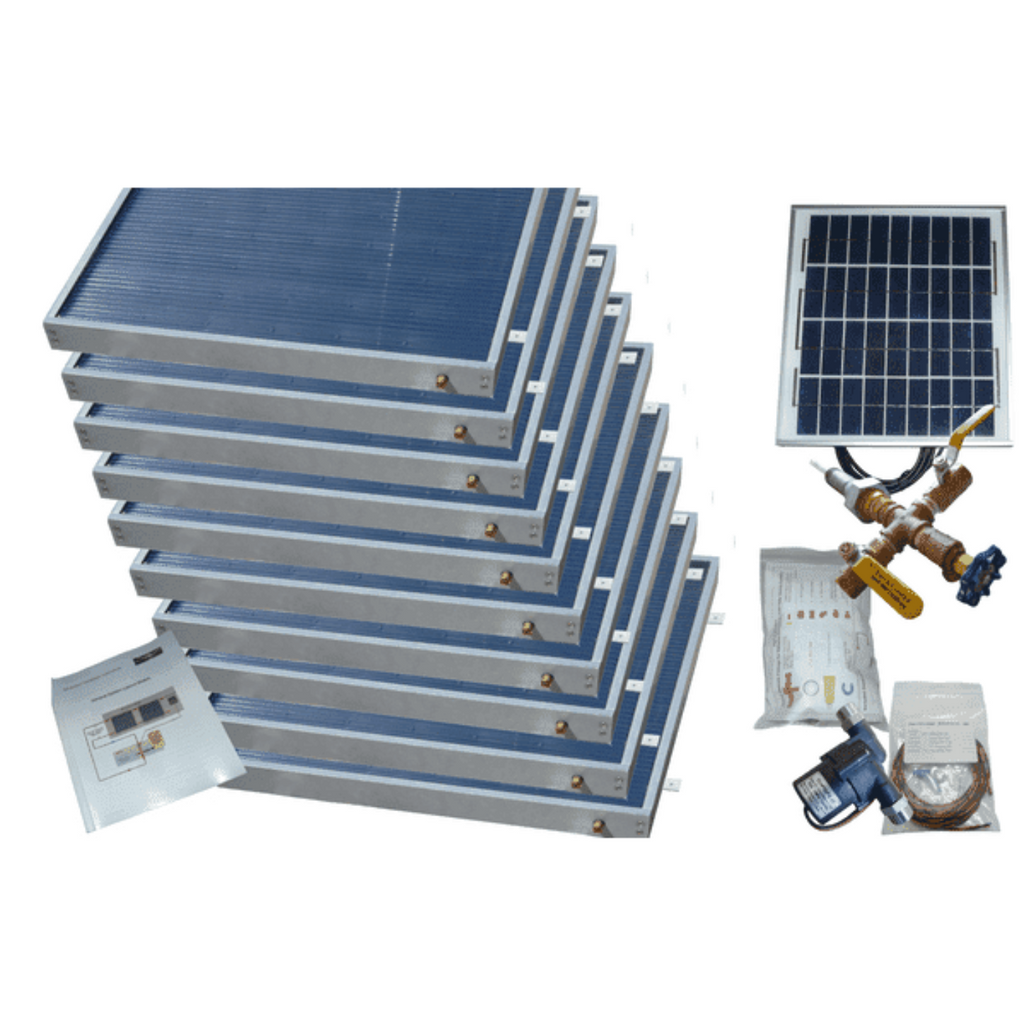

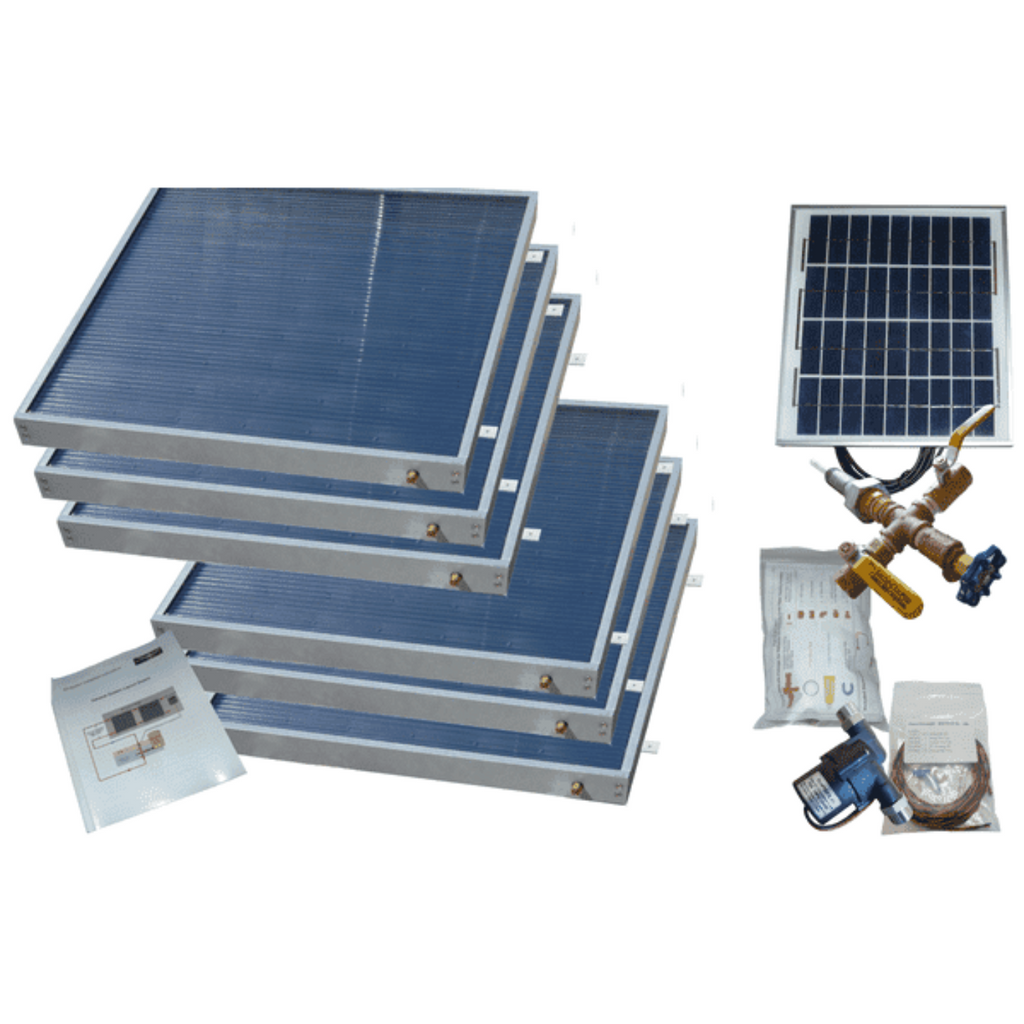

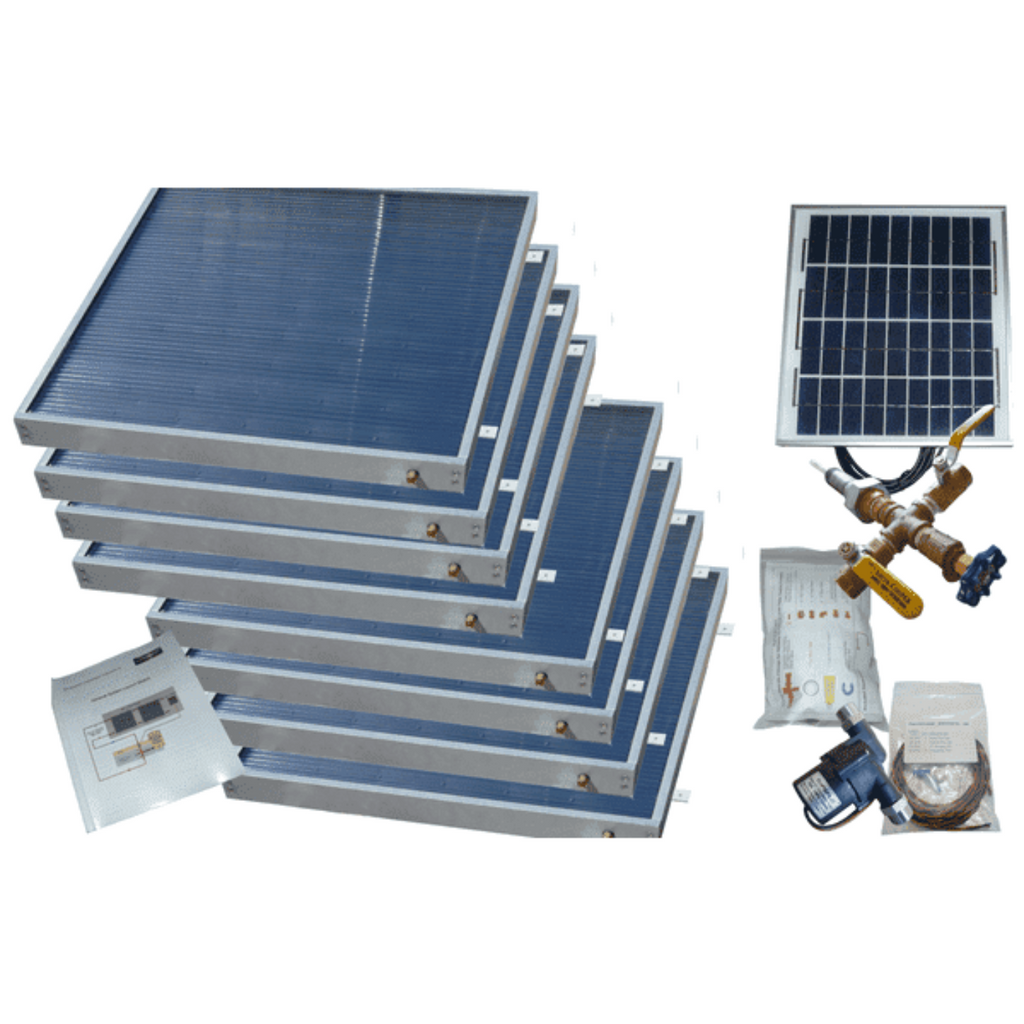

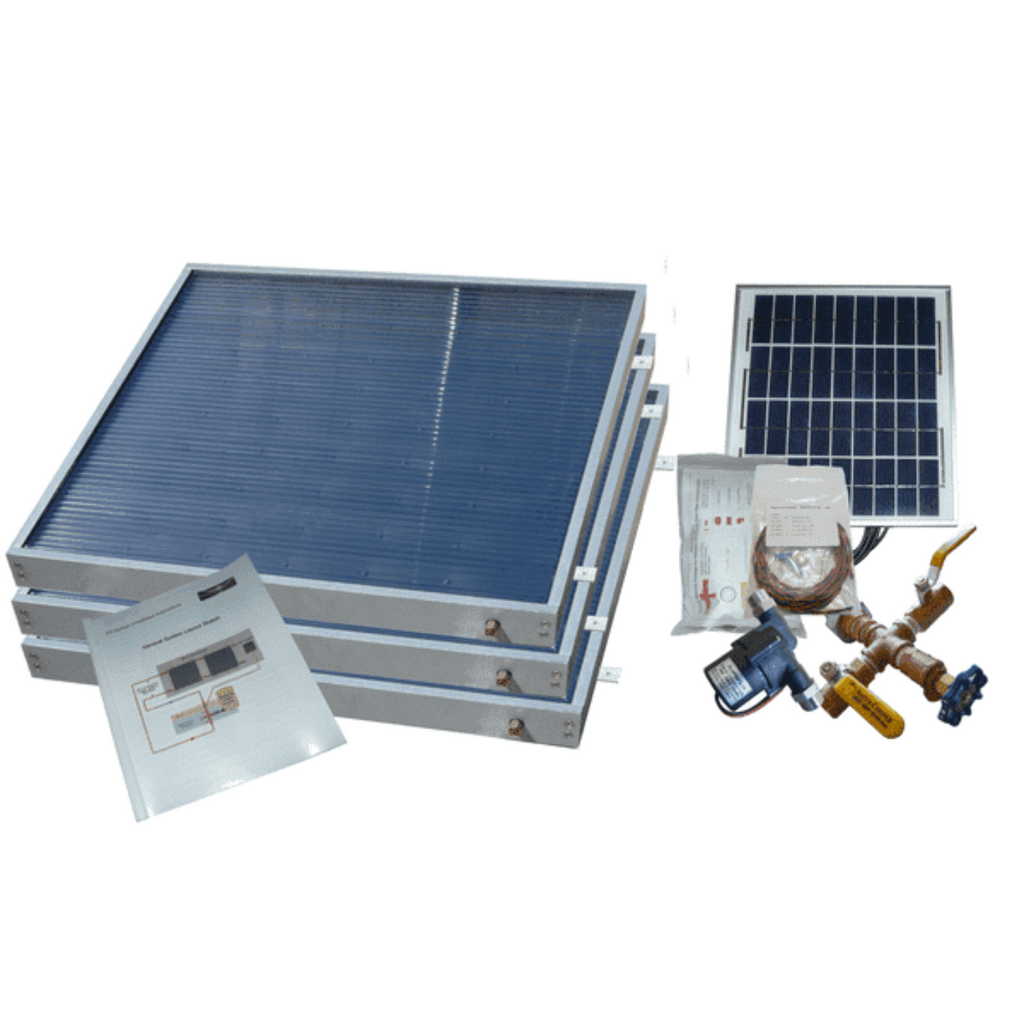

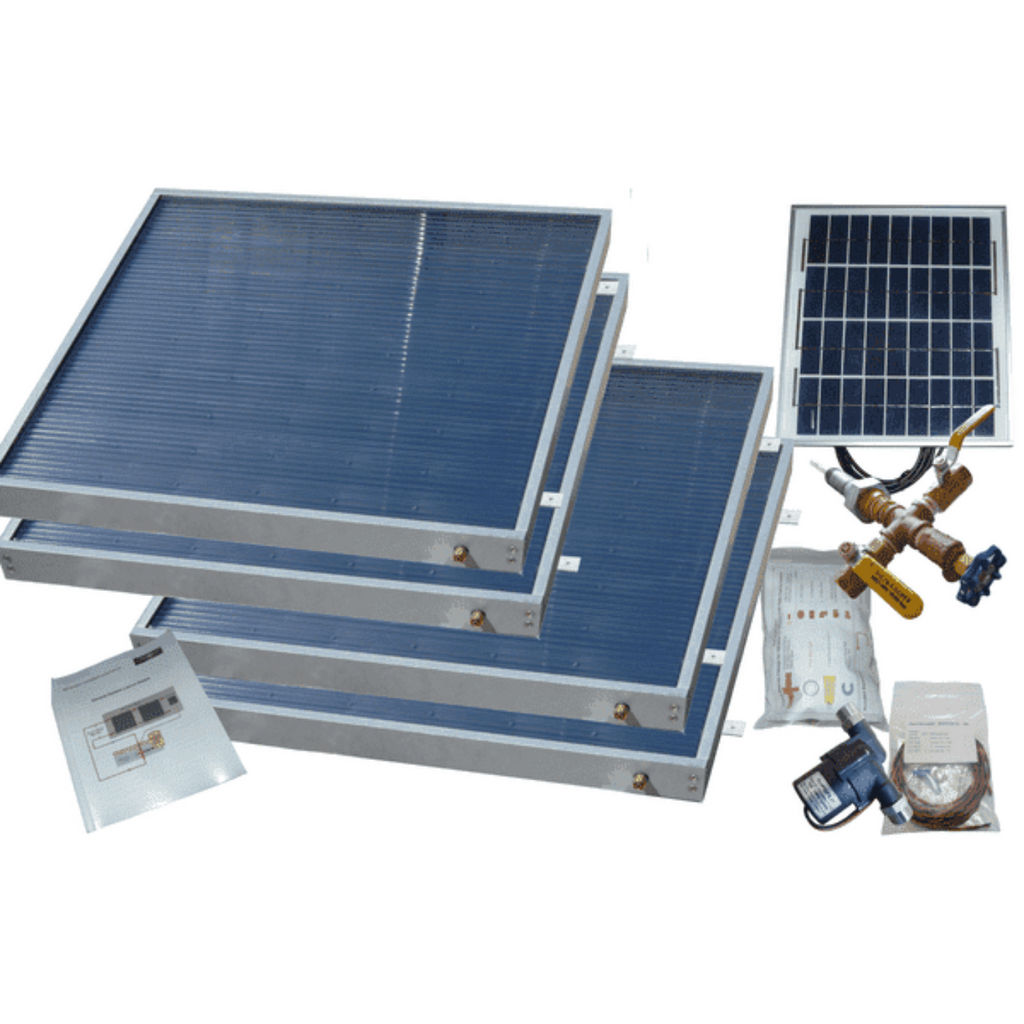

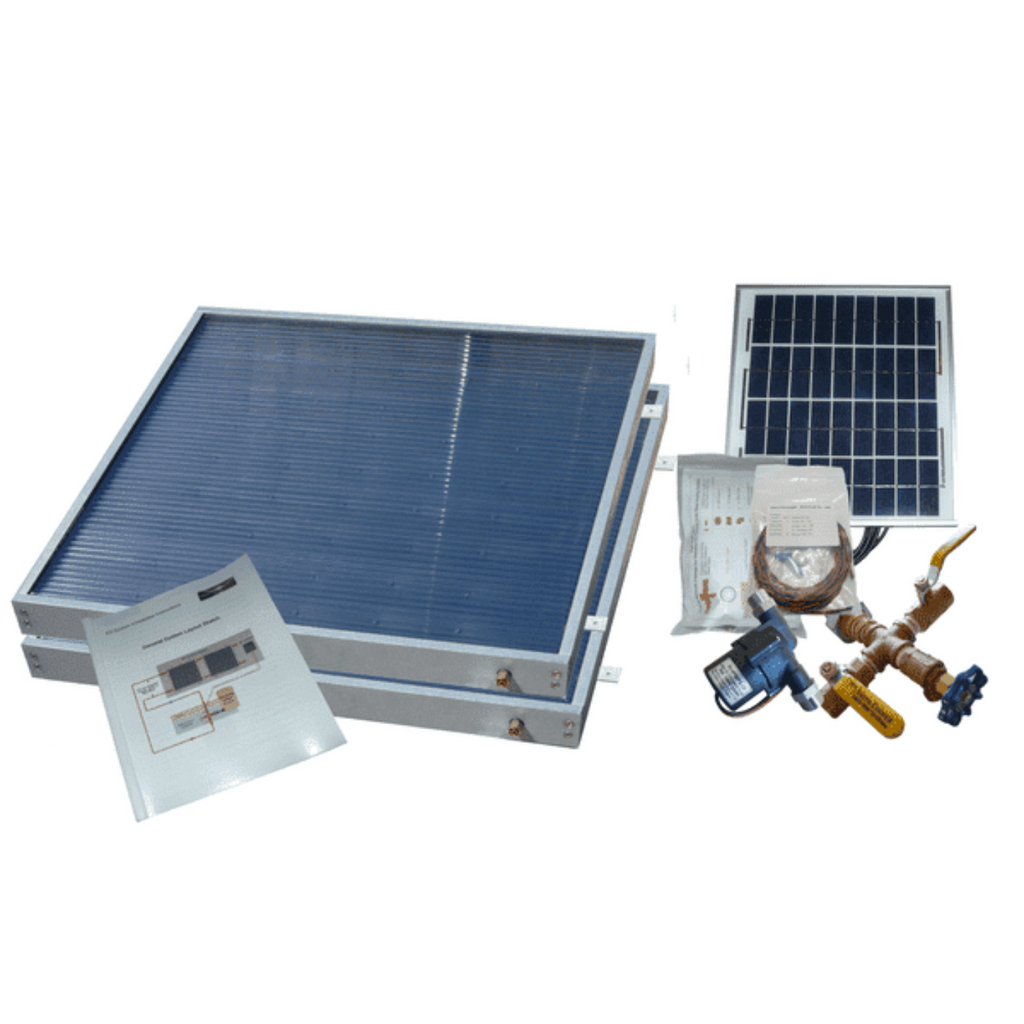

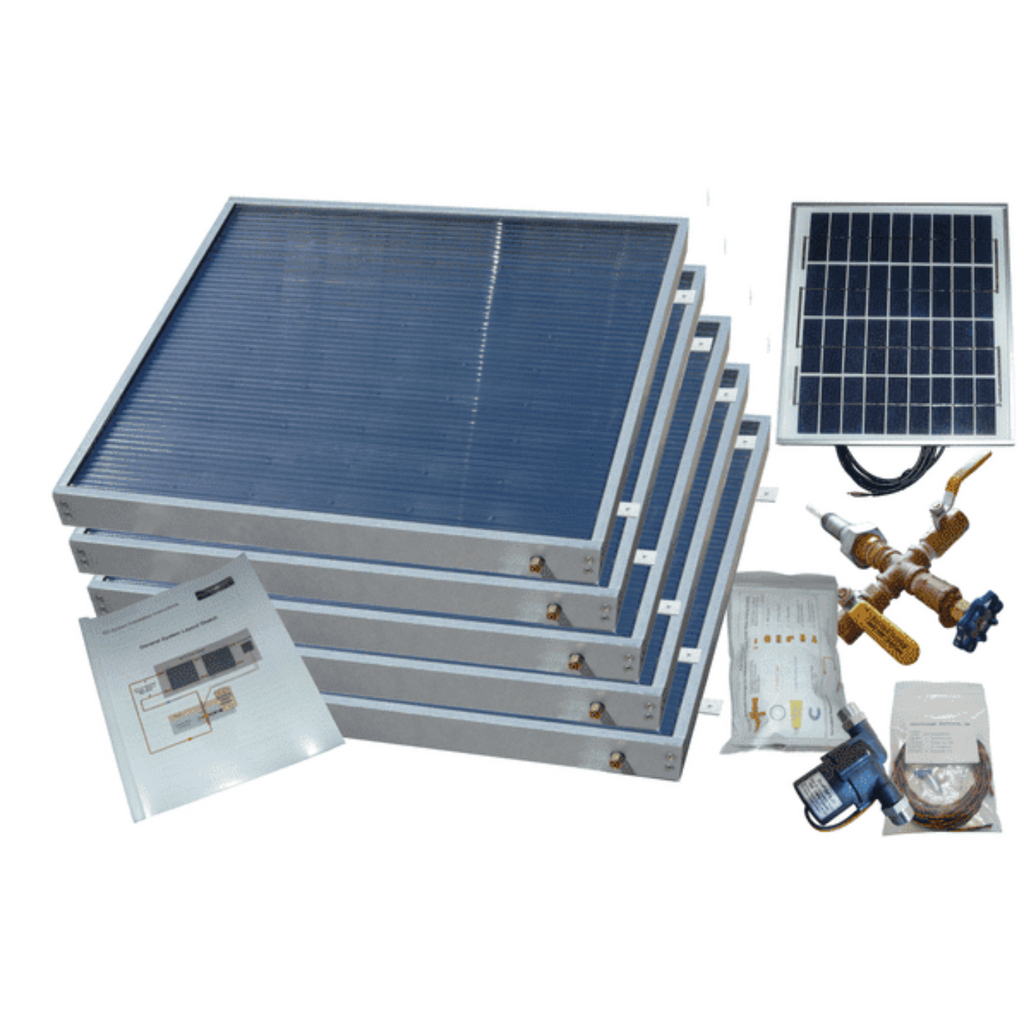

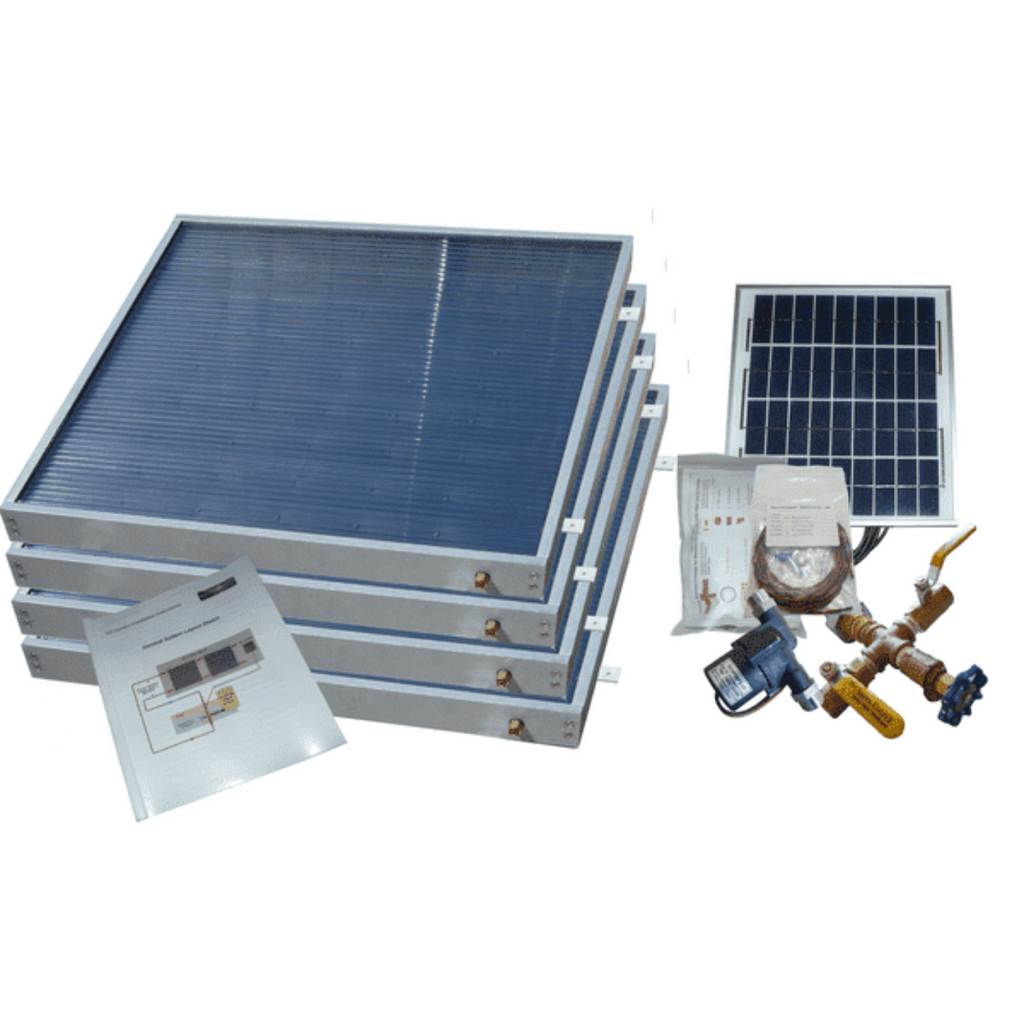

In the Box

• Your selected quantity of SW-38 Solar Water Heating Panels
• ALL the fittings and adapters you need
• 1 Bottom Feed Connector
• 1 TopsFlo TD5 stainless steel pump

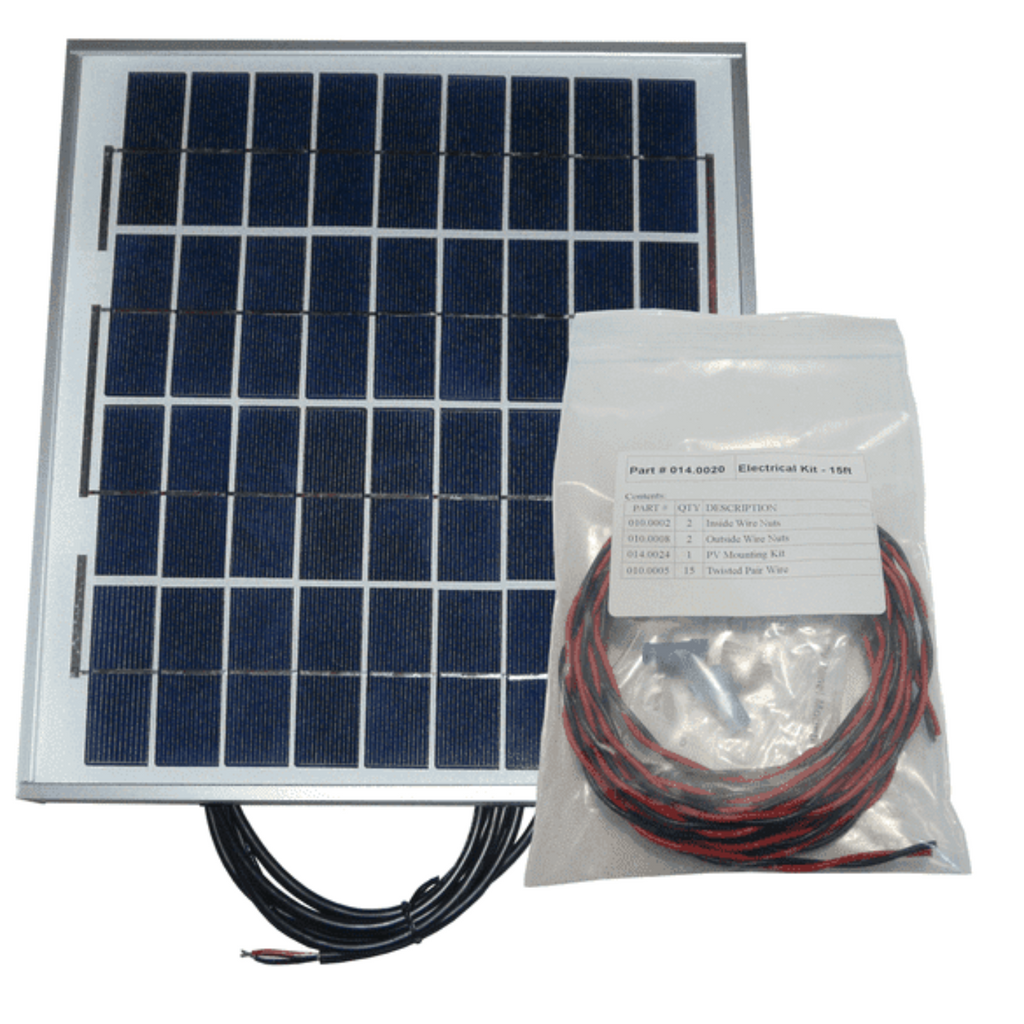

• 1 10W PV Panel including wire and PV mounting kit

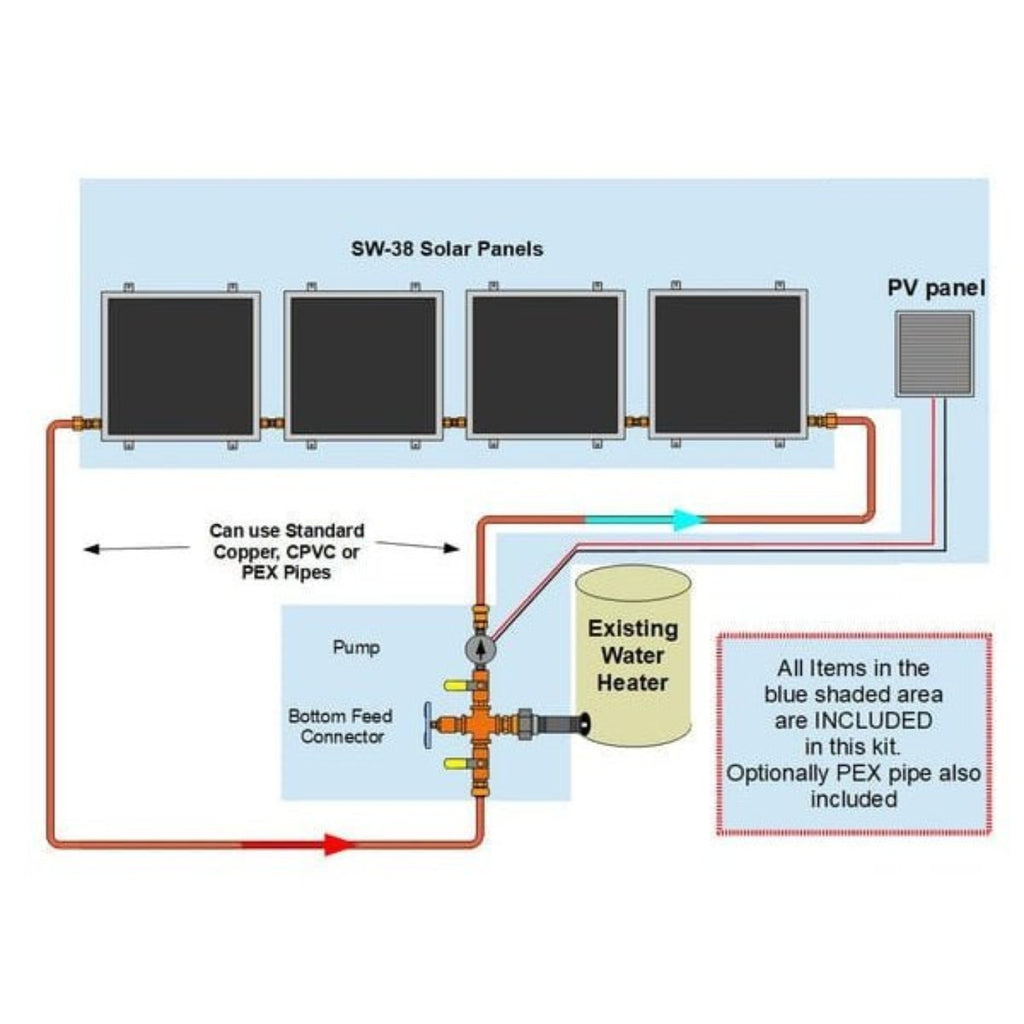

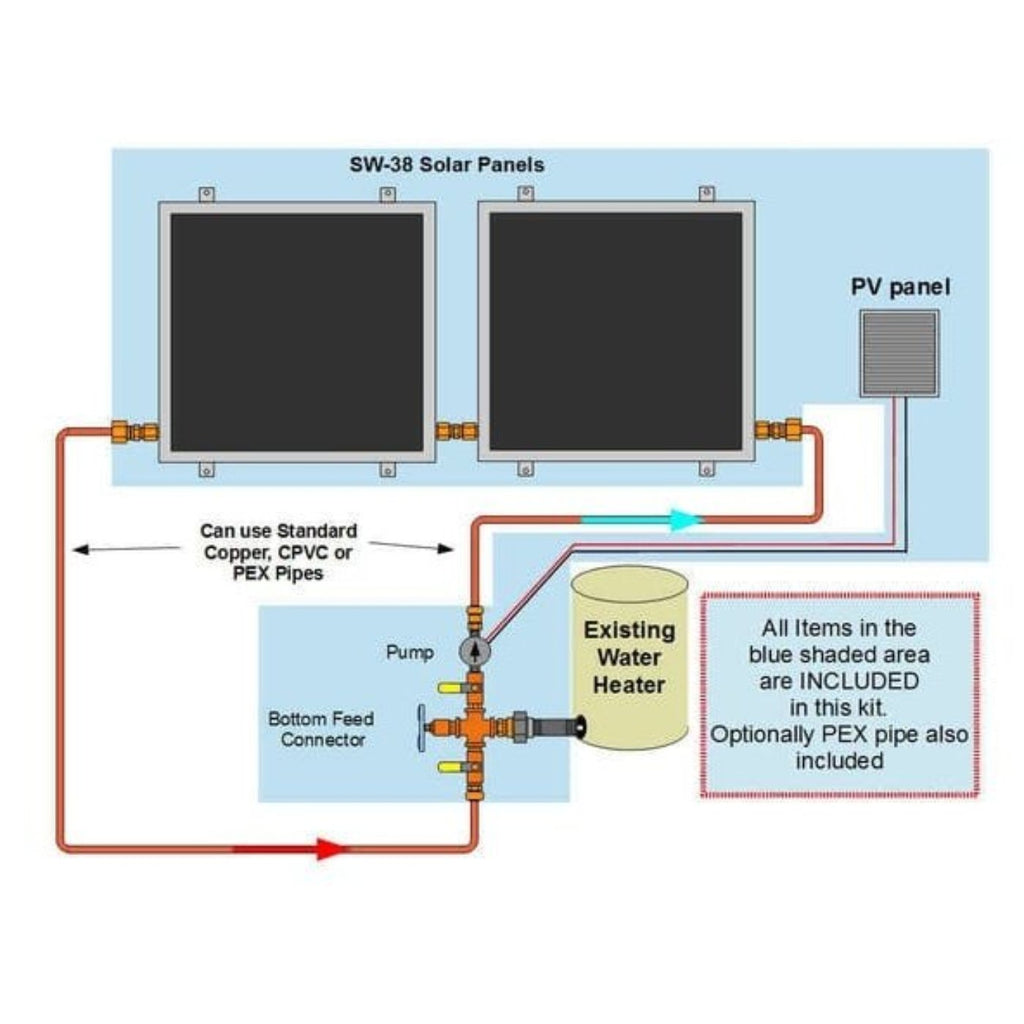

• Instructions for Installation - Single Row

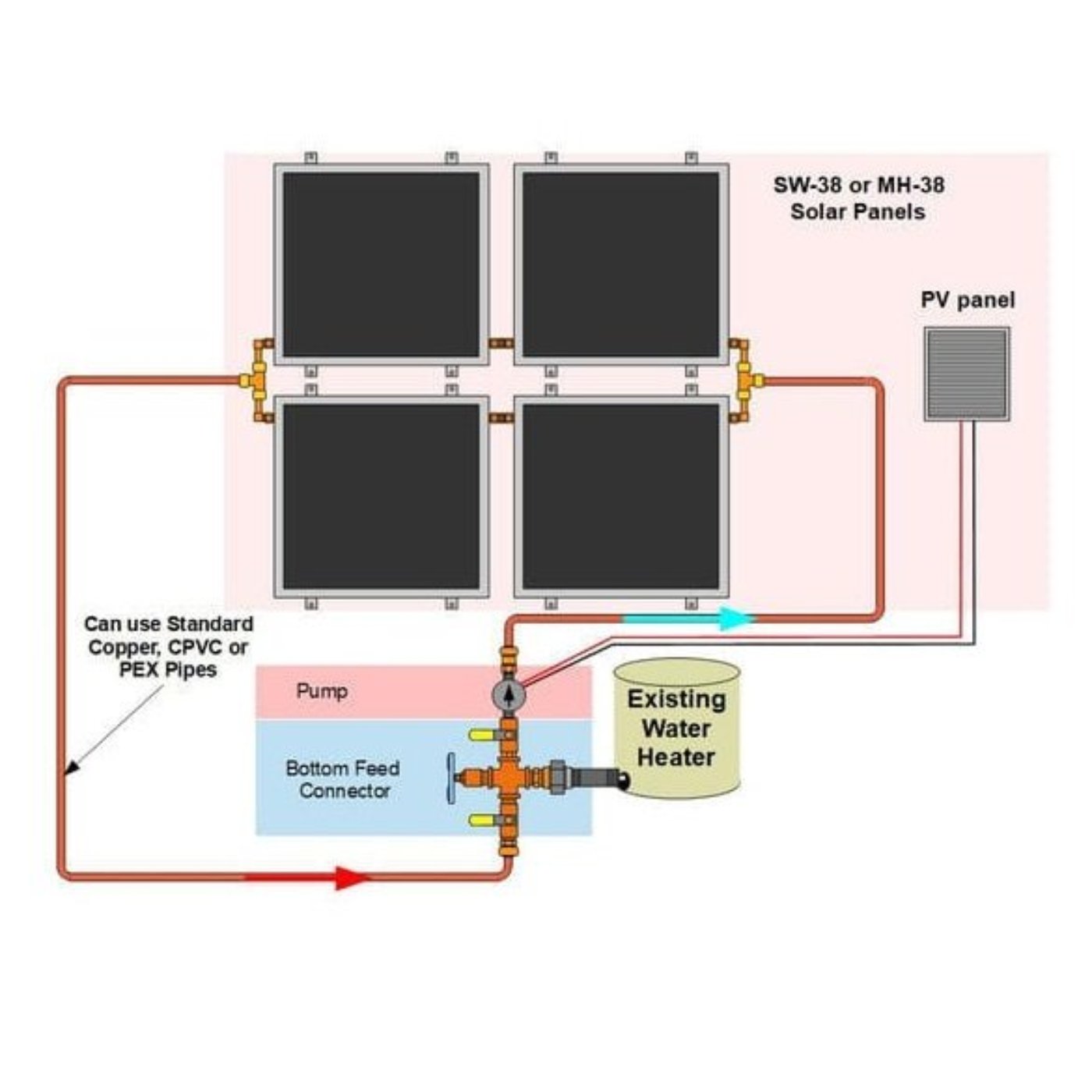

• Instructions for Installation - Double Row

Video

Manual

• Instructions Installation For Single Row

• Instructions Installation For Double Row

What Our Experts Think

• Energy Efficient: The Heliatos Standard Solar Water Heater Kit harnesses solar energy to heat water efficiently, offering an eco-friendly and cost-effective alternative to traditional energy sources like electricity or gas.
• Durable & Long-Lasting: Made from high-quality materials, this kit is designed to endure various weather conditions, ensuring durability and reliable performance for years.
• Easy Installation: The kit is designed for straightforward installation, making it accessible for homeowners and DIY enthusiasts looking to reduce their energy consumption.
• Low Maintenance: With minimal upkeep required, this system offers a hassle-free way to enjoy hot water without the worry of constant repairs or service.
• Versatile Application: Perfect for homes, cabins, or outdoor areas, the Standard Solar Water Heater Kit is ideal for anyone looking to reduce energy costs while using a renewable energy source.
• Environmentally Friendly: By using solar power, this system reduces your carbon footprint, making it a sustainable choice for eco-conscious individuals.

Q&A

Q: What is the Heliatos Standard Solar Water Heater Kit?
A: The Heliatos Standard Solar Water Heater Kit is an eco-friendly, energy-efficient system designed to provide hot water using solar energy. It is suitable for residential, RV, or outdoor applications and helps reduce energy costs by harnessing the sun’s power.

Q: How does the solar water heater work?
A: The kit uses solar panels to capture sunlight and convert it into heat. This heat is transferred to the water through a heat exchanger, providing a sustainable and reliable hot water supply.

Q: Is this system easy to install?
A: Yes, the Heliatos Standard Solar Water Heater Kit is designed for easy installation. It comes with all necessary components for a simple setup in most residential or outdoor locations.

Q: Can this system be used in colder climates?
A: While the standard model does not include freeze protection, it can be used in mild climates or paired with additional freeze protection features for colder conditions.

Q: What are the benefits of using a solar water heater?
A: Solar water heaters are cost-effective, energy-efficient, and environmentally friendly, helping to lower utility bills while reducing reliance on gas or electricity.

Q: Is the Heliatos Standard Solar Water Heater Kit backed by a warranty?
A: Yes, the kit comes with a warranty, ensuring durable performance and long-lasting use.

Maintenance Tips

• Regular Inspections:

  • Check the solar panels, pipes, and all connections for visible wear, cracks, or leaks. Address any issues promptly to maintain system efficiency and prevent water loss.

• Clean Solar Panels:

  • Clean the panels periodically to remove dust, dirt, or debris that may block sunlight. Use a soft cloth, mild soap, and water to avoid scratching or damaging the surface of the panels.

• Flush the System Annually:

  • Flush the system once a year to remove any sediment, mineral buildup, or debris from the heat exchanger and pipes. This helps maintain optimal performance and prevents blockages.

• Monitor Fluid Levels:

  • Check the levels of any antifreeze or solar fluid used in the system. Top off or replace the fluid as necessary to ensure optimal performance and freeze protection in colder months.

• Inspect for Leaks:

  • Regularly inspect the system for leaks around pipes, fittings, and seals. Tighten or replace damaged components to prevent water loss and maintain the system's integrity.

• Ensure Proper Drainage:

  • Ensure that the system has adequate drainage to prevent water from accumulating in the pipes or heat exchanger, which can cause blockages or damage.

• Protect Against Corrosion:

  • Inspect metal components for signs of corrosion, especially in areas exposed to moisture. Apply anti-corrosion treatments or protective coatings to extend the life of the system.

• Winterize the System:

  • If the system will not be used during the winter, properly winterize it to prevent freezing. Drain the system and check freeze protection fluid levels to ensure there is no water left in the pipes or heat exchanger that could freeze.
