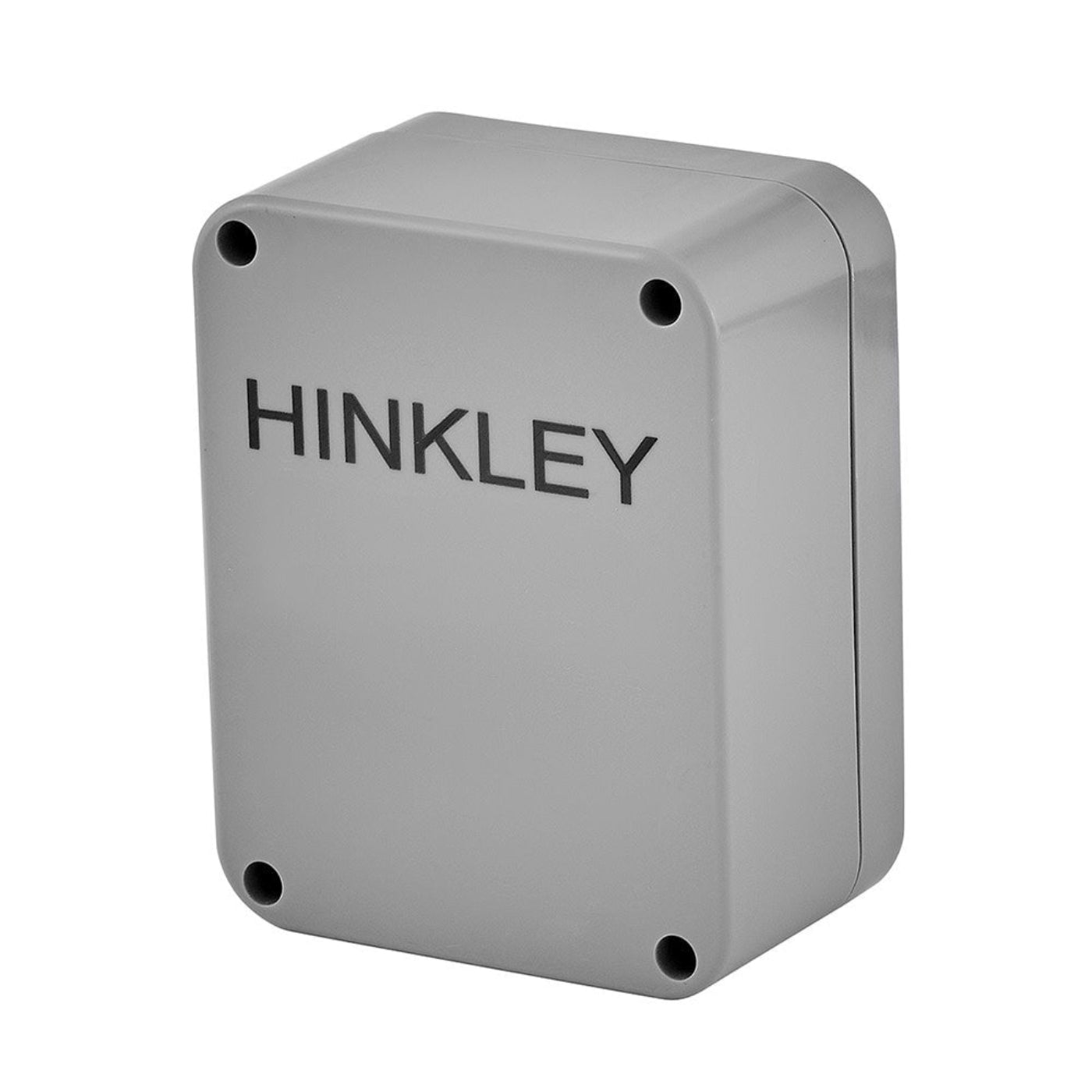

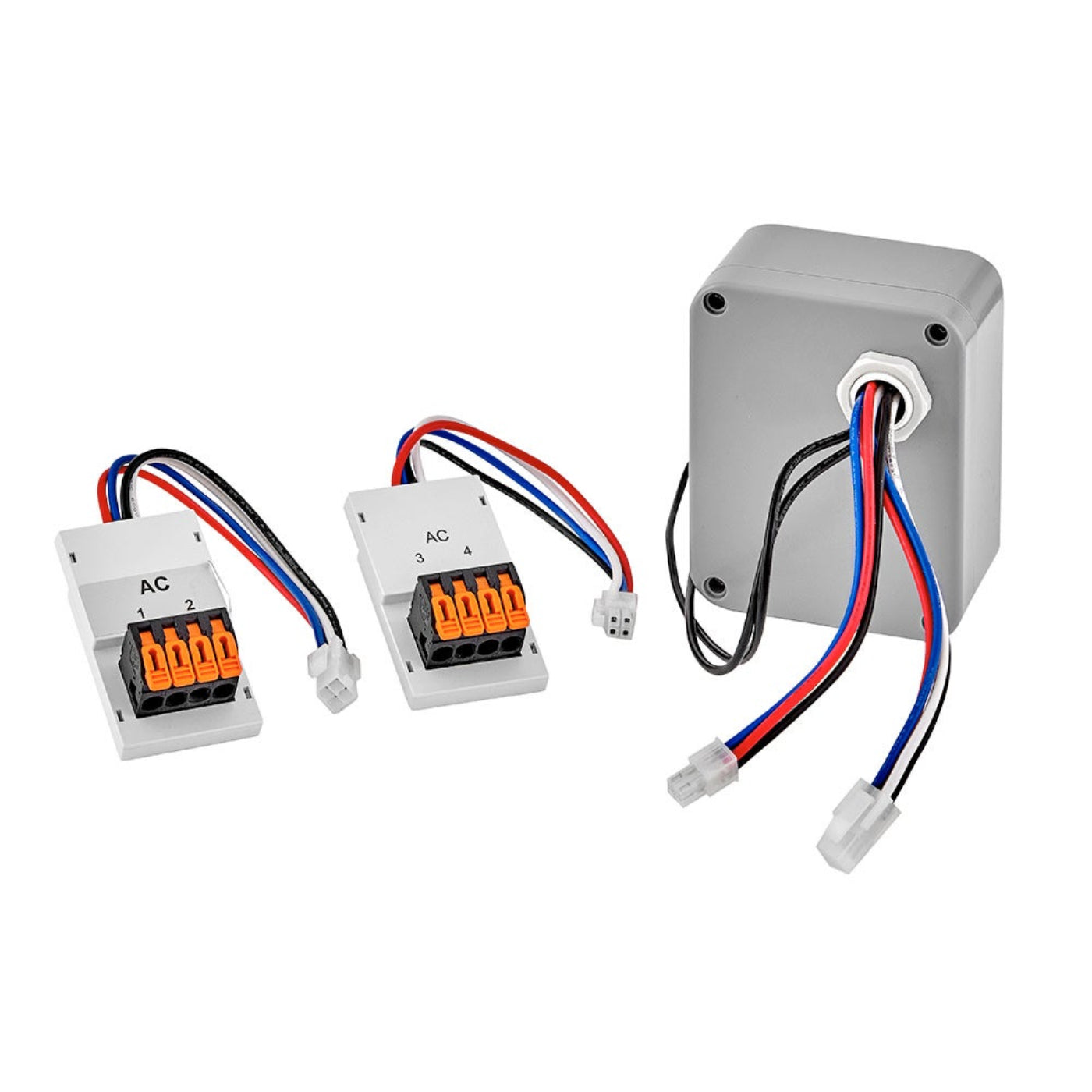

Hinkley Wireless Smart Landscape Control + Dimmer - 0300WLC
The Hinkley Wireless Smart Landscape Control and Dimmer easily fits onto any Hinkley Pro Series Transformer while remaining fully enclosed and protected against the elements. Control two dimmable and two switching lighting zones to create customized lighting patterns for exterior spaces and landscaping. Hinkley Controllers are compatible with Variable Output LumaCORE™ Lighting Systems on the switching zones only.
Features
- 600w or larger transformers can use multiple controllers.
- Wet Rated; Suitable for outdoor settings
- Pro Series Transformers carry a lifetime warranty
- The Hinkley App reports loading per zone and total load and can control digital trim at high and low ranges.
- 12V systems with LED bulbs consume less energy leading to lower electricity bills and a reduced carbon footprint

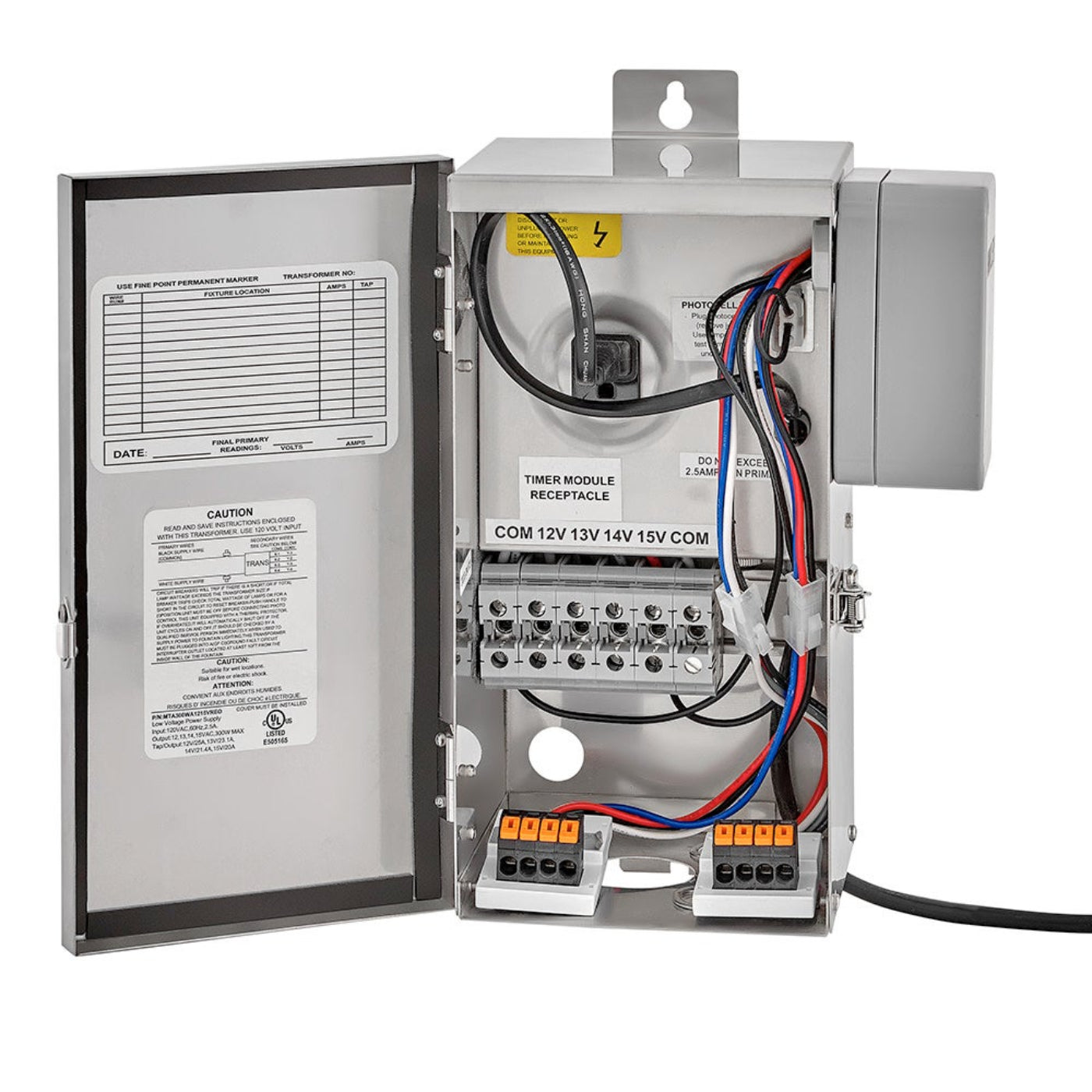

- Wireless landscape controller mounts to the side of any Hinkley Pro Series Transformer
- Flicker-free dimming, including low levels
- High quality composite resists rust, corrosion, and fading – ideal for harsh weather conditions
- 300w limit for all four zones
- Two independent switching zones (100w each)
- Low-voltage 300W controller, powered by the transformer output tap, consumes 10% of transformer power (270W max output on 300W transformer)
- Each zone supports a pair of 10AWG hookup wires.
- Control your landscape lighting from anywhere with the Hinkley Home Automation app
- Set programs, timers, and schedules to create the perfect atmosphere throughout the day. Zones can be combined on the same schedule in the app.
- Compatible with smart home networks, including Amazon Alexa and Google Home, controlled via 2.4 GHz WiFi connection.
- Two independent dimming zones (75w each)
Specifications
| Finish |
Light Gray |
| Material |
Composite |
| Voltage |
12V |
| Transformer Required |
Yes |
| Dimmable |
Does Not Apply |
| Width |
3.5 in |
| Height |
4.5 in |
| Length |
3.25 in |
| Depth |
3.25 in |
| Leadwire |
1 × 10 in |
| Weight |
3.5 lb |
| UPC Code |
640665929256 |
| Overall Height |
16-3/4” |
| Overall Width |
20-1/2” |
| Overall Depth |
12” |
| Overall Base Size |
9-1/4” x 6-3/4” |
| Dust Ports |
1@1-3/4", 1@1-1/2" |
| Overall Net Weight |
30.2 lbs. |
Product Files
Click for Hinkley-0300WLC - Base Spec Sheet PDF
Click for Hinkley-0300WLC - Detailed Spec Sheet PDF
Click for Hinkley-0300WLC - Instruction Sheet PDF
What our Experts Think
-
Smart Landscape Lighting Control: Manage and dim outdoor lighting zones remotely using the Hinkley Home Automation App.
-
Wireless Smart Integration: Compatible with Amazon Alexa and Google Home, enabling voice and app-based control.
-
Multi-Zone Flexibility: Controls two dimming zones (75W each) and two switching zones (100W each) for customized landscape lighting layouts.
-
300W Total Power Capacity: Supports multiple lighting circuits for larger landscape lighting systems.
-
Flicker-Free Dimming: Smooth brightness control even at low levels for perfect outdoor ambiance.
-
Weather-Resistant Construction: Wet-rated composite housing designed to withstand outdoor conditions.
-
Easy Transformer Mounting: Installs directly on compatible Hinkley Pro Series transformers for simple setup
Q&A
Q: What is the Hinkley 0300WLC?
A: It’s a wireless smart controller and dimmer designed to manage low-voltage landscape lighting systems through a compatible transformer.
Q: What are the key features?
A: It supports up to 300W total load, includes two dimming zones (75W each) and two switching zones (100W each), allowing customized outdoor lighting control.
Q: Can it be controlled remotely?
A: Yes, it connects to the Hinkley Home Automation App, letting you turn lights on/off, dim them, and set schedules or timers from anywhere.
Q: Is it compatible with smart home systems?
A: Yes, it integrates with Amazon Alexa and Google Home via a 2.4 GHz Wi-Fi connection.
Q: Is it suitable for outdoor environments?
A: Yes, the controller is wet-rated and built with durable composite materials that resist rust, corrosion, and weather exposure.
Q: How is it installed?
A: It mounts directly to the side of a Hinkley Pro Series transformer and operates on a 12-volt low-voltage lighting system.
Maintenance Tips
-
Keep Housing Clean: Wipe the composite exterior with a soft cloth to remove dirt, dust, and outdoor debris.
-
Inspect Wiring Connections: Periodically check the 10AWG hookup wires and transformer connections to ensure they remain secure.
-
Protect from Moisture Buildup: Although wet-rated, confirm the enclosure and seals remain intact to prevent moisture intrusion.
-
Check App Connectivity: Occasionally verify Wi-Fi connection and firmware updates through the Hinkley Home Automation app for reliable remote control.
-
Load & Zone Monitoring: Review wattage load per zone in the app to avoid exceeding the 300W total capacity.
