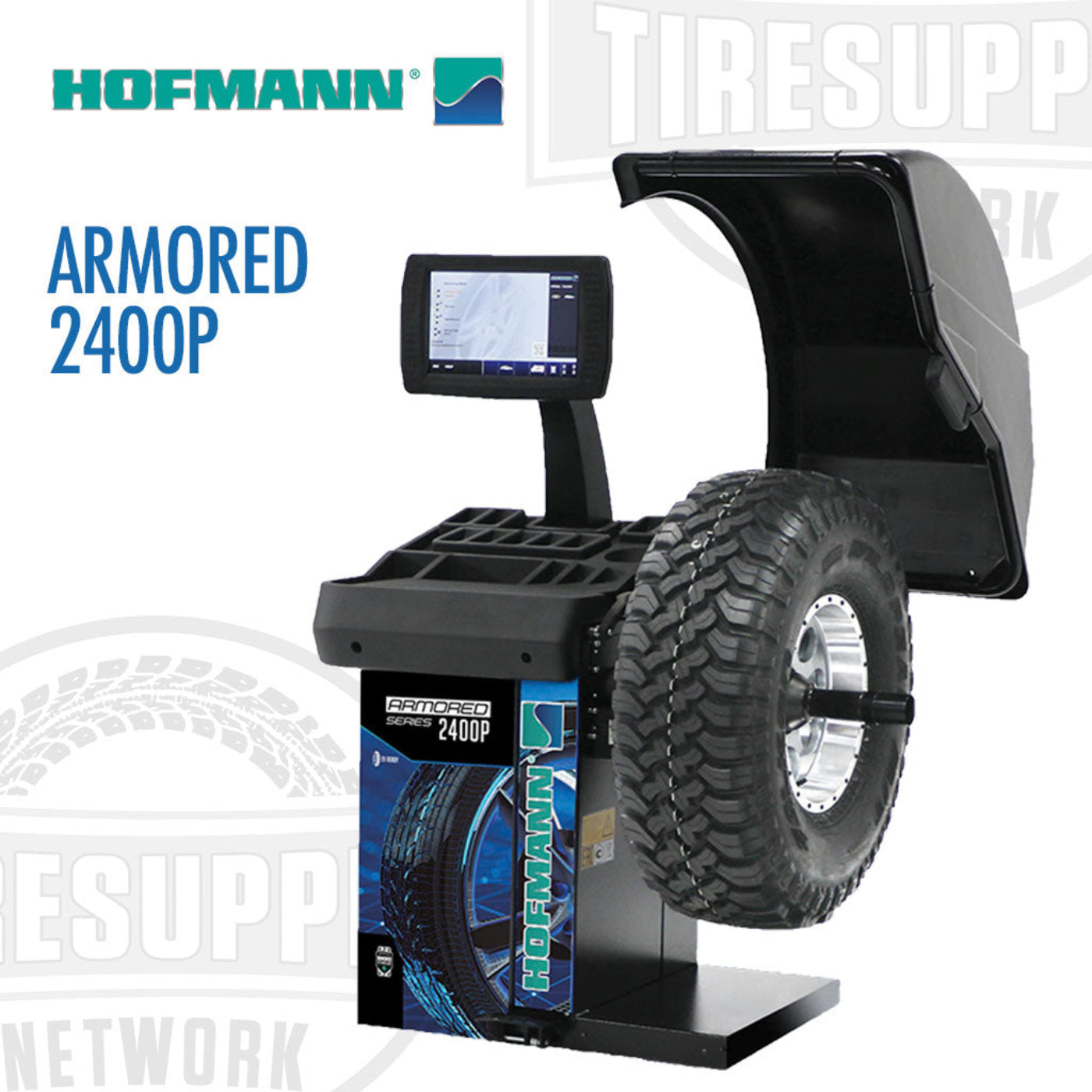

Hofmann | Armored 2400P Wheel Balancer with Touchscreen & Non Contact Data Entry - EEWB784AUA1
Introducing the Armored Series, the ultimate choice for high-throughput shops that demand precision, reliability, and versatility in handling a wide variety of wheels. This robust wheel balancer, constructed with durable, US-made vibratory steel, stands strong in the harshest environments.The Armored Series features a rugged touchscreen with an intuitive, high-resolution user interface. What truly sets the Armored Series apart is its unique ability to streamline shop workflow with a dual-user setting that enables two technicians to switch between saved settings, enhancing efficiency when working with different sets of wheels.Shop owners can also gain valuable insights into performance and service quality through the TSS Info Hub app, which provides a detailed report after each set of wheels is balanced. Elevate your wheel balancing capabilities and ensure unmatched customer satisfaction with our state-of-the-art balancer. The quest for perfect wheel balancing ends here.
Features
|
|
|
Designed for high-volume shops to increase reliability. Developed using forged steel to stand the test of time, regardless of the number of tires balanced each day.
|
Eliminating the need for manual input, this intelligent machine automatically detects wheel dimensions and selects the appropriate balancing mode, weight type, and weight position. This automation accelerates the balancing cycle, reduces operational errors, and enhances efficiency.
|
|
|
A laser scanner automatically detects the number and position of rim spokes, guiding optimal weight placement behind them for precise balancing with split weights.
|
Streamlining weight placement, this precision-focused system eliminates guesswork. It employs a laser to precisely indicate the exact location for weight application, ensuring meticulous balancing and accurate results.
|
|
|
|
Optimize balancing wheels, including EV, with the latest technology and precise engineering.
|
Optimizes the assembly of the tire onto the rim, reducing the need for excessive weight addition.
|
|
|

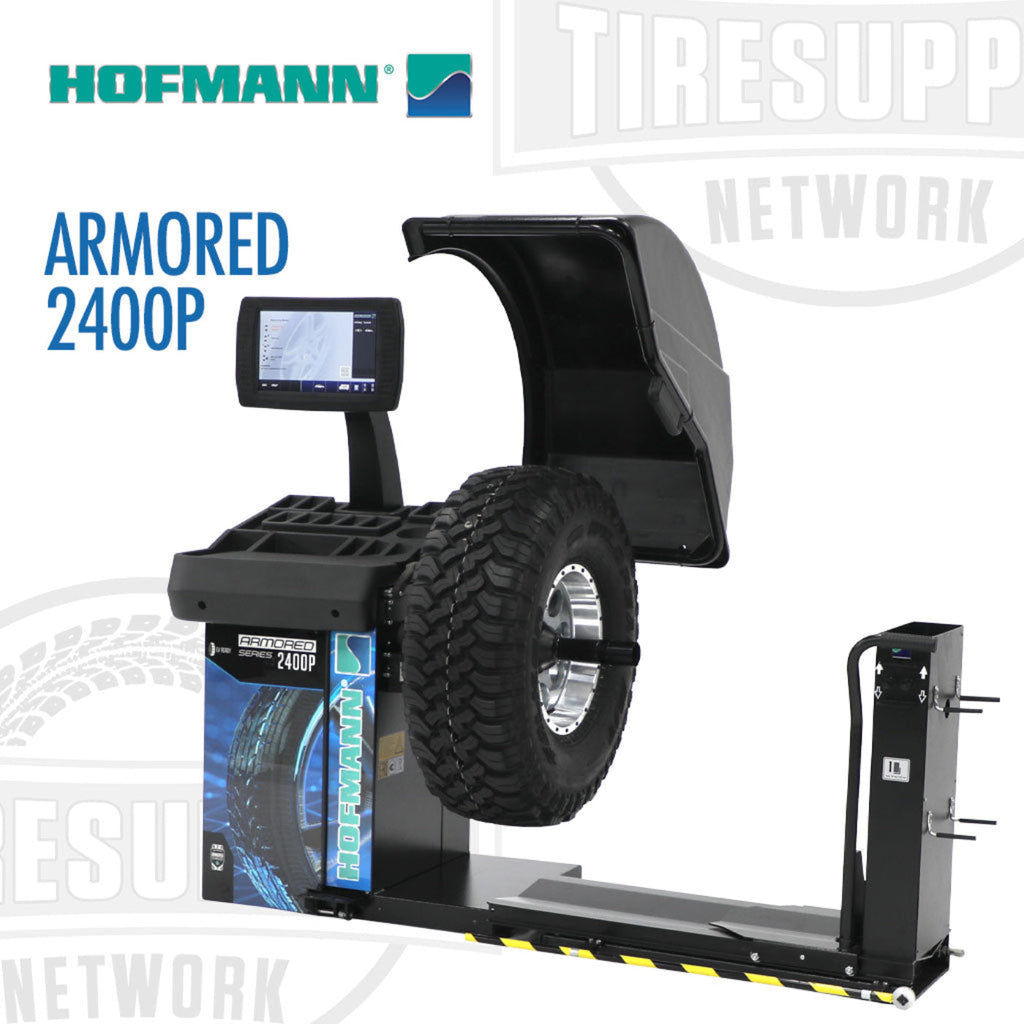

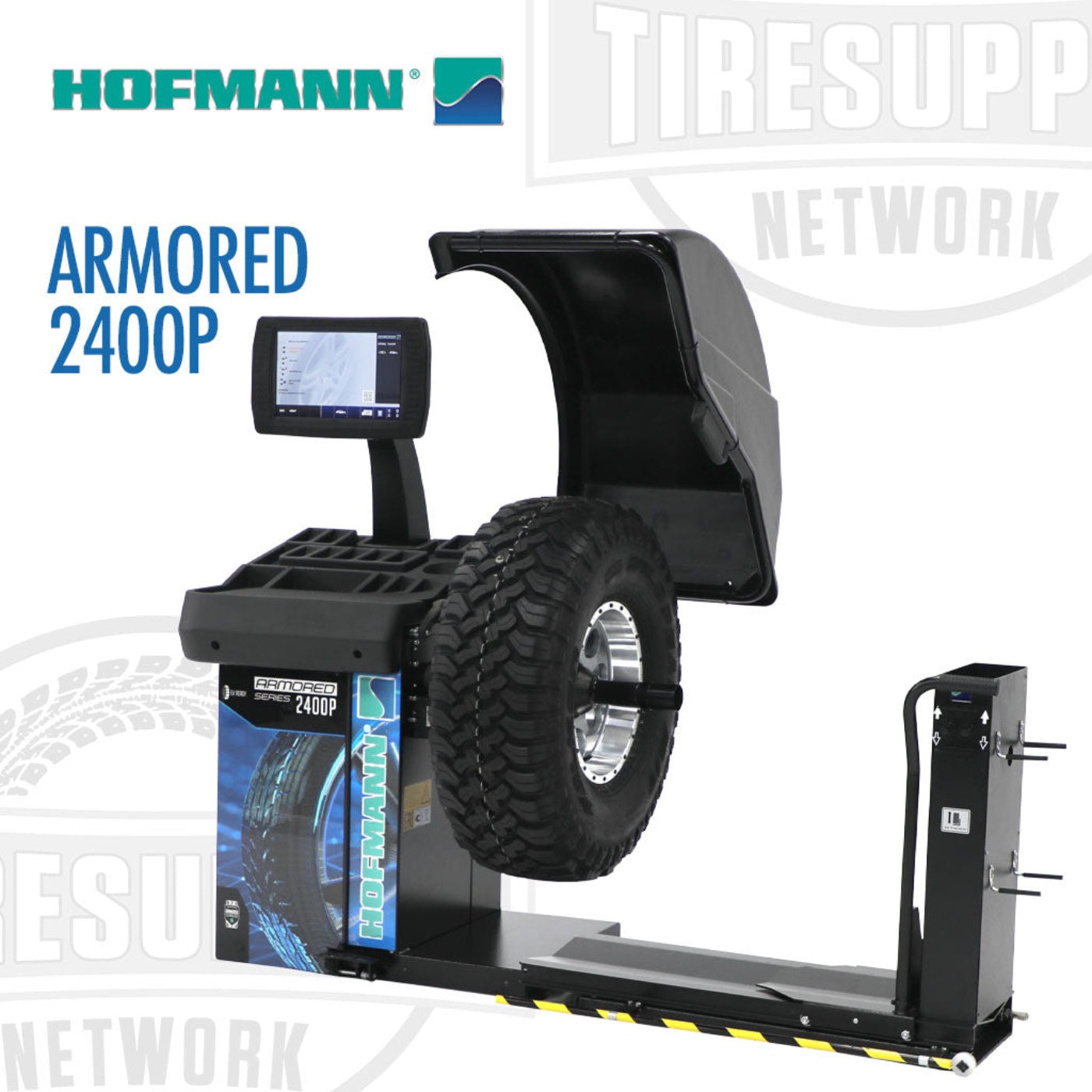

Robust and reliable, the optional heavy-duty wheel lift provides easy and fast handling of wheels up to 154 lbs. (70kg).
|
This balancer utilizes advanced electromechanical technology incorporating a power clamping device that consistently and reliably secures the wheel with a constant force, ensuring exceptional accuracy and repeatable results every time.
|
|
|
|
Engineered for optimal performance, this feature intelligently adjusts the number of revolutions according to each wheel's specifications. Operating at maximum speed, it effectively reduces cycle time, delivering swift and efficient results.
|
Equipped with a powerful LED lighting system, this balancer ensures optimal illumination of the rim. This feature aids in rim cleaning and significantly assists in the precise positioning of weights, ensuring a seamless balancing process.
|
|
|
|
Boasting a rapid and intuitive interface, this system incorporates a large touchscreen display with easy-to-read large digits. Additionally, colored weight position indicators enhance speed, ease of use, and overall ergonomics, facilitating daily operations.
|
This system facilitates data entry with a user-friendly gauge arm, easyALU™, assisted rim measurement technology. Technicians touch the rim with the gauge arm, and the system automatically enters the rim dimensions and selects the appropriate weight-balancing mode.
|
|
|
|
This intelligent system utilizes sonar sensors to automatically detect the rim width, eliminating the need for manual input and reducing the possibility of errors. By streamlining the process, it enhances efficiency and accuracy.
|
This feature ensures accurate balancing and discreet weight concealment behind spokes, maintaining the wheel’s aesthetic appeal and visual presentation.
|
|
|
|
By simply touching the screen, users can prompt the system to automatically rotate the wheel to the precise position for weight application. This convenient feature streamlines the process and enhances operational efficiency.
|
|
Specifications
| Technical Specs |
Armored 2400P |
| Part Number |
EEWB784AUA1 |
| Automatic Data Entry |
Yes |
| Clamping System |
Power Clamp |
| Wheel Lift |
Optional |
| Report |
Yes |
| Automatic Rim Diameter Range |
14" -26" | 35.5 - 66 cm |
| Automatic Rim Width Range |
3" -15" | 7.6 - 38 cm |
| Semi-Automatic Rim Diameter Range |
8" -26" | 20 - 66 cm |
| Semi-Automatic Width Range |
3" - 14" |
7.6 - 38 cm |
| Manual Rim Diameter Range |
8" - 32" | 20 - 81 cm |
| Manual Rim Width Range |
1" - 20" | 2.5 - 51 cm |
| Max Wheel Diameter |
44" | 111.7 cm |
| Max Wheel Weight |
154 lbs | 70 kg |
| Power Supply |
115V 1Ph 60Hz |
| Dimensions H x W x L |
75" x 39" x 53" | 190 x 100 x 135 cm |
What Our Experts Think
-
Precision & Speed – Features non-contact data entry for highly accurate wheel balancing in seconds.
-
Touchscreen Interface – User-friendly touchscreen simplifies operation, making it ideal for busy tire shops.
-
Durable & Robust – Designed for high-volume use, built to withstand heavy-duty environments.
-
Efficient & Versatile – Quickly balances a wide range of wheel sizes and types with exceptional accuracy.
-
Professional Grade – Perfect for automotive service centers and high-demand tire shops.
Q&A
Q: What is the Hofmann Armored 2400P Wheel Balancer?
A: A heavy-duty wheel balancer featuring a touchscreen interface and non-contact data entry for precise, efficient balancing of passenger and light truck wheels.
Q: What makes it stand out?
A: The non-contact data entry system speeds up the process by automatically detecting wheel dimensions, ensuring faster and more accurate balancing.
Q: What types of wheels can it balance?
A: It balances passenger and light truck wheels, offering versatility for various vehicles in a high-performance workshop.
Q: How does the touchscreen improve operation?
A: The user-friendly touchscreen allows for quick adjustments and easy navigation, reducing setup time and making the balancer more efficient.
Q: Is it easy to use?
A: Yes, it has an intuitive interface and automatic measurement, making it simple to operate even in busy environments.
Maintenance Tips
-
Clean Touchscreen & Sensors – Wipe regularly with a microfiber cloth to ensure accurate data entry and clear display.
-
Calibrate Periodically – Follow the manufacturer’s guidelines for calibration to maintain accuracy.
-
Inspect Clamps & Attachments – Check for wear and securely fasten components for optimal performance.
-
Lubricate Moving Parts – Use recommended lubricants to reduce friction and prevent wear on moving components.
-
Update Software – Keep the system’s software and firmware up to date to ensure peak functionality.
-
Power Protection – Utilize a surge protector to avoid electrical damage and ensure reliable operation.
