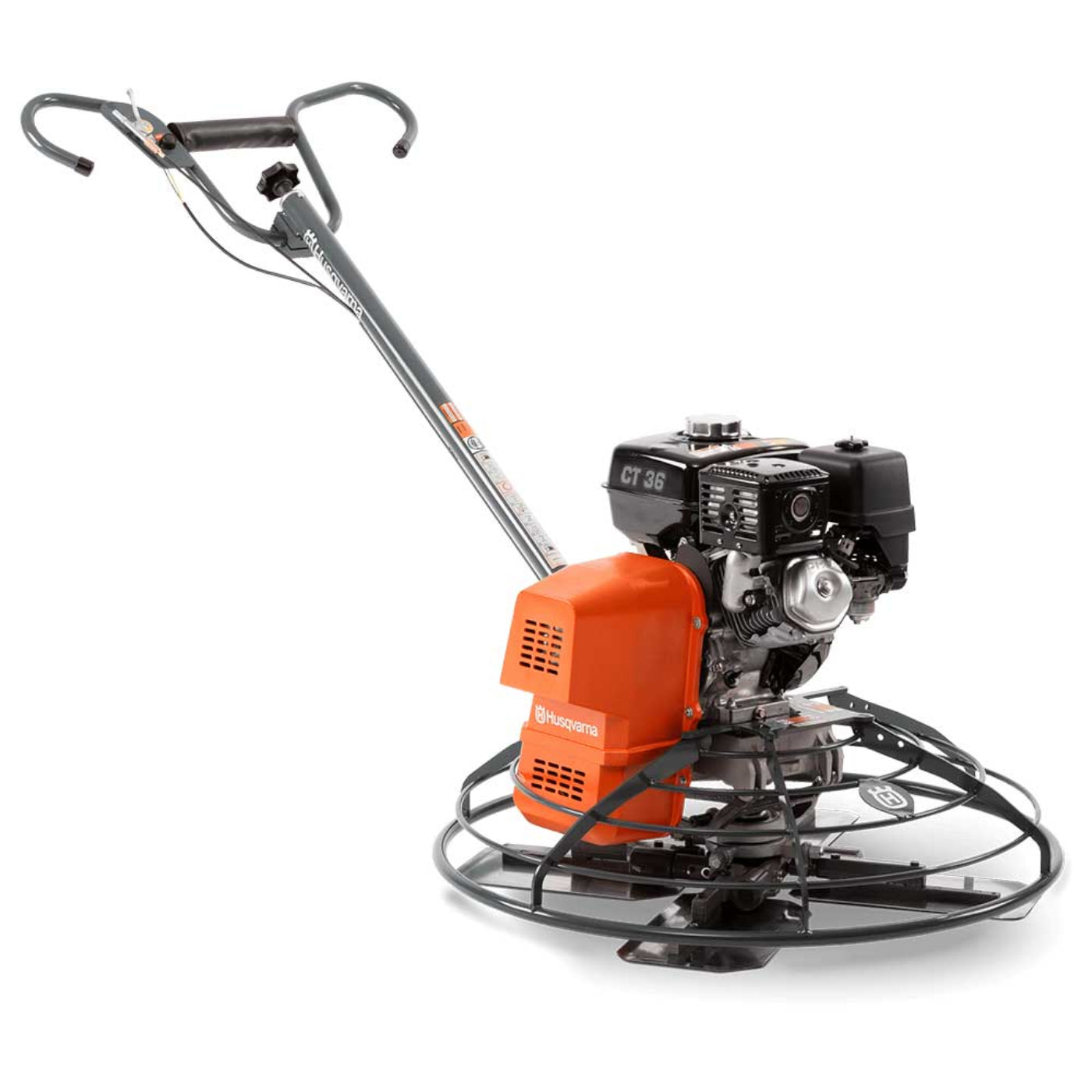

Husqvarna CT 36 Series Walk-Behind Trowels - 970465503
The models of the Husqvarna CT 36 walk-behind trowels feature a trowel diameter of 36 inches and are ideal for finishing medium-sized areas. The trowels are optimally balanced, therefore they can be effortlessly controlled in the wide range of speeds. The transmission brake, electronic safety switch and engine speed sensor offer additional triple protection for the user. In an emergency situation the device will simply switch off and the handle will come to a stand-still after no more than a three-quarter turn. Furthermore, the unit will only start if the throttle lever is set to zero. This prevents an inadvertent rotation of the handle on start-up.
Features
- Perfect for finishing medium-sized areas
- Patented dynamically balanced trowels (when blades are turning) gives the same performance at all speeds with all types of blades including float pans
- Different engine options provide versatility to meet individual preferences and job site conditions
- Low speeds for floating, high speeds for burnishing
- For wider speed range choose our models equipped with CVT clutch (CT-36-8-V)
- Possible to adjust blade pitch up to 30°
- Gyroscopic safety sensor and engine speed limiter provide operator protection by stopping handle rotation within three-quarters turn
Specifications
| Model |
CT 36-5A |
CT 36-8-V |
| Engine |
Honda GX160 |
Honda GX240 |
Operating Performance
(SAE J1349) |
4.8 hp (3.6 kW) |
7.1 hp (5.3 kW) |
| Troweling Diameter |
36" (914 mm) |
36" (914 mm) |
| Pitch Range |
0-30 |
0-30 |
| Rotor Speed (min/max) |
60/125 |
25/200 |
| Quantity of Blades |
4 |
4 |
| Dimensions |
60.9" x 24" x 41"
(1,547 x 610 x 1,041 mm) |
79" x 36" x 41"
(2,006 x 914 x 1,041 mm) |
| Weight |
183 lb (83 kg) |
208 lb (94 kg) |
What our Experts Think
-
Smooth, professional concrete finishing
The CT 36 is engineered for precise finishing on medium‑sized slabs, delivering smooth, consistent surfaces from early floating through high‑speed burnishing.
-
Balanced & easy to control
Dynamically balanced trowel heads ensure effortless maneuverability at all speeds, giving operators better control with less fatigue.
-
Versatile speed range
Variable speeds let you float at low rpm and burnish at high rpm, so one machine handles multiple finishing stages.
-
Trusted Honda power
Powered by a Honda GX160 petrol engine (~4.8 hp / 3.6 kW) for consistent performance and reliable start‑ups.
-
Industry‑leading safety features
Triple protection including a transmission brake, electronic safety switch and engine speed sensor automatically stops the handle in emergencies and prevents inadvertent startup.
-
Adjustable ergonomics
The Pro‑Shift adjustable handle allows personalized height and control, improving comfort and accuracy during long finishing runs
Q&A
Q: What is the Husqvarna CT 36 Walk‑Behind Trowel?
A: A professional‑grade walk‑behind concrete finishing machine designed for smoothing and burnishing medium‑sized concrete slabs with consistent, high‑quality results.
Q: What size and coverage does the CT 36 provide?
A: It features a 36 in (915 mm) troweling diameter with 4 blades for efficient surface coverage and faster finishing on slabs.
Q: What engine powers model 970465503?
A: Powered by a Honda GX160 petrol engine (~3.6 kW / 4.8 hp) for reliable performance and steady torque during finishing operations.
Q: What are its key performance features?
A: Balanced trowel design for smooth control at varied speeds, variable speed range for both floating and burnishing, and adjustable blade pitch up to ~30°.
Q: What safety features are included?
A: Includes transmission brake, electronic safety switch, and engine speed sensor that shut down the machine and stop the handle quickly in emergencies.
Q: Where is this trowel best used?
A: Ideal for contractors and builders finishing concrete floors in residential, commercial, or light industrial projects where precision and control matter.
Maintenance Tips
-
Check and tighten all bolts, guards, and safety devices before each use.
-
Inspect and clean the trowel blades regularly; replace worn blades in sets for even finish.
-
Clean debris and concrete buildup after every job to maintain smooth operation.
-
Verify engine oil level and quality; change per Honda engine specs for reliable performance.
-
Check fuel system and air filter; replace filters and use fresh fuel.
-
Test safety systems (transmission brake, stop switch) to ensure proper function.
-
Inspect and adjust blade pitch and linkage as needed for consistent finish.
-
Inspect wheels, handles, and controls for wear; lubricate pivot points.
-
Store in a clean, dry place; drain fuel or add stabilizer for long‑term storage.
