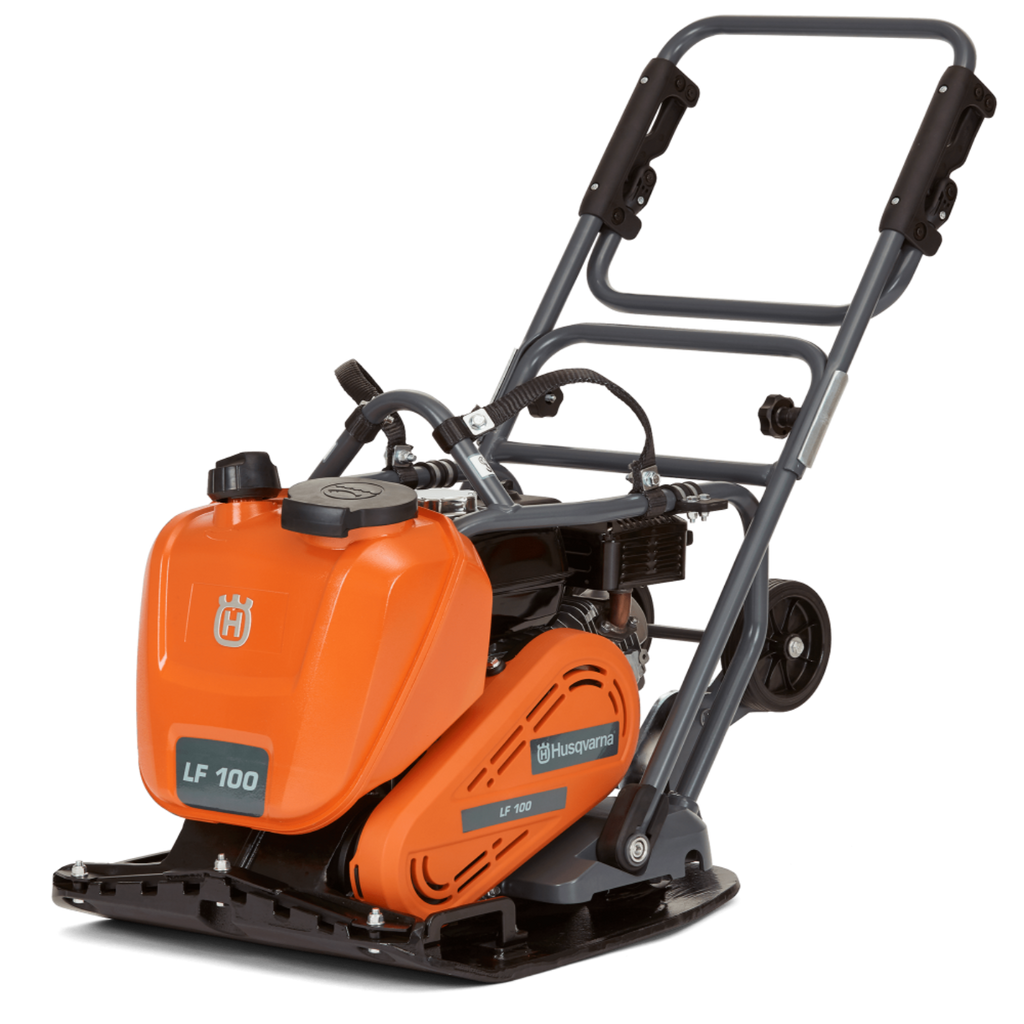

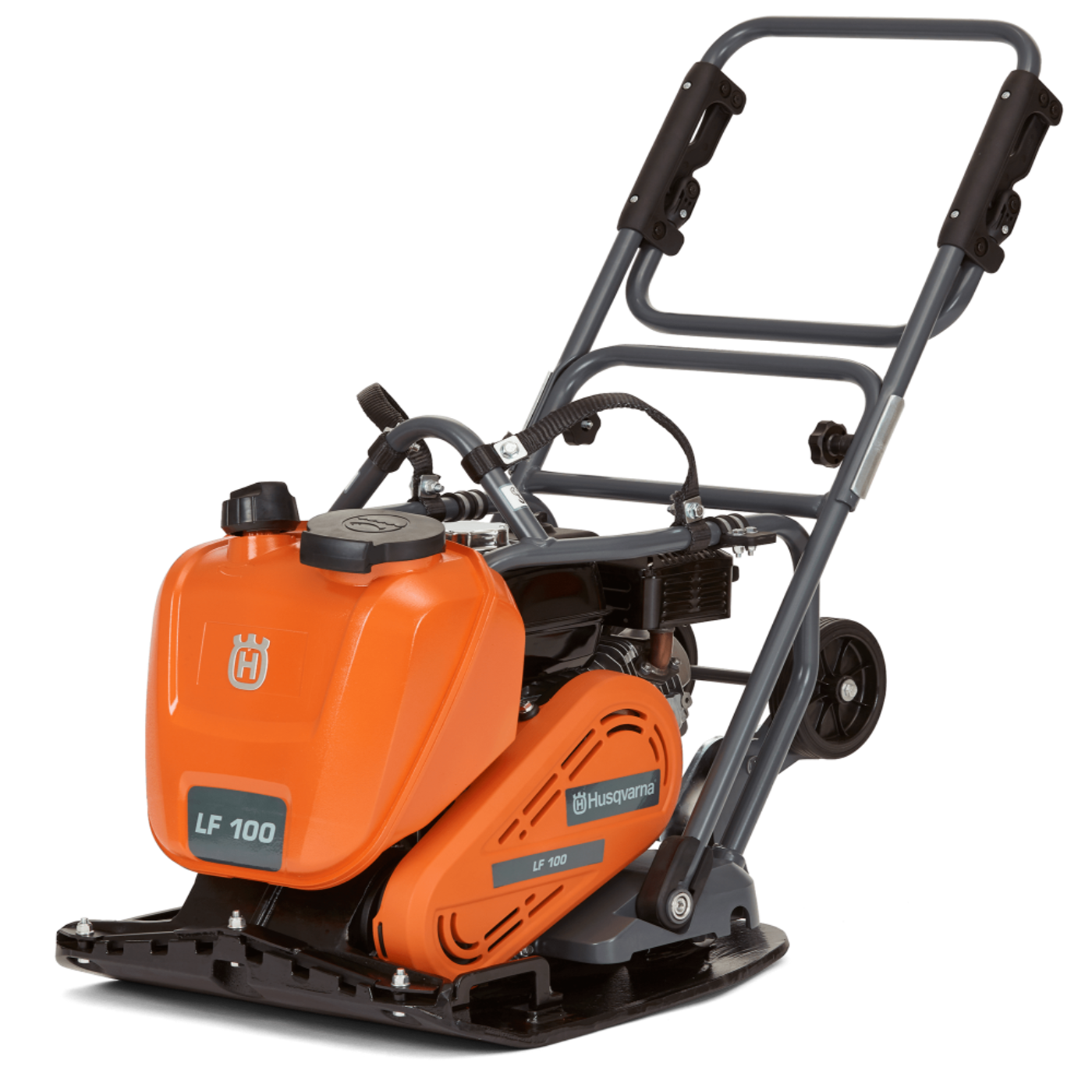

Husqvarna LF 100 LAT Forward Plate Compactor - 967855102
The LF 100 LAT is a fast-operating forward plate compactor, designed for efficient compaction of asphalt and soil. It is ideal for repair jobs and maintenance work, such as driveways and parking lots. The large water tank features an oversized cap to enable less frequent and faster refills. It is easy to clean, leaves no marks on the pavement and uses whatever water is available on-site.
Features
- Specially designed for asphalt work, ensuring it will not get stuck on hot asphalt or leave turning marks
- Efficient, patented low-vibration handle lowers the vibration levels below 2 m/s²
- Work for hours without becoming fatigued or exceeding any regulatory threshold limit values
- Large corrosion-free water tank and smart water distribution system enable you to work longer with less stops for re-filling
- Watering system prevents the bottom plate from sticking to the hot asphalt
- Uses only a minimum of water thanks to the easily adjustable water flow
- Factory prepared for mounting a block paving kit to protect paving blocks from cracking
Specifications
| MPN |
967855102 |
| Engine |
Honda GX160 |
| Power |
4.8 hp (3.6 kW) |
| Frequency |
95 Hz |
| Centrifugal Force |
3,754 lbf (16.7 kN) |
| Speed |
82 ft/min (25 m/min) |
| Plate Dimensions |
19.7" x 23.4" (500 x 595 mm) |
| Dimensions |
37.8" x 19.7" x 39.2" (960 x 500 x 995 mm) |
| Weight |
236 lb (107 kg) |
What our Experts Think
-
Serious slurry & liquid management
Built for demanding concrete jobsites where typical wet vacs fail — this model handles concrete slurry, oils, coolants and heavy liquids without clogs or motor damage.
-
Dual action suction + pumping
You can vacuum and discharge at the same time, pumping slurry up to ~30 ft vertically or long distances horizontally, improving efficiency and reducing downtime.
-
Engineered for durability
Stainless‑steel tank and strainer, crush‑proof hose, cast swivel hose lock and rugged frame deliver long service life on tough sites.
-
Reliable wet shutdown & protection
The patented filter/float system reliably shuts off before overfill, protecting the motor and maintaining strong airflow.
-
Easy cleanup & transport
Large bottom valve for quick emptying, plus non‑marking, puncture‑free wheels with locks, make moving and maintaining this unit easy between tasks.
-
Versatile professional tool
Recommended for use with core drills, saws and grinders where slurry volume is high and fast cleanup matters for productivity and safety
Q&A
Q: What is the Husqvarna LF 100 LAT Forward Plate Compactor?
A: A powerful forward plate compactor engineered for efficient compaction of asphalt and soil on repair, maintenance, and surface prep jobs like driveways and parking lots.
Q: What engine and power does it use?
A: It’s powered by a reliable Honda GX160 petrol engine (~4.8 hp / 3.6 kW) for consistent compaction performance.
Q: What are the key performance specs?
A: Features a 500 mm wide plate, ~17 kN centrifugal force, forward speed ~25 m/min (82 ft/min), and an operating weight of ~109 kg (~236 lb).
Q: What makes it easier to operate?
A: The patented low‑vibration handle reduces operator fatigue below 2 m/s², letting you work longer without discomfort.
Q: How does the water system help performance?
A: A large corrosion‑free water tank with smart distribution and adjustable flow prevents the bottom plate from sticking to hot asphalt and reduces refill stops.
Q: Where is this compactor best used?
A: Ideal for asphalt patching, driveways, parking lots, and soil compaction tasks where high performance and clean results matter.
Maintenance Tips
-
Check and top up engine oil and fuel before each use; change oil per schedule in the operator manual.
-
Clean air filter and engine cooling fins regularly to maintain power and reduce wear.
-
Inspect and tighten all bolts, guards, and mounts before operation to prevent loosening on the job.
-
Empty any debris and water residue from the plate, water tank, and machine body after each use to avoid buildup.
-
Check water tank and watering system for clogs; keep water flow working to prevent plate sticking on hot asphalt.
-
Inspect the base plate for wear or damage; replace if surface or edges are compromised.
-
Monitor drive belt condition (if equipped) and adjust or replace when worn.
-
Replace spark plug per service intervals for easy starts and consistent operation.
-
Lubricate pivot and moving parts as recommended in the manual.
-
Store in a dry, sheltered area and follow scheduled service checks for longevity.
