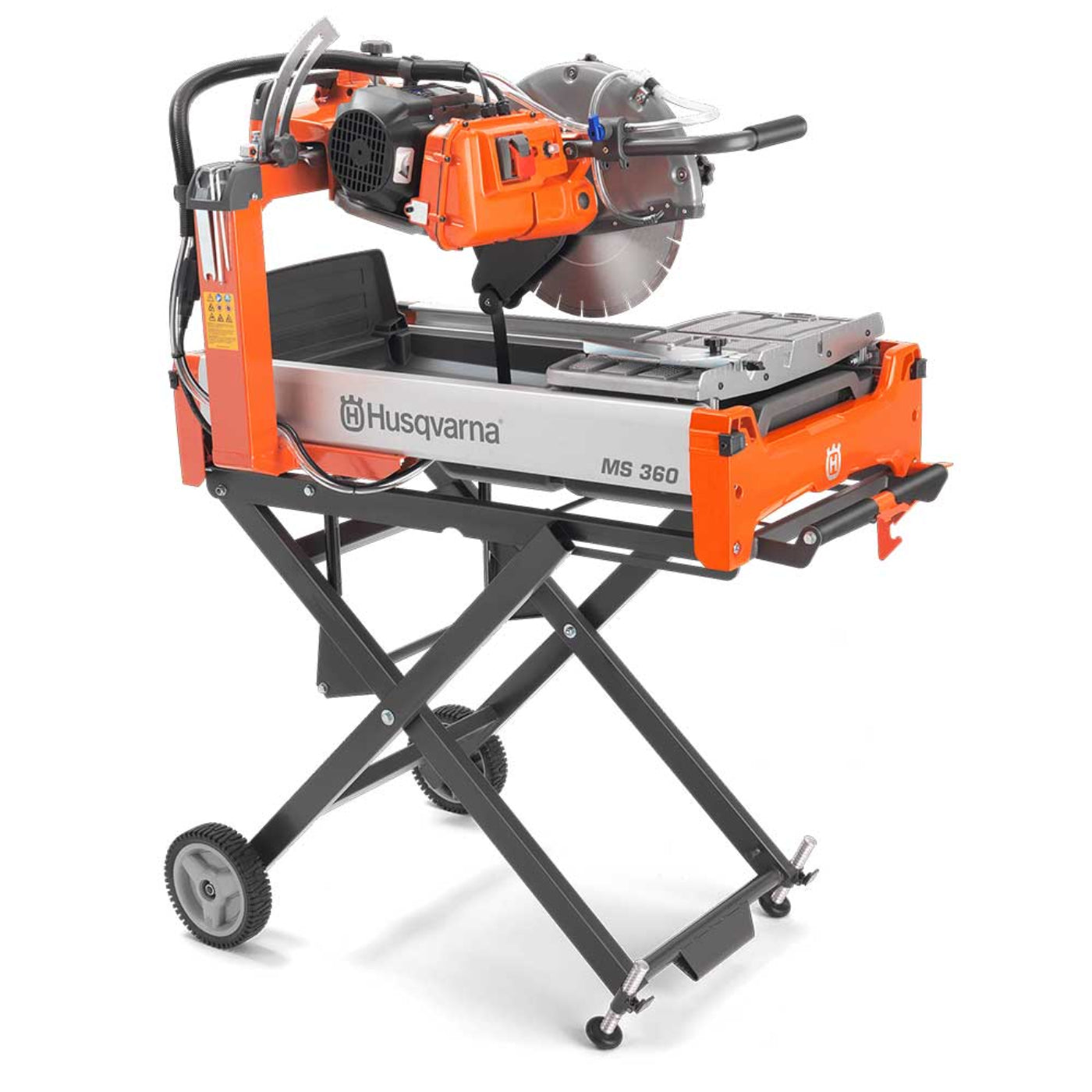

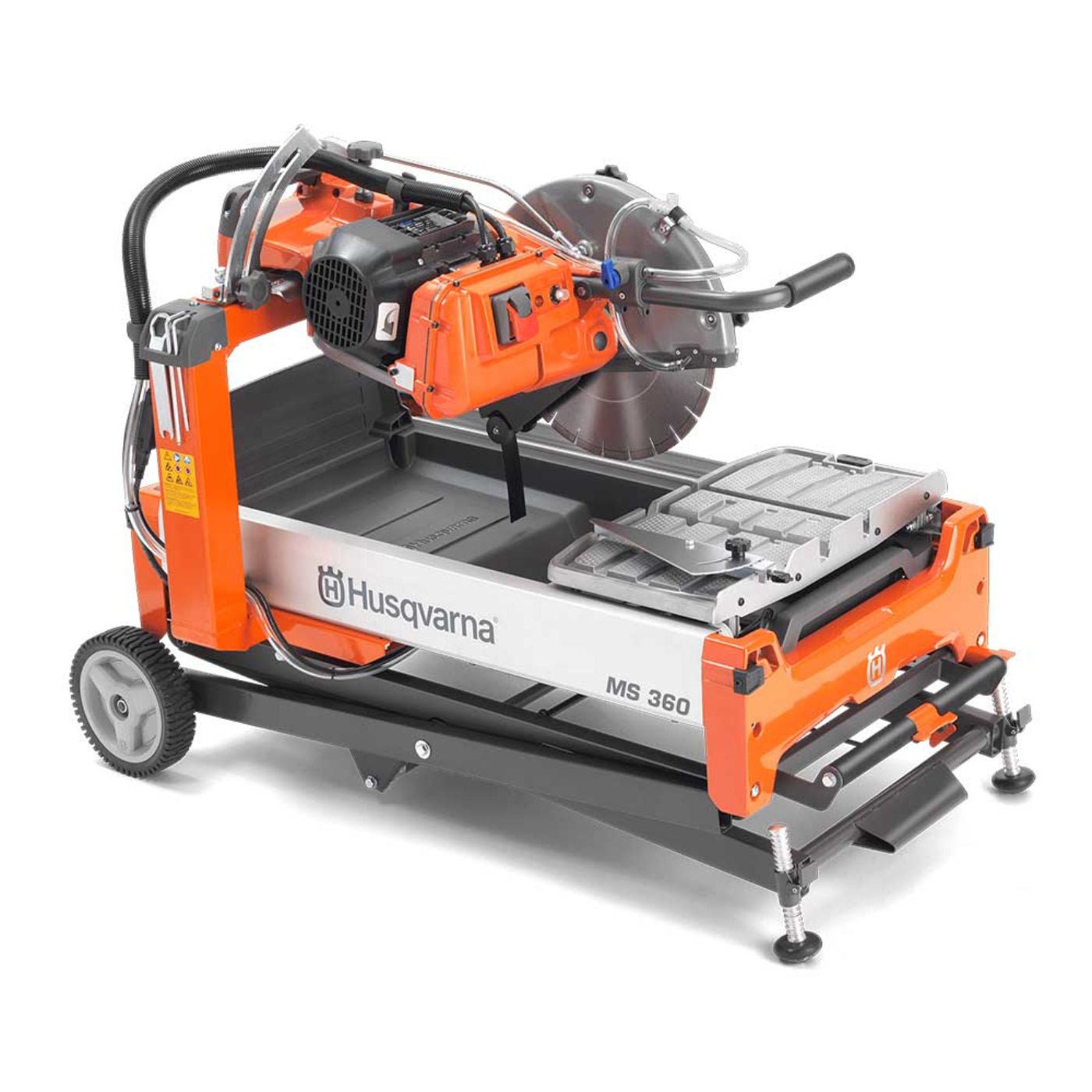

Husqvarna MS 360 Electric Masonry Saw - 967285201
The MS 360 saw offers precision like no other and has an exceptional cutting depth up to 5'' deep for a standard 14'' blade. The sturdy and rigid design makes it suitable for large jobs cutting block, brick or pavers. The MS 360 rotates for 22.5 degree and 45 degree bevel cuts and switches easily between plunge and miter cutting which makes is fast and versatile on the job site. The patented water containment system facilitates clean work area.
Features
- Perfect for large jobs cutting block, brick or pavers
- Equipped with a patented water management system that keeps the work piece dry and the workplace clean
- Double splash guard decreases water spray behind the saw and makes cleaning easier

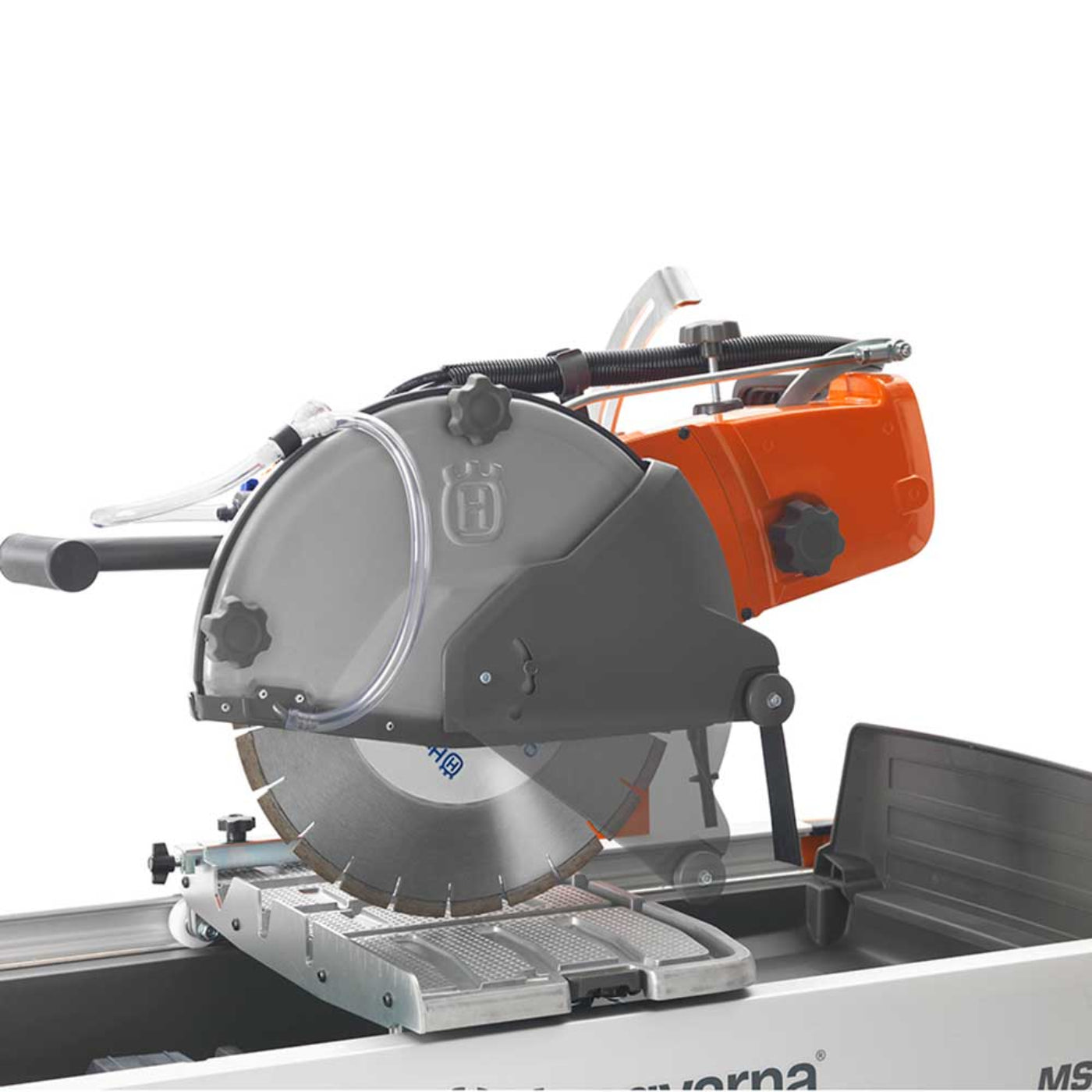

- Head rotates to easily cut 22.5° and 45° bevel cuts
- Easy to move the saw with two people thanks to integrated telescopic handles
- Sta-level® blade guard keeps the blade guard parallel to the cutting table for accurate cuts
- Plunge handle ensures low vibrations for the operator
- Stand (shown in photo) is sold separately
-
Includes: 14" diamond blade, submersible pump, removable water pan, operator's manual
Specifications
| MPN |
967285201 |
967285202 |
967285203 |
967285204 |
| Voltage |
115V |
115/208-230V |
115/208-230V |
208-230V |
| Power |
1.5 hp (1.1 kW) |
1.5 hp (1.1 kW) |
2 hp (1.5 kW) |
3 hp (2.2 kW) |
| Voltage |
115V |
115/208-230V |
115/208-230V |
208-230V |
| Blade Diameter |
14" (350 mm) |
14" (350 mm) |
14" (350 mm) |
14" (350 mm) |
| Depth of Cut |
5" (127 mm) |
5" (127 mm) |
5" (127 mm) |
5" (127 mm) |
| Bladeshaft Speed |
2,330 RPM |
2,330 RPM |
2,330 RPM |
2,330 RPM |
| Arbor Size |
1" (25.4 mm) |
1" (25.4 mm) |
1" (25.4 mm) |
1" (25.4 mm) |
| Plug Type |
L5-15 |
L5-15 |
L6-20 |
L6-20 |
| Full Load Amps |
14 amps |
14/7 amps |
18/9 amps |
12.5 amps |
| Dimensions |
39.8" x 26.4" x 25.6" (1,010 x 670 x 650 mm) |
39.8" x 26.4" x 25.6" (1,010 x 670 x 650 mm) |
39.8" x 26.4" x 25.6" (1,010 x 670 x 650 mm) |
39.8" x 26.4" x 25.6" (1,010 x 670 x 650 mm) |
| Weight |
131 lb (59.5 kg) |
131 lb (59.5 kg) |
139 lb (63 kg) |
147 lb (67 kg) |
What our Experts Think
-
Serious slurry & liquid management
Built for demanding concrete jobsites where typical wet vacs fail — this model handles concrete slurry, oils, coolants and heavy liquids without clogs or motor damage.
-
Dual action suction + pumping
You can vacuum and discharge at the same time, pumping slurry up to ~30 ft vertically or long distances horizontally, improving efficiency and reducing downtime.
-
Engineered for durability
Stainless‑steel tank and strainer, crush‑proof hose, cast swivel hose lock and rugged frame deliver long service life on tough sites.
-
Reliable wet shutdown & protection
The patented filter/float system reliably shuts off before overfill, protecting the motor and maintaining strong airflow.
-
Easy cleanup & transport
Large bottom valve for quick emptying, plus non‑marking, puncture‑free wheels with locks, make moving and maintaining this unit easy between tasks.
-
Versatile professional tool
Recommended for use with core drills, saws and grinders where slurry volume is high and fast cleanup matters for productivity and safety.
Q&A
Q: What is the Husqvarna MS 360 Electric Masonry Saw?
A: A professional electric wet masonry saw designed for precise cutting of concrete block, brick, pavers, and stone on construction and renovation jobs.
Q: What are the key cutting specs?
A: It supports a 14″ (355 mm) blade with a maximum 5″ (127 mm) cutting depth and ~17.7″ max cutting length for heavy‑duty material removal.
Q: What power and motor does model 967285201 use?
A: Powered by a 1.5 hp (1.1 kW) corded electric motor (115 V, single phase) offering consistent, emission‑free performance.
Q: What water and dust control features does it have?
A: The patented water management system contains slurry and minimizes overspray, while the double splash guard keeps the work area cleaner.
Q: Can it make angled or bevel cuts?
A: Yes — the cutting head rotates for 22.5° and 45° bevel cuts, and it easily switches between plunge and miter cutting for versatility.
Q: How is it to transport and use on site?
A: Built‑in telescopic handles and ergonomic plunge handle reduce vibration and make it easier for two operators to move. A stand is sold separately.
Maintenance Tips
-
Clean the tray, water pump, and saw surfaces after each use to prevent debris buildup and maintain water flow.
-
Inspect the diamond blade before each job; replace if cracked, worn, or damaged for safe, precise cuts.
-
Check and clear the water system and hoses to ensure proper dust suppression and blade cooling.
-
Tighten all fasteners, frame mounts, and cutting head components before operation.
-
Verify water supply from the tank/pump system and ensure even distribution to both sides of the blade.
-
Inspect cables and electrical connections for wear or damage; repair before use.
-
Store the saw in a dry, covered area to prevent corrosion and electrical issues.
-
Use genuine parts and follow the operator’s manual intervals for deeper service.
