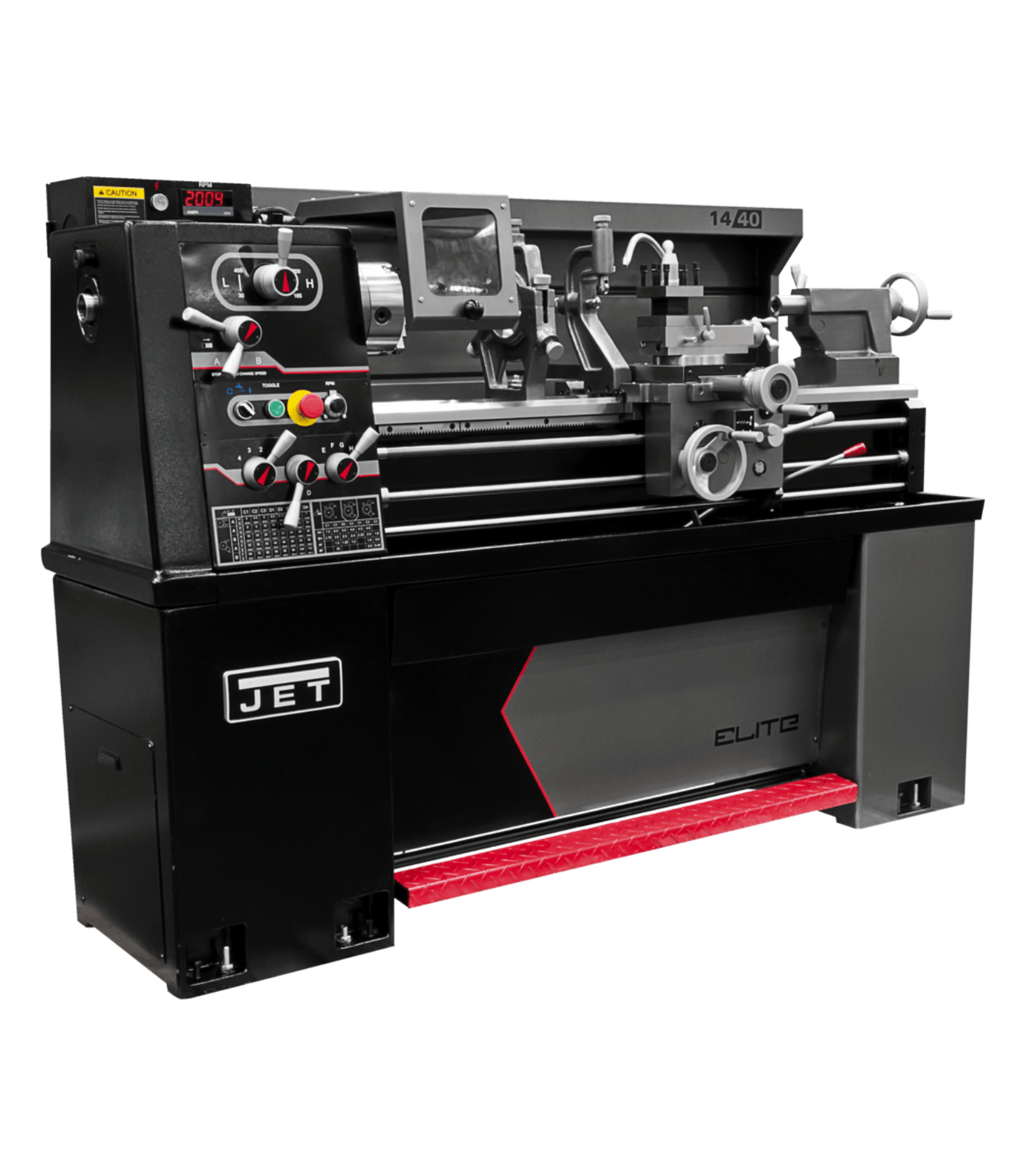

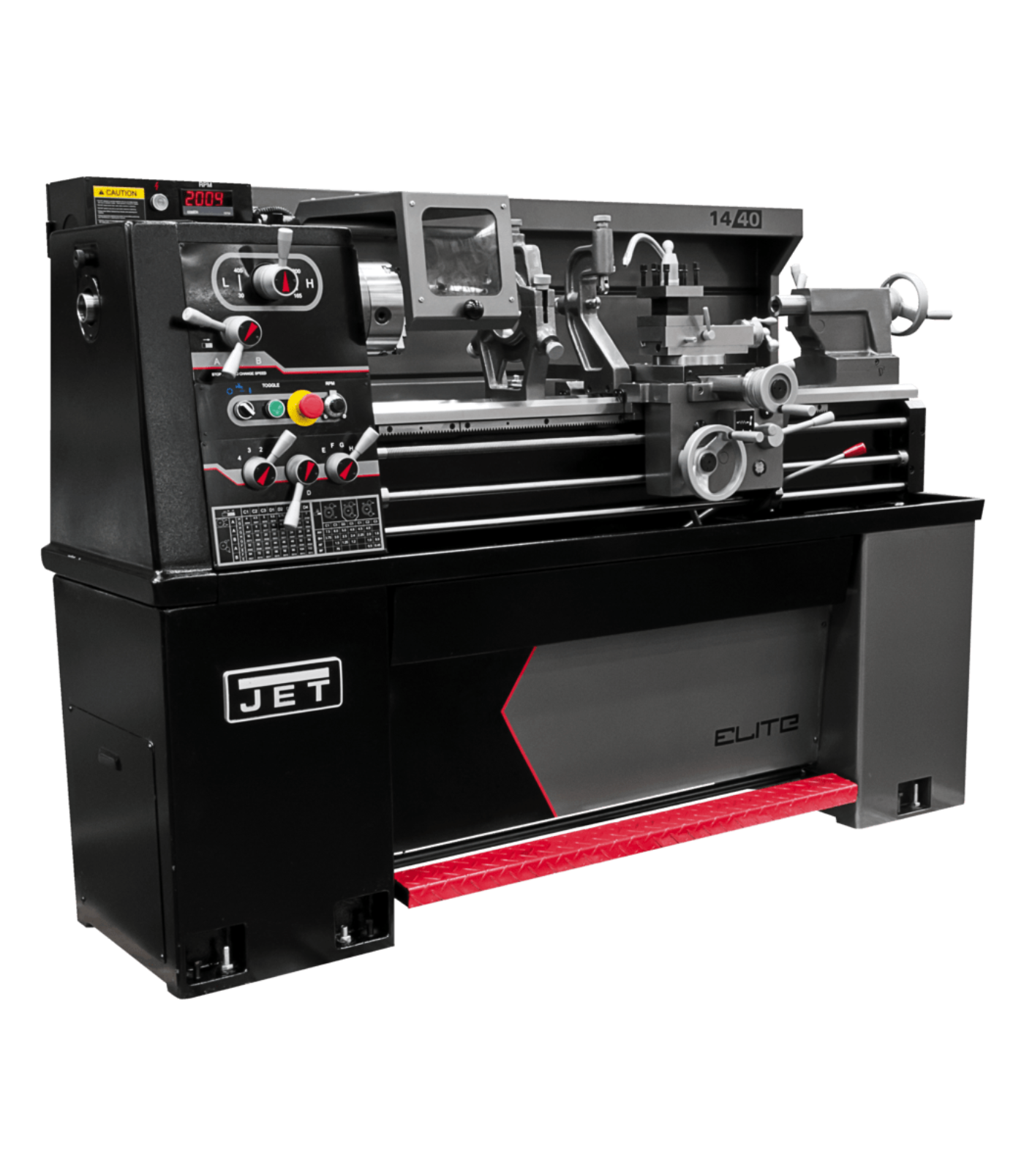

    JET Elite E-1340VS with ACU-RITE 203 DRO with Taper Attachment and Collet Closer - JT9-892406

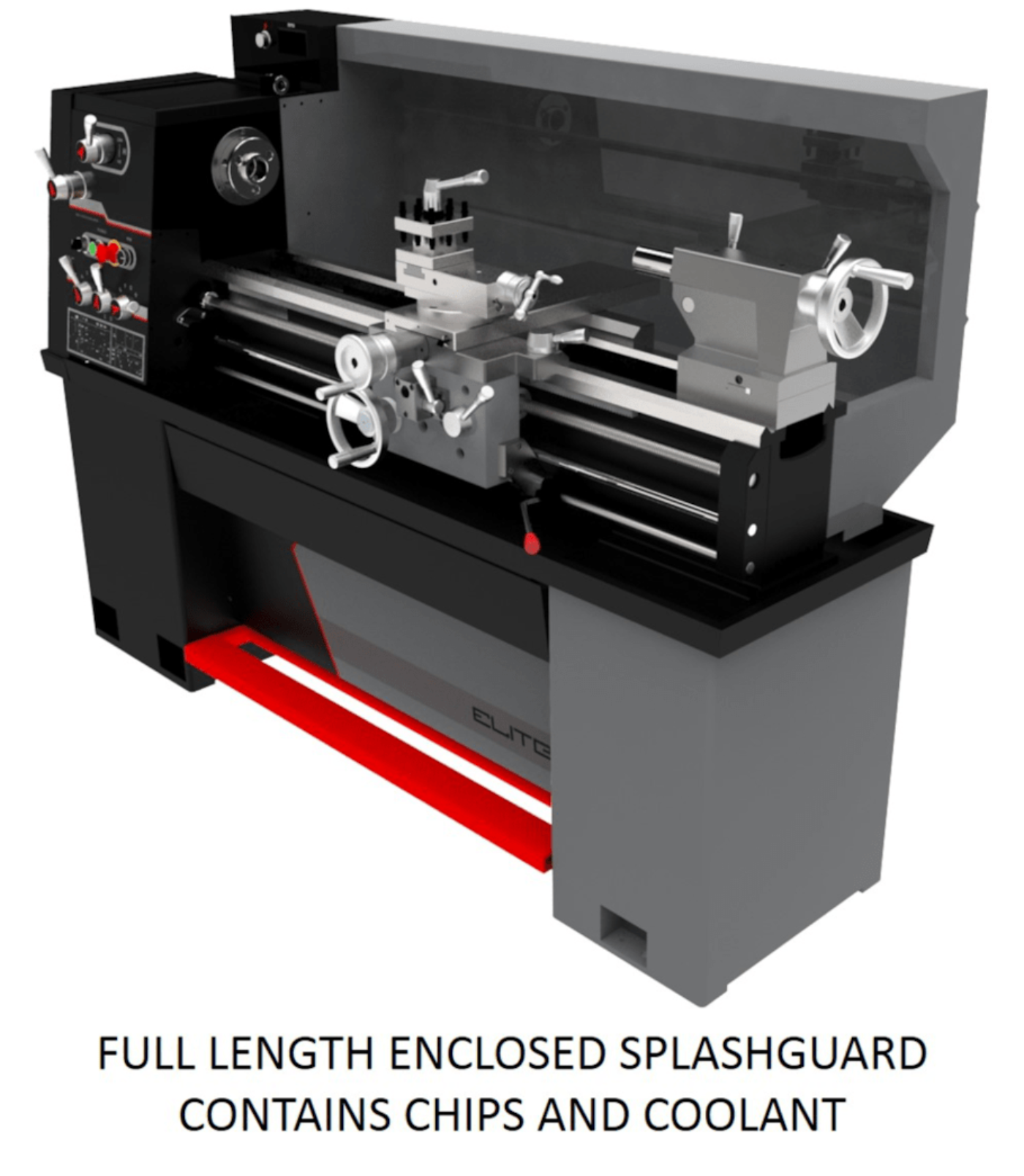

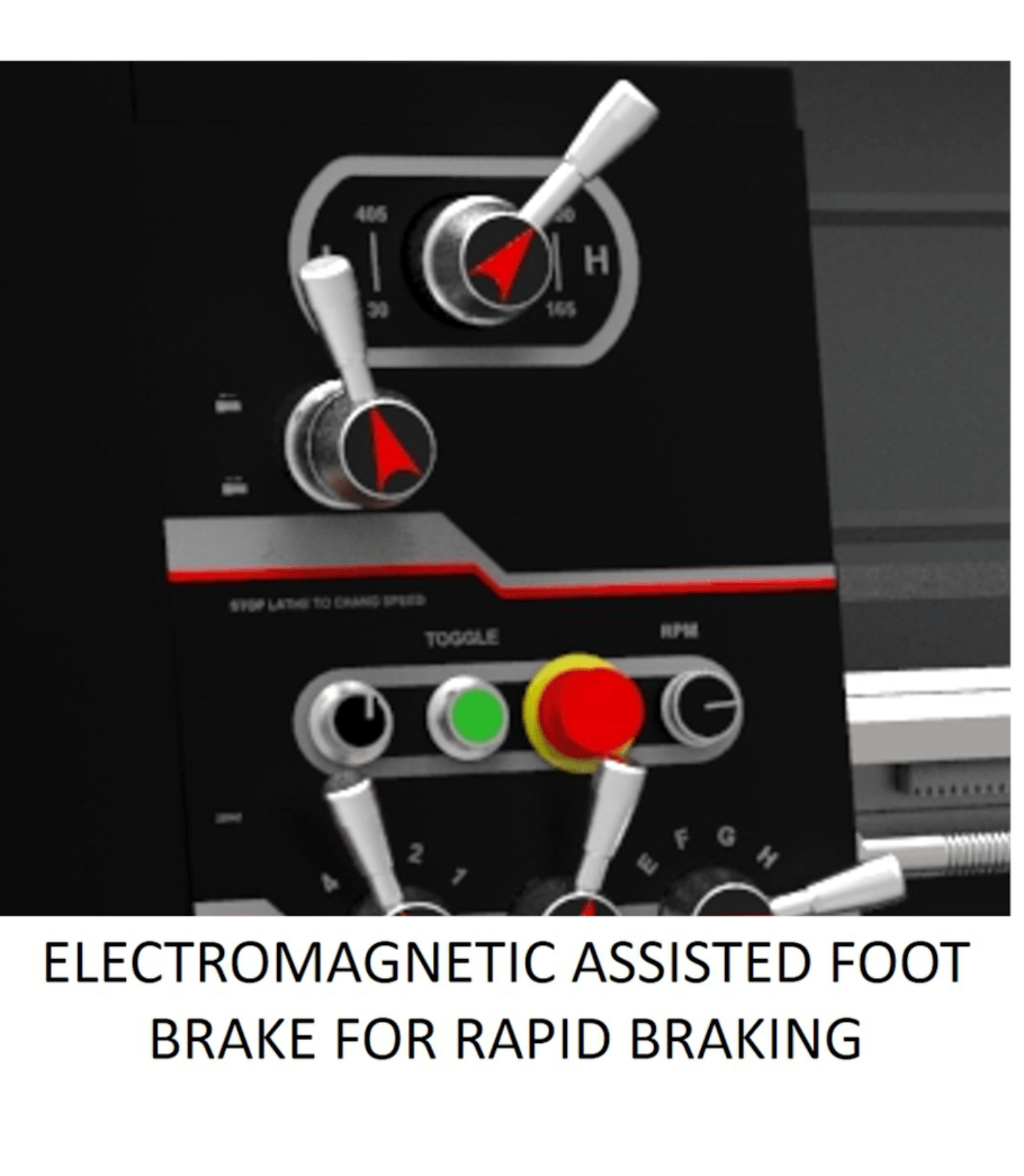

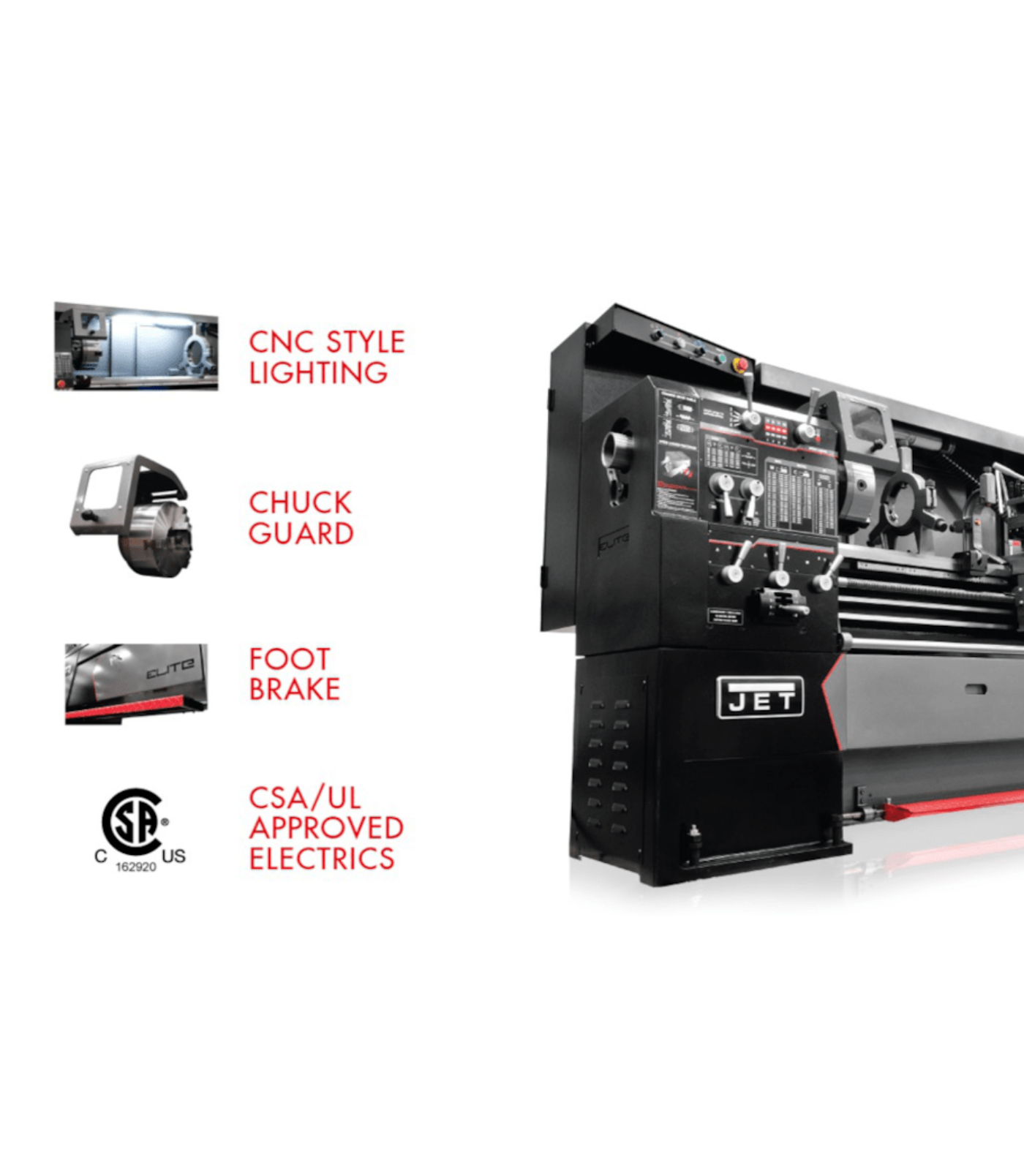

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine

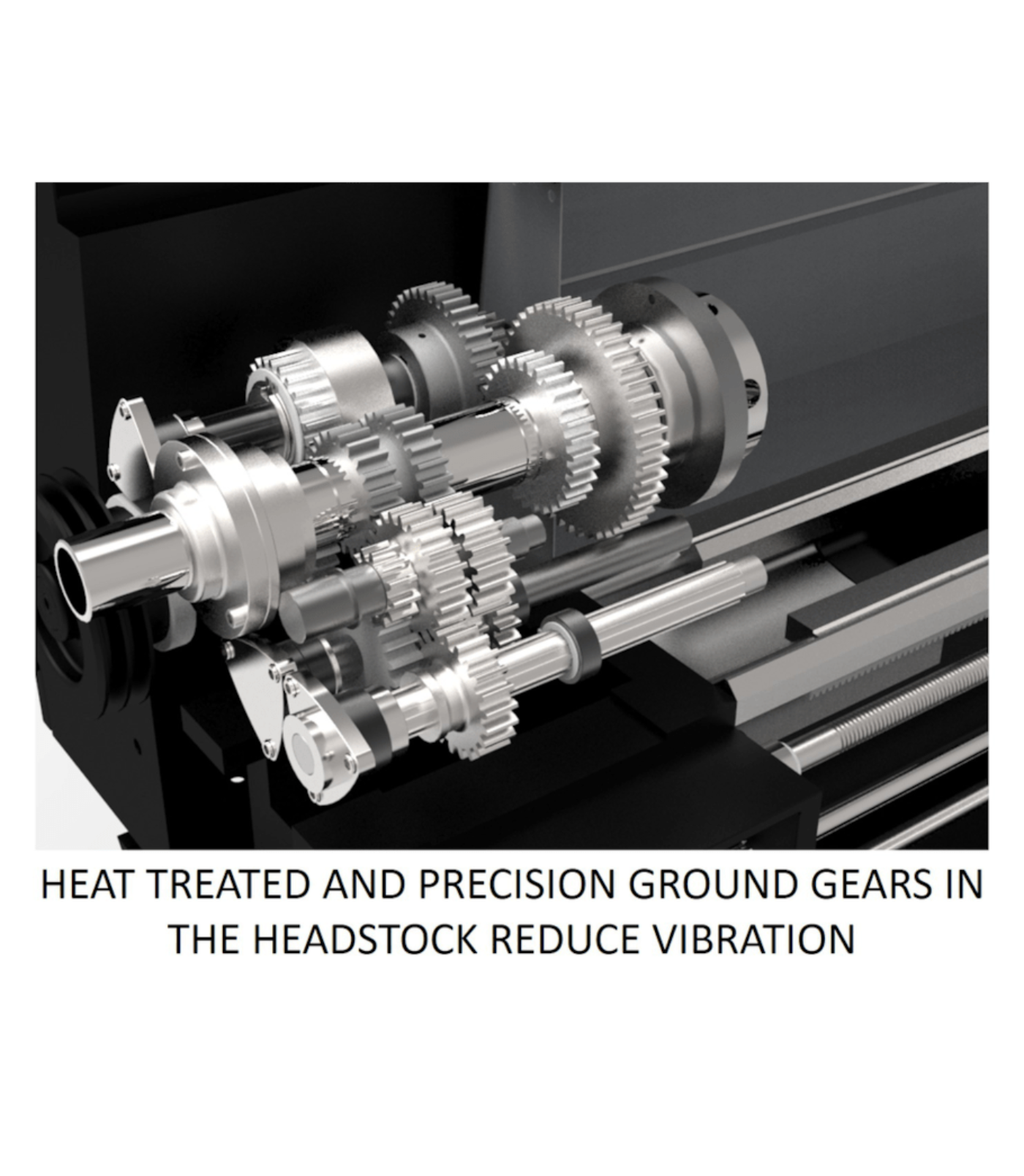

    • Hardened and ground gears in headstock reduce vibration and deflection
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 13 x 40
    Style (Type) ELITE EVS
    Swing Over Bed (In.) 13
    Swing Over Cross Slide (In.) 7-5/8
    Swing Through Gap (In.) 19
    Length of Gap (In.) 9
    Spindle Bore (In.) 1-1/2
    Spindle Mount D1-4
    Weight (Lbs.) 1433
    Amperage Draw @ 230V 3Ph 19
    Spindle Taper with Sleeve MT-5
    Range of Spindle Speeds (RPM) 0 – 2,200
    Number of Longitudinal & Cross Feed Rates 80
    Range of Longitudinal Feeds (IPR) 0.0012 – 0.0294
    Range of Cross Feeds (IPR) 0.0003 – 0.01
    Number of Inch Threads 40
    Range of Inch Threads (TPI) 4 – 112
    Number of Metric Threads 22
    Range of Metric Threads 0.45 – 7.5
    Max Tool Size (In.) 5/8 x 5/8
    Compound Slide Travel (In.) 3-1/2
    Motor (HP) 3 HP, 230V, 3Ph
    Tailstock Spindle Travel (In.) 4-3/4
    Taper in Tailstock Spindle MT-3
    Steady Rest Capacity (In.) 1/4 – 2-3/4
    Width of Bed (In.) 8-1/2

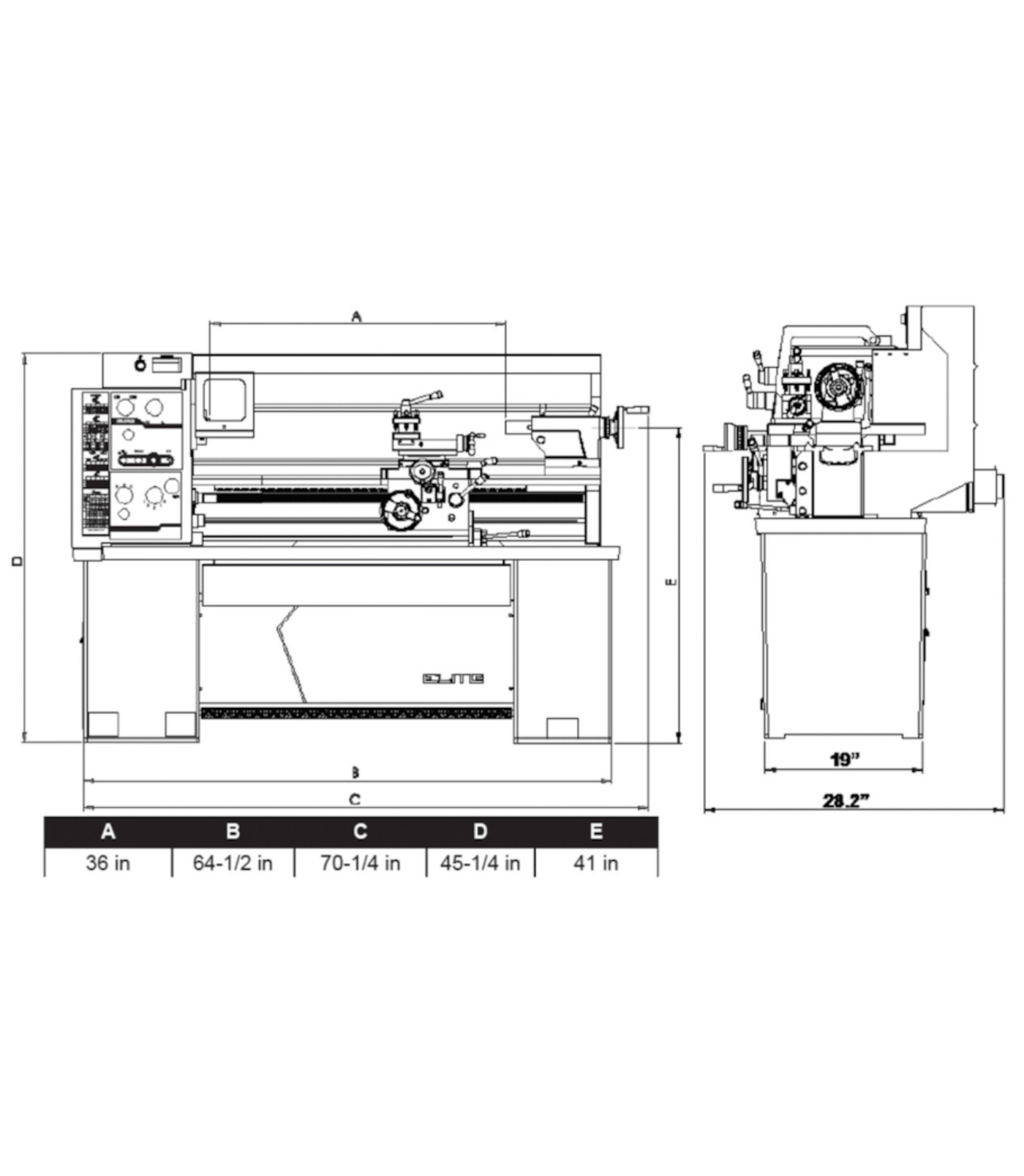

    Overall Dimensions (L x W x H) 67 x 30 x 57
    Drive EVS
    What our Experts Think
    • 13" swing and 40" center distance provide versatility for mid-size precision work.

    • ACU-RITE 203 DRO delivers accurate digital readouts for precise machining.

    • Taper attachment enables straightforward, precise taper cutting.

    • Collet closer allows fast, secure workholding to improve workflow efficiency.

    • Solid cast-iron construction reduces vibration, ensuring stability, durability, and consistent results.

    Q&A

    Q: What type of lathe is the JET Elite E-1340VS?
    A: It’s a 13x40 electronic variable speed (EVS) precision lathe designed for versatile metalworking tasks.

    Q: What does the ACU-RITE 203 DRO provide?
    A: The digital readout offers precise measurements, improved efficiency, and easy-to-read data for accurate machining.

    Q: What is the purpose of the taper attachment?
    A: It allows precise taper cutting without moving the compound rest, ideal for complex turning operations.

    Q: What is the benefit of the collet closer?
    A: It provides fast, secure, and precise clamping of workpieces, enhancing productivity and consistency.

    Q: What is the swing over bed and center distance?
    A: This lathe has a 13-inch swing over bed and a 40-inch distance between centers.

    Q: Where is this lathe best used?
    A: Ideal for machine shops, tool rooms, and industrial facilities requiring precision and versatility.

    Maintenance Tips
    • Clean bedways, carriage, and tool post areas after each use to remove chips and debris.

    • Lubricate gears, bearings, and sliding components per the manufacturer’s schedule.

    • Keep ACU-RITE 203 DRO scales and sensors free of dust for accurate readings.

    • Inspect and maintain the taper attachment regularly for smooth, precise operation.

    • Check the collet closer for proper function and maintain as needed.

    • Examine belts, feed screws, and gibs for wear; adjust tension and alignment when required.

    • Tighten tool post, tailstock, and fasteners to preserve rigidity and machining precision.

    • Schedule periodic professional servicing to extend machine life and maintain peak performance.
