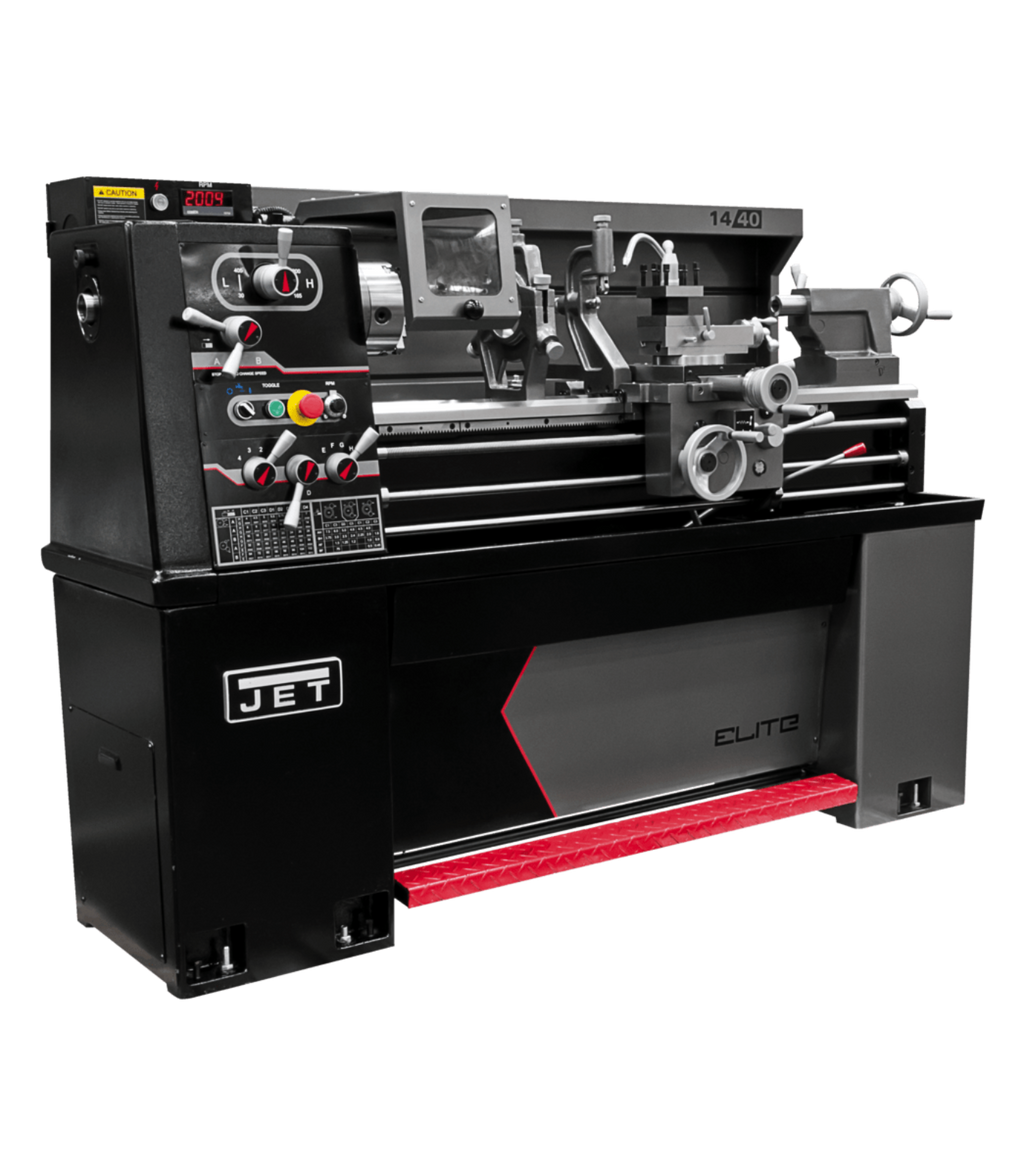

    JET Elite E-1440VS, Elite 14x40 EVS Lathe - JT9-892030

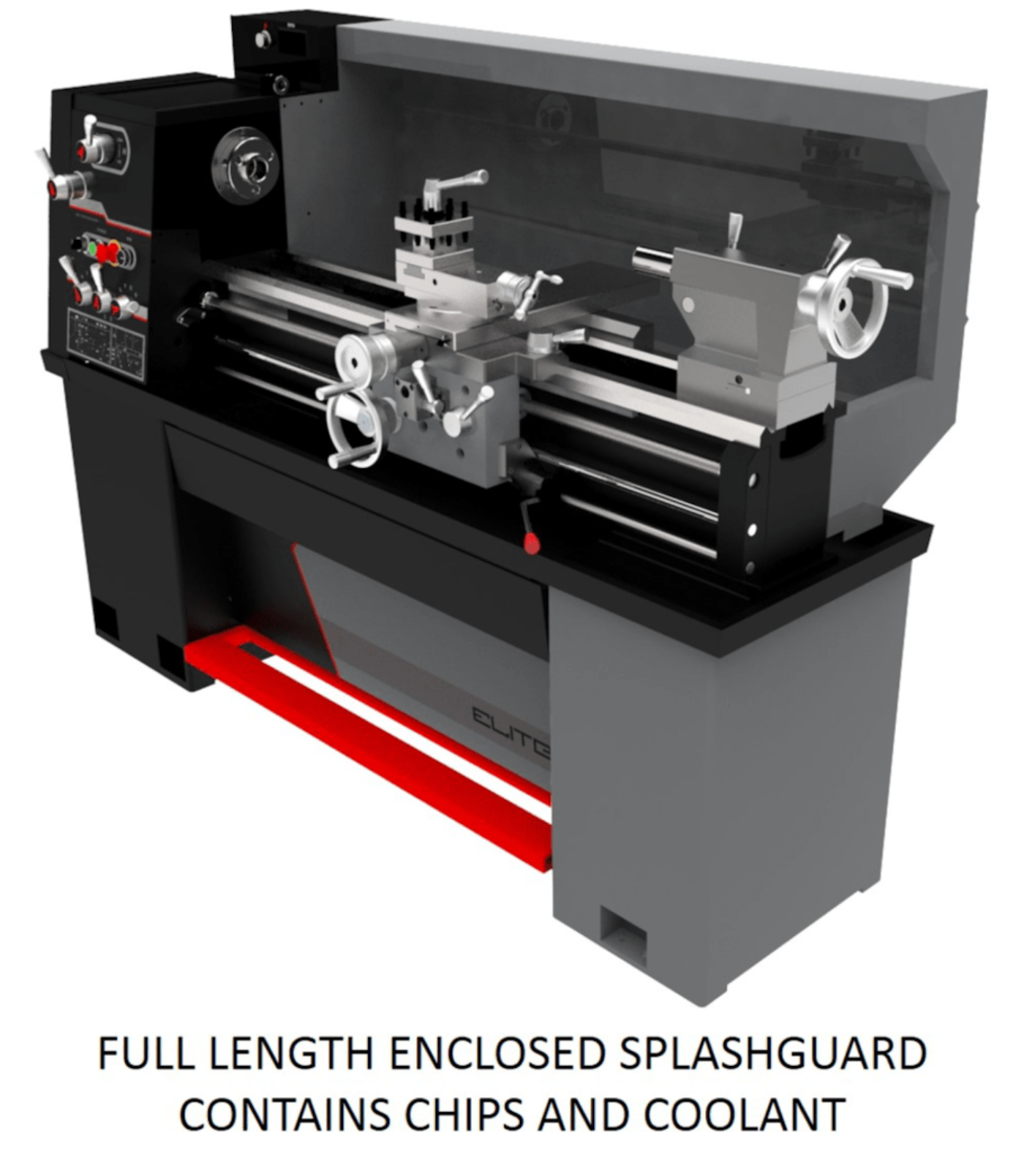

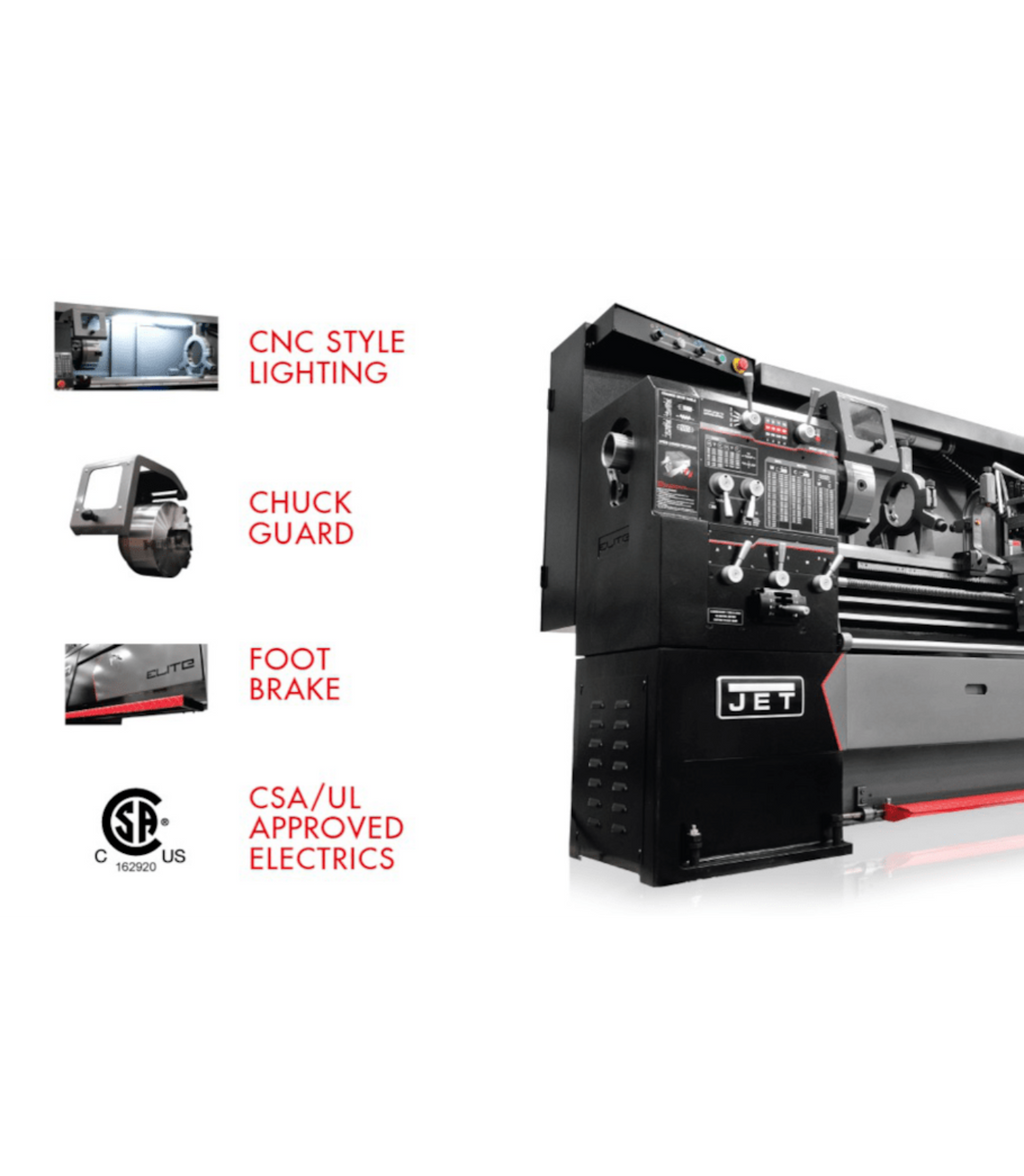

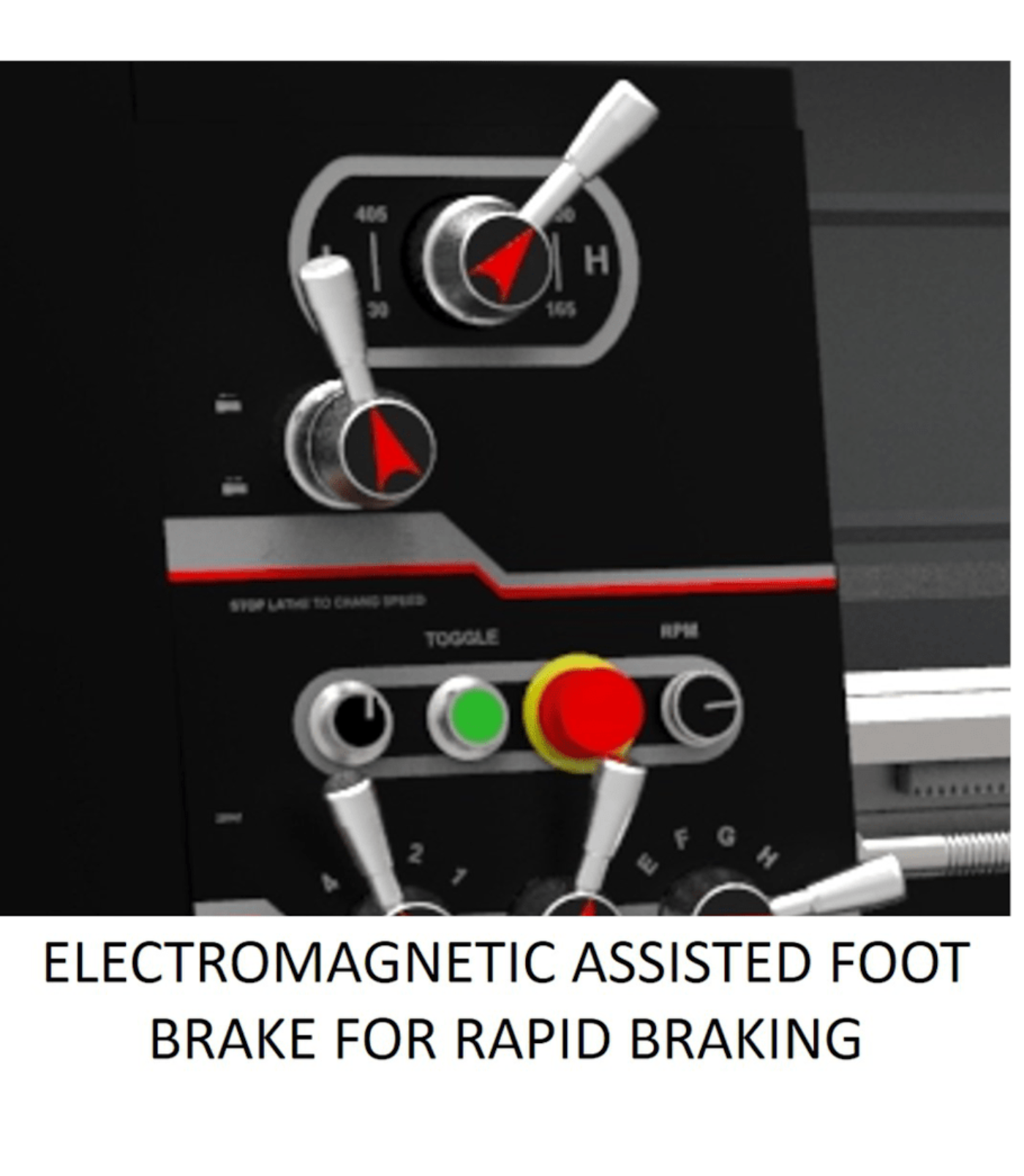

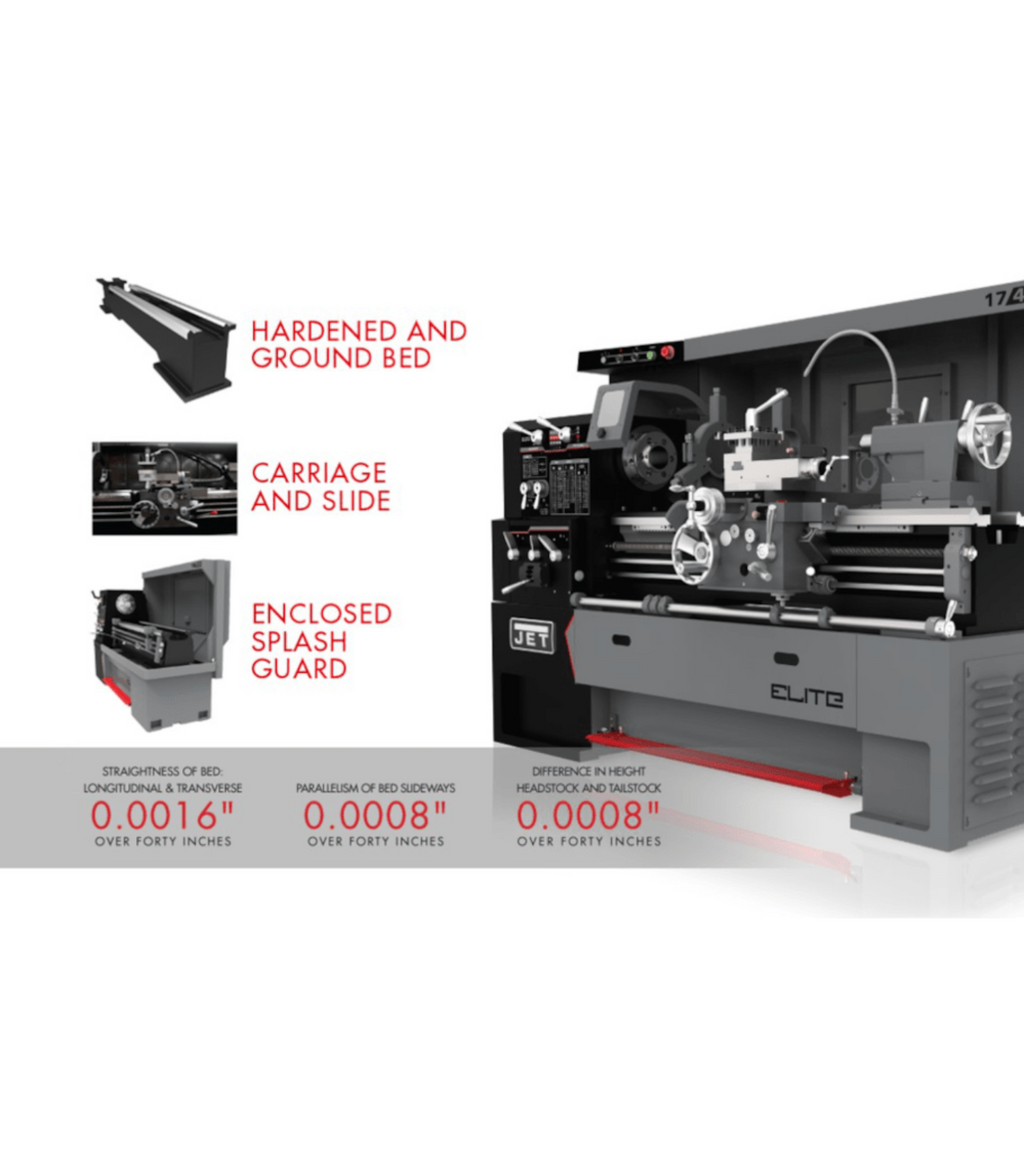

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine

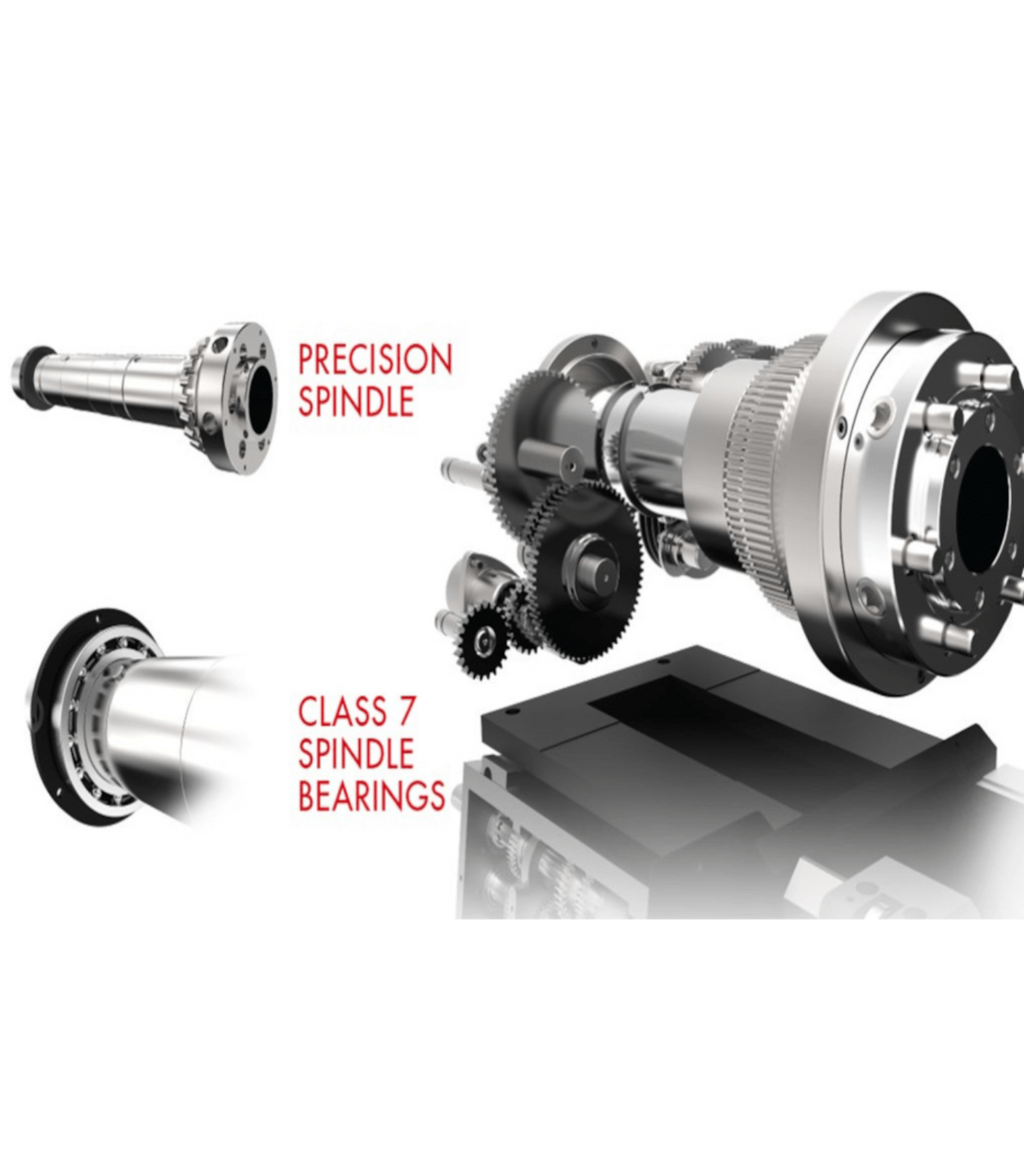

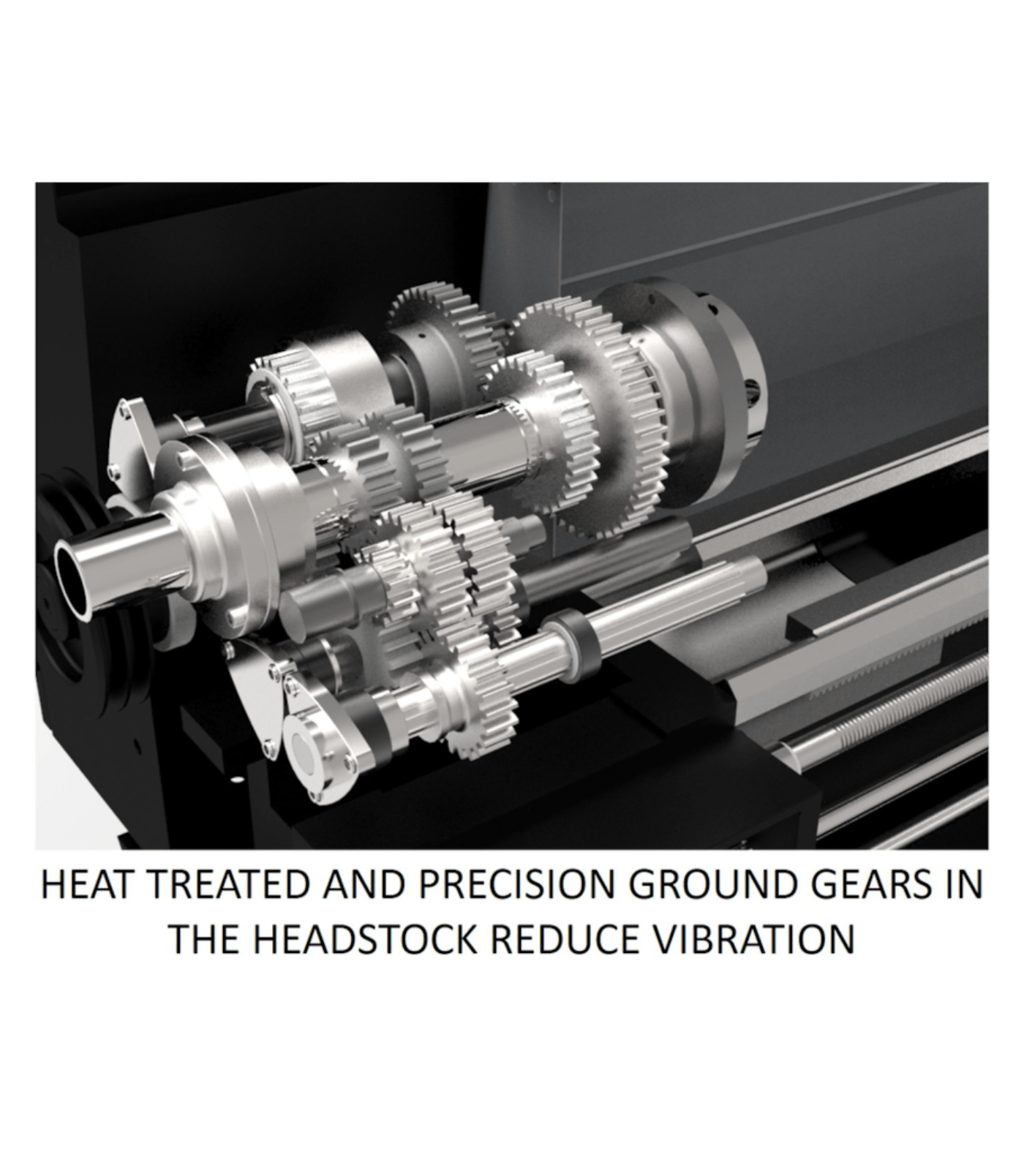

    • Hardened and ground gears in headstock reduce vibration and deflection
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 14 x 40
    Style (Type) ELITE EVS
    Swing Over Bed 14 in.
    Swing Over Cross Slide 8-5/8 in.
    Swing Through Gap 20 in.
    Length of Gap 9 in.
    Spindle Bore 1-1/2 in.
    Spindle Mount D1-4
    Weight 1,653 lbs.
    Amperage Draw @ 230V 3Ph 9 A
    Spindle Taper with Sleeve MT5
    Range of Spindle Speeds 0 – 2,200 RPM
    Number of Longitudinal & Cross Feed Rates 80
    Range of Longitudinal Feeds (IPR) 0.0012 – 0.0294
    Range of Cross Feeds (IPR) 0.0003 – 0.01
    Number of Inch Threads 40
    Range of Inch Threads (TPI) 4 – 112
    Number of Metric Threads 22
    Range of Metric Threads (mm) 0.45 – 7.5
    Compound Slide Travel 4 in.
    Cross Slide Travel 7 in.
    Motor 3 HP, 230V, 3Ph
    Tailstock Spindle Travel 5 in.
    Taper in Tailstock Spindle MT3

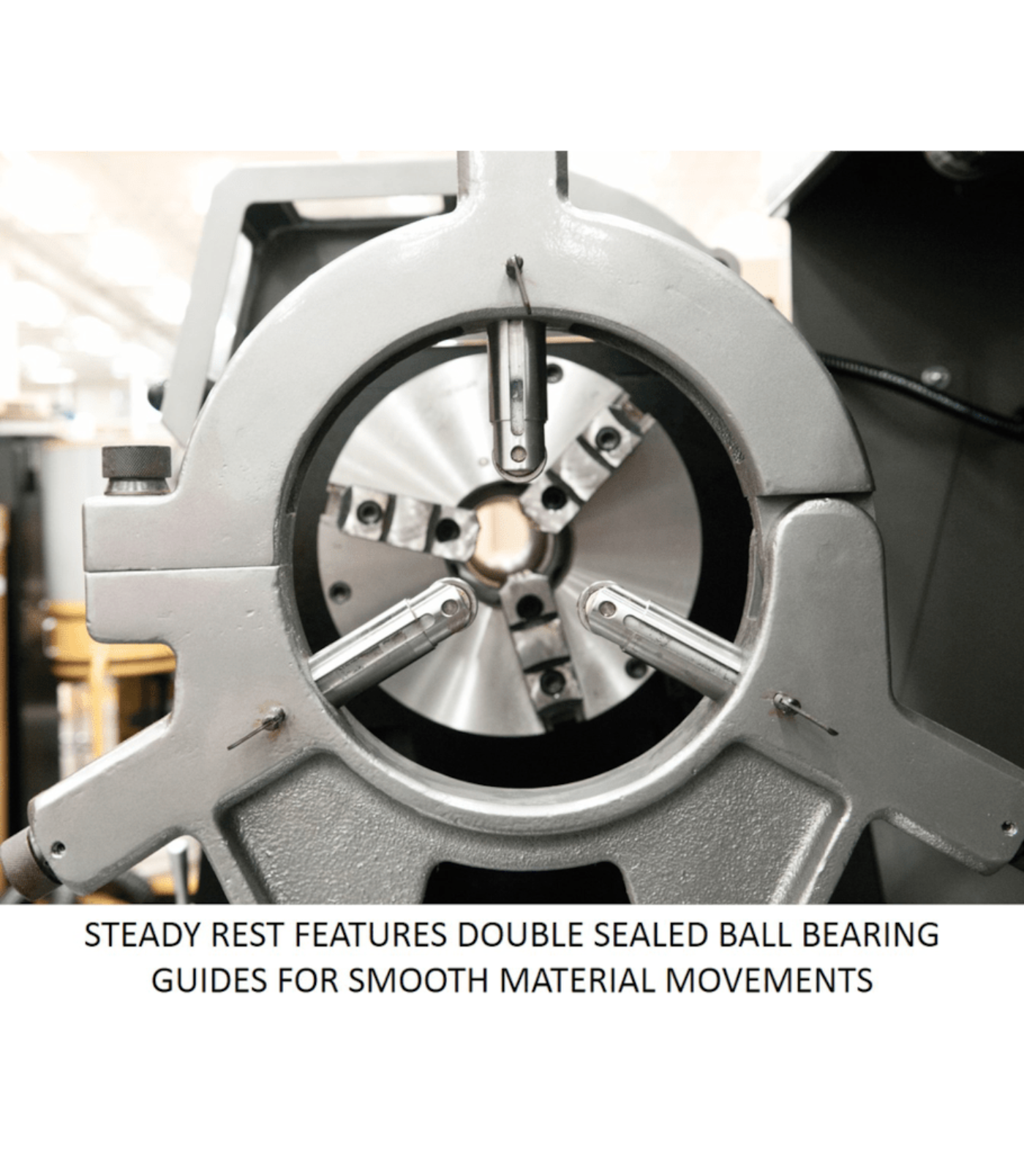

    Steady Rest Capacity 1/4 – 2-3/4 in.
    Width of Bed 8-1/2 in.

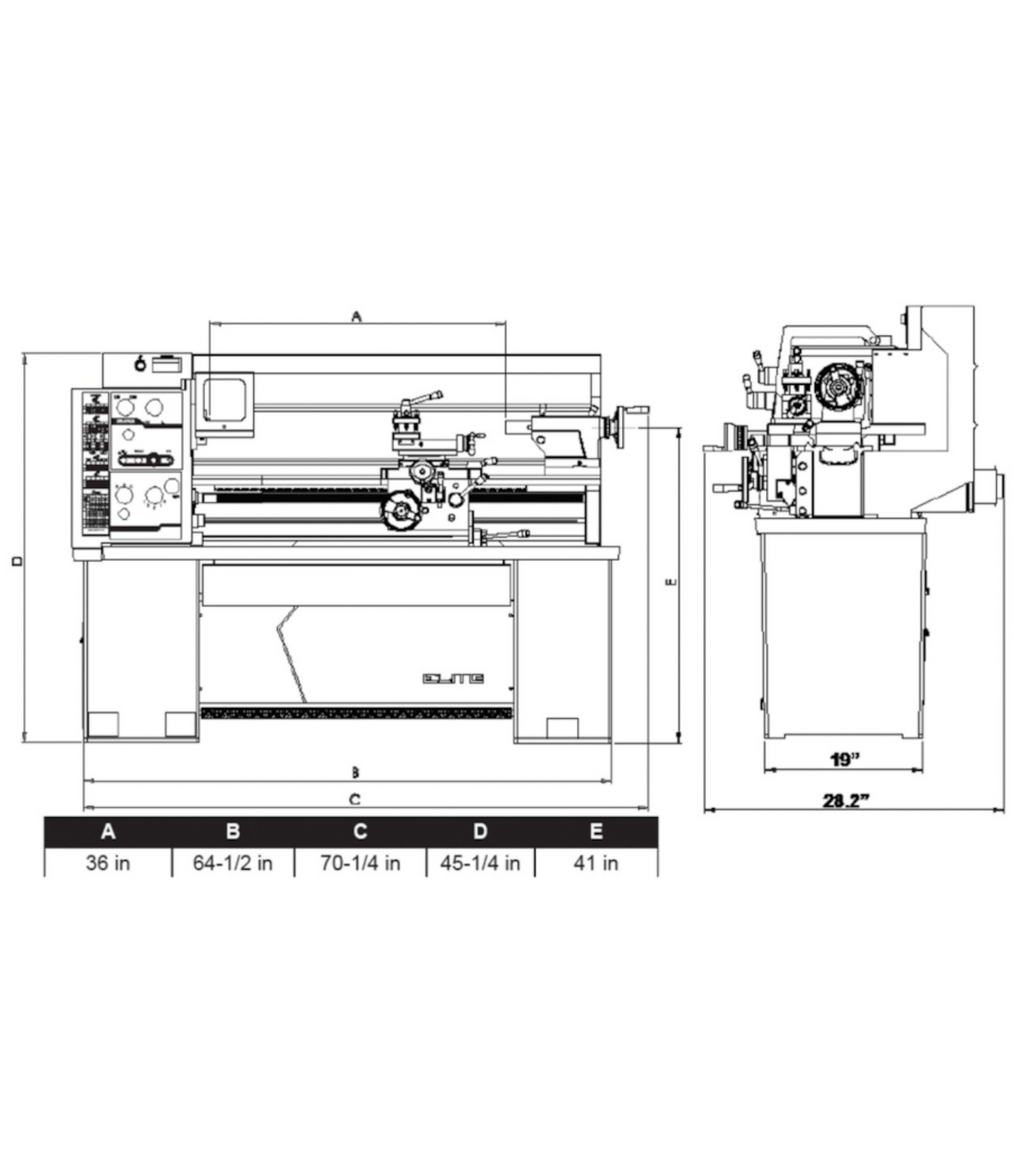

    Overall Dimensions (L x W x H) 77 x 30 x 58 in.
    Drive EVS
    What our Experts Think
    • Built for precision turning with a 14" swing and 40" distance between centers, ideal for a wide range of applications.

    • Variable speed control (40–2,000 RPM) ensures smooth performance across different materials.

    • Heavy-duty construction provides stability and reduces vibration for accurate machining.

    • Digital readout improves efficiency and reduces setup time.

    • Designed for professional machinists who need reliability, power, and consistent results.

    Q&A

    Q: What type of lathe is the JET Elite E-1440VS?
    A: It’s a 14x40 electronic variable speed (EVS) metalworking lathe designed for precision and durability.

    Q: What is the swing over bed capacity?
    A: The lathe provides a 14-inch swing over bed with a 40-inch distance between centers.

    Q: How is the speed controlled?
    A: It features electronic variable speed control with digital readout for accurate adjustments.

    Q: What material is this lathe best suited for?
    A: Ideal for machining a wide range of metals with high accuracy and smooth performance.

    Q: Where is it commonly used?
    A: Perfect for machine shops, tool rooms, and industrial manufacturing environments.

    Maintenance Tips
    • Keep the lathe clean by wiping down surfaces after each use to prevent debris buildup.

    • Regularly lubricate moving parts and follow the lubrication schedule in the manual.

    • Check belts, gears, and drive components frequently for wear or misalignment.

    • Inspect and tighten all fasteners and tool post connections as needed.

    • Clean chips from the bed, carriage, and lead screw to ensure smooth operation.

    • Verify electrical connections and cooling fans remain free of dust.

    • Schedule professional servicing periodically to maintain precision and longevity.
