| Style (Type) |
Variable Speed |
| Table Size (L x W) |
9 x 49 in. |
| Work Table Weight Capacity |
550 lbs. |
| Spindle Travel |
5 in. |

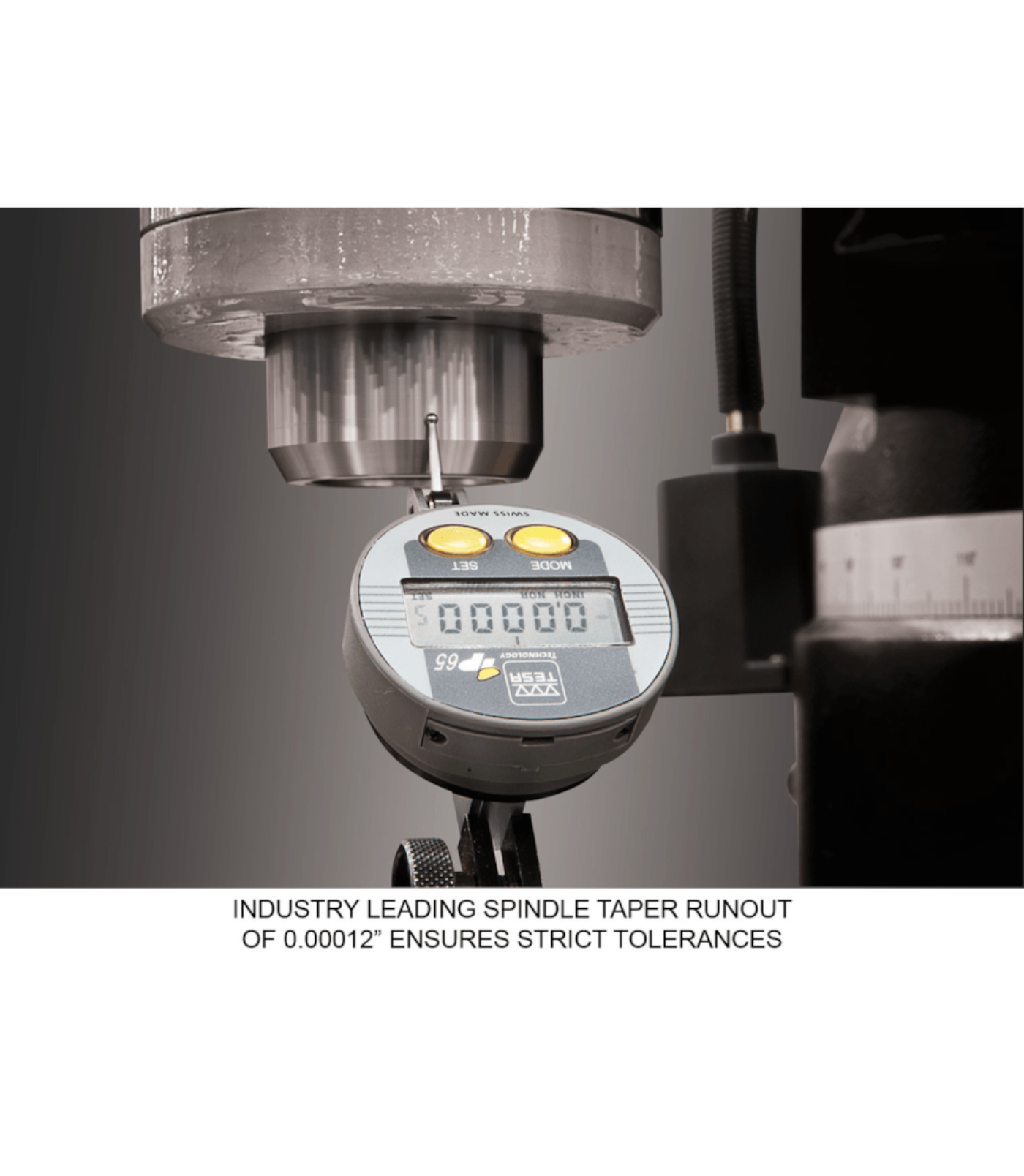

| Spindle Taper |
R-8 |
| Collet Capacity |
1/8 – 7/8 in. |
| Quill Diameter |
3-3/8 in. |
| Quill Down Feed Rates (IPR) |
0.0015 – 0.003 – 0.006 |
| Max Distance Spindle to Table |
18-3/4 in. |
| Distance Spindle to Column (Max.) |
21-2/5 in. |

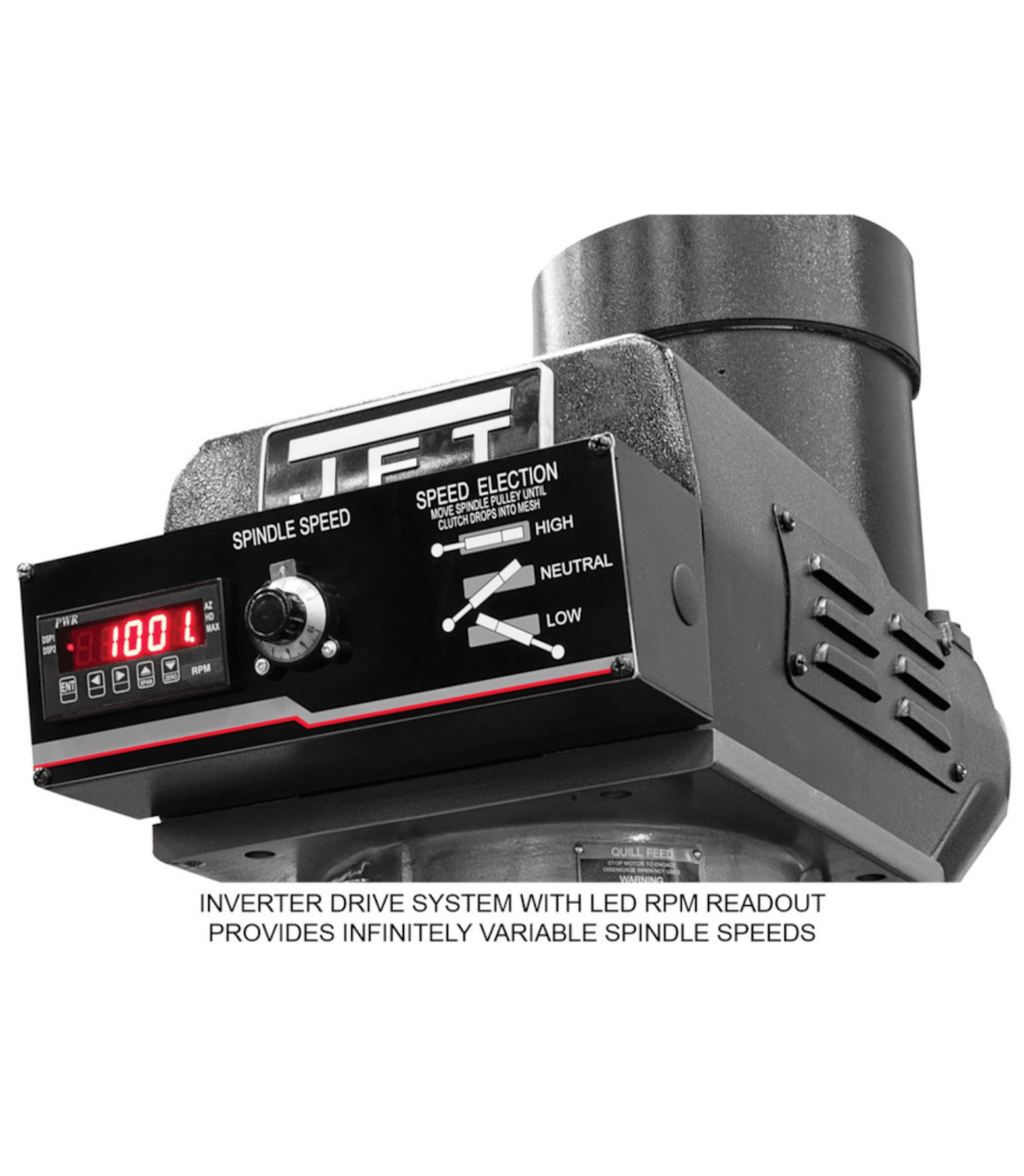

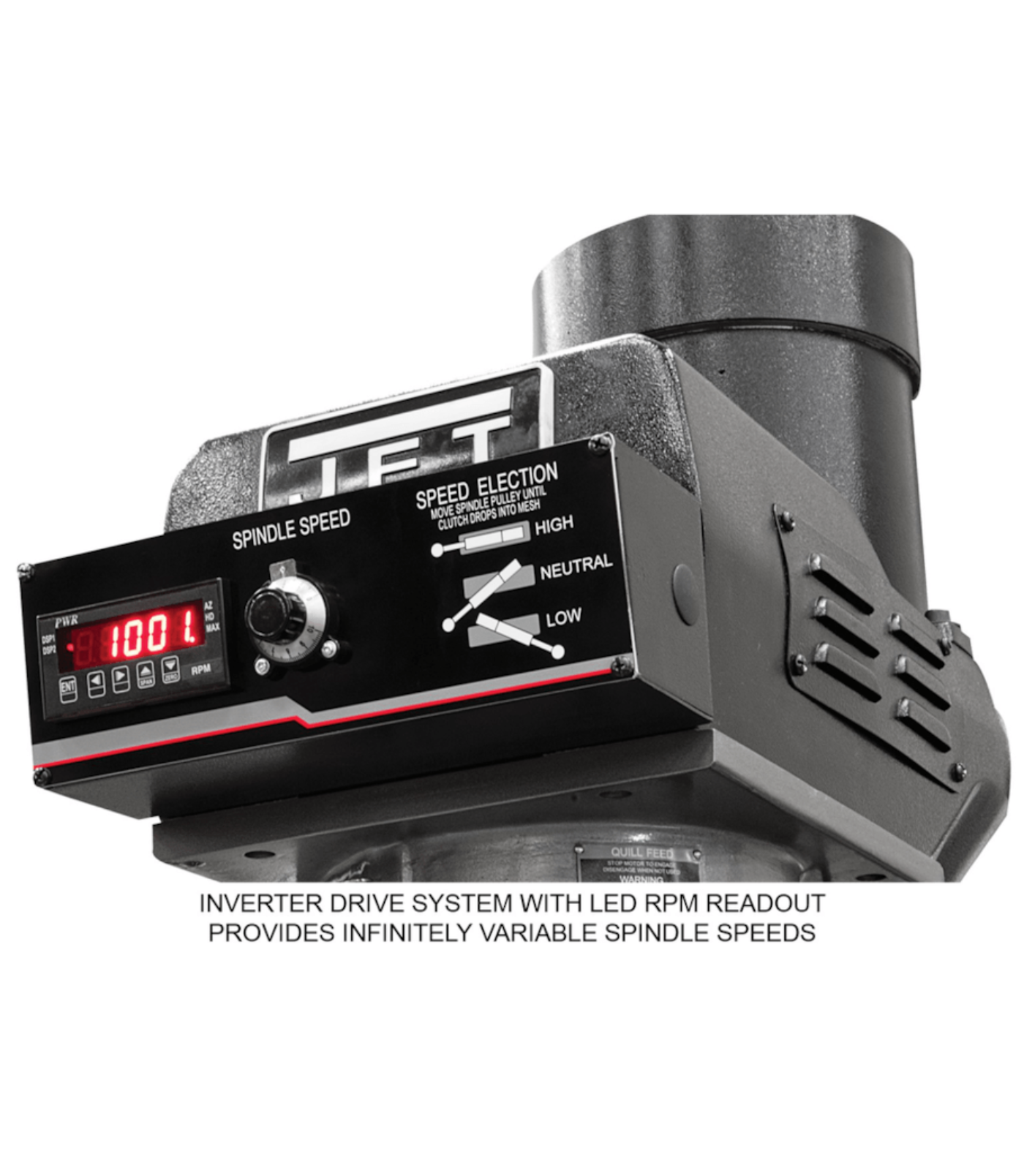

| Range of Spindle Speeds |
60 – 5,000 RPM |
| Table Longitudinal Travel |
36 in. |
| Table Cross Travel |
12 in. |
| T-Slot Centers |
2-1/2 in. |
| Travel of Knee |
16 in. |
| Travel of Ram |
14 in. |
| Motor |
3 HP, 230V, 3Ph |
| Amperage Draw @ 230V 3Ph |
18 A |
| Weight |
2,300 lbs. |

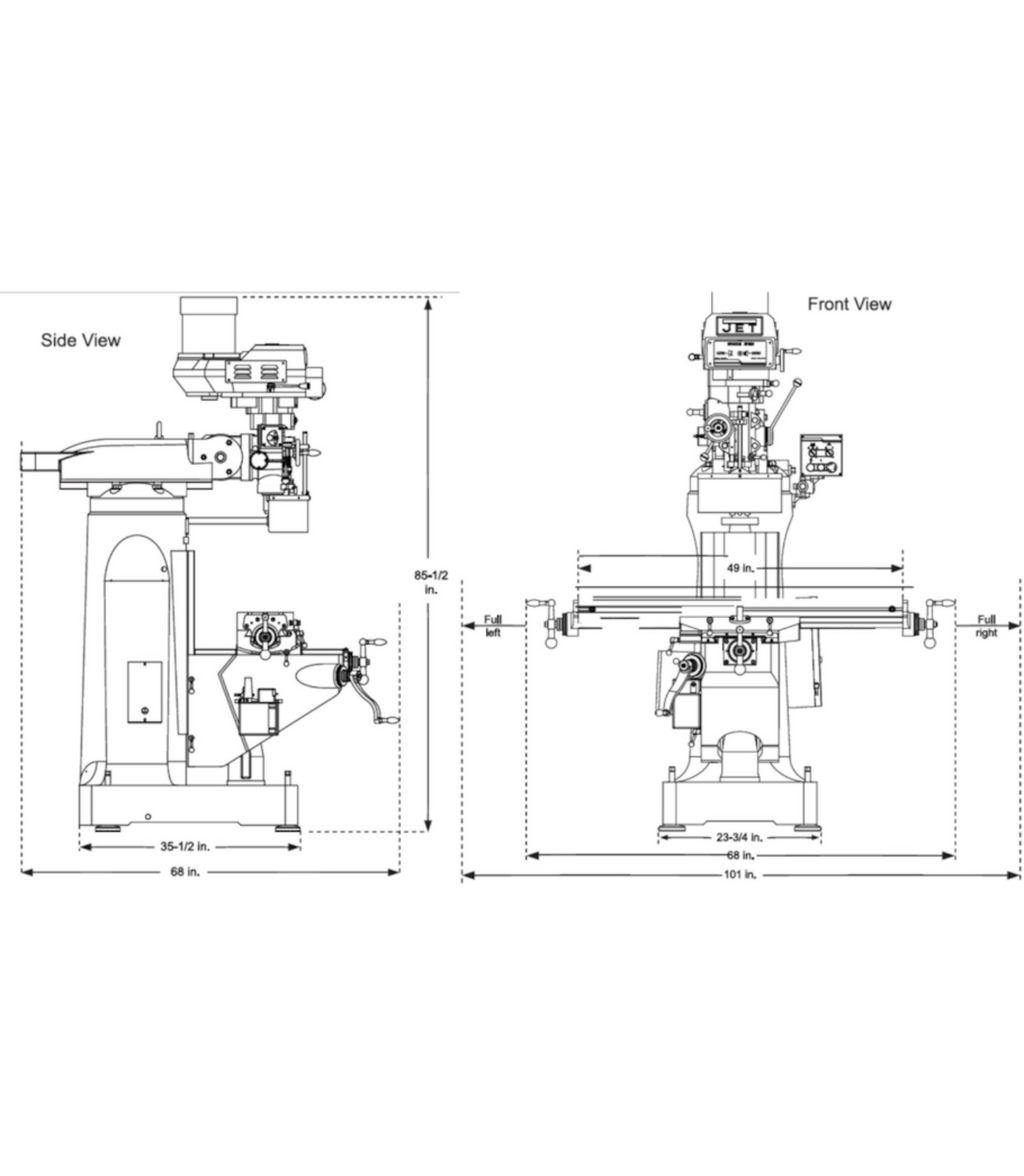

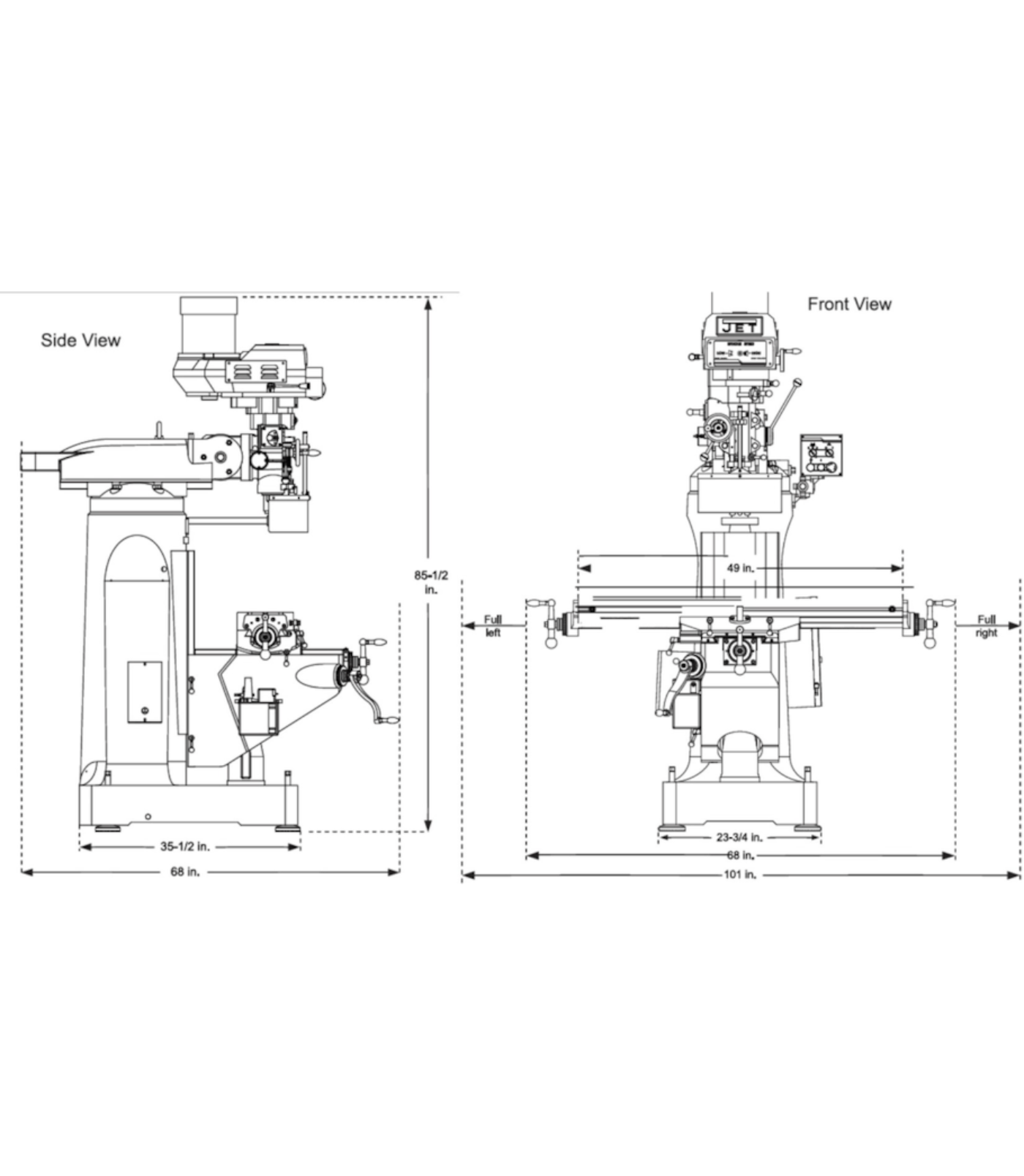

| Overall Dimensions (L x W x H) |
68 x 63 x 84 in. |
What our Experts Think
-
2-Axis Precision: X and Y-axis control ensures accurate and consistent milling operations.
-
ACU-RITE 303 DRO: Advanced digital readout provides precise measurements and improved workflow.
-
X & Y-Axis JET Powerfeeds: Automates table movement for smooth, efficient cutting.
-

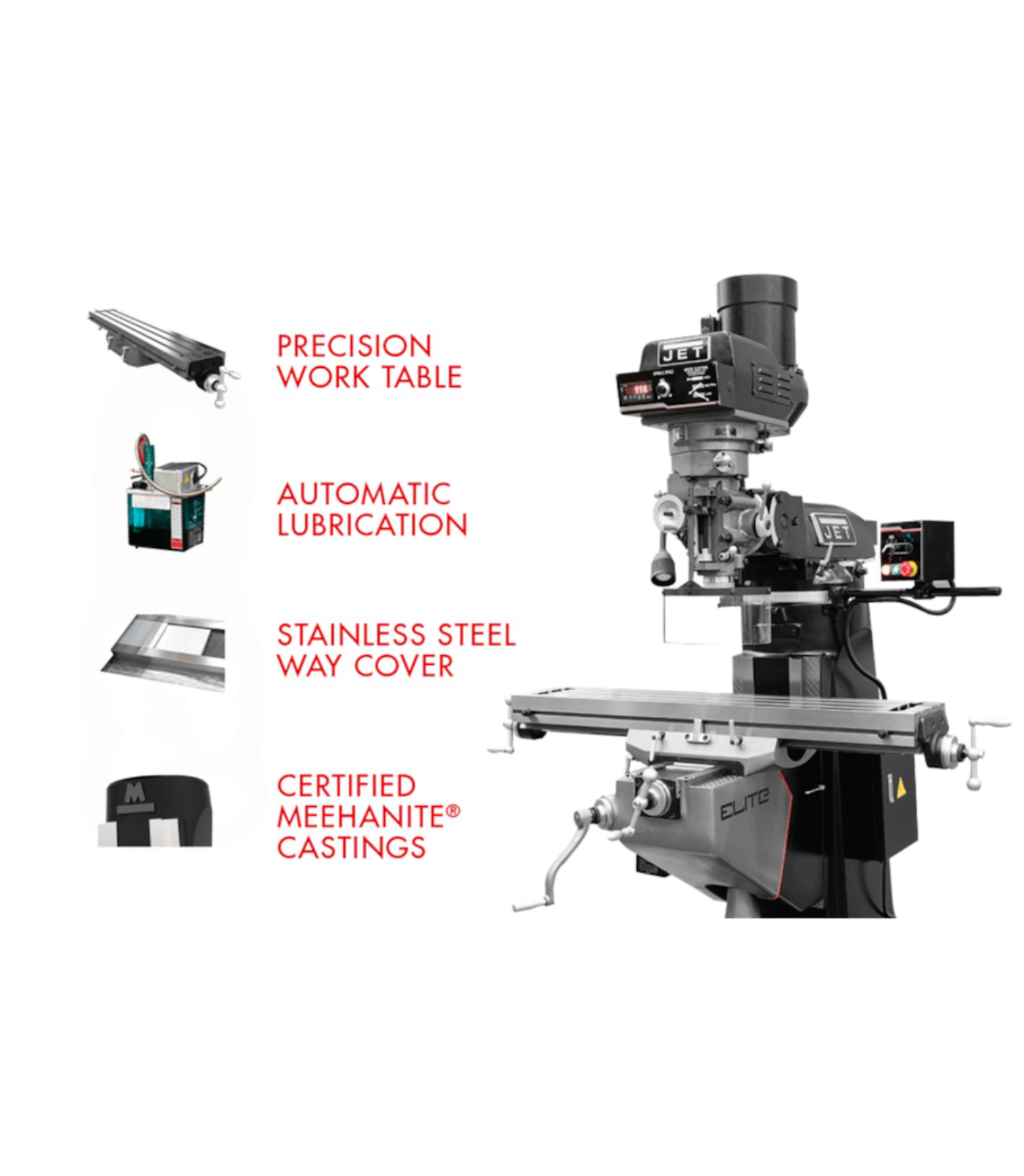

Rigid Construction: Heavy-duty cast-iron frame reduces vibration and increases durability.
-
Professional Reliability: Ideal for machine shops, toolrooms, and industrial metalworking applications.
Q&A

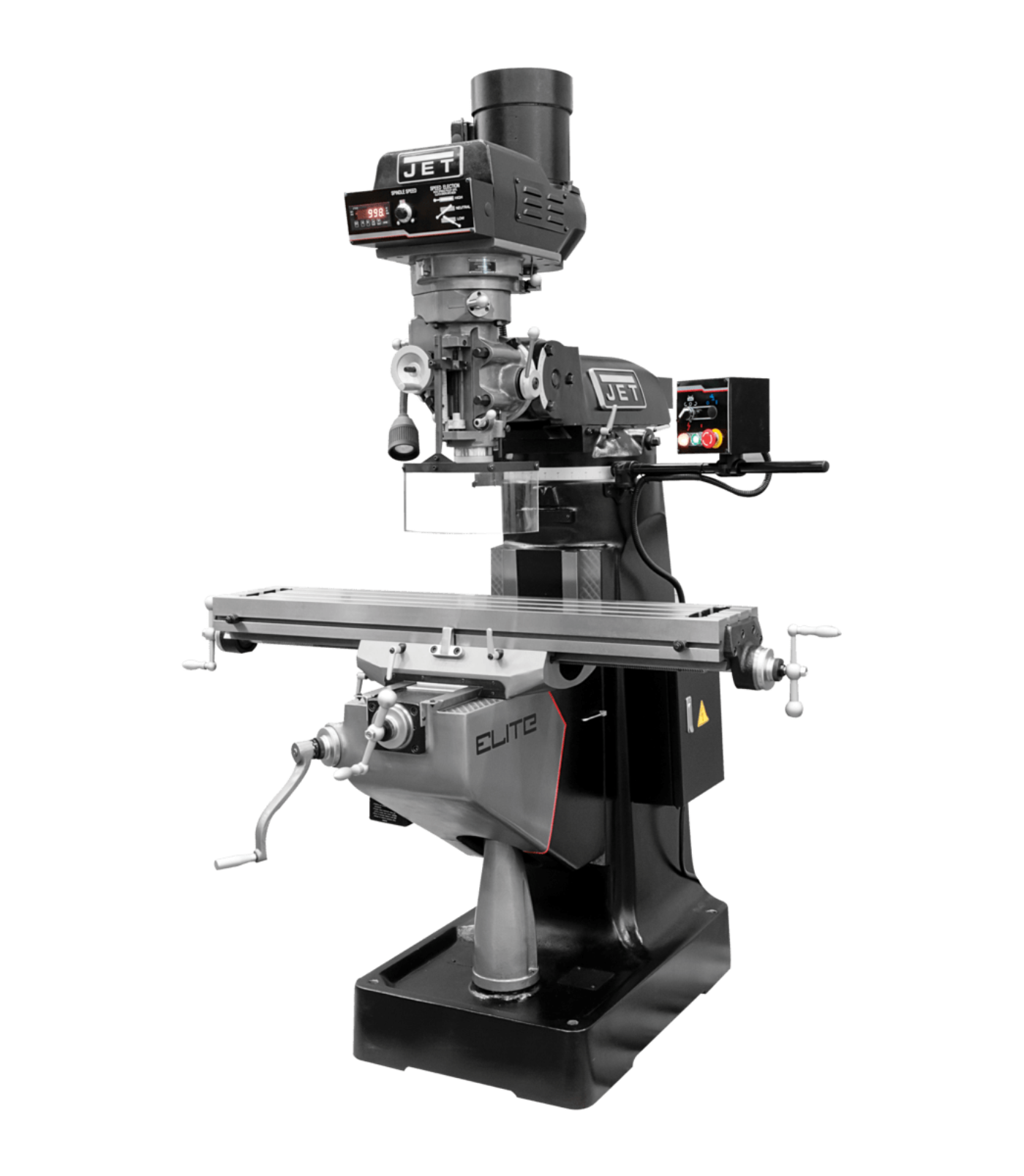

Q: What is the JET Elite ETM-949 Mill?
A: The ETM-949 is a professional vertical milling machine featuring a 2-axis ACU-RITE 303 DRO and X, Y-axis JET Powerfeeds, designed for precision machining, prototyping, and production work.
Q: What does the 2-axis ACU-RITE 303 DRO provide?
A: The 2-axis DRO delivers accurate digital readouts for the X and Y axes, improving setup efficiency, precision, and repeatability for milling operations.
Q: How do the X and Y-axis Powerfeeds help?
A: The dual-axis Powerfeeds provide smooth, controlled movement along the X and Y axes, improving surface finish, reducing operator fatigue, and enhancing machining consistency during repetitive tasks.
Q: What milling operations can it perform?
A: Supports milling, drilling, boring, slotting, and precision surface finishing with high repeatability and efficiency.
Q: What is the worktable size?
A: The ETM-949 features a robust, spacious worktable suitable for medium to large workpieces and versatile machining operations.
Q: What spindle features does it offer?
A: Equipped with a high-torque spindle with precise speed control, ideal for a wide range of materials and cutting tasks.
Q: What type of motor powers the mill?
A: A heavy-duty industrial motor provides consistent torque, smooth operation, and reliable performance for demanding milling jobs.
Q: How precise and durable is the mill?
A: Precision-ground ways and a rigid frame ensure long-term accuracy, stability, and durability under professional use.
Q: Who is this mill ideal for?
A: Perfect for machine shops, tool rooms, prototyping facilities, and educational programs needing precision milling with dual-axis powerfeed control and digital measurement.
Q: Does it meet safety and quality standards?
A: Yes, it is CSA/ETL certified and built to JET Elite industrial-quality standards for reliability, accuracy, and operator safety.
Q: What sets this configuration apart?
A: The combination of 2-axis ACU-RITE 303 DRO with X, Y-axis Powerfeeds provides precise digital positioning, automated feed control, and enhanced productivity for repetitive and complex milling operations.
Maintenance Tips
-
Clean table, spindle, and ways after each use to remove chips, coolant, and debris.
-

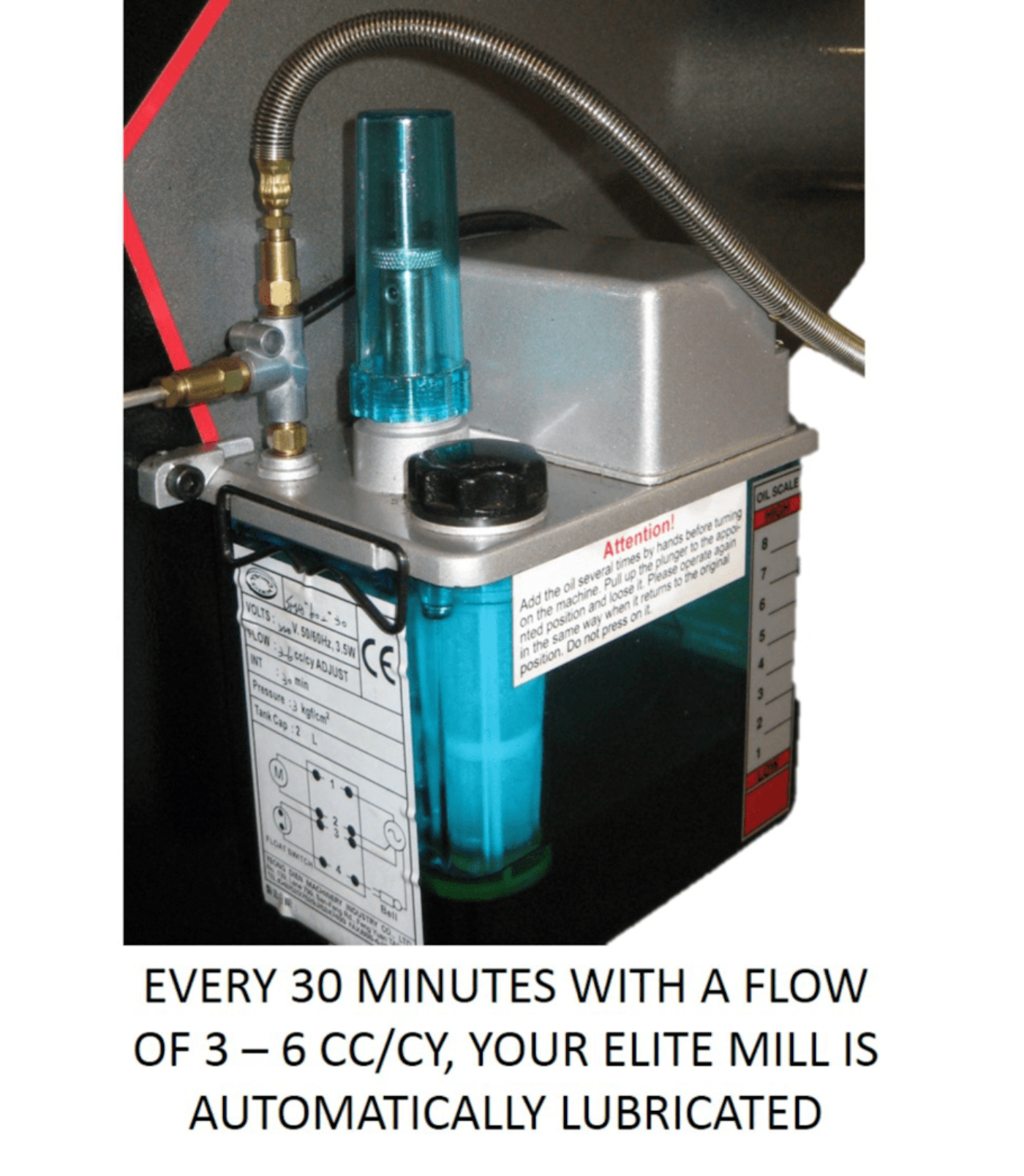

Lubricate lead screws, bearings, and sliding surfaces regularly for smooth and precise movement.
-
Inspect X and Y-axis powerfeeds, belts, and gears for proper operation and wear.
-
Check ACU-RITE 303 DRO accuracy and recalibrate as necessary to maintain precision.
-

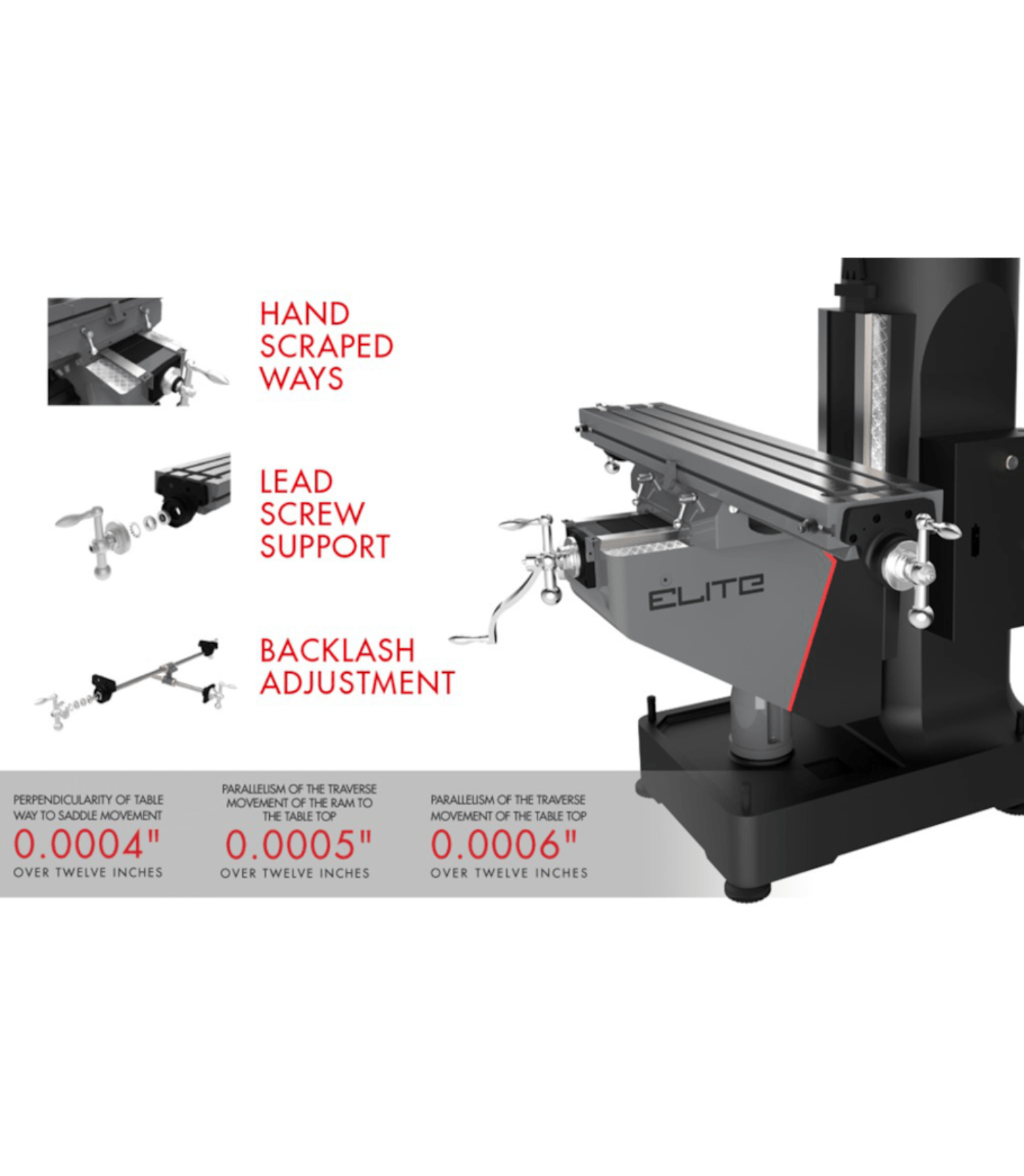

Tighten gibs and adjust backlash to ensure rigidity and consistent milling accuracy.
-
Verify spindle alignment and calibration periodically for reliable performance.
-
Schedule routine professional servicing to extend machine life and optimize functionality.
