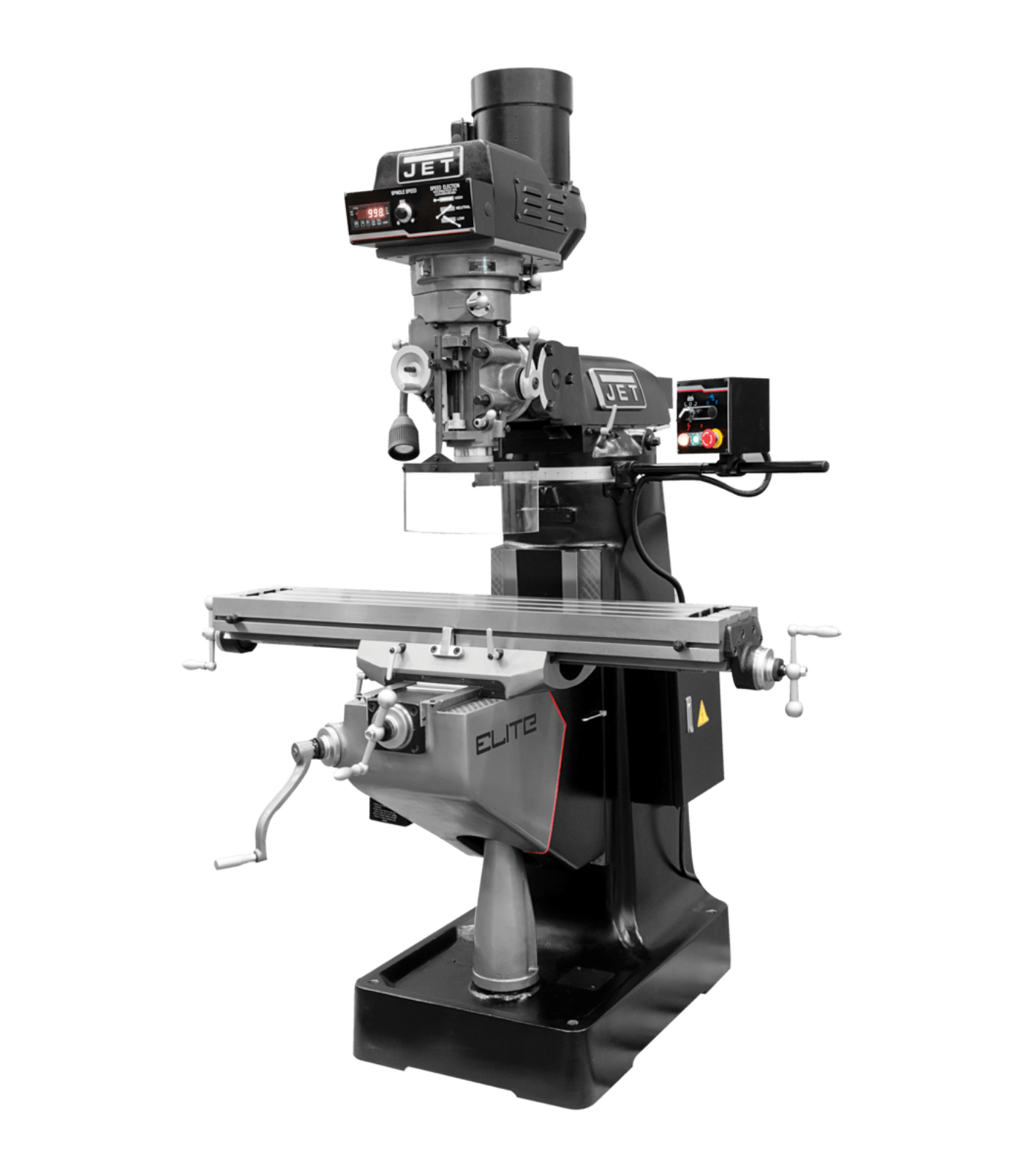

    JET Elite ETM-949 Mill with Y-Axis JET Powerfeed - JT9-894101

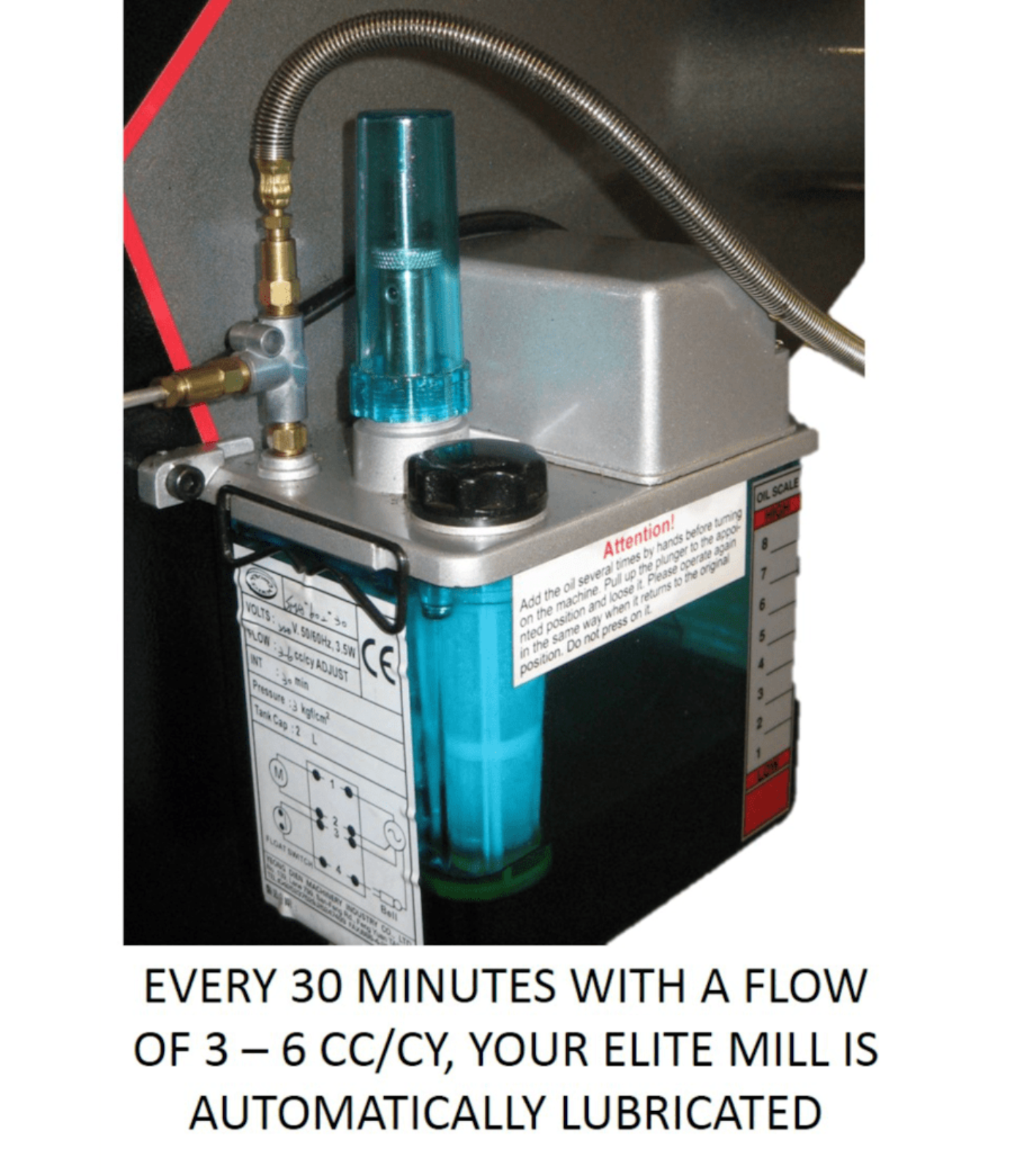

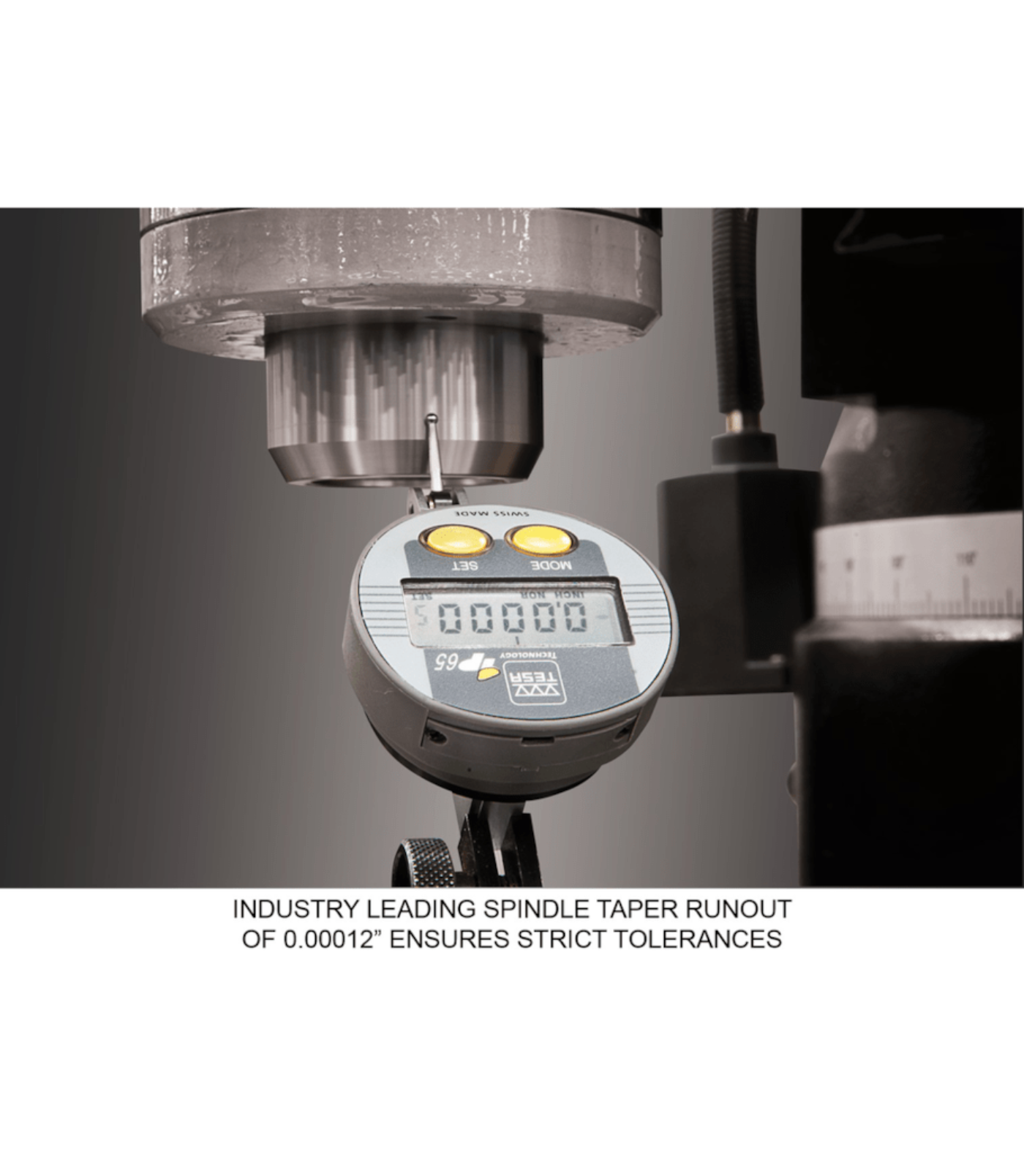

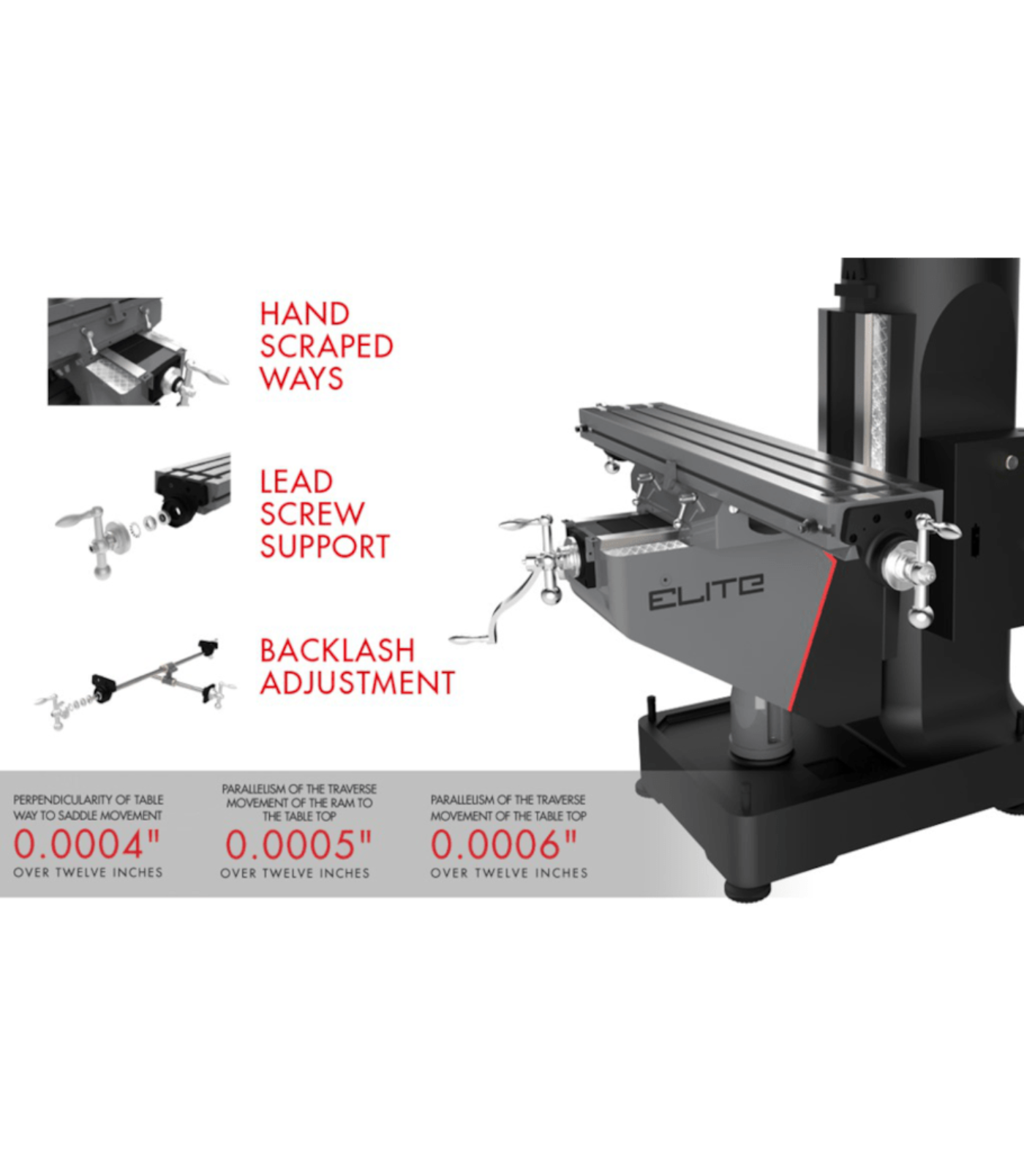

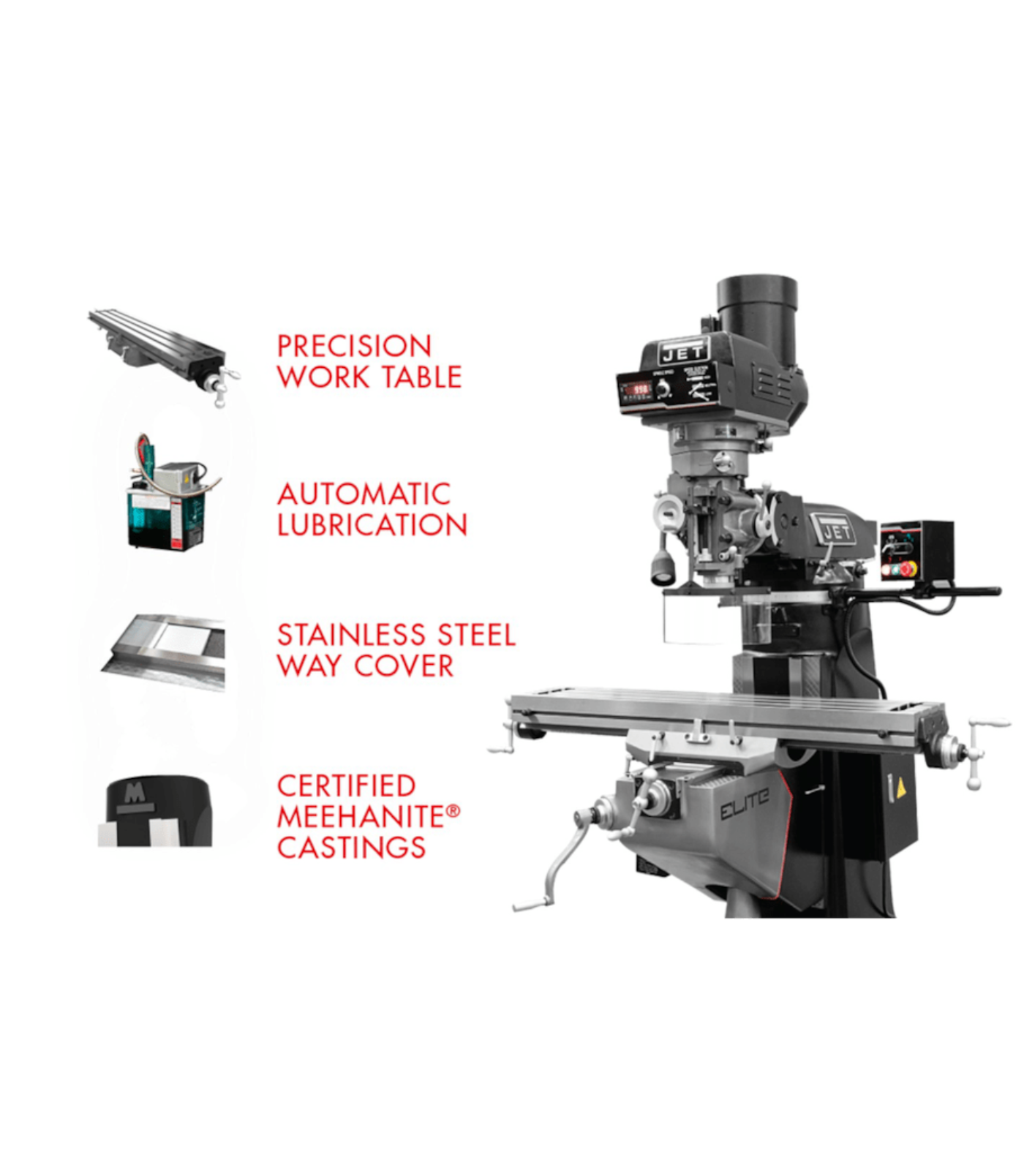

    Elite offers world class mills fully loaded with features. With Certified Meehanite® castings, an electronic spindle brake that prevents accidental startups, and a hardened and ground table, this mill provides reliability and durability for milling a diverse variety of materials. Our patented vari-disc key provides up to 10 times the wear resistance than aluminum or brass keys. The fully hardened Chromium Molybdenum spindle meets strict tolerance requirements and utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry-leading spindle taper runout of 0.00012". The Y- and Z-axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements. Additionally, every 30 minutes, your Elite mill is automatically lubricated with a flow of 3 to 6 cc/cy. For operator safety, all Elite Mills are CSA/CUS Certified and come with a spindle safety guard.

    Features
    • Ball bearing support of the motor shaft ensures proper loading, support, and alignment for quiet, accurate operation at any speed
    • Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load

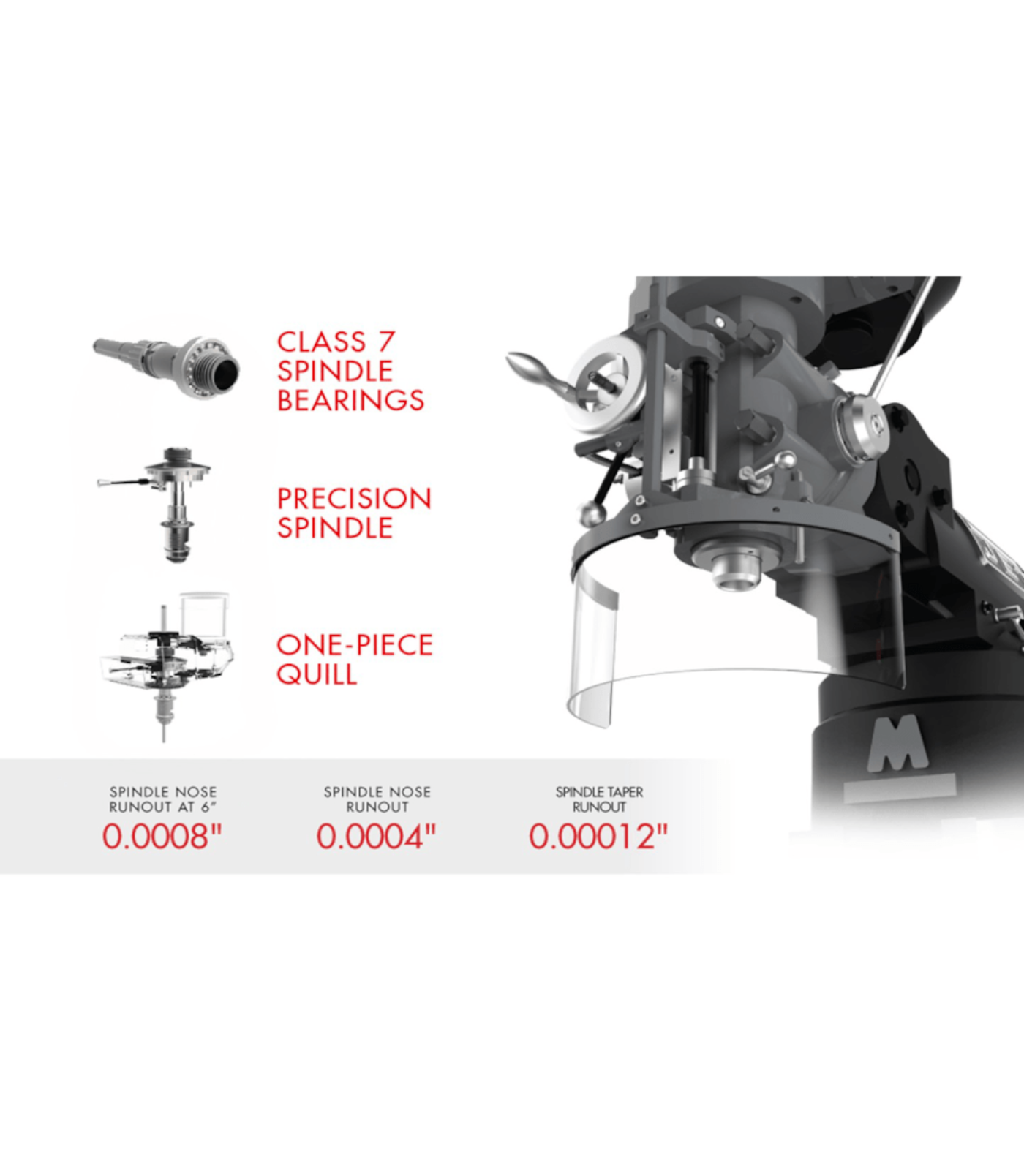

    • Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
    • Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover

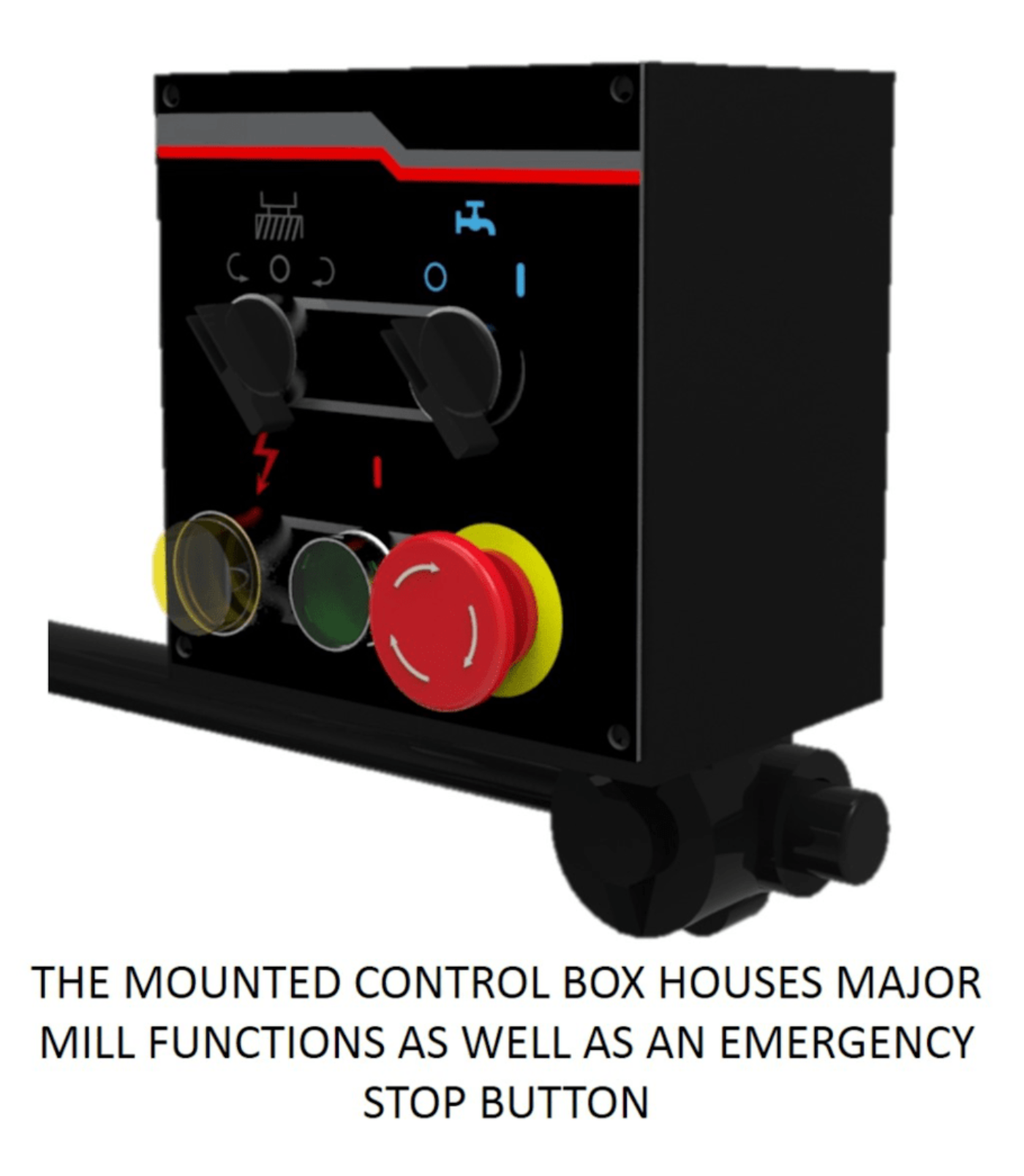

    • The mounted control box houses major mill functions as well as an emergency stop button
    • The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements
    • Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
    Specifications
    Style (Type) Variable Speed
    Table Size (L x W) 9 x 49 in.
    Work Table Weight Capacity 550 lbs.
    Spindle Travel 5 in.
    Spindle Taper R-8
    Collet Capacity 1/8 – 7/8 in.
    Quill Diameter 3-3/8 in.
    Quill Down Feed Rates (IPR) 0.0015 – 0.003 – 0.006
    Max Distance Spindle to Table 18-3/4 in.
    Distance Spindle to Column (Max.) 21-2/5 in.
    Range of Spindle Speeds 60 – 5,000 RPM
    Table Longitudinal Travel 36 in.
    Table Cross Travel 12 in.
    T-Slot Centers 2-1/2 in.
    Travel of Knee 16 in.
    Travel of Ram 14 in.
    Motor 3 HP, 230V, 3Ph
    Amperage Draw @ 230V 3Ph 18 A
    Weight 2,300 lbs.

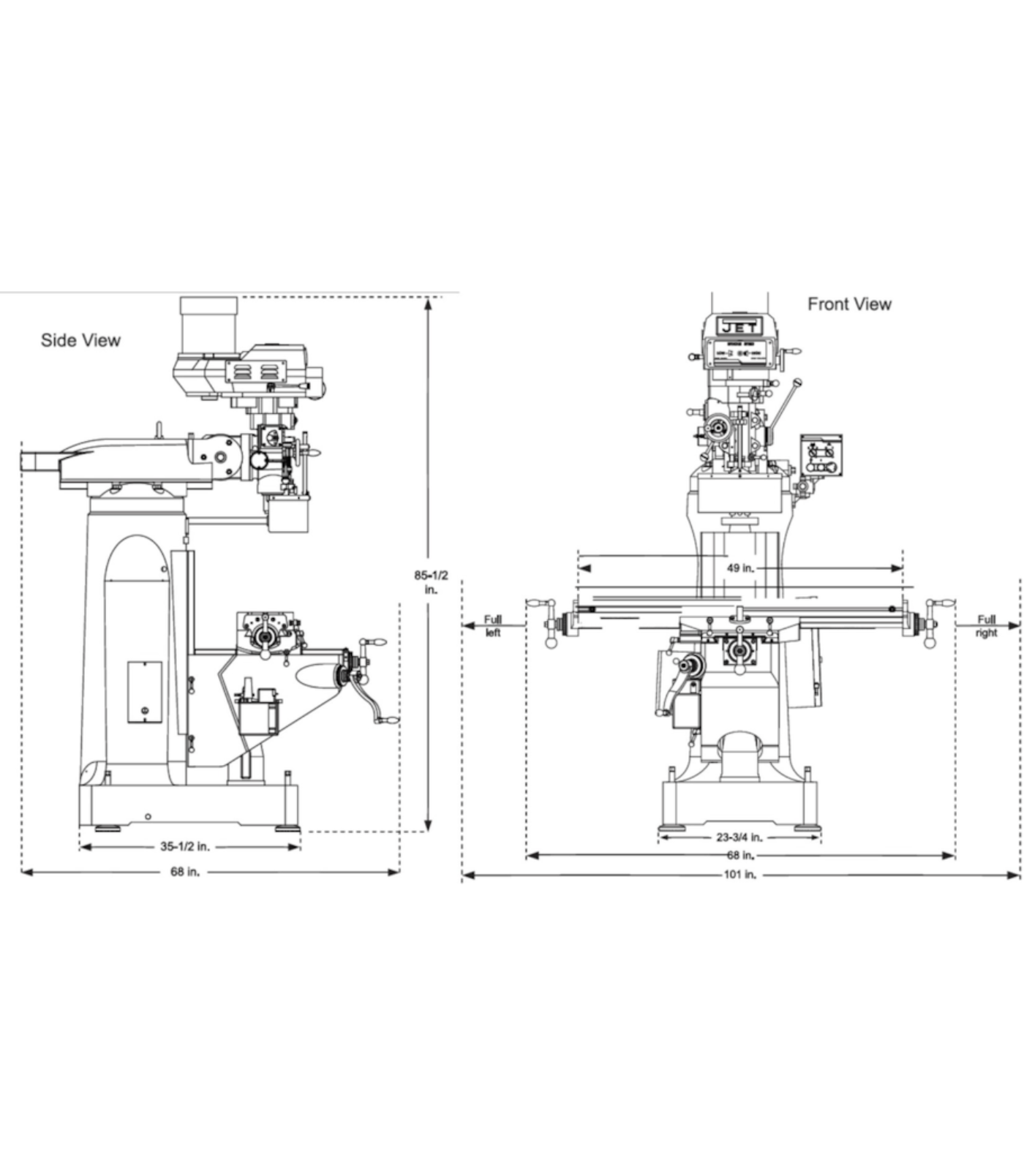

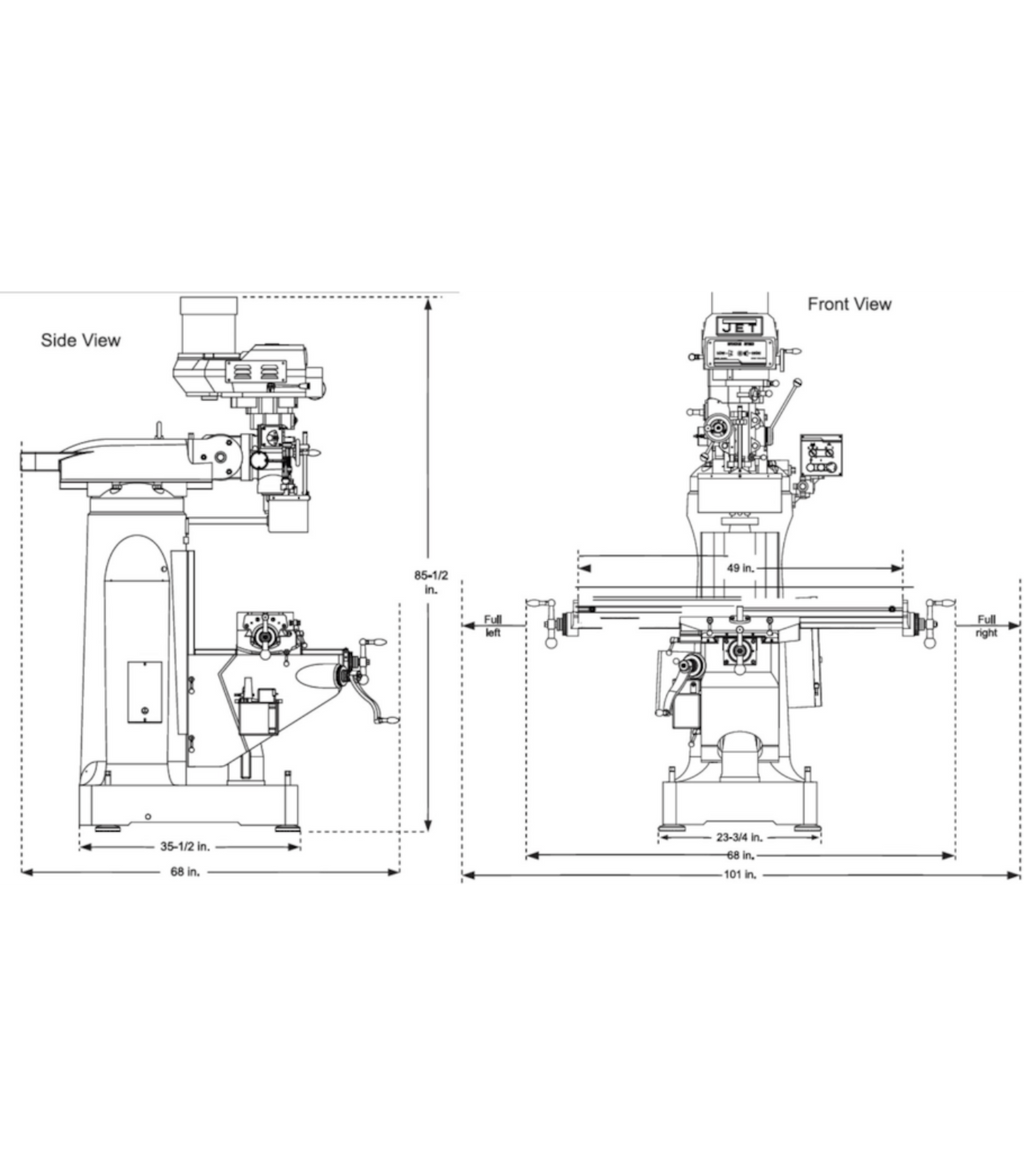

    Overall Dimensions (L x W x H) 68 x 63 x 84 in.
    What our Experts Think
    • Enhanced Y-Axis Control – Built-in powerfeed boosts precision and efficiency on cross movements.

    • Rugged Construction – Heavy-duty cast iron frame ensures stability and vibration reduction.

    • High Accuracy – Hardened and ground ways support long-term precision milling.

    • Productivity Focused – Powerfeed reduces manual effort, ideal for repetitive or complex cuts.

    • Operator Friendly – Smooth table travel and intuitive controls improve workflow.

    • Best For – Machine shops, toolrooms, and fabrication facilities needing reliable Y-axis powered milling performance.

    Q&A

    Q: What is the JET Elite ETM-949 Mill with Y-Axis JET Powerfeed?
    A: A precision vertical milling machine built with heavy-duty cast iron and equipped with Y-Axis powerfeed for smooth operation.

    Q: How does the Y-Axis Powerfeed improve performance?
    A: It ensures consistent table movement, better surface finishes, and reduced operator effort during extended milling.

    Q: What makes this mill durable and accurate?
    A: It features a rigid Meehanite cast iron body, precision-ground table, and high-quality spindle for long-term accuracy.

    Q: Where is the ETM-949 commonly used?
    A: Perfect for metalworking shops, tool rooms, and industrial manufacturing that require reliable milling precision.

    Q: Does it include safety and convenience features?
    A: Yes, it comes with spindle safety guards, wide travel capacity, and user-friendly controls for safe, efficient operation.

    Maintenance Tips
    • Lubricate ways, slides, and leadscrews daily with proper oil.

    • Inspect belts, gears, and Y-axis powerfeed parts regularly.

    • Change spindle and gearbox oil on schedule.

    • Adjust gibs to maintain precision.

    • Clear chips and debris after each use.
