| Style (Type) |
Variable Speed |
| Table Size (L x W) |
9 x 49 in. |
| Work Table Weight Capacity |
550 lbs. |
| Spindle Travel |
5 in. |
| Spindle Taper |
R-8 |
| Collet Capacity |
1/8 – 7/8 in. |
| Quill Diameter |
3-3/8 in. |
| Quill Down Feed Rates (IPR) |
0.0015 – 0.003 – 0.006 |
| Max Distance Spindle to Table |
18-3/4 in. |
| Distance Spindle to Column (Max.) |
21-2/5 in. |

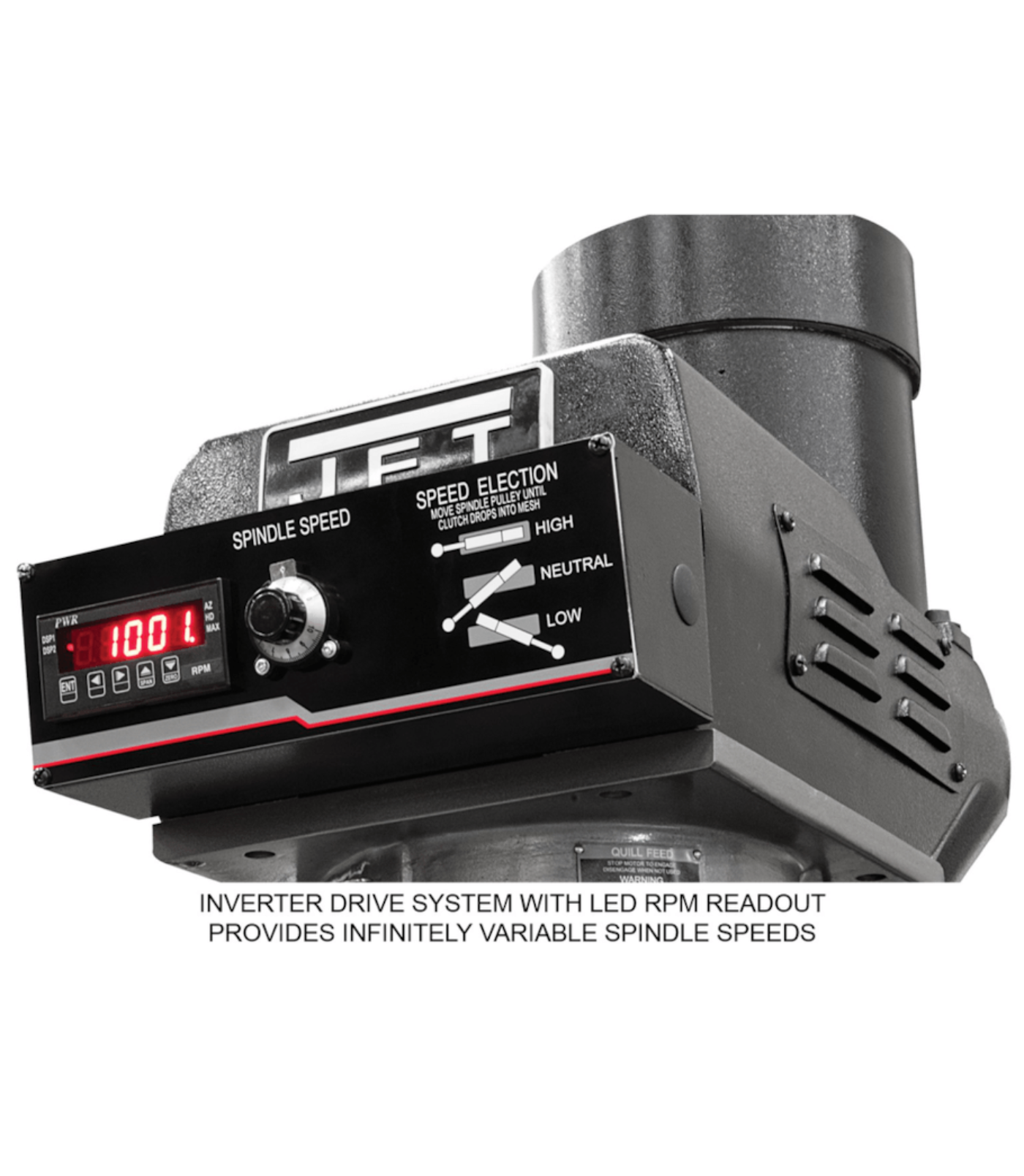

| Range of Spindle Speeds |
60 – 5,000 RPM |
| Table Longitudinal Travel |
36 in. |
| Table Cross Travel |
12 in. |
| T-Slot Centers |
2-1/2 in. |
| Travel of Knee |
16 in. |
| Travel of Ram |
14 in. |
| Motor |
3 HP, 230V, 3Ph |
| Amperage Draw @ 230V 3Ph |
18 A |
| Weight |
2,300 lbs. |

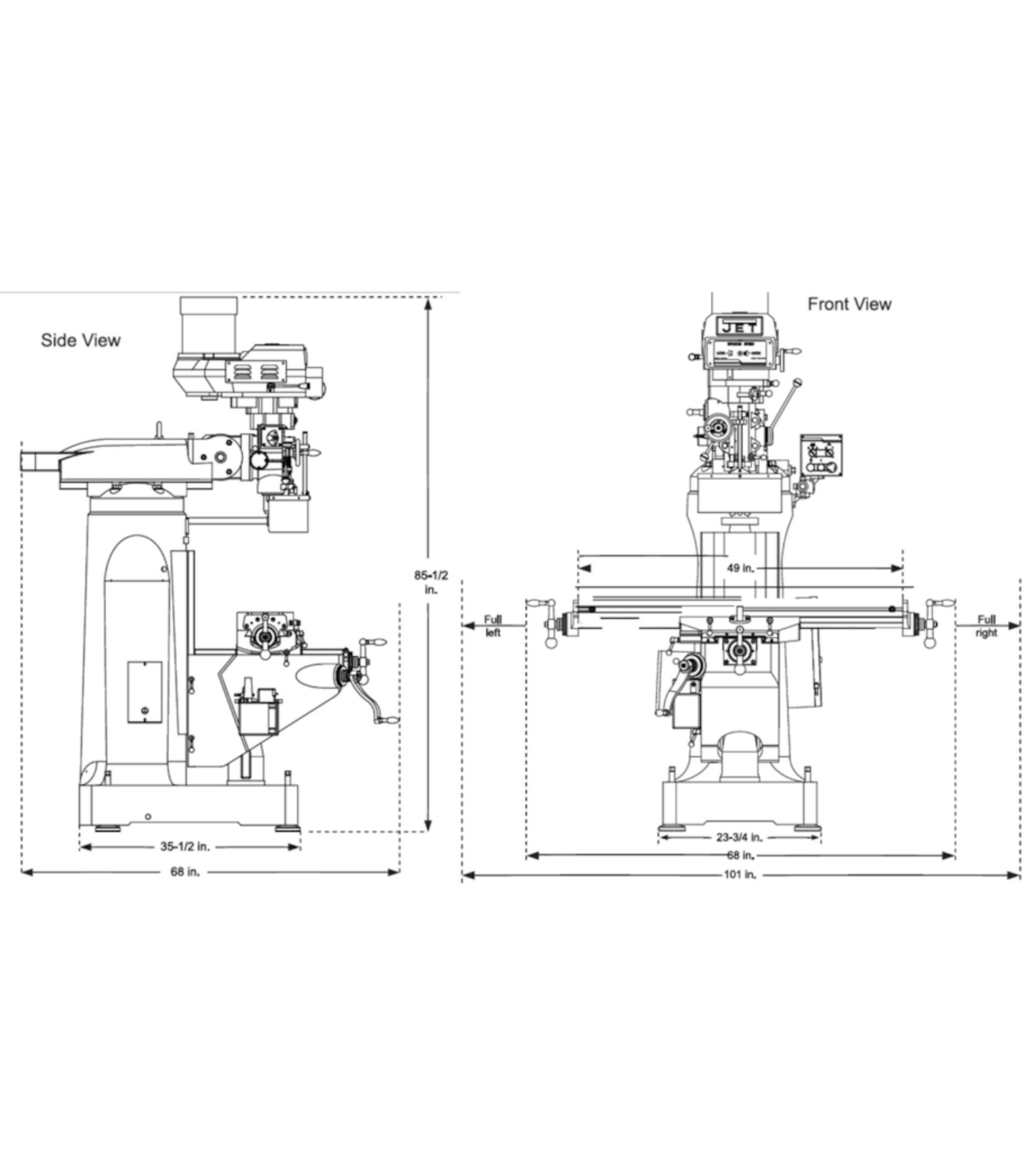

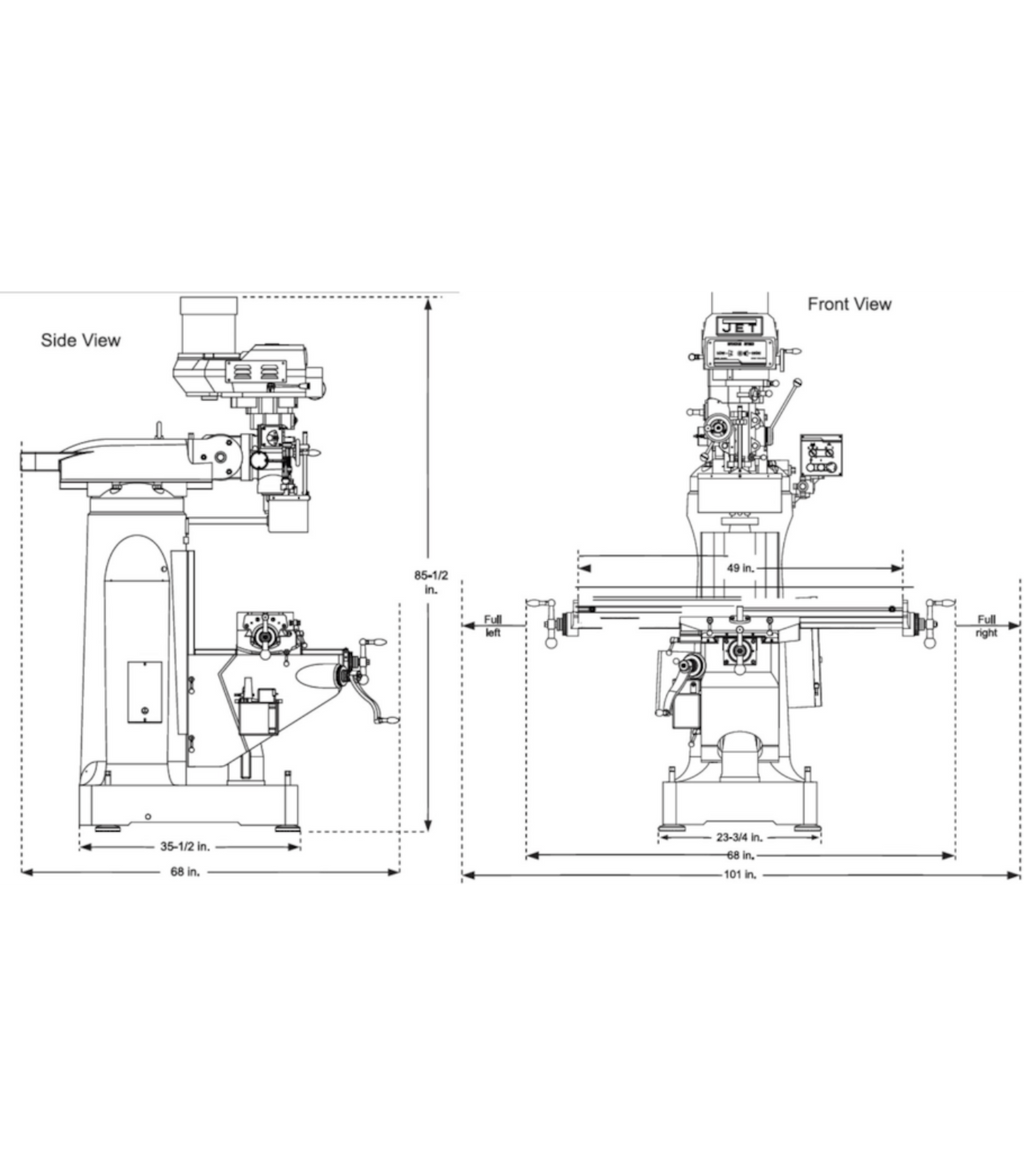

| Overall Dimensions (L x W x H) |
68 x 63 x 84 in. |
What our Experts Think
-
Precision Z-Axis Control: Ensures accurate vertical movement for consistent milling results.
-
JET Powerfeed: Automates Z-axis feed for smoother cuts and enhanced efficiency.
-
Rigid Construction: Heavy-duty cast-iron frame minimizes vibration and maximizes durability.
-
Versatile Milling: Suitable for a wide range of metalworking and fabrication tasks.
-
Professional Reliability: Designed for toolrooms, machine shops, and industrial milling operations.
Q&A

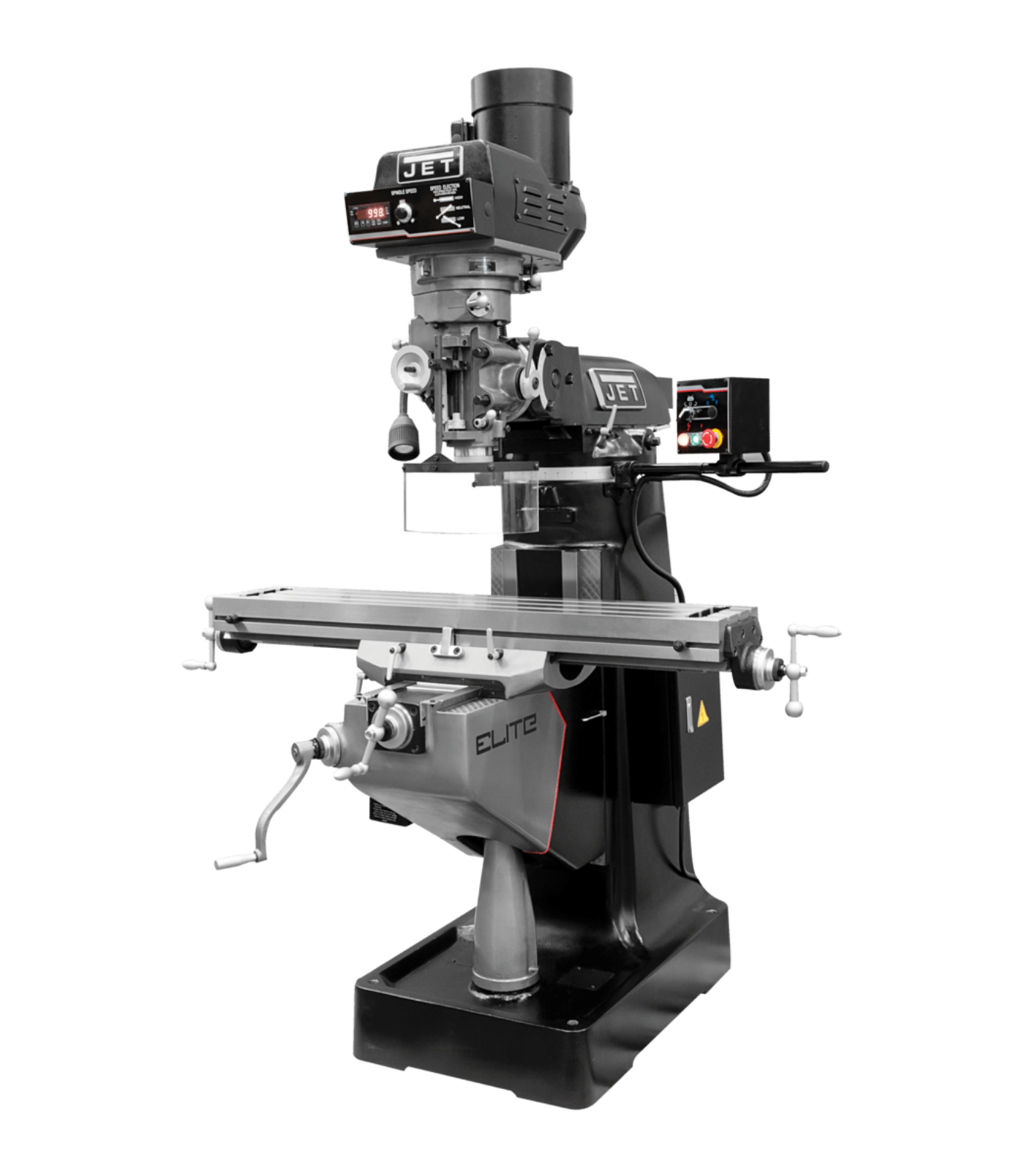

Q: What is the JET Elite ETM-949 Mill?
A: The ETM-949 is a professional-grade vertical milling machine equipped with a Z-axis JET Powerfeed, designed for precise and efficient milling, drilling, and boring operations.
Q: What does the Z-axis Powerfeed do?
A: The Z-axis Powerfeed provides smooth, controlled vertical movement, improving precision, surface finish, and reducing operator fatigue during repetitive drilling or boring tasks.
Q: What are the milling capabilities?
A: The mill supports milling, drilling, boring, slotting, and precision finishing, offering high repeatability and consistent results.
Q: What is the worktable size?
A: It features a robust and spacious worktable suitable for medium to large workpieces and versatile machining setups.
Q: What spindle features does it offer?
A: The ETM-949 comes with a high-torque spindle capable of precise speed adjustments for a wide range of materials.
Q: What motor powers the mill?
A: A heavy-duty industrial motor ensures reliable torque, smooth operation, and consistent performance under load.
Q: How precise and durable is the mill?
A: Precision-ground ways and a rigid construction provide long-lasting accuracy, stability, and rigidity for demanding machining tasks.
Q: Who is this mill ideal for?
A: Perfect for machine shops, tool rooms, prototyping facilities, and educational programs that require professional milling capabilities.
Q: Does it meet safety and quality standards?
A: Yes, it is CSA/ETL certified and built to JET Elite industrial-quality standards for durability, precision, and operator safety.
Q: What makes the ETM-949 with Z-axis Powerfeed stand out?
A: The Z-axis Powerfeed enhances vertical movement control, ensuring accurate depth cutting and improved productivity for repetitive milling and boring operations.
Maintenance Tips
-
Clean the table, spindle, and ways daily to remove chips, coolant, and debris.
-

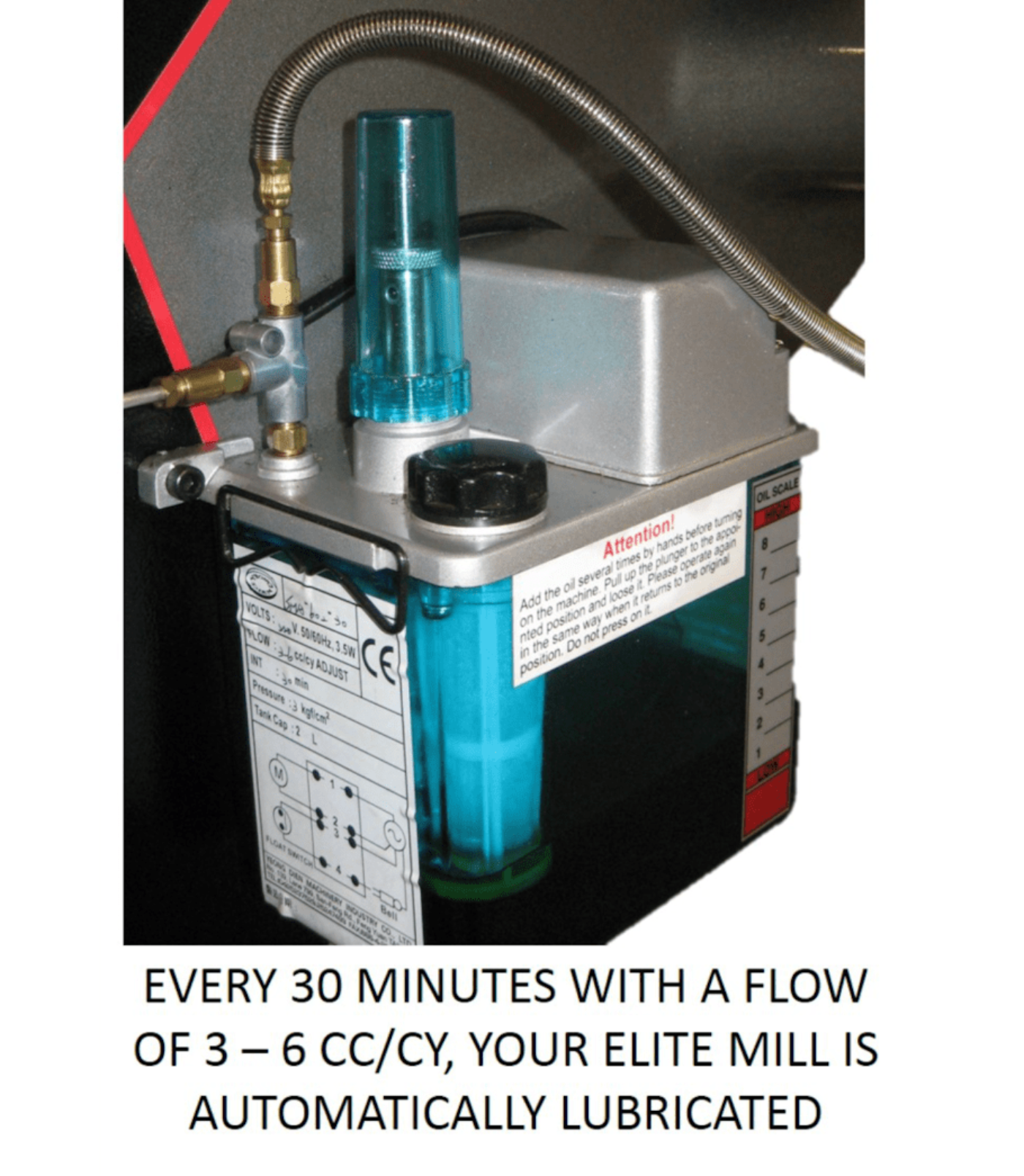

Lubricate all axis slides, lead screws, and bearings regularly to ensure smooth movement.
-
Inspect Z-axis powerfeed, belts, and gears for wear and proper function.
-

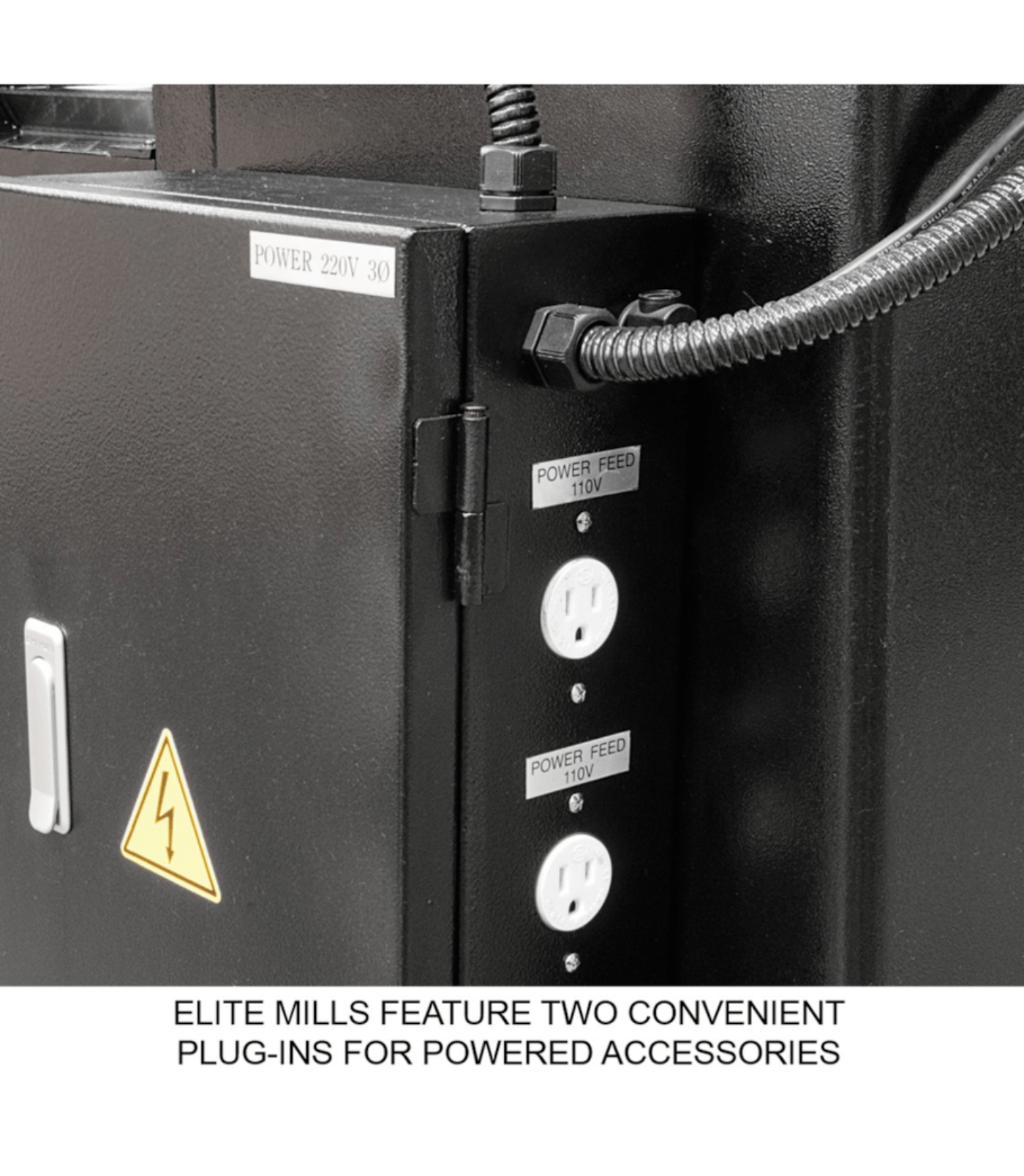

Check electrical connections and safety switches to maintain safe operation.
-
Verify spindle alignment and calibration periodically for precise milling.
-
Tighten gibs and adjust backlash to maintain rigidity and accuracy.
-
Schedule professional servicing periodically for long-term performance and durability.
