| Style (Type) |
Variable Speed |
| Table Size (L x W) |
9 x 49 in. |
| Work Table Weight Capacity |
550 lbs. |
| Spindle Travel |
5 in. |
| Spindle Taper |
R-8 |
| Collet Capacity |
1/8 – 7/8 in. |
| Quill Diameter |
3-3/8 in. |
| Quill Down Feed Rates (IPR) |
0.0015 – 0.003 – 0.006 |
| Max Distance Spindle to Table |
18-3/4 in. |
| Distance Spindle to Column (Max.) |
21-2/5 in. |

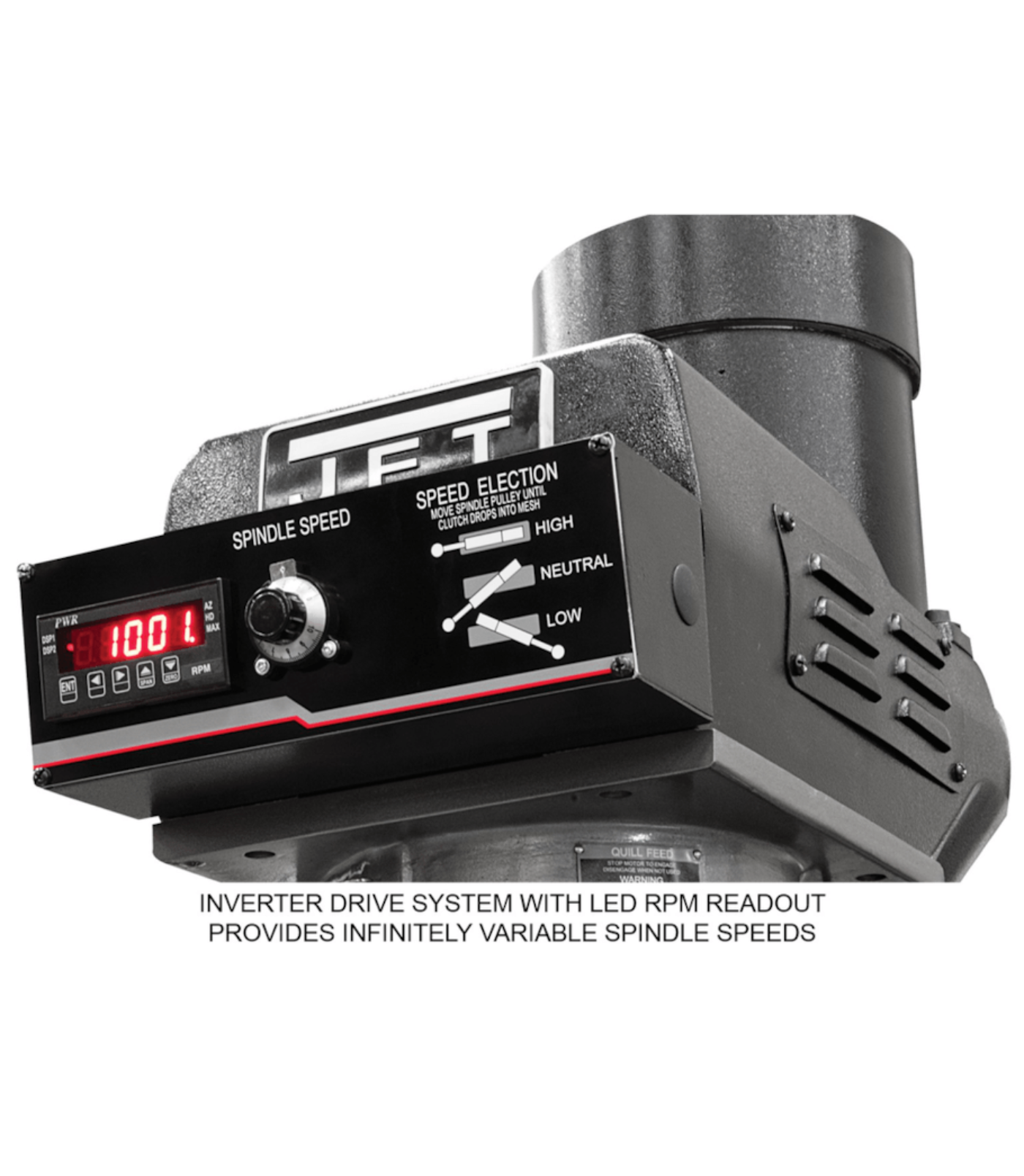

| Range of Spindle Speeds |
60 – 5,000 RPM |
| Table Longitudinal Travel |
36 in. |
| Table Cross Travel |
12 in. |
| T-Slot Centers |
2-1/2 in. |
| Travel of Knee |
16 in. |
| Travel of Ram |
14 in. |
| Motor |
3 HP, 230V, 3Ph |
| Amperage Draw @ 230V 3Ph |
18 A |
| Weight |
2,300 lbs. |

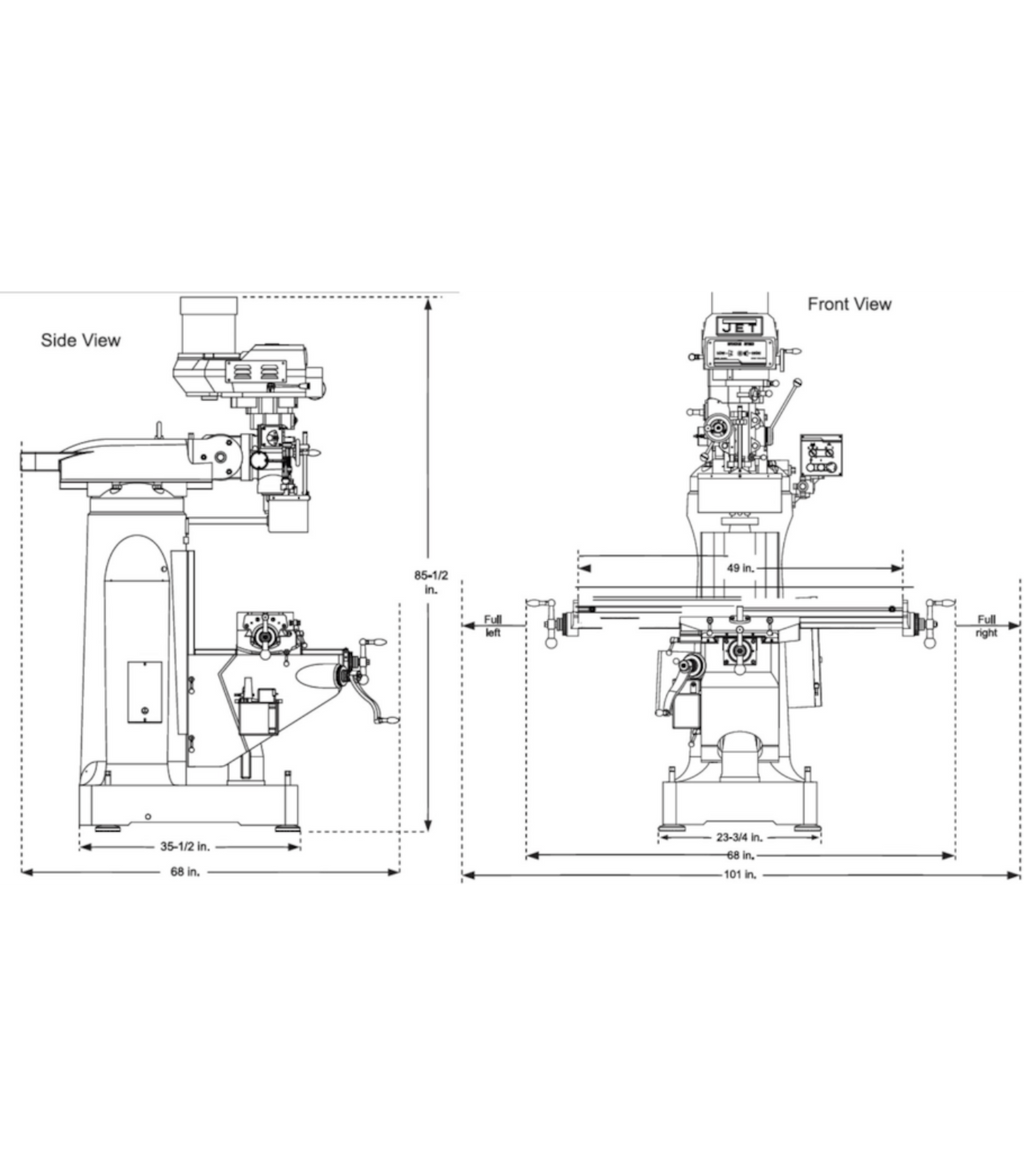

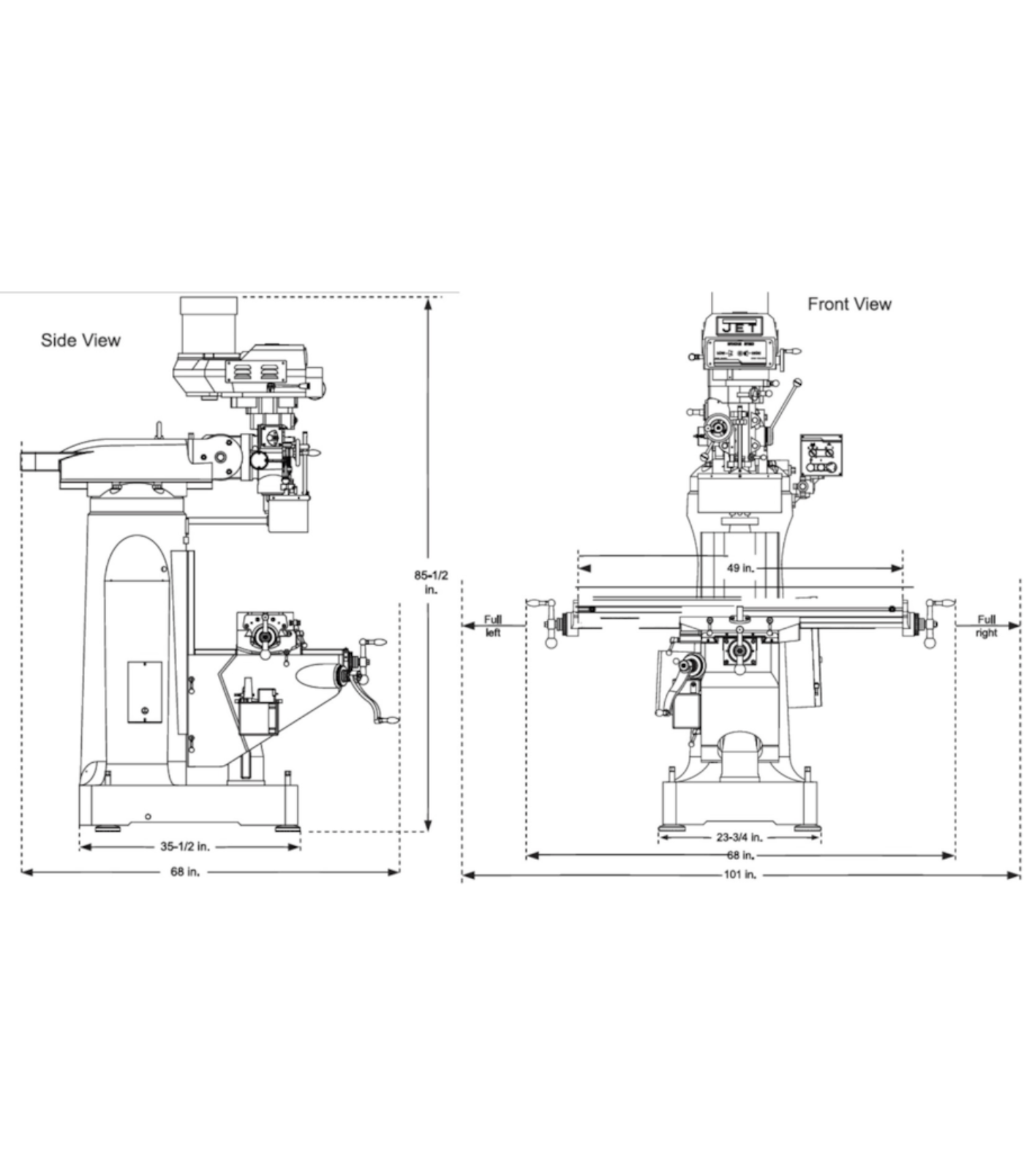

| Overall Dimensions (L x W x H) |
68 x 63 x 84 in. |
What our Experts Think
-
3-Axis Precision: X, Y, and Z-axis control delivers highly accurate milling results.
-
ACU-RITE 303 Knee DRO: Advanced digital readout ensures precise measurements and improved workflow.
-
X-Axis JET Powerfeed: Automates table movement for consistent, efficient cutting.
-

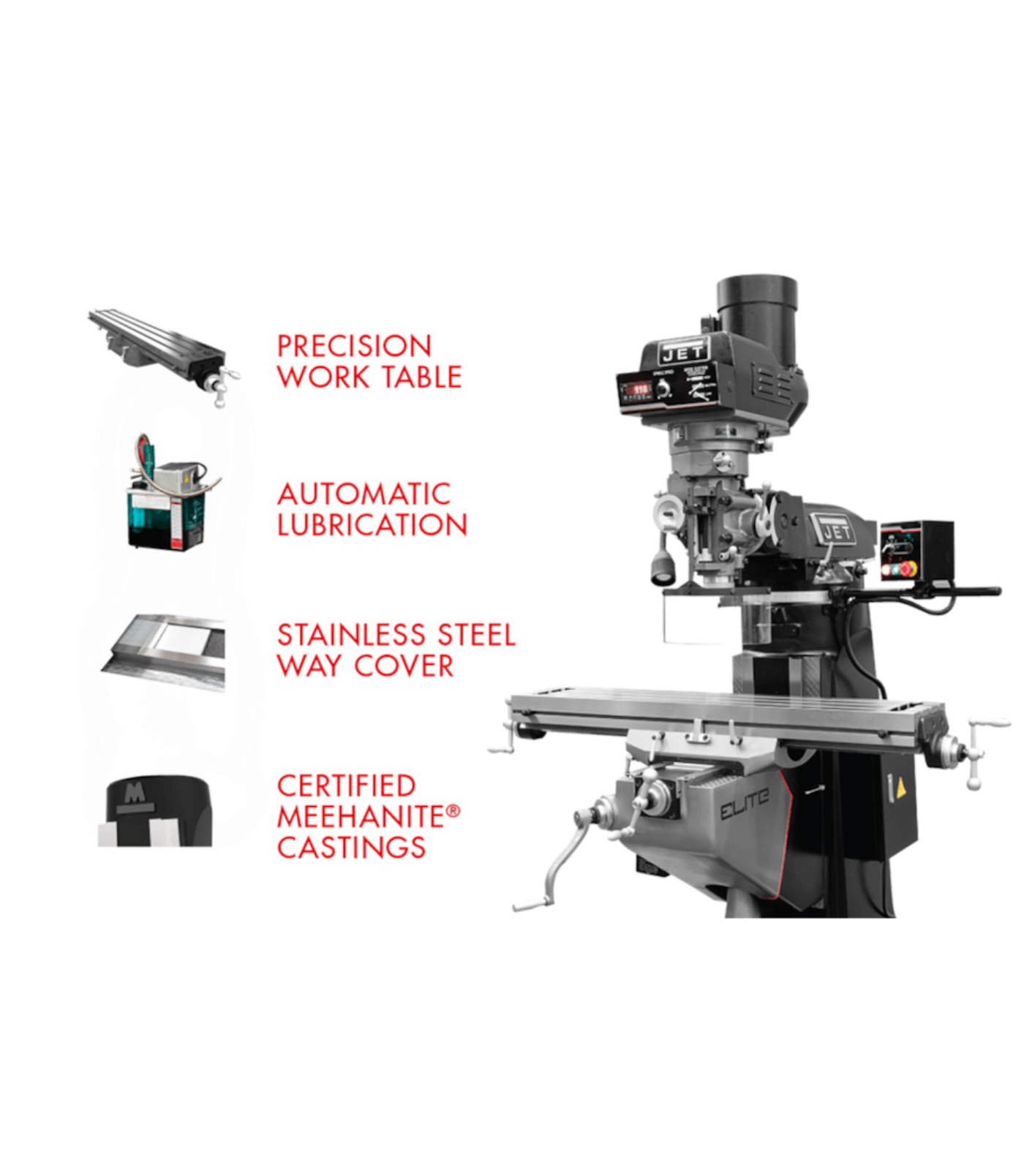

Heavy-Duty Construction: Rigid cast-iron frame reduces vibration and maximizes durability.
-
Industrial-Grade Reliability: Built for toolrooms, machine shops, and professional metalworking operations.
Q&A

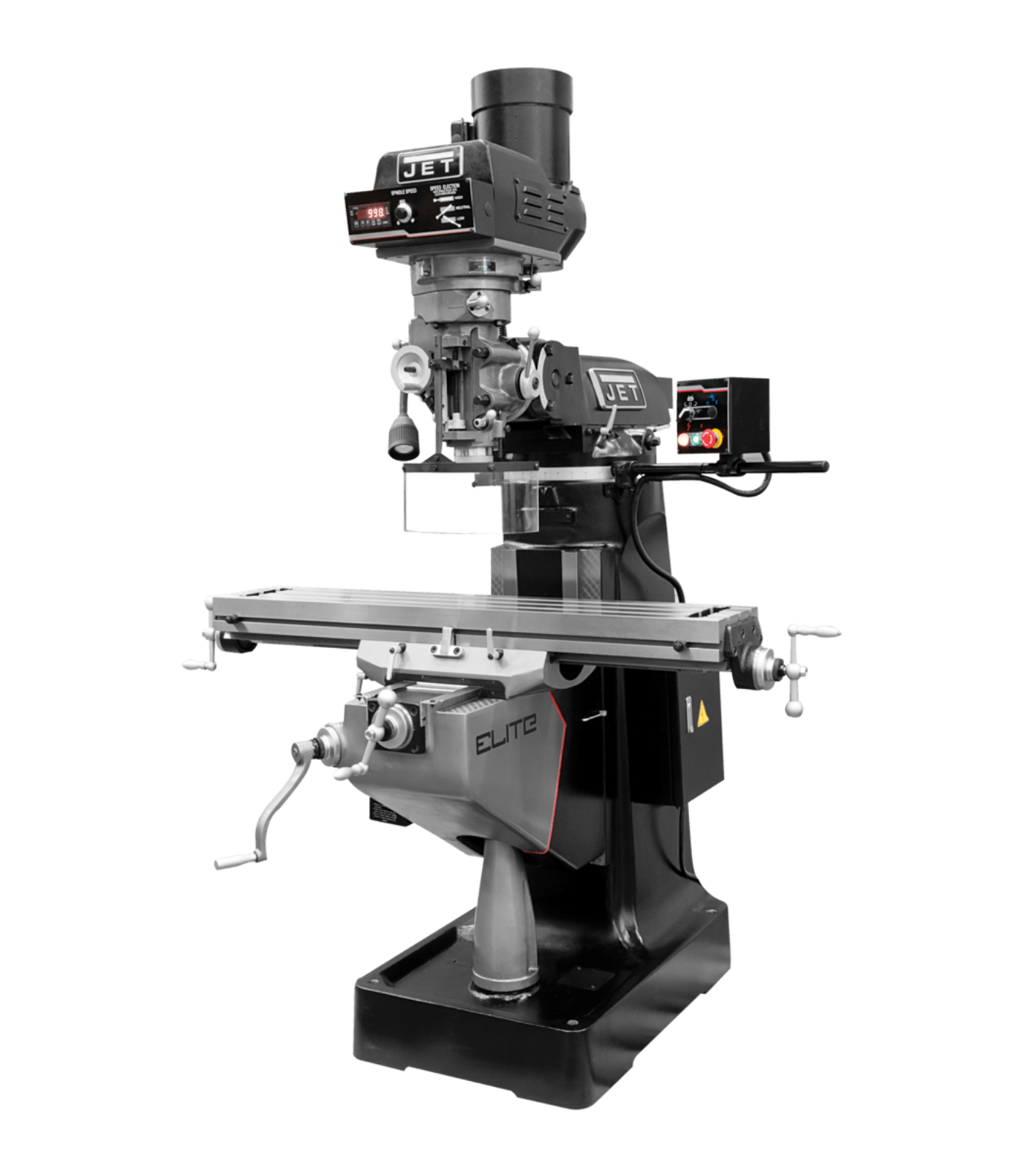

Q: What is the JET Elite EVS-949 Mill?
A: The EVS-949 is a professional vertical milling machine equipped with a 3-axis ACU-RITE 303 knee-mounted DRO and an X-axis JET Powerfeed, ideal for precise machining, prototyping, and production.
Q: What does the 3-axis ACU-RITE 303 DRO provide?
A: The knee-mounted ACU-RITE 303 DRO delivers accurate, real-time digital readouts for X, Y, and Z axes, enhancing precision, repeatability, and setup efficiency.
Q: How does the X-axis JET Powerfeed improve operation?
A: The X-axis Powerfeed allows smooth, consistent movement along the X-axis, improving surface finish, accuracy, and reducing operator fatigue during repetitive milling tasks.
Q: What milling operations can it perform?
A: The EVS-949 supports milling, drilling, boring, slotting, and precision surface finishing with high repeatability and efficiency.
Q: What is the worktable size?
A: It features a durable and spacious worktable suitable for medium to large workpieces, accommodating versatile machining operations.
Q: What spindle features does it offer?
A: Equipped with a high-torque spindle, it allows precise speed control for a wide range of materials and cutting applications.
Q: What type of motor powers the mill?
A: A heavy-duty industrial motor delivers consistent torque, smooth operation, and reliable performance for demanding milling tasks.
Q: How precise and durable is the mill?
A: Precision-ground ways and a rigid frame provide long-term accuracy, stability, and durability under heavy-duty use.
Q: Who benefits most from this configuration?
A: Ideal for machine shops, tool rooms, prototyping facilities, and educational programs requiring high-precision digital readouts combined with powerfeed-assisted milling.
Q: Does it meet safety and quality standards?
A: Yes, it is CSA/ETL certified and built to JET Elite industrial-quality standards for accuracy, durability, and operator safety.
Q: What sets this configuration apart?
A: The combination of 3-axis ACU-RITE 303 DRO and X-axis Powerfeed ensures precise digital measurement, automated feed control, and improved productivity for repetitive or complex milling operations.
Maintenance Tips
-
Clean table, spindle, and ways after each use to remove chips, coolant, and debris.
-

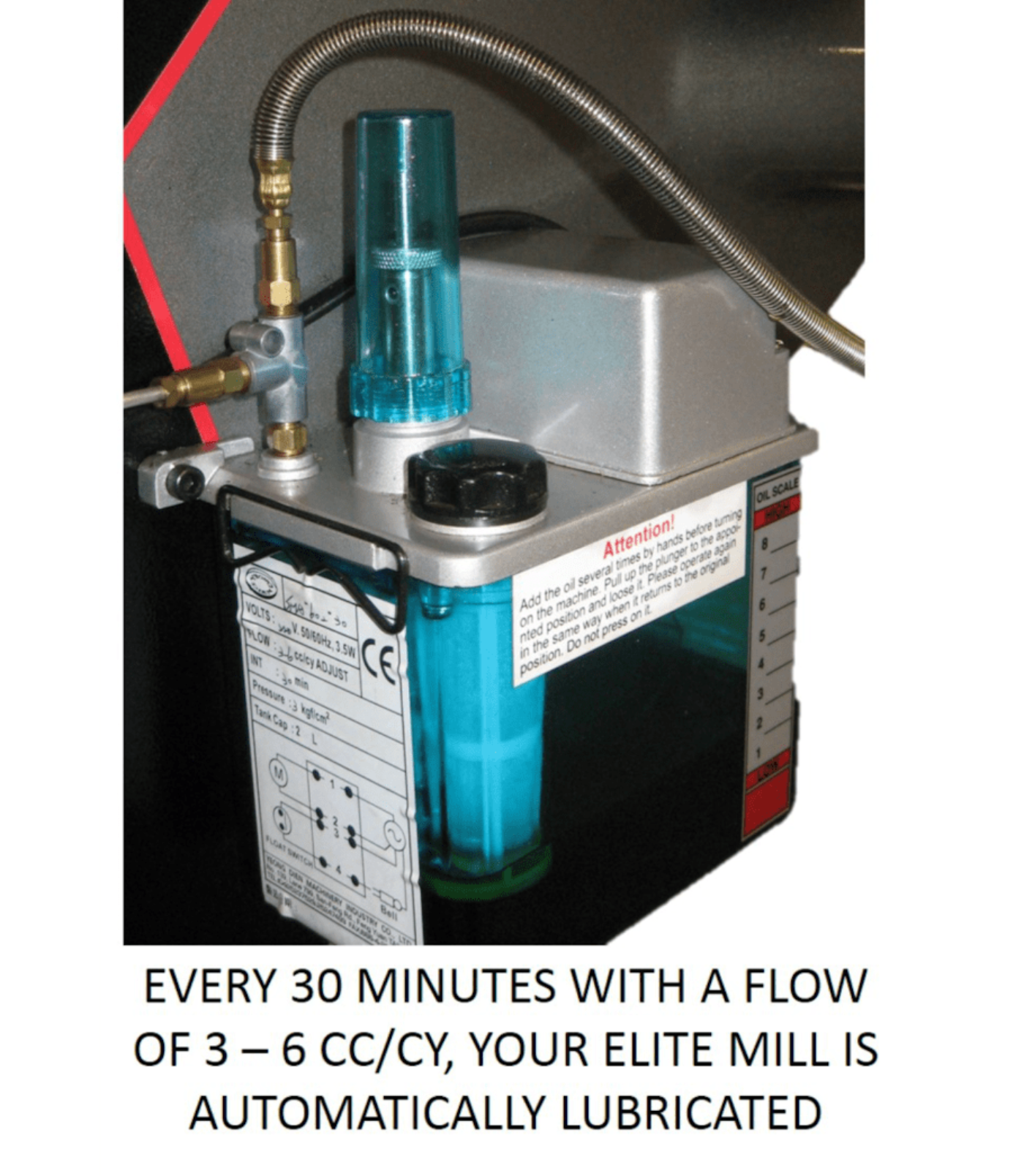

Lubricate lead screws, bearings, and sliding surfaces regularly to ensure smooth, precise movement.
-
Inspect X-axis powerfeed, belts, and gears for wear and proper operation.
-
Check ACU-RITE 303 DRO accuracy and recalibrate when needed for consistent milling precision.
-
Tighten gibs and adjust backlash to maintain rigidity and accurate cuts.
-
Verify spindle alignment and calibration periodically for reliable performance.
-
Schedule professional servicing to extend machine life and optimize functionality.
