| Style (Type) |
Variable Speed |
| Table Size (L x W) |
9 x 49 in. |
| Work Table Weight Capacity |
550 lbs. |
| Spindle Travel |
5 in. |
| Spindle Taper |
R-8 |
| Collet Capacity |
1/8 – 7/8 in. |
| Quill Diameter |
3-3/8 in. |
| Quill Down Feed Rates (IPR) |
0.0015 – 0.003 – 0.006 |
| Max Distance Spindle to Table |
18-3/4 in. |
| Distance Spindle to Column (Max.) |
21-2/5 in. |

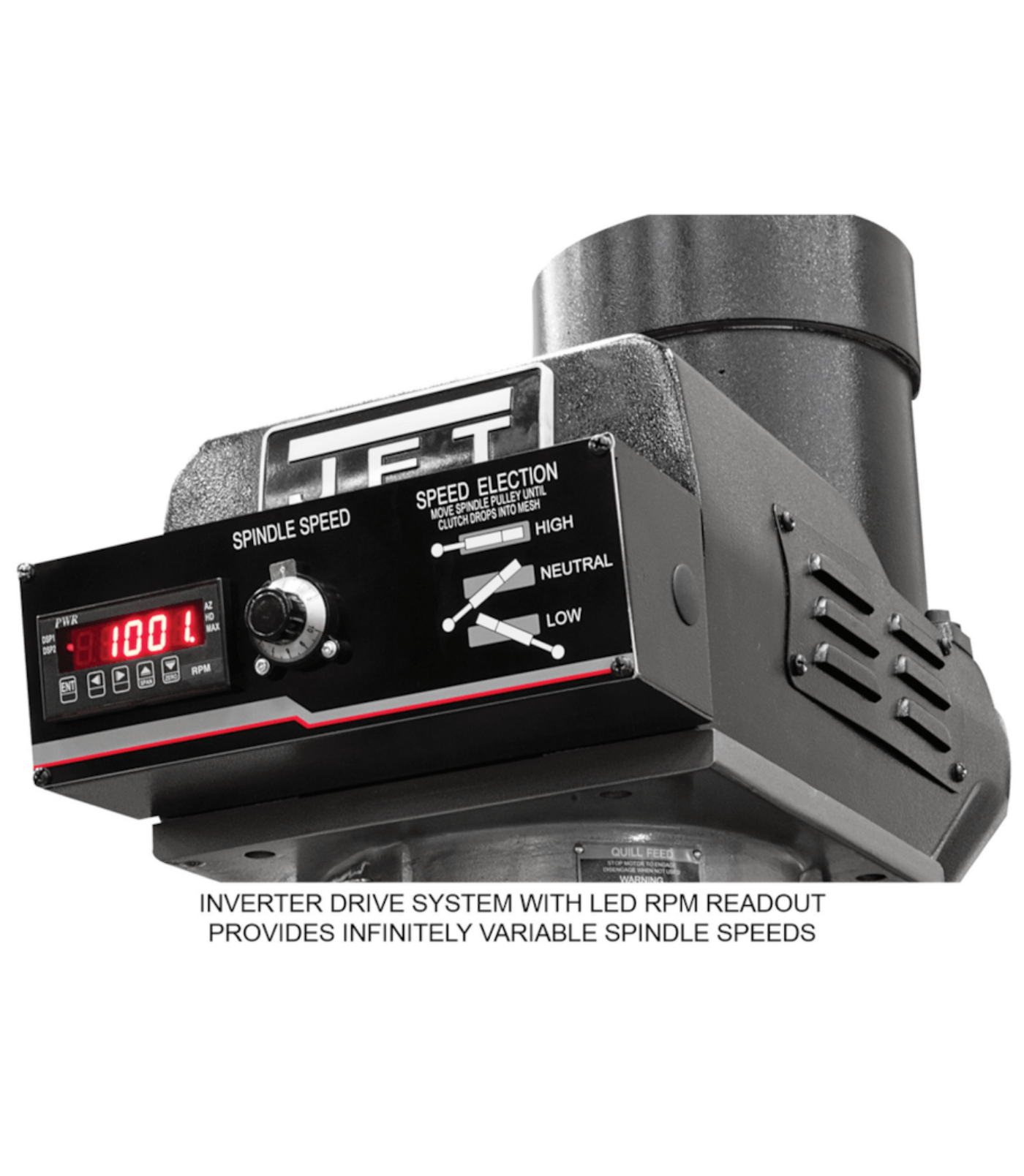

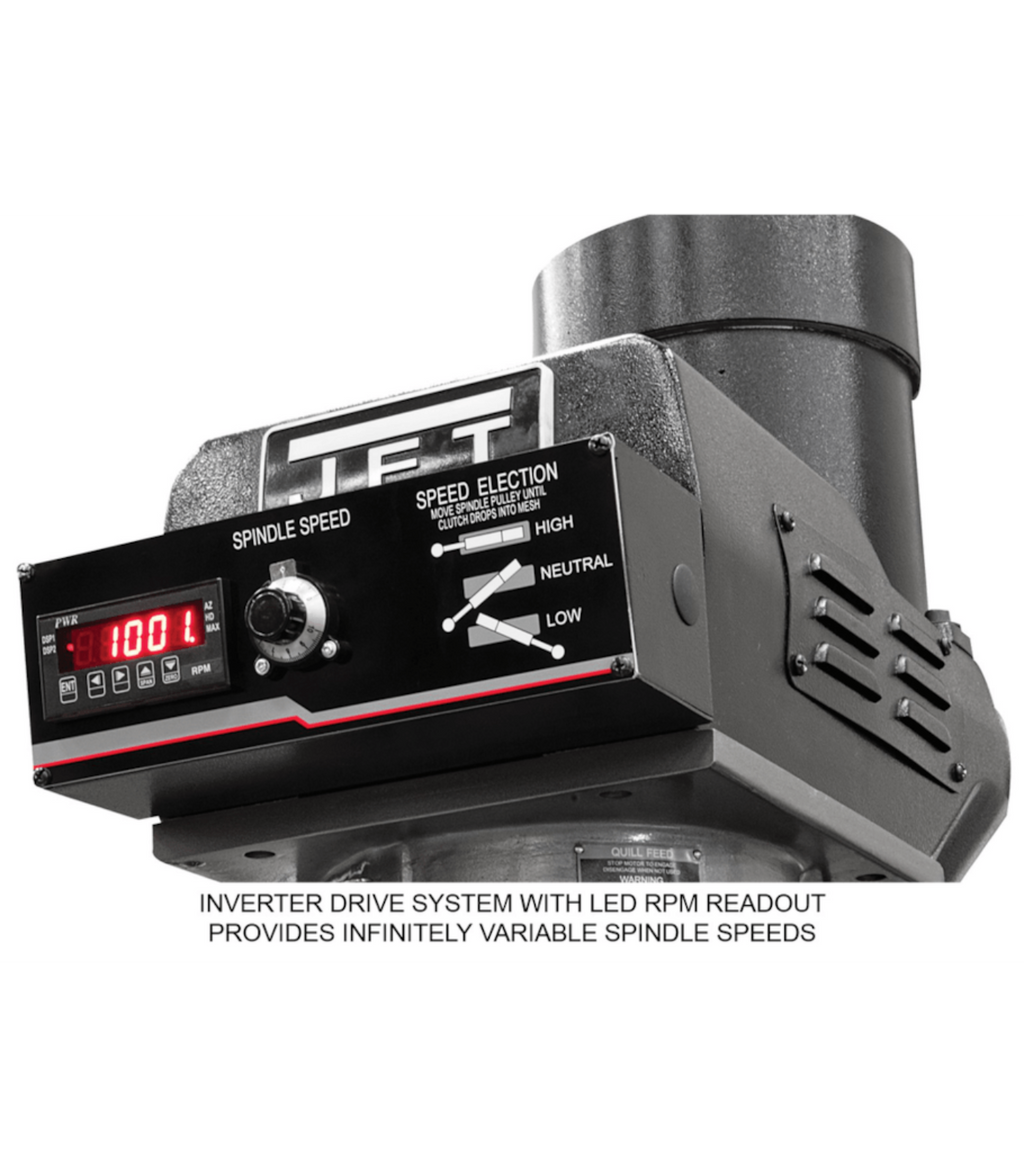

| Range of Spindle Speeds |
60 – 5,000 RPM |
| Table Longitudinal Travel |
36 in. |
| Table Cross Travel |
12 in. |
| T-Slot Centers |
2-1/2 in. |
| Travel of Knee |
16 in. |
| Travel of Ram |
14 in. |
| Motor |
3 HP, 230V, 3Ph |
| Amperage Draw @ 230V 3Ph |
18 A |
| Weight |
2,300 lbs. |

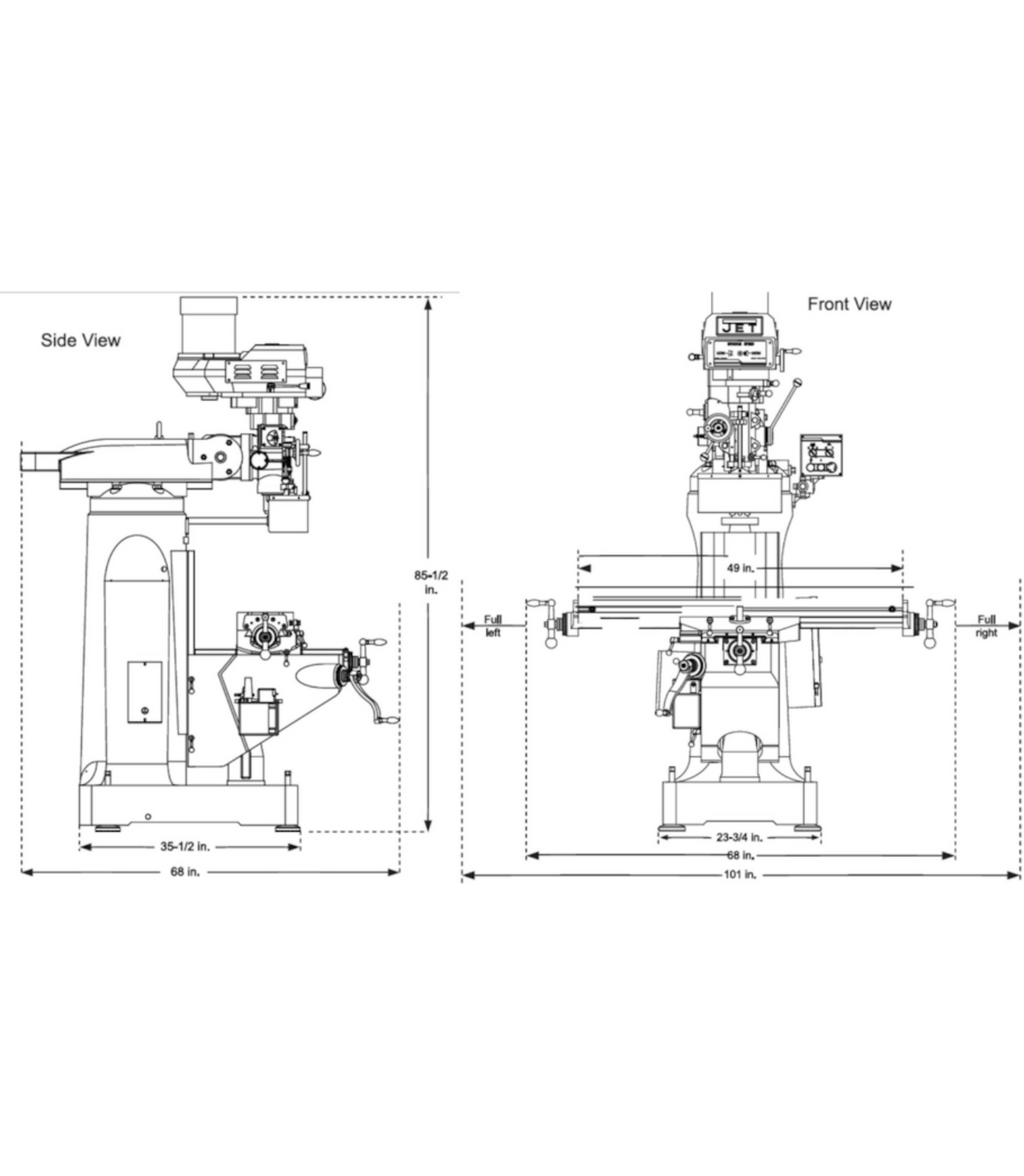

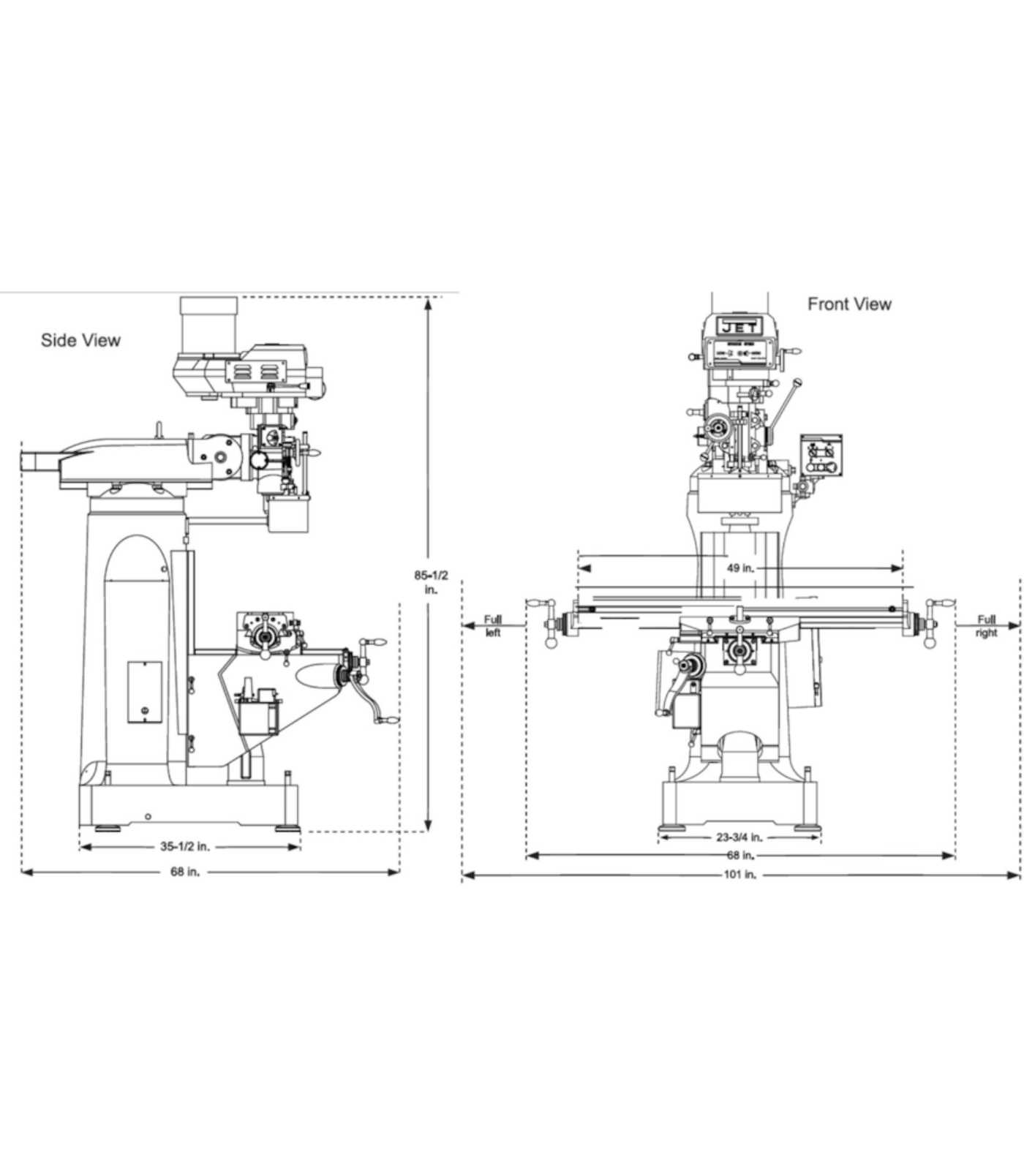

| Overall Dimensions (L x W x H) |
68 x 63 x 84 in. |
What our Experts Think
-
3-Axis Precision: X, Y, and Z-axis control ensures highly accurate milling operations.
-
Newall DP700 Knee DRO: Digital readout provides precise measurements and improves workflow efficiency.
-

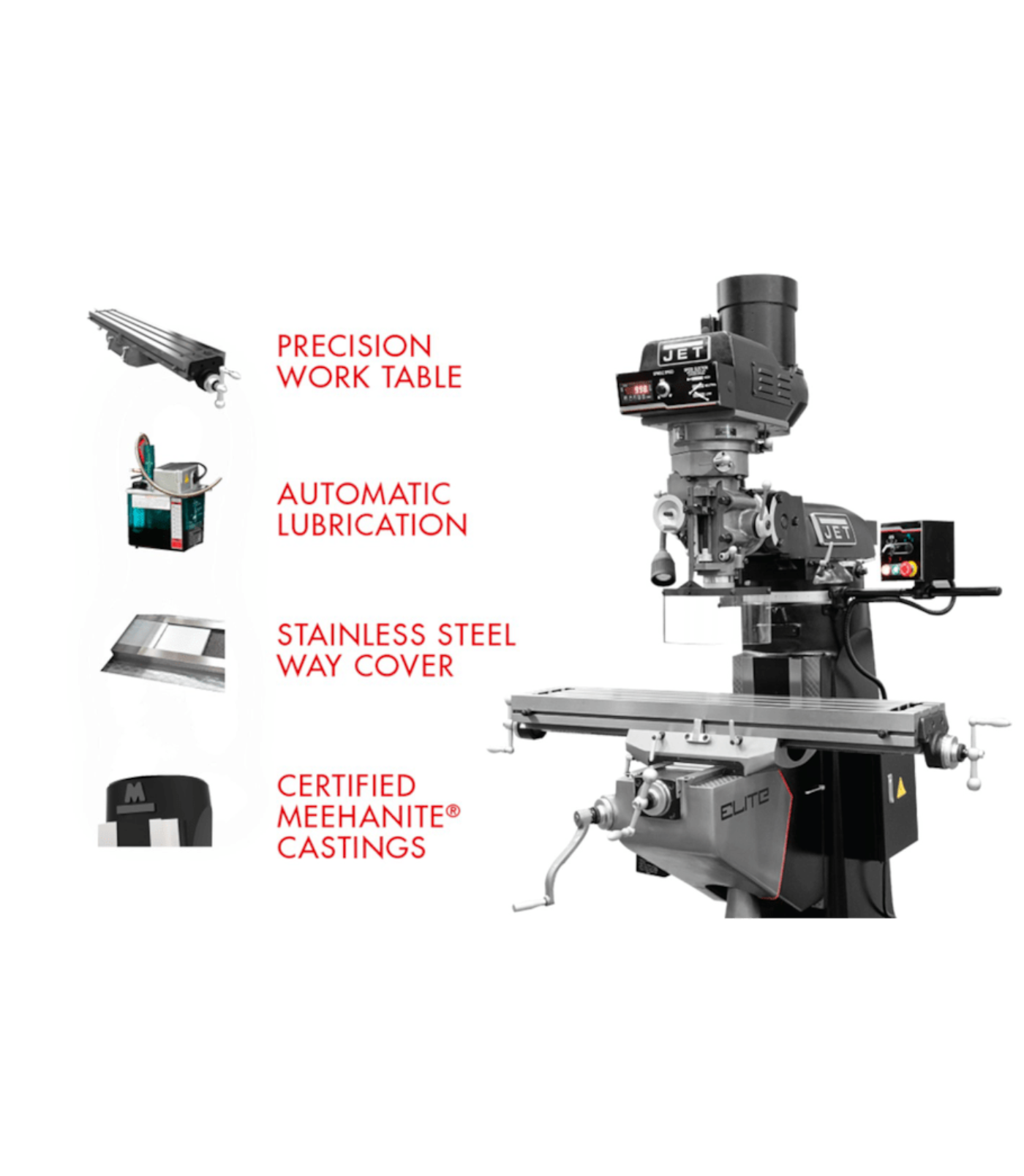

Heavy-Duty Construction: Rigid cast-iron frame reduces vibration and enhances durability.
-
Versatile Milling: Suitable for a wide range of metalworking and fabrication tasks.
-
Industrial Reliability: Ideal for professional machine shops, toolrooms, and industrial milling applications.
Q&A

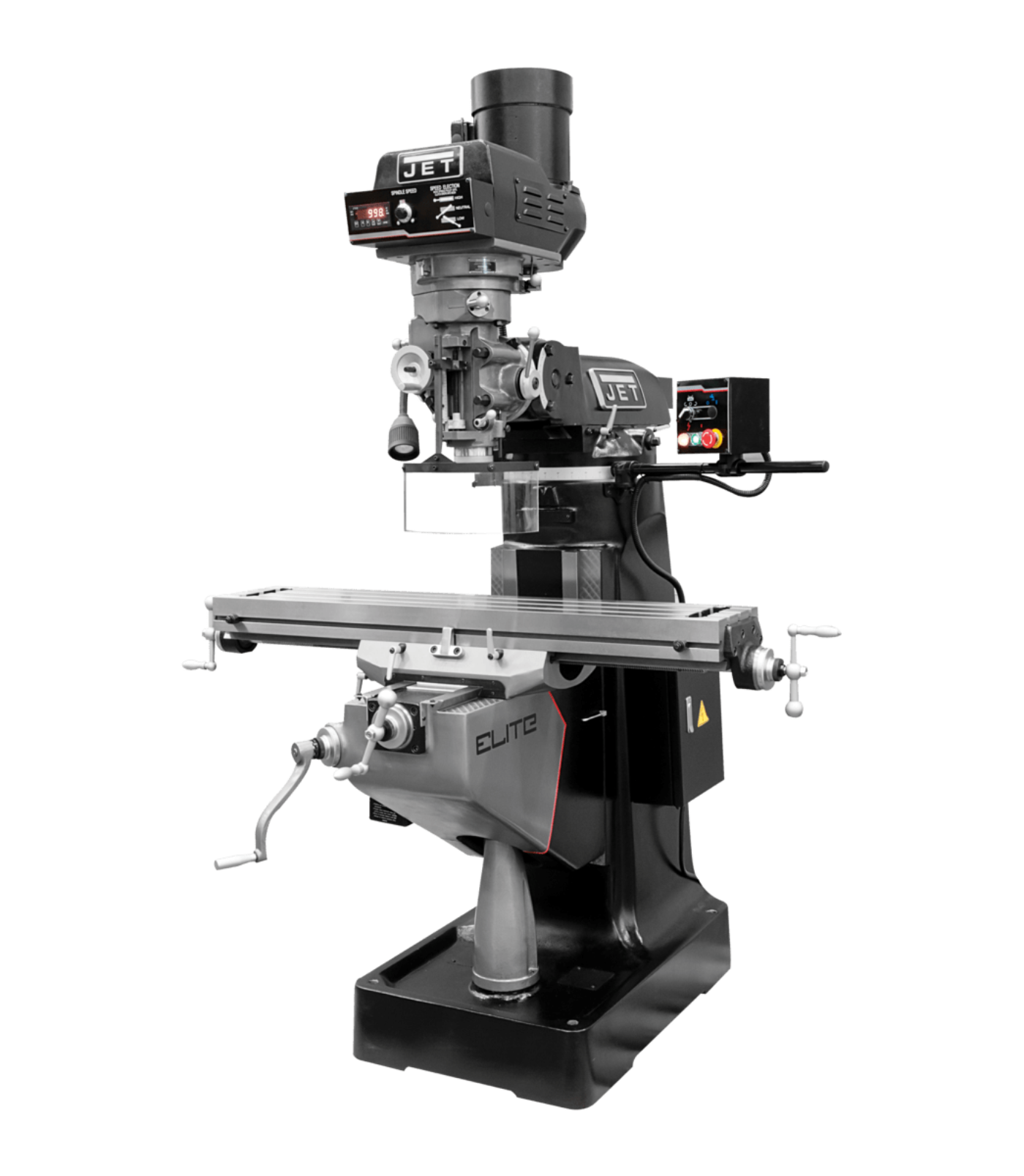

Q: What is the JET Elite EVS-949 Mill?
A: The EVS-949 is a precision vertical milling machine equipped with a 3-axis Newall DP700 knee-mounted DRO, designed for professional machining, prototyping, and precise production work.
Q: What does the 3-axis Newall DP700 DRO provide?
A: The knee-mounted 3-axis DRO delivers high-resolution digital readouts for the X, Y, and Z axes, ensuring exceptional accuracy, repeatability, and reduced setup errors.
Q: What are the milling capabilities of this machine?
A: It supports milling, drilling, boring, slotting, and precision surface finishing with consistent results.
Q: What is the worktable size?
A: The mill features a robust, spacious worktable suitable for medium to large workpieces and versatile machining setups.

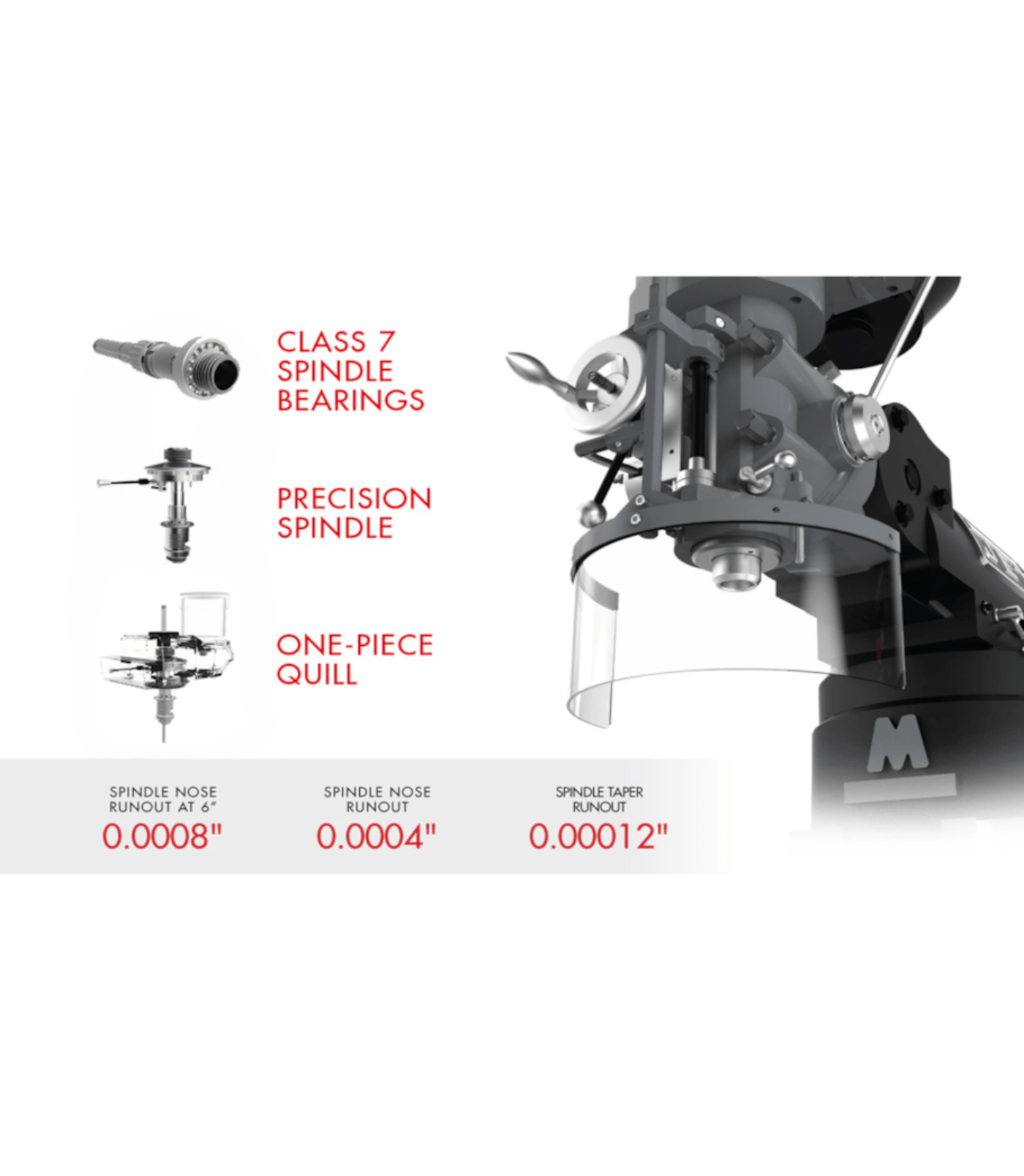

Q: What spindle features does it offer?
A: Equipped with a high-torque spindle, it provides precise speed control for a wide range of materials and cutting tasks.
Q: What type of motor powers the EVS-949?
A: A heavy-duty industrial motor ensures smooth operation, consistent torque, and reliable performance for demanding milling operations.
Q: How precise and durable is the mill?

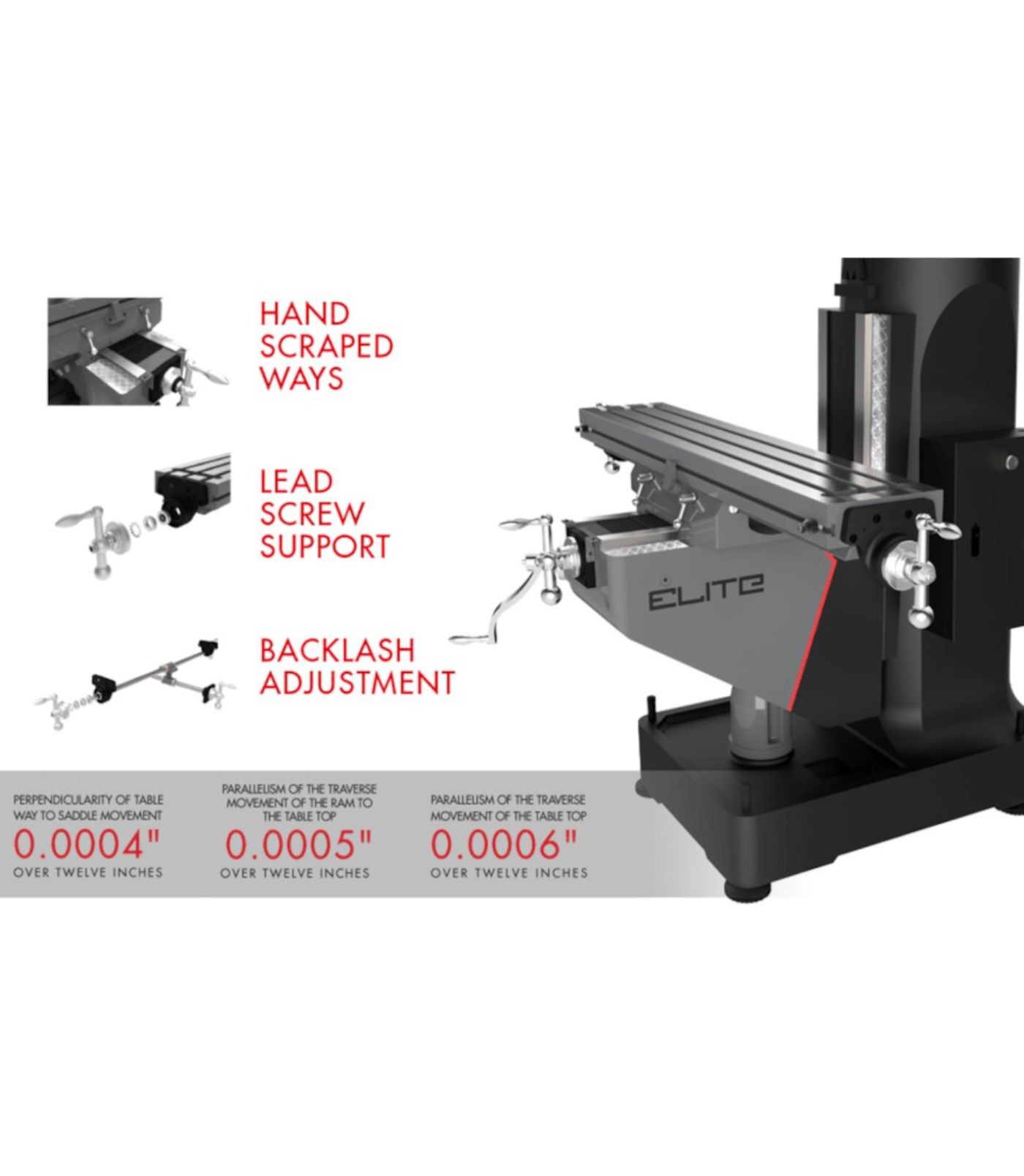

A: Precision-ground ways and a rigid construction provide long-lasting accuracy, stability, and reliable performance.
Q: Who is this mill ideal for?
A: Ideal for machine shops, tool rooms, prototyping facilities, and educational programs requiring professional-grade milling with precise digital measurement.
Q: Does it meet safety and quality standards?
A: Yes, it is CSA/ETL certified and built to JET Elite industrial-quality standards for durability, accuracy, and operator safety.
Q: What sets this configuration apart?
A: The 3-axis Newall DP700 knee-mounted DRO enables fast, precise digital measurement for all axes, improving workflow efficiency and machining accuracy for complex and repetitive operations.
Maintenance Tips
-
Clean table, spindle, and ways after each use to remove chips, coolant, and debris.
-

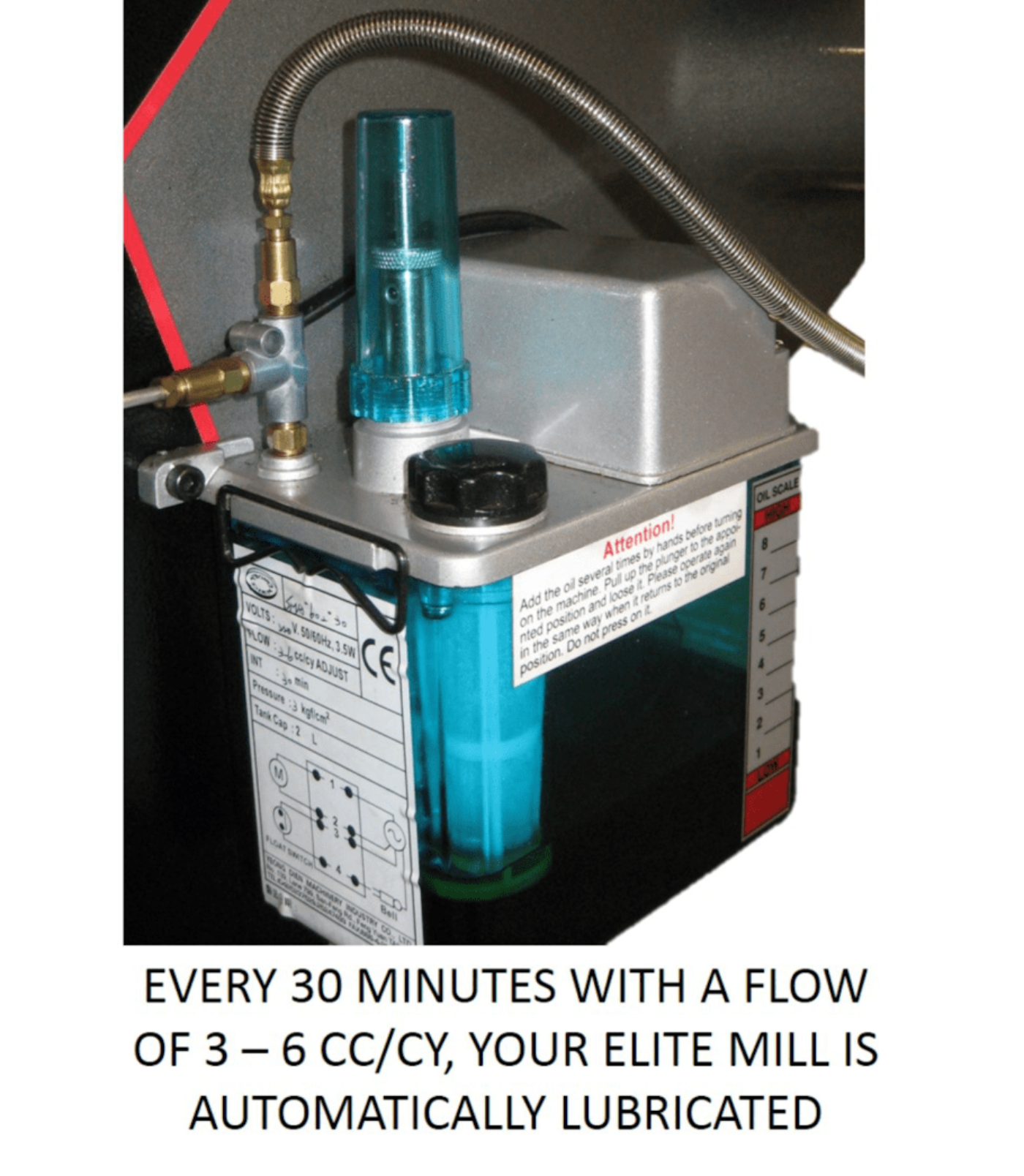

Lubricate lead screws, bearings, and sliding surfaces regularly for smooth operation and longevity.
-
Inspect all axes, belts, and gears for proper function and wear.
-
Check Newall DP700 DRO for accuracy and recalibrate if needed.
-
Tighten gibs and adjust backlash to maintain precise movement and milling accuracy.
-

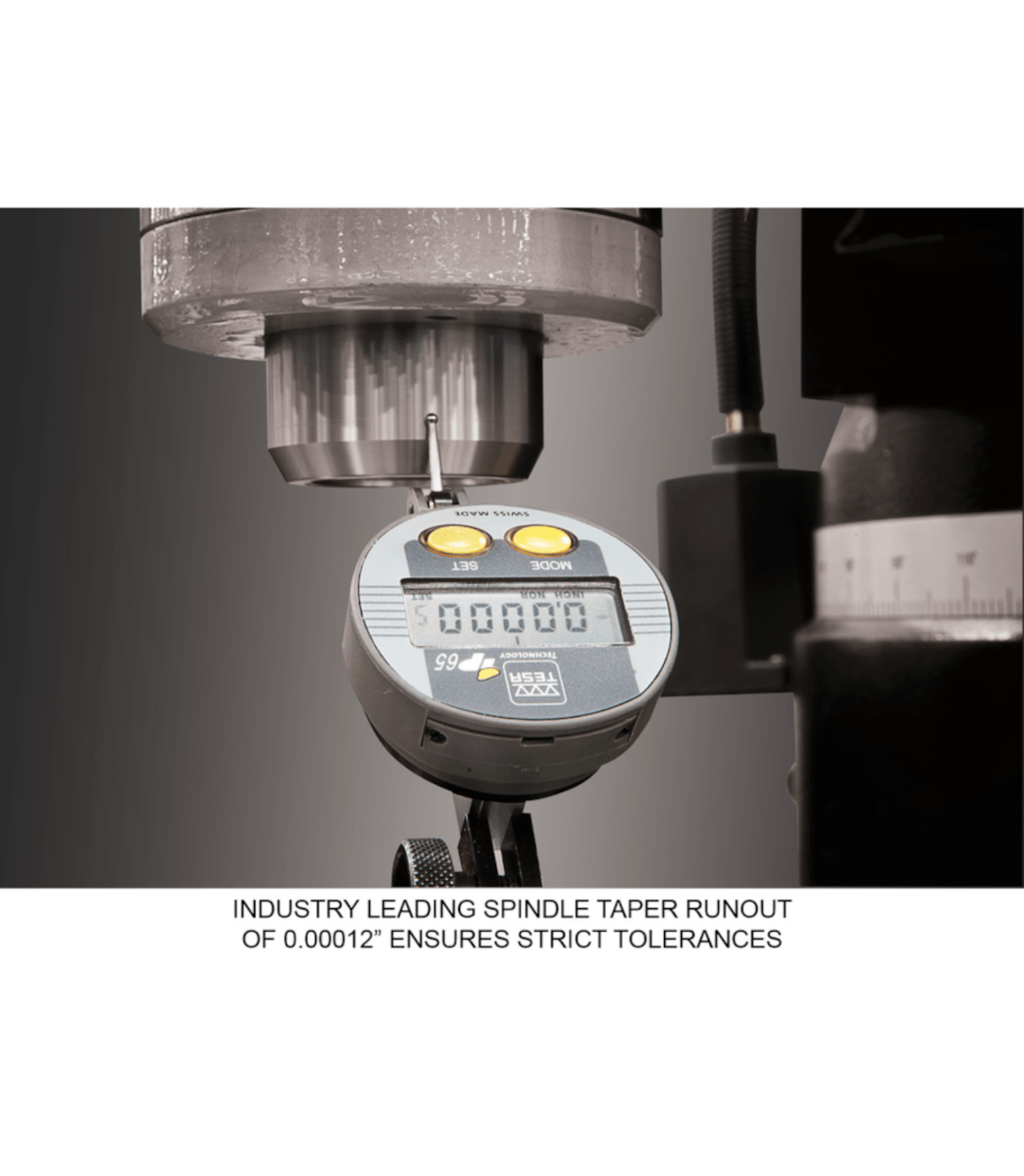

Verify spindle alignment and calibration periodically to ensure precision.
-
Schedule routine professional servicing for optimal performance and durability.
