| Style (Type) |
Variable Speed |
| Table Size (L x W) |
9 x 49 in. |
| Work Table Weight Capacity |
550 lbs. |
| Spindle Travel |
5 in. |

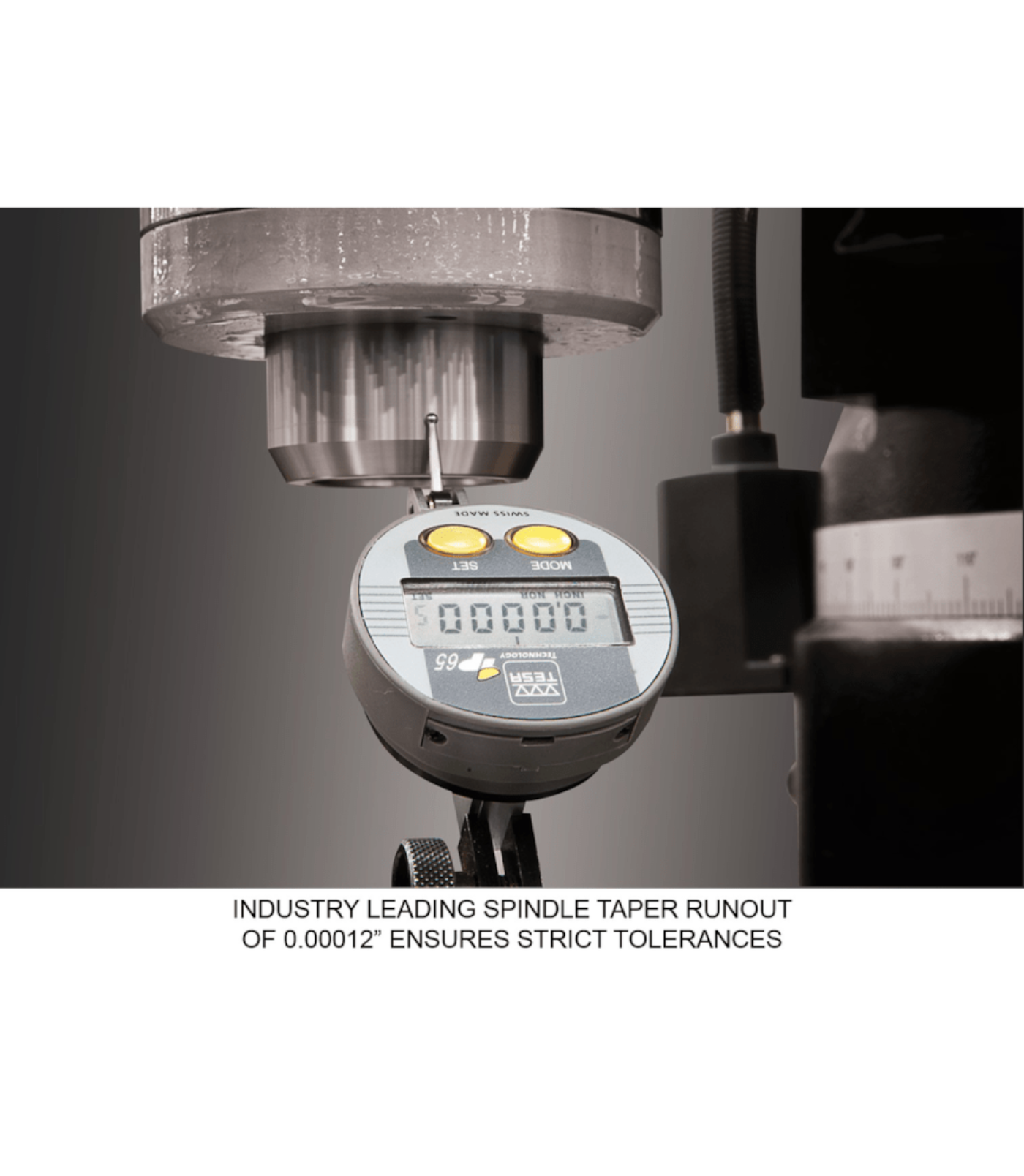

| Spindle Taper |
R-8 |
| Collet Capacity |
1/8 – 7/8 in. |
| Quill Diameter |
3-3/8 in. |
| Quill Down Feed Rates (IPR) |
0.0015 – 0.003 – 0.006 |
| Max Distance Spindle to Table |
18-3/4 in. |
| Distance Spindle to Column (Max.) |
21-2/5 in. |

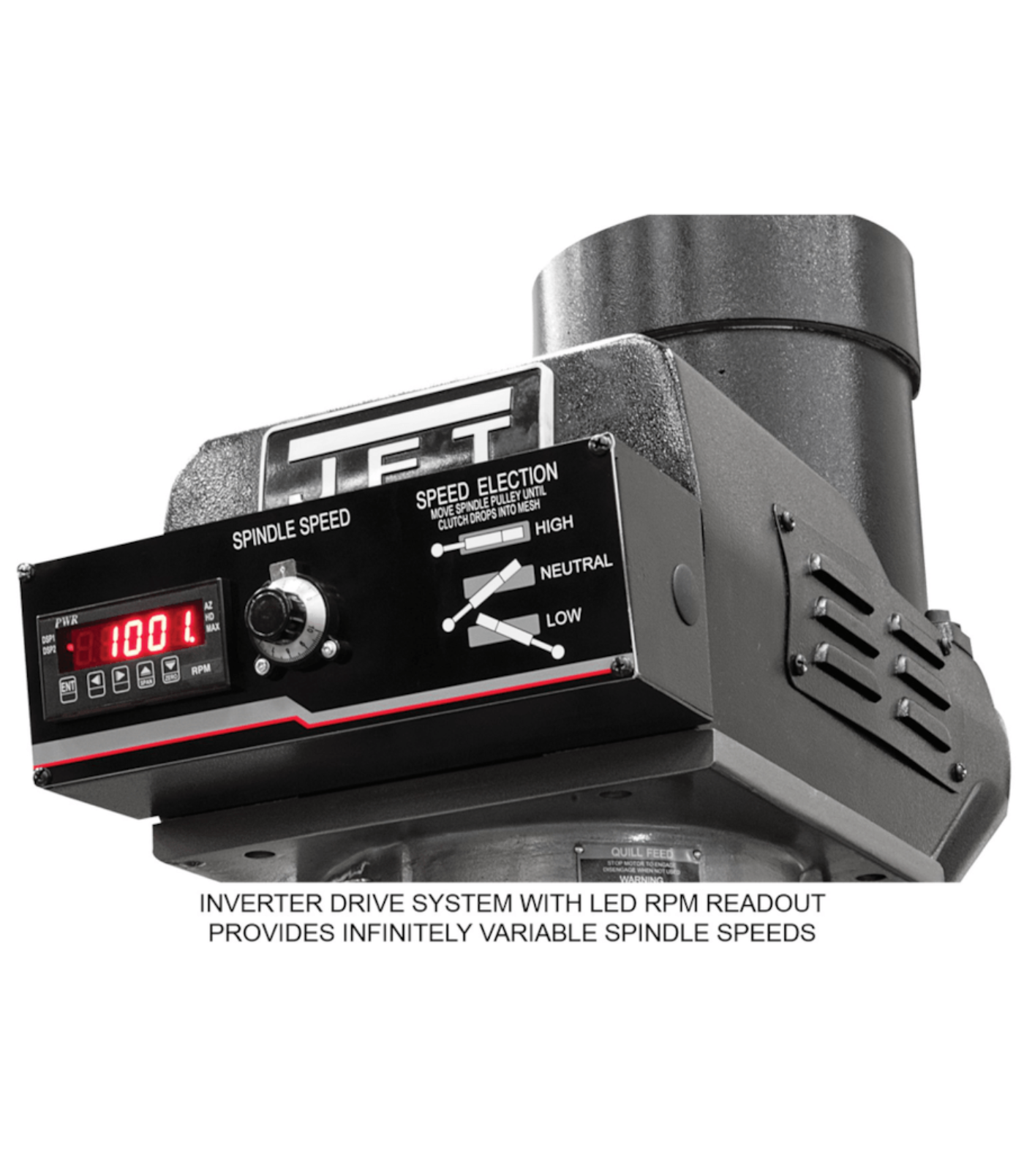

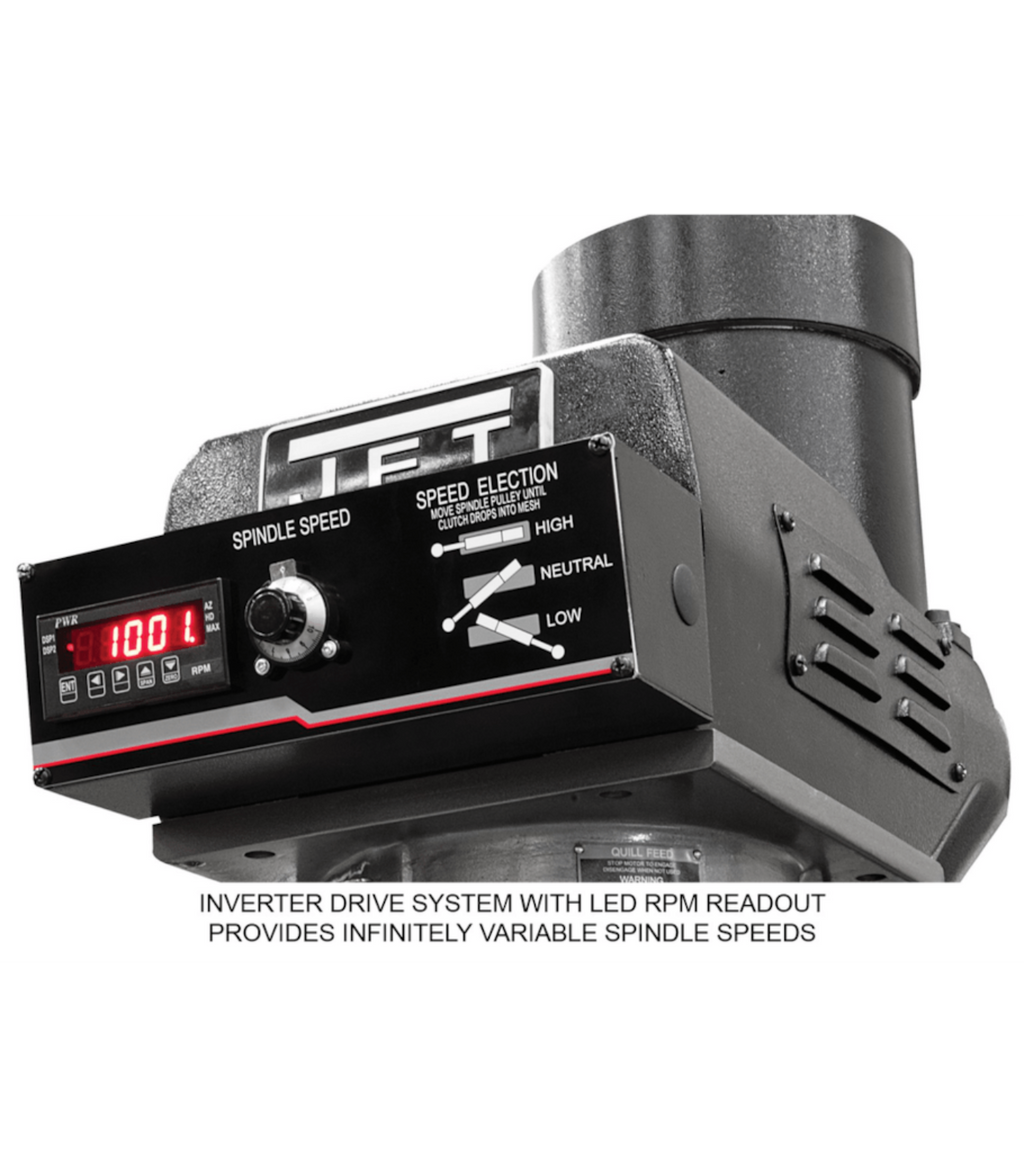

| Range of Spindle Speeds |
60 – 5,000 RPM |
| Table Longitudinal Travel |
36 in. |
| Table Cross Travel |
12 in. |
| T-Slot Centers |
2-1/2 in. |
| Travel of Knee |
16 in. |
| Travel of Ram |
14 in. |
| Motor |
3 HP, 230V, 3Ph |
| Amperage Draw @ 230V 3Ph |
18 A |
| Weight |
2,300 lbs. |

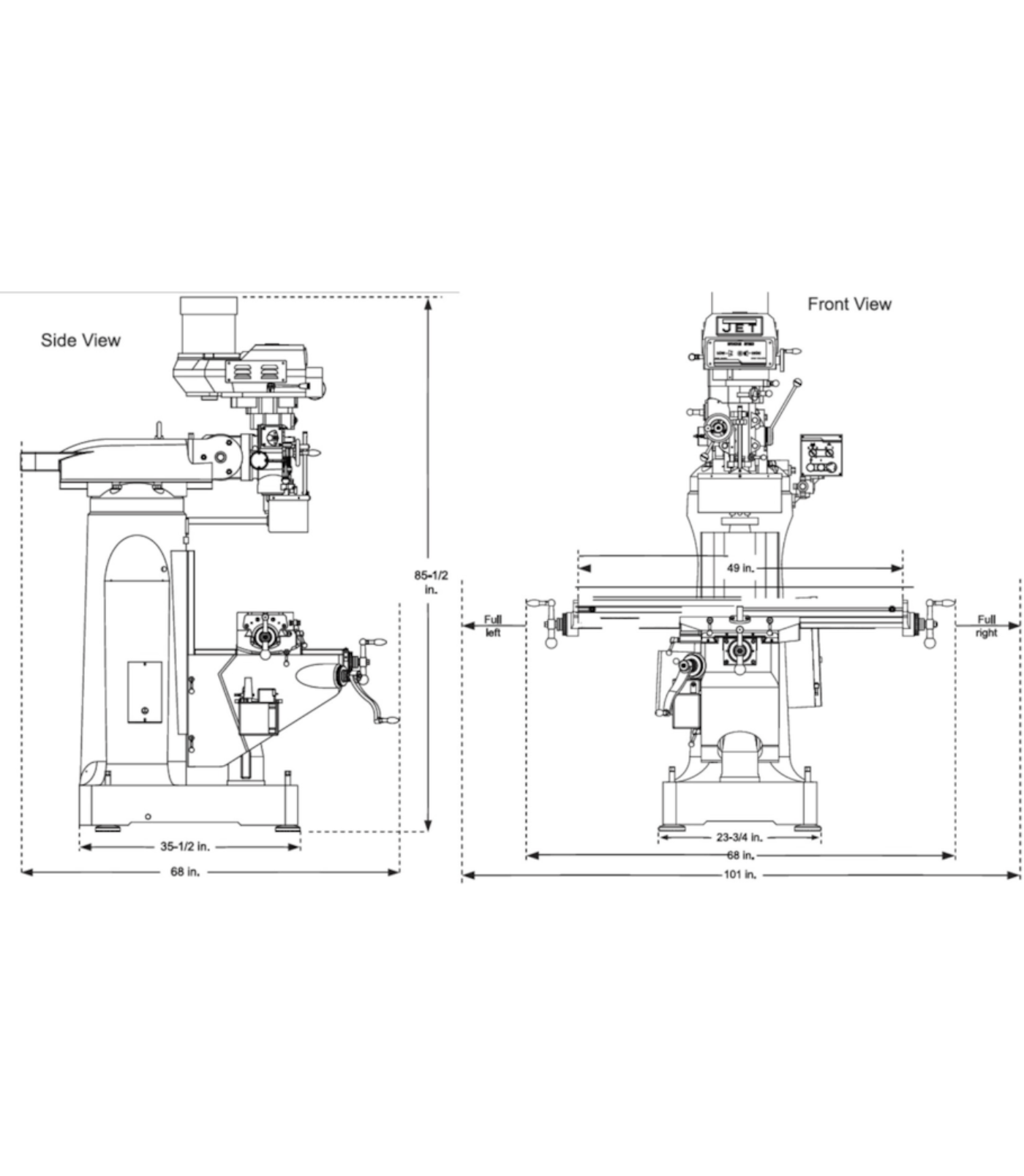

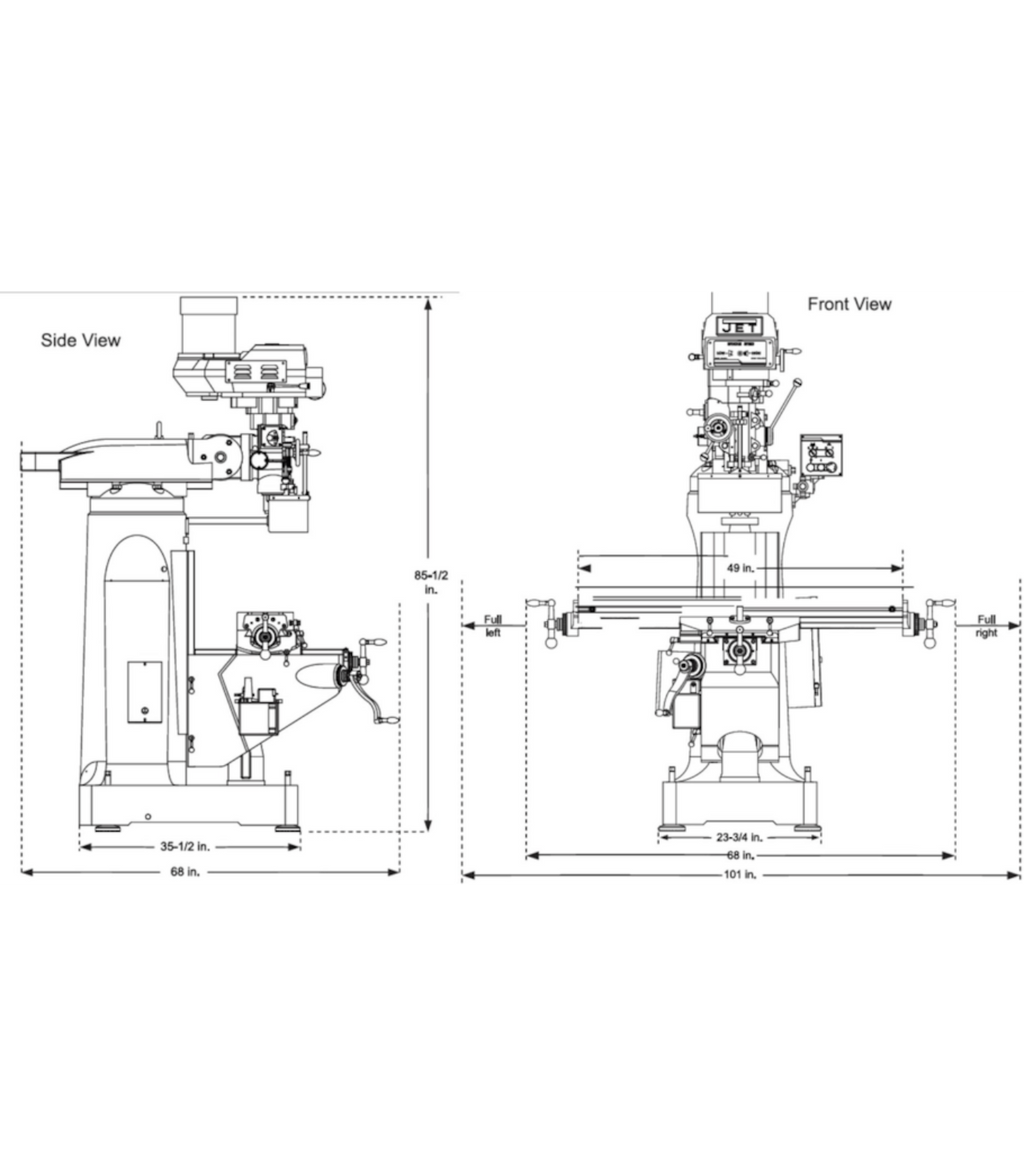

| Overall Dimensions (L x W x H) |
68 x 63 x 84 in. |
What our Experts Think
-
Precision X-Axis Control: Ensures smooth and accurate table movement for precise milling.
-
JET Powerfeed: Automates X-axis feed for consistent cutting and improved efficiency.
-

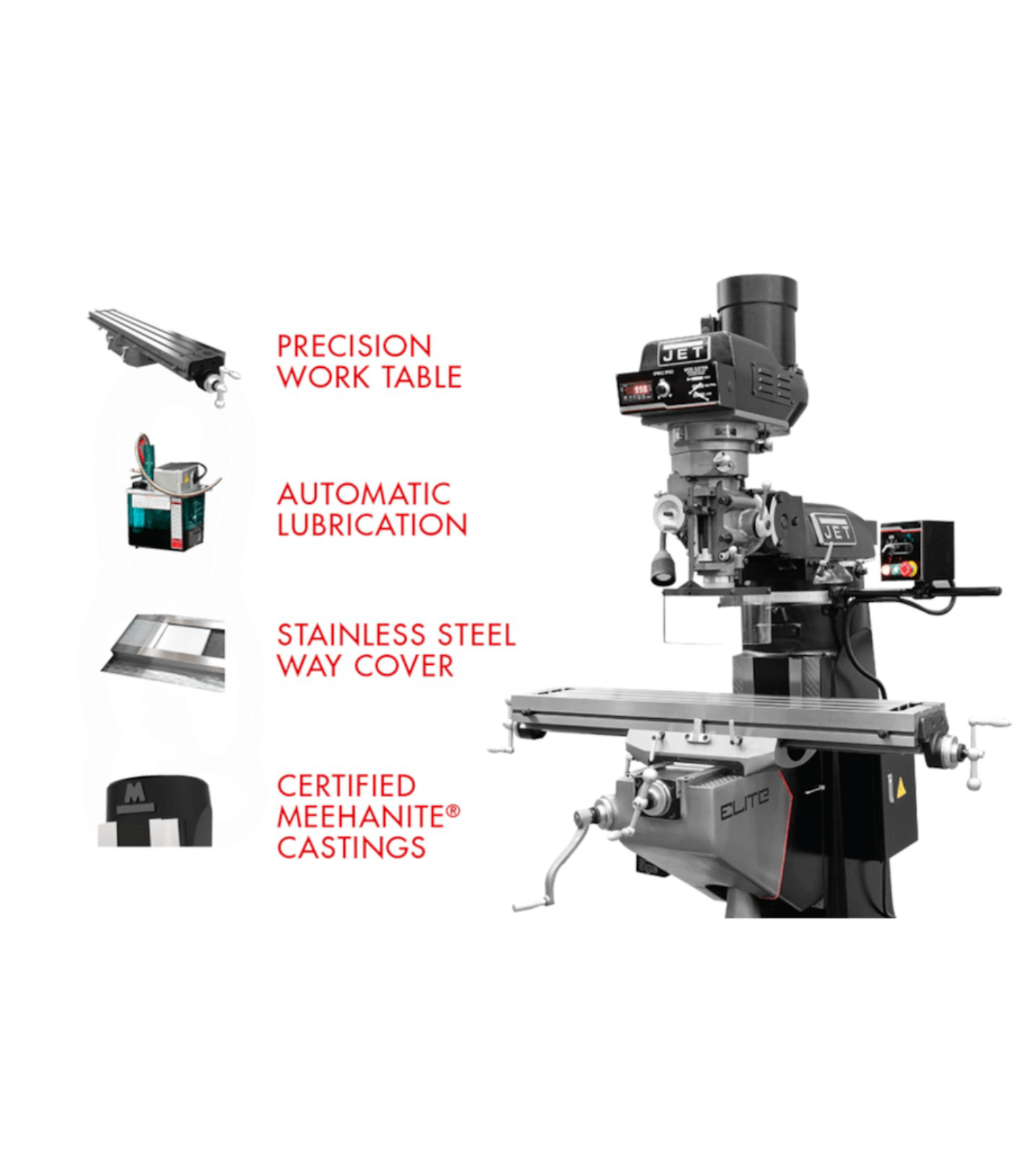

Heavy-Duty Build: Rigid cast-iron construction reduces vibration and increases durability.
-
Versatile Milling: Ideal for a wide range of metalworking and fabrication applications.
-
Professional-Grade Reliability: Built for toolrooms, machine shops, and industrial milling operations.
Q&A

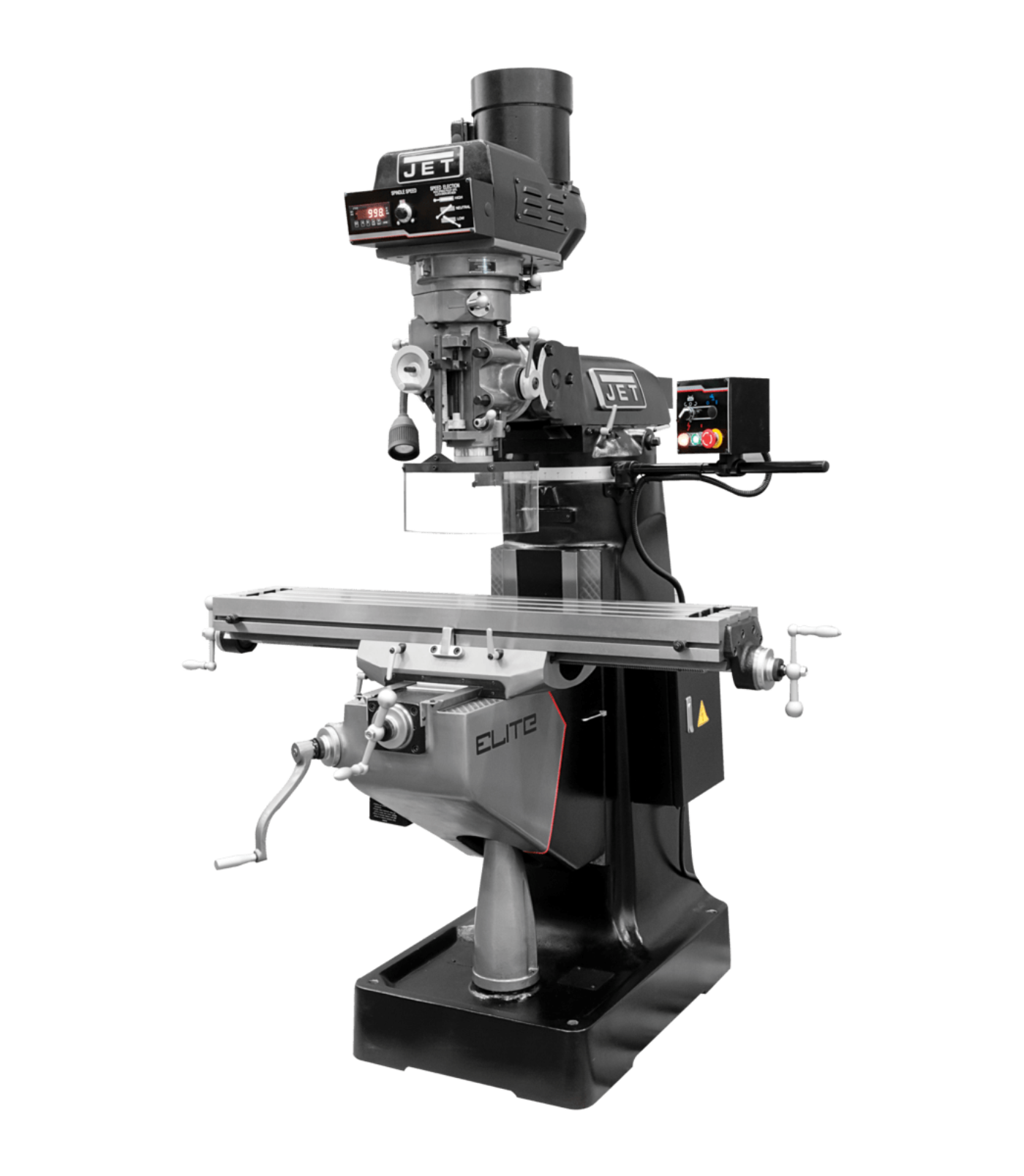

Q: What is the JET Elite EVS-949 Mill?
A: The EVS-949 is a precision vertical milling machine featuring an X-axis JET Powerfeed, designed for professional machining, prototyping, and production work.
Q: What does the X-axis Powerfeed do?
A: The X-axis JET Powerfeed provides smooth, consistent movement along the X-axis, improving surface finish, accuracy, and reducing operator fatigue during repetitive milling tasks.
Q: What are the milling capabilities of this machine?
A: It supports milling, drilling, boring, slotting, and precision surface finishing with high repeatability.
Q: What is the worktable size?
A: The mill features a durable, spacious worktable capable of handling medium to large workpieces for versatile operations.

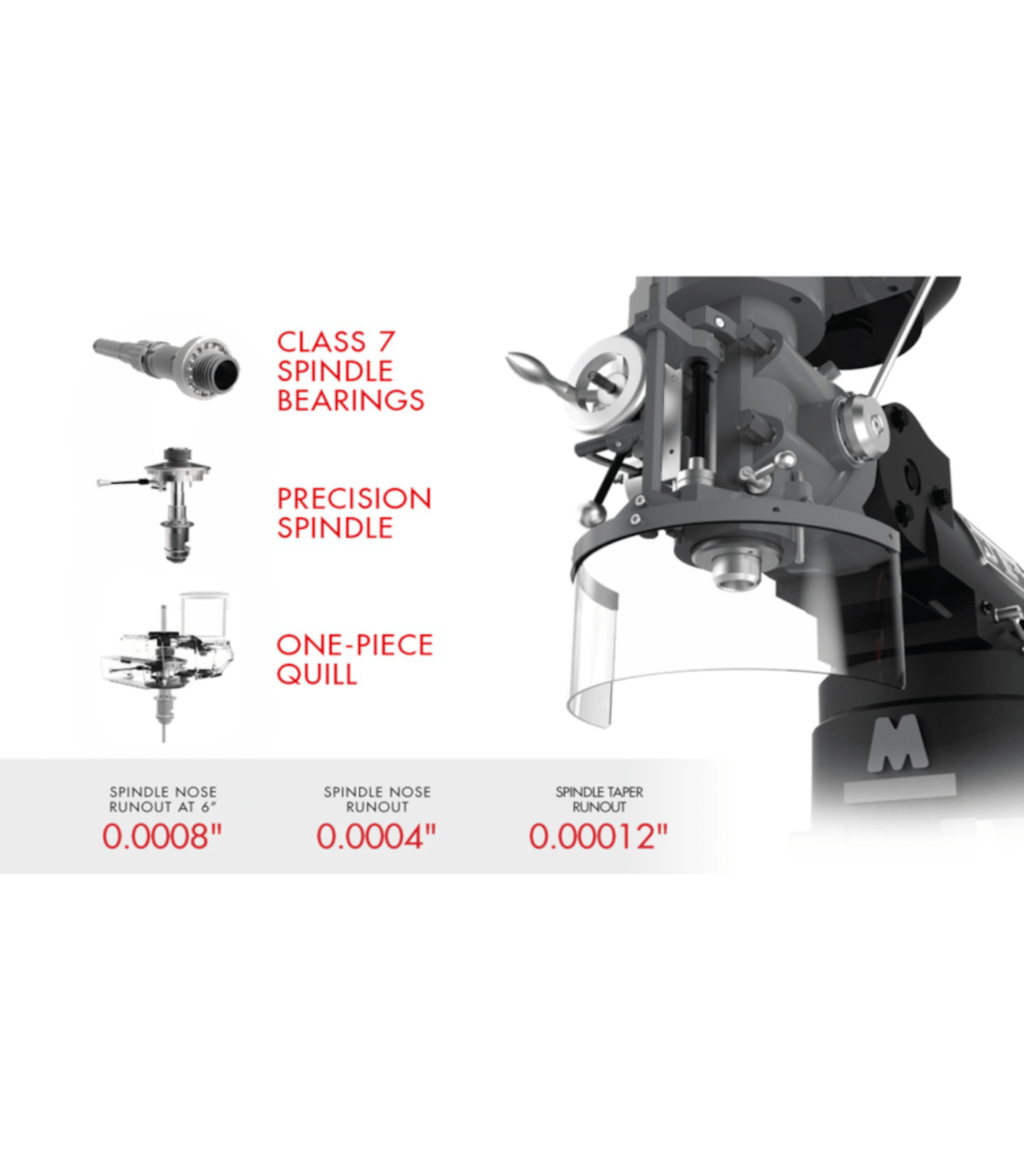

Q: What spindle features does it offer?
A: The machine is equipped with a high-torque spindle providing precise speed control for a wide range of materials and cutting tasks.
Q: What motor powers the EVS-949?
A: A heavy-duty industrial motor ensures consistent torque and smooth operation for demanding milling jobs.
Q: How precise and durable is the mill?
A: With precision-ground ways and a rigid frame, the EVS-949 ensures long-lasting accuracy and stability.
Q: Who is this mill ideal for?
A: Suitable for machine shops, tool rooms, prototyping facilities, and educational programs requiring professional milling capability.
Q: Does it meet safety and quality standards?
A: Yes, it is CSA/ETL certified and built to JET Elite industrial-quality standards for durability and operator safety.
Q: What makes the EVS-949 with X-axis Powerfeed stand out?
A: The combination of precision construction and the X-axis Powerfeed provides improved efficiency and repeatable accuracy for repetitive milling tasks.
Maintenance Tips
-
Clean the table, spindle, and ways after each use to remove chips, coolant, and debris.
-

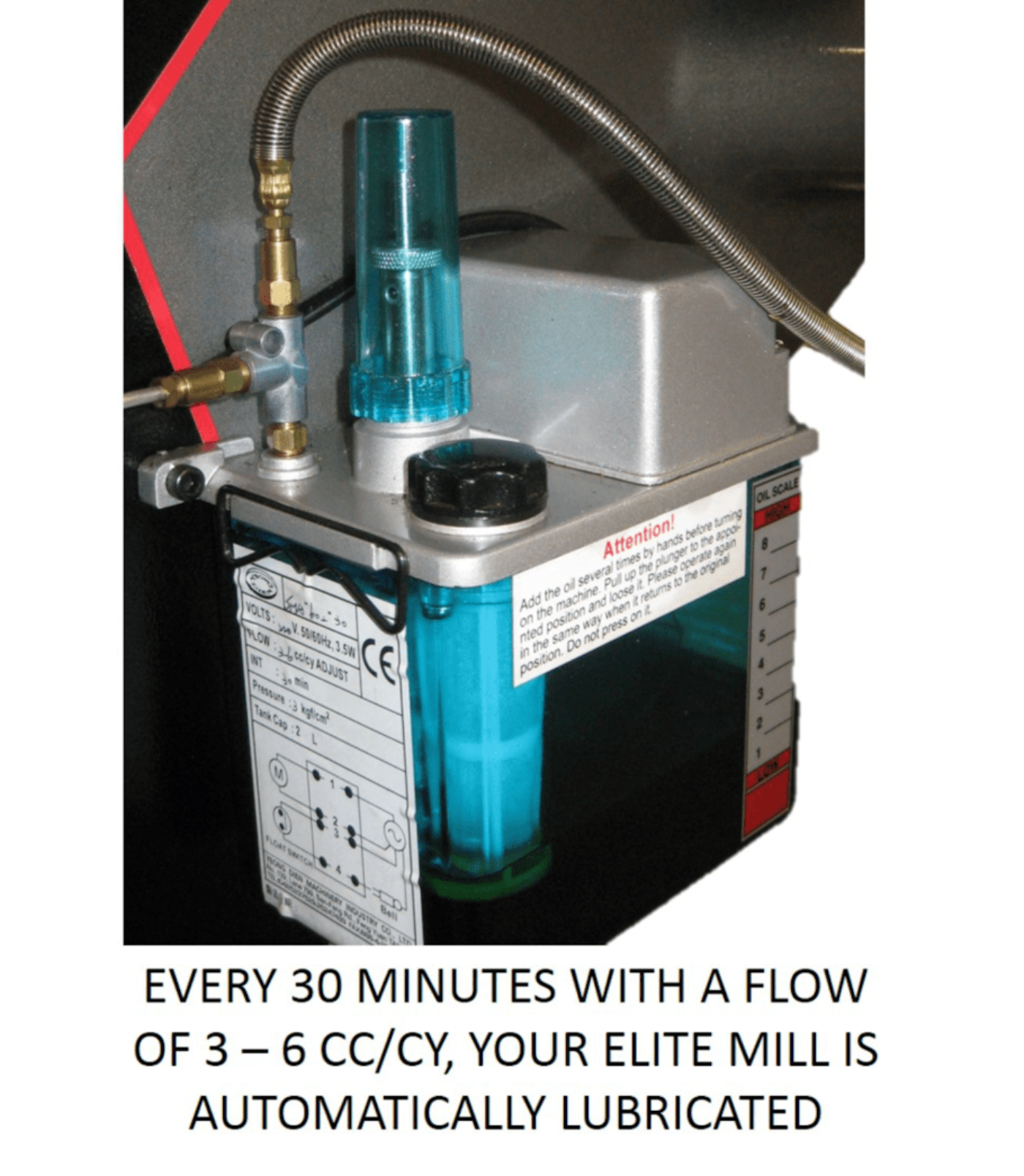

Lubricate lead screws, bearings, and sliding surfaces regularly as per manufacturer guidelines.
-
Inspect X-axis powerfeed, belts, and gears for proper operation and wear.
-

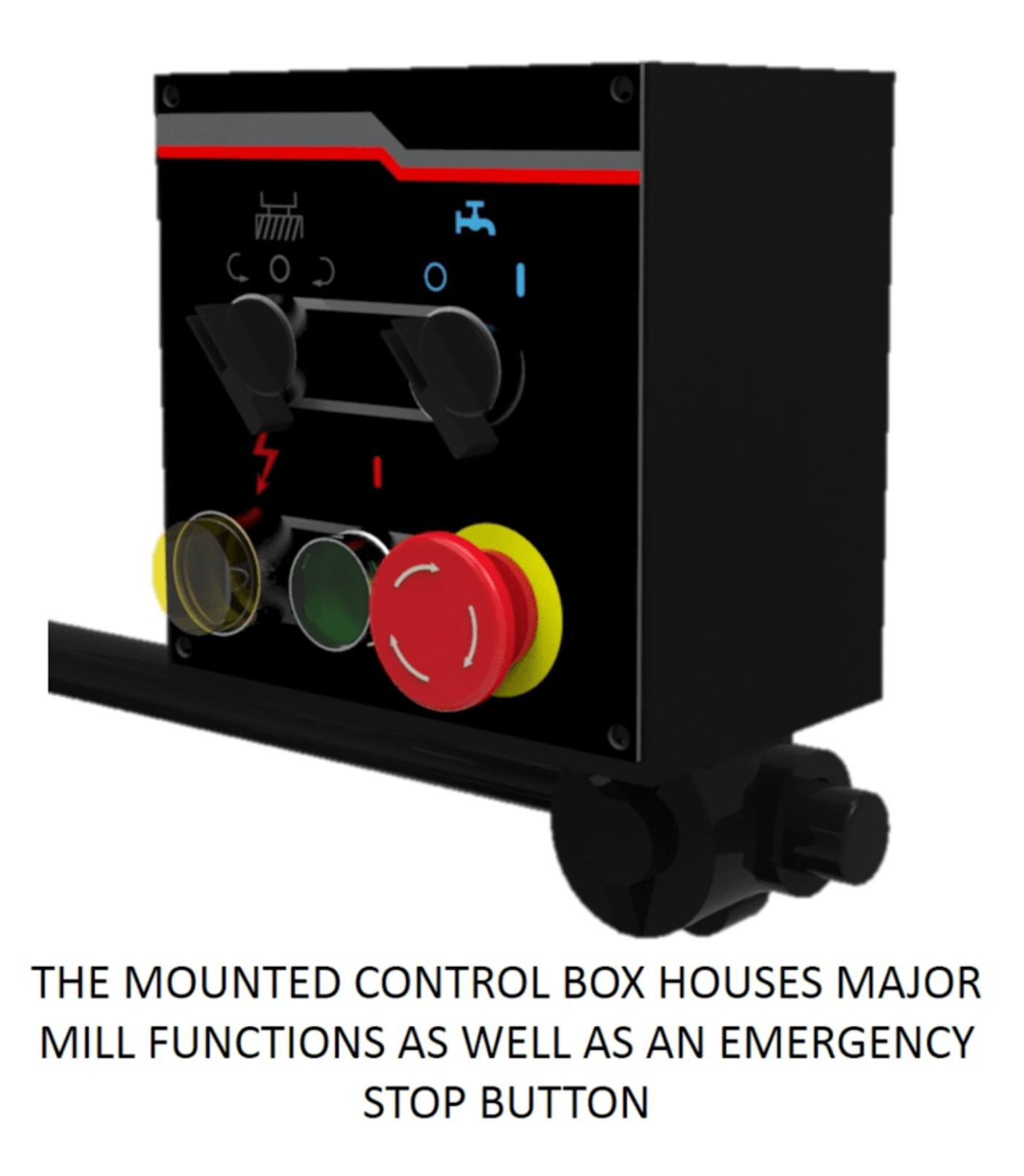

Check electrical connections and safety switches to ensure reliable performance.
-
Verify spindle alignment and calibration periodically for precise machining.
-

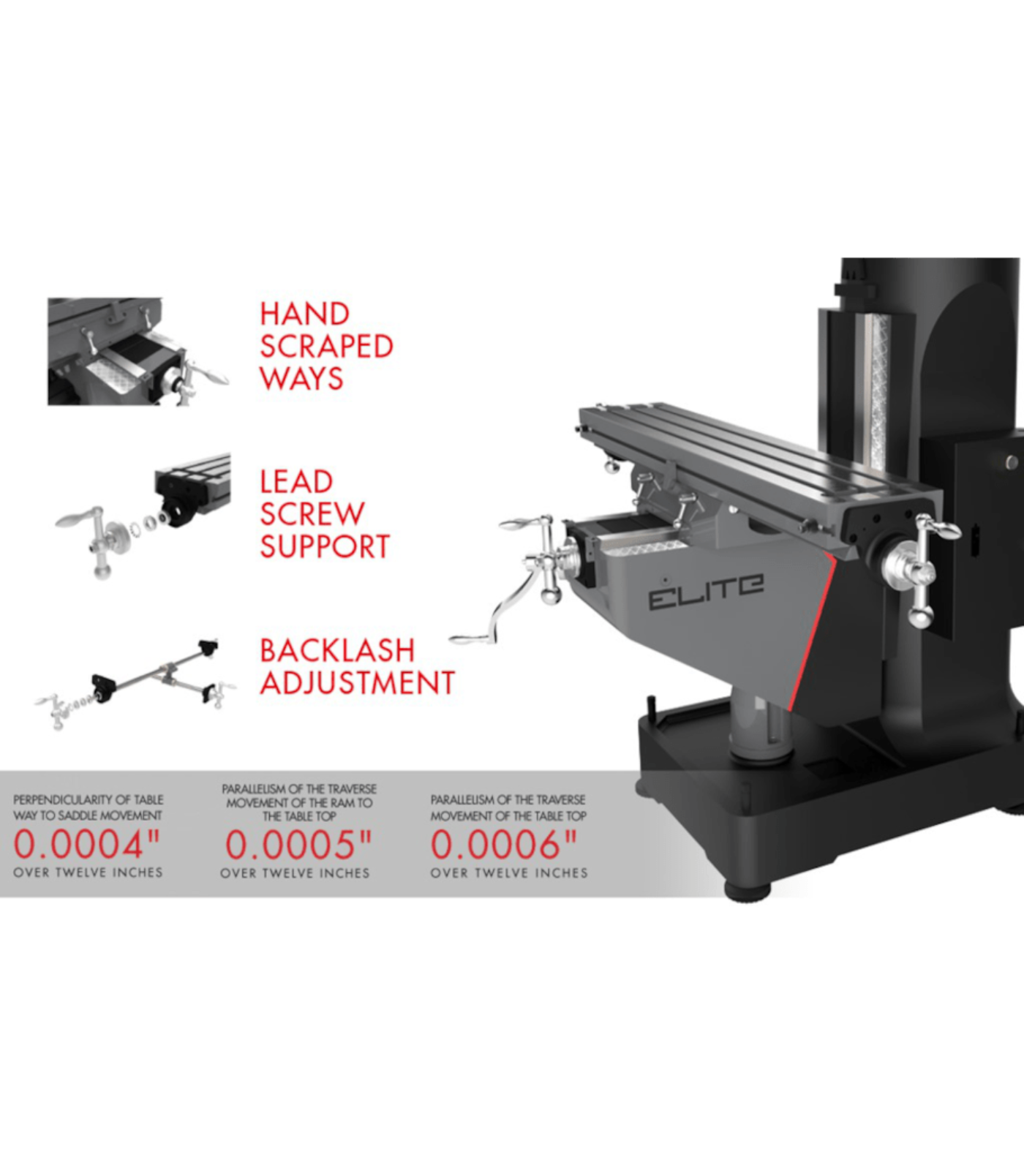

Tighten gibs and adjust backlash to maintain smooth, accurate movement.
-
Schedule routine professional servicing to extend machine life and maintain performance.
