| Style (Type) |
Variable Speed |
| Table Size (L x W) |
9 x 49 in. |
| Work Table Weight Capacity |
550 lbs. |
| Spindle Travel |
5 in. |
| Spindle Taper |
R-8 |
| Collet Capacity |
1/8 – 7/8 in. |
| Quill Diameter |
3-3/8 in. |
| Quill Down Feed Rates (IPR) |
0.0015 – 0.003 – 0.006 |
| Max Distance Spindle to Table |
18-3/4 in. |
| Distance Spindle to Column (Max.) |
21-2/5 in. |

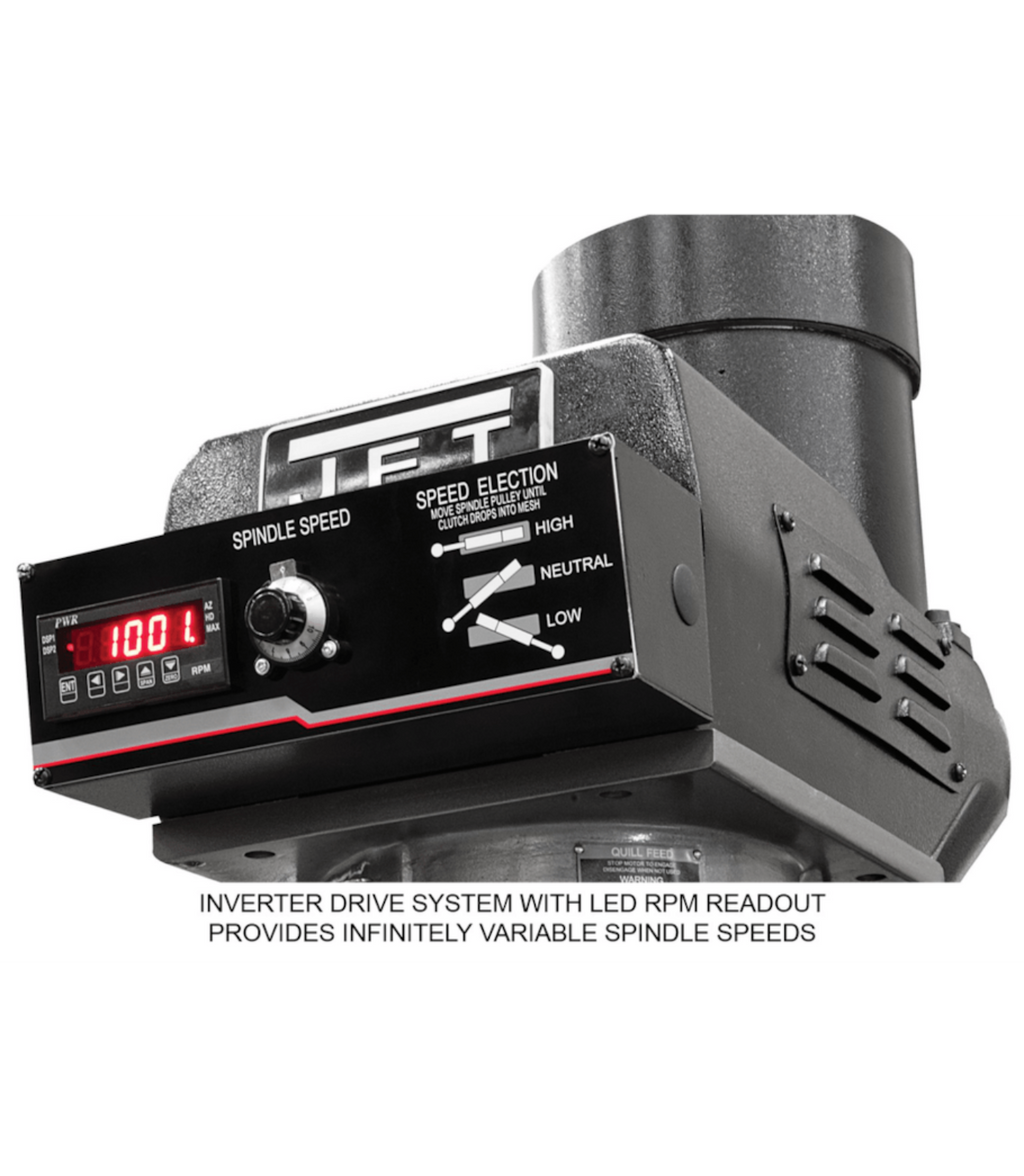

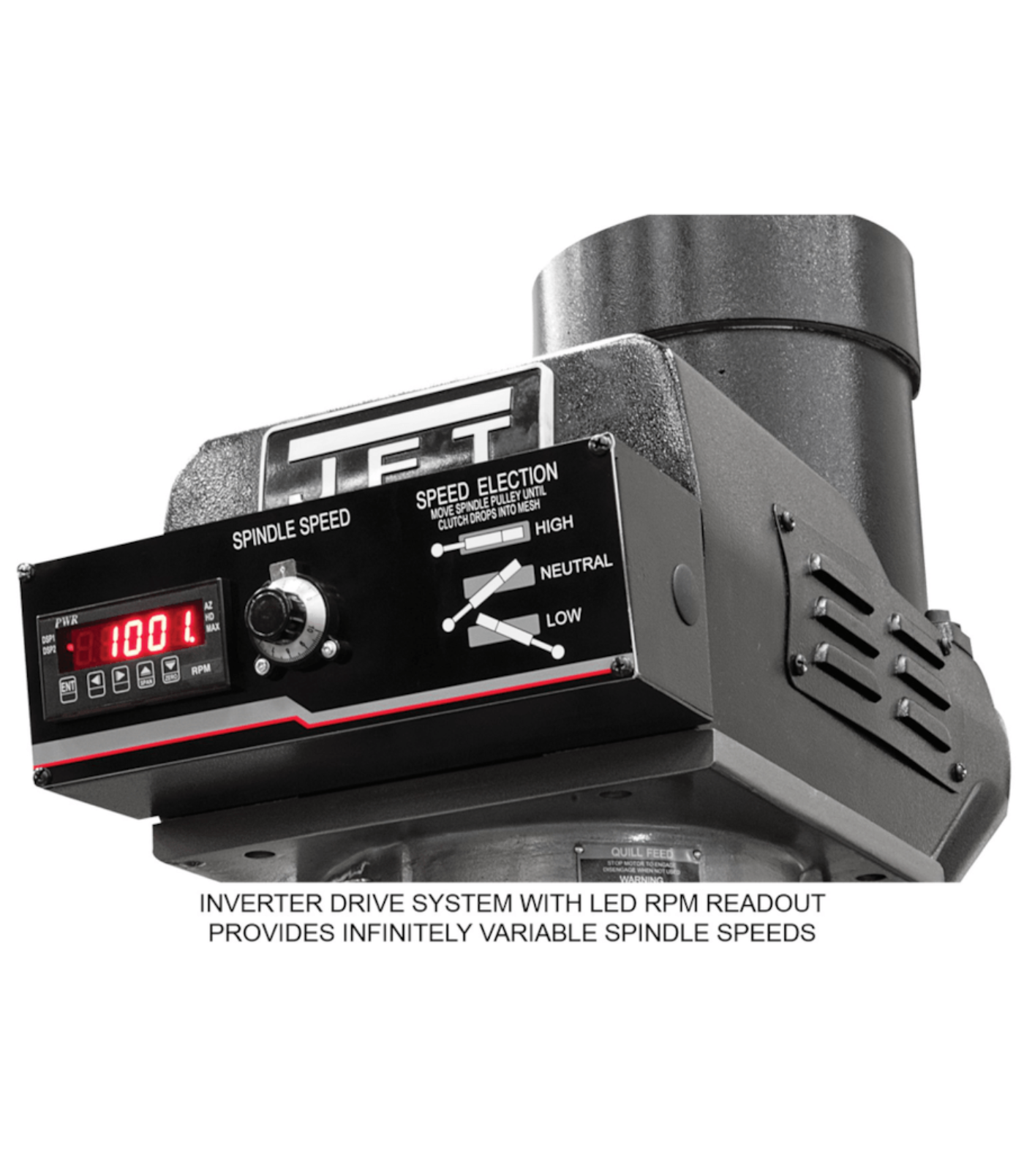

| Range of Spindle Speeds |
60 – 5,000 RPM |
| Table Longitudinal Travel |
36 in. |
| Table Cross Travel |
12 in. |
| T-Slot Centers |
2-1/2 in. |
| Travel of Knee |
16 in. |
| Travel of Ram |
14 in. |
| Motor |
3 HP, 230V, 3Ph |
| Amperage Draw @ 230V 3Ph |
18 A |
| Weight |
2,300 lbs. |

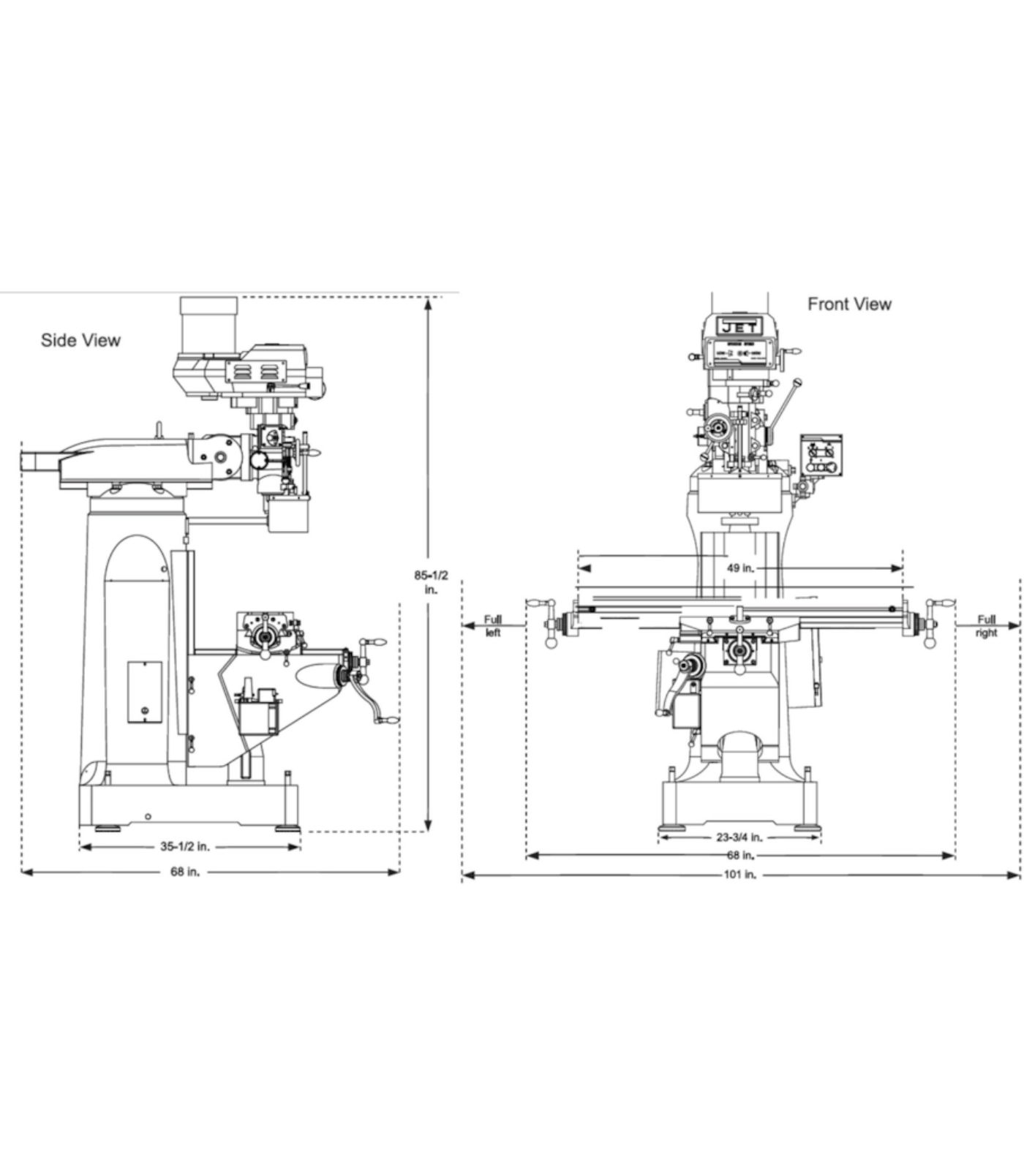

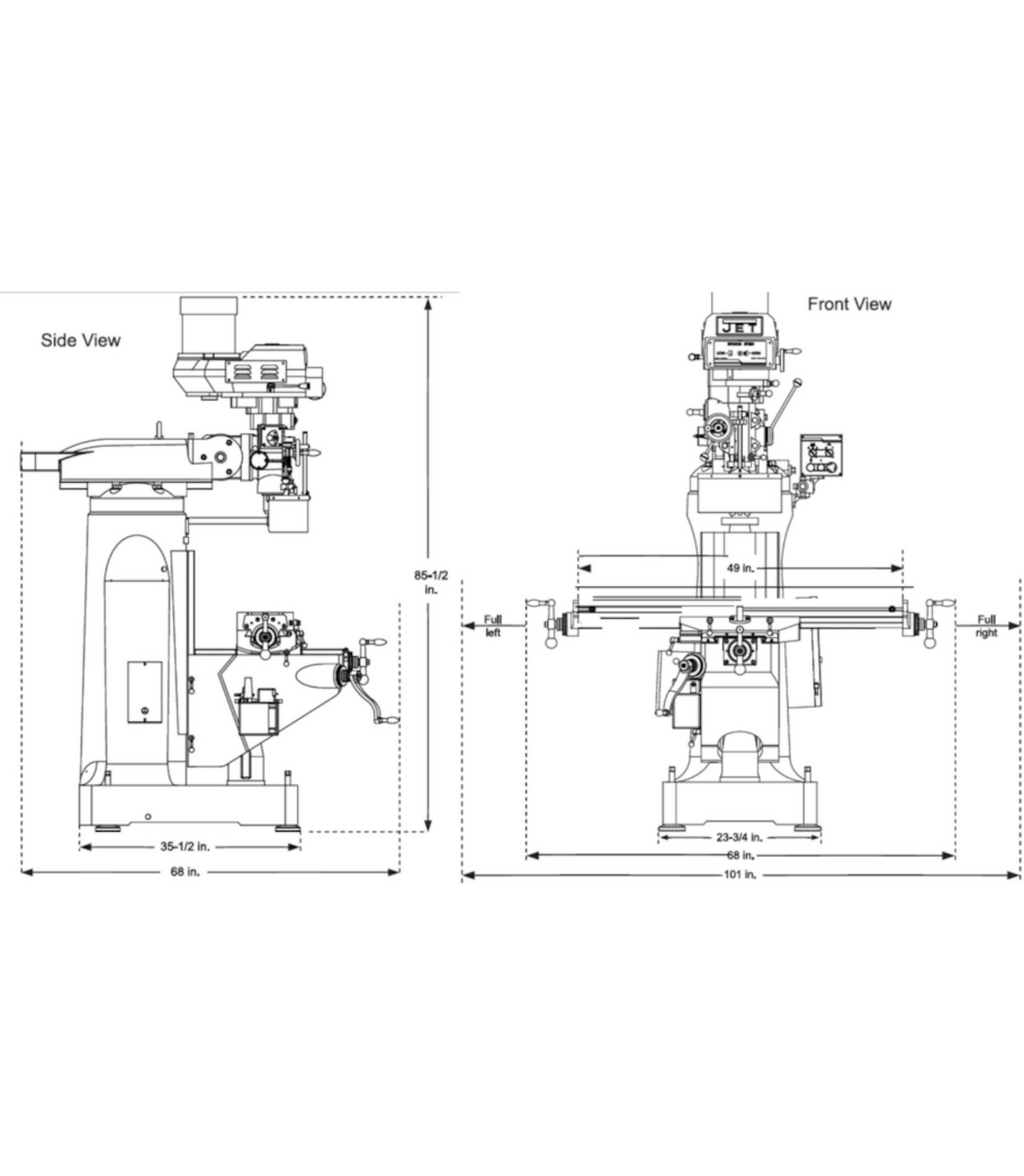

| Overall Dimensions (L x W x H) |
68 x 63 x 84 in. |
What our Experts Think
-
Precision X & Y-Axis Control: Smooth, accurate table movement ensures precise milling operations.
-
JET Powerfeeds: Automates X and Y-axis feeds for consistent cuts and improved efficiency.
-
USA Made Air Draw Bar: Allows fast, secure tool changes for streamlined workflow.
-

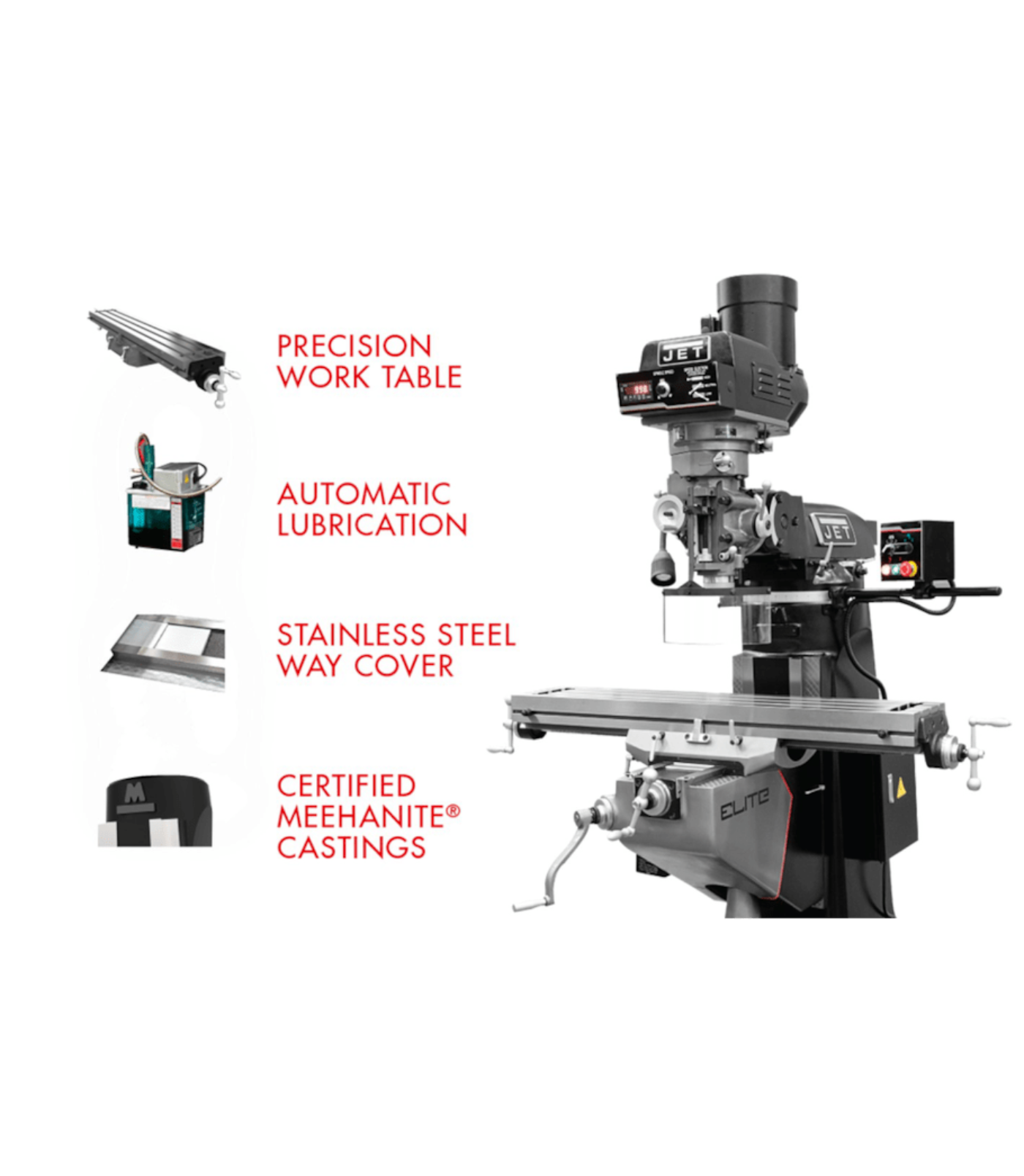

Heavy-Duty Construction: Rigid cast-iron frame minimizes vibration and maximizes durability.
-
Professional Reliability: Built for toolrooms, machine shops, and industrial milling applications.
Q&A

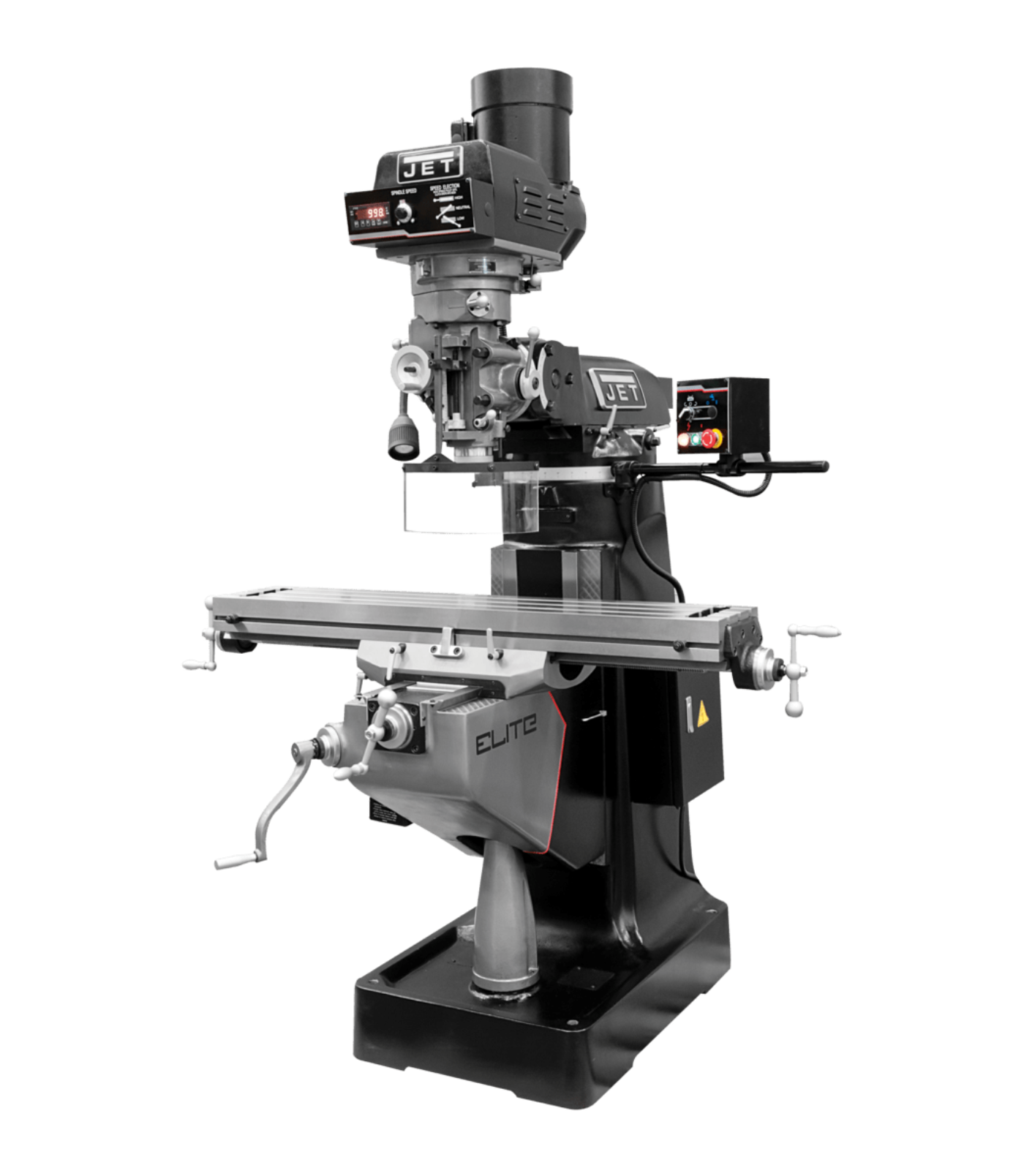

Q: What is the JET Elite EVS-949 Mill?
A: The EVS-949 is a precision vertical milling machine featuring X and Y-axis JET Powerfeeds and a USA-made air draw bar, designed for professional machining, prototyping, and production work.
Q: What do the X and Y-axis Powerfeeds provide?
A: The dual-axis Powerfeeds allow smooth, consistent movement along both X and Y axes, improving accuracy, surface finish, and reducing operator fatigue during repetitive milling tasks.
Q: What is the benefit of the USA-made air draw bar?
A: The air draw bar allows fast, secure, and tool-free spindle changes, improving workflow efficiency and minimizing downtime.
Q: What are the milling capabilities?
A: The mill supports milling, drilling, boring, slotting, and precision surface finishing with high repeatability and accuracy.
Q: What is the worktable size?
A: It features a durable, spacious worktable that accommodates medium to large workpieces for versatile machining operations.

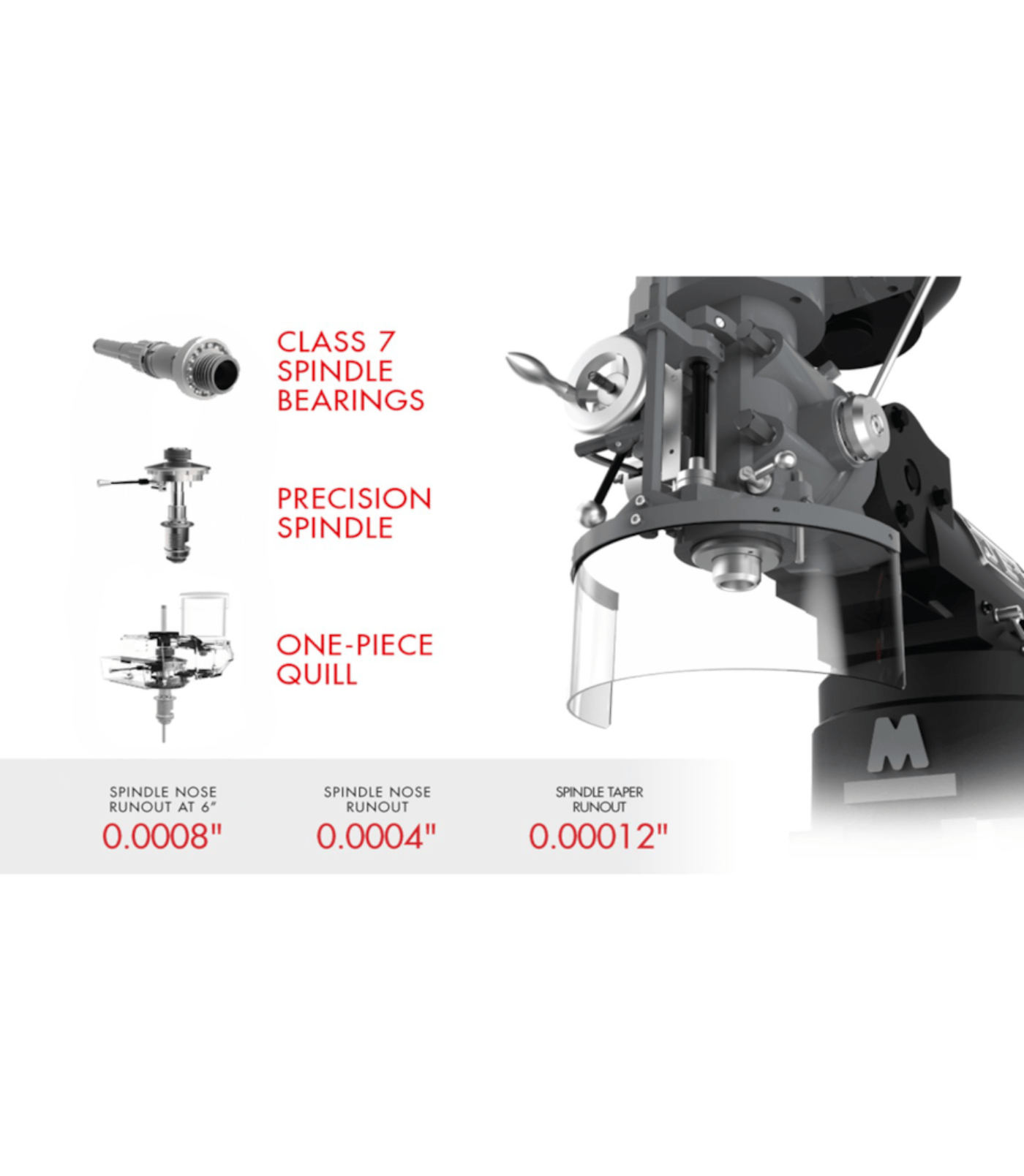

Q: What spindle features does it offer?
A: The machine comes with a high-torque spindle providing precise speed control for a wide range of materials.
Q: What type of motor powers the mill?
A: A heavy-duty industrial motor ensures smooth operation, consistent torque, and reliable performance for demanding milling jobs.
Q: How precise and durable is the mill?
A: Precision-ground ways and a rigid frame provide long-lasting accuracy, stability, and consistent results for heavy-duty tasks.
Q: Who is this mill designed for?
A: Ideal for machine shops, tool rooms, prototyping facilities, and educational programs that require professional-grade milling with fast tool changes and dual-axis feed control.
Q: Does it meet safety and quality standards?
A: Yes, it is CSA/ETL certified and built to JET Elite industrial-quality standards for reliability, precision, and operator safety.
Q: What sets this configuration apart?
A: The combination of X and Y-axis Powerfeeds with a USA-made air draw bar provides exceptional efficiency, precision, and quick tool changes, making it ideal for repetitive or complex milling operations.
Maintenance Tips
-
Clean table, spindle, and ways after each use to remove chips, coolant, and debris.
-

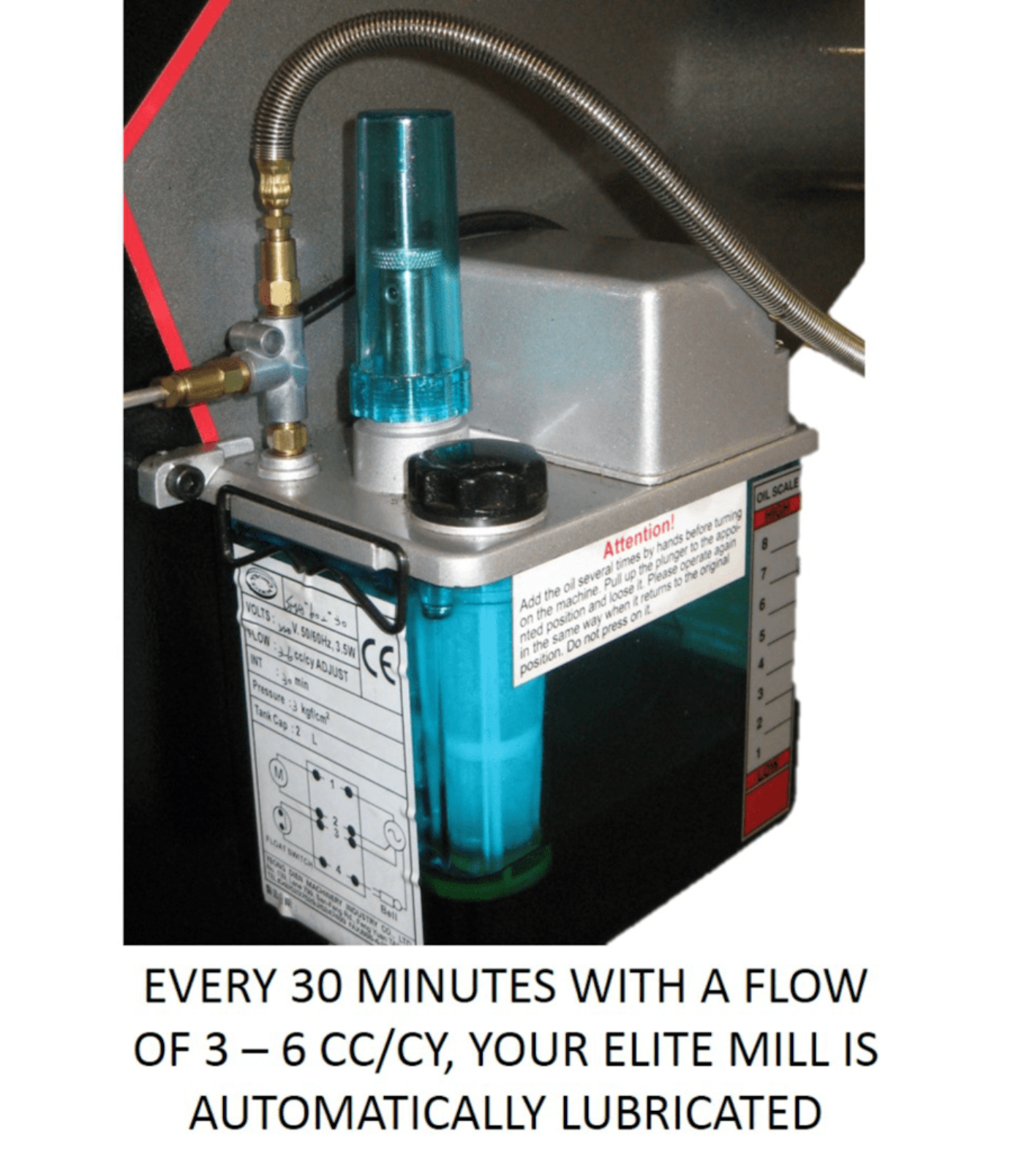

Lubricate lead screws, bearings, and sliding surfaces regularly for smooth and accurate movement.
-
Inspect X and Y-axis powerfeeds, belts, and gears for wear and proper operation.
-
Check air draw bar and pneumatic connections for leaks or damage.
-

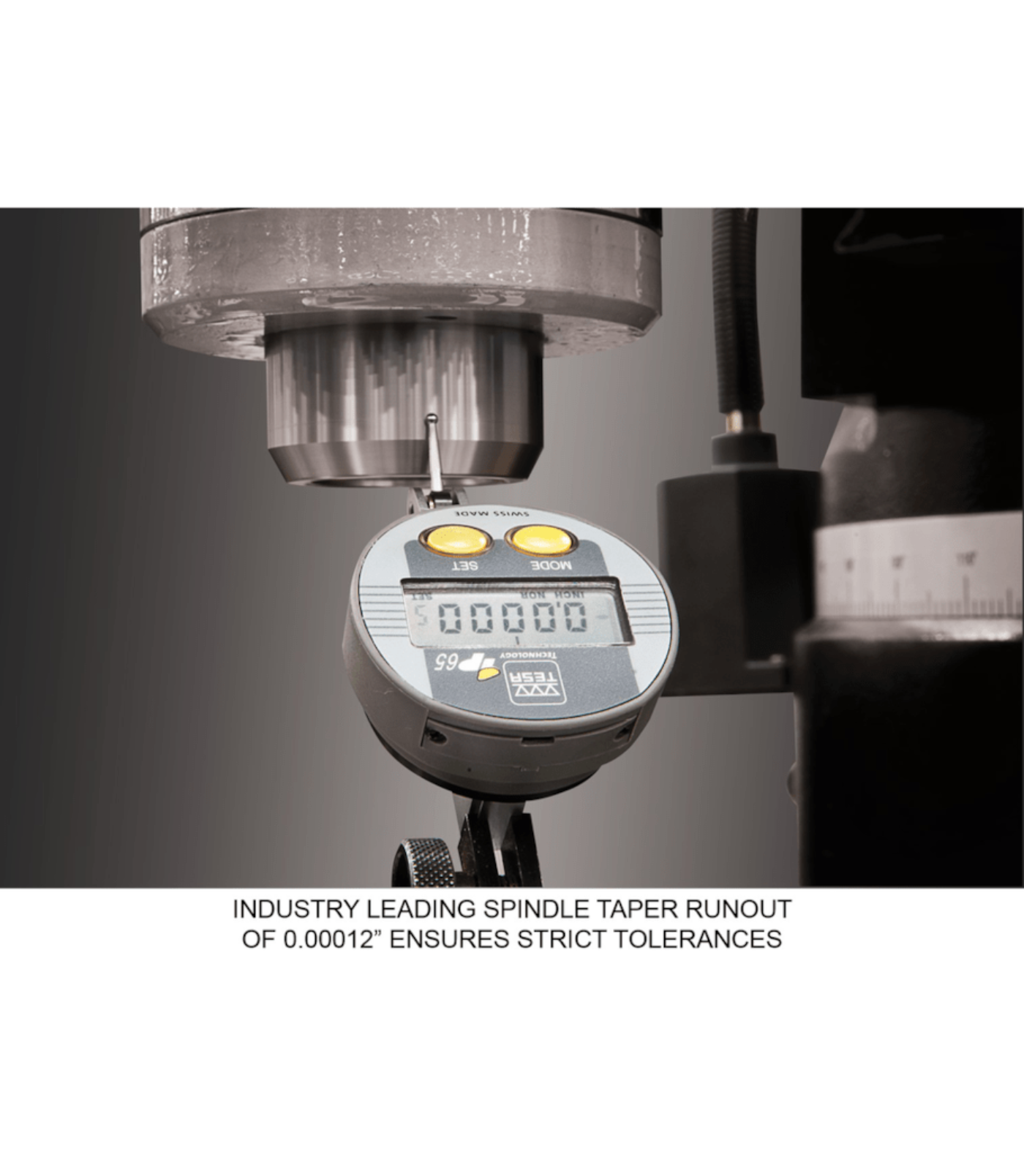

Verify spindle alignment and calibration periodically to maintain precision.
-

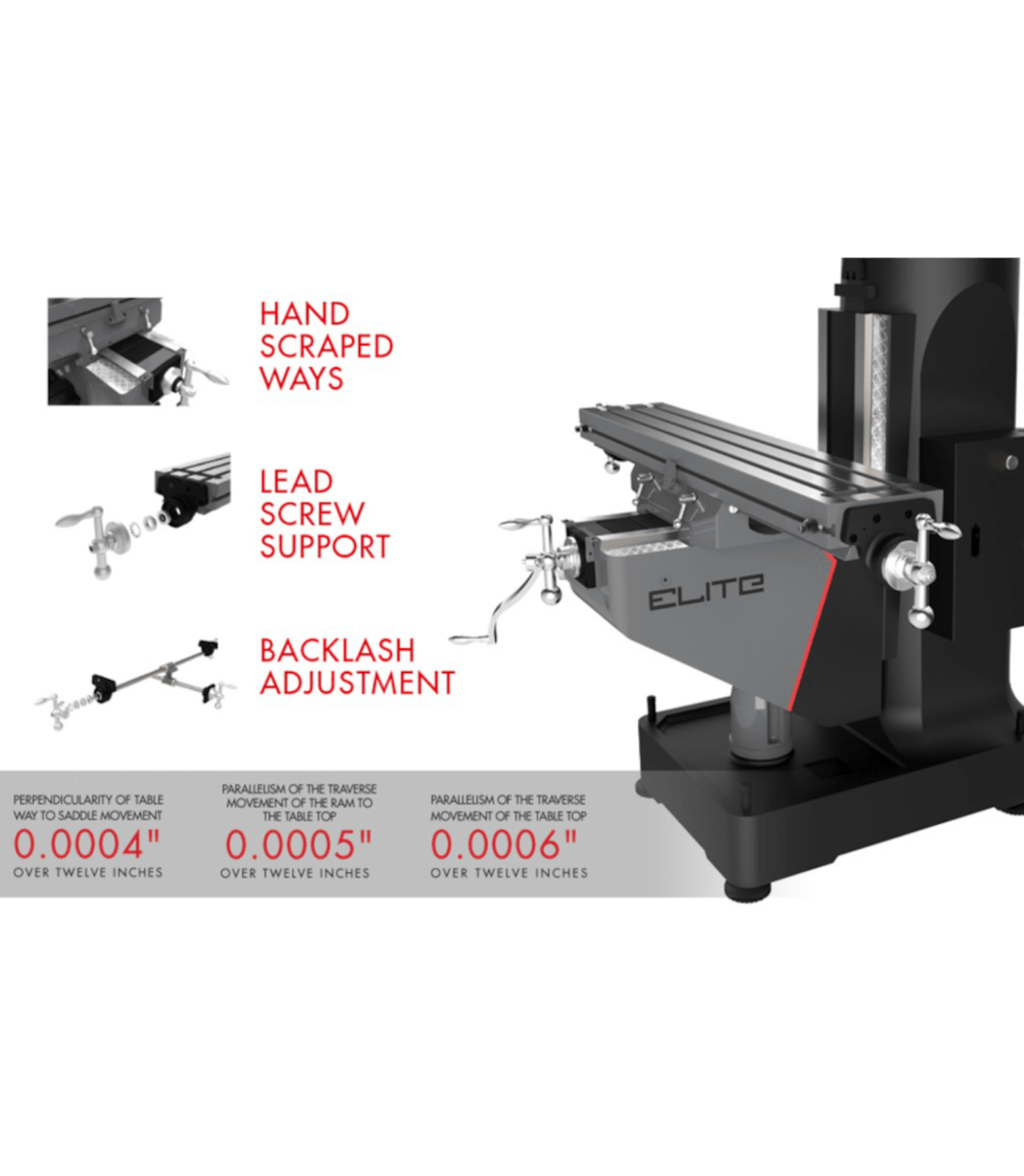

Tighten gibs and adjust backlash to ensure rigidity and consistent milling accuracy.
-
Schedule routine professional servicing to extend machine life and optimize performance.
