    JET Elite Lathe E-1236VS with ACU-RITE 203 CSS DRO with Taper Attachment - JET-892308

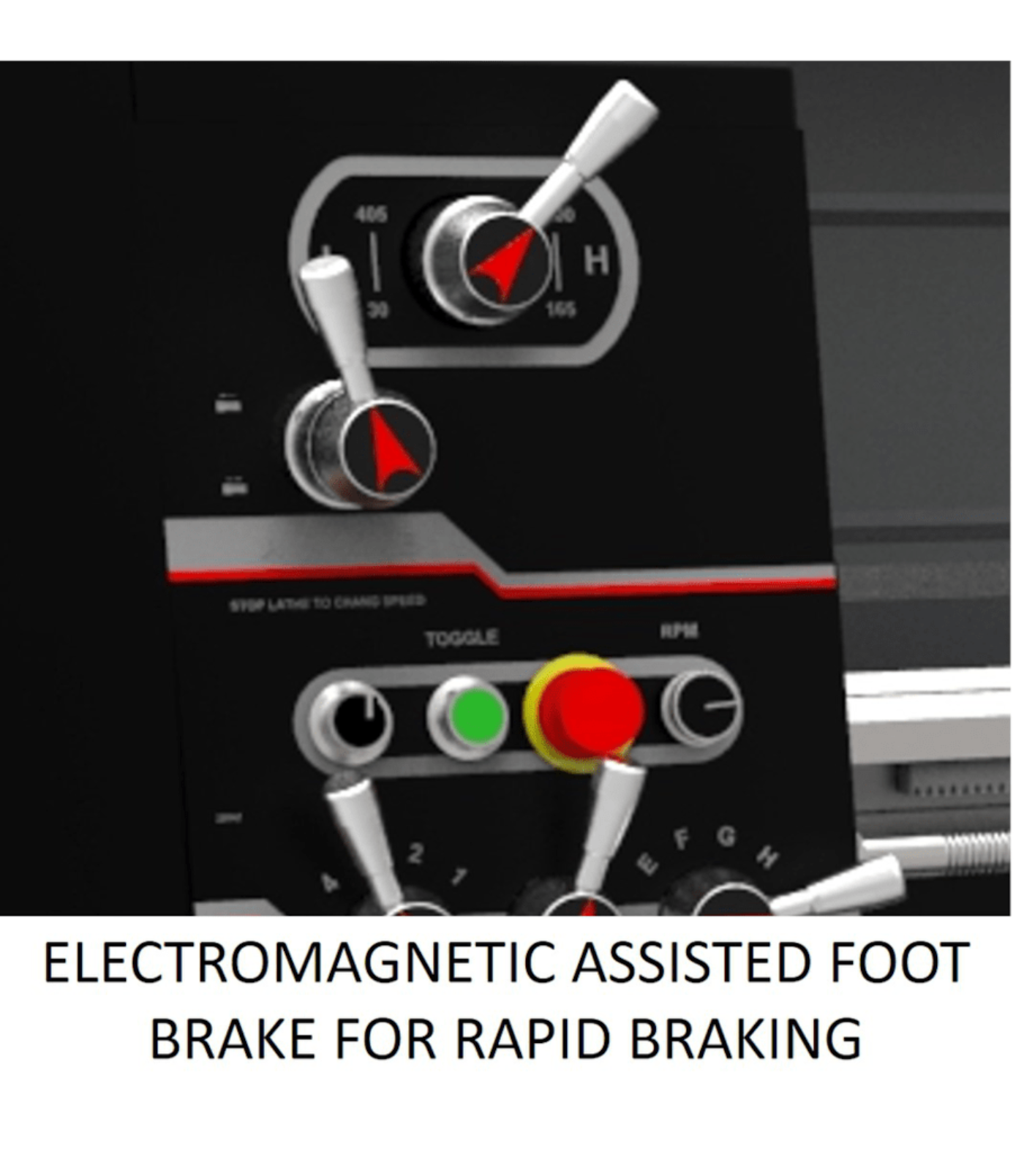

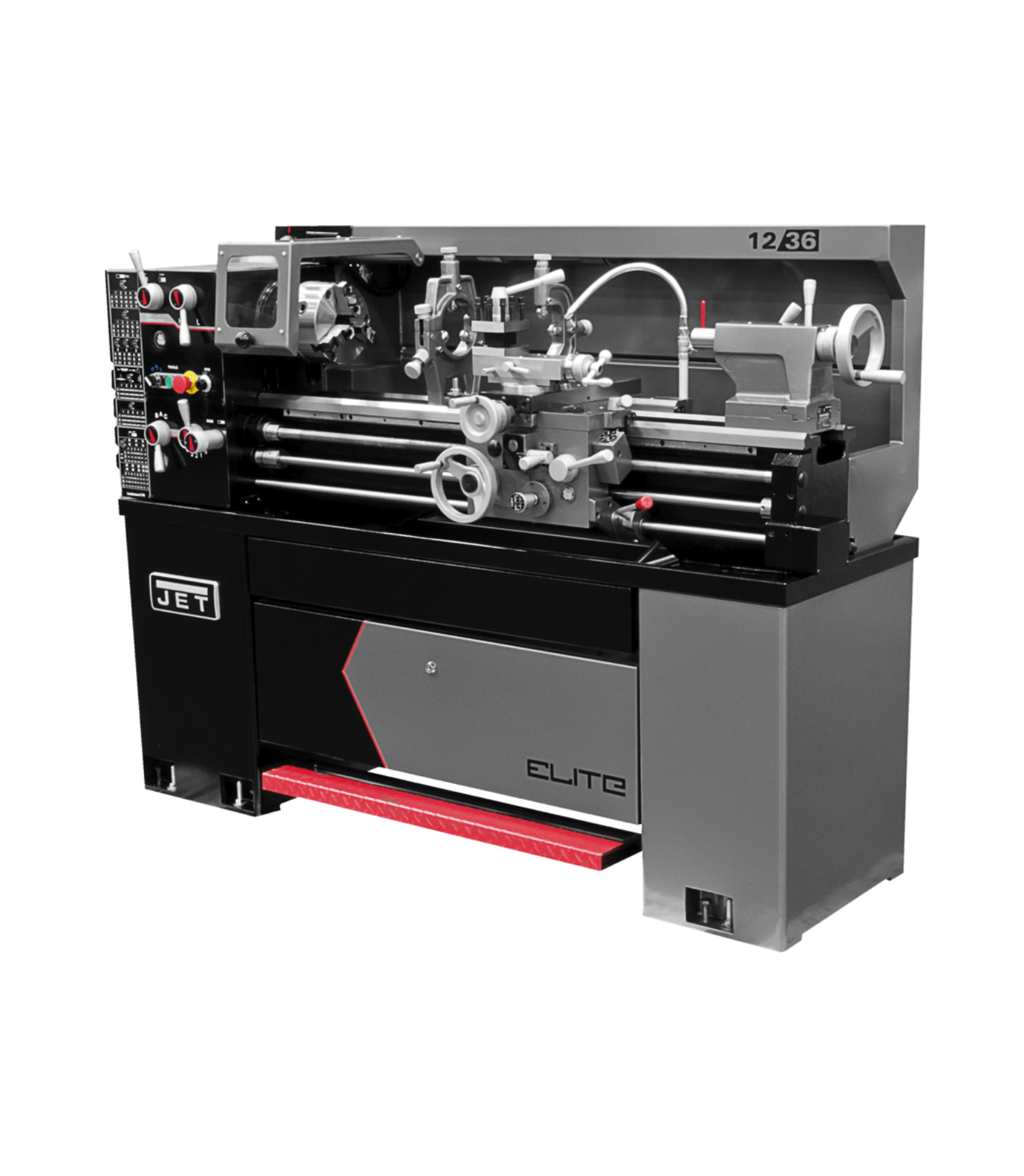

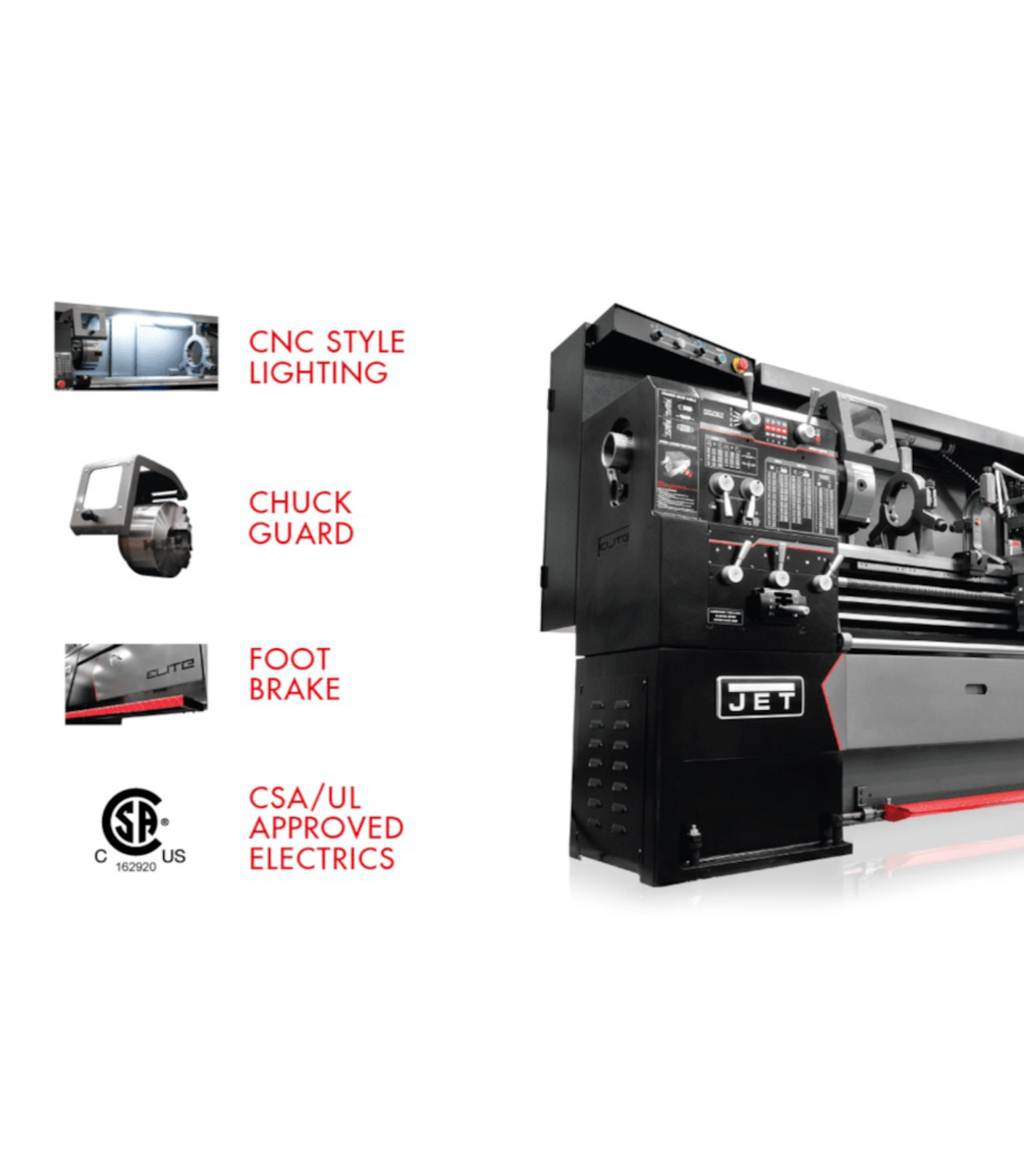

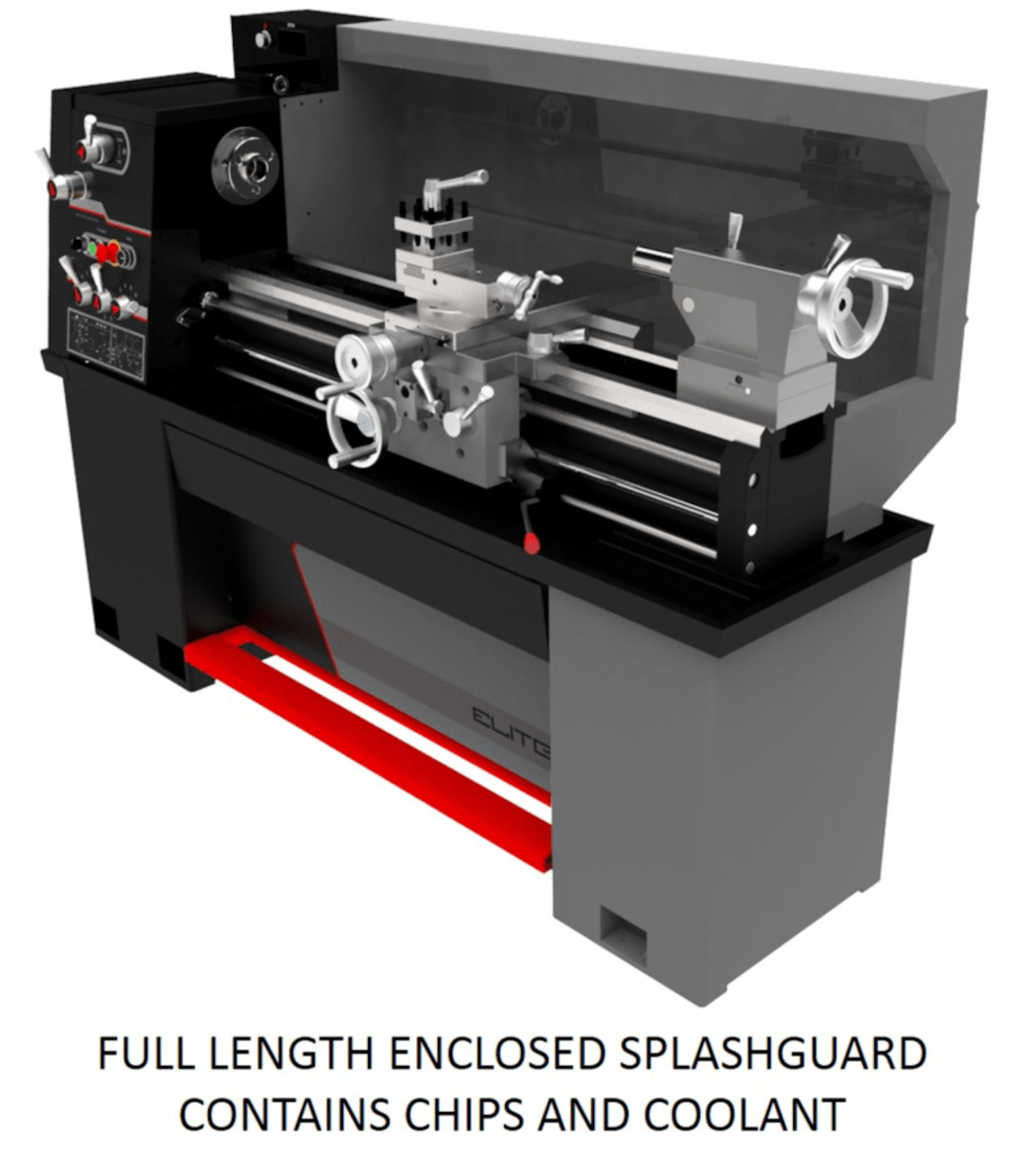

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine

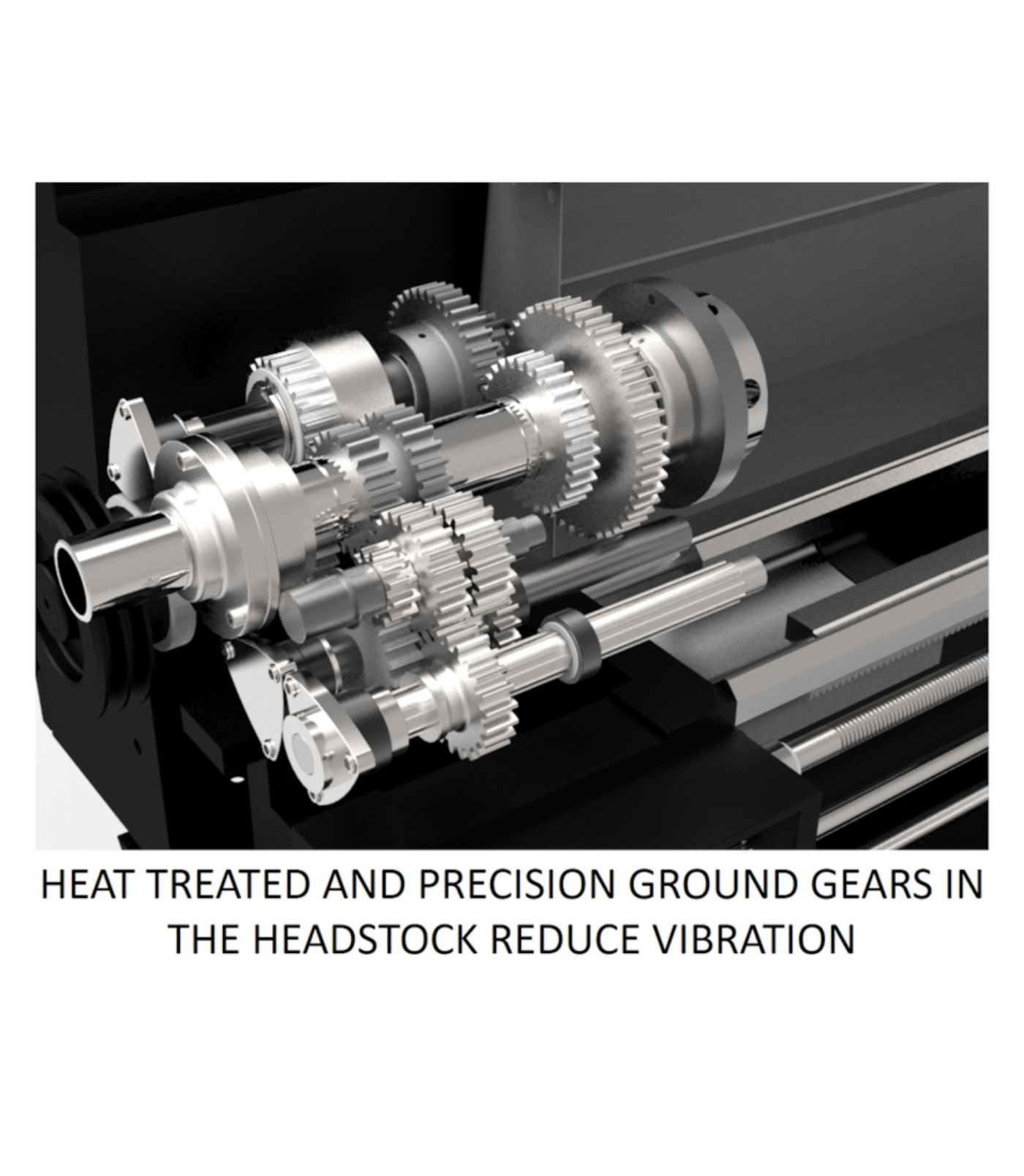

    • Hardened and ground gears in headstock reduce vibration and deflection
    • Integrated locking tool cabinet in stand on 12" Lathe
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 12 x 36
    Style (Type) ELITE EVS
    Swing Over Bed (In.) 12
    Swing Over Cross Slide (In.) 7-5/16
    Swing Through Gap (In.) 17-1/2
    Length of Gap (In.) 9-1/2
    Spindle Bore (In.) 1-9/16
    Spindle Mount D1-4
    Weight (Lbs.) 1212
    Amperage Draw @ 230V 1Ph 27
    Amperage Draw @ 230V 3Ph 19
    Spindle Taper with Sleeve MT-5
    Range of Spindle Speeds (RPM) 0 – 2,000
    Number of Longitudinal and Cross Feed Rates 50
    Range of Longitudinal Feeds (IPR) 0.0016 – 0.046
    Range of Cross Feeds (IPR) 0.0005 – 0.015
    Number of Inch Threads 34
    Range of Inch Threads (TPI) 2 – 56
    Number of Metric Threads 33
    Range of Metric Threads 0.5 – 12
    Max Tool Size (In.) 1/2 x 1/2
    Compound Slide Travel (In.) 3-1/2
    Motor (HP) 2 HP, 230V, 1 or 3 Ph
    Tailstock Spindle Travel (In.) 4
    Taper in Tailstock Spindle MT-3
    Steady Rest Capacity (In.) 1/4 – 2-1/2
    Width of Bed (In.) 7-1/2

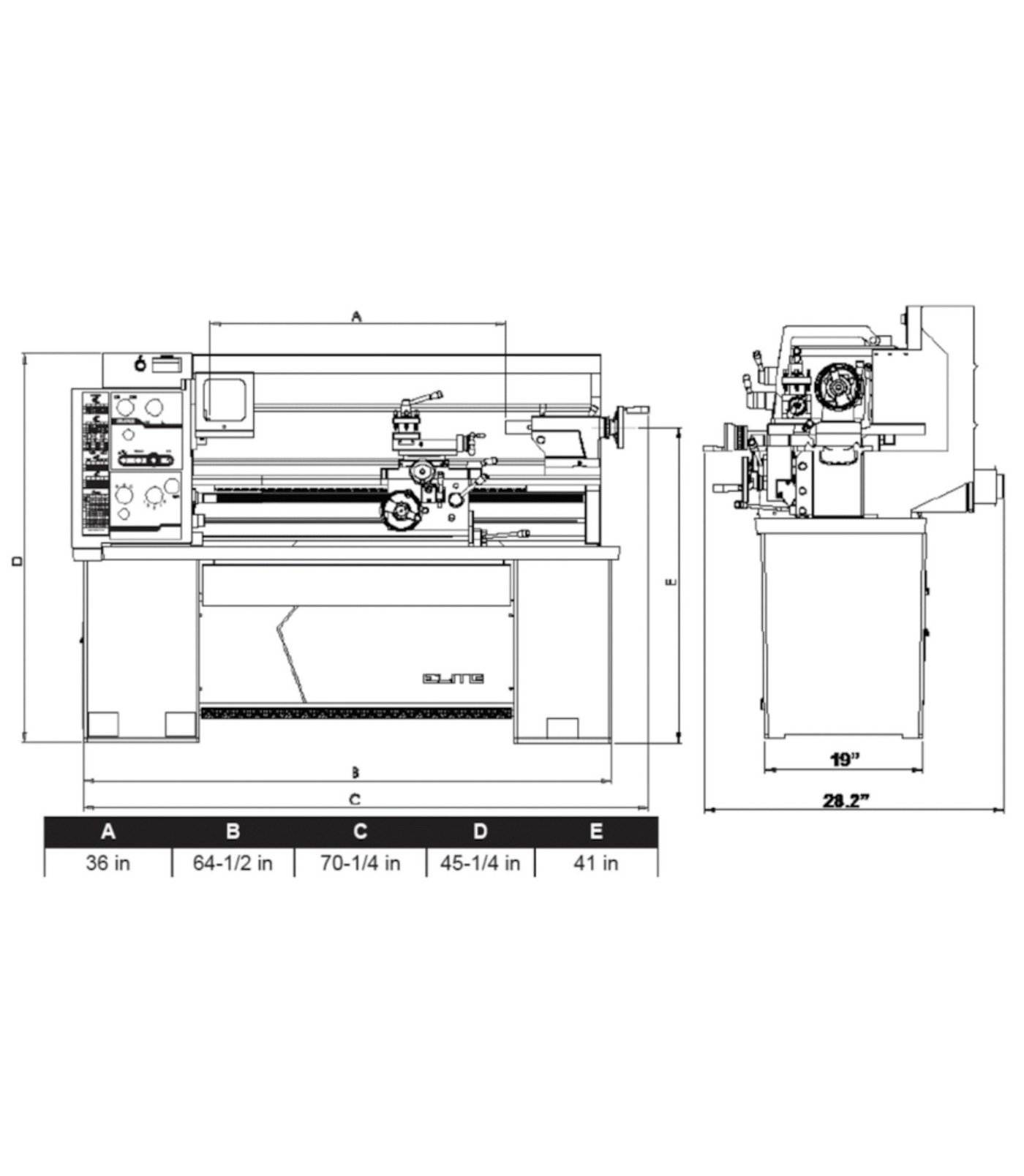

    Overall Dimensions (L x W x H) (In.) 71 x 30 x 60
    Drive EVS
    What our Experts Think
    • 12" swing and 36" center distance make it ideal for compact precision projects.

    • ACU-RITE 203 CSS DRO offers precise readouts with constant surface speed for consistent finishes.

    • Taper attachment allows accurate taper cutting without complex setup.

    • Variable speed range (40–2,000 RPM) supports a variety of materials and operations.

    • Solid cast-iron construction reduces vibration, ensuring stability, accuracy, and long-term durability.

    Q&A

    Q: What type of lathe is the JET Elite E-1236VS?
    A: It’s a 12x36 electronic variable speed (EVS) precision lathe designed for accurate metalworking.

    Q: What does the ACU-RITE 203 CSS DRO provide?
    A: The digital readout with Constant Surface Speed (CSS) ensures consistent cutting speeds for improved accuracy and tool life.

    Q: What is the function of the taper attachment?
    A: It allows precise taper cutting without adjusting the compound rest, ideal for advanced turning operations.

    Q: What is the swing over bed and center distance?
    A: This lathe offers a 12-inch swing over bed with a 36-inch distance between centers.

    Q: Where is this lathe commonly used?
    A: Perfect for machine shops, tool rooms, and industrial facilities requiring precision and efficiency.

    Maintenance Tips
    • Wipe down bedways, carriage, and tooling areas after each use to remove chips and debris.

    • Lubricate gears, bearings, and sliding components according to the manufacturer’s schedule.

    • Keep ACU-RITE 203 CSS DRO scales and sensors clean for precise measurements.

    • Inspect and maintain the taper attachment regularly for smooth and accurate operation.

    • Check drive belts, gibs, and feed screws for wear and proper tension.

    • Tighten tool post, tailstock, and all fasteners to maintain rigidity and precision.

    • Ensure electrical components and cooling fans remain free of dust and debris.

    • Schedule periodic professional servicing to extend the machine’s lifespan and accuracy.
