| Size |
12 x 36 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed (In.) |
12 |
| Swing Over Cross Slide (In.) |
7-5/16 |
| Swing Through Gap (In.) |
17-1/2 |
| Length of Gap (In.) |
9-1/2 |
| Spindle Bore (In.) |
1-9/16 |
| Spindle Mount |
D1-4 |
| Weight (Lbs.) |
1212 |
| Amperage Draw @ 230V 1Ph |
27 |
| Amperage Draw @ 230V 3Ph |
19 |
| Spindle Taper with Sleeve |
MT-5 |
| Range of Spindle Speeds (RPM) |
0 – 2,000 |
| Number of Longitudinal and Cross Feed Rates |
50 |
| Range of Longitudinal Feeds (IPR) |
0.0016 – 0.046 |
| Range of Cross Feeds (IPR) |
0.0005 – 0.015 |
| Number of Inch Threads |
34 |
| Range of Inch Threads (TPI) |
2 – 56 |
| Number of Metric Threads |
33 |
| Range of Metric Threads |
0.5 – 12 |
| Max Tool Size (In.) |
1/2 x 1/2 |
| Compound Slide Travel (In.) |
3-1/2 |
| Motor (HP) |
2 HP, 230V, 1 or 3 Ph |
| Tailstock Spindle Travel (In.) |
4 |
| Taper in Tailstock Spindle |
MT-3 |

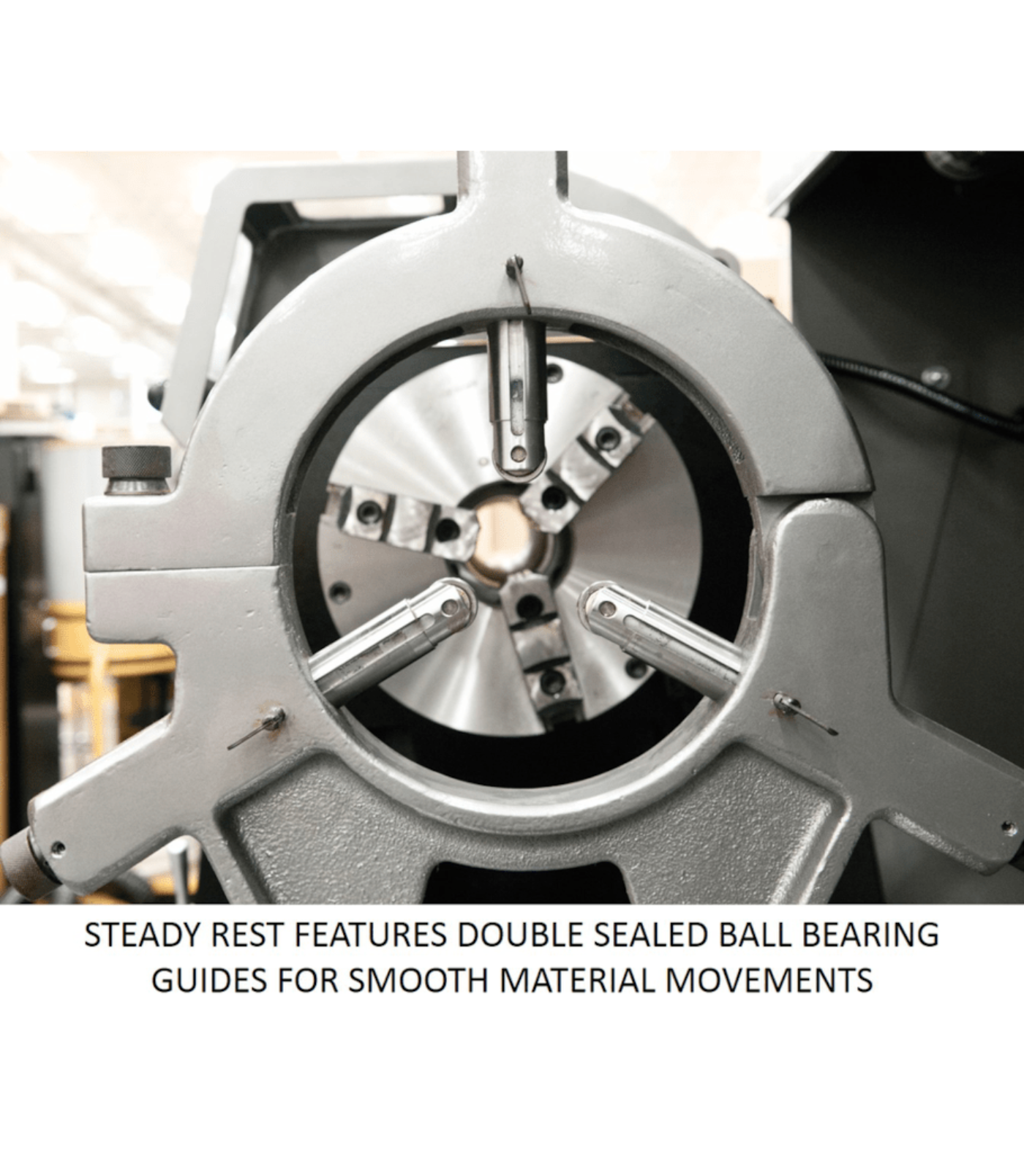

| Steady Rest Capacity (In.) |
1/4 – 2-1/2 |
| Width of Bed (In.) |
7-1/2 |

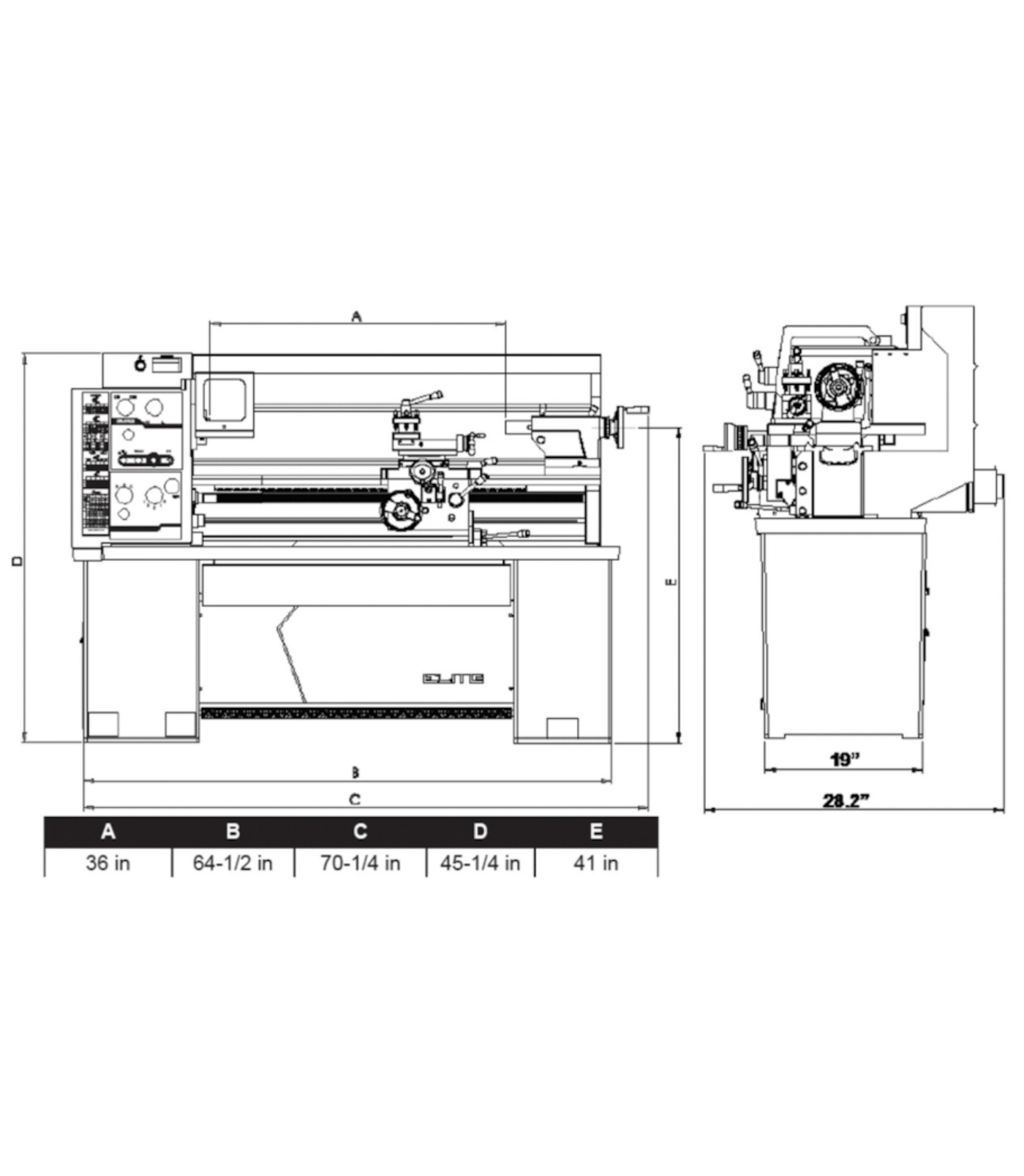

| Overall Dimensions (L x W x H) (In.) |
71 x 30 x 60 |
| Drive |
EVS |
What our Experts Think
-
Variable Speed Control: Smooth RPM adjustments provide precision across a variety of materials.
-
ACU-RITE 203 CSS DRO: Advanced digital readout with constant surface speed ensures consistent accuracy.
-
Taper Attachment: Expands capabilities for precise internal and external taper cutting.
-
Collet Closer: Secures small-diameter parts for accurate, repeatable machining.
-
Heavy-Duty Cast-Iron Bed: Enhances stability, reduces vibration, and ensures long-term durability.
-
Professional Reliability: Built for machine shops, toolrooms, and industrial metalworking applications.
Q&A

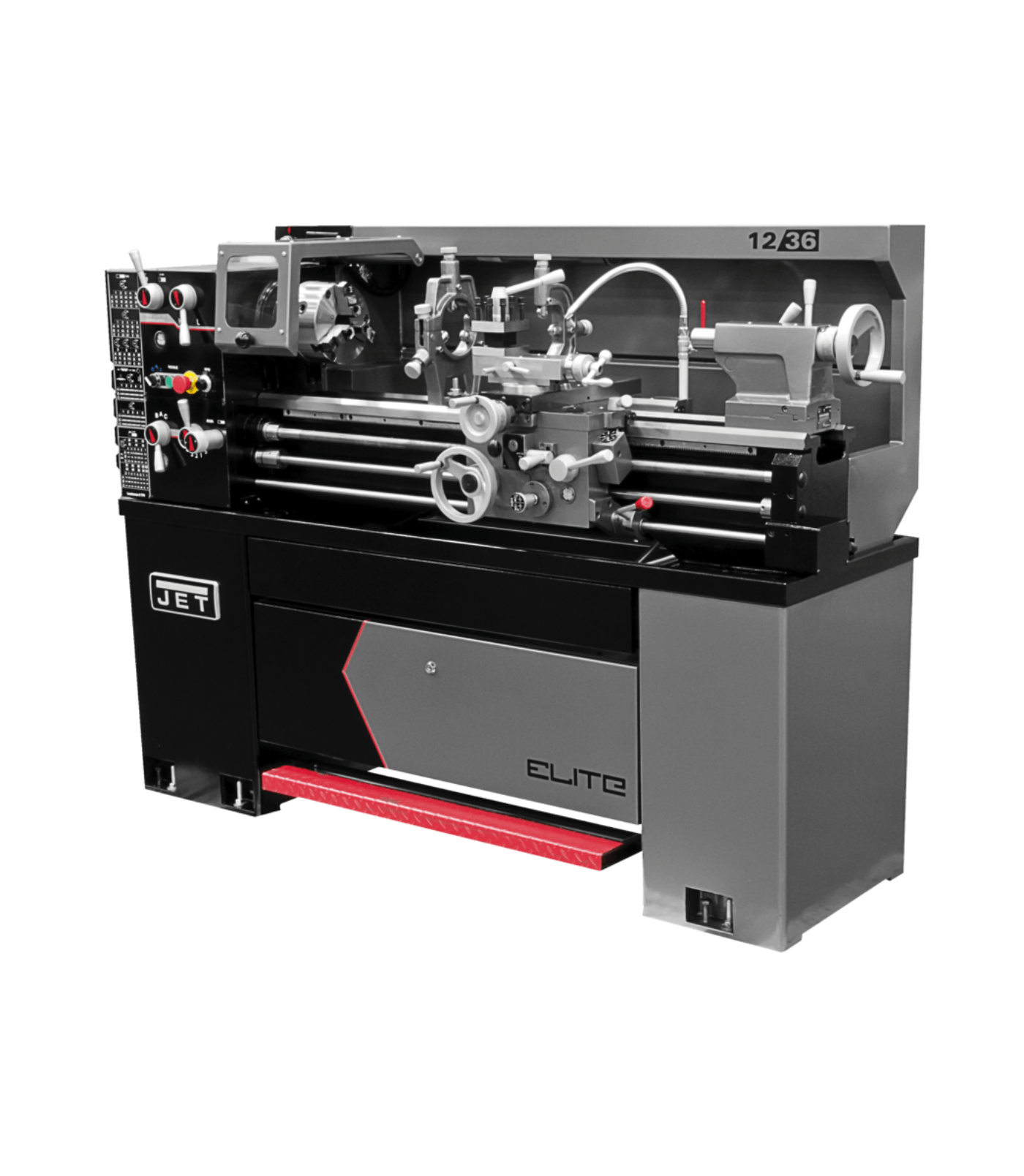

Q: What is the JET Elite E-1236VS lathe?
A: The E-1236VS is a 12" x 36" variable-speed precision lathe built for professional machining, turning, threading, and boring in industrial and educational settings.
Q: What does the ACU-RITE 203 CSS DRO provide?
A: The ACU-RITE 203 CSS (Constant Surface Speed) Digital Readout automatically adjusts spindle speed to maintain consistent cutting conditions, ensuring precise finishes and improving tool life.
Q: How does the taper attachment help?
A: The taper attachment allows for accurate internal and external taper cutting without complex manual setups, saving time and ensuring precision.
Q: What is the benefit of the collet closer?
A: The collet closer enables fast, secure, and repeatable workholding—ideal for production runs and high-precision machining.
Q: What is the spindle bore size?
A: This lathe features a 1.57" spindle bore, suitable for medium-diameter stock and tubing.
Q: How does the variable-speed drive improve performance?
A: The electronic variable-speed system provides smooth spindle speed adjustments, optimizing cutting conditions for various materials.
Q: What type of motor powers the machine?
A: A heavy-duty industrial motor delivers reliable torque and consistent cutting performance.
Q: How durable is the lathe bed?

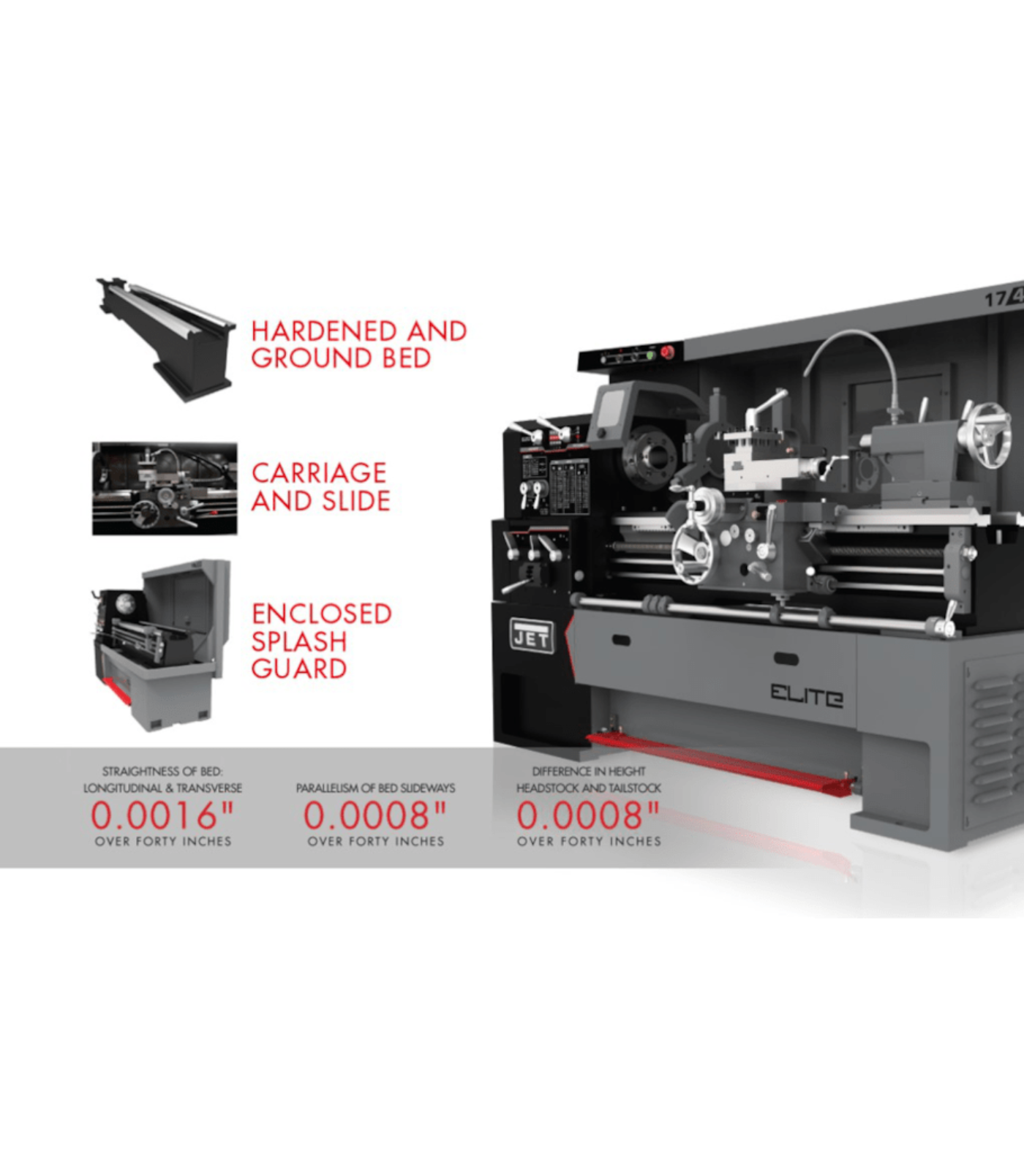

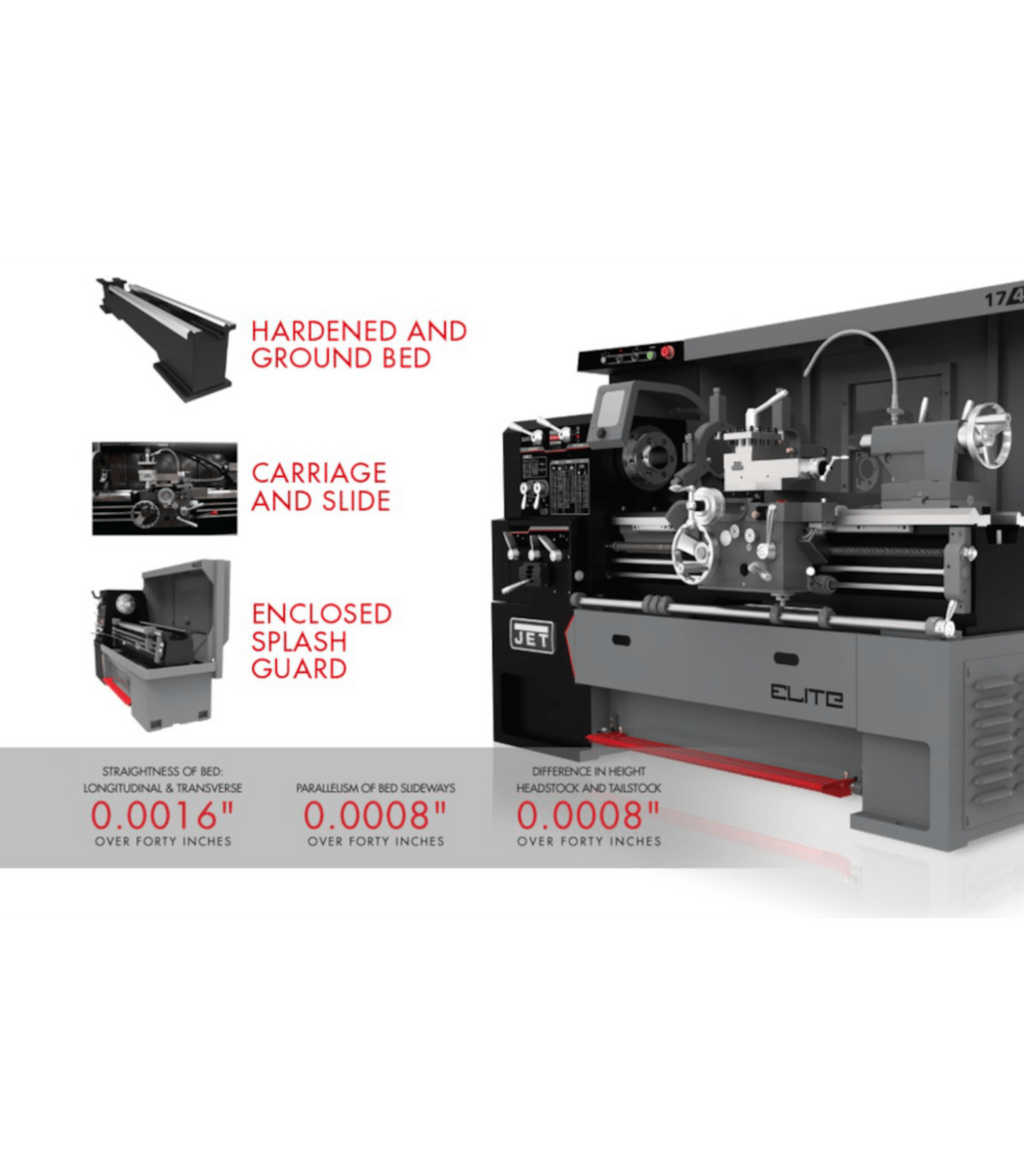

A: The hardened, precision-ground bedways ensure rigidity, accuracy, and long-lasting durability.
Q: What machining operations can it perform?
A: Ideal for turning, facing, threading (inch and metric), boring, taper cutting, and precision part production.
Q: Who is this lathe best suited for?
A: Perfect for machine shops, tool rooms, repair facilities, and training programs that require versatile, high-precision machining capabilities.
Maintenance Tips
-
Clean lathe bed, carriage, taper attachment, and collet closer after each use to remove chips and debris.
-
Lubricate spindle bearings, leadscrews, and sliding ways regularly to reduce friction and wear.
-
Check ACU-RITE 203 CSS DRO accuracy and recalibrate when necessary to maintain precision.
-
Inspect taper attachment and collet closer alignment for accurate and secure workholding.
-
Monitor belts, gears, and electrical components for wear, tension, and proper operation.
-
Tighten gibs and adjust backlash to maintain rigidity and consistent machining accuracy.
-
Schedule routine professional servicing to ensure long-term reliability and performance.
