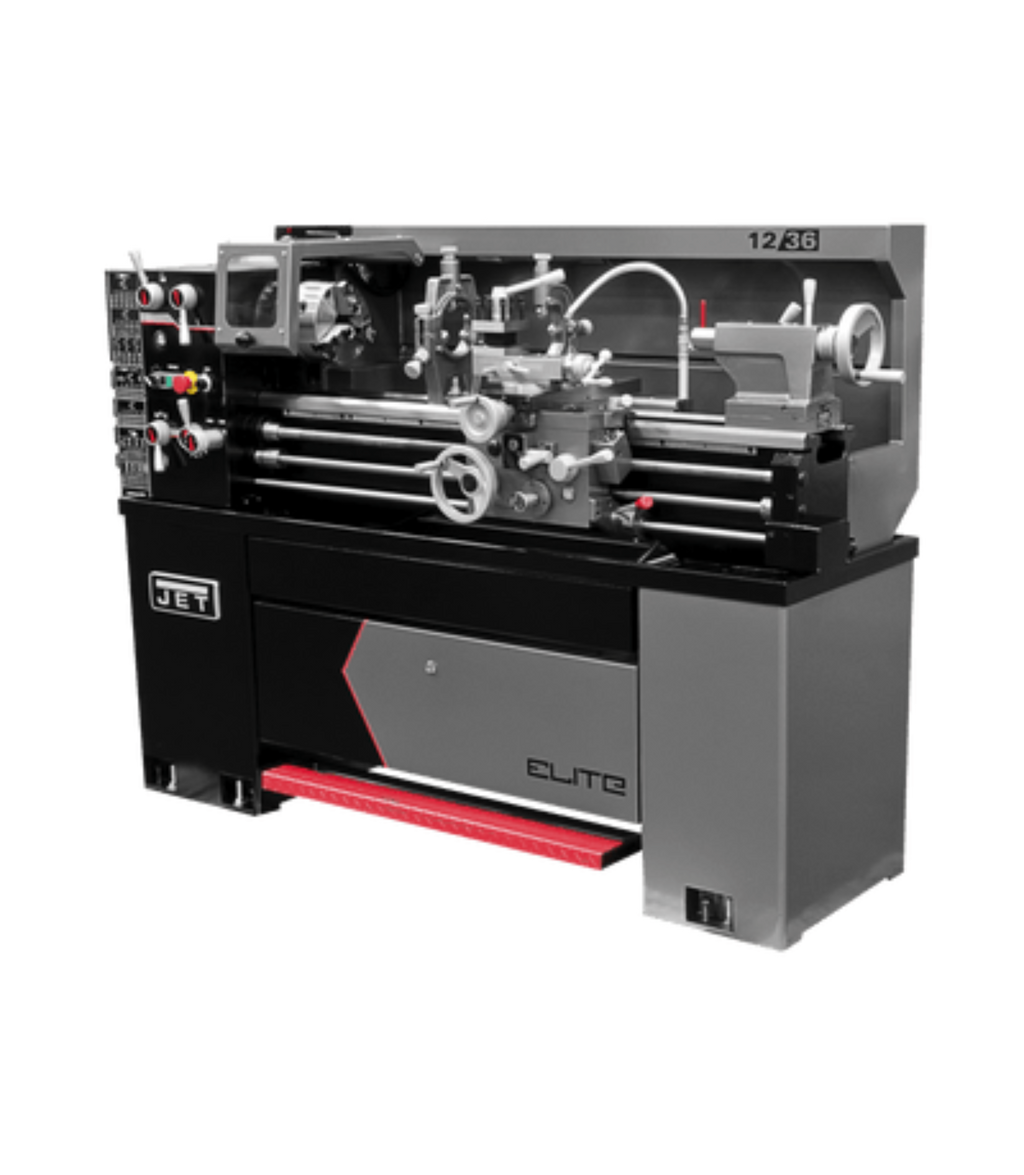

    JET Elite Lathe E-1236VS with ACU-RITE 203 DRO - JT9-892303

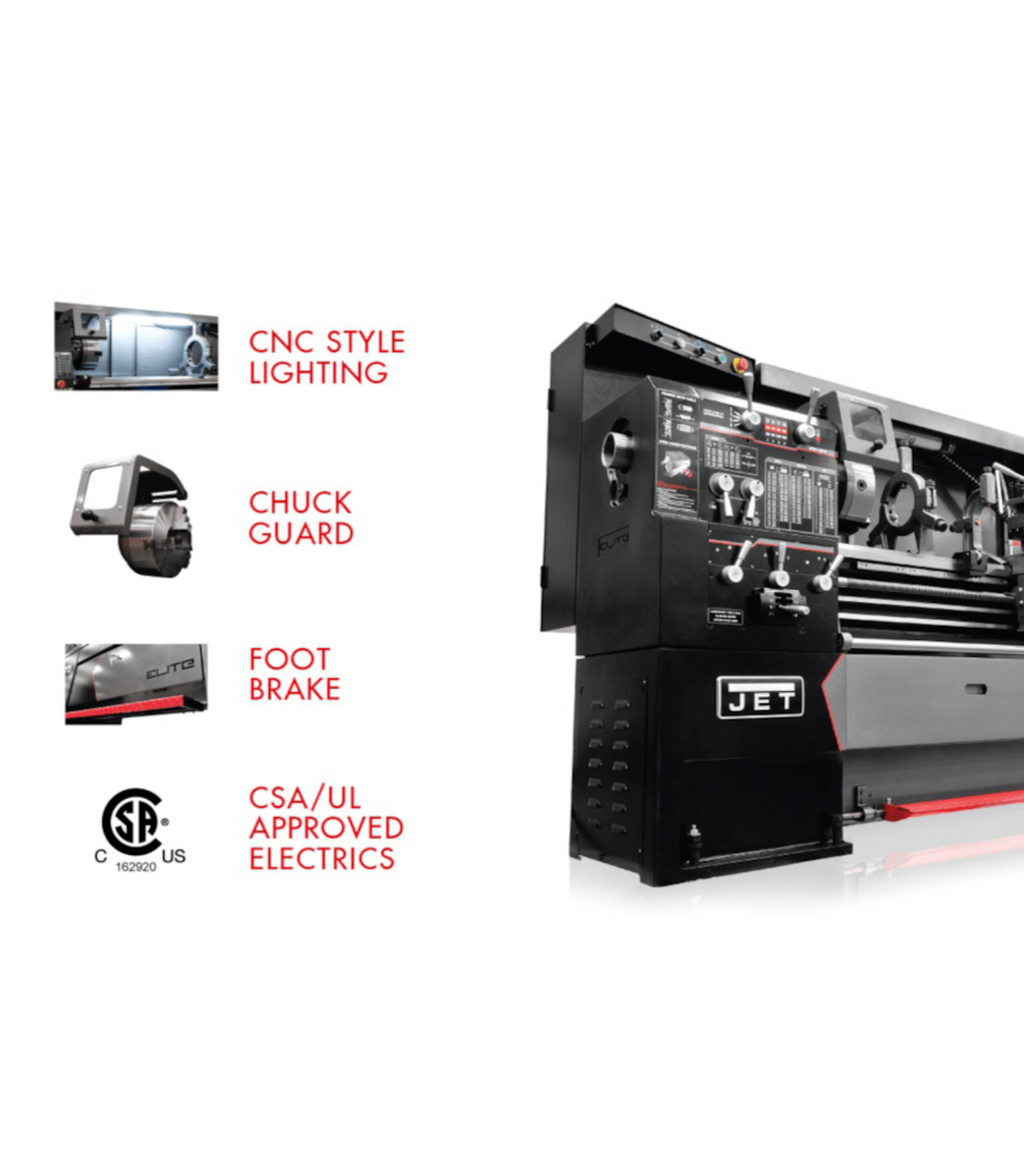

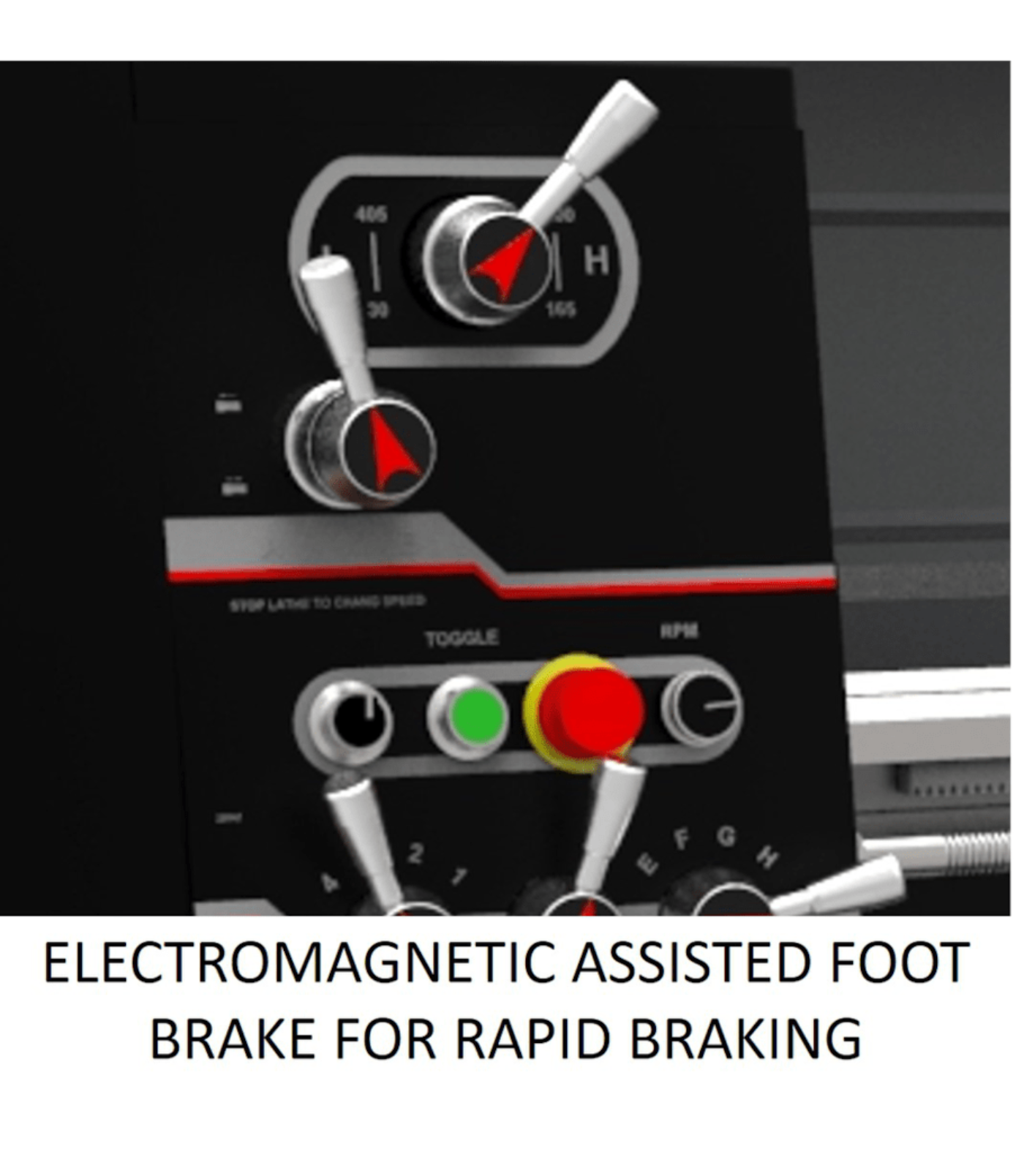

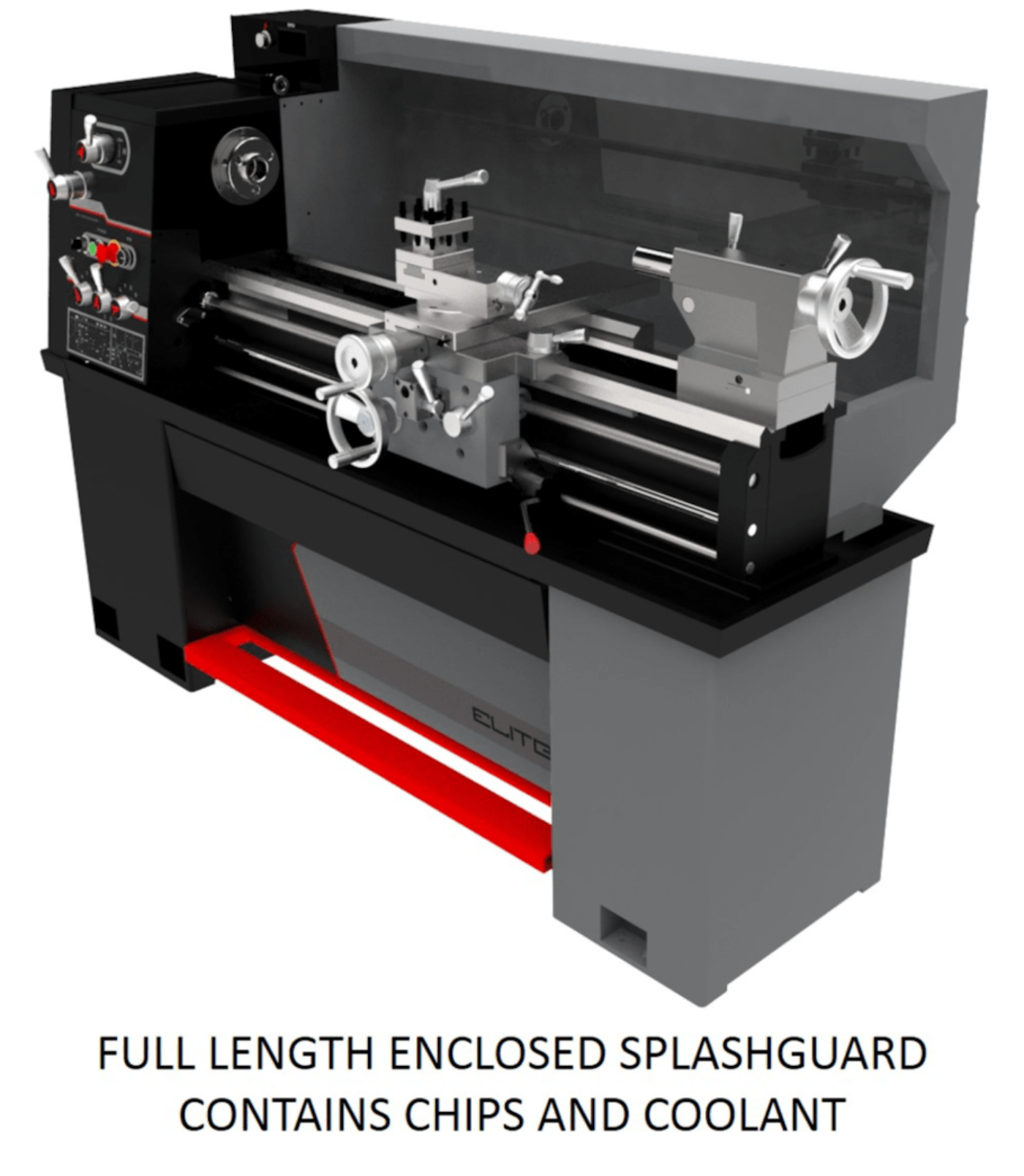

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine

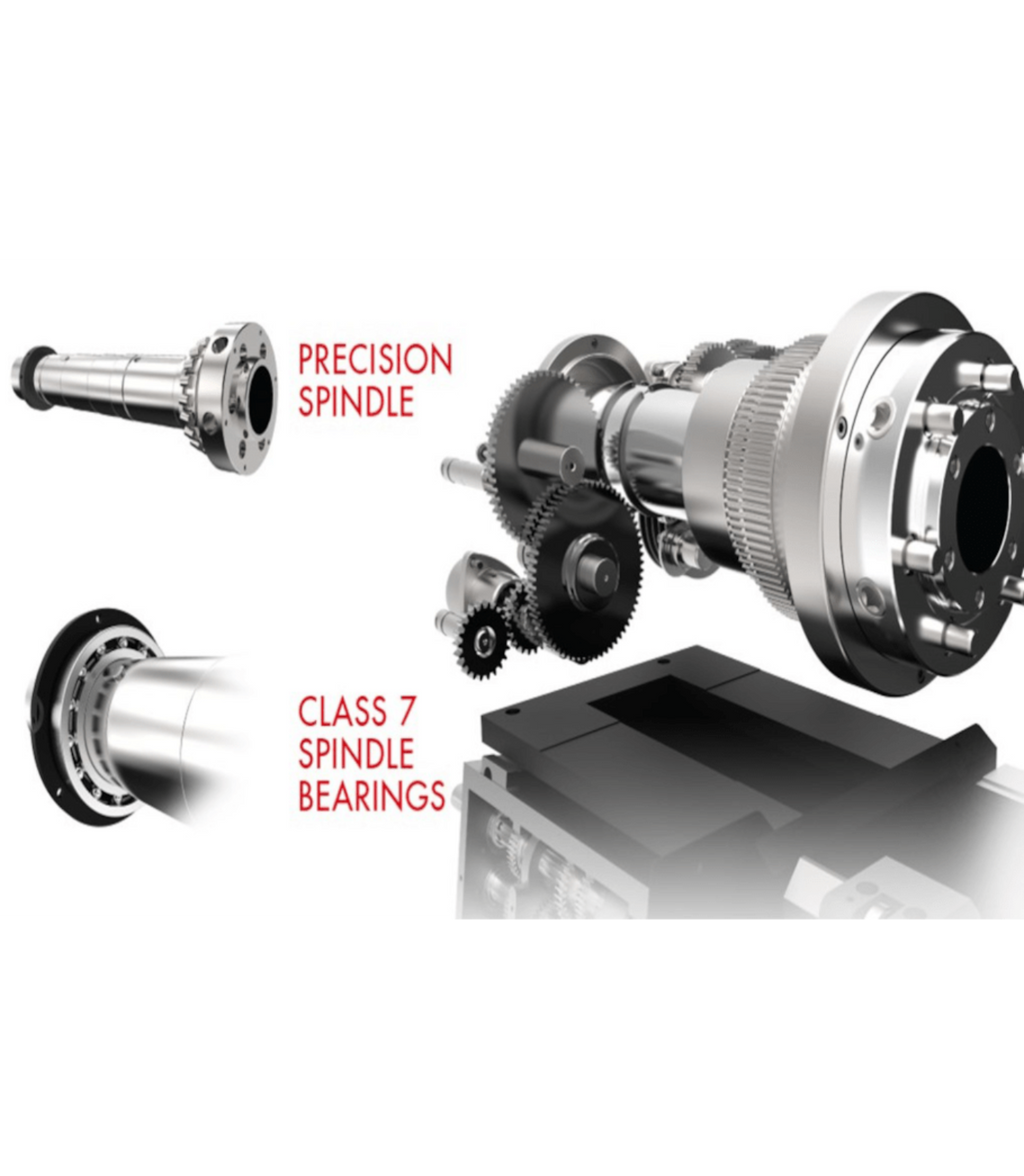

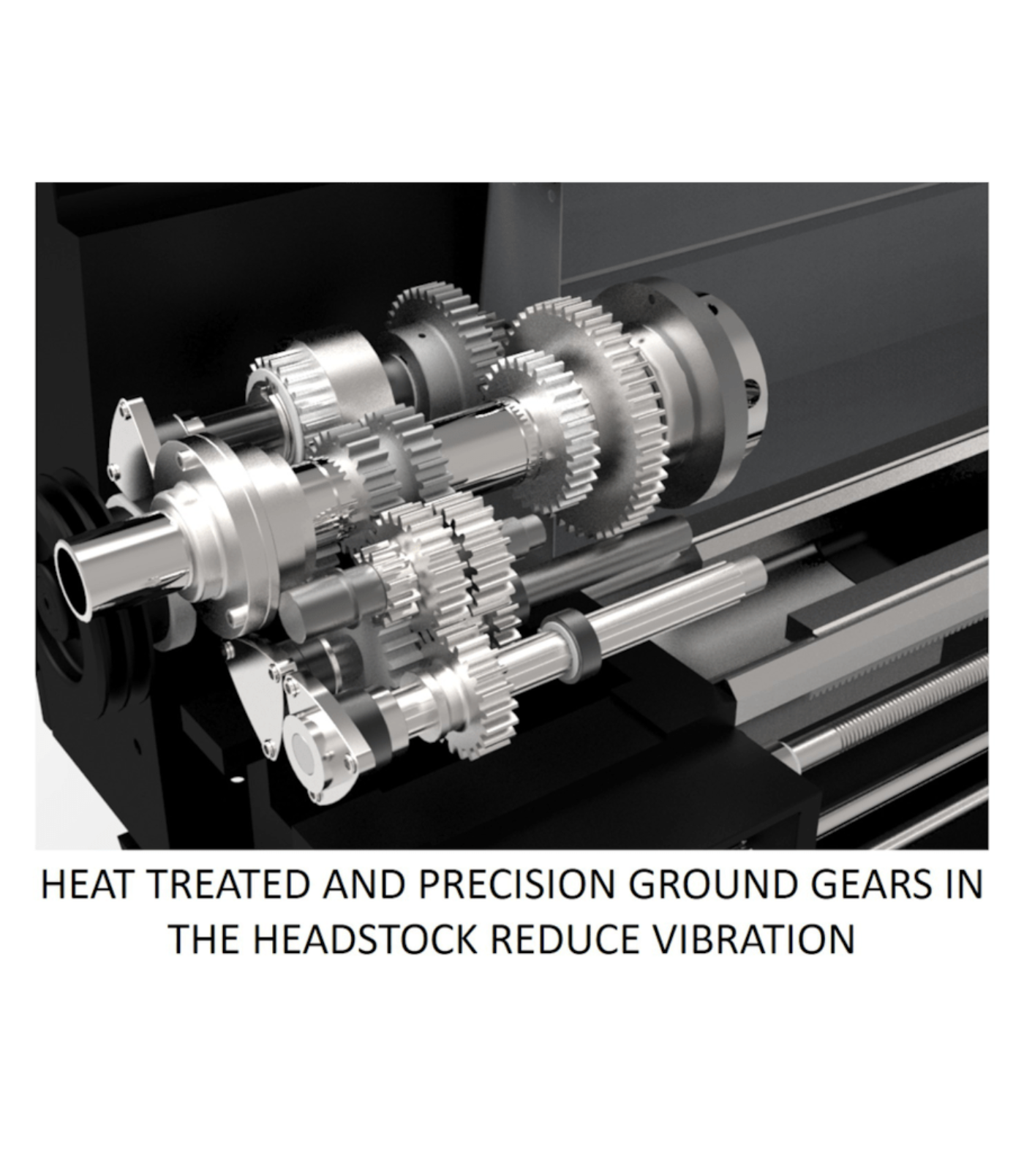

    • Hardened and ground gears in headstock reduce vibration and deflection
    • Integrated locking tool cabinet in stand on 12" Lathe
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 12 x 36
    Style (Type) ELITE EVS
    Swing Over Bed (In.) 12
    Swing Over Cross Slide (In.) 7-5/16
    Swing Through Gap (In.) 17-1/2
    Length of Gap (In.) 9-1/2
    Spindle Bore (In.) 1-9/16
    Spindle Mount D1-4
    Weight (Lbs.) 1212
    Amperage Draw @ 230V 1Ph 27
    Amperage Draw @ 230V 3Ph 19
    Spindle Taper with Sleeve MT-5
    Range of Spindle Speeds (RPM) 0 – 2,000
    Number of Longitudinal and Cross Feed Rates 50
    Range of Longitudinal Feeds (IPR) 0.0016 – 0.046
    Range of Cross Feeds (IPR) 0.0005 – 0.015
    Number of Inch Threads 34
    Range of Inch Threads (TPI) 2 – 56
    Number of Metric Threads 33
    Range of Metric Threads 0.5 – 12
    Max Tool Size (In.) 1/2 x 1/2
    Compound Slide Travel (In.) 3-1/2
    Motor (HP) 2 HP, 230V, 1 or 3 Ph
    Tailstock Spindle Travel (In.) 4
    Taper in Tailstock Spindle MT-3
    Steady Rest Capacity (In.) 1/4 – 2-1/2
    Width of Bed (In.) 7-1/2

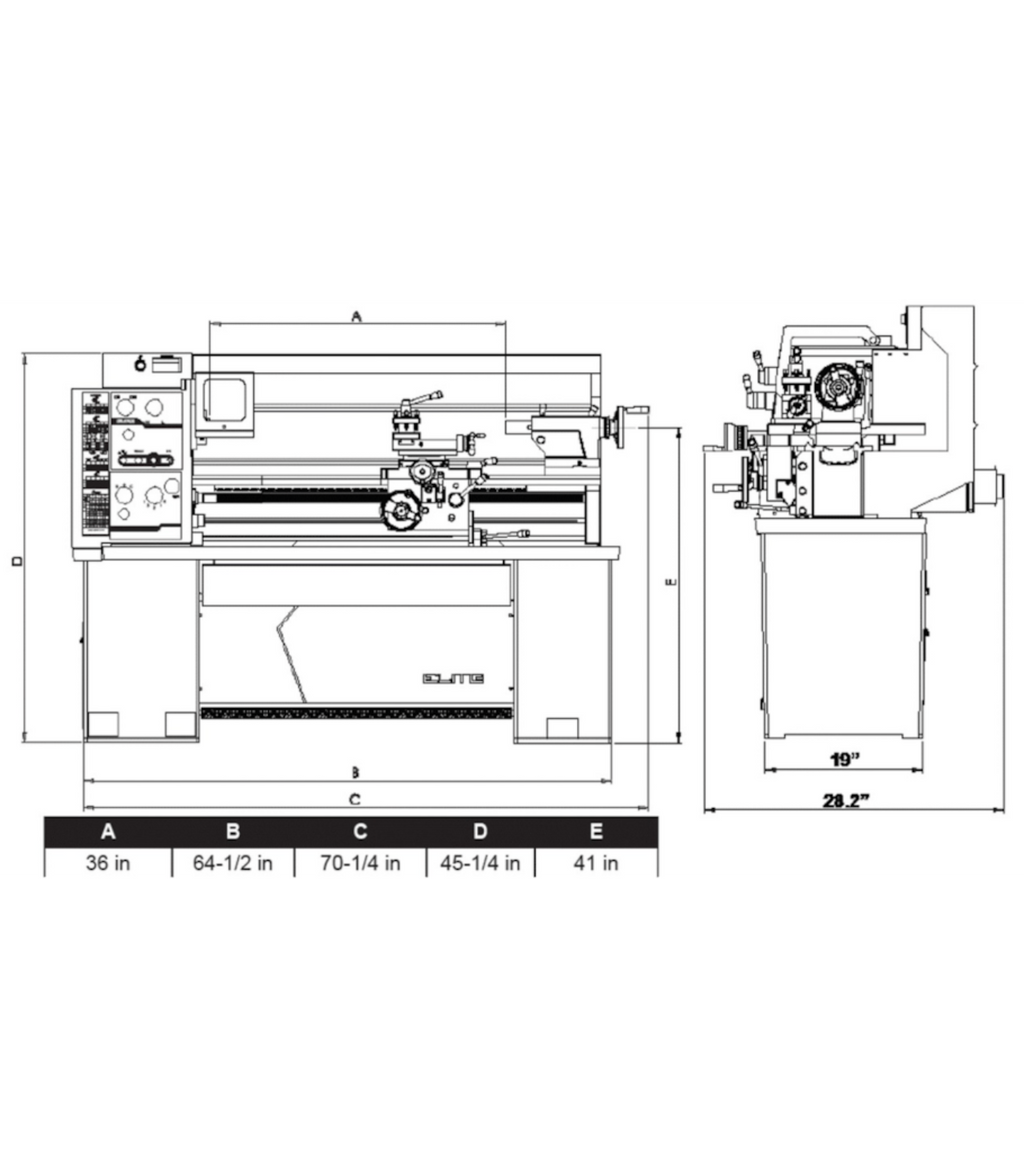

    Overall Dimensions (L x W x H) (In.) 71 x 30 x 60
    Drive EVS
    What our Experts Think
    • Precision Engineering: Variable speed lathe combined with ACU-RITE 203 DRO ensures accurate, repeatable results.

    • Digital Accuracy: DRO system streamlines measurements and boosts operator efficiency.

    • Heavy-Duty Stability: Rugged cast-iron construction minimizes vibration and enhances durability.

    • Ease of Use: Smooth controls and ergonomic layout make operation straightforward.

    • Professional Reliability: A robust choice for workshops and machine shops demanding precision and performance.

    Q&A

    Q: What is the JET Elite E-1236VS Lathe?
    A: A precision-engineered variable speed lathe equipped with the ACU-RITE 203 digital readout for improved accuracy and control.

    Q: What makes it unique?
    A: Its electronic variable speed drive, precision-ground bedways, and ACU-RITE DRO ensure high accuracy and efficiency for professional machining.

    Q: Where can it be used?
    A: Ideal for machine shops, tool rooms, fabrication facilities, and industrial production.

    Q: What style of work does it suit?
    A: Precision turning, threading, facing, boring, and taper cutting on metals and alloys.

    Q: What materials is it made from?
    A: Rugged cast iron frame with hardened, ground components for durability and vibration-free performance.

    Maintenance Tips
    • Remove chips and debris from bedways, carriage, and leadscrews after every use.

    • Lubricate gears, bearings, and sliding surfaces per manufacturer’s schedule.

    • Keep ACU-RITE DRO sensors and display clean for precise performance.

    • Inspect belts, gibs, and fasteners regularly for wear and secure adjustment.

    • Cover the machine when idle to protect from dust and contaminants.
