| Size |
12 x 36 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed (In.) |
12 |
| Swing Over Cross Slide (In.) |
7-5/16 |
| Swing Through Gap (In.) |
17-1/2 |
| Length of Gap (In.) |
9-1/2 |
| Spindle Bore (In.) |
1-9/16 |
| Spindle Mount |
D1-4 |
| Weight (Lbs.) |
1212 |
| Amperage Draw @ 230V 1Ph |
27 |
| Amperage Draw @ 230V 3Ph |
19 |
| Spindle Taper with Sleeve |
MT-5 |
| Range of Spindle Speeds (RPM) |
0 – 2,000 |
| Number of Longitudinal and Cross Feed Rates |
50 |
| Range of Longitudinal Feeds (IPR) |
0.0016 – 0.046 |
| Range of Cross Feeds (IPR) |
0.0005 – 0.015 |
| Number of Inch Threads |
34 |
| Range of Inch Threads (TPI) |
2 – 56 |
| Number of Metric Threads |
33 |
| Range of Metric Threads |
0.5 – 12 |
| Max Tool Size (In.) |
1/2 x 1/2 |
| Compound Slide Travel (In.) |
3-1/2 |
| Motor (HP) |
2 HP, 230V, 1 or 3 Ph |
| Tailstock Spindle Travel (In.) |
4 |
| Taper in Tailstock Spindle |
MT-3 |
| Steady Rest Capacity (In.) |
1/4 – 2-1/2 |
| Width of Bed (In.) |
7-1/2 |

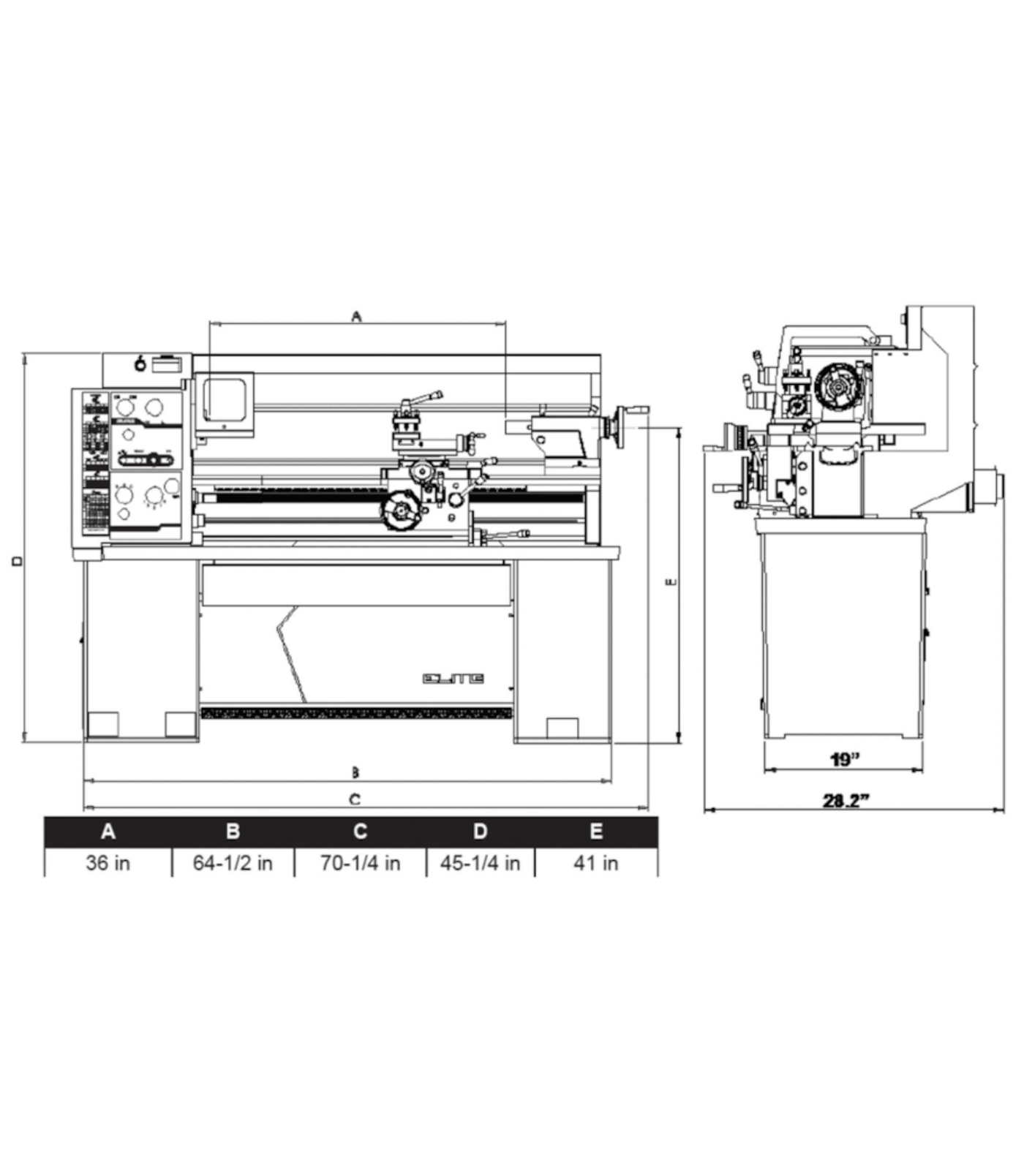

| Overall Dimensions (L x W x H) (In.) |
71 x 30 x 60 |
| Drive |
EVS |
What our Experts Think
-
Variable Speed Accuracy: Smooth RPM adjustments deliver precise turning across materials.
-
ACU-RITE 203 DRO: Digital readout ensures accurate measurements and improved efficiency.
-
Taper Attachment: Expands versatility for precise taper cutting applications.
-
Heavy-Duty Cast-Iron Bed: Provides stability, reduces vibration, and improves machining accuracy.
-
Professional Quality: Built for machine shops, toolrooms, and industrial metalworking operations.
Q&A

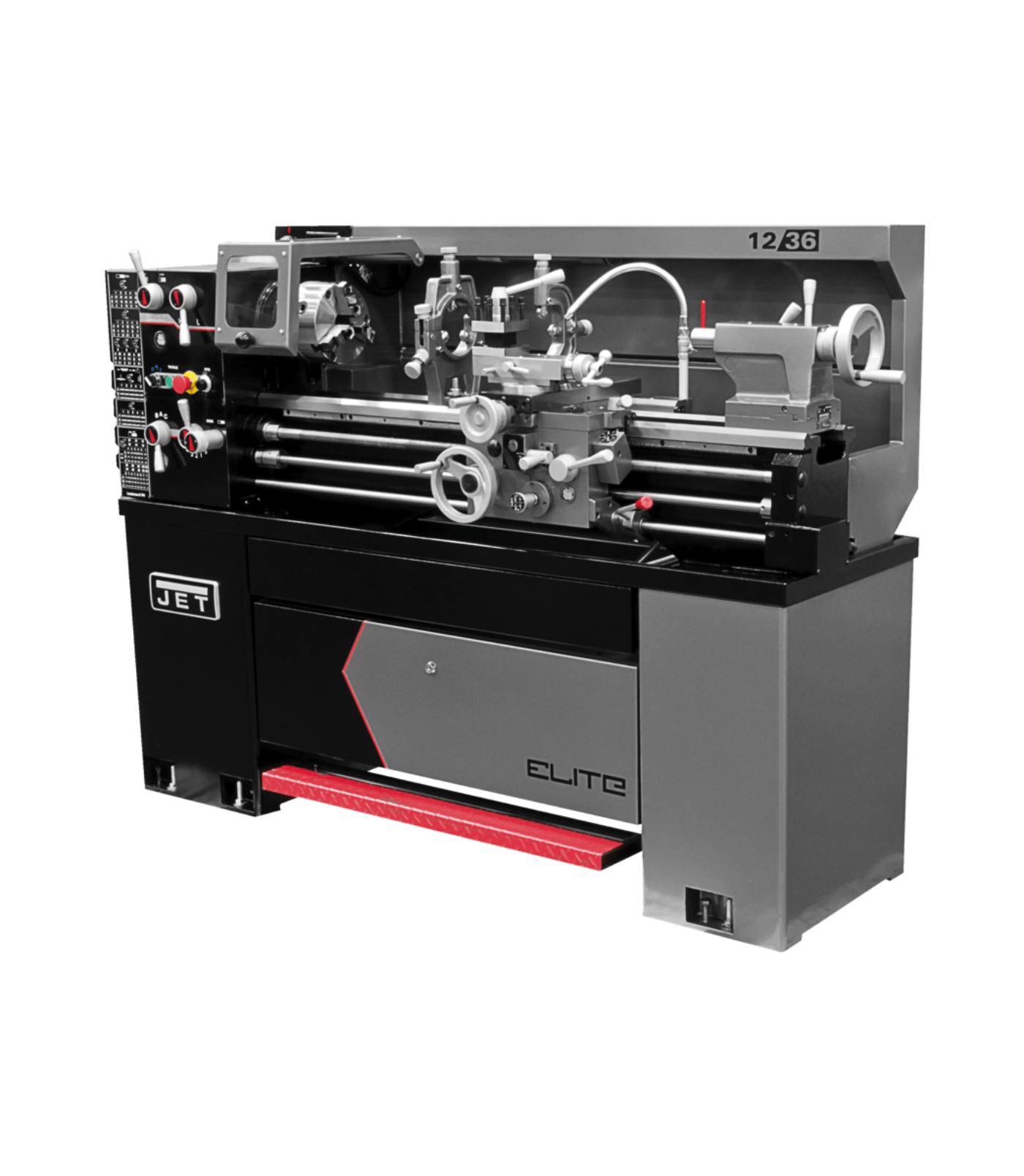

Q: What is the JET Elite E-1236VS lathe?
A: The E-1236VS is a 12" x 36" variable-speed precision lathe built for turning, threading, boring, and general machining in professional and educational settings.
Q: What does the ACU-RITE 203 DRO provide?
A: The ACU-RITE 203 Digital Readout delivers precise, easy-to-read measurements, improving accuracy, efficiency, and reducing operator error.
Q: How does the taper attachment help?
A: The taper attachment enables accurate external and internal taper cutting without complex setups, saving time and ensuring precision.
Q: What is the spindle bore size?
A: This lathe comes with a 1.57" spindle bore, suitable for medium-diameter stock and tubing.
Q: How does the variable-speed drive improve performance?
A: The electronic variable-speed system allows smooth, precise spindle speed adjustments for different materials and machining tasks.
Q: What type of motor powers the machine?
A: A heavy-duty industrial motor provides reliable torque and consistent performance.
Q: How durable is the bed and ways?
A: The hardened, precision-ground bedways deliver long-lasting rigidity, stability, and machining accuracy.
Q: What machining operations can it handle?
A: Ideal for turning, facing, threading (inch and metric), boring, taper cutting, and part machining.
Q: Who is this lathe designed for?
A: Perfect for small-to-medium machine shops, tool rooms, repair facilities, and technical training programs.
