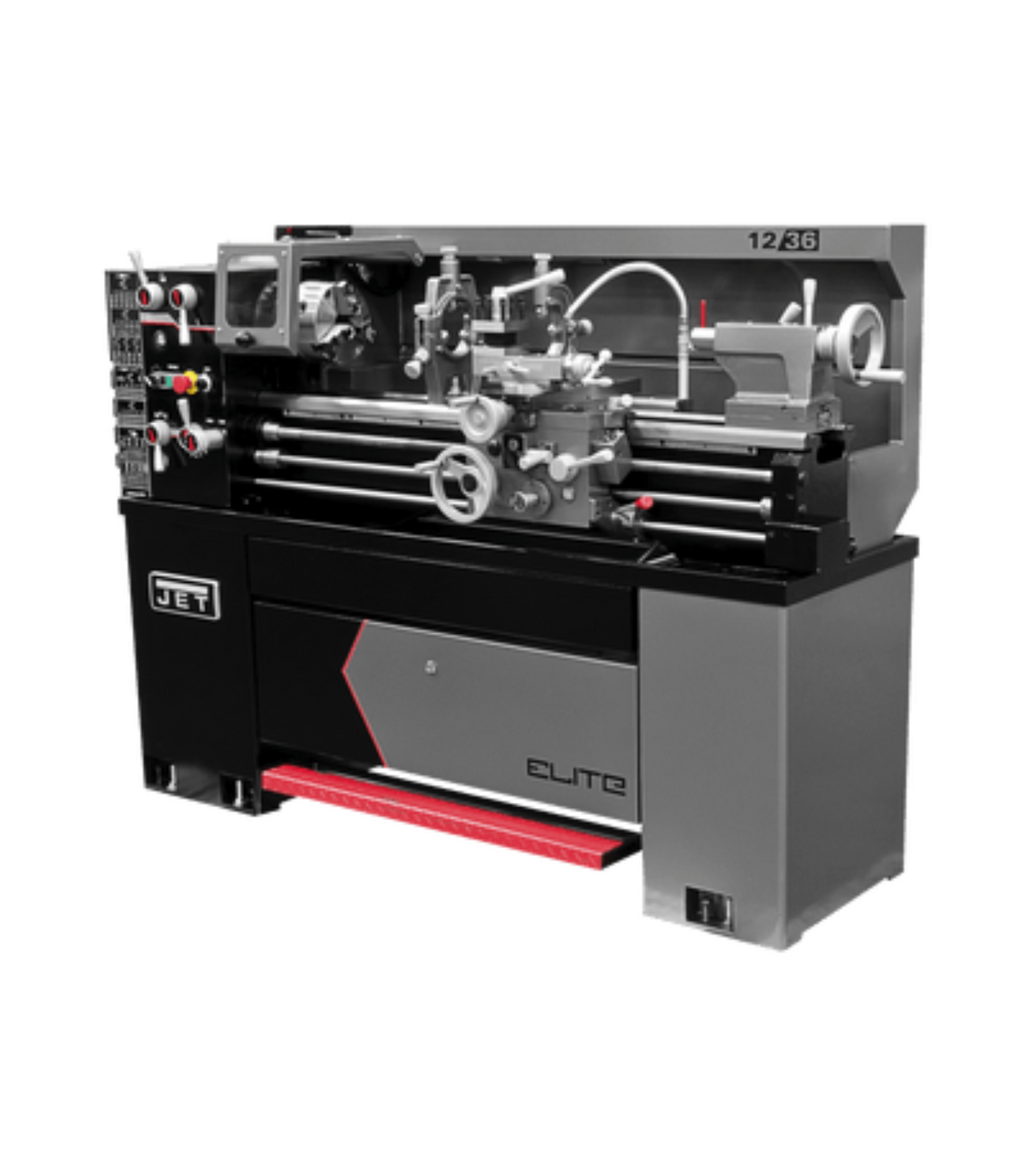

    JET Elite Lathe E-1236VS with Collet Closer - JT9-892301

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine
    • Hardened and ground gears in headstock reduce vibration and deflection
    • Integrated locking tool cabinet in stand on 12" Lathe
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 12 x 36
    Style (Type) ELITE EVS
    Swing Over Bed (In.) 12
    Swing Over Cross Slide (In.) 7-5/16
    Swing Through Gap (In.) 17-1/2
    Length of Gap (In.) 9-1/2
    Spindle Bore (In.) 1-9/16
    Spindle Mount D1-4
    Weight (Lbs.) 1212
    Amperage Draw @ 230V 1Ph 27
    Amperage Draw @ 230V 3Ph 19
    Spindle Taper with Sleeve MT-5
    Range of Spindle Speeds (RPM) 0 – 2,000
    Number of Longitudinal and Cross Feed Rates 50
    Range of Longitudinal Feeds (IPR) 0.0016 – 0.046
    Range of Cross Feeds (IPR) 0.0005 – 0.015
    Number of Inch Threads 34
    Range of Inch Threads (TPI) 2 – 56
    Number of Metric Threads 33
    Range of Metric Threads 0.5 – 12
    Max Tool Size (In.) 1/2 x 1/2
    Compound Slide Travel (In.) 3-1/2
    Motor (HP) 2 HP, 230V, 1 or 3 Ph
    Tailstock Spindle Travel (In.) 4
    Taper in Tailstock Spindle MT-3
    Steady Rest Capacity (In.) 1/4 – 2-1/2
    Width of Bed (In.) 7-1/2
    Overall Dimensions (L x W x H) (In.) 71 x 30 x 60
    Drive EVS
    What our Experts Think
    • Variable Speed Control: Delivers precision turning for a wide range of materials.

    • Collet Closer Included: Ensures secure, accurate workholding for smaller diameter parts.

    • Rigid Cast-Iron Bed: Provides stability, reduces vibration, and improves machining accuracy.

    • User-Friendly Operation: Digital RPM readout and ergonomic controls simplify setup and use.

    • Industrial Reliability: Perfect for machine shops, toolrooms, and professional metalworking applications.

    Q&A

    Q: What is the JET Elite E-1236VS lathe?
    A: It’s a high-precision 12" x 36" variable-speed lathe designed for versatility in turning, threading, facing, and boring operations.

    Q: What does the collet closer add to this machine?
    A: The included collet closer enables quick, secure, and repeatable workholding, perfect for high-precision and production applications.

    Q: What is the spindle bore size?
    A: The E-1236VS features a 1.57" spindle bore, allowing it to handle medium-diameter stock with ease.

    Q: How does the variable-speed drive help?
    A: The electronic variable-speed drive offers smooth speed changes and optimal control for different materials and cutting operations.

    Q: How durable is the bed and ways?
    A: The bed is hardened and precision-ground, ensuring long-lasting accuracy and rigidity.

    Q: What kind of motor powers the E-1236VS?
    A: A heavy-duty industrial motor provides reliable torque and consistent performance under load.

    Q: Who is this lathe best suited for?
    A: Ideal for machine shops, educational facilities, tool rooms, and repair operations requiring precision and flexibility.

    Q: Does this lathe include threading capability?
    A: Yes, it supports both inch and metric threading for maximum versatility.

    Maintenance Tips
    • Clean machine surfaces daily to remove chips, oil, and debris.

    • Lubricate gears, bearings, and sliding components per manufacturer guidelines.

    • Inspect collet closer, belts, and chuck regularly for wear and alignment.

    • Check electrical connections and safety controls to ensure reliable operation.

    • Schedule routine professional servicing to maintain accuracy and extend machine life.
