| Size |
13 x 40 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed (In.) |
13 |
| Swing Over Cross Slide (In.) |
7-5/8 |
| Swing Through Gap (In.) |
19 |
| Length of Gap (In.) |
9 |
| Spindle Bore (In.) |
1-1/2 |
| Spindle Mount |
D1-4 |
| Weight (Lbs.) |
1433 |
| Amperage Draw @ 230V 3Ph |
19 |
| Spindle Taper with Sleeve |
MT-5 |
| Range of Spindle Speeds (RPM) |
0 – 2,200 |
| Number of Longitudinal & Cross Feed Rates |
80 |
| Range of Longitudinal Feeds (IPR) |
0.0012 – 0.0294 |
| Range of Cross Feeds (IPR) |
0.0003 – 0.01 |
| Number of Inch Threads |
40 |
| Range of Inch Threads (TPI) |
4 – 112 |
| Number of Metric Threads |
22 |
| Range of Metric Threads |
0.45 – 7.5 |
| Max Tool Size (In.) |
5/8 x 5/8 |
| Compound Slide Travel (In.) |
3-1/2 |
| Motor (HP) |
3 HP, 230V, 3Ph |
| Tailstock Spindle Travel (In.) |
4-3/4 |
| Taper in Tailstock Spindle |
MT-3 |
| Steady Rest Capacity (In.) |
1/4 – 2-3/4 |
| Width of Bed (In.) |
8-1/2 |

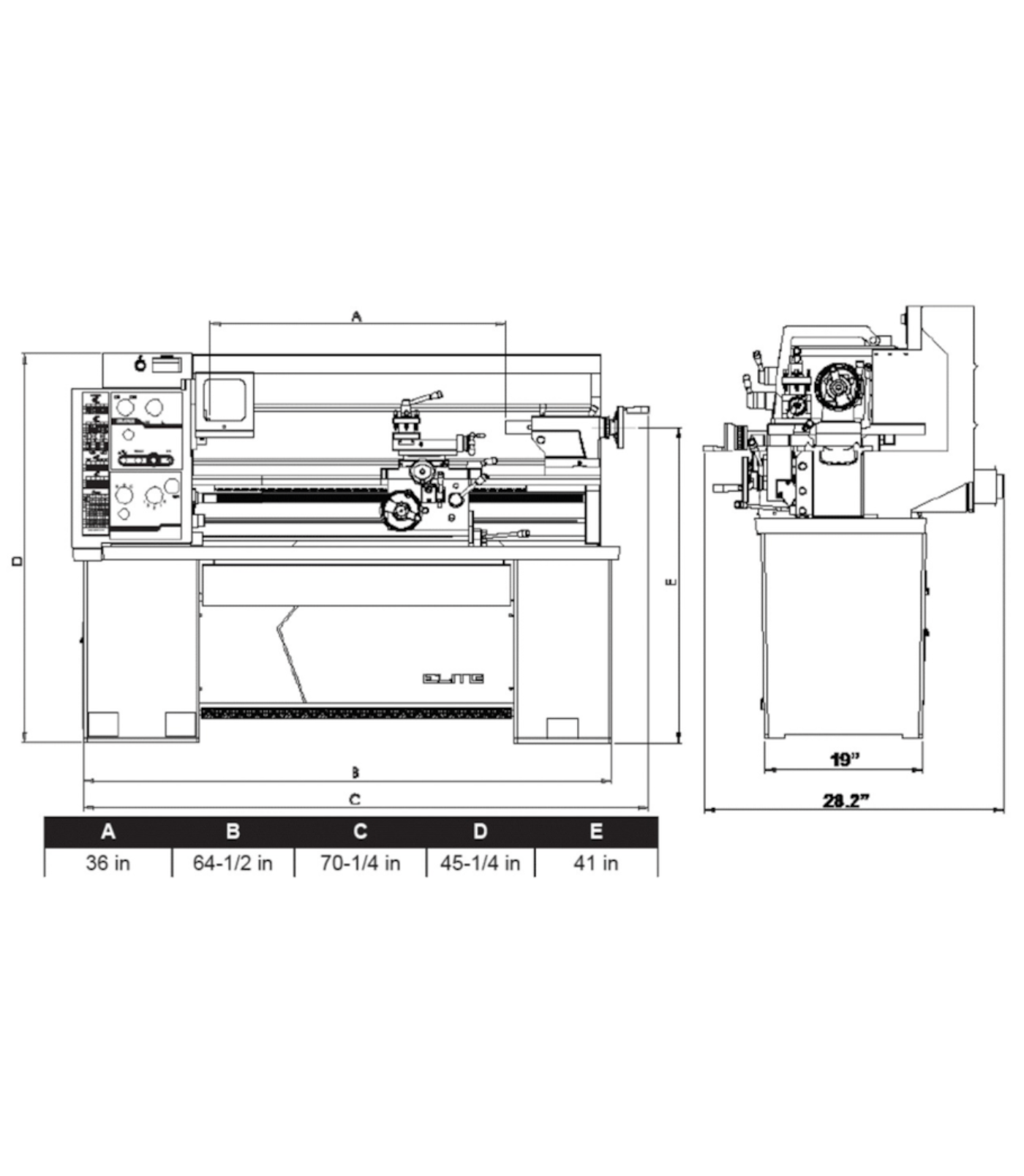

| Overall Dimensions (L x W x H) |
67 x 30 x 57 |
| Drive |
EVS |
What our Experts Think
-
Variable Speed Precision: Smooth RPM control for accurate machining across different materials.
-
ACU-RITE 203 CSS DRO: Advanced digital readout with constant surface speed for top accuracy.
-
Taper Attachment: Expands functionality, allowing precision taper cutting.
-
Rigid Cast-Iron Construction: Ensures durability, reduces vibration, and enhances stability.
-
Industrial Reliability: Perfect for professional machine shops, toolrooms, and heavy-duty applications.
Q&A

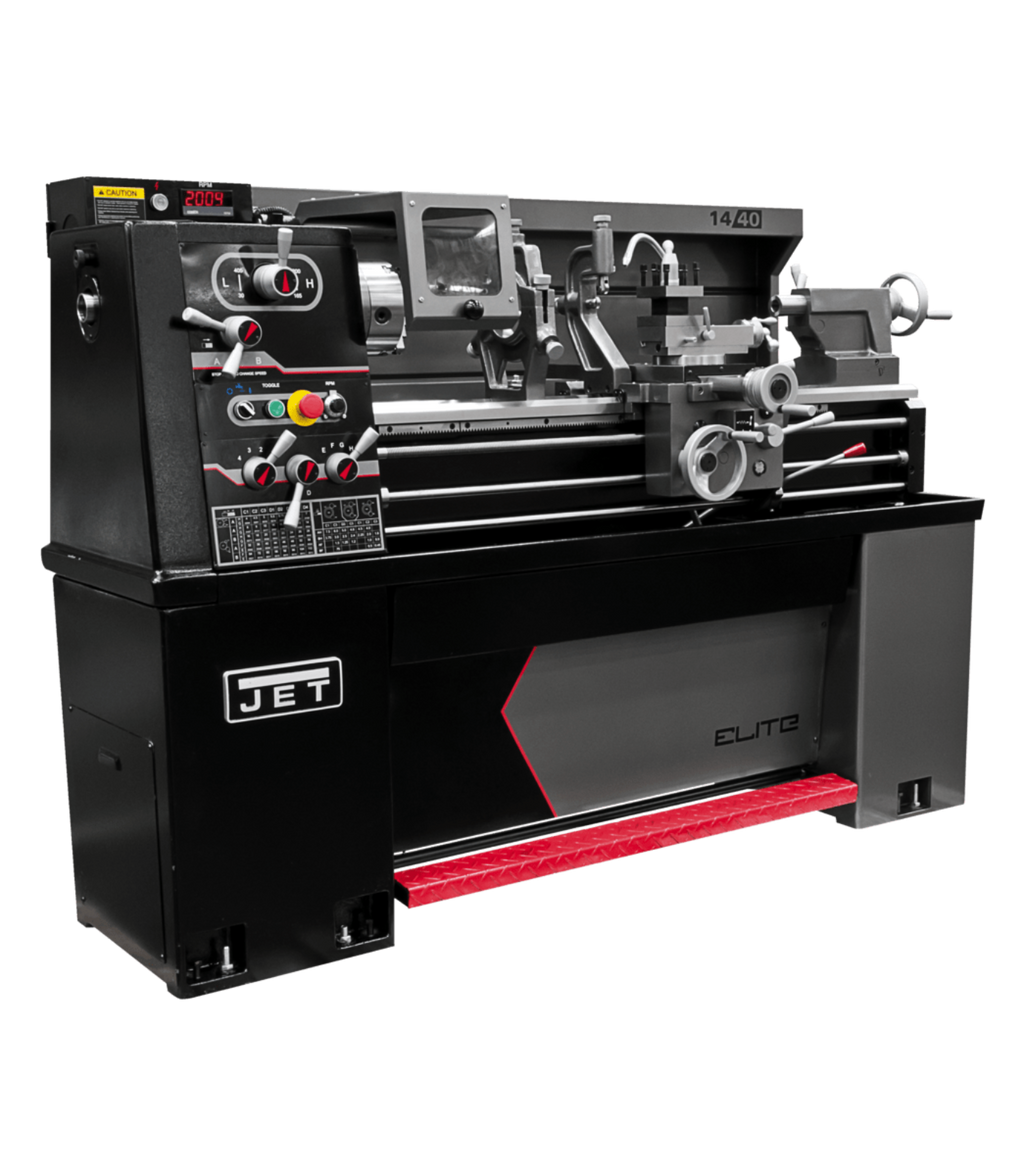

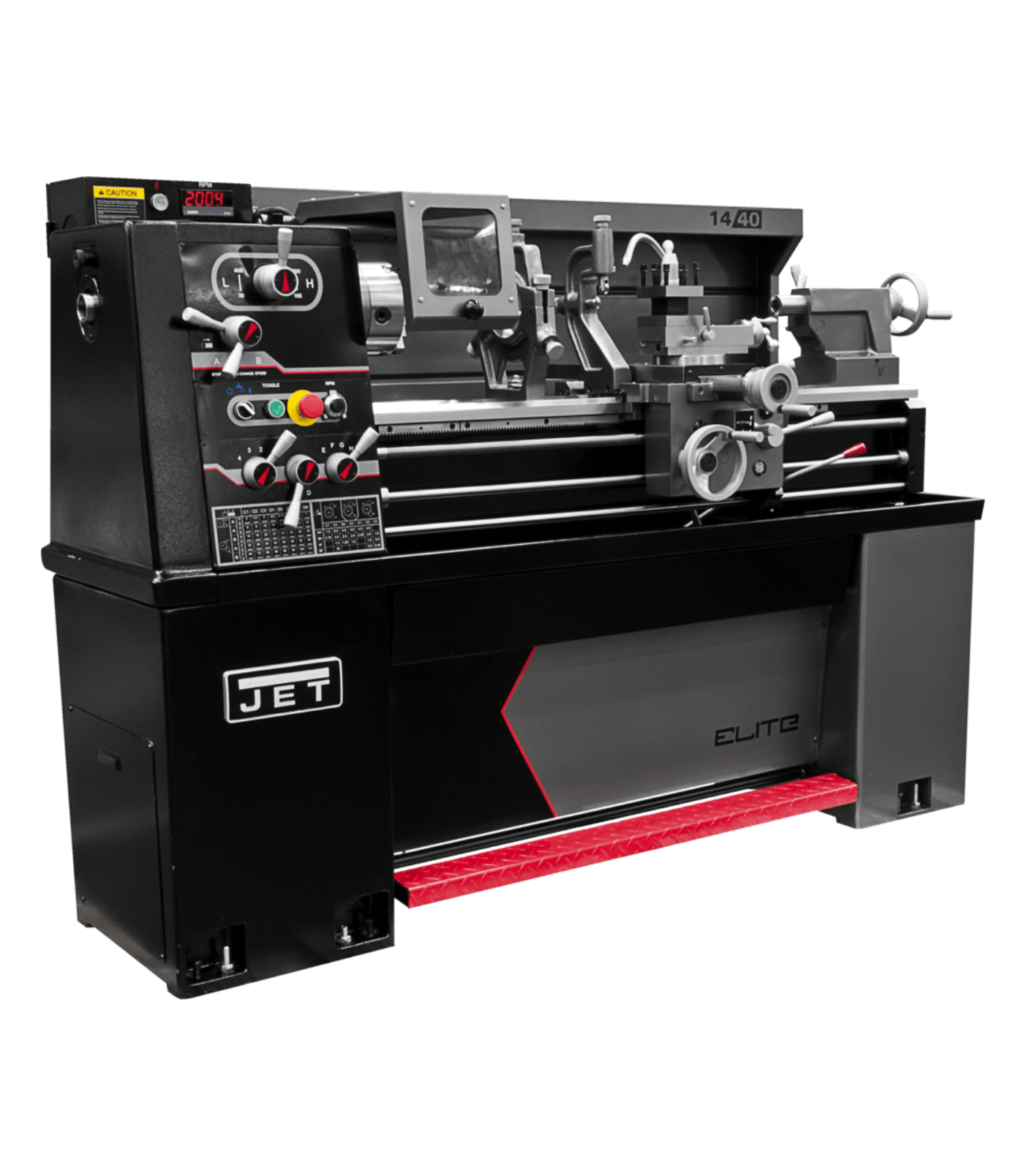

Q: What is the JET Elite E-1340VS lathe?
A: The E-1340VS is a 13" x 40" variable-speed precision lathe designed for professional machining, tool rooms, and industrial applications.
Q: What does the ACU-RITE 203 CSS DRO provide?
A: The ACU-RITE 203 CSS DRO (Constant Surface Speed) ensures accurate readouts and automatically adjusts spindle speeds for consistent cutting performance and superior finishes.
Q: How does the taper attachment help?
A: The taper attachment allows precise cutting of external and internal tapers without complex manual setups, improving accuracy and efficiency.
Q: What is the spindle bore size?
A: This model includes a 2" spindle bore, ideal for larger-diameter stock and tubing.
Q: How does the variable-speed system improve performance?
A: The electronic variable-speed drive offers smooth, precise speed control for optimal machining of different materials.
Q: What type of motor powers this lathe?
A: A heavy-duty industrial motor delivers reliable torque and performance under demanding machining tasks.
Q: How durable is the bed construction?
A: The hardened, precision-ground bedways provide rigidity, stability, and long-term accuracy.
Q: What operations can it handle?
A: Suitable for turning, facing, threading, boring, taper cutting, and high-precision part machining.
Q: Who is this lathe best suited for?
A: Ideal for machine shops, repair facilities, tool rooms, and technical training programs.
