    JET Elite Lathe E-1340VS with ACU-RITE 303 CSS DRO with Taper Attachment - JET Elite Lathe EGH-1740 with ACU-RITE 203 DRO with Collet Closer - JT9-892505

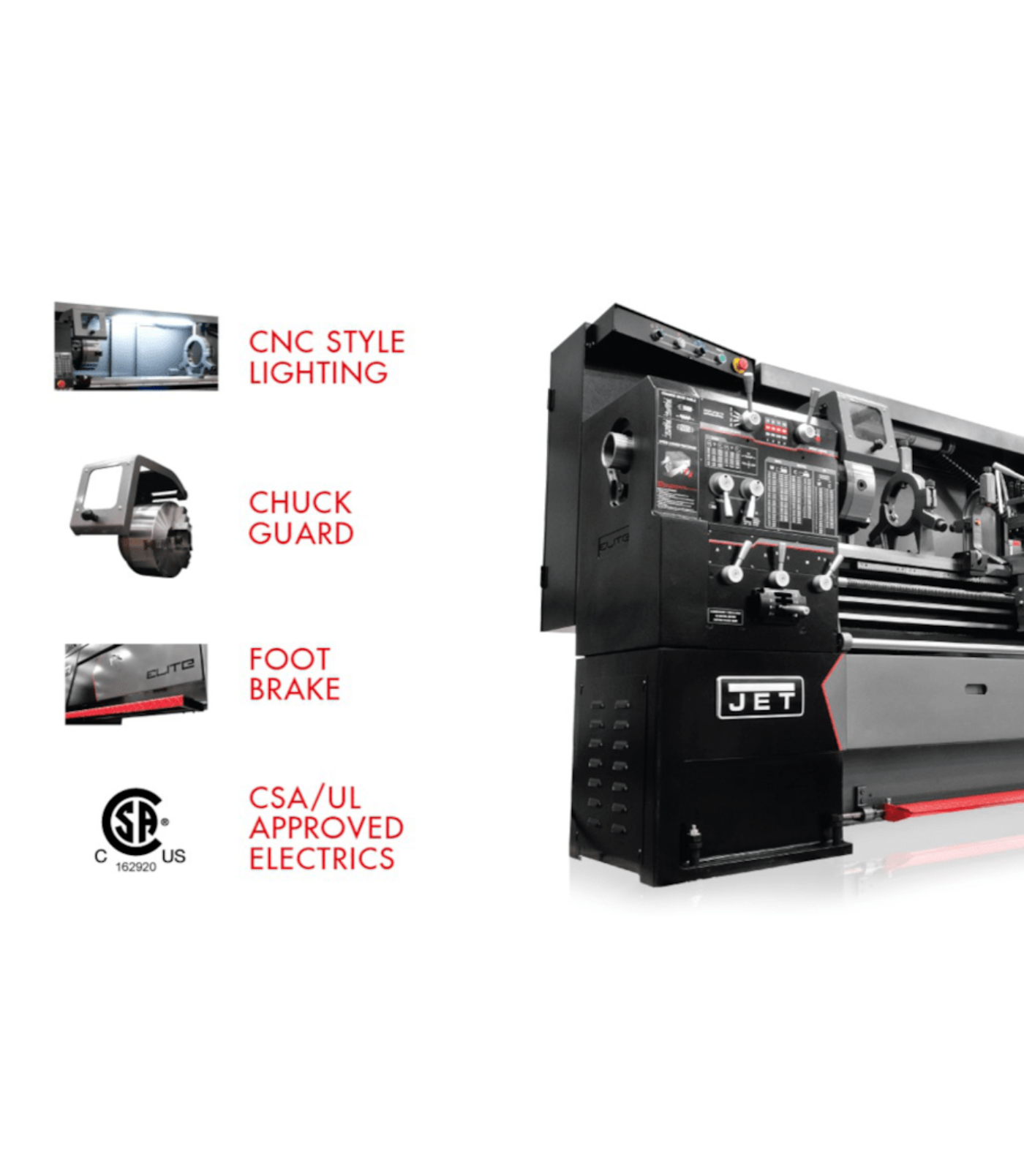

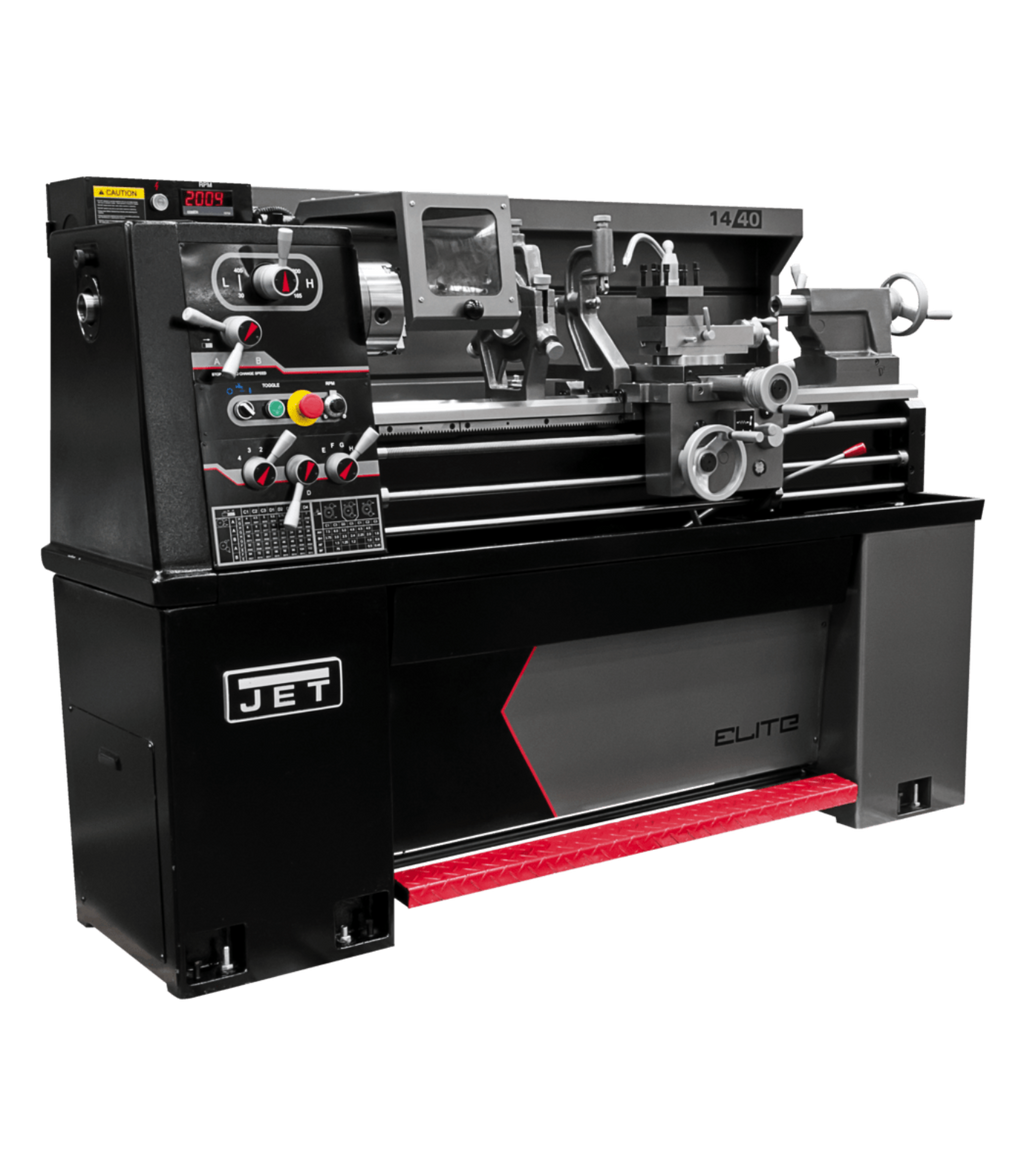

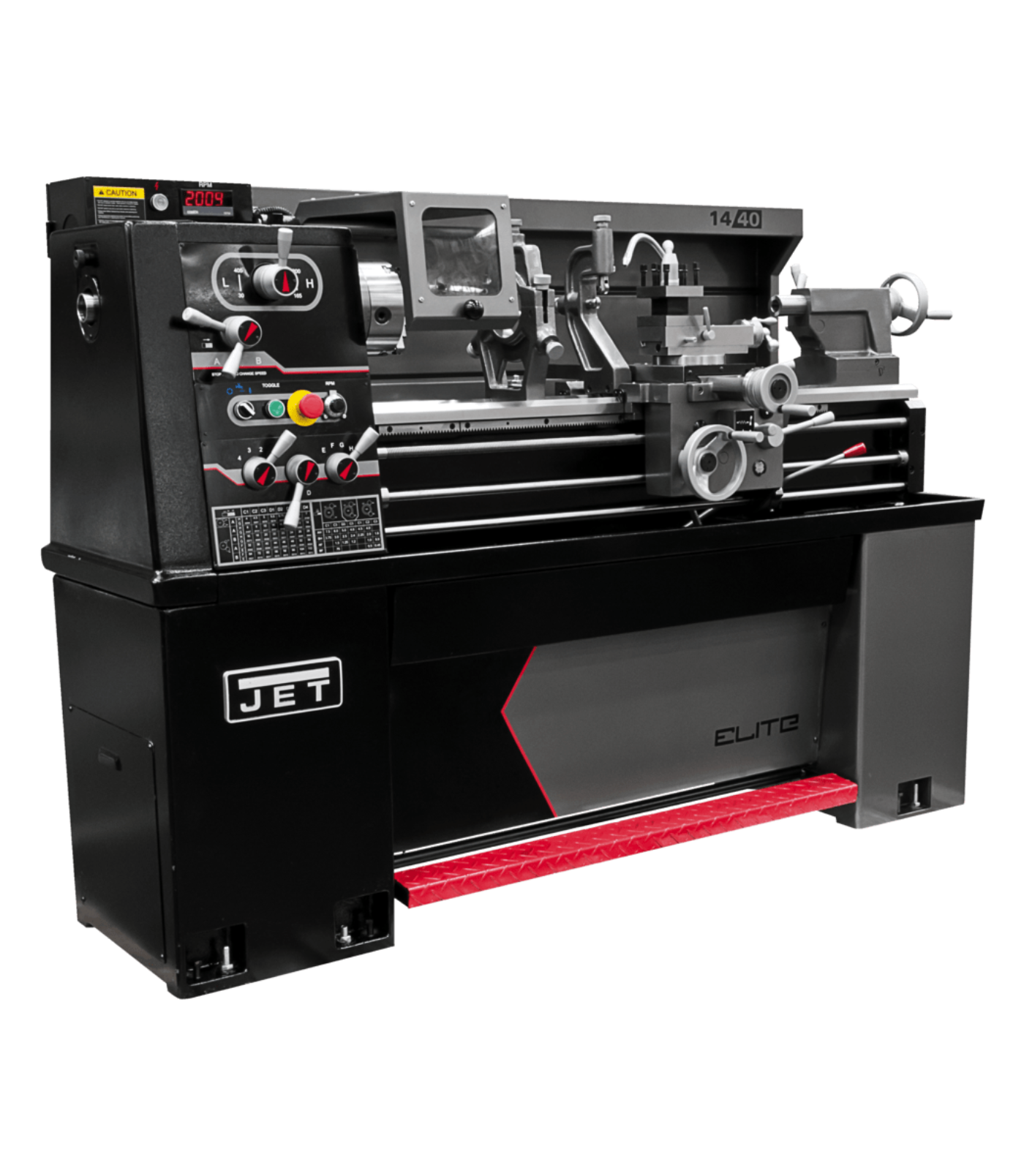

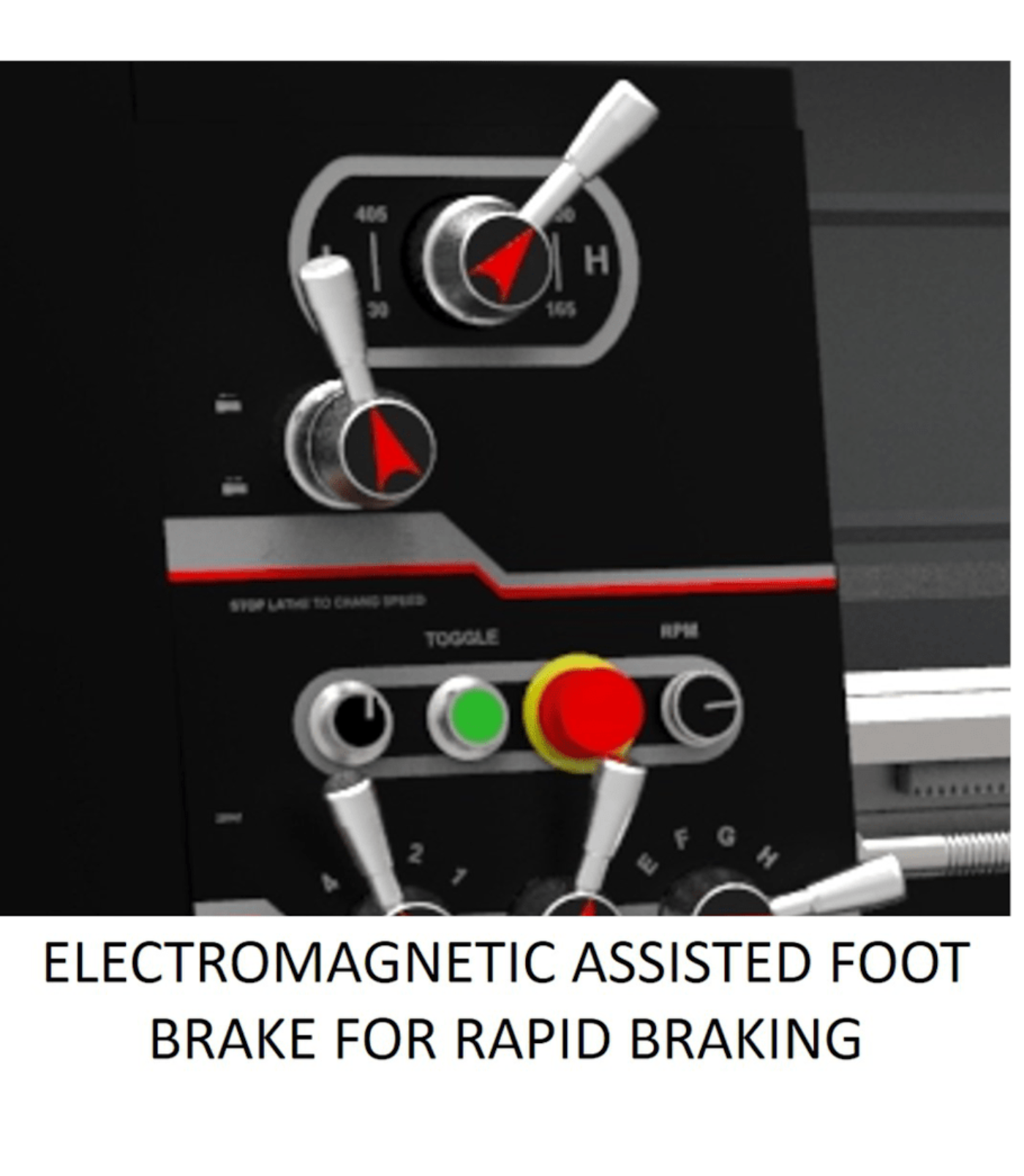

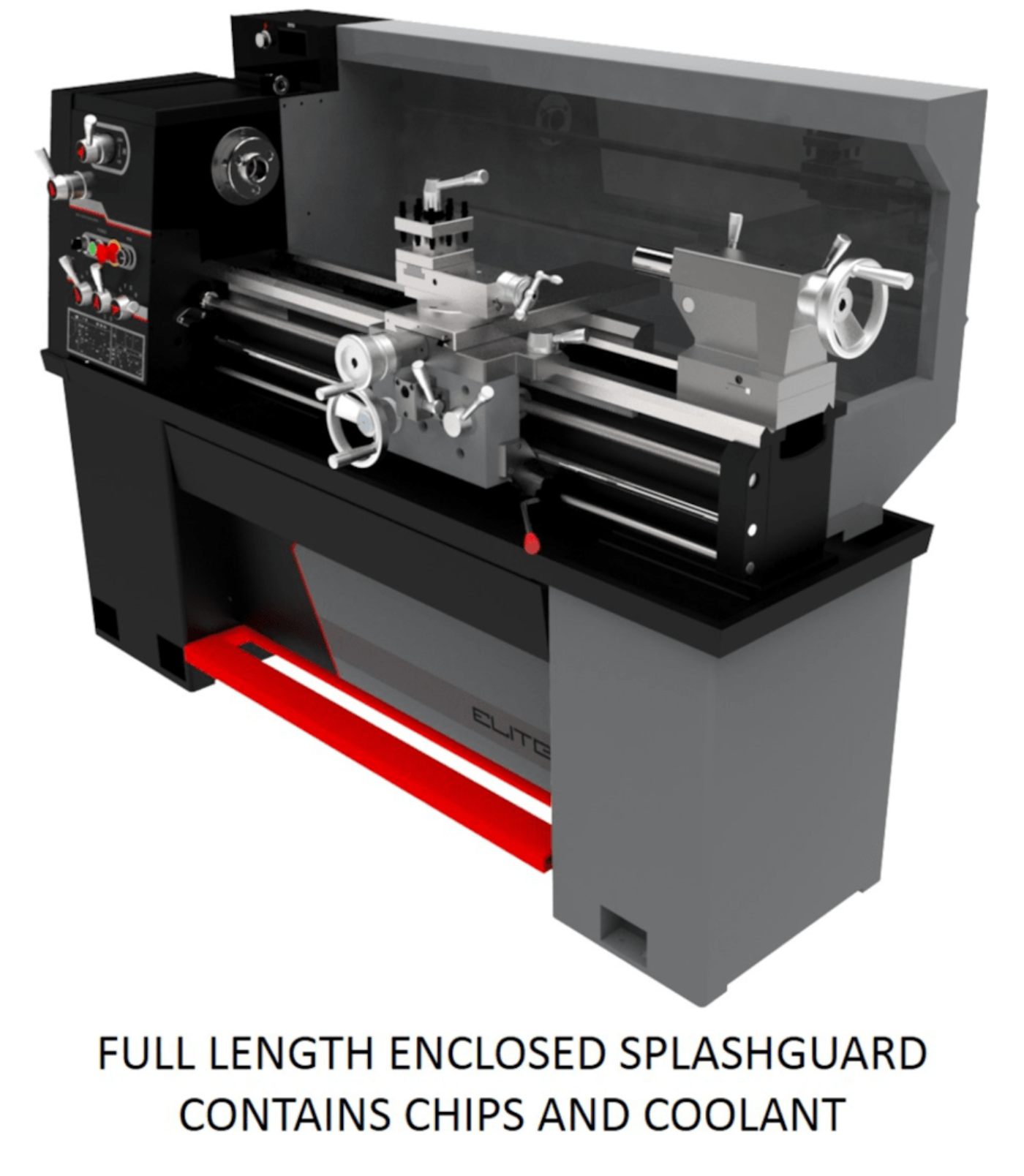

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine

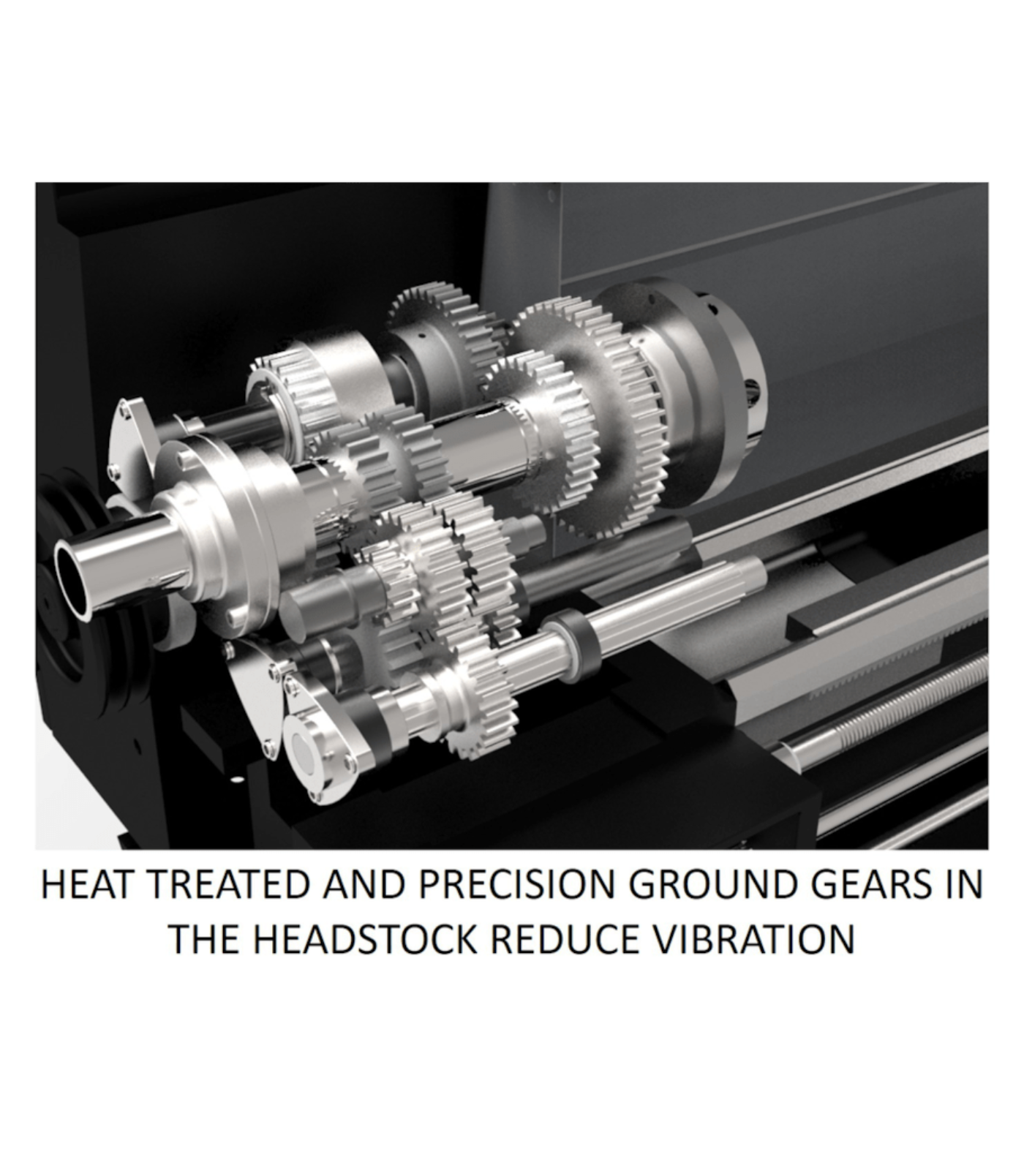

    • Hardened and ground gears in headstock reduce vibration and deflection
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 13 x 40
    Style (Type) ELITE EVS
    Swing Over Bed (In.) 13
    Swing Over Cross Slide (In.) 7-5/8
    Swing Through Gap (In.) 19
    Length of Gap (In.) 9
    Spindle Bore (In.) 1-1/2
    Spindle Mount D1-4
    Weight (Lbs.) 1433
    Amperage Draw @ 230V 3Ph 19
    Spindle Taper with Sleeve MT-5
    Range of Spindle Speeds (RPM) 0 – 2,200
    Number of Longitudinal & Cross Feed Rates 80
    Range of Longitudinal Feeds (IPR) 0.0012 – 0.0294
    Range of Cross Feeds (IPR) 0.0003 – 0.01
    Number of Inch Threads 40
    Range of Inch Threads (TPI) 4 – 112
    Number of Metric Threads 22
    Range of Metric Threads 0.45 – 7.5
    Max Tool Size (In.) 5/8 x 5/8
    Compound Slide Travel (In.) 3-1/2
    Motor (HP) 3 HP, 230V, 3Ph
    Tailstock Spindle Travel (In.) 4-3/4
    Taper in Tailstock Spindle MT-3
    Steady Rest Capacity (In.) 1/4 – 2-3/4
    Width of Bed (In.) 8-1/2

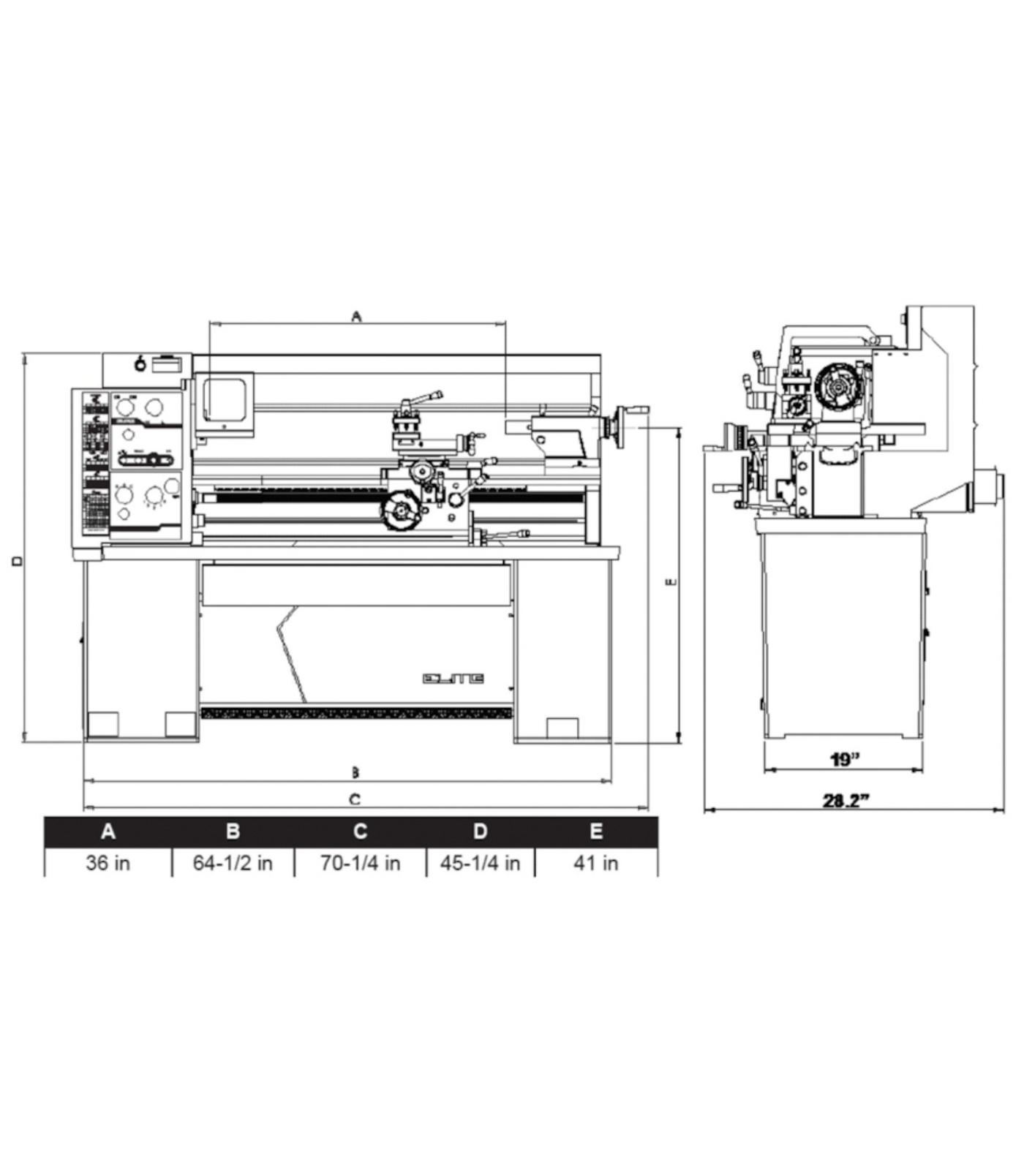

    Overall Dimensions (L x W x H) 67 x 30 x 57
    Drive EVS
    What our Experts Think
    • Precision Machining – Both lathes offer smooth, accurate cuts for professional-grade metalworking.

    • Advanced DRO Systems – ACU-RITE 303 CSS and 203 DROs provide precise digital readouts and enhanced operator efficiency.

    • Taper & Collet Capabilities – EGH-1740 includes a collet closer; E-1340VS features a taper attachment for versatile machining.

    • Heavy-Duty Construction – Cast-iron bases and headstocks ensure stability, reduce vibration, and extend machine life.

    • Versatile Applications – Ideal for threading, turning, taper cutting, and general-purpose metalworking tasks.

    • Industrial Reliability – Engineered for continuous operation in machine shops, fabrication facilities, and technical training programs.

    Q&A

    Q: What is the JET Elite E-1340VS Lathe?
    A: A 13" x 40" variable speed precision lathe with ACU-RITE 303 CSS digital readout and taper attachment for high-accuracy and versatile machining.

    Q: What makes this lathe unique?
    A: It features variable speed control, a CSS DRO for constant surface speed, and a taper attachment for precise, repeatable angled cuts.

    Q: What materials can it machine?
    A: Suitable for steel, aluminum, brass, and other metals in professional and industrial shops.

    Q: Why is the ACU-RITE 303 CSS DRO important?
    A: It automatically adjusts spindle speed to maintain consistent cutting conditions, improving tool life and surface finish.

    Q: What is the benefit of the taper attachment?
    A: Enables accurate taper turning without tailstock offset, saving setup time while maintaining precision.

    Q: What size capacity does it have?
    A: 13" swing over bed and 40" distance between centers.

    Q: Where is it best used?
    A: Ideal for machine shops, toolrooms, maintenance departments, and prototyping.

    Q: How does it improve efficiency?
    A: The CSS DRO, taper attachment, and variable speed drive reduce setup time, maintain cutting accuracy, and enhance productivity.

    Maintenance Tips
    • Clean bedways, carriage, and tooling after each use to remove chips and debris

    • Lubricate gears, bearings, and all moving parts according to manufacturer’s schedule

    • Inspect belts, gears, and spindle components regularly for wear or misalignment

    • Keep taper attachments and collet closers clean, lightly oiled, and properly adjusted

    • Maintain DRO displays and electrical connections dust-free and dry

    • Verify alignment and calibration periodically to ensure precision machining

    • Schedule annual professional servicing for long-term reliability and performance
