| Size |
13 x 40 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed (In.) |
13 |
| Swing Over Cross Slide (In.) |
7-5/8 |
| Swing Through Gap (In.) |
19 |
| Length of Gap (In.) |
9 |
| Spindle Bore (In.) |
1-1/2 |
| Spindle Mount |
D1-4 |
| Weight (Lbs.) |
1433 |
| Amperage Draw @ 230V 3Ph |
19 |
| Spindle Taper with Sleeve |
MT-5 |
| Range of Spindle Speeds (RPM) |
0 – 2,200 |
| Number of Longitudinal & Cross Feed Rates |
80 |
| Range of Longitudinal Feeds (IPR) |
0.0012 – 0.0294 |
| Range of Cross Feeds (IPR) |
0.0003 – 0.01 |
| Number of Inch Threads |
40 |
| Range of Inch Threads (TPI) |
4 – 112 |
| Number of Metric Threads |
22 |
| Range of Metric Threads |
0.45 – 7.5 |
| Max Tool Size (In.) |
5/8 x 5/8 |
| Compound Slide Travel (In.) |
3-1/2 |
| Motor (HP) |
3 HP, 230V, 3Ph |
| Tailstock Spindle Travel (In.) |
4-3/4 |
| Taper in Tailstock Spindle |
MT-3 |
| Steady Rest Capacity (In.) |
1/4 – 2-3/4 |
| Width of Bed (In.) |
8-1/2 |

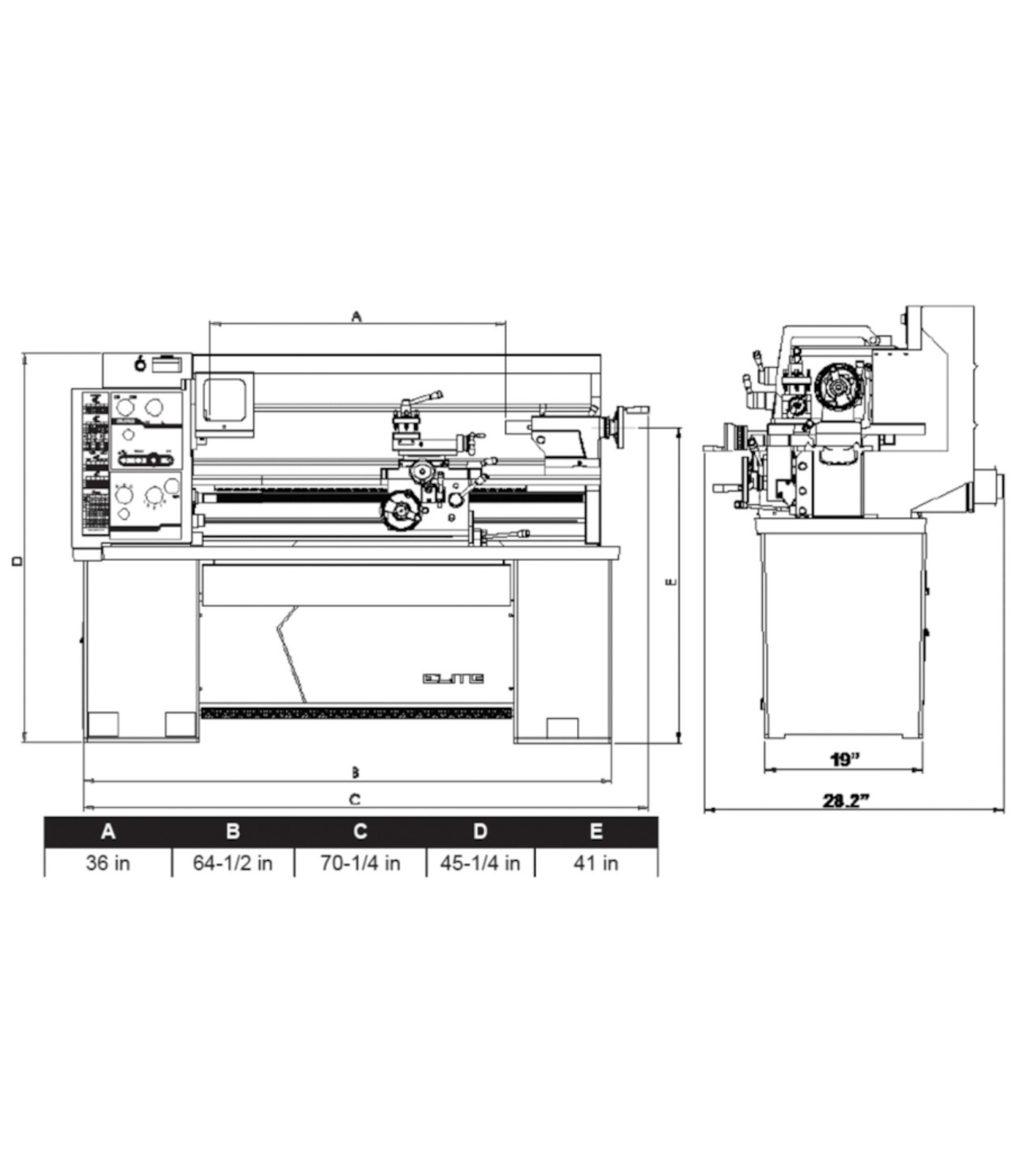

| Overall Dimensions (L x W x H) |
67 x 30 x 57 |
| Drive |
EVS |
What our Experts Think
-
Precision Variable Speed – Smooth, adjustable speeds deliver consistent and accurate machining results.
-
ACU-RITE 303 CSS DRO – Advanced digital readout with Constant Surface Speed improves measurement accuracy and workflow efficiency.
-
Taper Attachment & Collet Closer – Expands capabilities for precise taper cutting and secure, repeatable workholding.
-
Heavy-Duty Construction – Cast-iron base and headstock reduce vibration and ensure long-lasting durability.
-
Versatile Machining – Perfect for threading, turning, taper cutting, and general-purpose metalworking.
-
Industrial Reliability – Designed for continuous operation in machine shops, fabrication facilities, and training programs.
Q&A

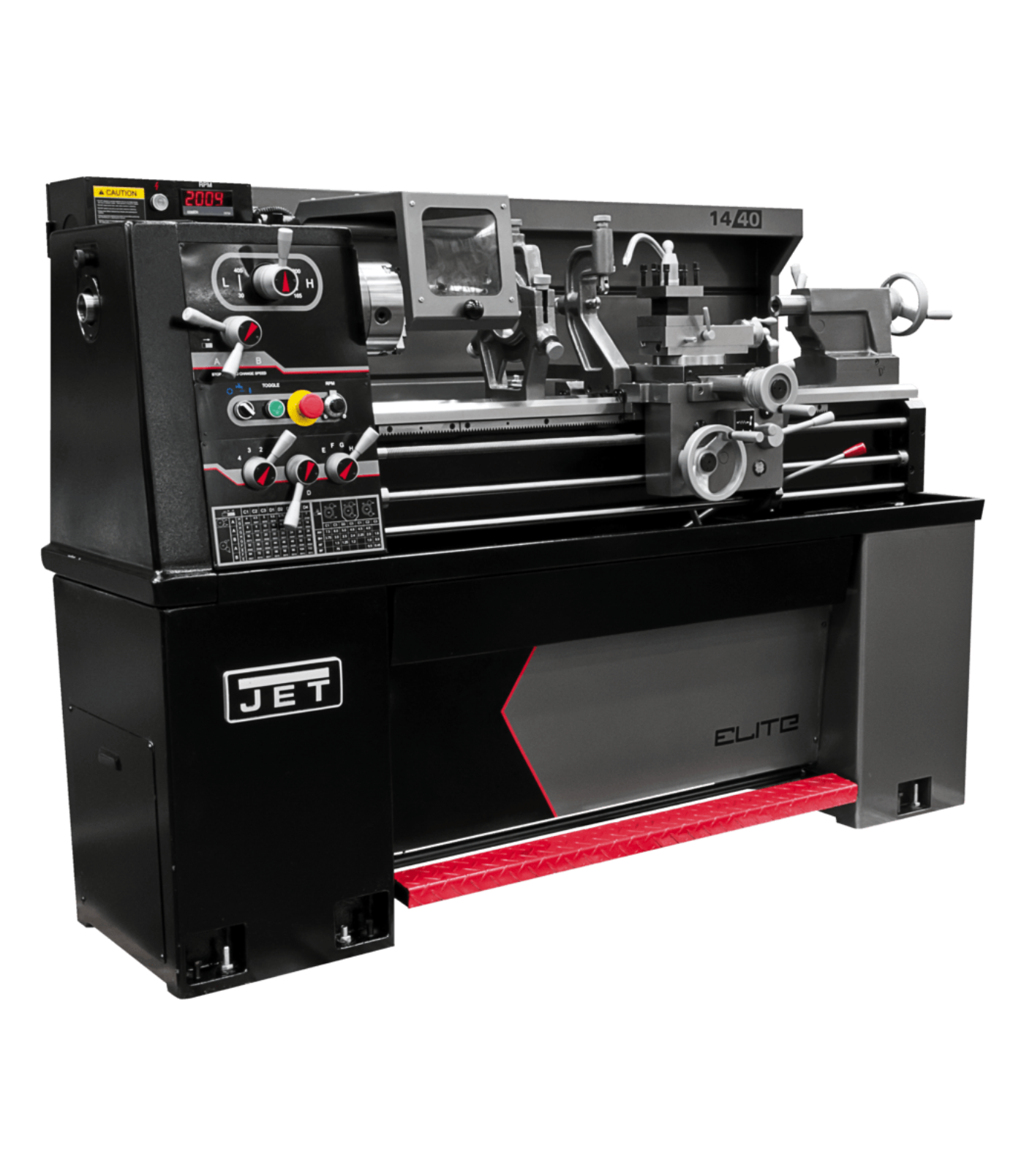

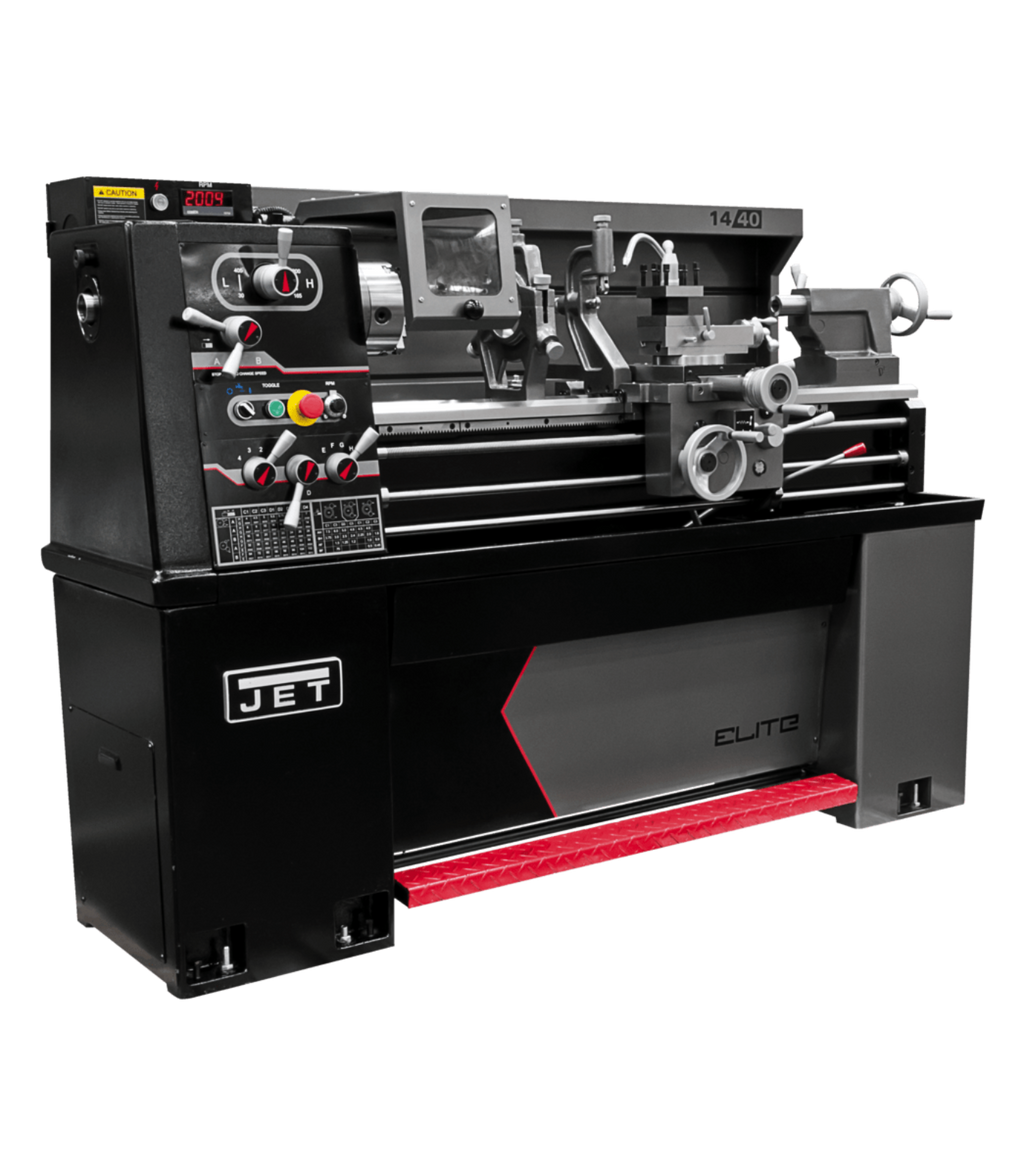

Q: What is the JET Elite E-1340VS Lathe?
A: A 13" x 40" variable speed precision lathe featuring an ACU-RITE 303 CSS digital readout, taper attachment, and collet closer for versatile, high-accuracy machining.
Q: What makes this lathe unique?
A: It combines variable speed control, a CSS DRO for constant surface speed, a taper attachment for precise angled cuts, and a collet closer for secure workholding.
Q: What materials can it machine?
A: Ideal for steel, aluminum, brass, and other metals in professional and industrial shops.
Q: Why is the ACU-RITE 303 CSS DRO important?
A: It automatically adjusts spindle speed to maintain optimal cutting conditions, improving tool life and surface finish.
Q: What is the benefit of the taper attachment?
A: Enables accurate, repeatable taper turning without tailstock offset, saving setup time and ensuring precision.
Q: What is the benefit of the collet closer?
A: Provides fast, secure clamping for smaller workpieces, enhancing workflow and machining accuracy.
Q: What size capacity does it have?
A: 13" swing over bed and 40" distance between centers.
Q: Where is it best used?
A: Perfect for toolrooms, prototyping, machine shops, and maintenance departments.
Q: How does it improve efficiency?
A: The CSS DRO, taper attachment, and collet closer reduce setup time, maintain cutting accuracy, and streamline operations.
Maintenance Tips
-
Clean bedways, carriage, and tooling after each use to remove chips and debris
-
Lubricate gears, bearings, and all moving parts per manufacturer’s maintenance schedule
-
Inspect belts, gears, and spindle components regularly for wear or misalignment
-
Keep taper attachment and collet closer clean, lightly oiled, and properly adjusted
-
Maintain DRO display and electrical connections free of dust and moisture
-
Verify alignment and calibration periodically to ensure machining precision
-
Schedule annual professional servicing for reliable long-term performance
