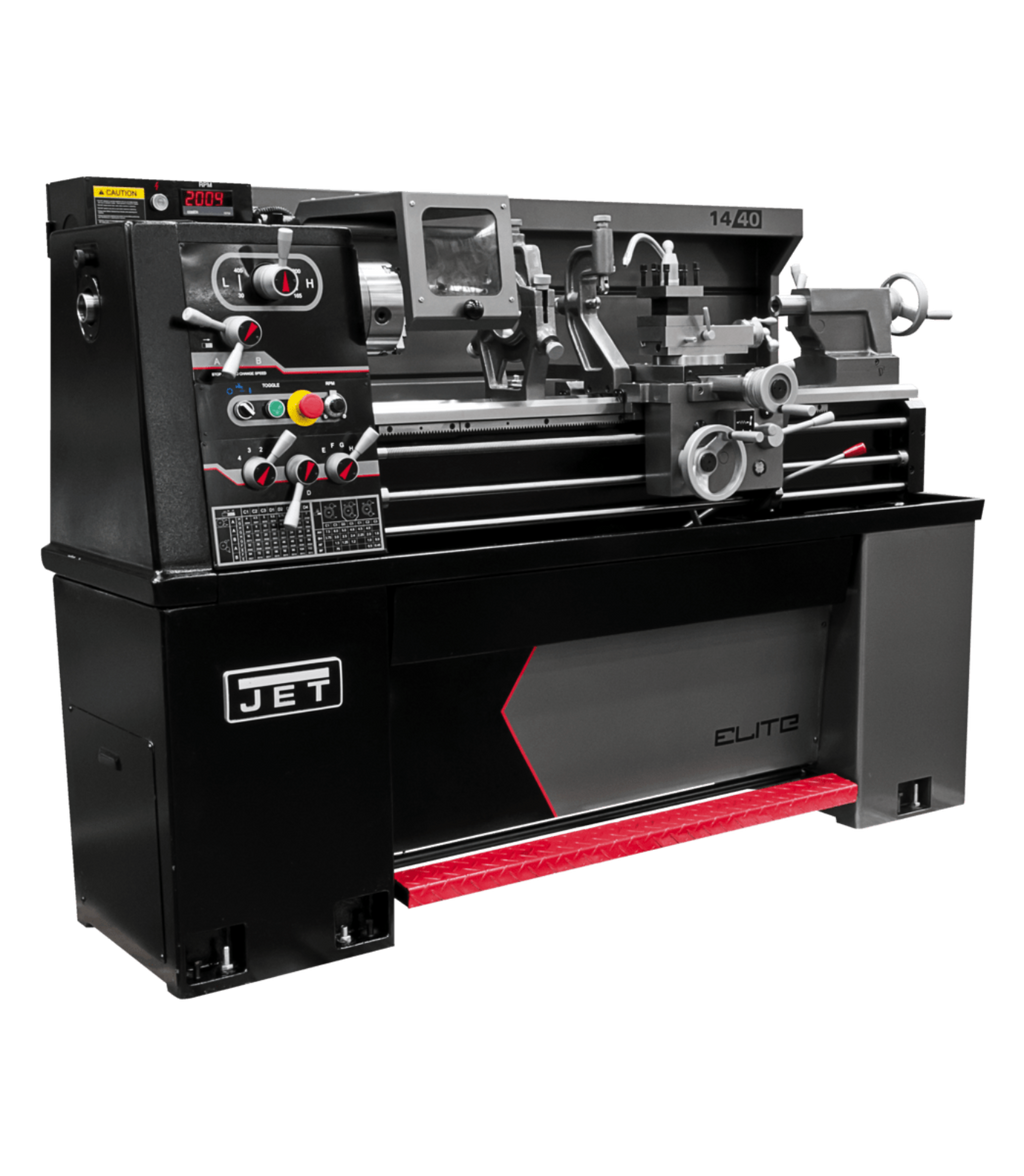

    JET Elite Lathe E-1340VS with ACU-RITE 303 DRO - JT9-892411

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine
    • Hardened and ground gears in headstock reduce vibration and deflection
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 13 x 40
    Style (Type) ELITE EVS
    Swing Over Bed (In.) 13
    Swing Over Cross Slide (In.) 7-5/8
    Swing Through Gap (In.) 19
    Length of Gap (In.) 9
    Spindle Bore (In.) 1-1/2
    Spindle Mount D1-4
    Weight (Lbs.) 1433
    Amperage Draw @ 230V 3Ph 19
    Spindle Taper with Sleeve MT-5
    Range of Spindle Speeds (RPM) 0 – 2,200
    Number of Longitudinal & Cross Feed Rates 80
    Range of Longitudinal Feeds (IPR) 0.0012 – 0.0294
    Range of Cross Feeds (IPR) 0.0003 – 0.01
    Number of Inch Threads 40
    Range of Inch Threads (TPI) 4 – 112
    Number of Metric Threads 22
    Range of Metric Threads 0.45 – 7.5
    Max Tool Size (In.) 5/8 x 5/8
    Compound Slide Travel (In.) 3-1/2
    Motor (HP) 3 HP, 230V, 3Ph
    Tailstock Spindle Travel (In.) 4-3/4
    Taper in Tailstock Spindle MT-3
    Steady Rest Capacity (In.) 1/4 – 2-3/4
    Width of Bed (In.) 8-1/2
    Overall Dimensions (L x W x H) 67 x 30 x 57
    Drive EVS
    What our Experts Think
    • High Precision: Variable speed lathe paired with ACU-RITE 303 DRO delivers exceptional accuracy.

    • Digital Efficiency: DRO system simplifies measurements, ensuring consistency and productivity.

    • Durable Build: Heavy-duty cast-iron construction reduces vibration and extends machine life.

    • Operator-Friendly: Smooth controls and ergonomic design enhance ease of use.

    • Professional Grade: Perfect for workshops and machine shops requiring reliable, precise performance.

    Q&A

    Q: What is the JET Elite E-1340VS Lathe?
    A: A high-precision variable speed lathe equipped with the ACU-RITE 303 digital readout system for enhanced machining accuracy.

    Q: What makes it unique?
    A: Its electronic variable speed control, precision-ground bedways, and integrated ACU-RITE DRO deliver accuracy, efficiency, and user-friendly operation.

    Q: Where can it be used?
    A: Perfect for machine shops, tool rooms, fabrication facilities, and industrial metalworking.

    Q: What style of work does it suit?
    A: Precision turning, threading, facing, boring, and taper cutting on metals and alloys.

    Q: What materials is it made from?
    A: Heavy-duty cast iron base with hardened, ground components for durability and stability.

    Q: What are its key features?
    A: 13" swing, 40" center distance, D1-4 spindle mount, electronic variable speed, and ACU-RITE 303 DRO for precise measurement.

    Maintenance Tips
    • Clean chips and debris from bedways, carriage, and leadscrews after each use.

    • Lubricate gears, bearings, and sliding parts per manufacturer’s maintenance schedule.

    • Keep the ACU-RITE DRO display and sensors clean for accurate readouts.

    • Inspect belts, gibs, and fasteners regularly for proper adjustment and safety.

    • Cover the lathe when not in use to protect from dust and shop contaminants.
