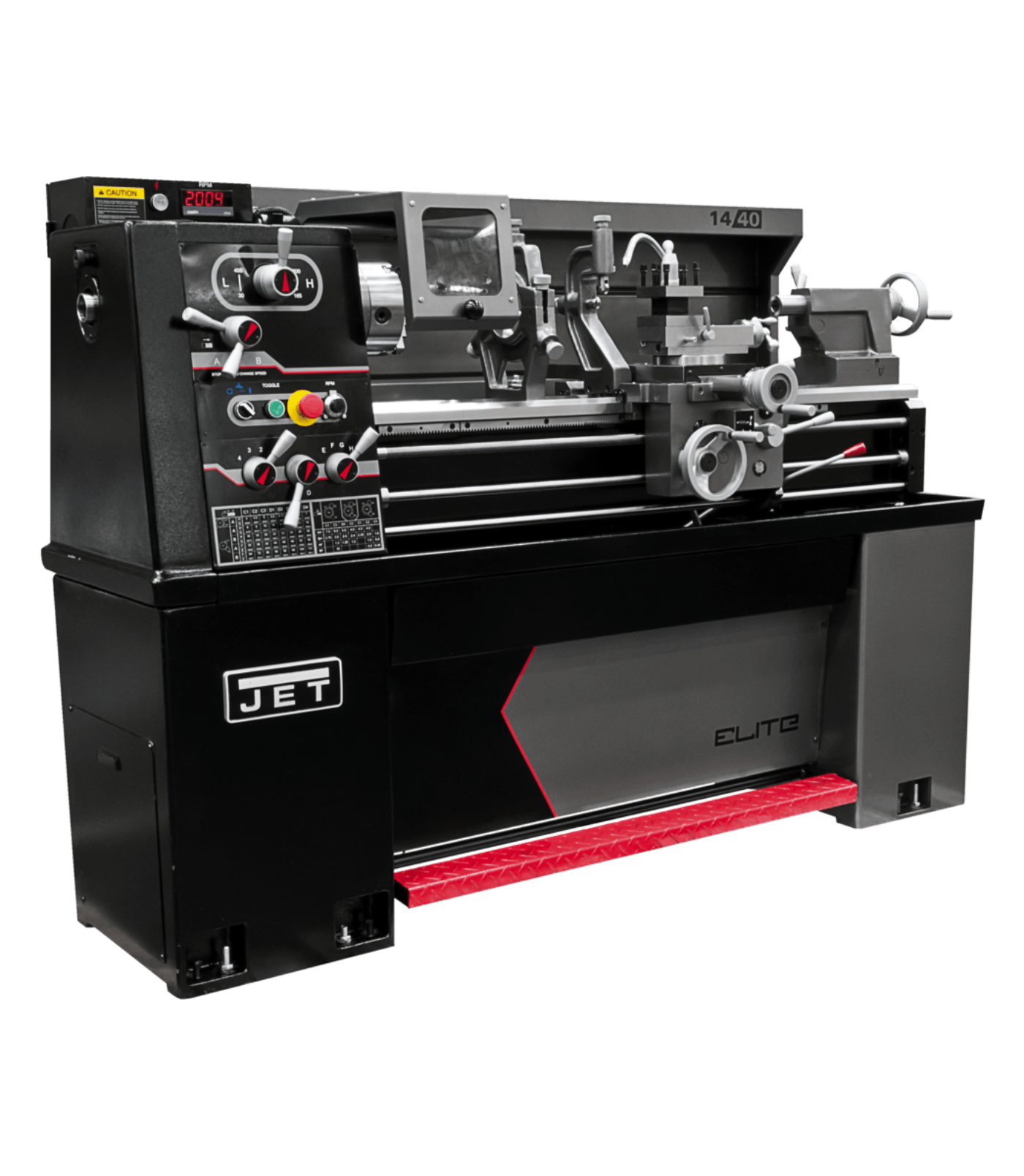

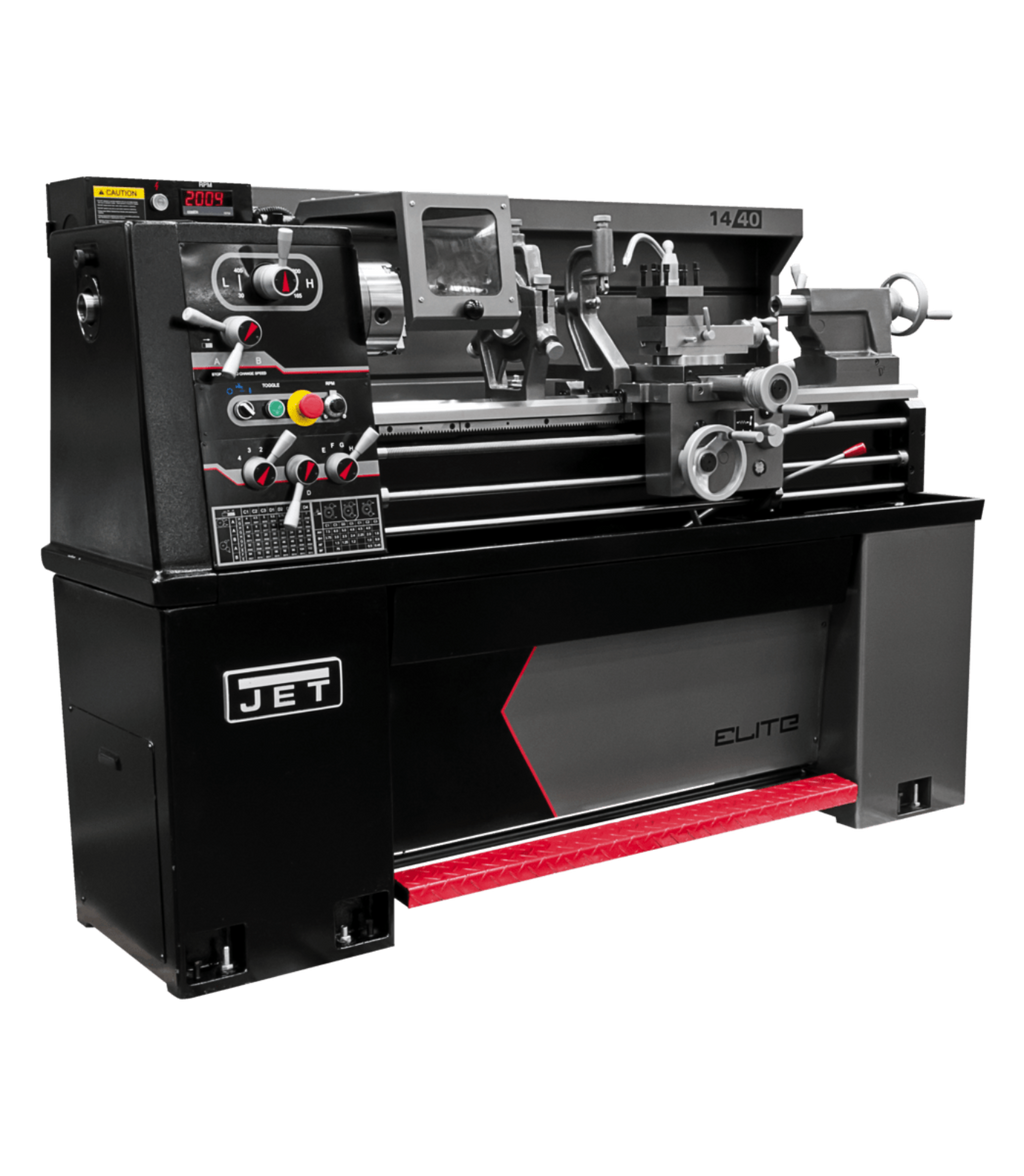

    JET Elite Lathe E-1340VS with ACU-RITE 303 DRO with Collet Closer - JT9-892413

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine

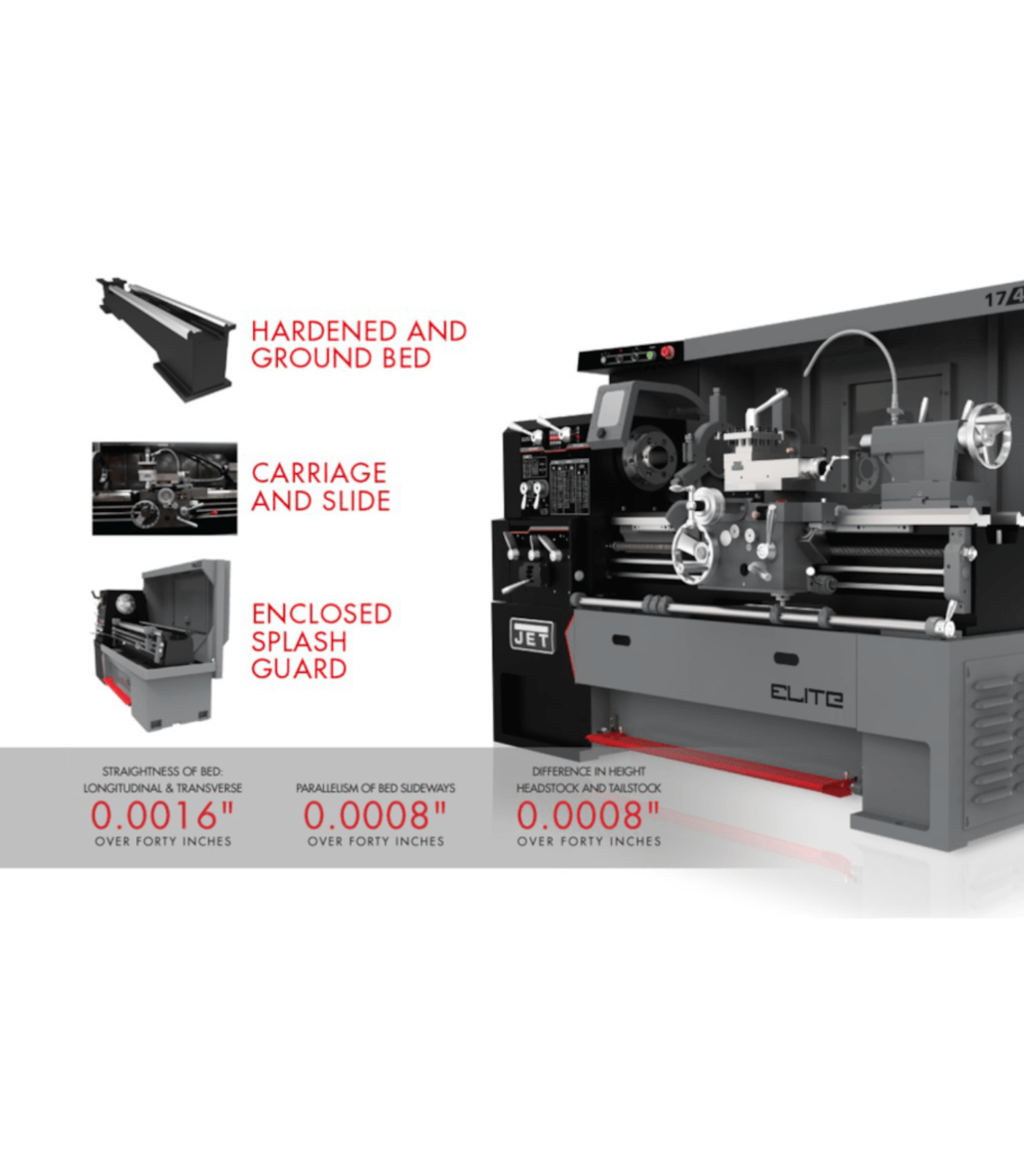

    • Hardened and ground gears in headstock reduce vibration and deflection
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 13 x 40
    Style (Type) ELITE EVS
    Swing Over Bed (In.) 13
    Swing Over Cross Slide (In.) 7-5/8
    Swing Through Gap (In.) 19
    Length of Gap (In.) 9
    Spindle Bore (In.) 1-1/2
    Spindle Mount D1-4
    Weight (Lbs.) 1433
    Amperage Draw @ 230V 3Ph 19
    Spindle Taper with Sleeve MT-5
    Range of Spindle Speeds (RPM) 0 – 2,200
    Number of Longitudinal & Cross Feed Rates 80
    Range of Longitudinal Feeds (IPR) 0.0012 – 0.0294
    Range of Cross Feeds (IPR) 0.0003 – 0.01
    Number of Inch Threads 40
    Range of Inch Threads (TPI) 4 – 112
    Number of Metric Threads 22
    Range of Metric Threads 0.45 – 7.5
    Max Tool Size (In.) 5/8 x 5/8
    Compound Slide Travel (In.) 3-1/2
    Motor (HP) 3 HP, 230V, 3Ph
    Tailstock Spindle Travel (In.) 4-3/4
    Taper in Tailstock Spindle MT-3
    Steady Rest Capacity (In.) 1/4 – 2-3/4
    Width of Bed (In.) 8-1/2
    Overall Dimensions (L x W x H) 67 x 30 x 57
    Drive EVS
    What our Experts Think
    • Precision Machining – Variable speed control delivers smooth and accurate cutting performance.

    • ACU-RITE 303 DRO – Advanced digital readout system provides precise measurements for efficiency and accuracy.

    • Collet Closer – Enhances workholding capability, perfect for repetitive and high-precision operations.

    • Heavy-Duty Build – Cast-iron base and headstock ensure rigidity, durability, and reduced vibration.

    • Versatile Applications – Excellent for threading, turning, and general-purpose metalworking.

    • Professional Reliability – Built to handle continuous use in machine shops, fabrication facilities, and training programs.

    Q&A

    Q: What is the JET Elite E-1340VS Lathe?
    A: A 13" x 40" variable speed precision lathe with an ACU-RITE 303 digital readout and collet closer for accurate and efficient machining.

    Q: What makes this lathe unique?
    A: It combines variable speed control with the ACU-RITE 303 DRO for precision measurement and a collet closer for quick, secure workholding.

    Q: What materials can it machine?
    A: Designed for steel, aluminum, brass, and other metals in toolrooms and industrial shops.

    Q: Why is the ACU-RITE 303 DRO important?
    A: It delivers high-accuracy digital readouts, reduces operator error, and enhances productivity.

    Q: What is the benefit of the collet closer?
    A: It allows fast clamping of smaller workpieces, reducing setup time and improving machining precision.

    Q: What size capacity does it have?
    A: 13" swing over bed and 40" distance between centers.

    Q: Where is it best used?
    A: Ideal for machine shops, prototyping, maintenance departments, and precision toolrooms.

    Q: How does it improve efficiency?
    A: The DRO system, collet closer, and variable speed drive streamline operations, boost accuracy, and minimize downtime.

    Maintenance Tips
    • Clean bedways, carriage, and tooling after each use to prevent chip buildup

    • Lubricate gears, bearings, and moving parts per manufacturer’s recommendations

    • Inspect belts, gears, and spindle components regularly for wear or misalignment

    • Keep collet closer clean and lightly lubricated to ensure smooth operation

    • Maintain DRO display and electrical connections free of dust and moisture

    • Check alignment and calibration periodically for consistent machining accuracy

    • Schedule annual professional servicing for reliable long-term performance
