| Size |
13 x 40 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed (In.) |
13 |
| Swing Over Cross Slide (In.) |
7-5/8 |
| Swing Through Gap (In.) |
19 |
| Length of Gap (In.) |
9 |
| Spindle Bore (In.) |
1-1/2 |
| Spindle Mount |
D1-4 |
| Weight (Lbs.) |
1433 |
| Amperage Draw @ 230V 3Ph |
19 |
| Spindle Taper with Sleeve |
MT-5 |
| Range of Spindle Speeds (RPM) |
0 – 2,200 |
| Number of Longitudinal & Cross Feed Rates |
80 |
| Range of Longitudinal Feeds (IPR) |
0.0012 – 0.0294 |
| Range of Cross Feeds (IPR) |
0.0003 – 0.01 |
| Number of Inch Threads |
40 |
| Range of Inch Threads (TPI) |
4 – 112 |
| Number of Metric Threads |
22 |
| Range of Metric Threads |
0.45 – 7.5 |
| Max Tool Size (In.) |
5/8 x 5/8 |
| Compound Slide Travel (In.) |
3-1/2 |
| Motor (HP) |
3 HP, 230V, 3Ph |
| Tailstock Spindle Travel (In.) |
4-3/4 |
| Taper in Tailstock Spindle |
MT-3 |
| Steady Rest Capacity (In.) |
1/4 – 2-3/4 |
| Width of Bed (In.) |
8-1/2 |

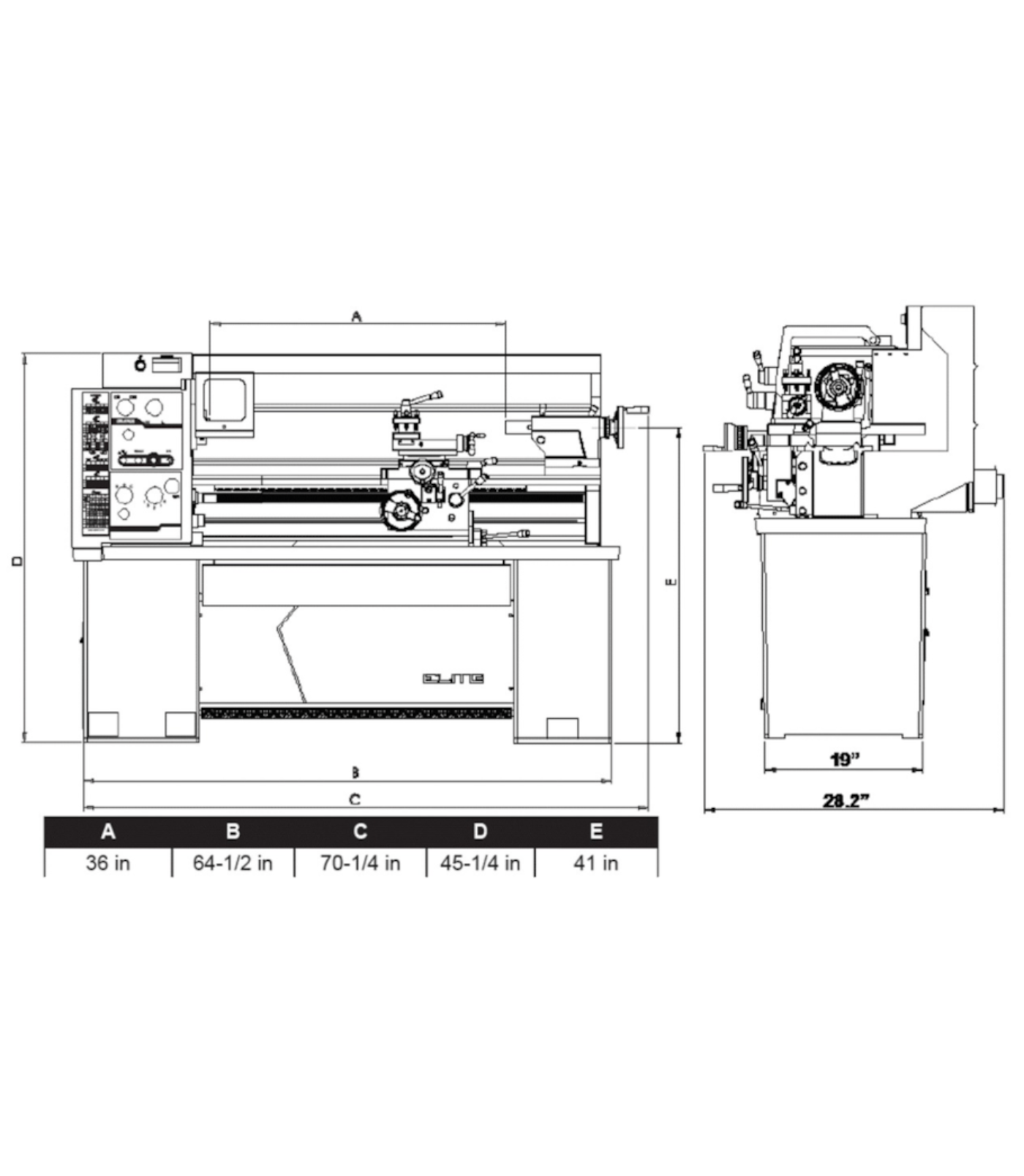

| Overall Dimensions (L x W x H) |
67 x 30 x 57 |
| Drive |
EVS |
What our Experts Think
-
Precision Variable Speed – Smooth, adjustable speeds deliver accurate and consistent machining results.
-
ACU-RITE 303 DRO – Advanced digital readout system ensures precise measurements and efficient operation.
-
Taper Attachment & Collet Closer – Expands capabilities for accurate taper cutting and secure, repetitive workholding.
-

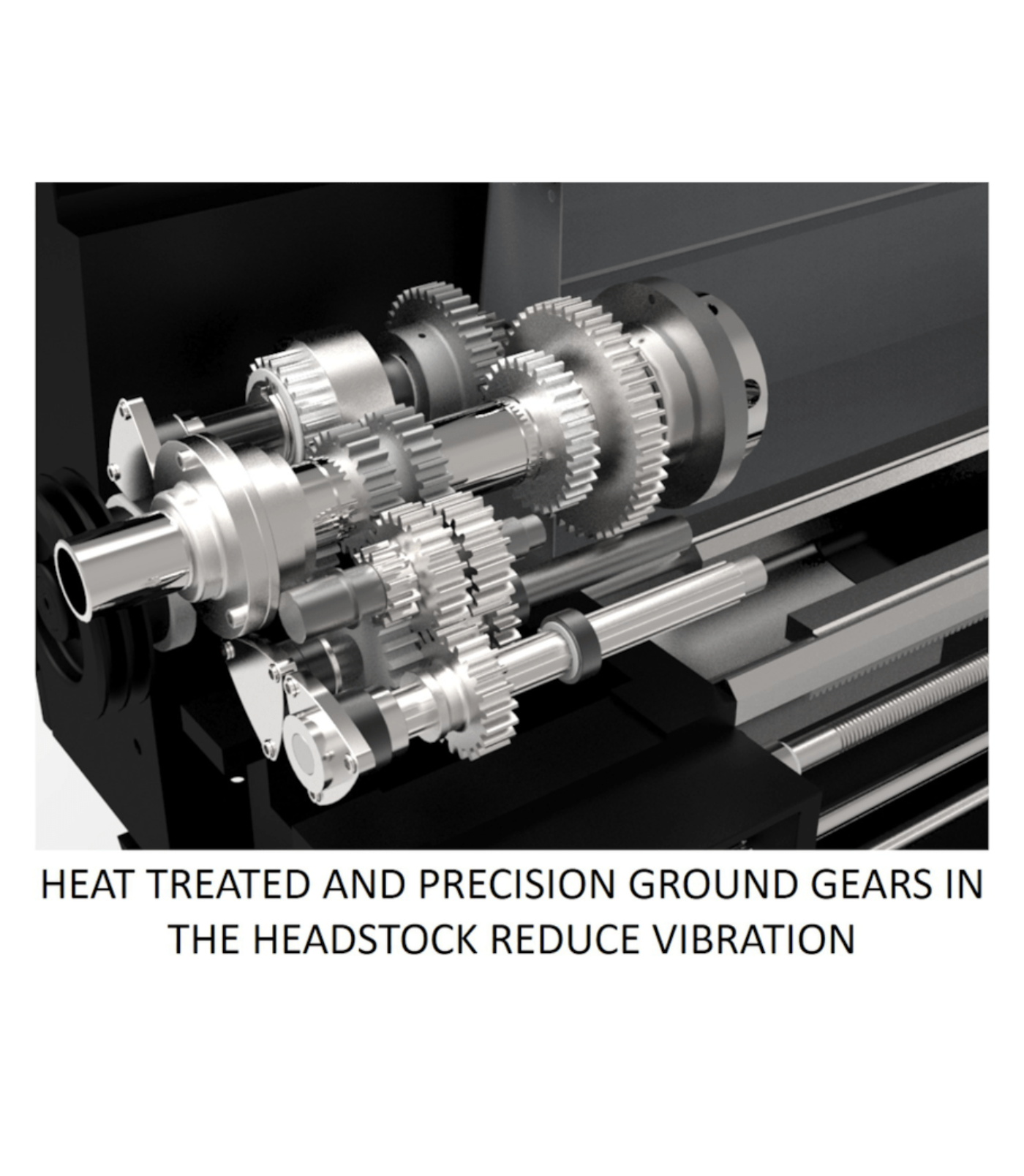

Heavy-Duty Construction – Rigid cast-iron base and headstock reduce vibration and provide long-lasting durability.
-
Versatile Machining – Ideal for threading, turning, taper cutting, and general-purpose metalworking tasks.
-
Industrial Reliability – Built for continuous, high-demand use in machine shops, fabrication facilities, and training programs.
Q&A

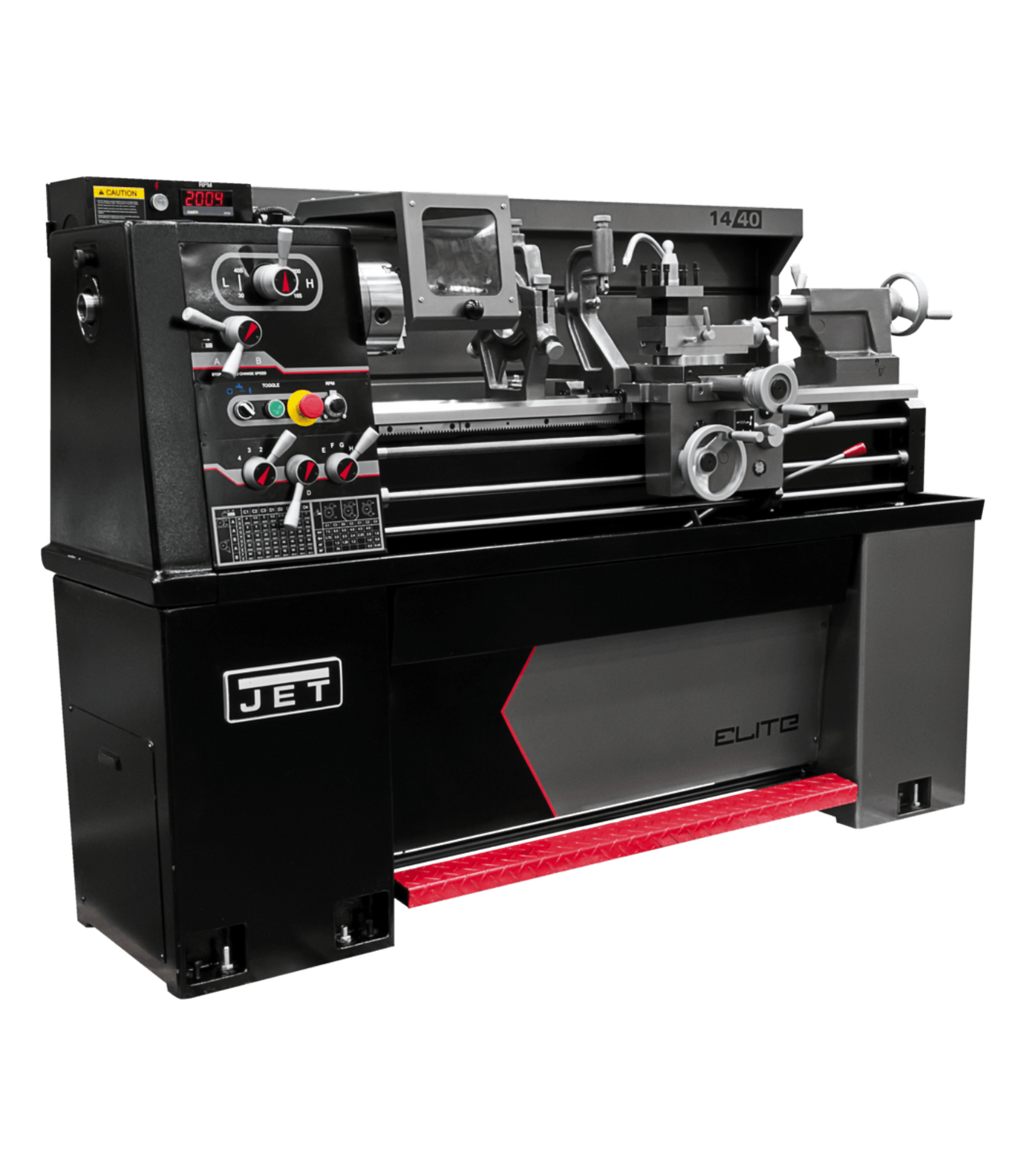

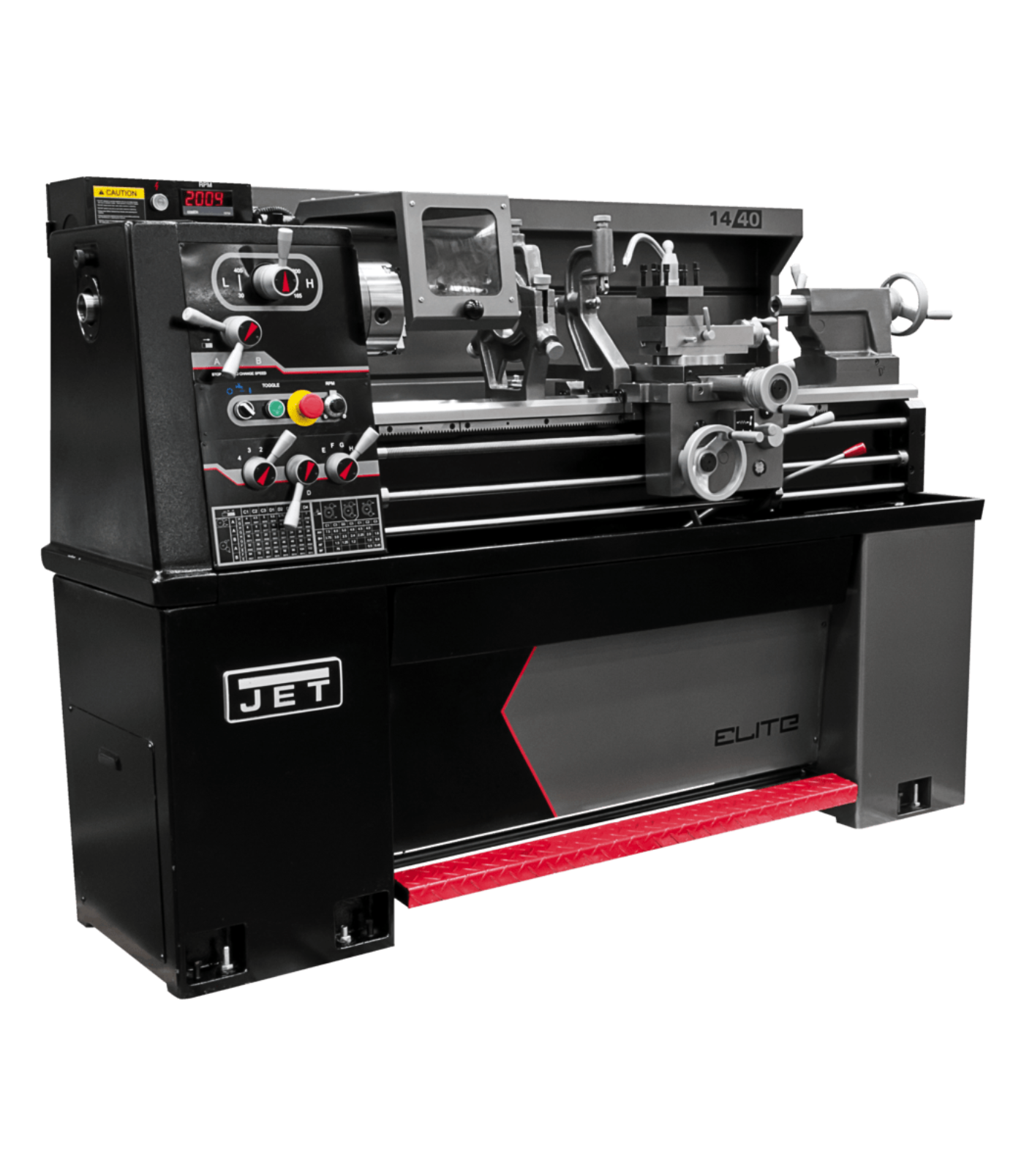

Q: What is the JET Elite E-1340VS Lathe?
A: A 13" x 40" variable speed precision lathe equipped with an ACU-RITE 303 digital readout, taper attachment, and collet closer for versatile, high-accuracy machining.
Q: What makes this lathe unique?
A: It combines variable speed control, a high-accuracy DRO, a taper attachment for angled cuts, and a collet closer for fast, secure workholding.
Q: What materials can it machine?
A: Suitable for steel, aluminum, brass, and other metals in professional and industrial shops.
Q: Why is the ACU-RITE 303 DRO important?
A: It provides precise digital measurements, reduces operator error, and increases machining efficiency.
Q: What is the benefit of the taper attachment?
A: Enables accurate, repeatable taper turning without tailstock offset, saving setup time and maintaining precision.
Q: What is the benefit of the collet closer?
A: Provides quick clamping for smaller workpieces, improving workflow and accuracy.
Q: What size capacity does it have?
A: 13" swing over bed and 40" distance between centers.
Q: Where is it best used?
A: Ideal for toolrooms, machine shops, prototyping, and maintenance departments.
Q: How does it improve efficiency?
A: The DRO, taper attachment, and collet closer work together to reduce setup time, enhance precision, and streamline operations.
