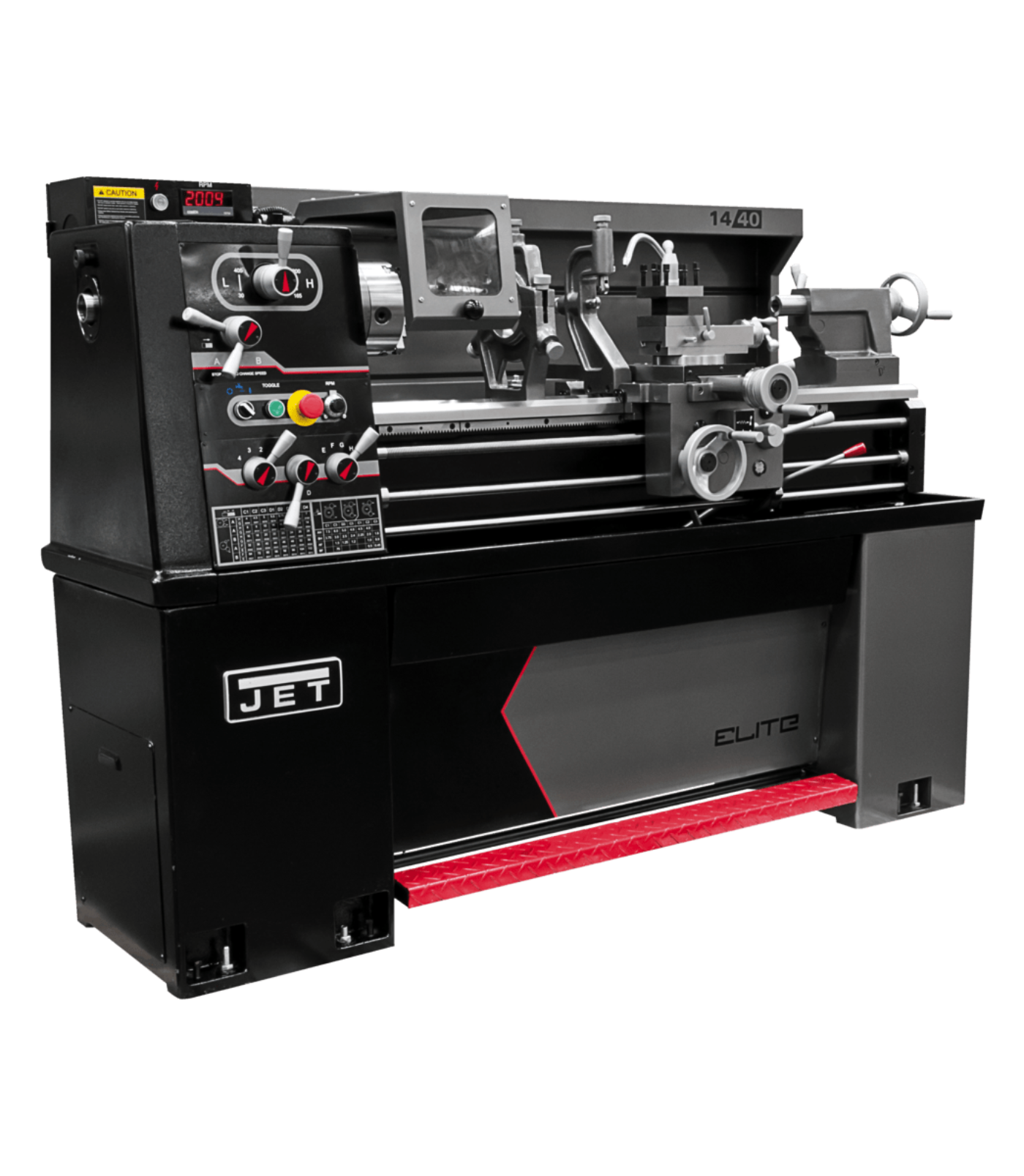

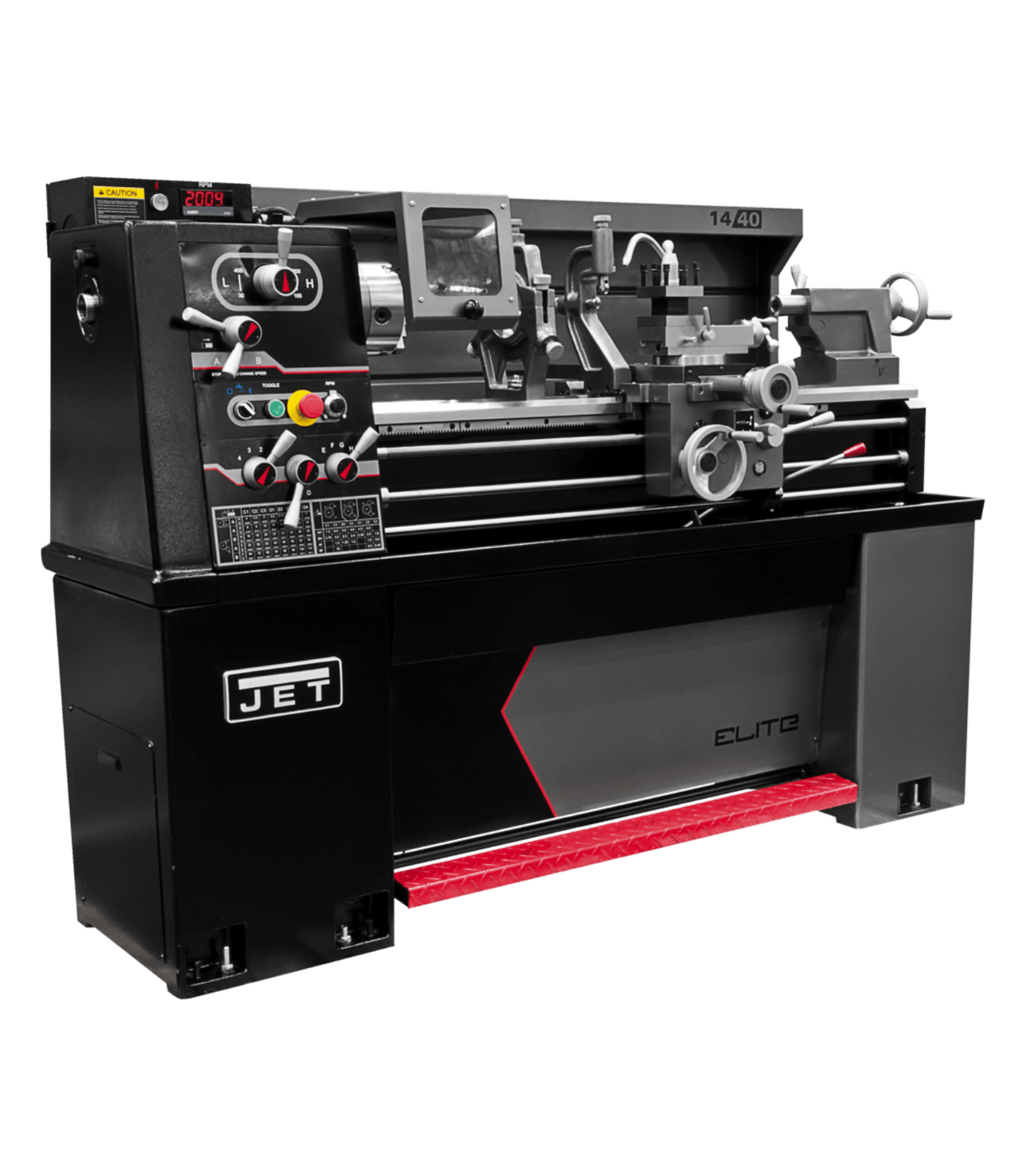

    JET Elite Lathe E-1340VS with Taper Attachment and Collet Closer - JT9-892402

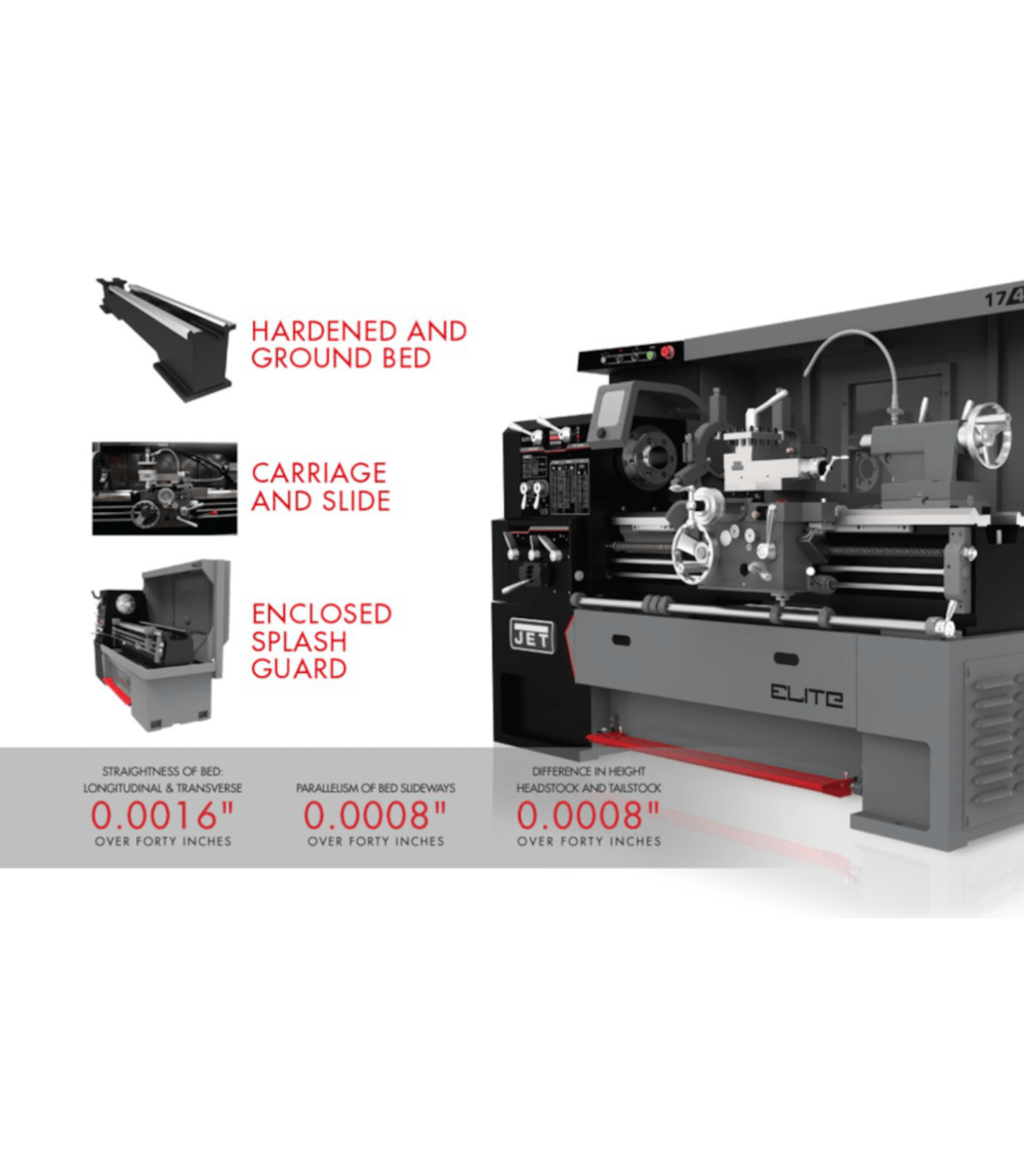

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine
    • Hardened and ground gears in headstock reduce vibration and deflection
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 13 x 40
    Style (Type) ELITE EVS
    Swing Over Bed (In.) 13
    Swing Over Cross Slide (In.) 7-5/8
    Swing Through Gap (In.) 19
    Length of Gap (In.) 9
    Spindle Bore (In.) 1-1/2
    Spindle Mount D1-4
    Weight (Lbs.) 1433
    Amperage Draw @ 230V 3Ph 19
    Spindle Taper with Sleeve MT-5
    Range of Spindle Speeds (RPM) 0 – 2,200
    Number of Longitudinal & Cross Feed Rates 80
    Range of Longitudinal Feeds (IPR) 0.0012 – 0.0294
    Range of Cross Feeds (IPR) 0.0003 – 0.01
    Number of Inch Threads 40
    Range of Inch Threads (TPI) 4 – 112
    Number of Metric Threads 22
    Range of Metric Threads 0.45 – 7.5
    Max Tool Size (In.) 5/8 x 5/8
    Compound Slide Travel (In.) 3-1/2
    Motor (HP) 3 HP, 230V, 3Ph
    Tailstock Spindle Travel (In.) 4-3/4
    Taper in Tailstock Spindle MT-3
    Steady Rest Capacity (In.) 1/4 – 2-3/4
    Width of Bed (In.) 8-1/2
    Overall Dimensions (L x W x H) 67 x 30 x 57
    Drive EVS
    What our Experts Think
    • 13" swing and 40" center distance provide versatility for precision projects.

    • Taper attachment allows accurate taper cutting without extra setup.

    • Collet closer ensures fast, secure workholding for improved productivity.

    • Variable speed range (40–2,000 RPM) supports a variety of materials and finishes.

    Q&A

    Q: What type of lathe is the JET Elite E-1340VS?
    A: It’s a 13x40 electronic variable speed (EVS) precision lathe designed for high-accuracy metalworking.

    Q: What is the benefit of the taper attachment?
    A: It allows accurate cutting of internal and external tapers without moving the compound rest.

    Q: What does the collet closer provide?
    A: The collet closer ensures fast, secure, and precise clamping of workpieces for efficiency and accuracy.

    Q: What is the swing over bed and center distance?
    A: This lathe offers a 13-inch swing over bed and a 40-inch distance between centers.

    Q: Where is this lathe commonly used?
    A: Ideal for machine shops, tool rooms, and production environments requiring precision and versatility.

    Maintenance Tips
    • Wipe down bedways, carriage, and tooling areas after each use to remove chips.

    • Lubricate gears, bearings, and sliding parts according to the service schedule.

    • Inspect the taper attachment regularly to ensure smooth, accurate operation.

    • Clean and check the collet closer for wear, ensuring reliable clamping.

    • Monitor drive belts, feed screws, and alignment for tension and performance.

    • Keep electrical connections and cooling fans free from dust and debris.

    • Tighten tool post, tailstock, and all fasteners to maintain machining accuracy.

    • Schedule periodic professional maintenance to extend precision and machine life.
