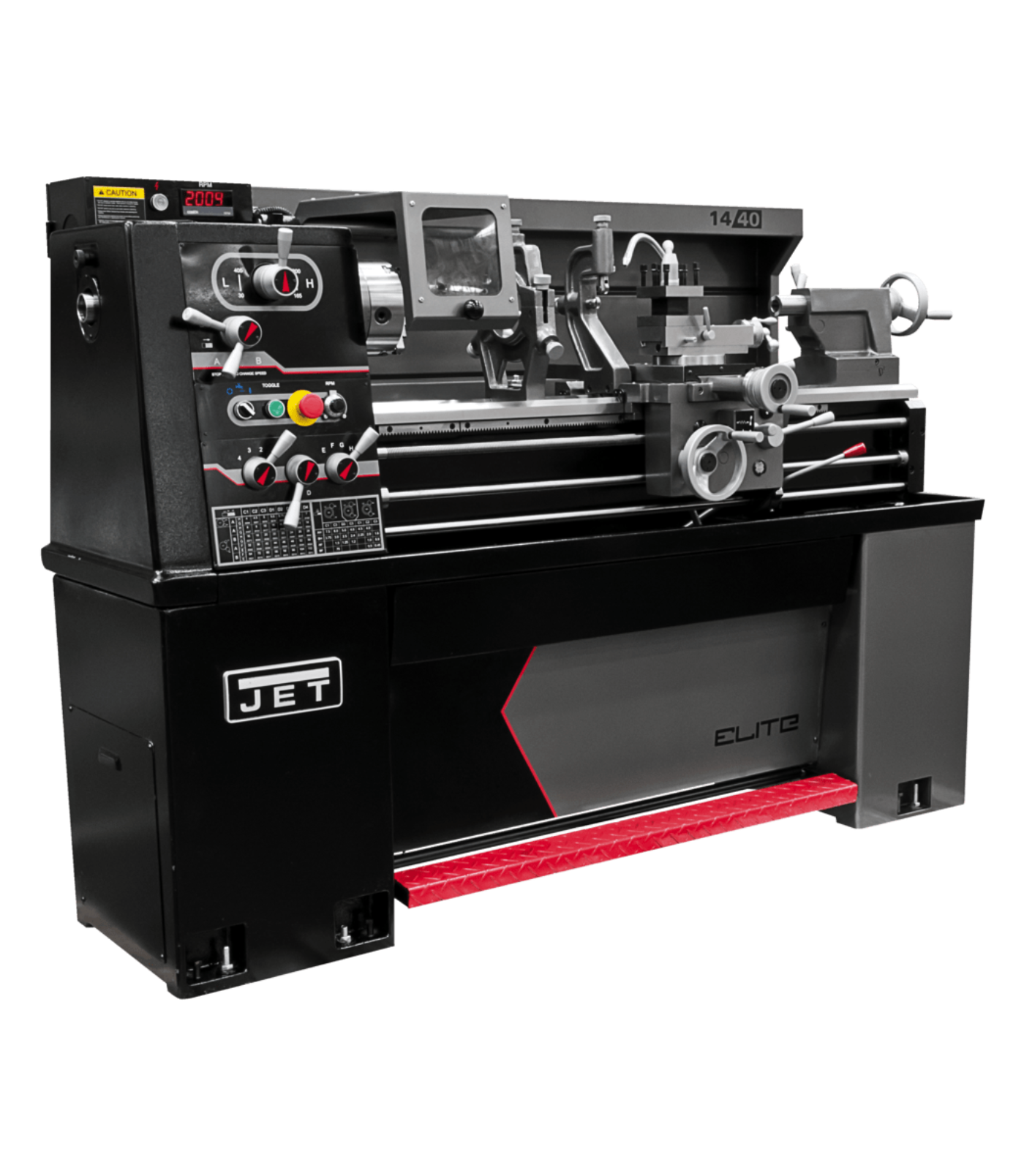

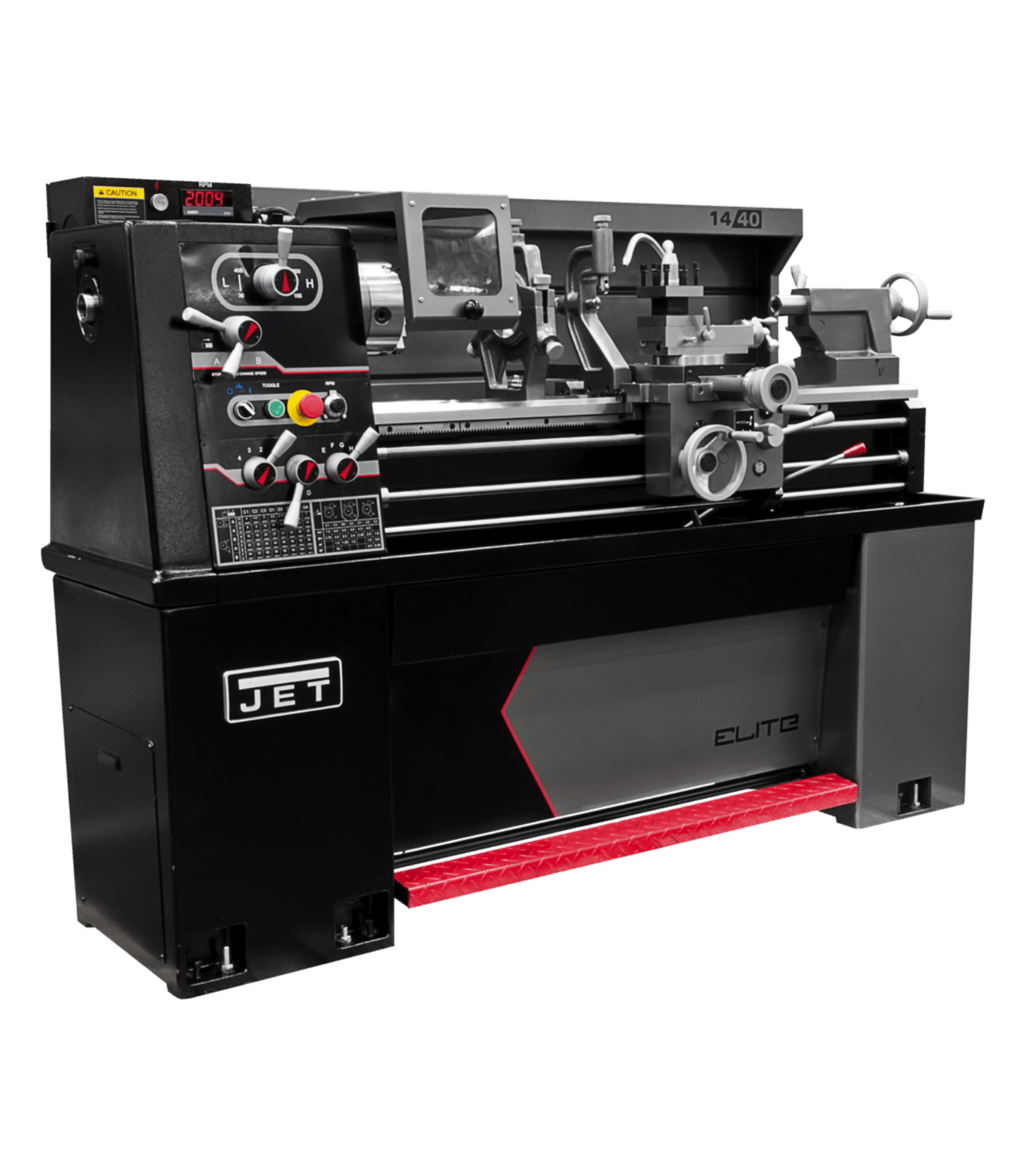

    JET Elite Lathe E-1440VS with ACU-RITE 203 CSS DRO - JET-892457

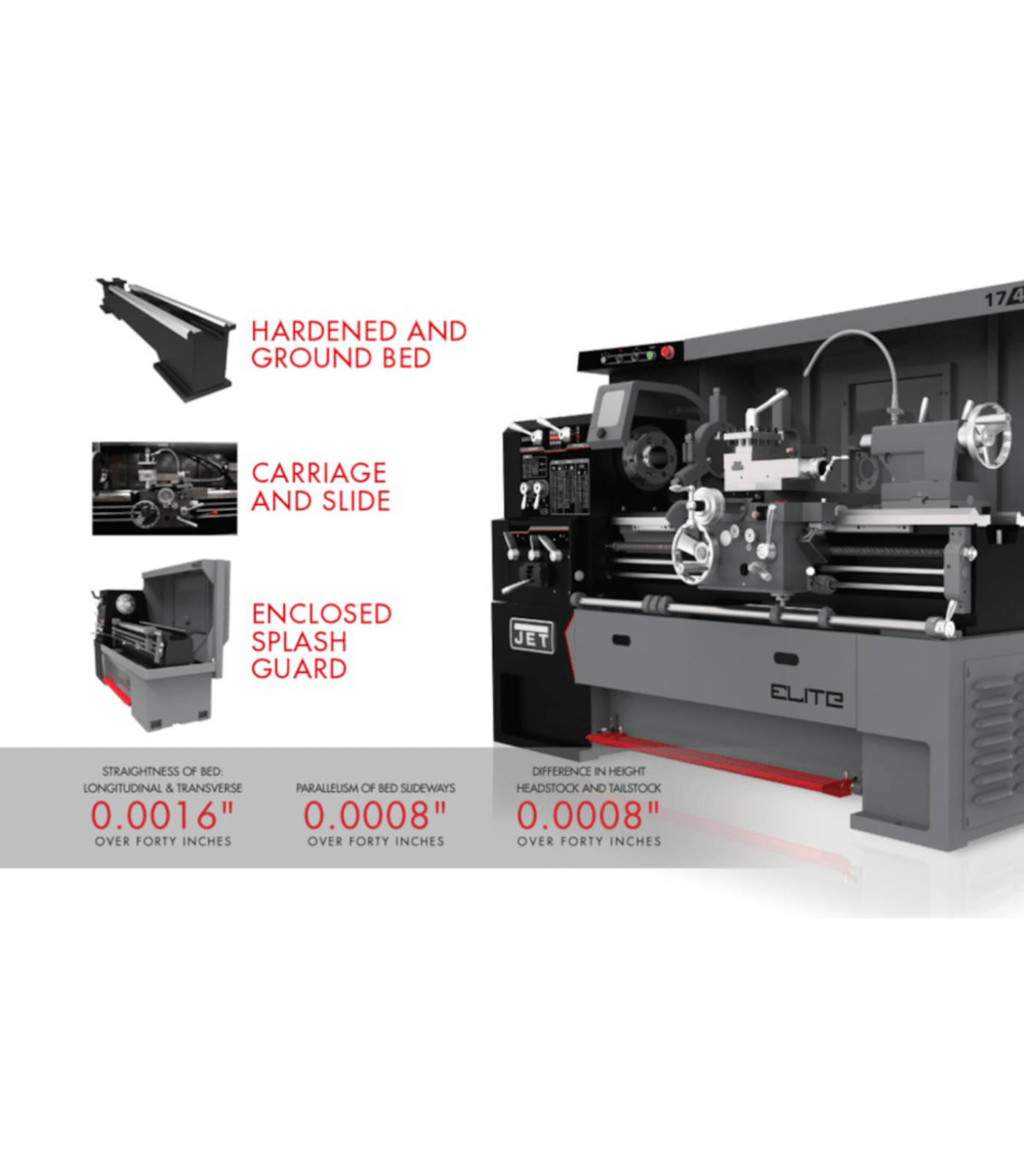

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine
    • Hardened and ground gears in headstock reduce vibration and deflection
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 14 x 40
    Style (Type) ELITE EVS
    Swing Over Bed 14 in.
    Swing Over Cross Slide 8-5/8 in.
    Swing Through Gap 20 in.
    Length of Gap 9 in.
    Spindle Bore 1-1/2 in.
    Spindle Mount D1-4
    Weight 1,653 lbs.
    Amperage Draw @ 230V 3Ph 9 A
    Spindle Taper with Sleeve MT5
    Range of Spindle Speeds 0 – 2,200 RPM
    Number of Longitudinal & Cross Feed Rates 80
    Range of Longitudinal Feeds (IPR) 0.0012 – 0.0294
    Range of Cross Feeds (IPR) 0.0003 – 0.01
    Number of Inch Threads 40
    Range of Inch Threads (TPI) 4 – 112
    Number of Metric Threads 22
    Range of Metric Threads (mm) 0.45 – 7.5
    Compound Slide Travel 4 in.
    Cross Slide Travel 7 in.
    Motor 3 HP, 230V, 3Ph
    Tailstock Spindle Travel 5 in.
    Taper in Tailstock Spindle MT3
    Steady Rest Capacity 1/4 – 2-3/4 in.
    Width of Bed 8-1/2 in.
    Overall Dimensions (L x W x H) 77 x 30 x 58 in.
    Drive EVS
    What our Experts Think
    • Variable Speed Precision – Smooth speed adjustments deliver consistent, accurate machining results.

    • ACU-RITE 203 CSS DRO – Digital readout with Constant Surface Speed control enhances accuracy and productivity.

    • Heavy-Duty Construction – Cast-iron base and headstock provide maximum rigidity and long-term durability.

    • Versatile Machining – Handles threading, turning, and general-purpose shop work with ease.

    • Operator-Friendly Design – Intuitive controls simplify operation and reduce setup time.

    • Industrial Reliability – Built for demanding use in machine shops, production facilities, and training programs.

    Q&A

    Q: What is the JET Elite E-1440VS Lathe?
    A: A 14" x 40" variable speed precision lathe equipped with an ACU-RITE 203 CSS digital readout for accurate, efficient metalworking.

    Q: What makes this lathe unique?
    A: It combines smooth variable speed control with ACU-RITE’s Constant Surface Speed (CSS) DRO technology for precision machining.

    Q: What materials can it machine?
    A: Capable of cutting steel, aluminum, brass, and other metals in industrial and professional shops.

    Q: Why is the ACU-RITE 203 CSS DRO important?
    A: It automatically adjusts spindle speed to maintain consistent cutting conditions, improving finish quality and tool life.

    Q: What size capacity does it have?
    A: 14" swing over bed and 40" distance between centers.

    Q: Where is it best used?
    A: Ideal for machine shops, prototyping, maintenance departments, and light-to-medium production.

    Q: How does it improve efficiency?
    A: The CSS DRO and variable speed drive reduce operator adjustments, save setup time, and deliver more consistent results.

    Maintenance Tips
    • Clean chips and debris from the bedways, carriage, and tooling after every use

    • Lubricate gears, bearings, and moving components per the manufacturer’s schedule

    • Inspect belts, gears, and spindle parts regularly for wear or misalignment

    • Keep DRO display, controls, and electrical connections clean and dust-free

    • Check alignment and calibration periodically to maintain machining accuracy

    • Schedule annual professional servicing for long-term precision and reliability
