    JET Elite Lathe E-1440VS with ACU-RITE 203 CSS DRO with Collet Closer - JET-892459

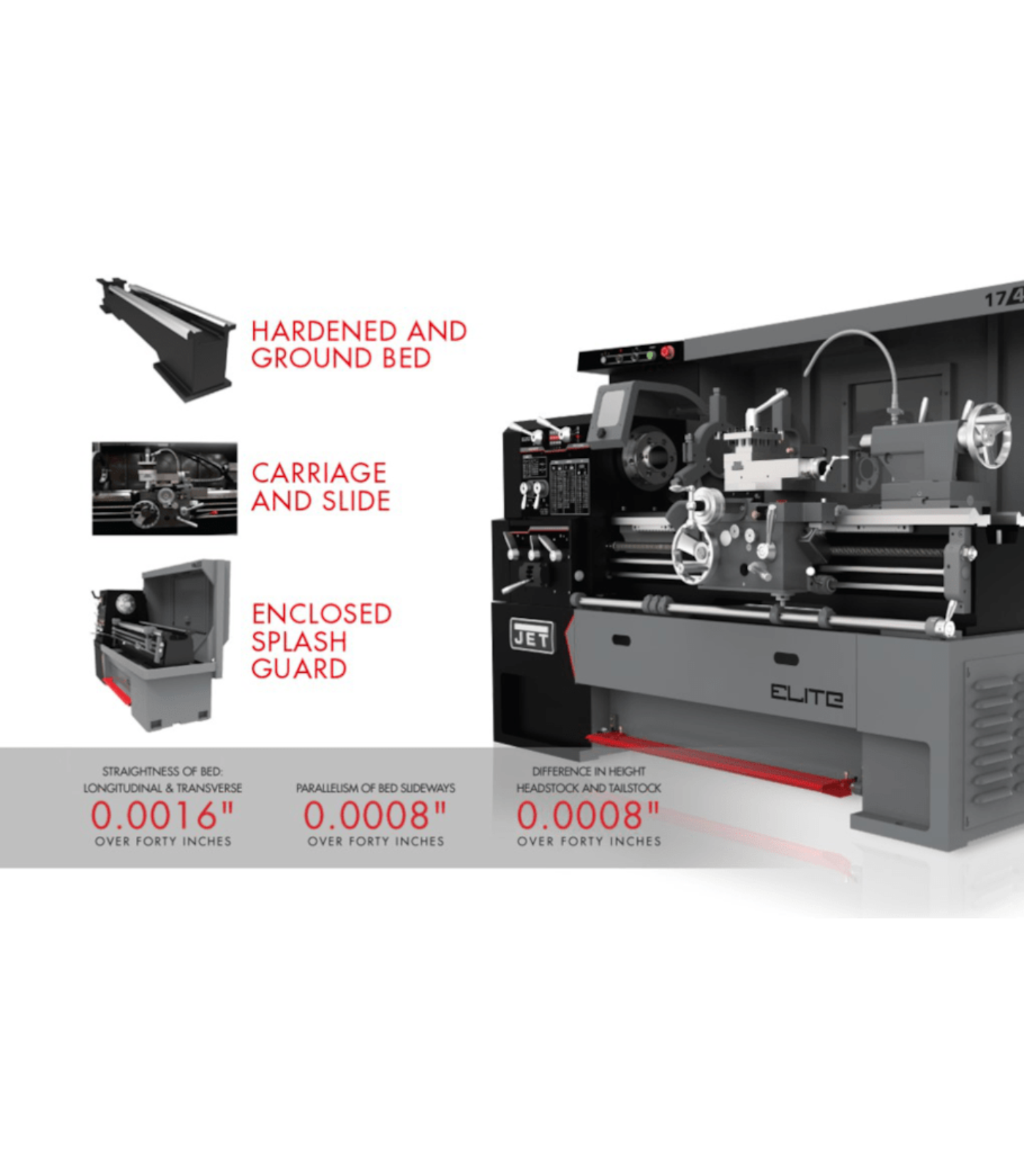

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine
    • Hardened and ground gears in headstock reduce vibration and deflection
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 14 x 40
    Style (Type) ELITE EVS
    Swing Over Bed 14 in.
    Swing Over Cross Slide 8-5/8 in.
    Swing Through Gap 20 in.
    Length of Gap 9 in.
    Spindle Bore 1-1/2 in.
    Spindle Mount D1-4
    Weight 1,653 lbs.
    Amperage Draw @ 230V 3Ph 9 A
    Spindle Taper with Sleeve MT5
    Range of Spindle Speeds 0 – 2,200 RPM
    Number of Longitudinal & Cross Feed Rates 80
    Range of Longitudinal Feeds (IPR) 0.0012 – 0.0294
    Range of Cross Feeds (IPR) 0.0003 – 0.01
    Number of Inch Threads 40
    Range of Inch Threads (TPI) 4 – 112
    Number of Metric Threads 22
    Range of Metric Threads (mm) 0.45 – 7.5
    Compound Slide Travel 4 in.
    Cross Slide Travel 7 in.
    Motor 3 HP, 230V, 3Ph
    Tailstock Spindle Travel 5 in.
    Taper in Tailstock Spindle MT3
    Steady Rest Capacity 1/4 – 2-3/4 in.
    Width of Bed 8-1/2 in.
    Overall Dimensions (L x W x H) 77 x 30 x 58 in.
    Drive EVS
    What our Experts Think
    • 14" swing and 40" center distance provide versatility for a wide range of turning jobs.

    • ACU-RITE 203 CSS DRO delivers precise readouts with constant surface speed for consistent finishes.

    • Collet closer allows quick, secure part changes, improving workflow efficiency.

    • Variable speed range (40–2,000 RPM) supports multiple materials and applications.

    • Rugged cast-iron construction reduces vibration for accuracy and long-term reliability

    Q&A

    Q: What type of lathe is the JET Elite E-1440VS?
    A: It’s a 14x40 electronic variable speed (EVS) precision lathe built for accuracy and durability in metalworking.

    Q: What does the ACU-RITE 203 CSS DRO provide?
    A: The DRO with Constant Surface Speed (CSS) ensures consistent cutting speeds, boosting precision and tool life.

    Q: What is the role of the collet closer?
    A: It allows quick, secure, and precise clamping of workpieces, improving workflow efficiency.

    Q: What is the swing over bed and distance between centers?
    A: The lathe has a 14-inch swing over bed and 40-inch distance between centers.

    Q: Where is this lathe best used?
    A: It’s ideal for machine shops, tool rooms, and industrial facilities requiring reliable, high-precision turning.

    Maintenance Tips
    • Wipe down the lathe bed, carriage, and tool post after each use to prevent chip buildup and rust.

    • Lubricate gears, leadscrews, and sliding parts according to the manufacturer’s lubrication chart.

    • Keep the ACU-RITE 203 CSS DRO display, scales, and sensors clean for accurate digital readouts.

    • Inspect and maintain the collet closer for smooth clamping and reliable workholding.

    • Regularly check spindle belts, gibs, and bearings for wear; adjust or replace as needed.

    • Verify spindle alignment and tailstock accuracy for precise turning results.

    • Tighten fasteners, tool post, and tailstock components to maintain rigidity.

    • Schedule routine servicing to extend the machine’s performance and service life.
