| Size |
14 x 40 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed |
14 in. |
| Swing Over Cross Slide |
8-5/8 in. |
| Swing Through Gap |
20 in. |
| Length of Gap |
9 in. |
| Spindle Bore |
1-1/2 in. |
| Spindle Mount |
D1-4 |
| Weight |
1,653 lbs. |
| Amperage Draw @ 230V 3Ph |
9 A |
| Spindle Taper with Sleeve |
MT5 |
| Range of Spindle Speeds |
0 – 2,200 RPM |
| Number of Longitudinal & Cross Feed Rates |
80 |
| Range of Longitudinal Feeds (IPR) |
0.0012 – 0.0294 |
| Range of Cross Feeds (IPR) |
0.0003 – 0.01 |
| Number of Inch Threads |
40 |
| Range of Inch Threads (TPI) |
4 – 112 |
| Number of Metric Threads |
22 |
| Range of Metric Threads (mm) |
0.45 – 7.5 |
| Compound Slide Travel |
4 in. |
| Cross Slide Travel |
7 in. |
| Motor |
3 HP, 230V, 3Ph |
| Tailstock Spindle Travel |
5 in. |
| Taper in Tailstock Spindle |
MT3 |
| Steady Rest Capacity |
1/4 – 2-3/4 in. |
| Width of Bed |
8-1/2 in. |

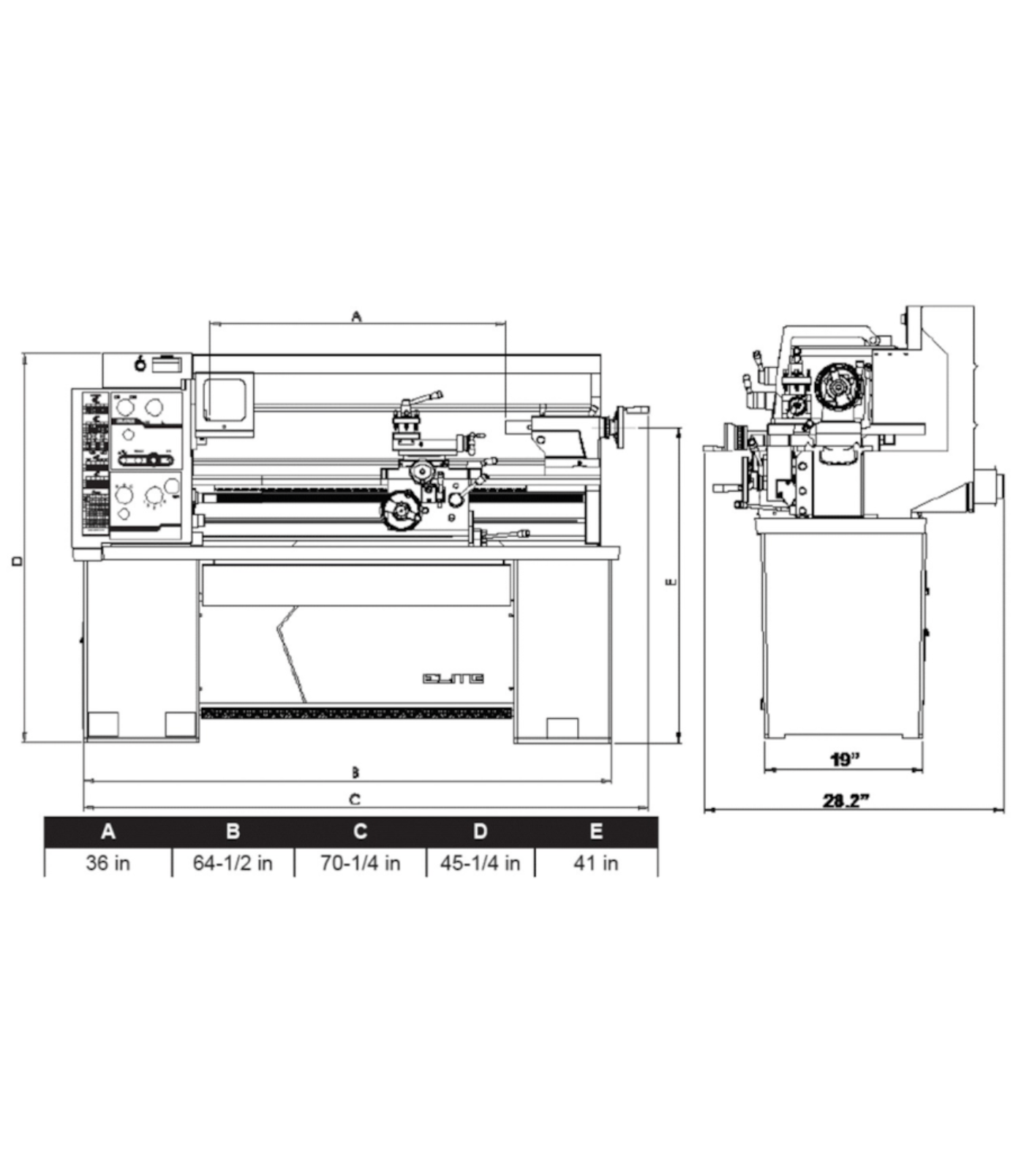

| Overall Dimensions (L x W x H) |
77 x 30 x 58 in. |
| Drive |
EVS |
What our Experts Think
-
Variable Speed Control: Smooth RPM adjustments deliver precision across a wide range of materials.
-
ACU-RITE 203 DRO: Advanced digital readout ensures accuracy and efficiency in every cut.
-
Taper Attachment: Expands versatility for precision taper turning.
-
Heavy-Duty Build: Cast-iron bed enhances stability, reduces vibration, and improves accuracy.
-
Professional Grade: Perfect for toolrooms, machine shops, and industrial metalworking operations.
Q&A

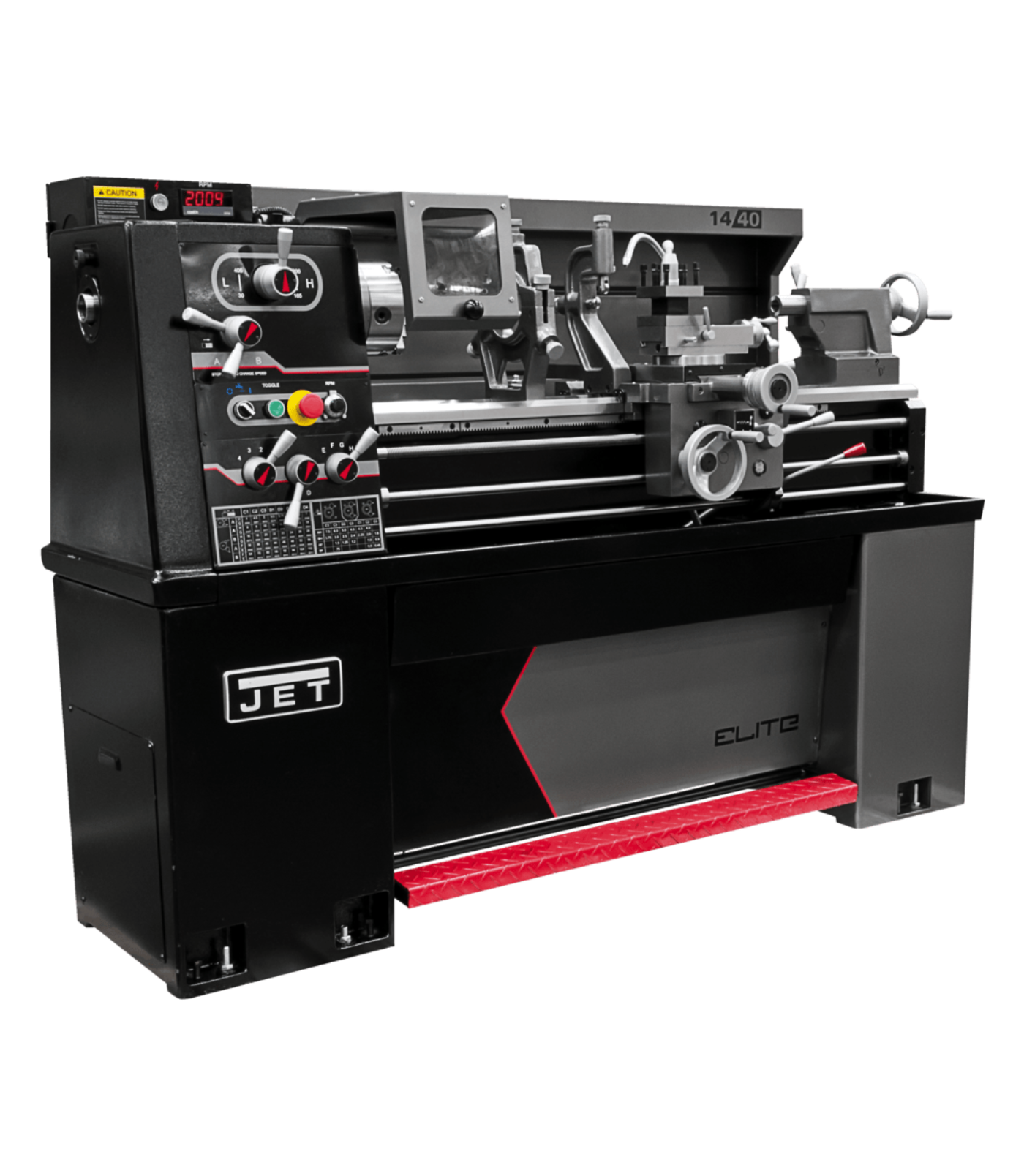

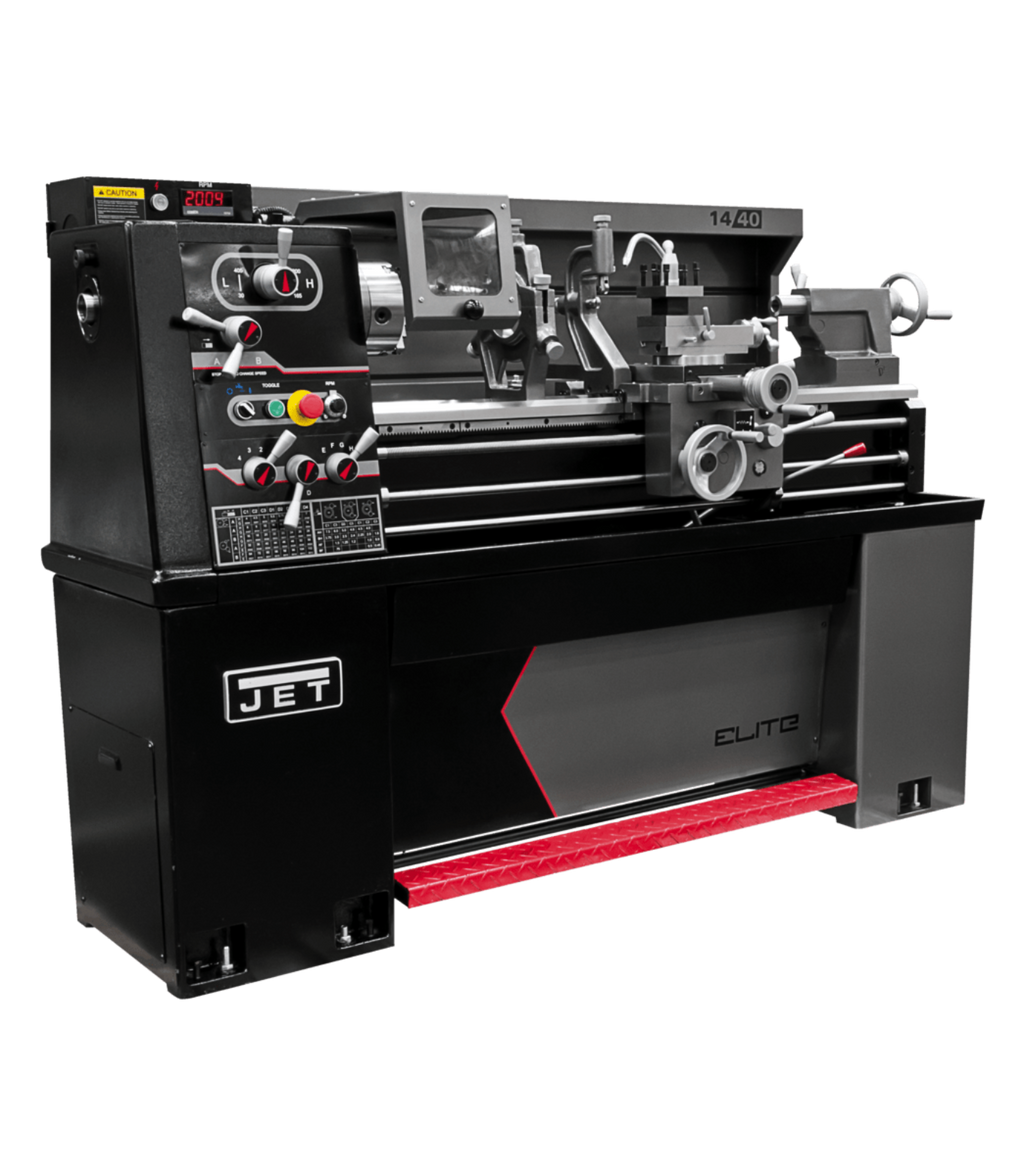

Q: What is the JET Elite E-1440VS lathe?
A: The E-1440VS is a 14" x 40" variable-speed precision lathe designed for machining, repair, and production environments.
Q: What does the ACU-RITE 203 DRO provide?
A: The ACU-RITE 203 DRO delivers accurate, easy-to-read digital measurements, improving precision and reducing setup time during machining.
Q: How does the taper attachment help?
A: The taper attachment allows precise external and internal taper cutting without complicated manual setups, saving time and ensuring accuracy.
Q: What is the spindle bore size?
A: This model features a large 2" spindle bore, ideal for working with larger stock and tubing.
Q: How does the variable-speed system improve performance?
A: The electronic variable-speed drive allows smooth spindle adjustments, optimizing cutting speeds for different materials.
Q: What motor powers the machine?
A: A robust industrial motor provides reliable torque and power for heavy-duty turning applications.
Q: How durable is the bed and ways?
A: The lathe is built with hardened, precision-ground bedways for long-lasting accuracy and rigidity.
Q: What machining operations can it perform?
A: Suitable for turning, facing, threading, boring, taper cutting, and general precision part production.
Q: Who is this lathe best for?
A: Perfect for professional machine shops, tool rooms, repair facilities, and educational programs.
Maintenance Tips
-
Clean the lathe bed, chuck, and taper attachment daily to avoid chip buildup and maintain accuracy.
-
Lubricate gears, bearings, and sliding ways regularly to reduce friction and wear.
-
Inspect DRO system and taper attachment for calibration and smooth operation.
-
Check belts, gibs, and electrical connections routinely for tension, wear, and safety.
-
Schedule professional servicing to preserve precision and extend machine longevity.
