| Size |
14 x 40 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed |
14 in. |
| Swing Over Cross Slide |
8-5/8 in. |
| Swing Through Gap |
20 in. |
| Length of Gap |
9 in. |
| Spindle Bore |
1-1/2 in. |
| Spindle Mount |
D1-4 |
| Weight |
1,653 lbs. |
| Amperage Draw @ 230V 3Ph |
9 A |
| Spindle Taper with Sleeve |
MT5 |
| Range of Spindle Speeds |
0 – 2,200 RPM |
| Number of Longitudinal & Cross Feed Rates |
80 |
| Range of Longitudinal Feeds (IPR) |
0.0012 – 0.0294 |
| Range of Cross Feeds (IPR) |
0.0003 – 0.01 |
| Number of Inch Threads |
40 |
| Range of Inch Threads (TPI) |
4 – 112 |
| Number of Metric Threads |
22 |
| Range of Metric Threads (mm) |
0.45 – 7.5 |
| Compound Slide Travel |
4 in. |
| Cross Slide Travel |
7 in. |
| Motor |
3 HP, 230V, 3Ph |
| Tailstock Spindle Travel |
5 in. |
| Taper in Tailstock Spindle |
MT3 |
| Steady Rest Capacity |
1/4 – 2-3/4 in. |
| Width of Bed |
8-1/2 in. |

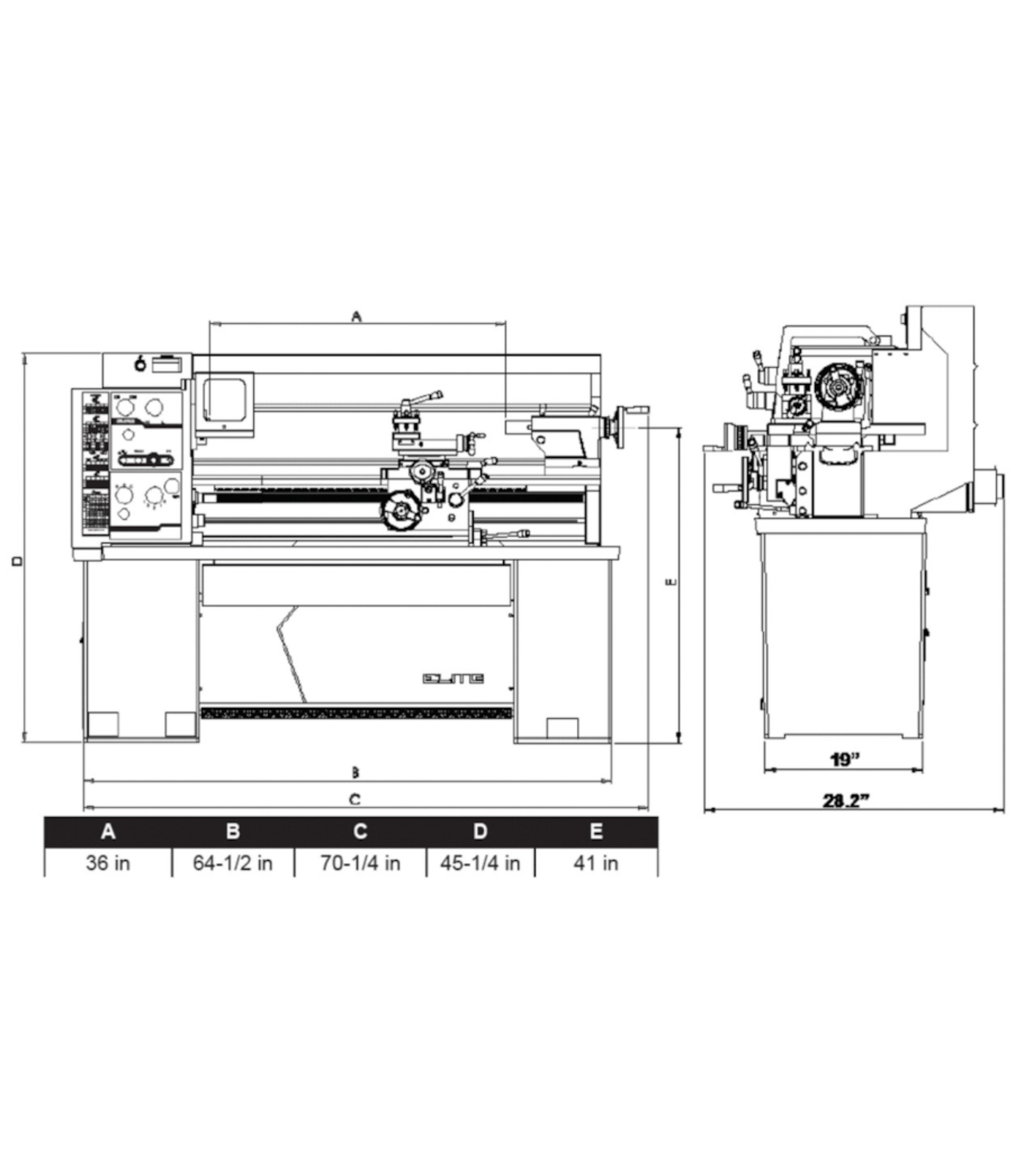

| Overall Dimensions (L x W x H) |
77 x 30 x 58 in. |
| Drive |
EVS |
What our Experts Think
-
Variable Speed Control: Smooth RPM adjustments deliver precision for diverse machining tasks.
-
ACU-RITE 303 DRO: Advanced digital readout provides accuracy and efficiency in operations.
-
Collet Closer: Improves workholding precision, especially for small-diameter parts.
-
Heavy-Duty Cast-Iron Bed: Enhances rigidity, reduces vibration, and ensures consistent accuracy.
-
Professional Grade: Built for toolrooms, machine shops, and industrial metalworking applications.
Q&A

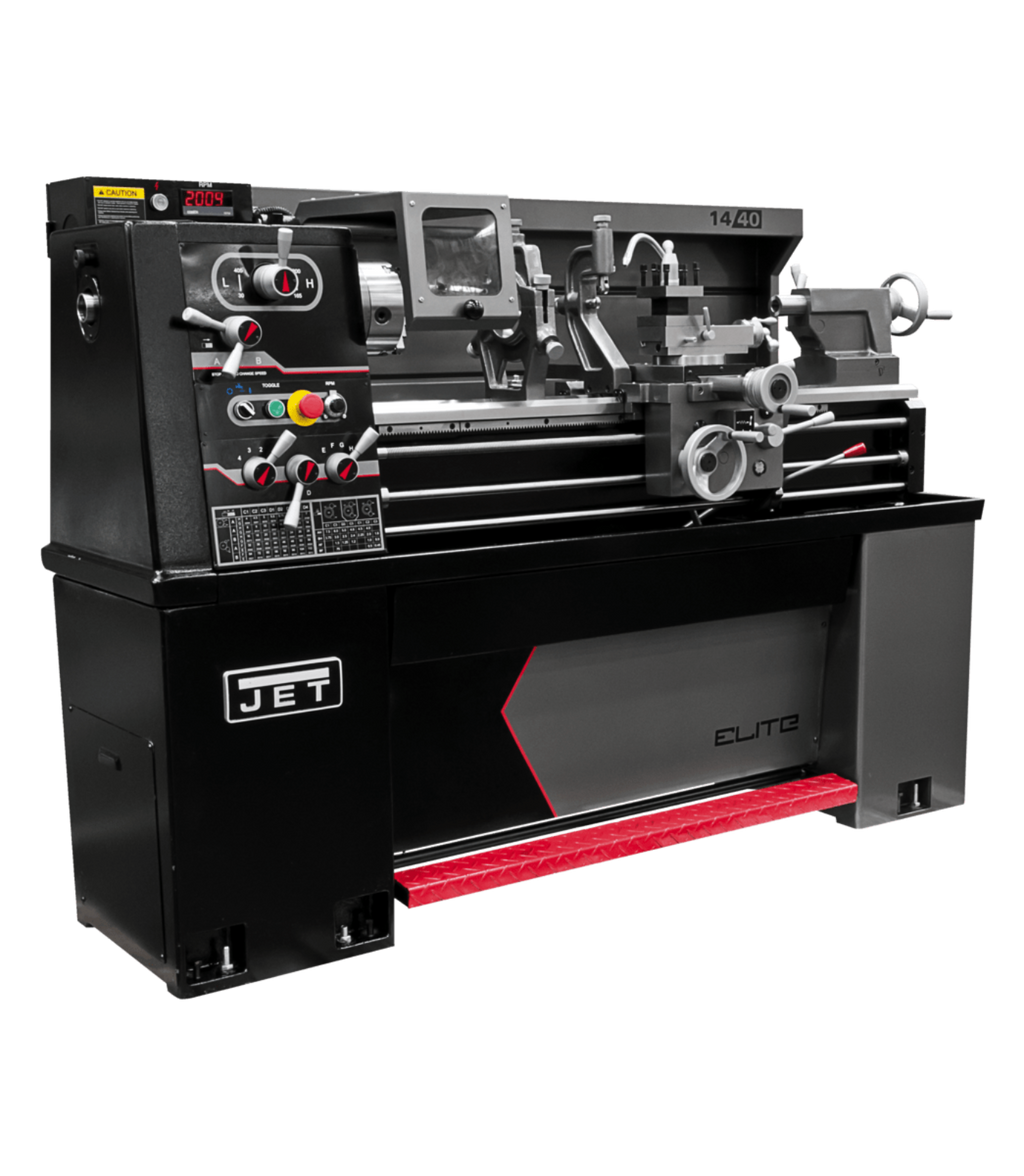

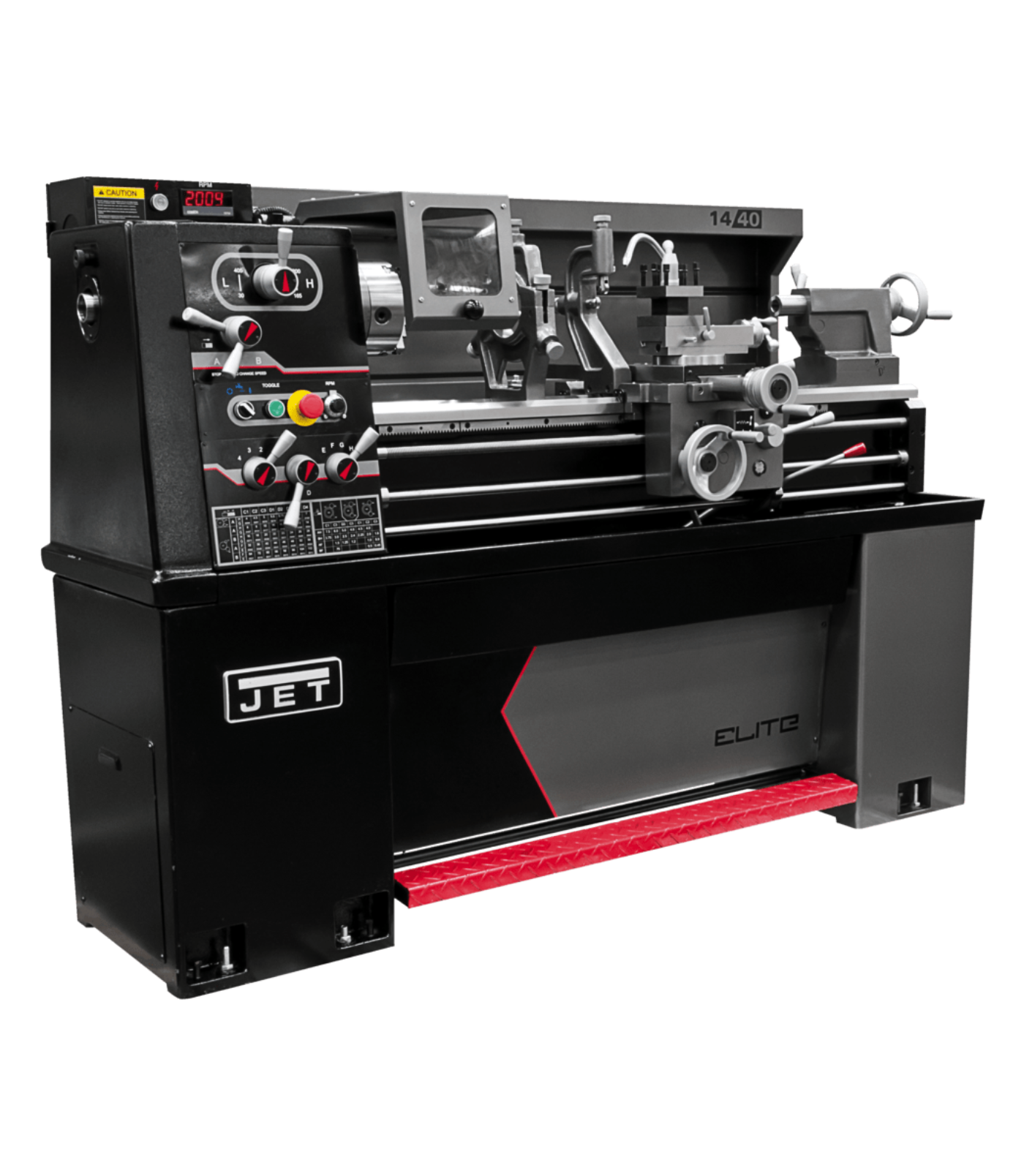

Q: What is the JET Elite E-1440VS lathe?
A: The E-1440VS is a 14" x 40" variable-speed precision lathe designed for industrial machining, tool rooms, and high-accuracy production work.
Q: What does the ACU-RITE 303 DRO provide?
A: The ACU-RITE 303 Digital Readout offers advanced accuracy, clear measurements, and multiple display functions for greater machining efficiency and reduced setup errors.
Q: How does the collet closer improve usability?
A: The collet closer allows quick, secure, and repeatable workholding, making it ideal for production runs and precision machining tasks.
Q: What is the spindle bore size?
A: This lathe comes with a 2" spindle bore, perfect for larger-diameter stock and tubing.
Q: How does the variable-speed system help?
A: The electronic variable-speed drive provides smooth, precise spindle adjustments to optimize performance across various materials.
Q: What motor powers the machine?
A: A heavy-duty industrial motor ensures consistent torque and reliable performance for demanding operations.
Q: How durable is the bed and ways?
A: The hardened, precision-ground bedways ensure rigidity, stability, and long-lasting machining accuracy.
Q: What operations can it perform?
A: Suitable for turning, facing, threading, boring, and precision part machining.
Q: Who is this lathe designed for?
A: Perfect for machine shops, repair facilities, fabrication environments, and training programs.
Maintenance Tips
-
Clean the lathe bed, carriage, and collet closer after each use to prevent chip buildup.
-
Lubricate spindle bearings, ways, and moving parts to reduce friction and extend service life.
-
Inspect collet closer alignment and tension regularly to ensure precise workholding.
-
Check ACU-RITE 303 DRO display and scales for accuracy and recalibrate if needed.
-
Monitor belts, gears, and leadscrews for wear and adjust tension as required.
-
Tighten gibs and check backlash to maintain rigidity and machining precision.
-
Perform scheduled alignment checks to keep turning accuracy consistent.
