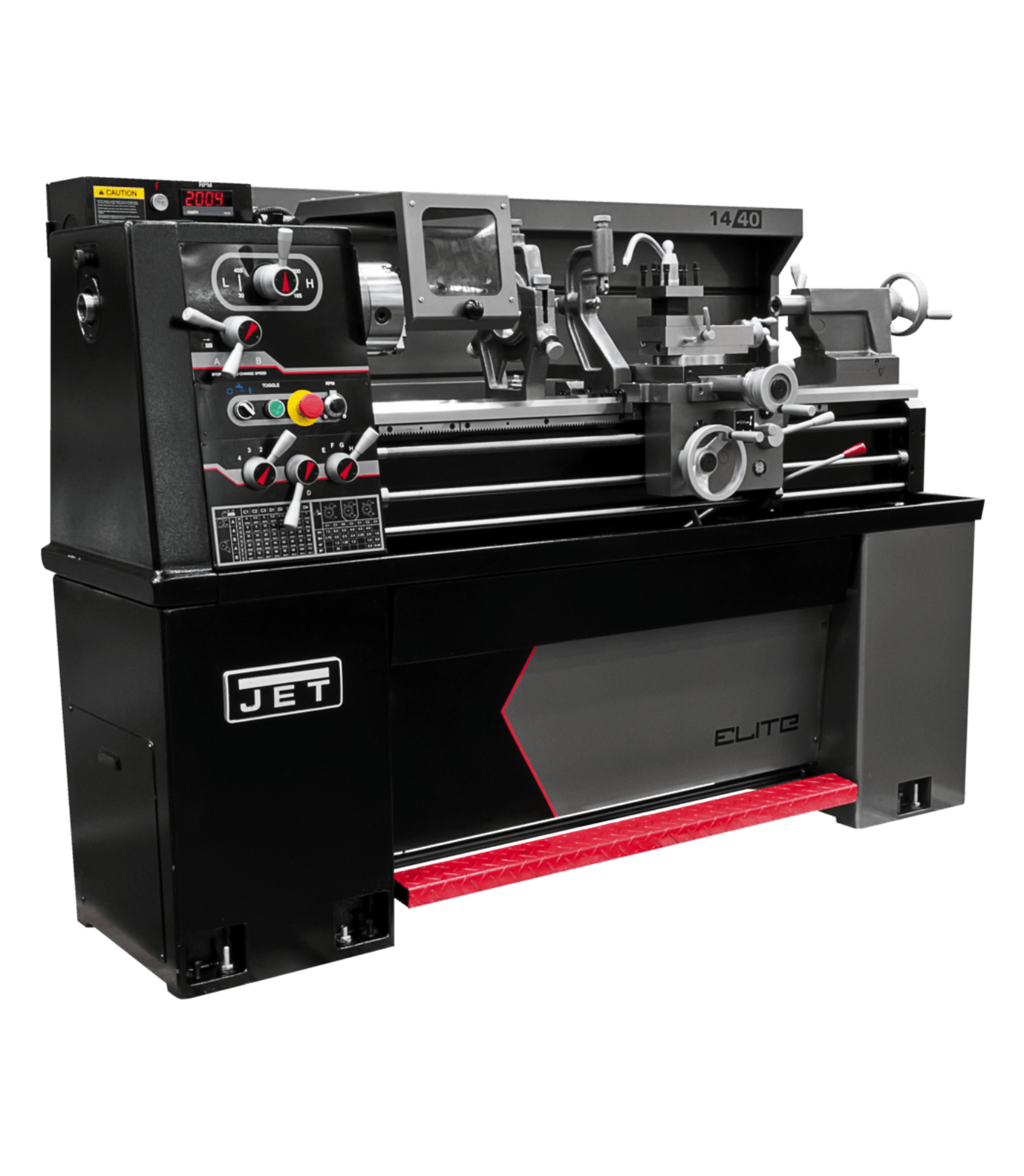

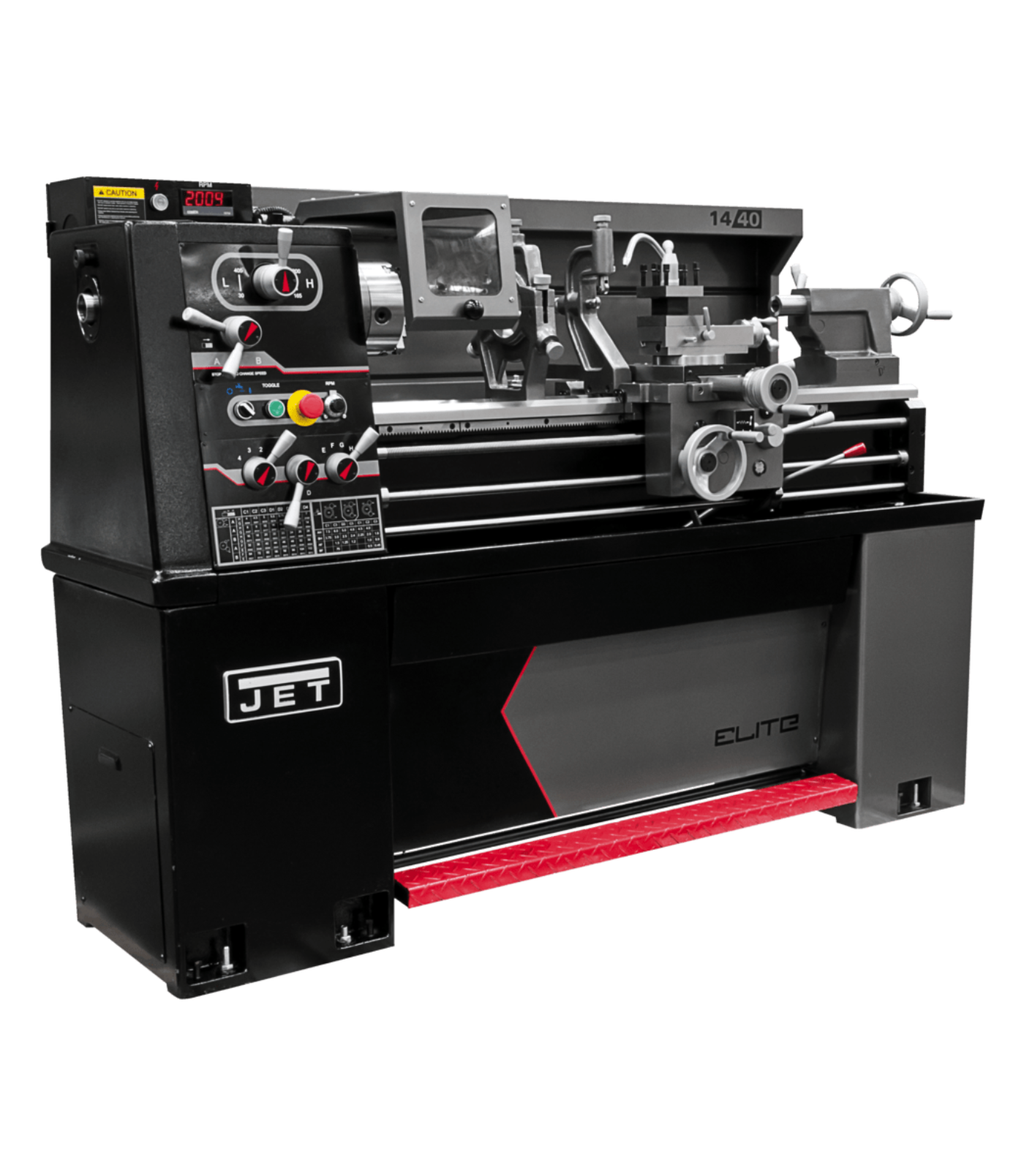

    JET Elite Lathe E-1440VS with ACU-RITE 303 DRO with Taper Attachment and Collet Closer - JT9-892464

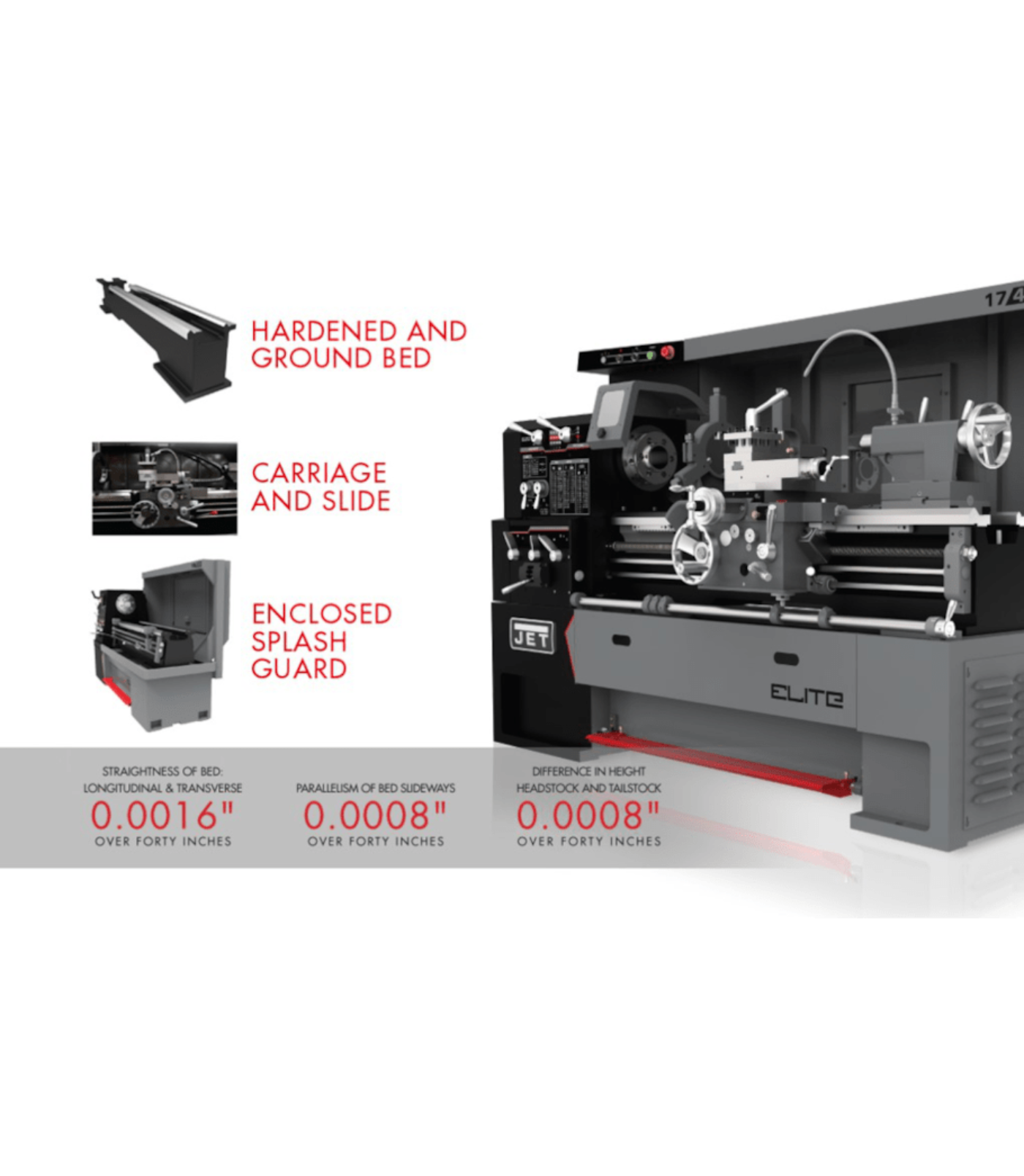

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine
    • Hardened and ground gears in headstock reduce vibration and deflection
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 14 x 40
    Style (Type) ELITE EVS
    Swing Over Bed 14 in.
    Swing Over Cross Slide 8-5/8 in.
    Swing Through Gap 20 in.
    Length of Gap 9 in.
    Spindle Bore 1-1/2 in.
    Spindle Mount D1-4
    Weight 1,653 lbs.
    Amperage Draw @ 230V 3Ph 9 A
    Spindle Taper with Sleeve MT5
    Range of Spindle Speeds 0 – 2,200 RPM
    Number of Longitudinal & Cross Feed Rates 80
    Range of Longitudinal Feeds (IPR) 0.0012 – 0.0294
    Range of Cross Feeds (IPR) 0.0003 – 0.01
    Number of Inch Threads 40
    Range of Inch Threads (TPI) 4 – 112
    Number of Metric Threads 22
    Range of Metric Threads (mm) 0.45 – 7.5
    Compound Slide Travel 4 in.
    Cross Slide Travel 7 in.
    Motor 3 HP, 230V, 3Ph
    Tailstock Spindle Travel 5 in.
    Taper in Tailstock Spindle MT3
    Steady Rest Capacity 1/4 – 2-3/4 in.
    Width of Bed 8-1/2 in.
    Overall Dimensions (L x W x H) 77 x 30 x 58 in.
    Drive EVS
    What our Experts Think
    • Precision Engineering: Variable speed control with ACU-RITE 203 DRO ensures accurate, repeatable machining.

    • Enhanced Versatility: Taper attachment supports complex turning, while collet closer speeds up secure workholding.

    • Heavy-Duty Build: Rugged cast-iron construction minimizes vibration and maximizes stability.

    • User-Friendly Design: Digital readout and ergonomic controls streamline operation for professionals.

    • Industrial-Grade Reliability: Perfect for machine shops requiring durability, precision, and efficiency.

    Q&A

    Q: What is the JET Elite E-1340VS Lathe?
    A: A precision variable speed metal lathe equipped with the ACU-RITE 203 digital readout, taper attachment, and collet closer for advanced machining versatility.

    Q: What makes it unique?
    A: Its electronic variable speed drive, precision-ground bedways, DRO for accurate digital measurement, taper attachment for angled cuts, and collet closer for quick workholding deliver maximum accuracy and efficiency.

    Q: Where can it be used?
    A: Perfect for machine shops, tool rooms, fabrication facilities, and industrial production environments.

    Q: What style of work does it suit?
    A: Precision turning, threading, facing, boring, and taper cutting on metals and alloys.

    Q: What materials is it made from?
    A: Heavy-duty cast iron base with hardened and ground components for long-term durability and vibration-free stability.

    Maintenance Tips
    • Remove chips and debris from bedways, carriage, and leadscrews after every use.

    • Lubricate gears, bearings, and sliding components per manufacturer’s schedule.

    • Keep ACU-RITE 203 DRO display and sensors clean for accurate readings.

    • Inspect taper attachment and collet closer regularly for precise, smooth operation.

    • Check belts, gibs, and fasteners for wear; cover the lathe when not in use.
