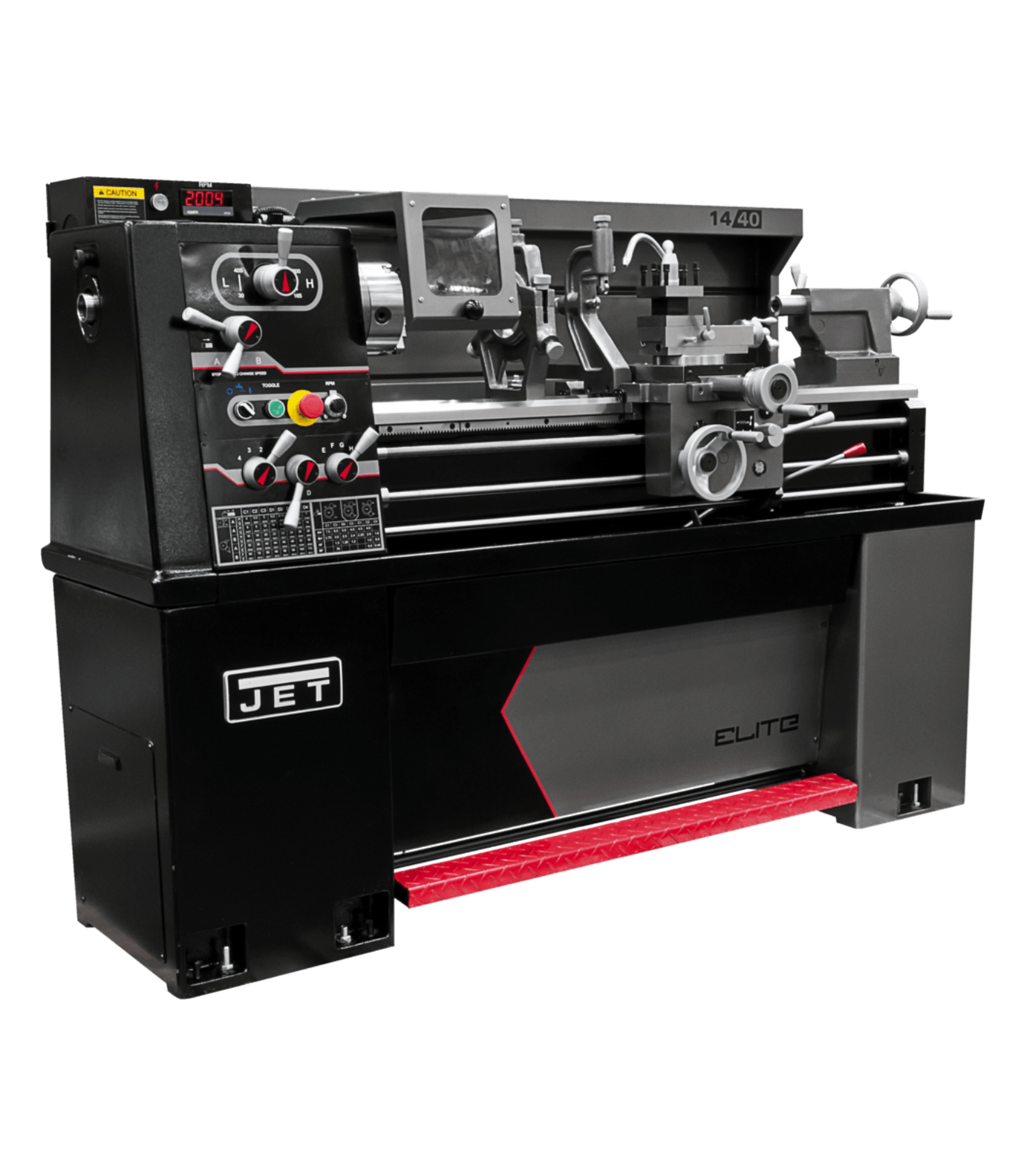

JET Elite Lathe E-1440VS with Collet Closer - JT9-892451

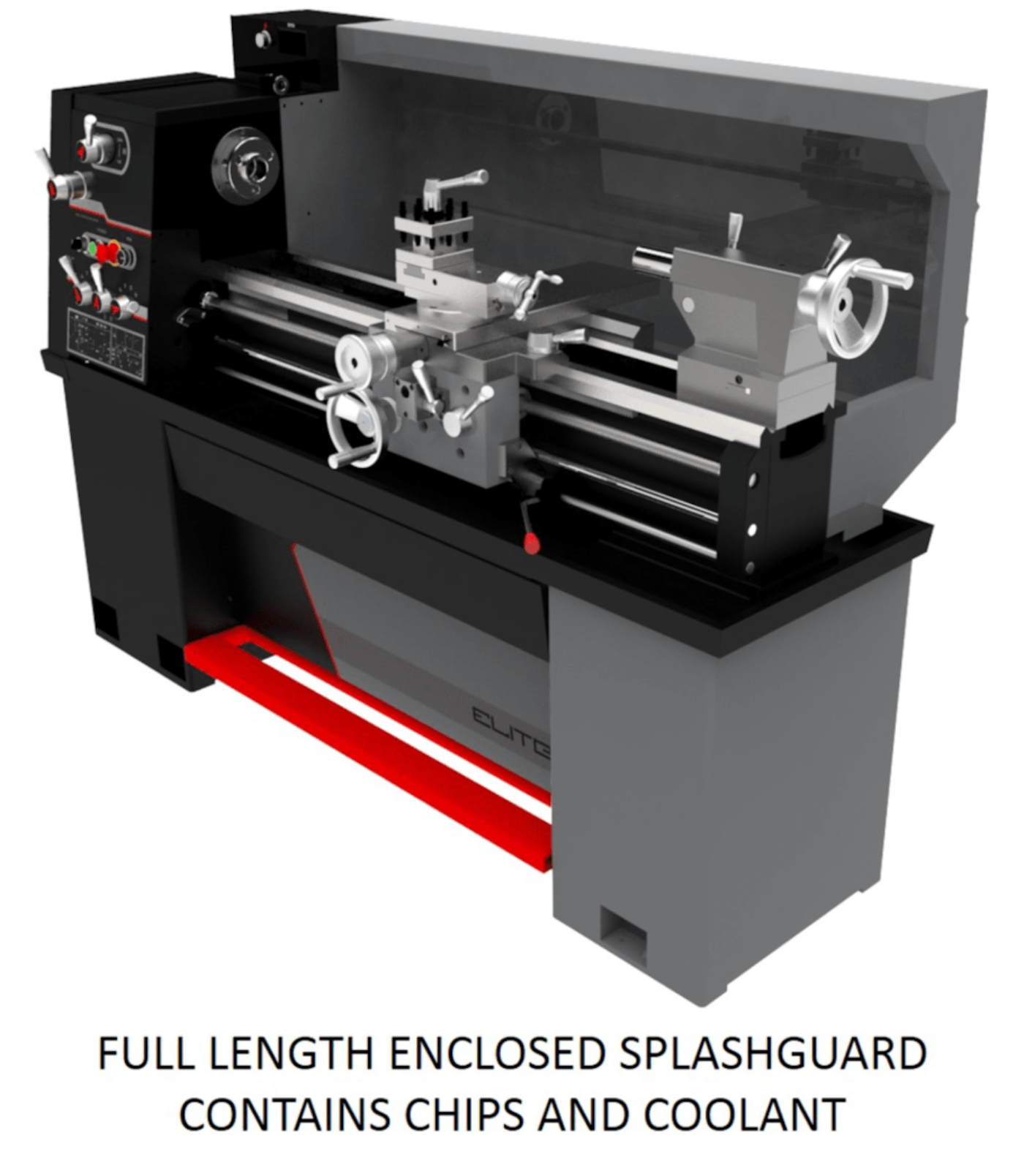

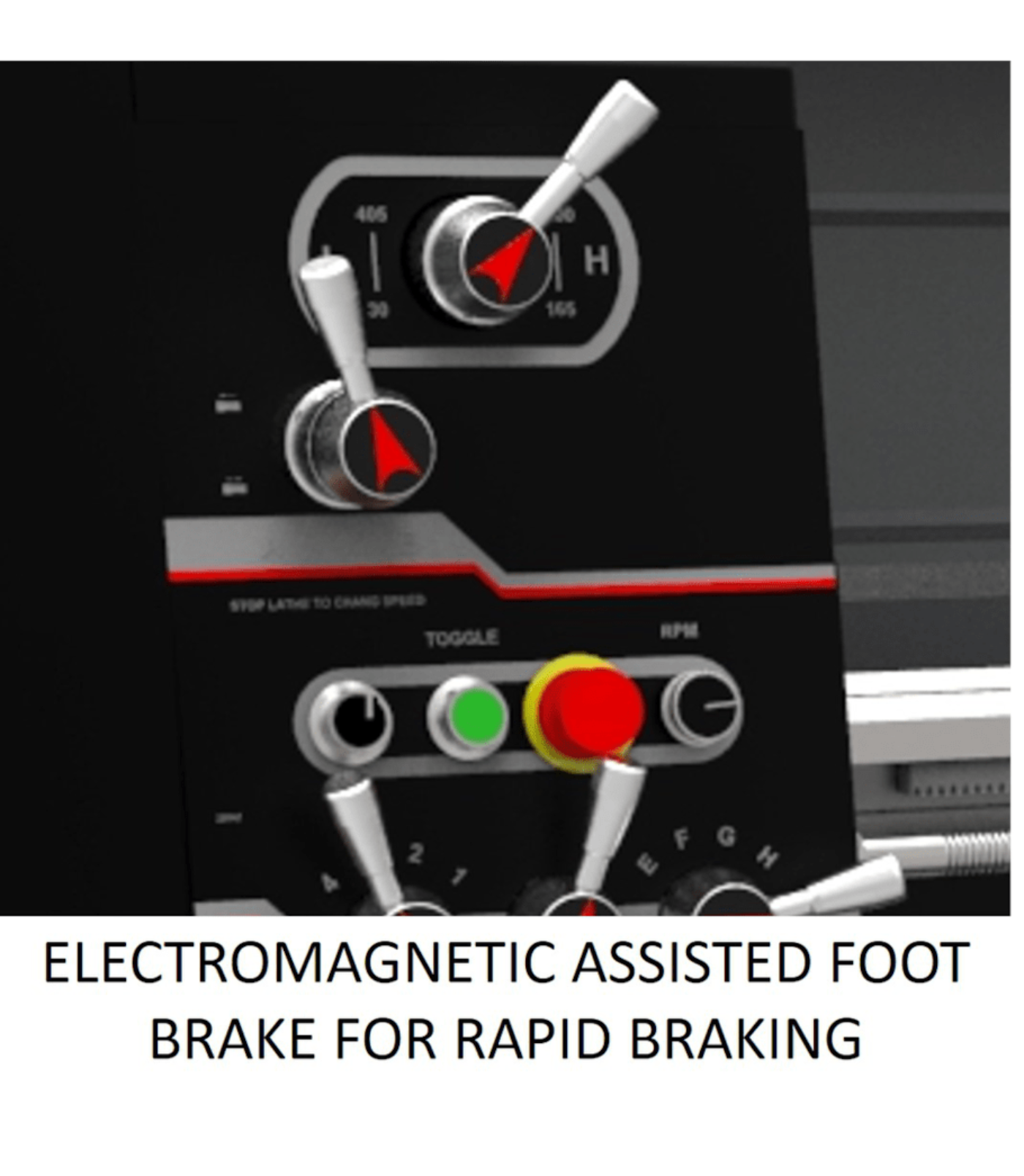

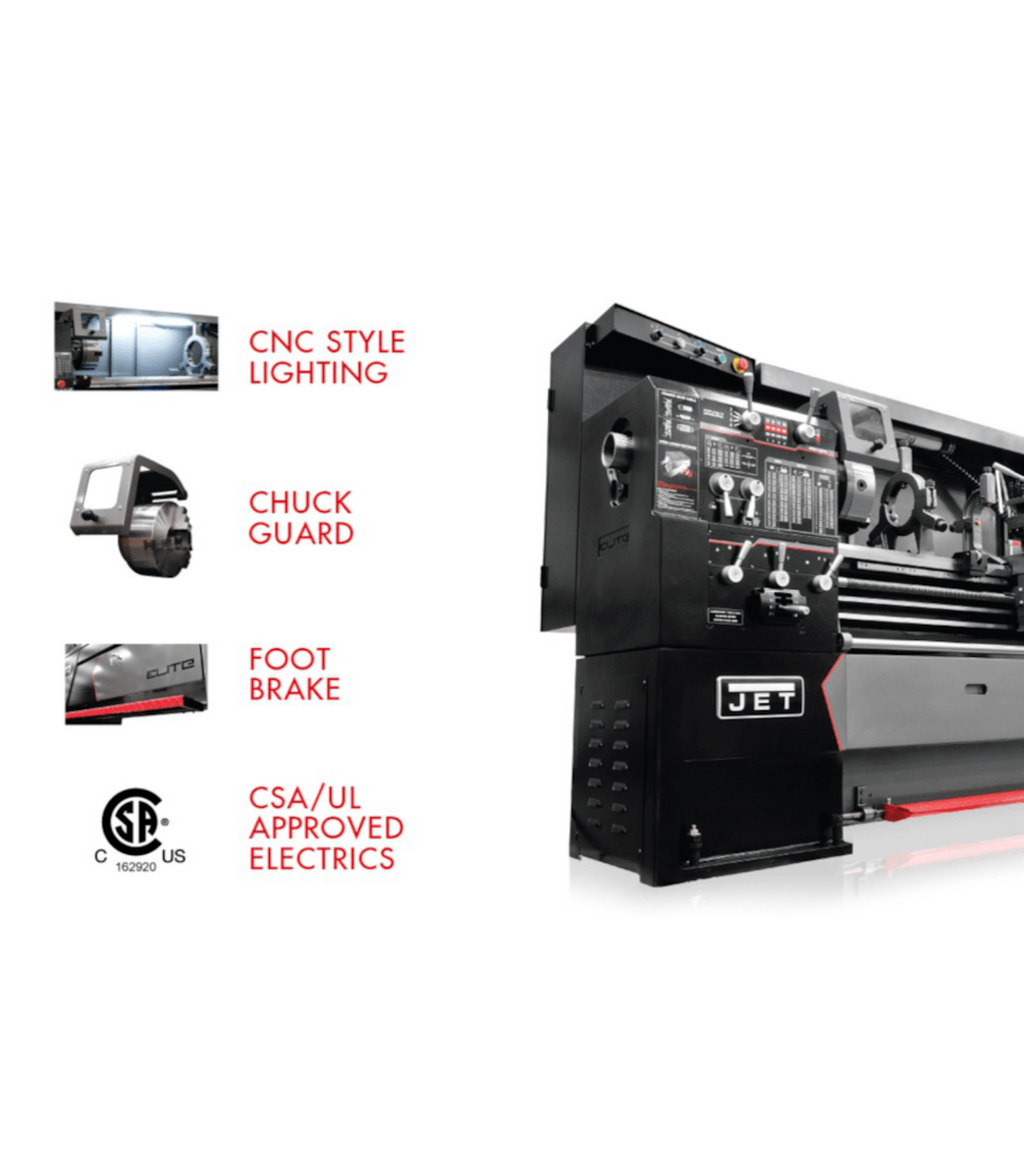

Compact, powerful, perfection. These lathes have a compact footprint and feature certified Meehanite® castings, an electromagnetic brake, 3-jaw chuck, ball bearing-mounted steady and follow rests, and CNC-style lighting with enclosed splash guard. The two-speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM. Perfect for schools, small shops, and engineering labs, these lathes are CSA/CUS Certified and truly are Elite!
Features
- 4-Position Carriage Stop
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine

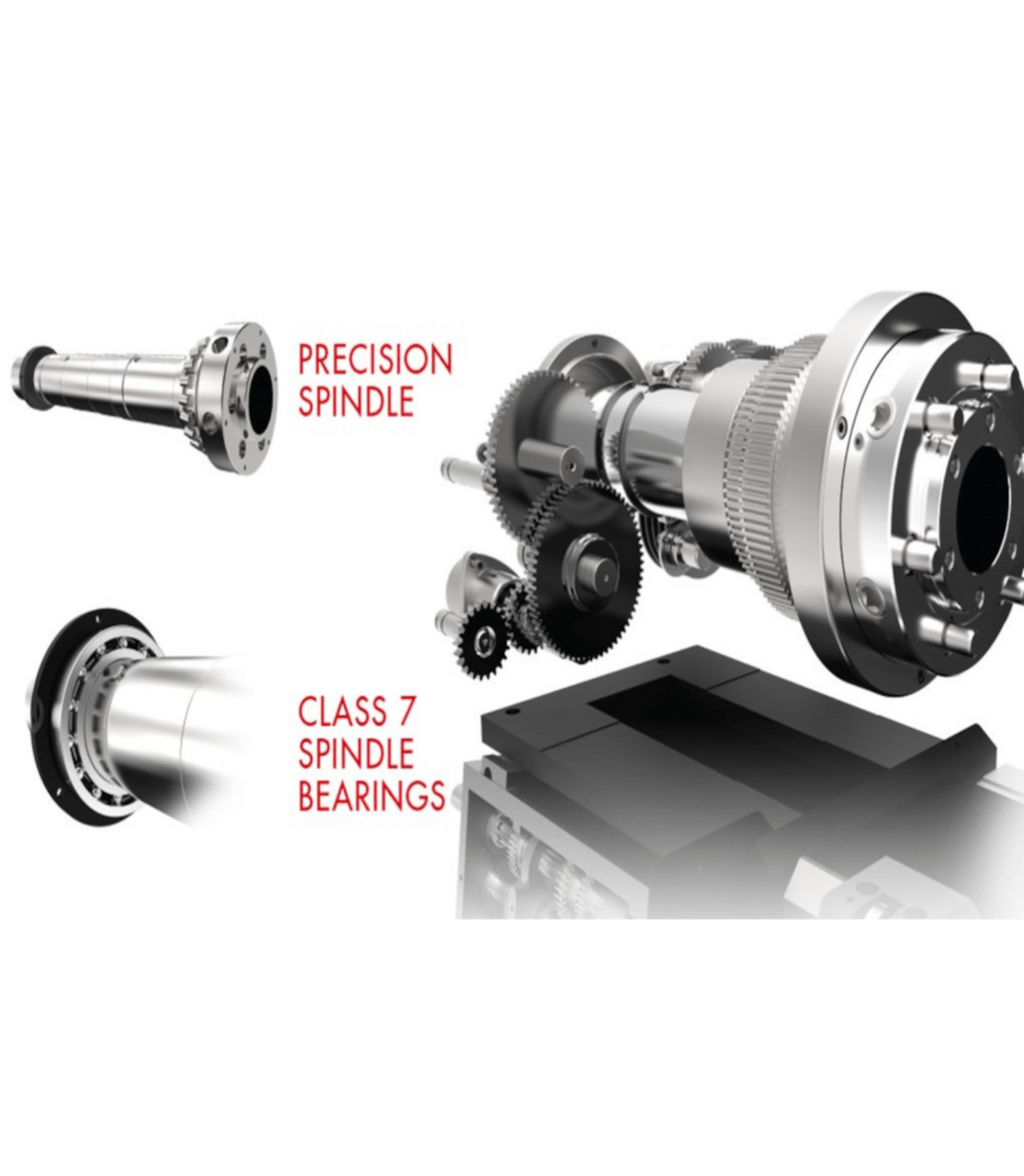

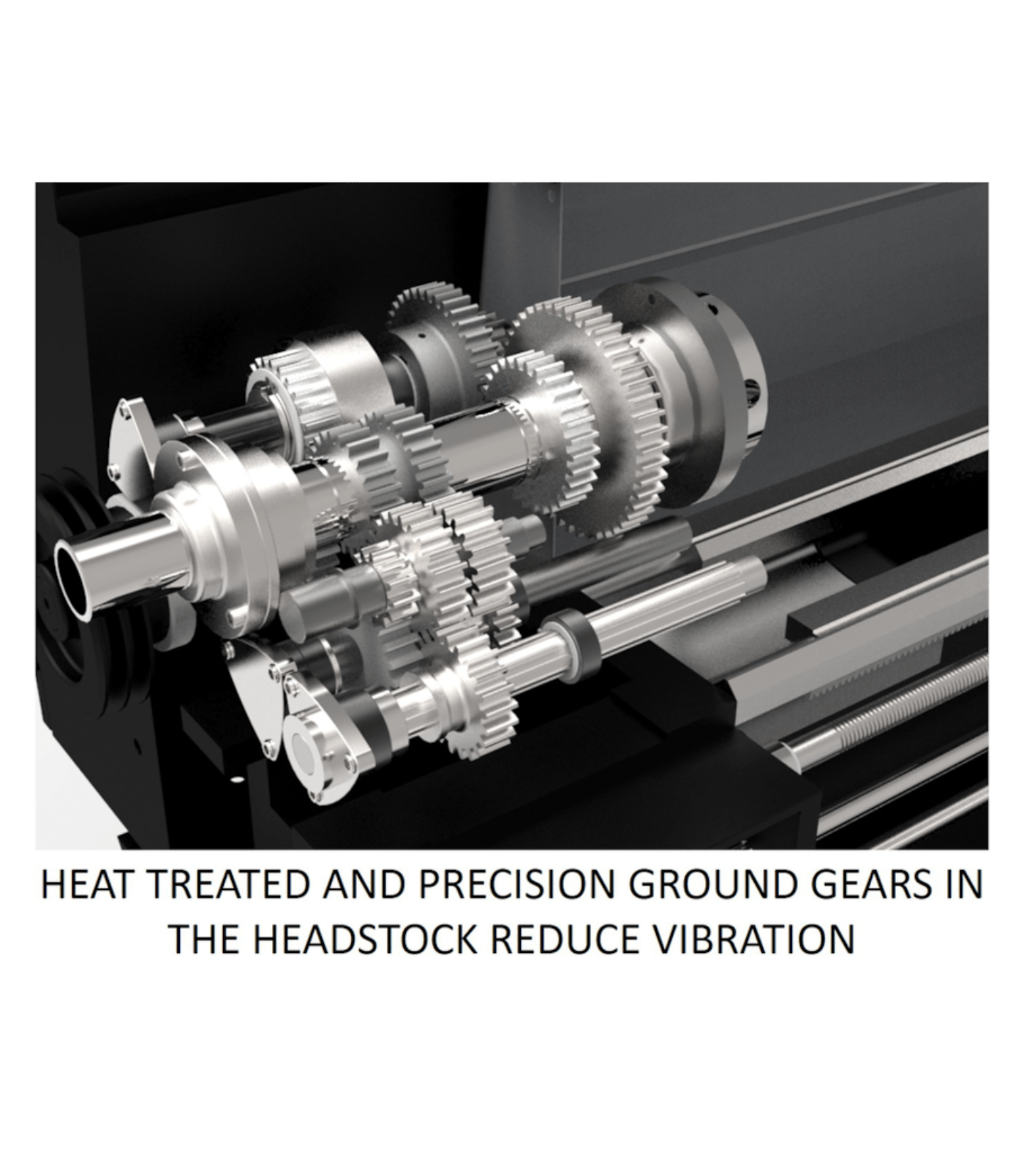

- Hardened and ground gears in headstock reduce vibration and deflection
- Heavy-duty stand with full length foot brake
- Inverter drive system provides infinitely variable spindle speeds
- LED RPM readout allows for precise turning speeds
- Steady Rest-Ball Bearing
- Variable spindle speeds
Specifications
| Size |
14 x 40 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed |
14 in. |
| Swing Over Cross Slide |
8-5/8 in. |
| Swing Through Gap |
20 in. |
| Length of Gap |
9 in. |
| Spindle Bore |
1-1/2 in. |
| Spindle Mount |
D1-4 |
| Weight |
1,653 lbs. |
| Amperage Draw @ 230V 3Ph |
9 A |
| Spindle Taper with Sleeve |
MT5 |
| Range of Spindle Speeds |
0 – 2,200 RPM |
| Number of Longitudinal & Cross Feed Rates |
80 |
| Range of Longitudinal Feeds (IPR) |
0.0012 – 0.0294 |
| Range of Cross Feeds (IPR) |
0.0003 – 0.01 |
| Number of Inch Threads |
40 |
| Range of Inch Threads (TPI) |
4 – 112 |
| Number of Metric Threads |
22 |
| Range of Metric Threads (mm) |
0.45 – 7.5 |
| Compound Slide Travel |
4 in. |
| Cross Slide Travel |
7 in. |
| Motor |
3 HP, 230V, 3Ph |
| Tailstock Spindle Travel |
5 in. |
| Taper in Tailstock Spindle |
MT3 |
| Steady Rest Capacity |
1/4 – 2-3/4 in. |
| Width of Bed |
8-1/2 in. |

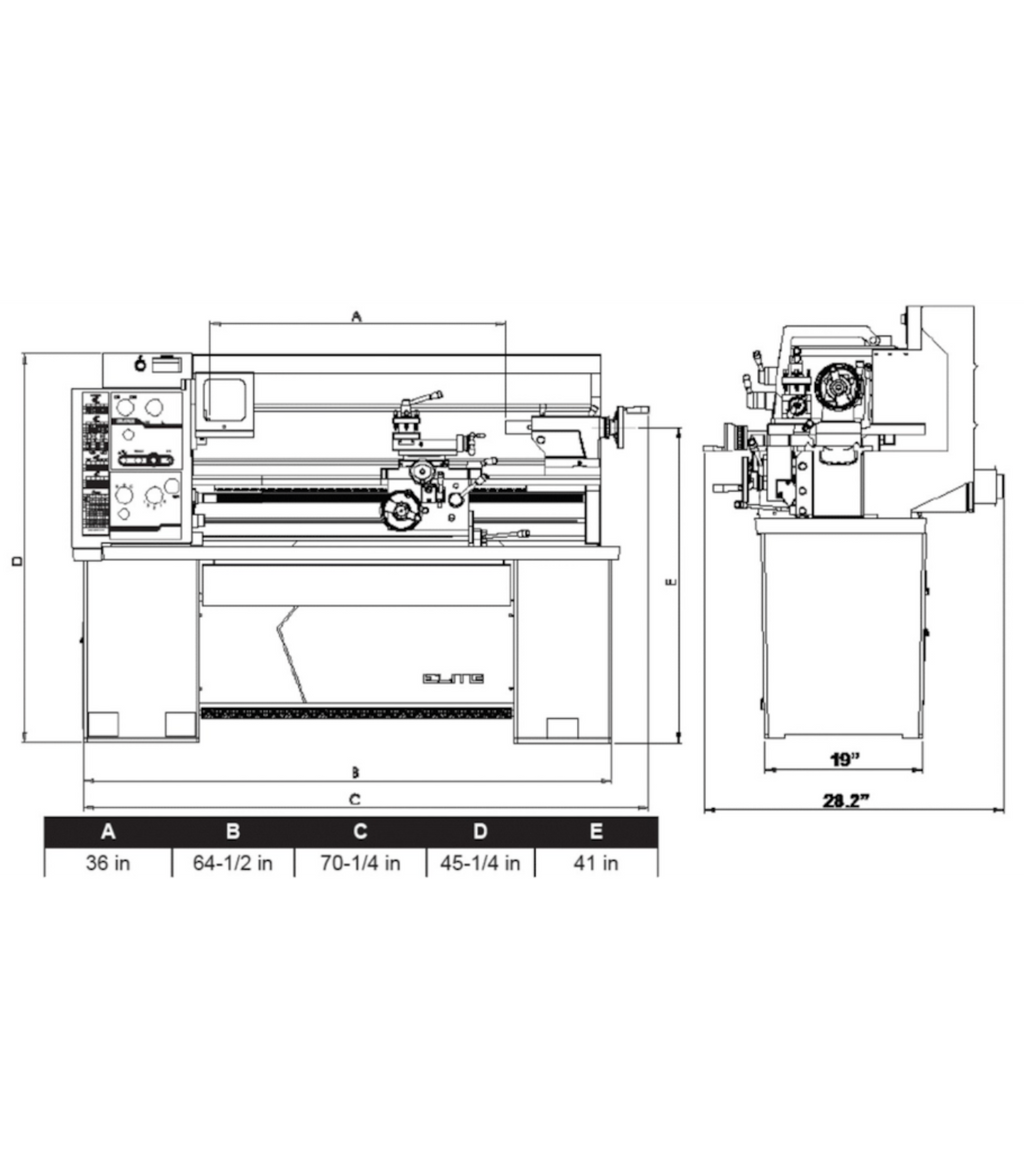

| Overall Dimensions (L x W x H) |
77 x 30 x 58 in. |
| Drive |
EVS |
What our Experts Think
-
Equipped with a collet closer for quick and secure workpiece changes, boosting productivity.
-
14" swing and 40" center distance offer versatility for small to medium-sized projects.
-
Variable speed range (40–2,000 RPM) adapts easily to different materials and finishes.
-
Solid cast-iron construction minimizes vibration, ensuring accuracy and durability.
Q&A
Q: What type of lathe is the JET Elite E-1440VS with Collet Closer?
A: It’s a 14x40 electronic variable speed (EVS) metal lathe equipped with a collet closer for precision part holding.
Q: What is the swing over bed and center distance?
A: The lathe offers a 14-inch swing over bed with a 40-inch distance between centers.
Q: How is spindle speed controlled?
A: It features electronic variable speed control with a digital readout for precise adjustments.
Q: Why is the collet closer beneficial?
A: The collet closer allows for faster, more accurate clamping of workpieces, improving efficiency in production runs.
Q: Where is this lathe best used?
A: Ideal for machine shops, tool rooms, and manufacturing environments requiring precision and repeatability.
Maintenance Tips
-
Clean the lathe bed, carriage, and tooling areas after each use to prevent chip buildup.
-
Follow the lubrication schedule for bearings, gears, and sliding components.
-
Inspect the collet closer and chuck regularly for wear, ensuring smooth clamping.
-
Check belts and drive systems for proper tension and alignment.
-
Tighten loose fasteners and tool post connections to maintain precision.
-
Keep electrical components and cooling fans free of dust and debris.
-
Schedule professional servicing periodically to extend machine life and accuracy.
