    JET Elite Lathe E-1440VS with Newall DP700 DRO with Taper Attachment - JT9-892470

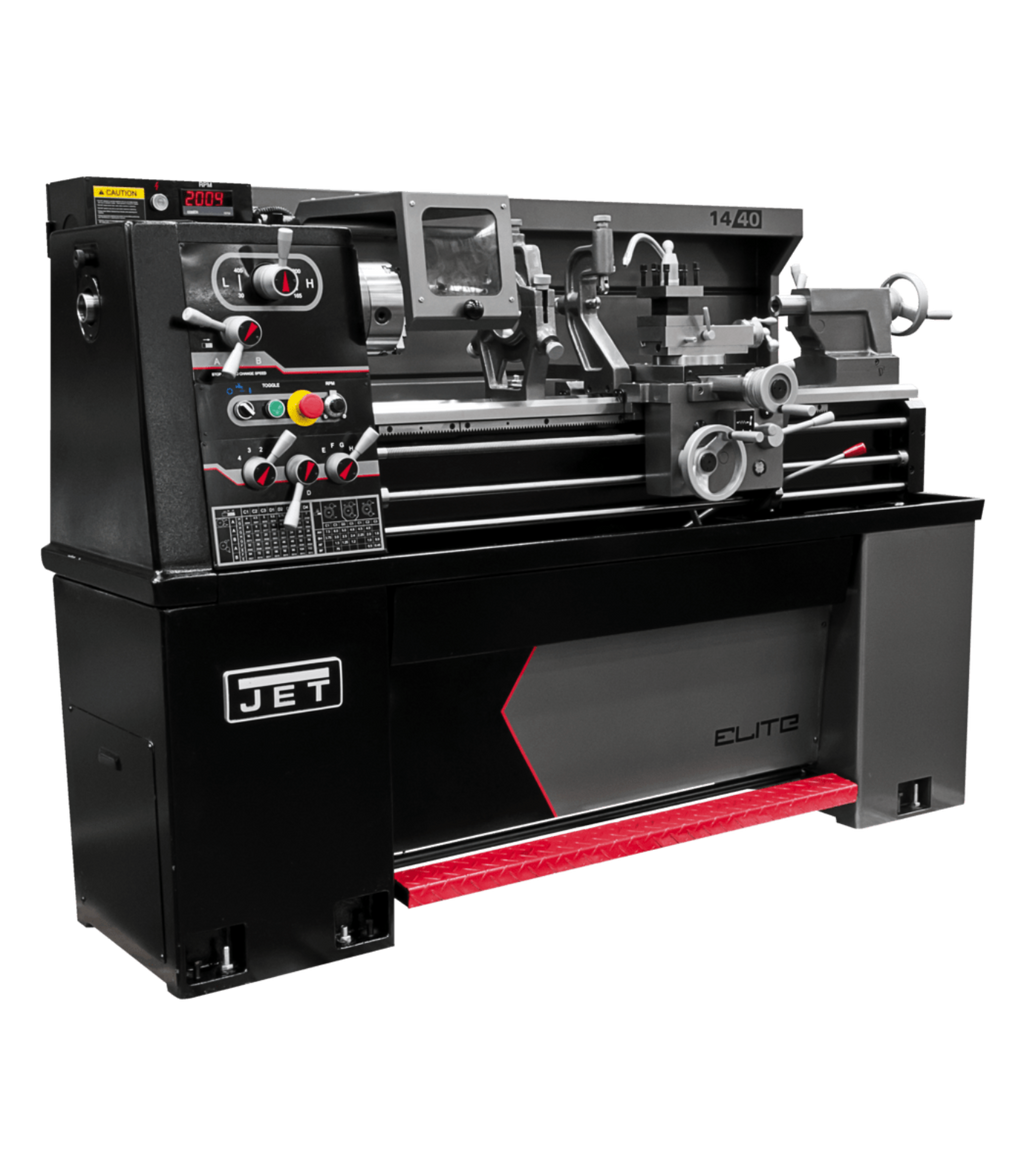

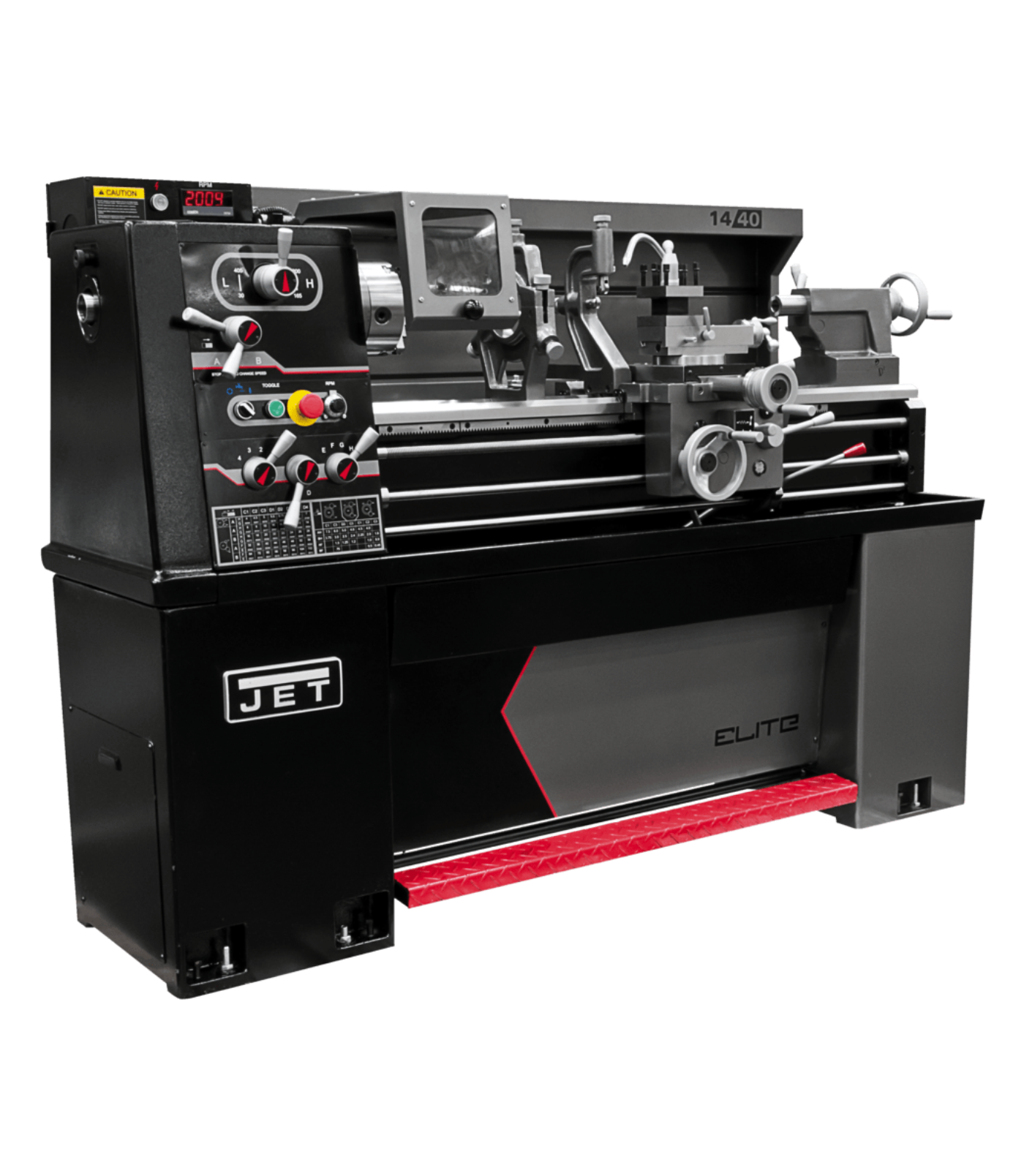

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine

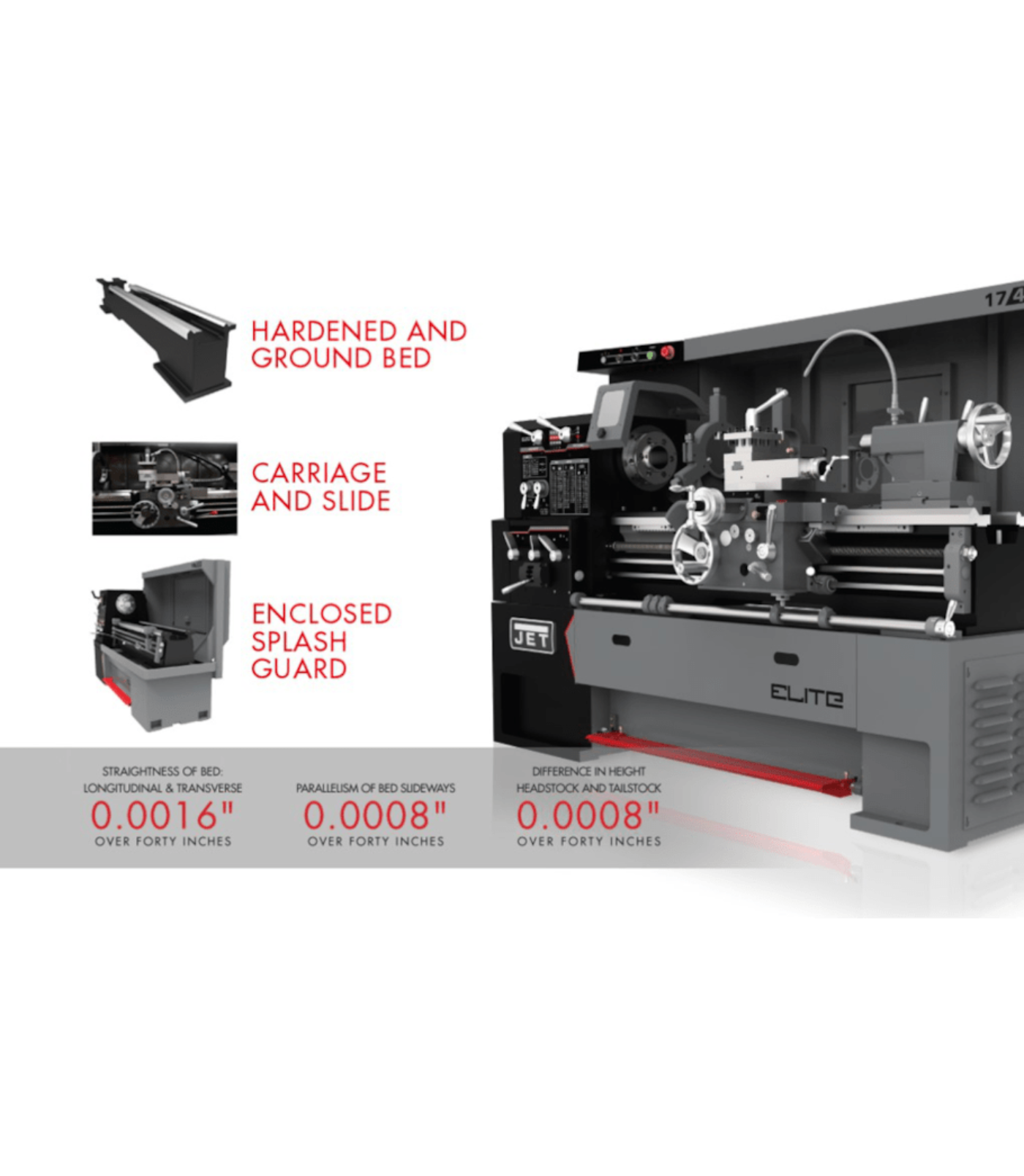

    • Hardened and ground gears in headstock reduce vibration and deflection
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 14 x 40
    Style (Type) ELITE EVS
    Swing Over Bed 14 in.
    Swing Over Cross Slide 8-5/8 in.
    Swing Through Gap 20 in.
    Length of Gap 9 in.
    Spindle Bore 1-1/2 in.
    Spindle Mount D1-4
    Weight 1,653 lbs.
    Amperage Draw @ 230V 3Ph 9 A
    Spindle Taper with Sleeve MT5
    Range of Spindle Speeds 0 – 2,200 RPM
    Number of Longitudinal & Cross Feed Rates 80
    Range of Longitudinal Feeds (IPR) 0.0012 – 0.0294
    Range of Cross Feeds (IPR) 0.0003 – 0.01
    Number of Inch Threads 40
    Range of Inch Threads (TPI) 4 – 112
    Number of Metric Threads 22
    Range of Metric Threads (mm) 0.45 – 7.5
    Compound Slide Travel 4 in.
    Cross Slide Travel 7 in.
    Motor 3 HP, 230V, 3Ph
    Tailstock Spindle Travel 5 in.
    Taper in Tailstock Spindle MT3
    Steady Rest Capacity 1/4 – 2-3/4 in.
    Width of Bed 8-1/2 in.
    Overall Dimensions (L x W x H) 77 x 30 x 58 in.
    Drive EVS
    What our Experts Think
    • 14" swing and 40" center distance give versatility for a wide range of machining tasks.

    • Newall DP700 DRO ensures accurate, easy-to-read measurements for precision work.

    • Taper attachment allows efficient taper cutting without complicated setups.

    • Variable speed range (40–2,000 RPM) adapts to different materials and finishes.

    • Rugged cast-iron construction provides stability, durability, and reduced vibration.

    Q&A

    Q: What type of lathe is the JET Elite E-1440VS?
    A: It’s a 14x40 electronic variable speed (EVS) precision lathe built for accurate and versatile metalworking.

    Q: What does the Newall DP700 DRO provide?
    A: The digital readout offers highly accurate, reliable measurements with an easy-to-read interface.

    Q: What is the benefit of the taper attachment?
    A: It allows precise cutting of tapers without moving the compound rest, improving efficiency and accuracy.

    Q: What is the swing over bed and center distance?
    A: This model has a 14-inch swing over bed with a 40-inch distance between centers.

    Q: Where is this lathe commonly used?
    A: Ideal for machine shops, tool rooms, and industrial environments requiring precision turning.

    Maintenance Tips
    • Clean bedways, carriage, and tooling surfaces after each use to prevent chip buildup.

    • Lubricate gears, bearings, and sliding parts on schedule to ensure smooth operation.

    • Keep Newall DP700 DRO scales and sensors clean for consistent accuracy.

    • Inspect and maintain the taper attachment regularly for precise performance.

    • Check drive belts, feed screws, and alignment for proper wear and tension.

    • Tighten tool post, tailstock, and fasteners to maintain machining precision.

    • Keep electrical components and cooling fans free of dust and debris.

    • Schedule routine professional servicing to extend accuracy and machine lifespan.
