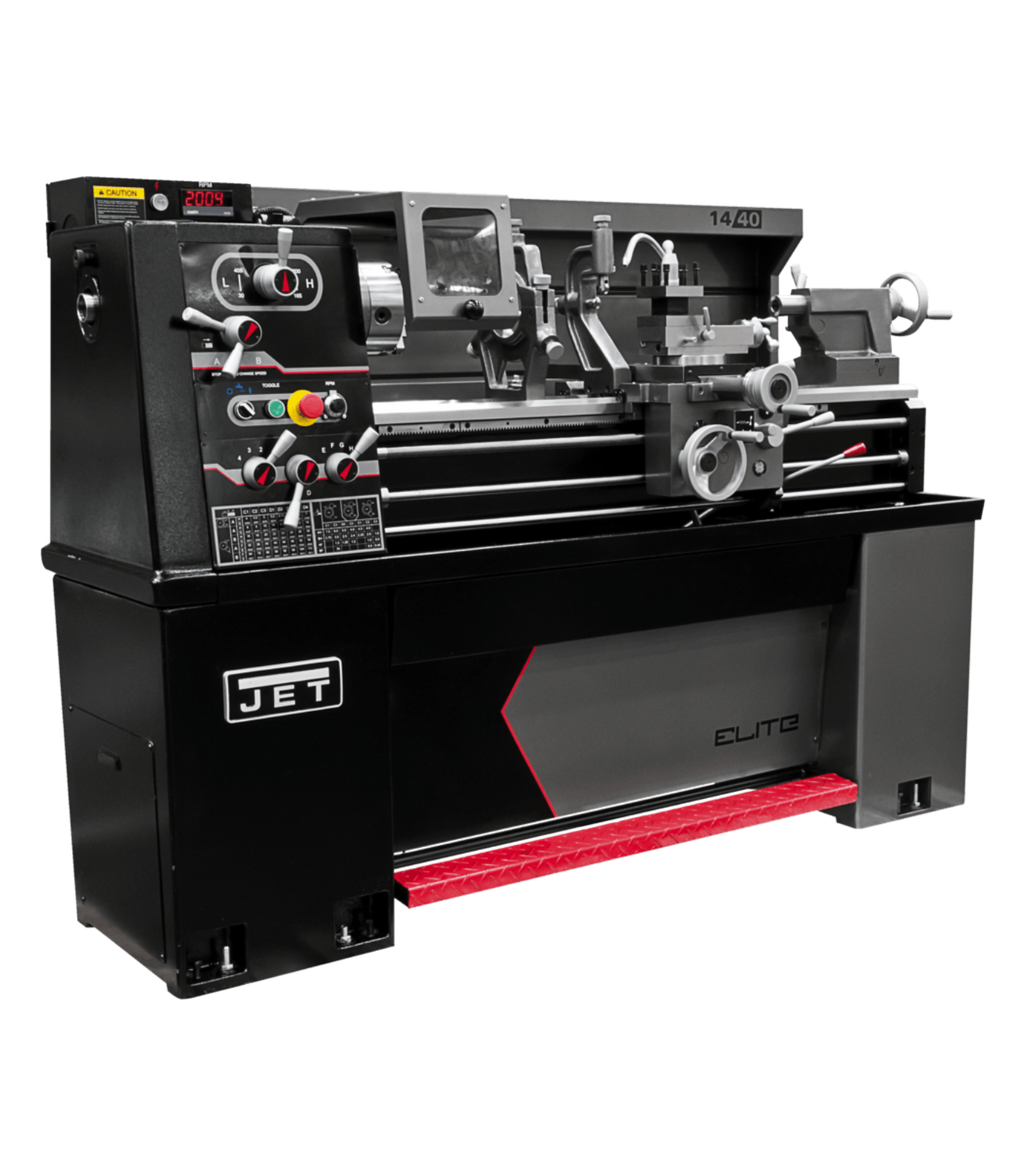

    JET Elite Lathe E-1440VS with Taper Attachment - JT9-892450

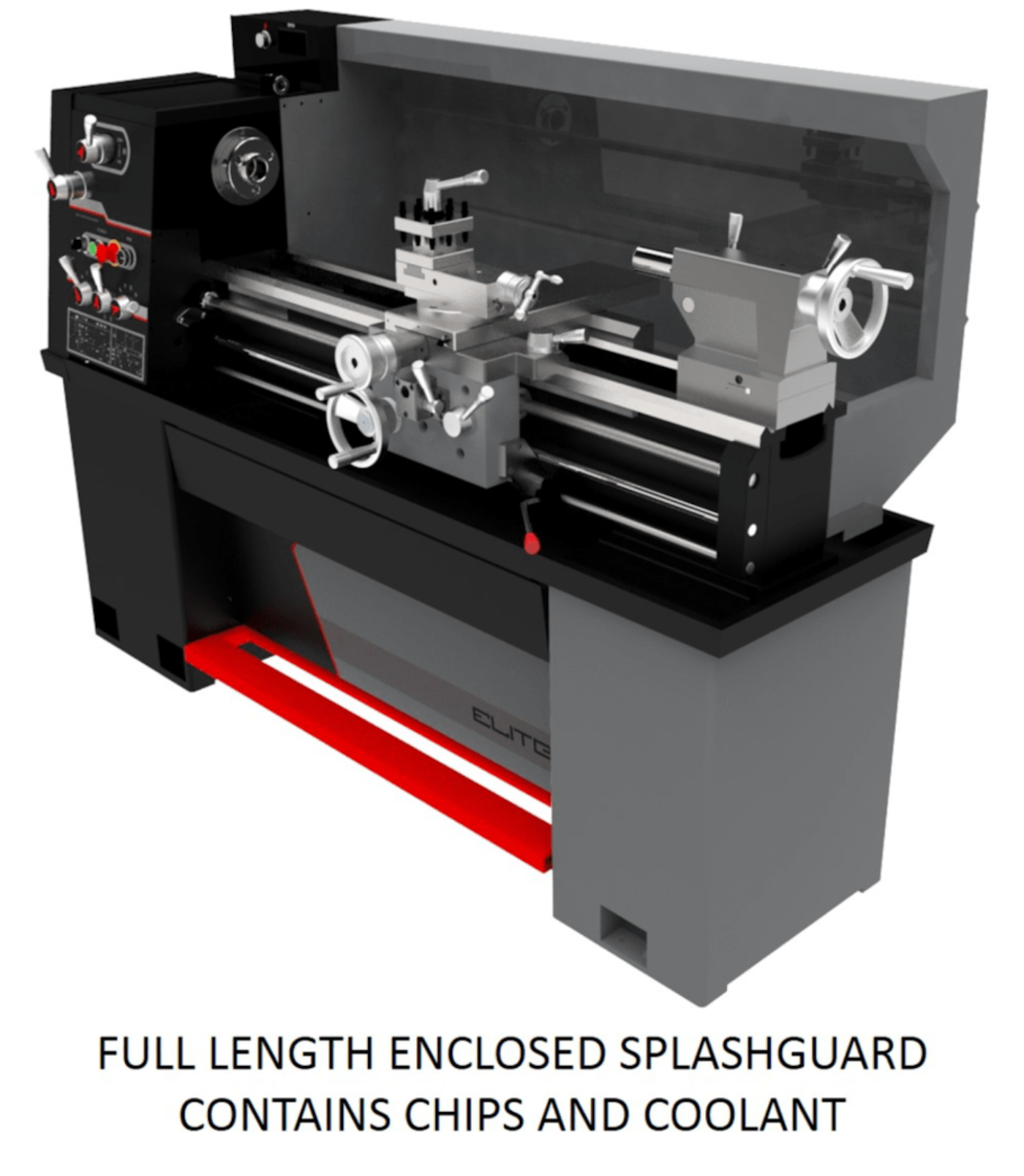

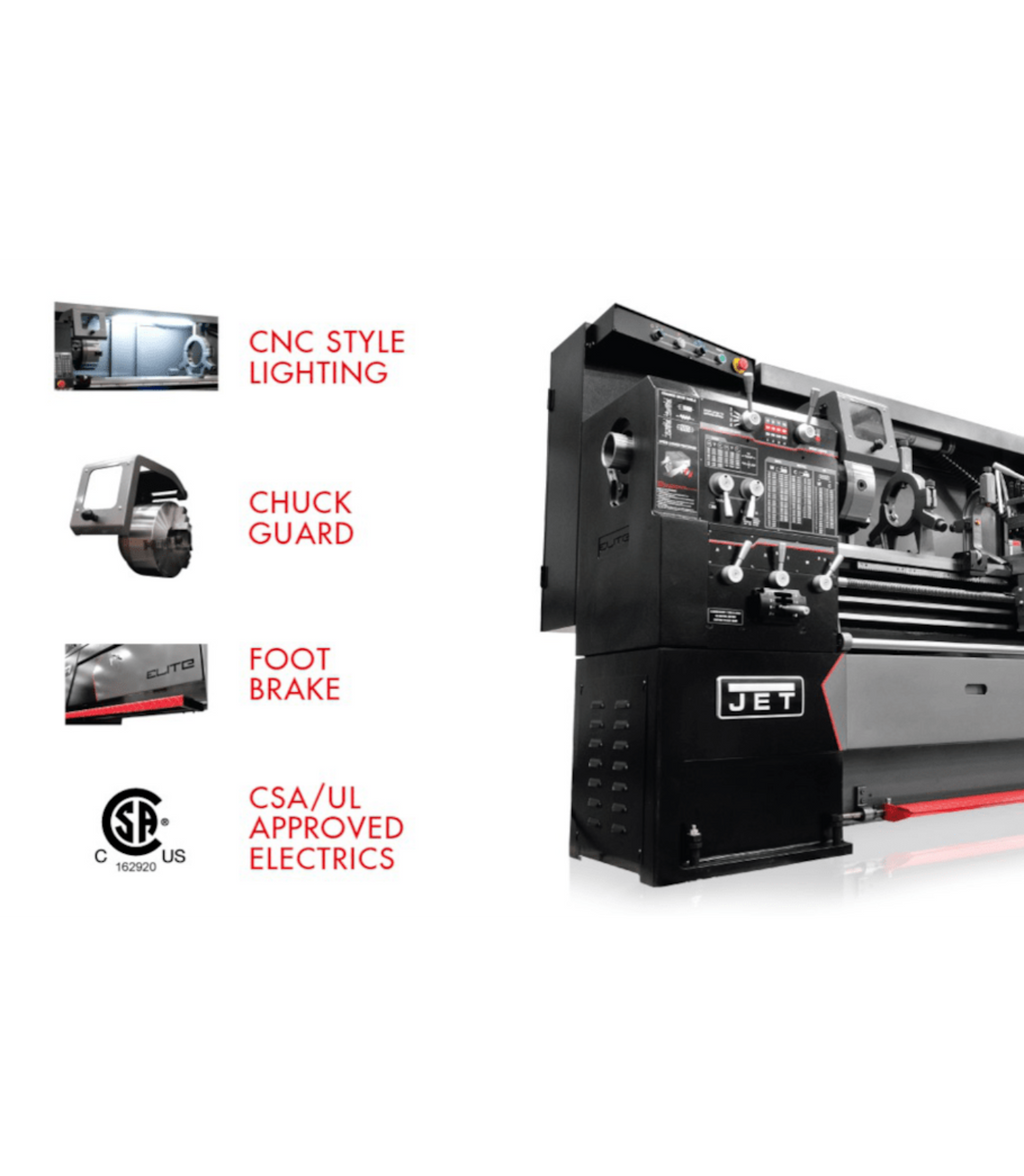

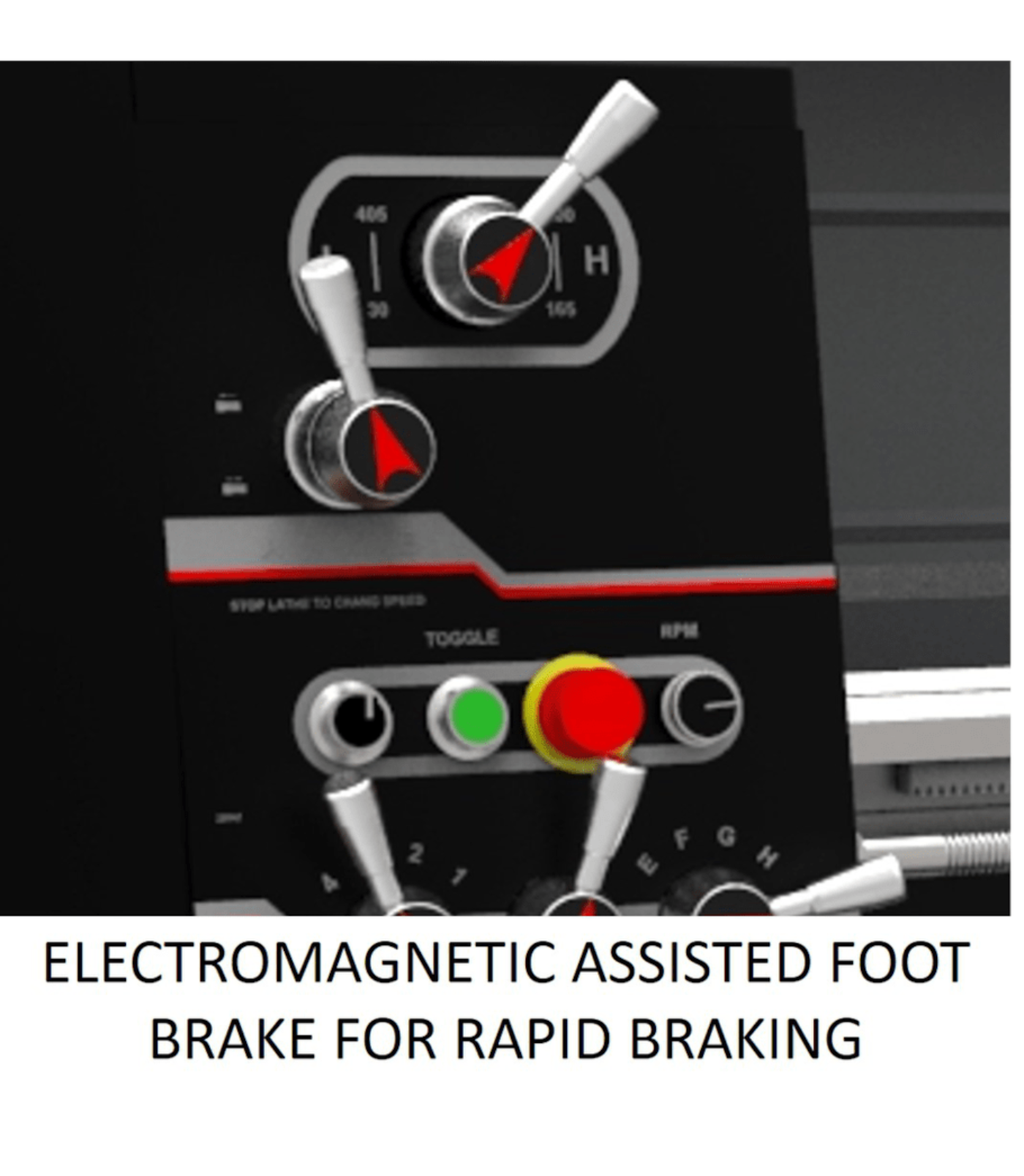

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine

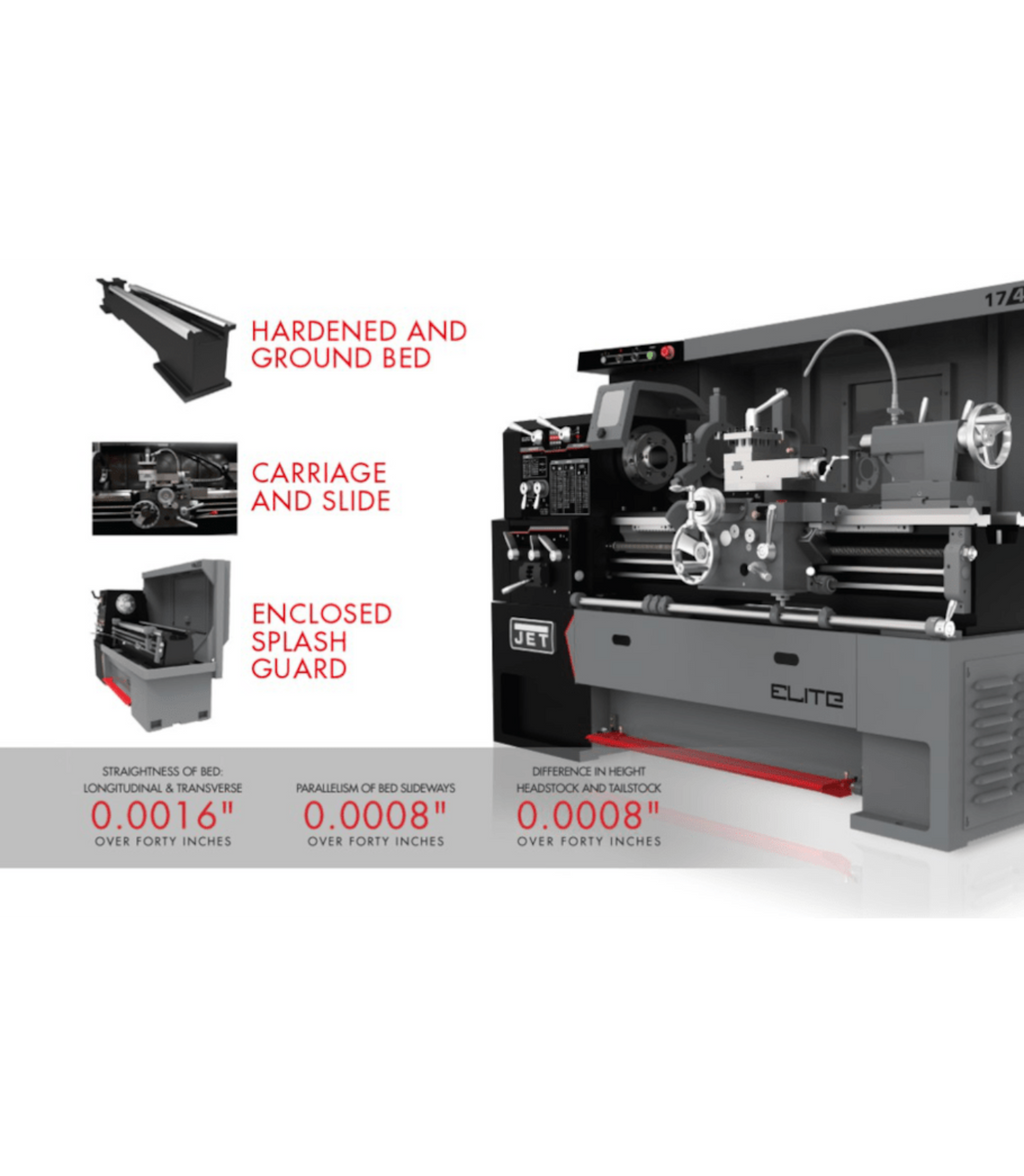

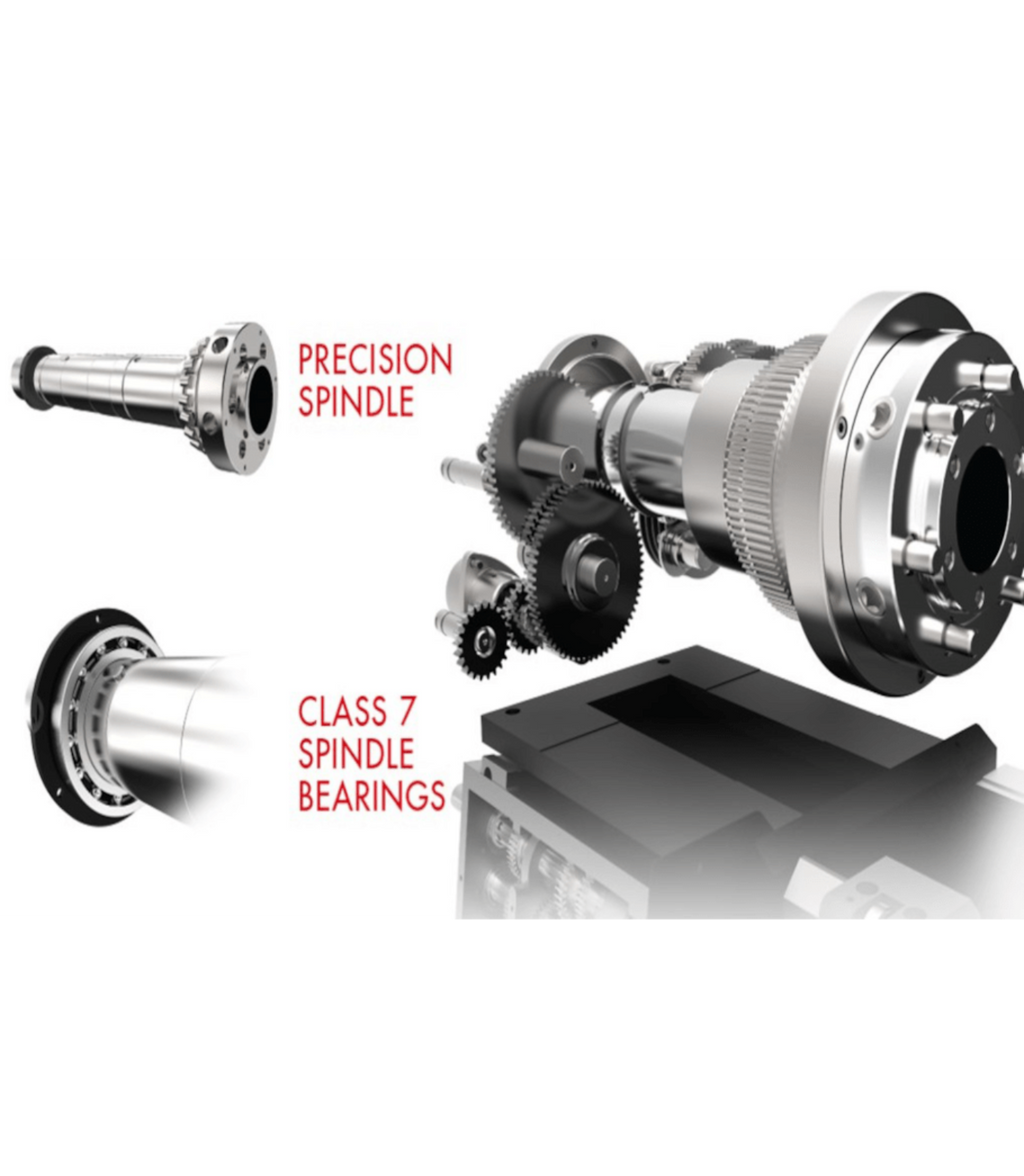

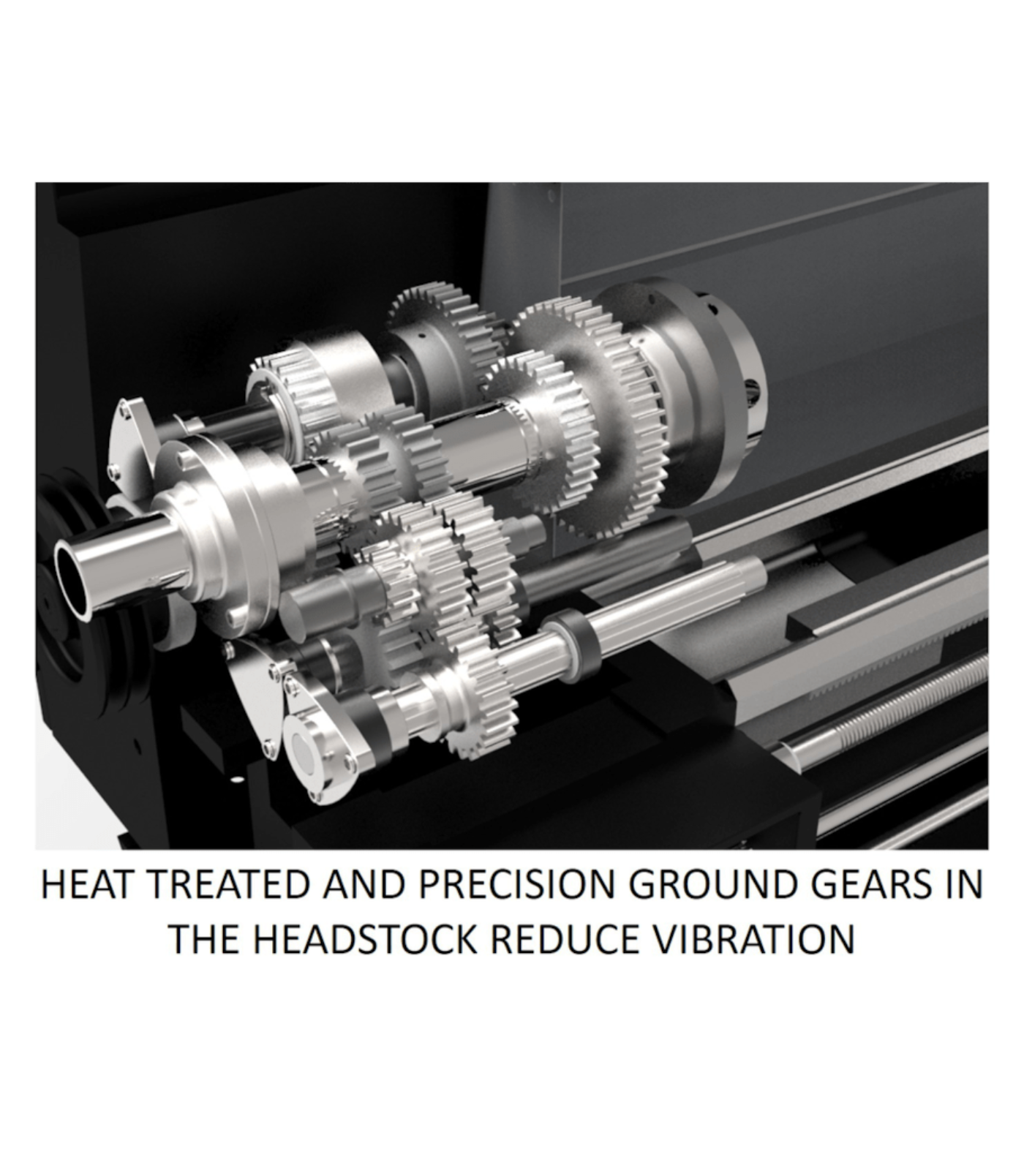

    • Hardened and ground gears in headstock reduce vibration and deflection
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 14 x 40
    Style (Type) ELITE EVS
    Swing Over Bed 14 in.
    Swing Over Cross Slide 8-5/8 in.
    Swing Through Gap 20 in.
    Length of Gap 9 in.
    Spindle Bore 1-1/2 in.
    Spindle Mount D1-4
    Weight 1,653 lbs.
    Amperage Draw @ 230V 3Ph 9 A
    Spindle Taper with Sleeve MT5
    Range of Spindle Speeds 0 – 2,200 RPM
    Number of Longitudinal & Cross Feed Rates 80
    Range of Longitudinal Feeds (IPR) 0.0012 – 0.0294
    Range of Cross Feeds (IPR) 0.0003 – 0.01
    Number of Inch Threads 40
    Range of Inch Threads (TPI) 4 – 112
    Number of Metric Threads 22
    Range of Metric Threads (mm) 0.45 – 7.5
    Compound Slide Travel 4 in.
    Cross Slide Travel 7 in.
    Motor 3 HP, 230V, 3Ph
    Tailstock Spindle Travel 5 in.
    Taper in Tailstock Spindle MT3

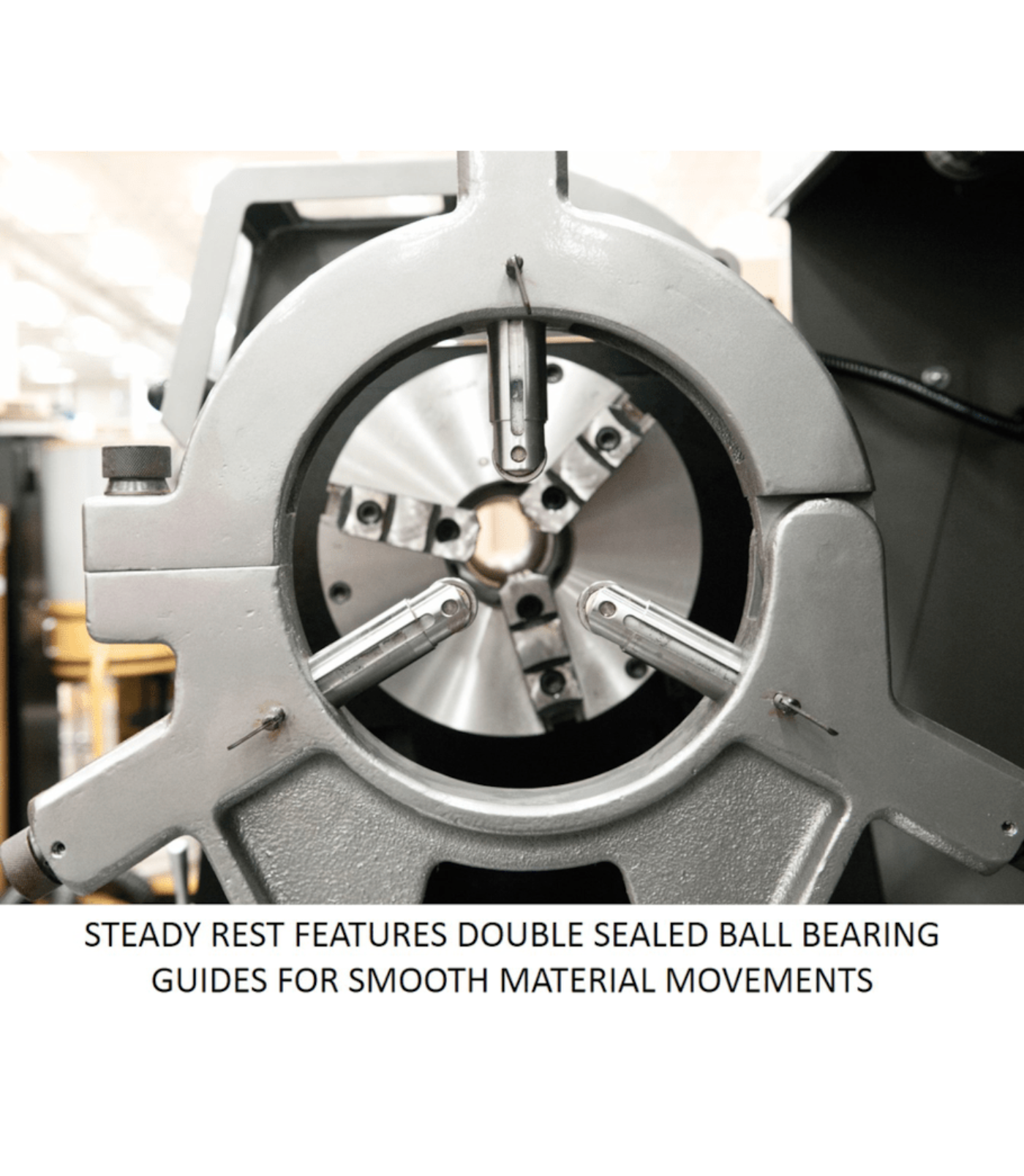

    Steady Rest Capacity 1/4 – 2-3/4 in.
    Width of Bed 8-1/2 in.

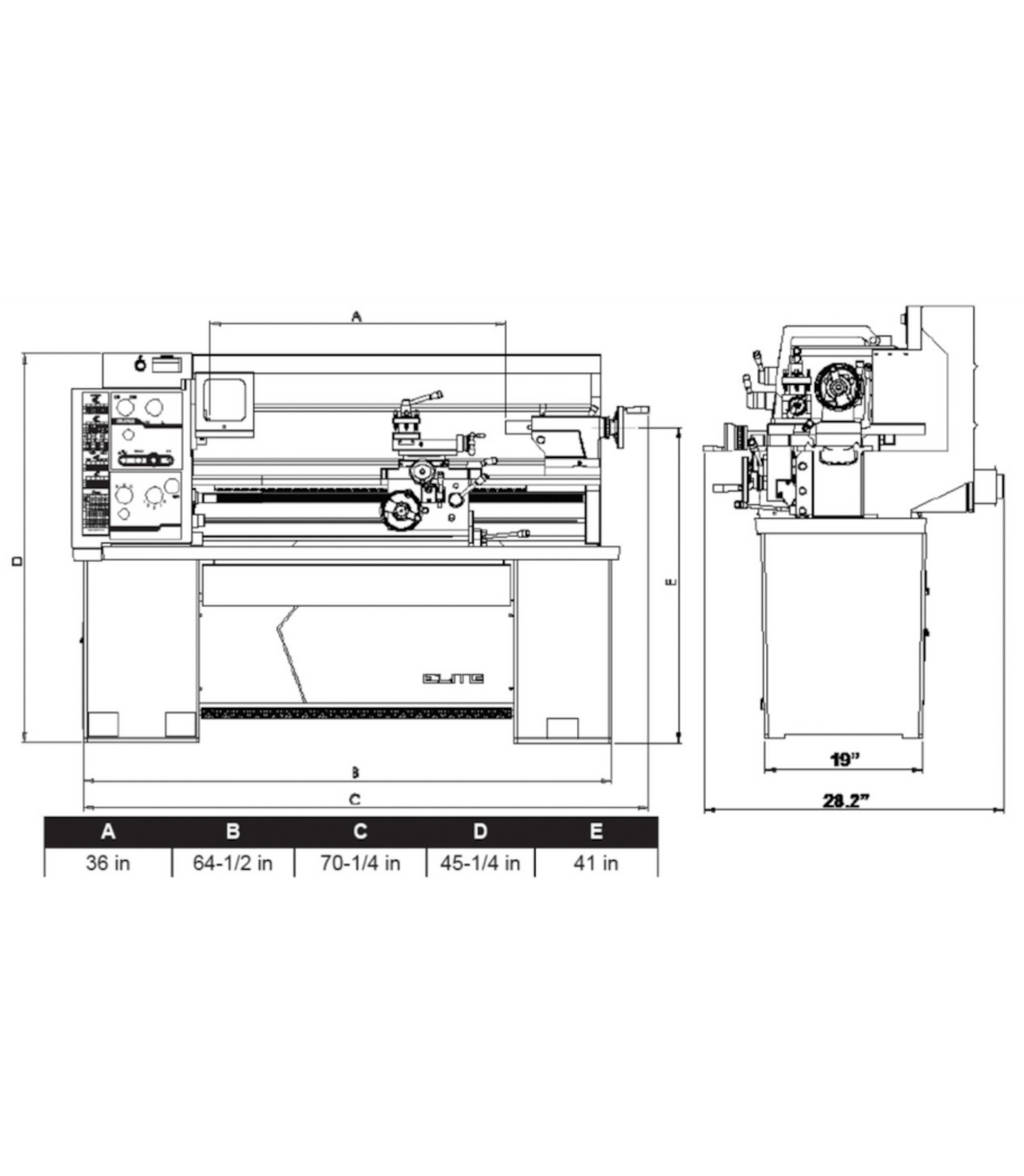

    Overall Dimensions (L x W x H) 77 x 30 x 58 in.
    Drive EVS
    What our Experts Think
    • Precision Machining – Variable speed lathe delivers smooth, accurate cuts for professional metalworking.

    • Advanced DRO System – Equipped with the Newall DP700 Digital Readout for precise measurement and efficiency.

    • Heavy-Duty Construction – Built with a rigid base and hardened, ground gears for durability and stability.

    • Versatile Performance – Ideal for threading, turning, and general-purpose machining.

    • User-Friendly Controls – Simplified interface for operators to achieve consistent results with less setup time.

    • Professional-Grade Reliability – Designed for machine shops, fabrication facilities, and educational environments.

    Q&A

    Q: What is the JET Elite E-1340VS Lathe?
    A: A precision-engineered 13" x 40" variable speed lathe, equipped with a Newall DP700 digital readout for accurate, efficient metalworking.

    Q: What makes this lathe unique?
    A: It combines JET’s Elite Series build quality with infinitely variable speed control and a high-accuracy DRO system for superior performance.

    Q: What materials can it handle?
    A: Ideal for machining steel, aluminum, brass, and other metals in toolrooms, workshops, and production environments.

    Q: Why is the Newall DP700 DRO important?
    A: It ensures precise measurements, reduces errors, and improves productivity with easy-to-read digital displays.

    Q: What size capacity does it have?
    A: 13" swing over bed and 40" distance between centers.

    Q: Where is it best used?
    A: Perfect for machine shops, maintenance departments, prototyping, and industrial manufacturing.

    Q: How does it improve efficiency?
    A: The variable speed drive and DRO system reduce setup time, improve accuracy, and support consistent machining results.

    Maintenance Tips
    • Clean the lathe bed, carriage, and tooling daily to prevent chip and debris buildup

    • Lubricate all moving parts according to the manufacturer’s lubrication schedule

    • Inspect belts, gears, and drive components regularly for wear or tension issues

    • Keep electrical connections and DRO system clean and free from dust

    • Verify alignment and calibration periodically to ensure machining accuracy

    • Schedule annual professional servicing for long-term reliability and precision
