| Size |
14 x 40 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed |
14 in. |
| Swing Over Cross Slide |
8-5/8 in. |
| Swing Through Gap |
20 in. |
| Length of Gap |
9 in. |
| Spindle Bore |
1-1/2 in. |
| Spindle Mount |
D1-4 |
| Weight |
1,653 lbs. |
| Amperage Draw @ 230V 3Ph |
9 A |
| Spindle Taper with Sleeve |
MT5 |
| Range of Spindle Speeds |
0 – 2,200 RPM |
| Number of Longitudinal & Cross Feed Rates |
80 |
| Range of Longitudinal Feeds (IPR) |
0.0012 – 0.0294 |
| Range of Cross Feeds (IPR) |
0.0003 – 0.01 |
| Number of Inch Threads |
40 |
| Range of Inch Threads (TPI) |
4 – 112 |
| Number of Metric Threads |
22 |
| Range of Metric Threads (mm) |
0.45 – 7.5 |
| Compound Slide Travel |
4 in. |
| Cross Slide Travel |
7 in. |
| Motor |
3 HP, 230V, 3Ph |
| Tailstock Spindle Travel |
5 in. |
| Taper in Tailstock Spindle |
MT3 |
| Steady Rest Capacity |
1/4 – 2-3/4 in. |
| Width of Bed |
8-1/2 in. |
| Overall Dimensions (L x W x H) |
77 x 30 x 58 in. |
| Drive |
EVS |
What our Experts Think
-
Variable Speed Precision: Smooth RPM control for accurate turning on diverse materials.
-
Taper Attachment: Expands versatility for precise taper cutting.
-
Collet Closer: Provides secure workholding for smaller parts and detailed machining.
-
Heavy-Duty Cast-Iron Bed: Enhances stability, reduces vibration, and ensures machining accuracy.
-
Professional Grade: Built for toolrooms, machine shops, and demanding industrial applications.
Q&A

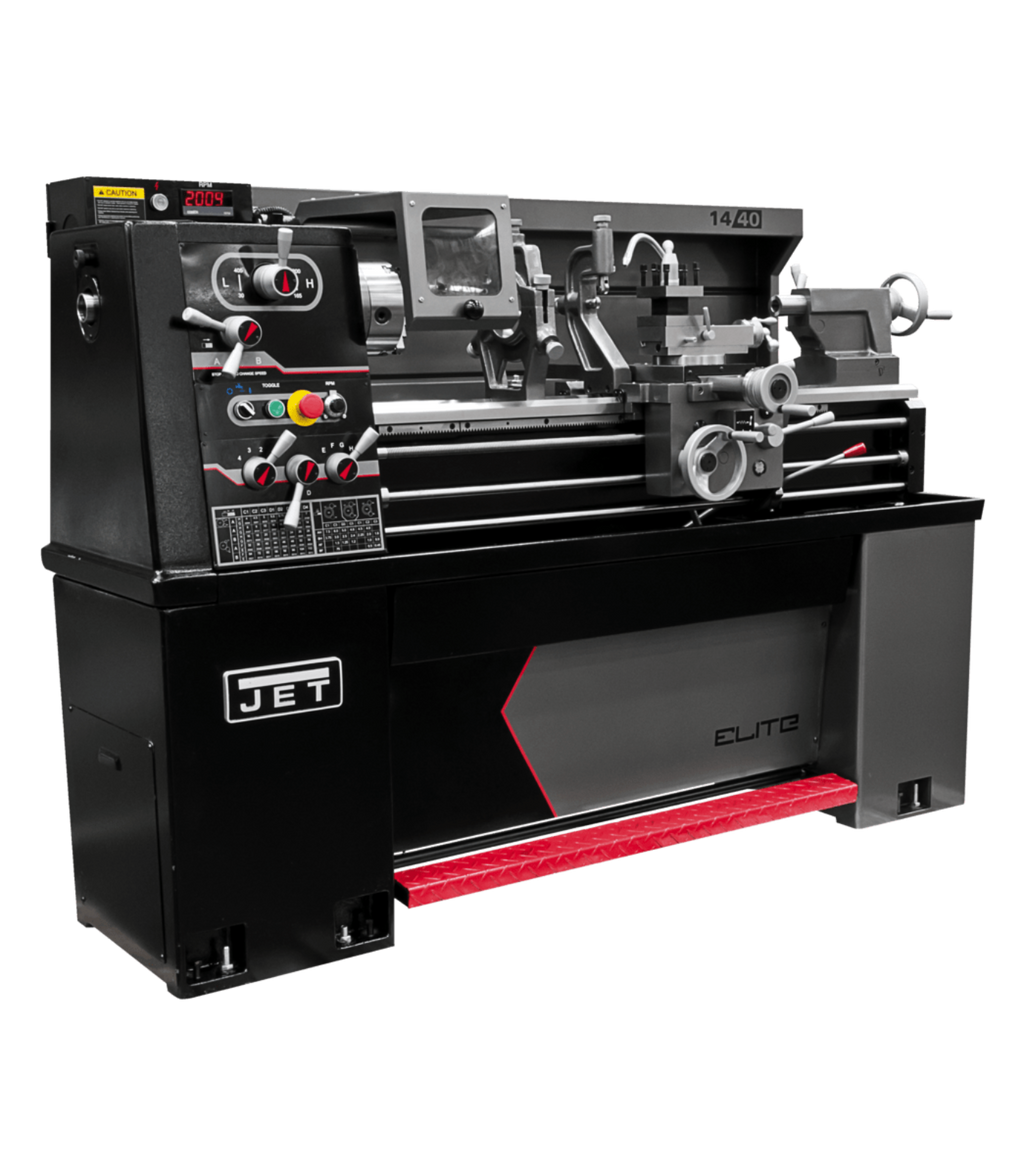

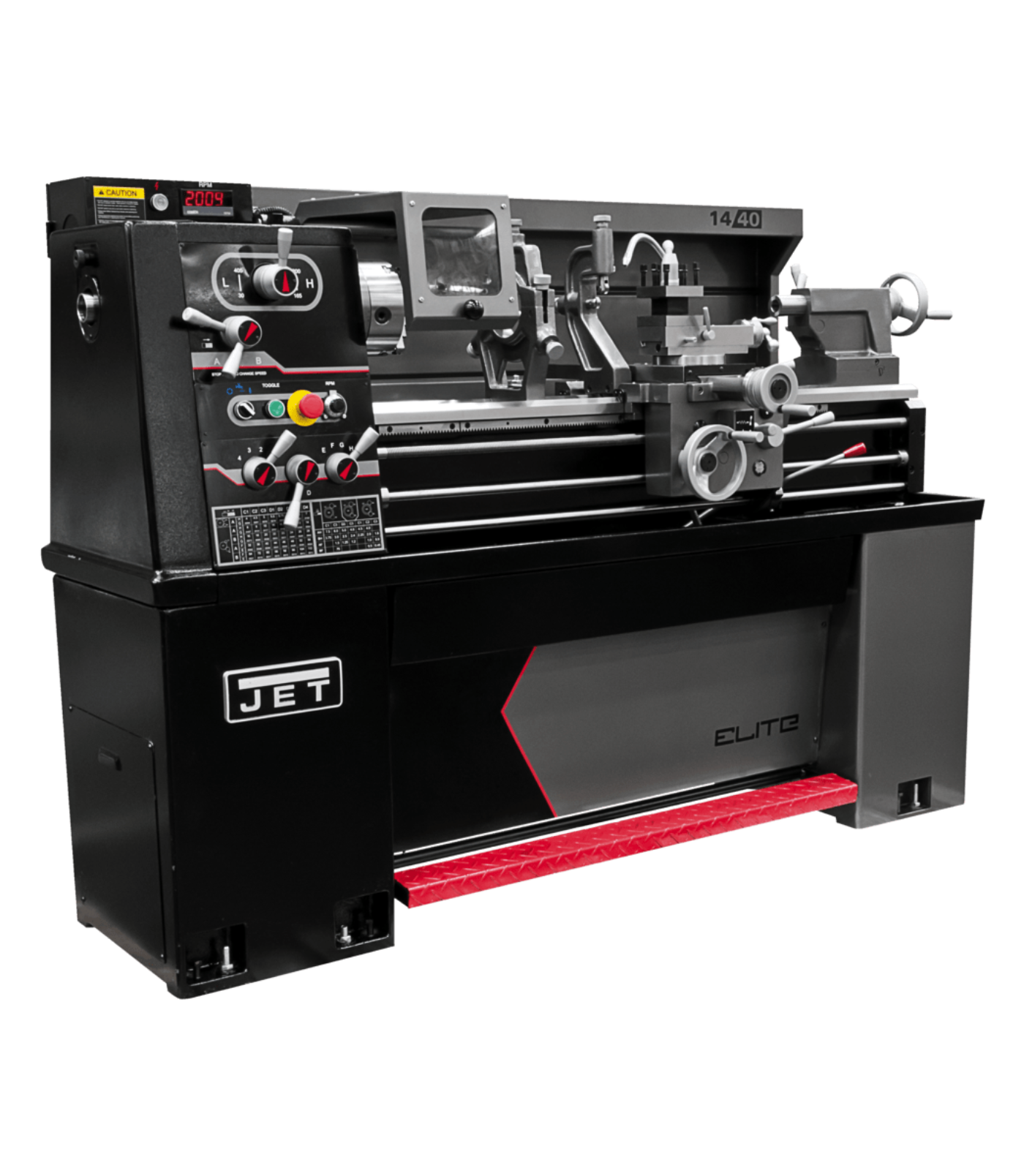

Q: What is the JET Elite E-1440VS lathe?
A: The E-1440VS is a 14" x 40" variable-speed precision lathe designed for industrial machining, tool rooms, and production environments.
Q: What does the taper attachment provide?
A: The taper attachment allows accurate and consistent cutting of external and internal tapers without manual setups.
Q: How does the collet closer benefit users?
A: The collet closer enables fast, secure, and repeatable workholding for improved efficiency in production runs and precision jobs.
Q: What is the spindle bore size?
A: The E-1440VS features a large 2" spindle bore to handle bigger stock and tubing.
Q: How does the variable-speed drive help?
A: Its electronic variable-speed drive delivers smooth, precise spindle speed adjustments for a wide range of materials and operations.
Q: Is the bed durable for heavy use?
A: Yes, the hardened, precision-ground bedways ensure long-lasting accuracy, rigidity, and wear resistance.
Q: What motor powers this lathe?
A: A heavy-duty motor provides consistent torque and power for demanding machining tasks.
Q: What operations can it perform?
A: Perfect for turning, facing, threading, boring, taper cutting, and high-precision part machining.
Q: Who is this lathe designed for?
A: Ideal for machine shops, fabricators, repair facilities, and educational programs requiring industrial-grade accuracy.
Q: Does it meet safety standards?

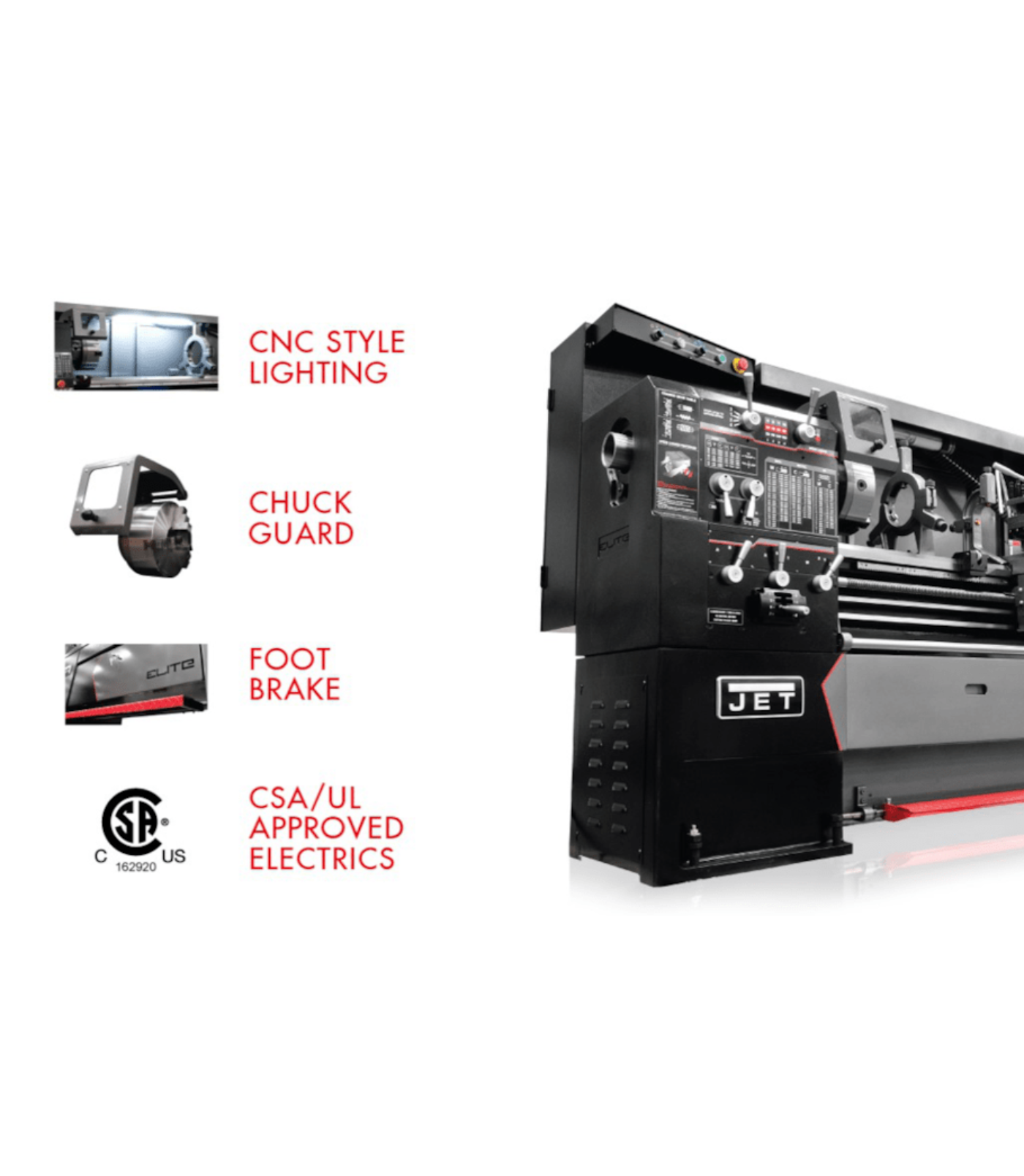

A: Yes, it is CSA/ETL certified and built to JET’s Elite quality standards.
Maintenance Tips
-
Clean lathe surfaces daily to remove chips, dust, and coolant buildup.
-
Lubricate gears, bearings, and sliding parts as recommended in the manual.
-
Inspect taper attachment, collet closer, belts, and chuck for wear and alignment.
-
Check electrical connections and safety controls regularly for safe operation.
-
Schedule periodic professional servicing to ensure precision and extend machine life.
