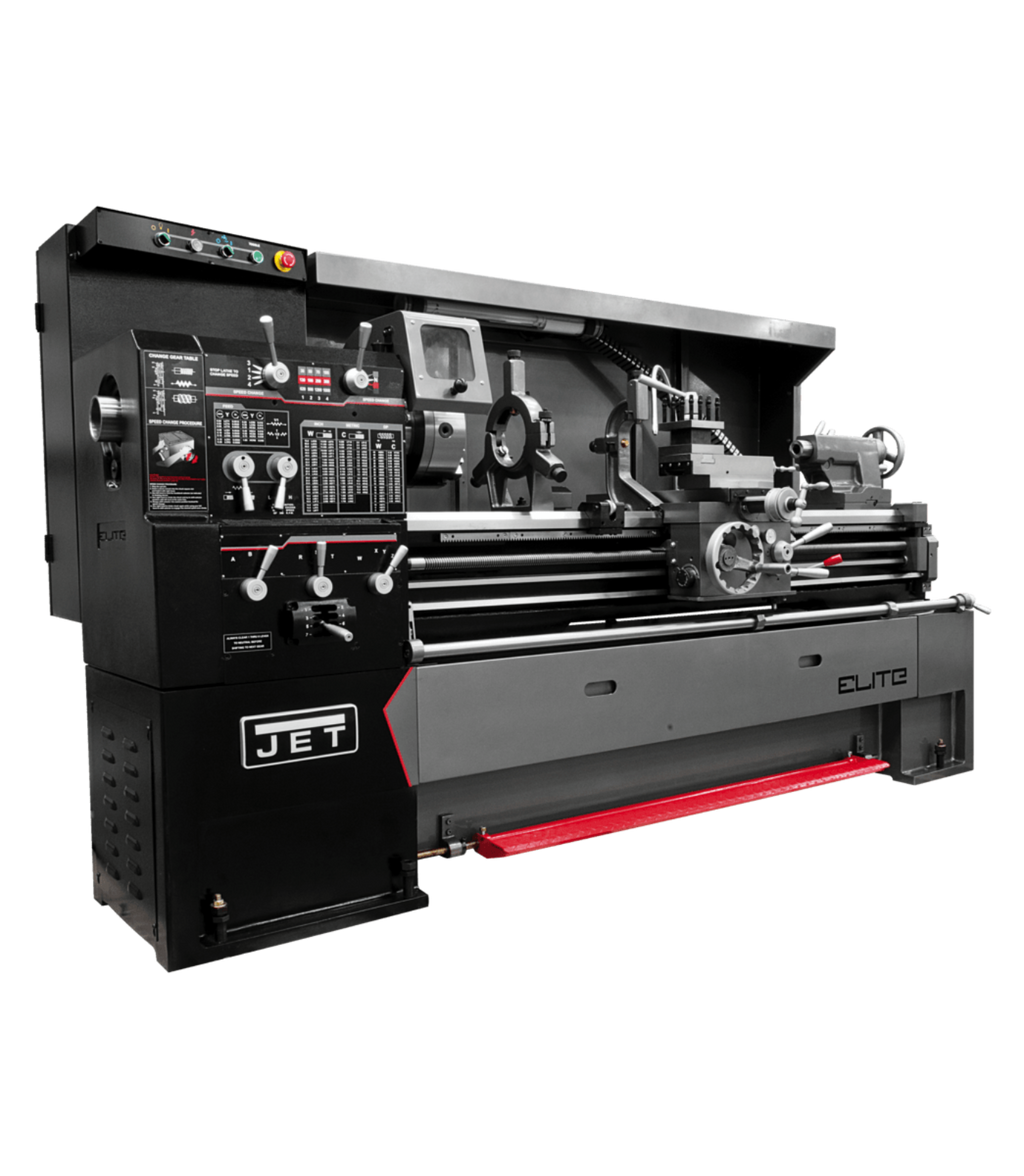

    JET Elite Lathe EGH-1740 with ACU-RITE 203 DRO - JT9-892503

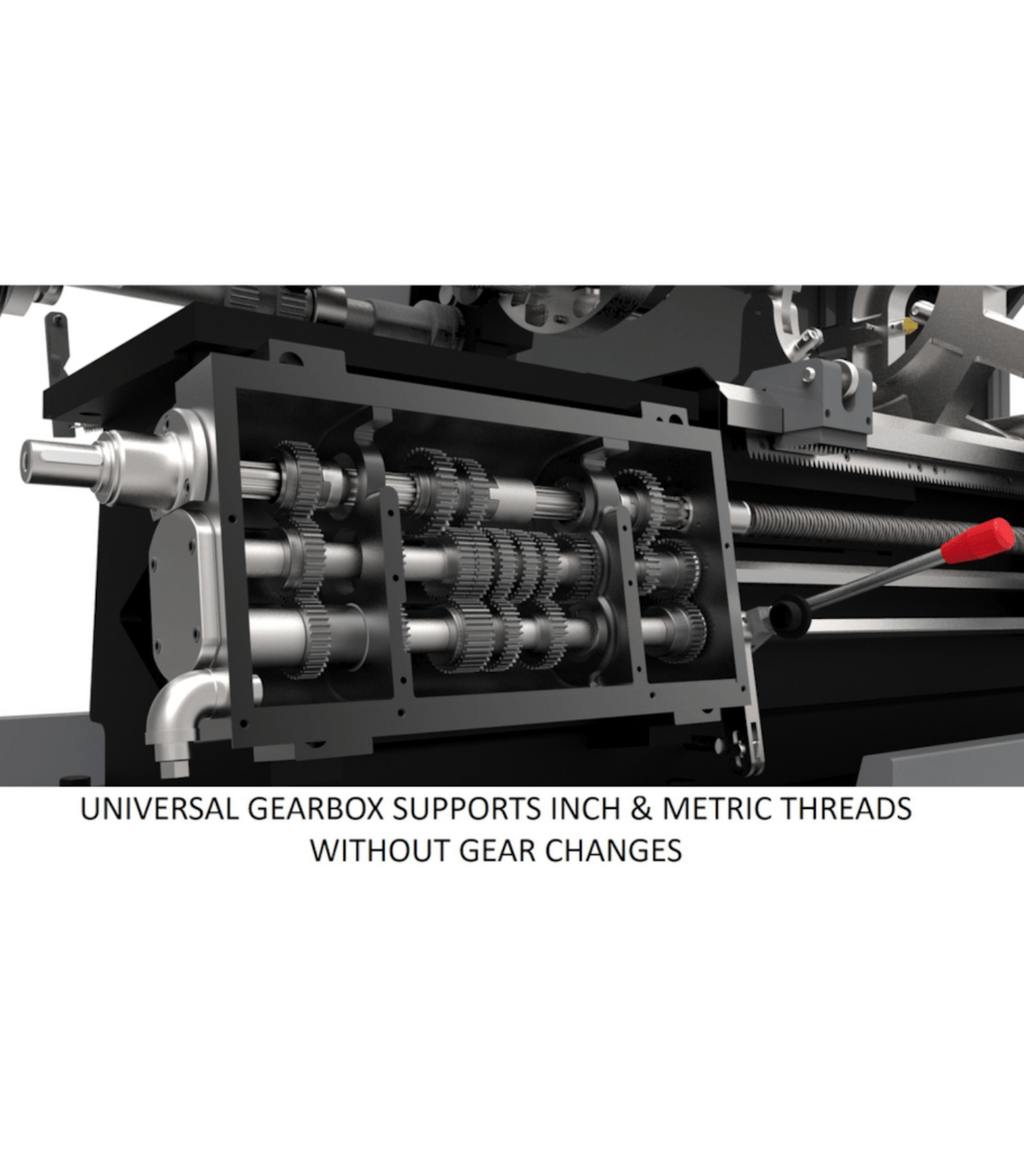

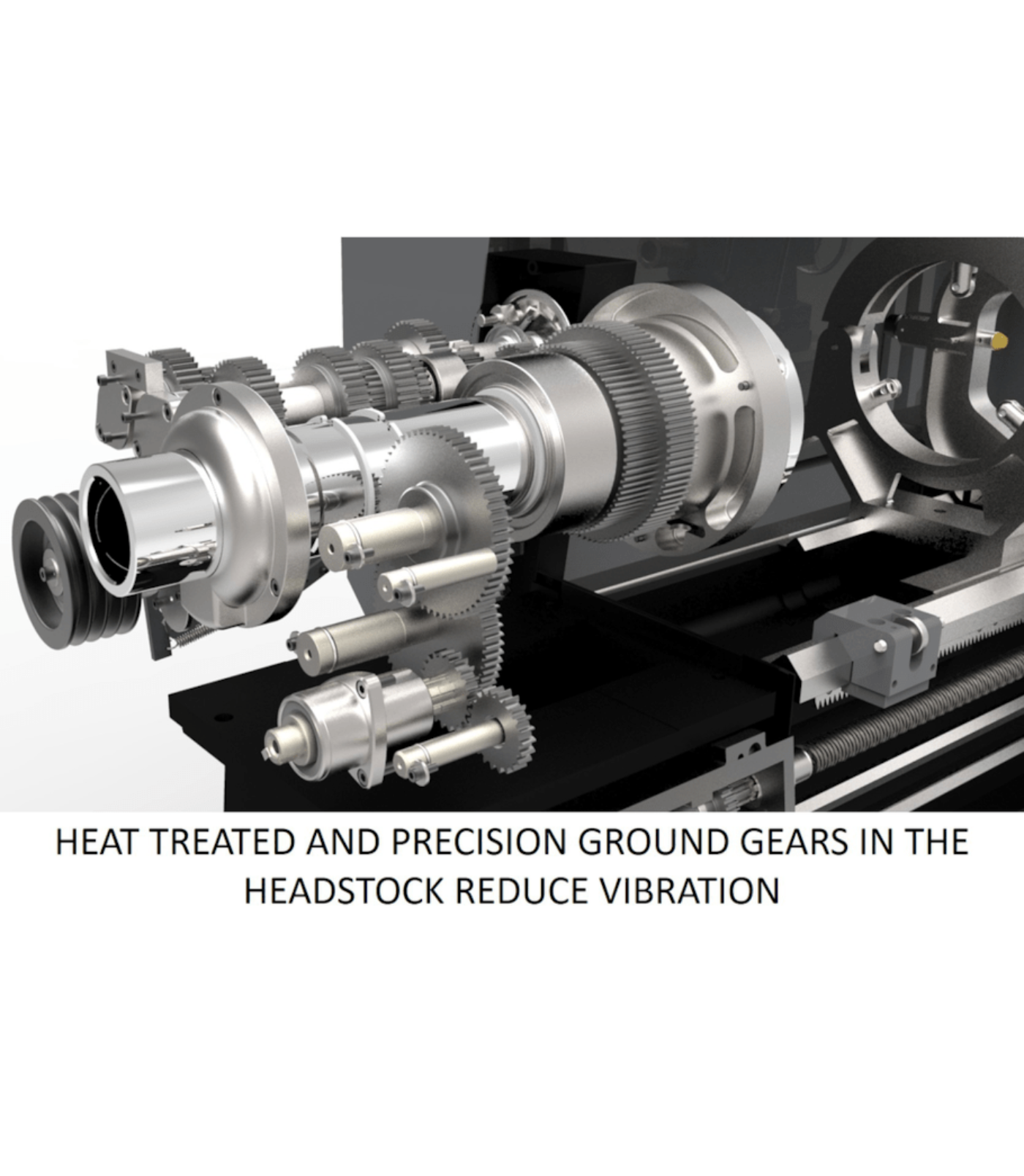

    Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.

    Features
    • 4-Position Carriage Stop
    • Anti-Float design eliminates backlash in the cross slide
    • Enclosed coolant system contains excess coolant for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine

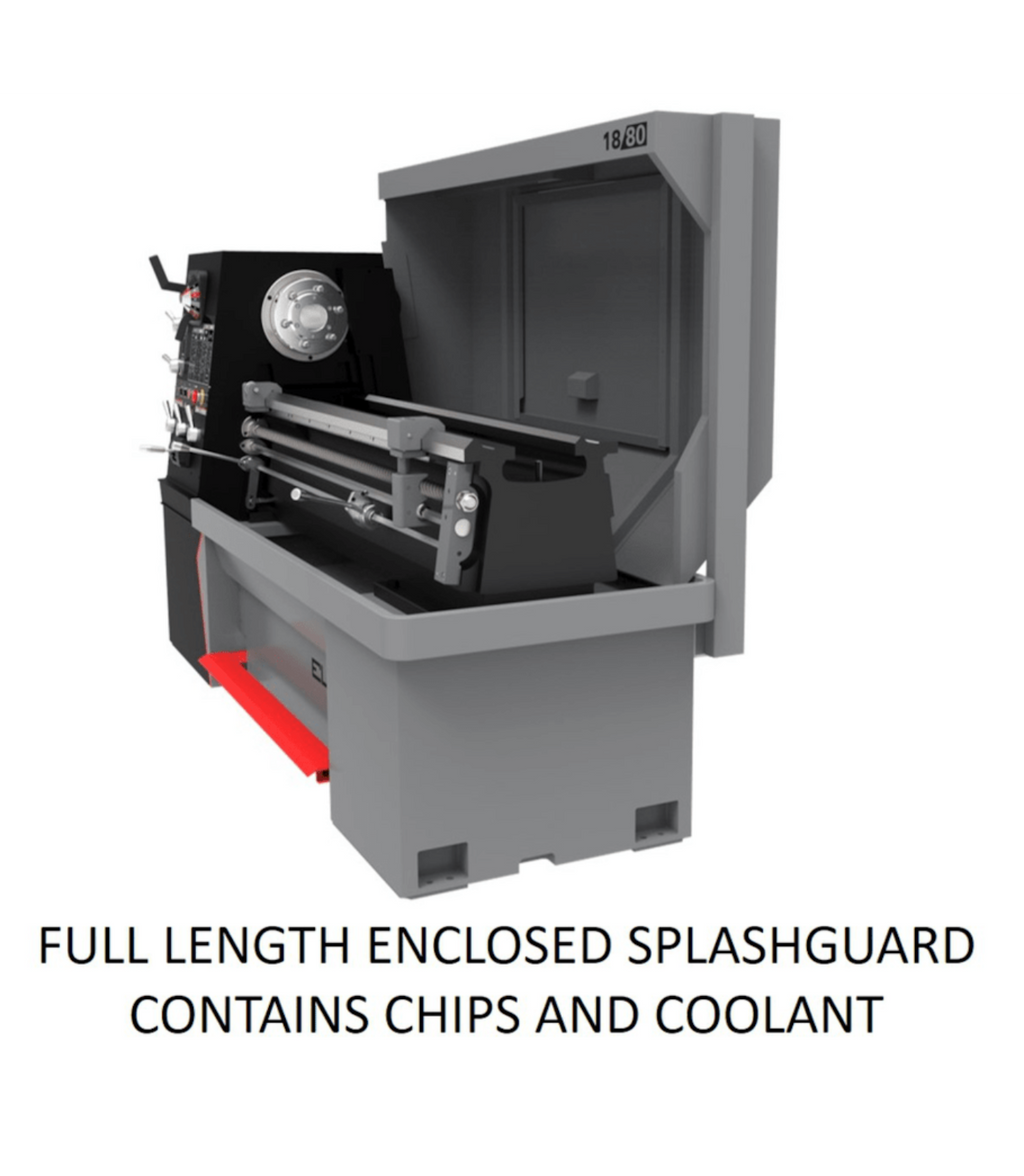

    • Full Length Splash Guard

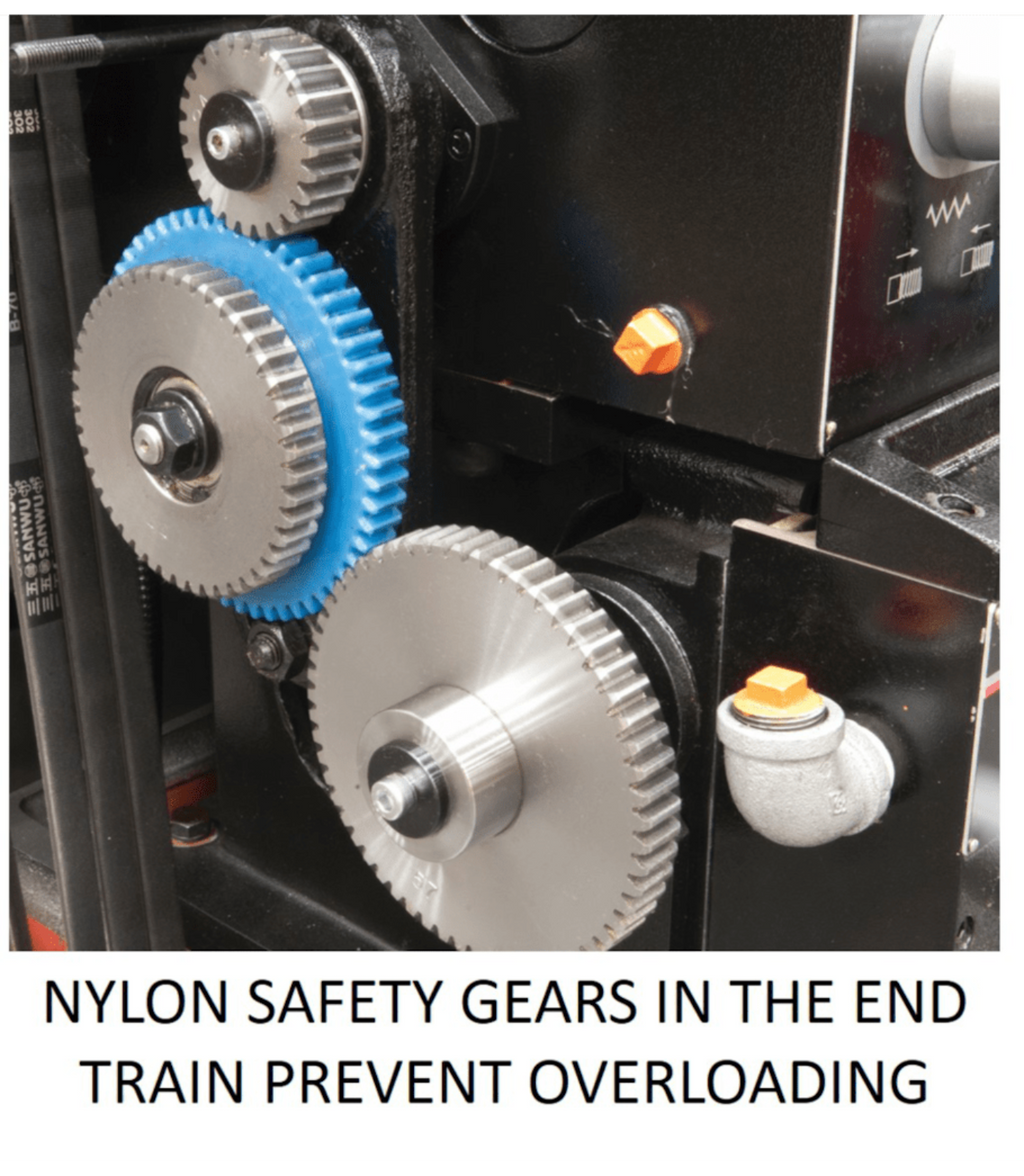

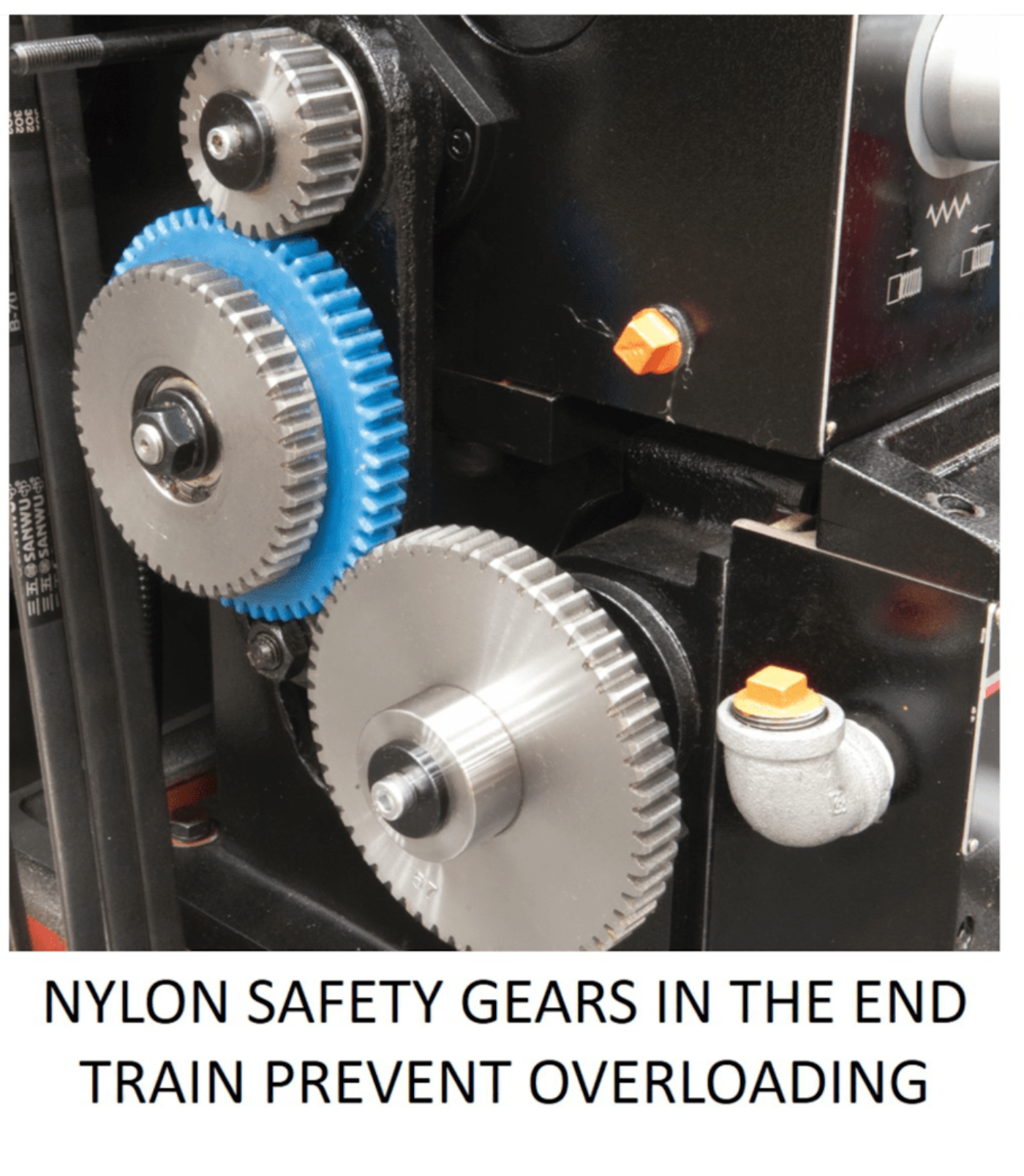

    • Nylon safety gears in the end train prevent overloading, increasing safety
    • One-Shot lubrication in the carriage reduces maintenance
    • Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
    • Steady rests feature ball bearing guides for smooth material movements
    Specifications
    Size 17 x 40
    Style (Type) Engine
    Swing Over Bed (In.) 17
    Swing Over Cross Slide (In.) 11
    Swing in Gap (In.) 7-2/3

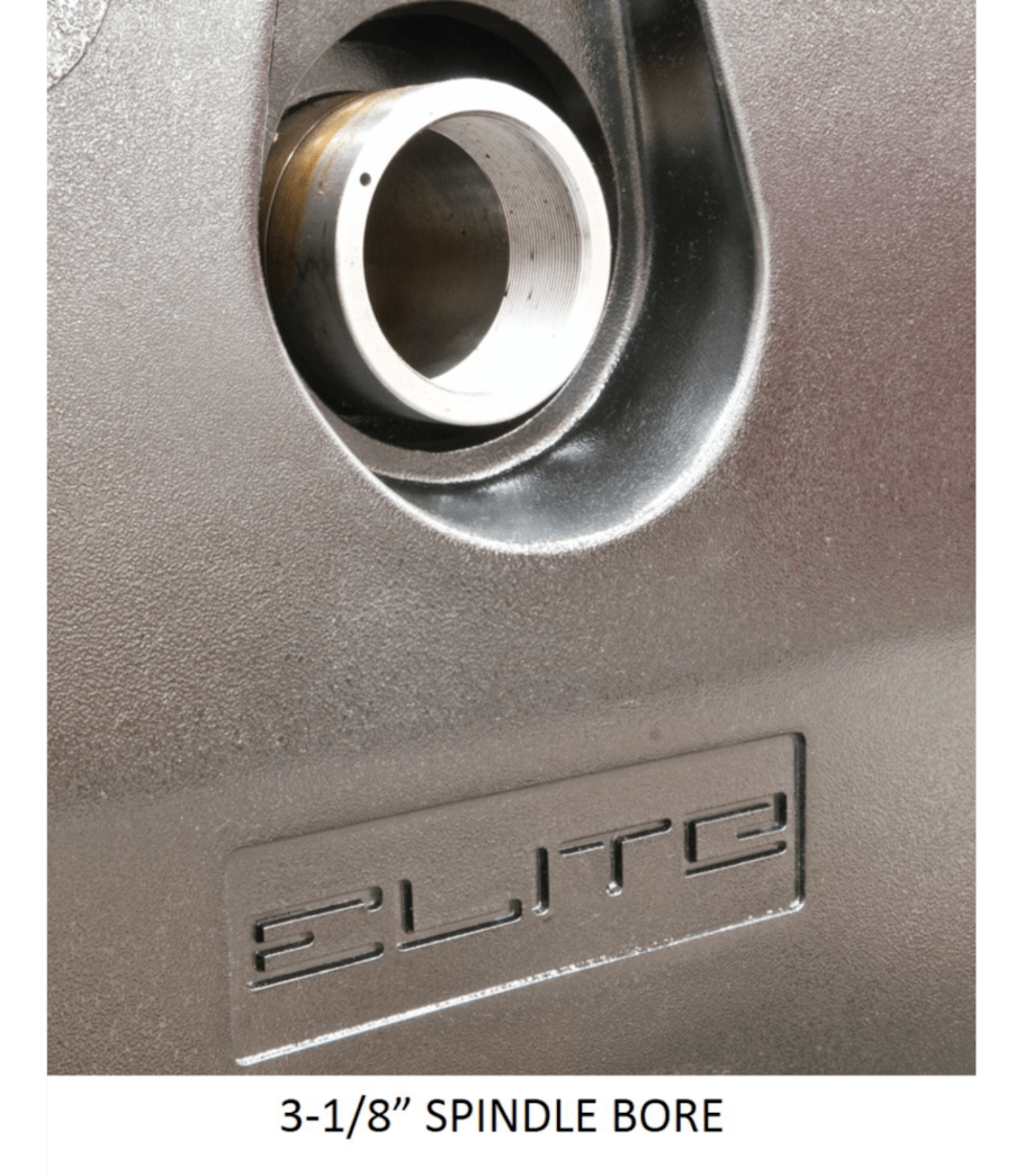

    Spindle Bore (In.) 3-1/8
    Spindle Mount D1-6
    Spindle Taper with Sleeve MT-5
    Number of Spindle Speeds 12
    Range of Spindle Speeds (RPM) 36 – 1,800
    Range of Longitudinal Feeds (IPR) 0.0015 – 0.04
    Range of Cross Feeds (IPR) 0.00075 – 0.02
    Number of Inch Threads 45
    Range of Inch Threads (TPI) 2 – 72
    Diametrial Pitch Threads Number 21
    Modular Pitch Threads Number 18
    Number of Metric Threads 39
    Range of Metric Threads 0.2 – 14
    Max Tool Size (In.) 1 x 1
    Compound Slide Travel (In.) 6-2/7
    Tailstock Spindle Travel (In.) 5
    Steady Rest Capacity (In.) 3/8 – 6-3/4
    Width of Bed (In.) 12
    Weight (Lbs.) 3,747
    Amperage Draw @ 230V 3Ph 22
    Amperage Draw @ 460V 3Ph 11

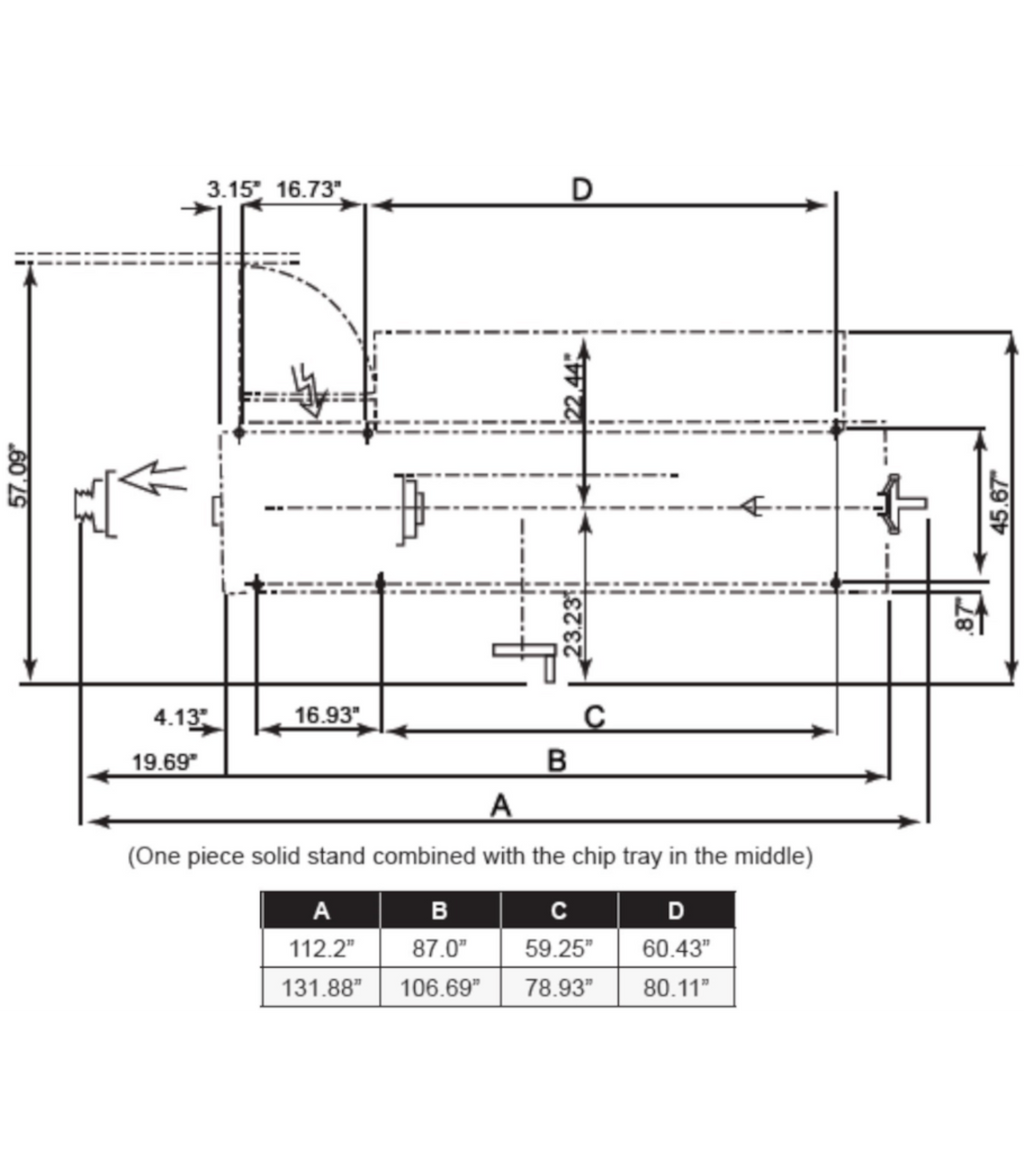

    Overall Dimensions (L x W x H) 94 x 44 x 68 in.
    Drive Geared Head
    What our Experts Think
    • 17" swing and 40" center distance handle larger, heavy-duty turning applications.

    • ACU-RITE 203 DRO delivers precise digital readouts for improved accuracy and workflow.

    • Hardened and ground gears ensure long-term reliability under demanding use.

    • Rigid construction provides excellent stability, reducing chatter and vibration.

    • Ideal for professional shops needing power, precision, and advanced measurement capability.

    Q&A

    Q: What type of lathe is the JET Elite EGH-1740?
    A: It’s a heavy-duty 17x40 gear head engine lathe designed for industrial precision turning.

    Q: What does the ACU-RITE 203 DRO provide?
    A: The digital readout ensures precise measurements, improved accuracy, and easier operation.

    Q: What is the swing and center distance?
    A: This model features a 17-inch swing over bed with a 40-inch distance between centers.

    Q: How is speed adjusted?
    A: The gear head design provides a wide range of spindle speeds for versatile machining.

    Q: Where is this lathe commonly used?
    A: Perfect for machine shops, maintenance facilities, and production environments requiring accuracy and durability.

    Maintenance Tips
    • Wipe down bedways, carriage, and tooling areas after each use to remove chips and debris.

    • Lubricate gears, bearings, and sliding surfaces according to the recommended schedule.

    • Inspect the DRO system regularly; keep scales and sensors clean for accurate readings.

    • Check drive belts, feed screws, and alignment to ensure smooth operation.

    • Examine electrical connections and cooling fans, keeping them dust-free.

    • Tighten tool post, tailstock, and fasteners to maintain precision.

    • Arrange routine professional maintenance for long-term reliability and accuracy.
