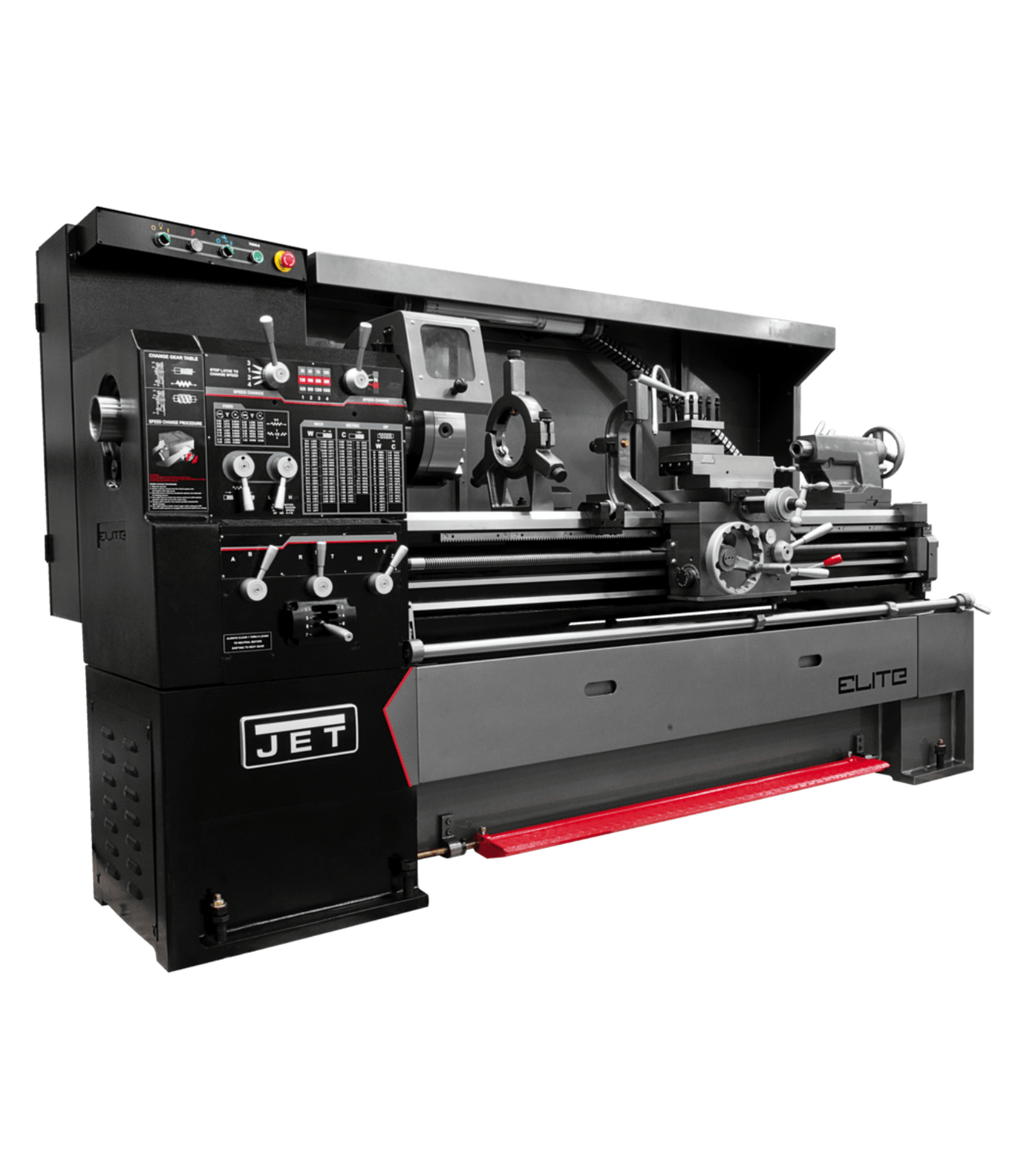

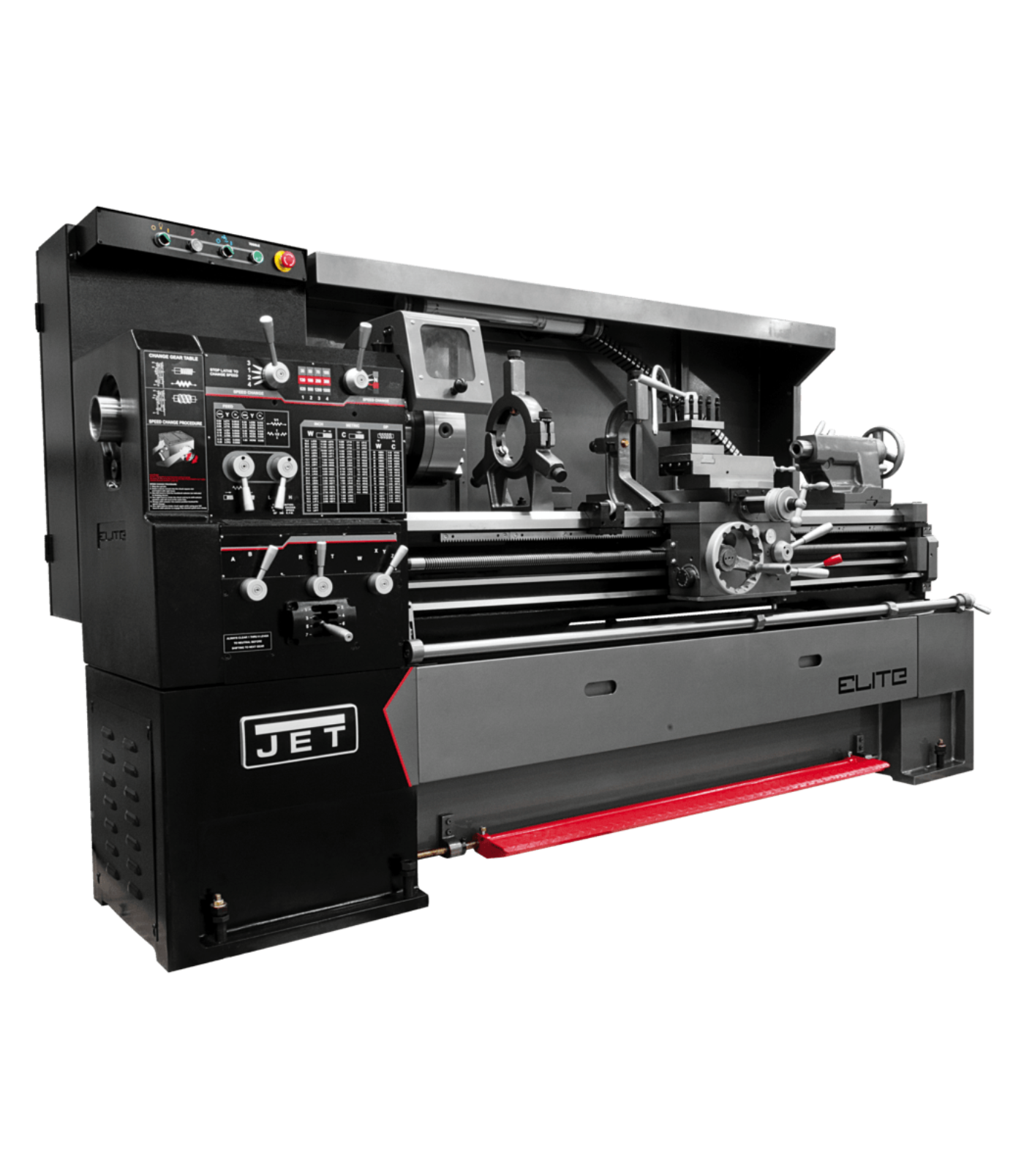

    JET Elite Lathe EGH-1740 with ACU-RITE 303 DRO with Collet Closer - JT9-892509

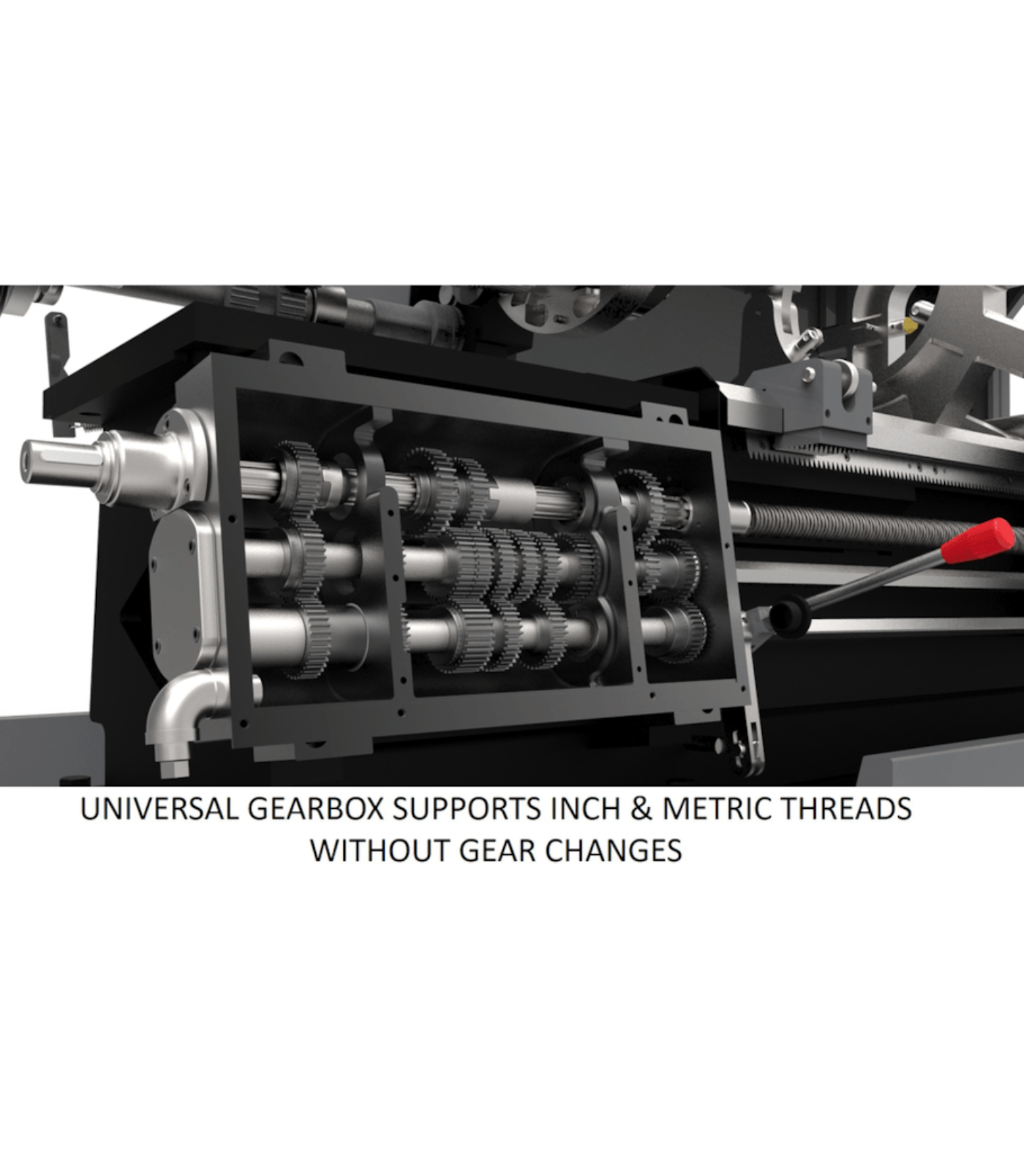

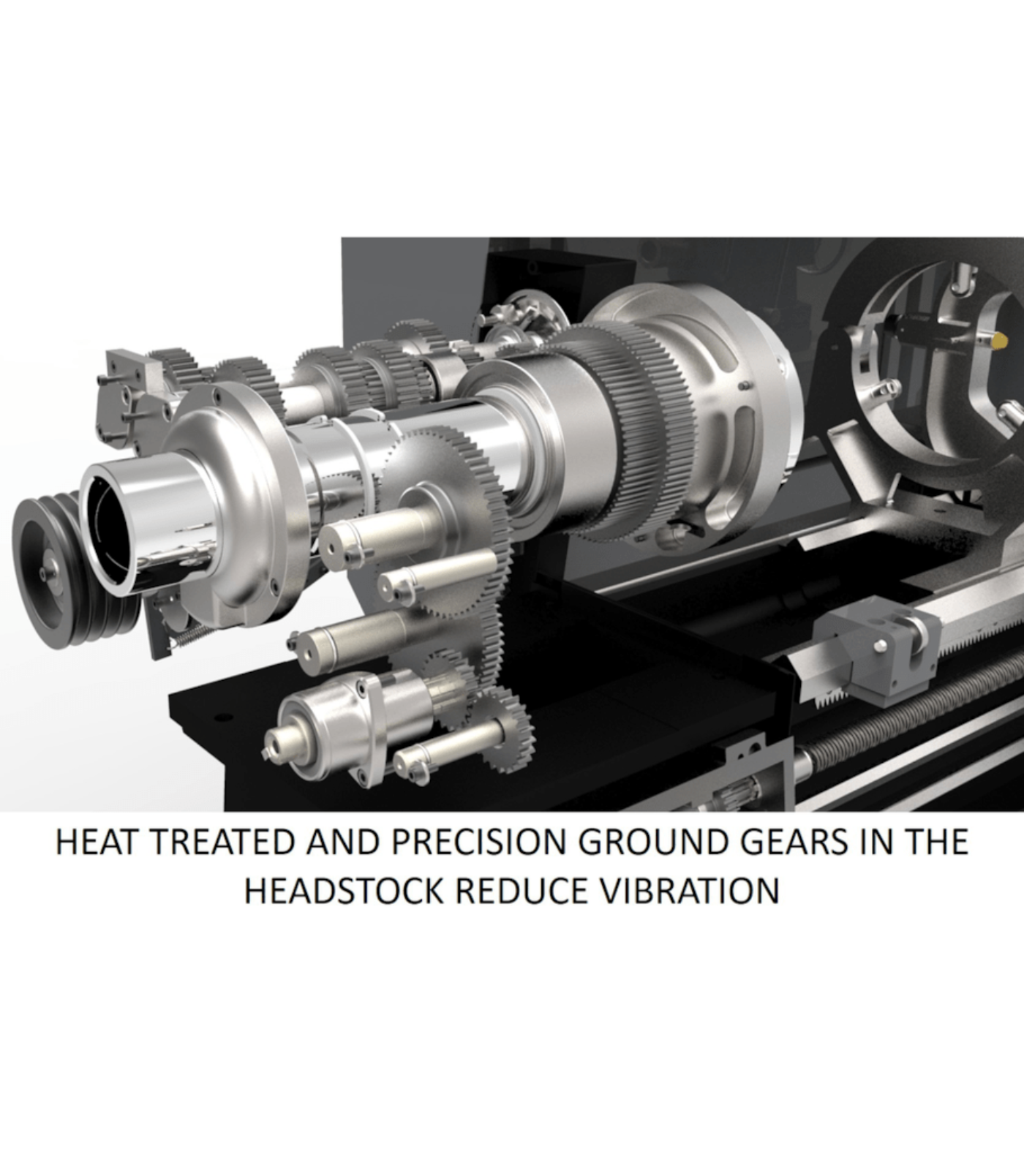

    Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.

    Features
    • 4-Position Carriage Stop
    • Anti-Float design eliminates backlash in the cross slide
    • Enclosed coolant system contains excess coolant for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine

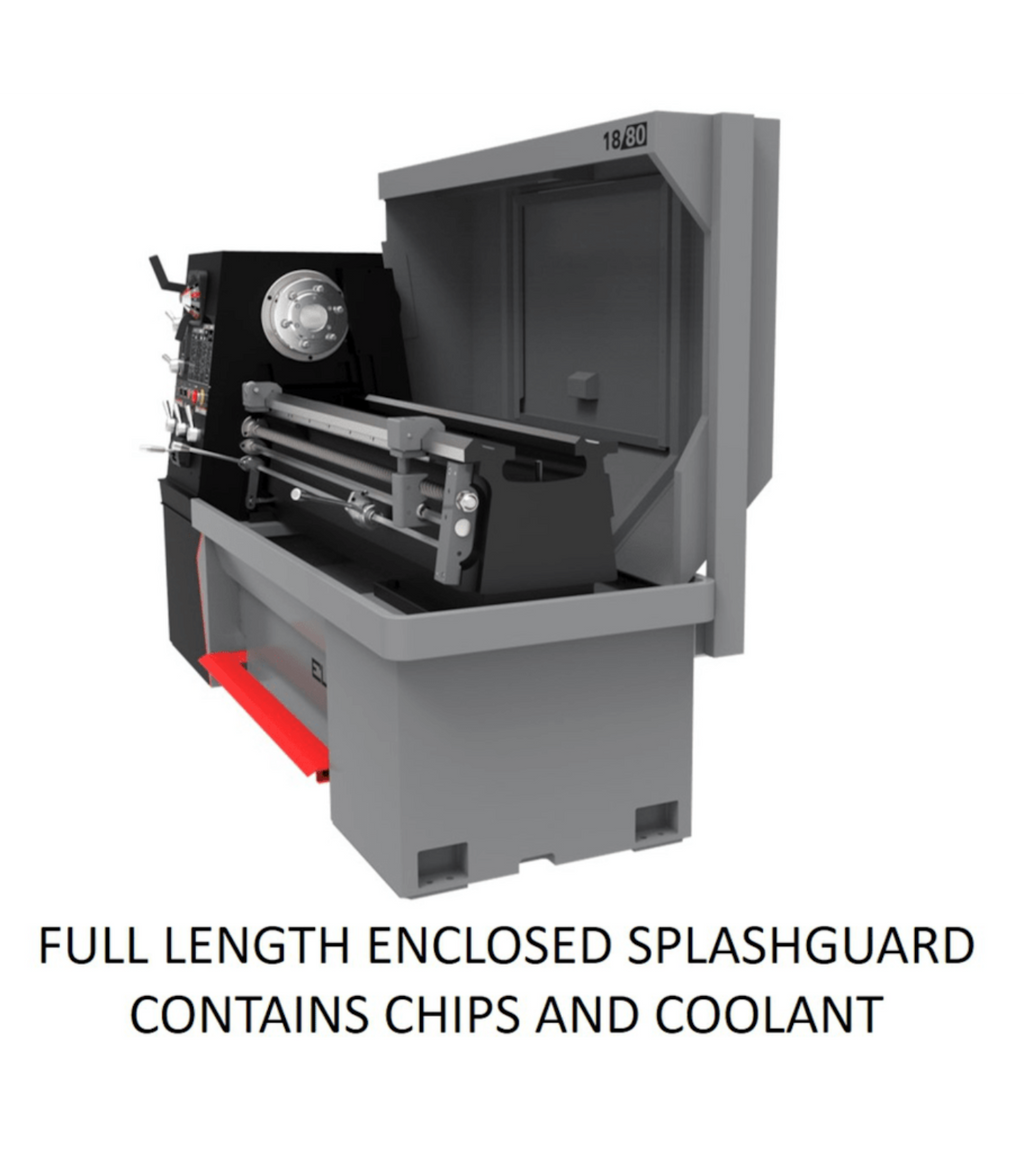

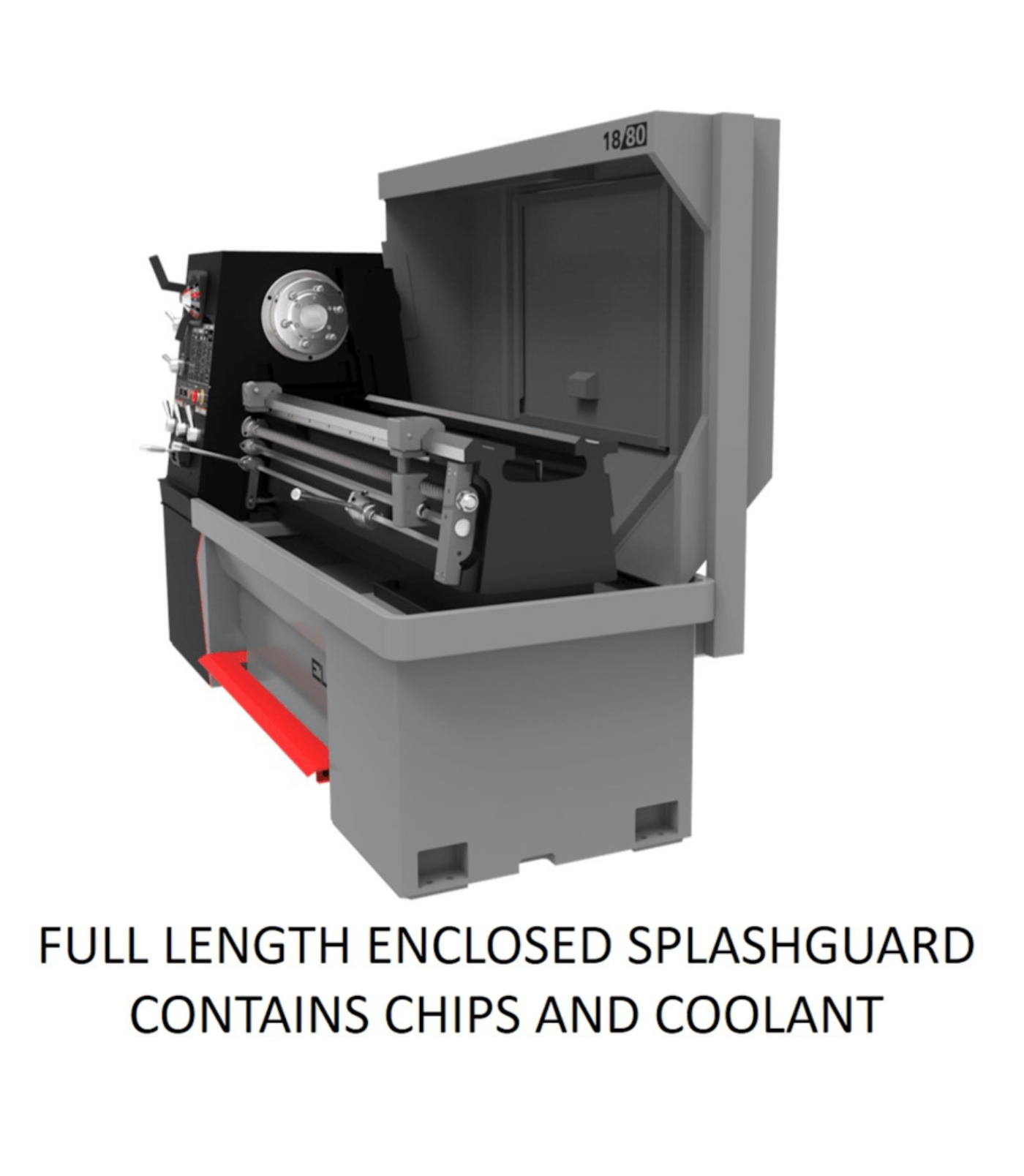

    • Full Length Splash Guard

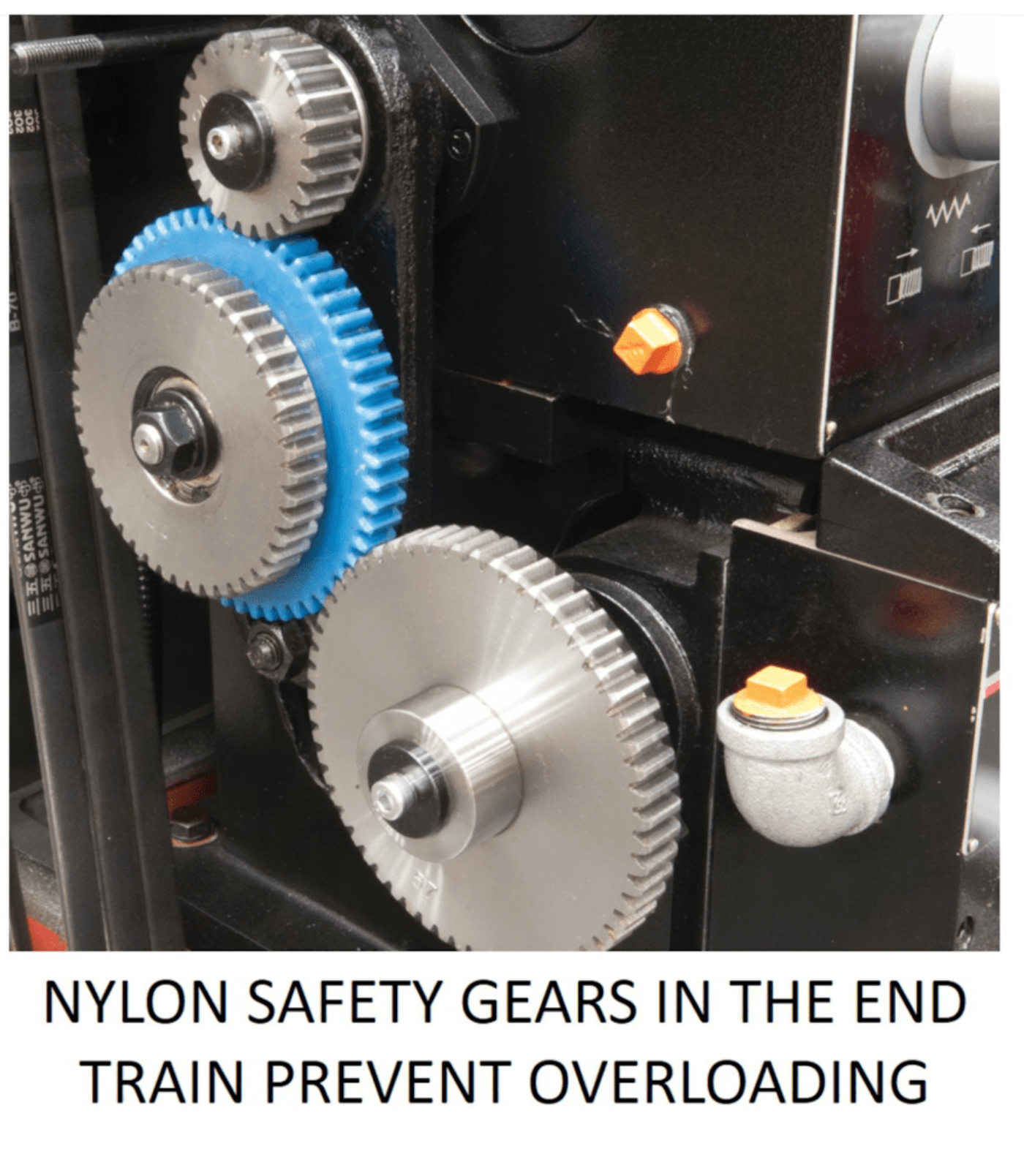

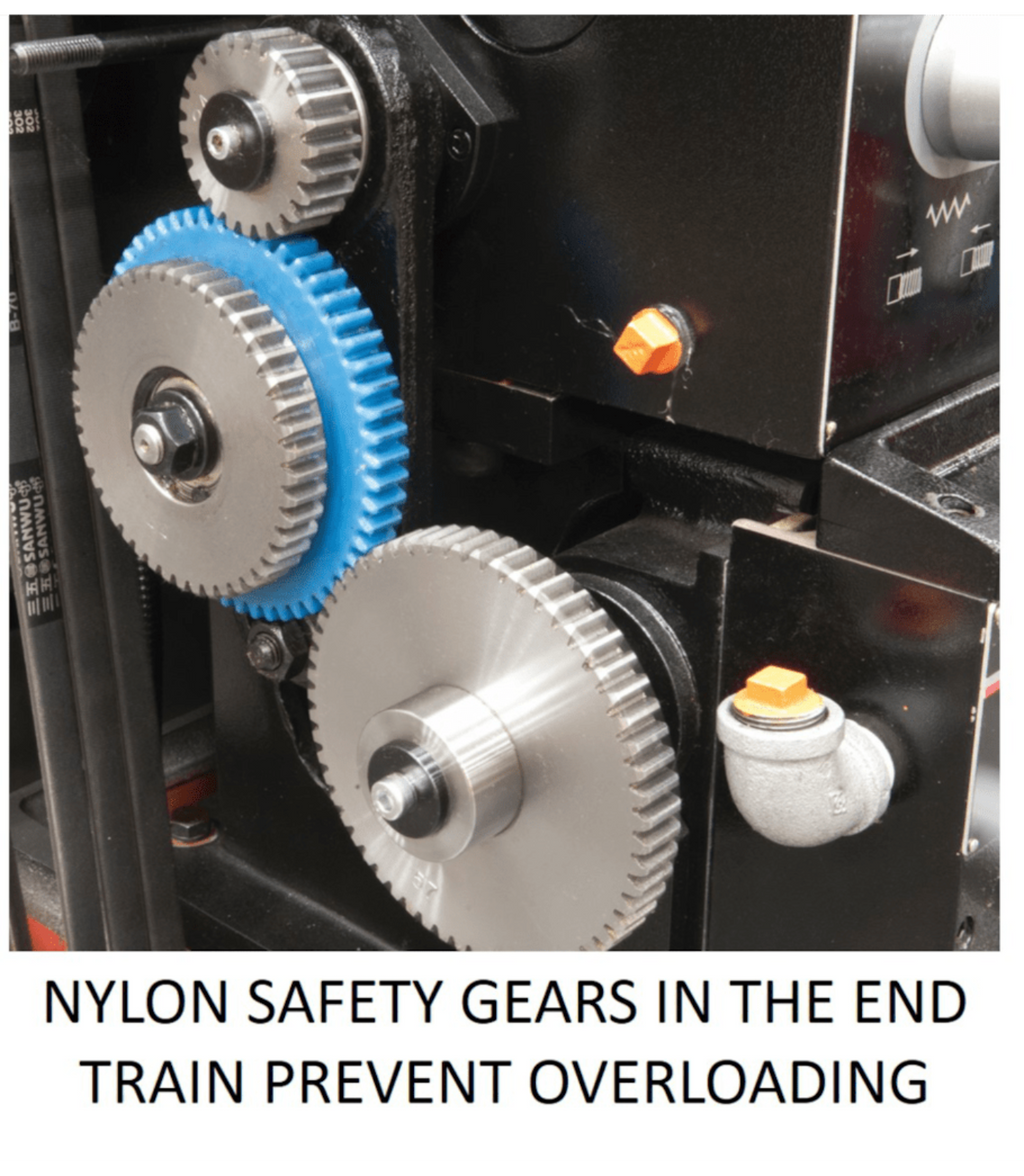

    • Nylon safety gears in the end train prevent overloading, increasing safety
    • One-Shot lubrication in the carriage reduces maintenance
    • Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
    • Steady rests feature ball bearing guides for smooth material movements
    Specifications
    Size 17 x 40
    Style (Type) Engine
    Swing Over Bed (In.) 17
    Swing Over Cross Slide (In.) 11
    Swing in Gap (In.) 7-2/3

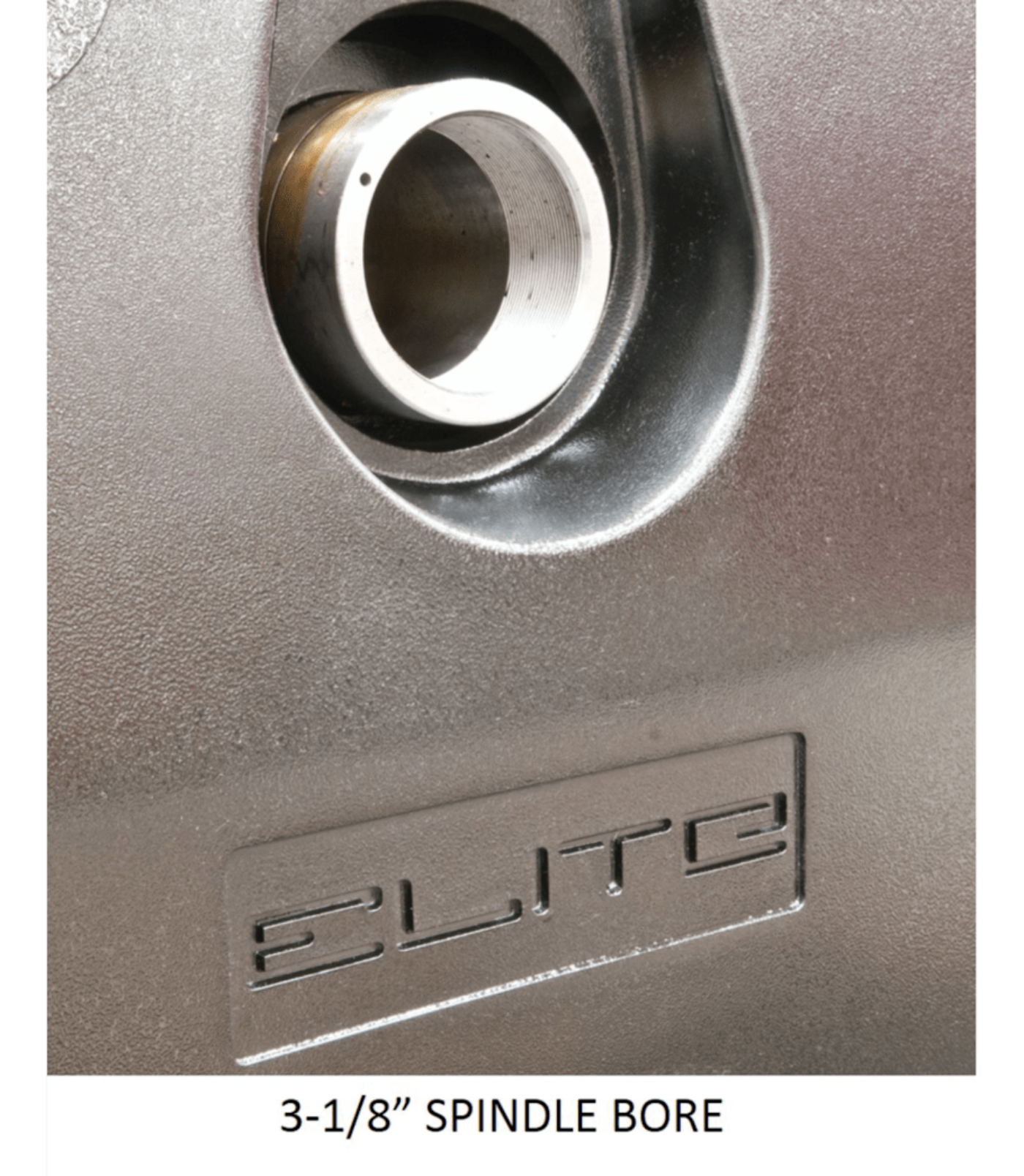

    Spindle Bore (In.) 3-1/8
    Spindle Mount D1-6
    Spindle Taper with Sleeve MT-5
    Number of Spindle Speeds 12
    Range of Spindle Speeds (RPM) 36 – 1,800
    Range of Longitudinal Feeds (IPR) 0.0015 – 0.04
    Range of Cross Feeds (IPR) 0.00075 – 0.02
    Number of Inch Threads 45
    Range of Inch Threads (TPI) 2 – 72
    Diametrial Pitch Threads Number 21
    Modular Pitch Threads Number 18
    Number of Metric Threads 39
    Range of Metric Threads 0.2 – 14
    Max Tool Size (In.) 1 x 1
    Compound Slide Travel (In.) 6-2/7
    Tailstock Spindle Travel (In.) 5
    Steady Rest Capacity (In.) 3/8 – 6-3/4
    Width of Bed (In.) 12
    Weight (Lbs.) 3,747
    Amperage Draw @ 230V 3Ph 22
    Amperage Draw @ 460V 3Ph 11

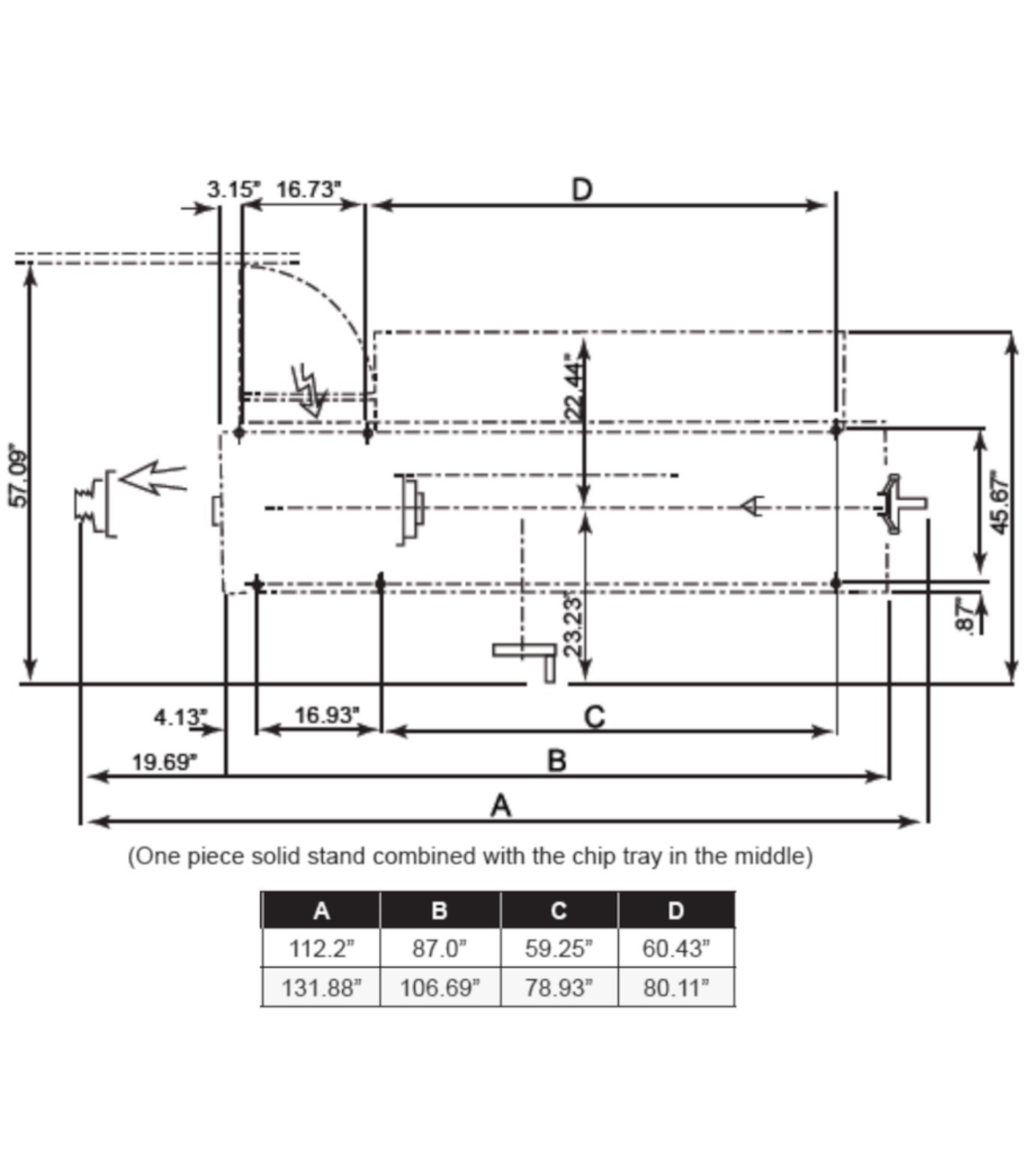

    Overall Dimensions (L x W x H) 94 x 44 x 68 in.
    Drive Geared Head
    What our Experts Think
    • 17" swing and 40" center distance handle larger, heavy-duty machining projects.

    • ACU-RITE 303 DRO provides advanced, accurate readouts for high-precision work.

    • Collet closer enables fast, secure workholding to streamline production.

    • Hardened, ground gears and rigid cast-iron build ensure durability and stability.

    Q&A

    Q: What type of lathe is the JET Elite EGH-1740?
    A: It’s a heavy-duty 17x40 gear head lathe designed for precision and reliability in industrial machining.

    Q: What does the ACU-RITE 303 DRO provide?
    A: The digital readout offers accurate measurements, enhanced repeatability, and improved efficiency for complex operations.

    Q: What is the function of the collet closer?
    A: It enables quick and secure workpiece clamping, saving setup time and ensuring consistent machining accuracy.

    Q: What are its swing and center specifications?
    A: The machine features a 17-inch swing over bed and 40-inch distance between centers.

    Q: Where is this lathe best used?
    A: It’s ideal for professional machine shops, tool rooms, and manufacturing environments needing high-precision turning.

    Maintenance Tips
    • Clean the lathe bed, carriage, and cross slide after every use to prevent chip buildup and rust.

    • Follow the lubrication schedule for gears, leadscrews, and sliding components to reduce wear.

    • Keep the ACU-RITE 303 DRO display, scales, and sensors free from dust and debris for precise readings.

    • Inspect the collet closer regularly to ensure smooth clamping and reliable workholding.

    • Check spindle bearings, gibs, and belts periodically; adjust or replace if signs of wear appear.

    • Confirm tailstock and spindle alignment to maintain turning accuracy.

    • Tighten tool post, tailstock, and fasteners to preserve rigidity during operations.

    • Schedule professional maintenance checks to extend machine life and optimize performance.
