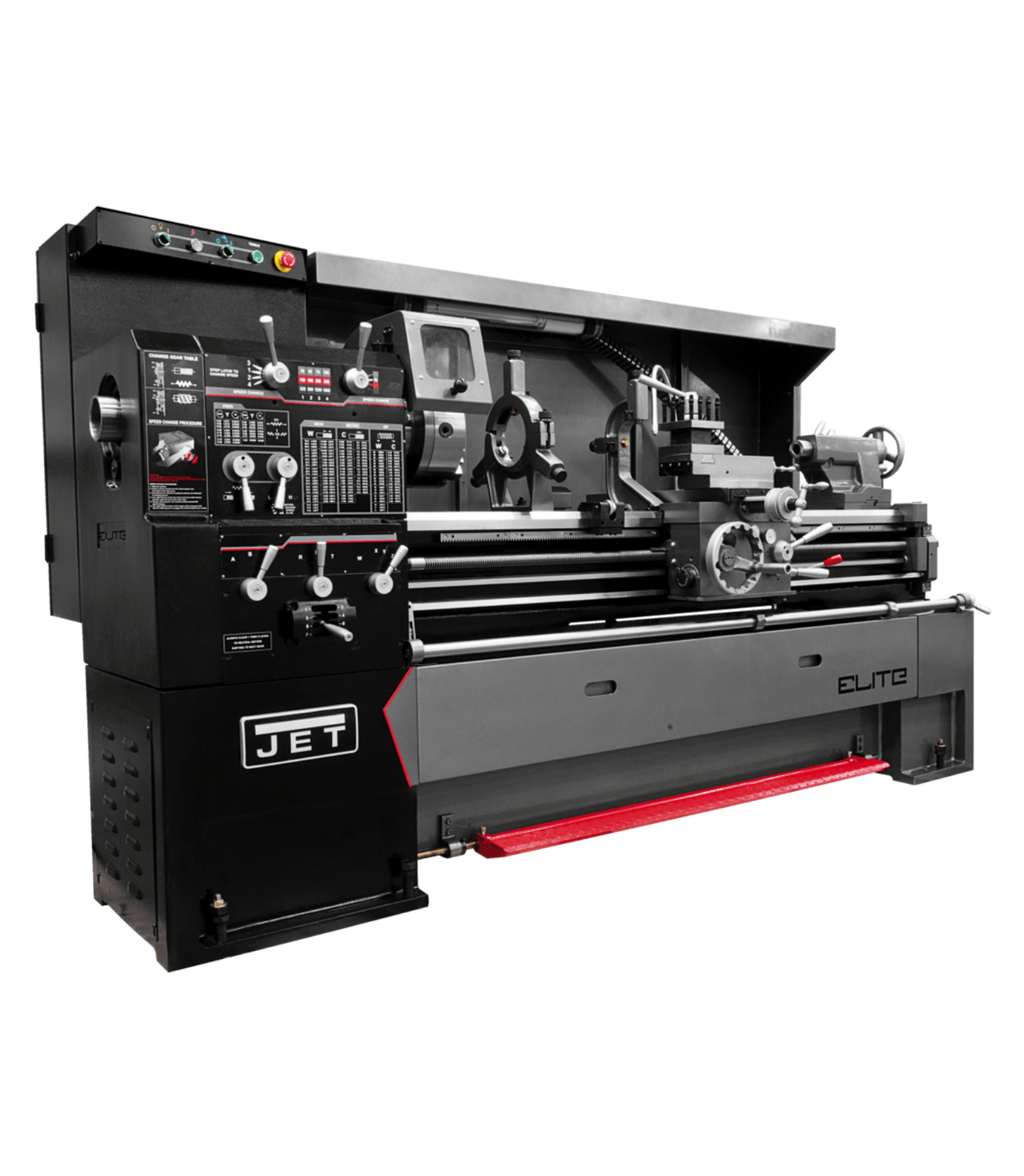

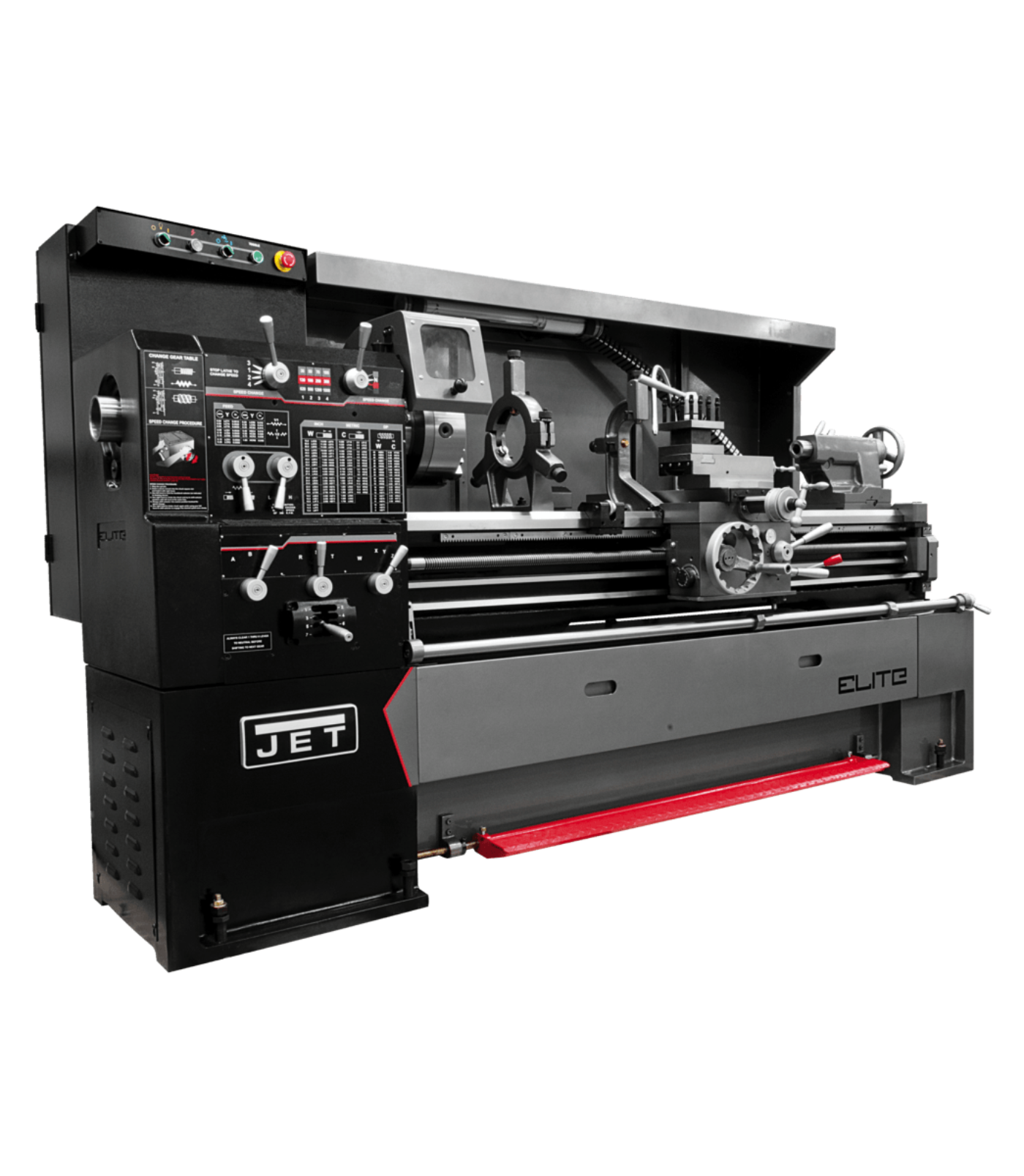

    JET Elite Lathe EGH-1740 with ACU-RITE 303 DRO with Taper Attachment - JT9-892508

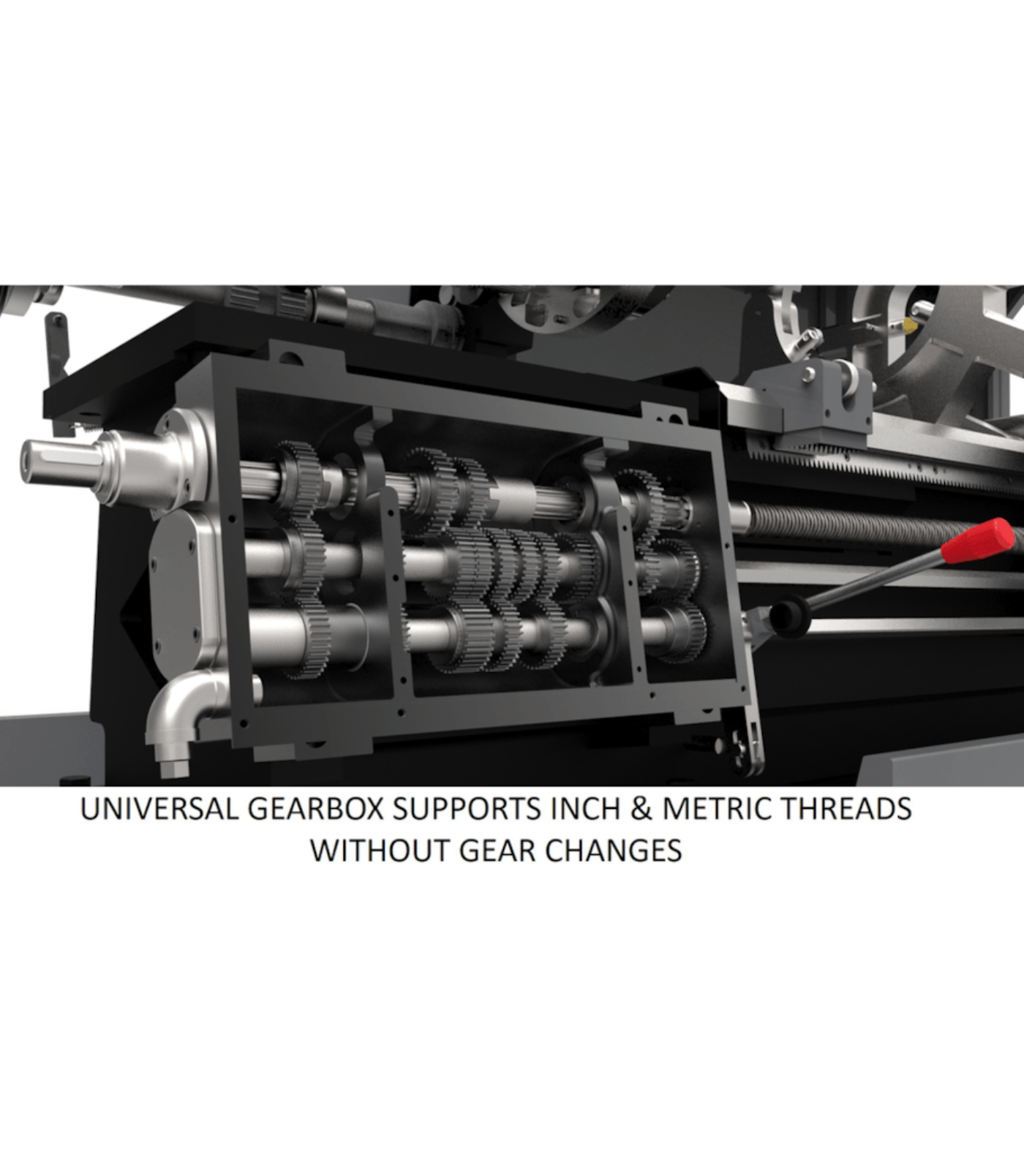

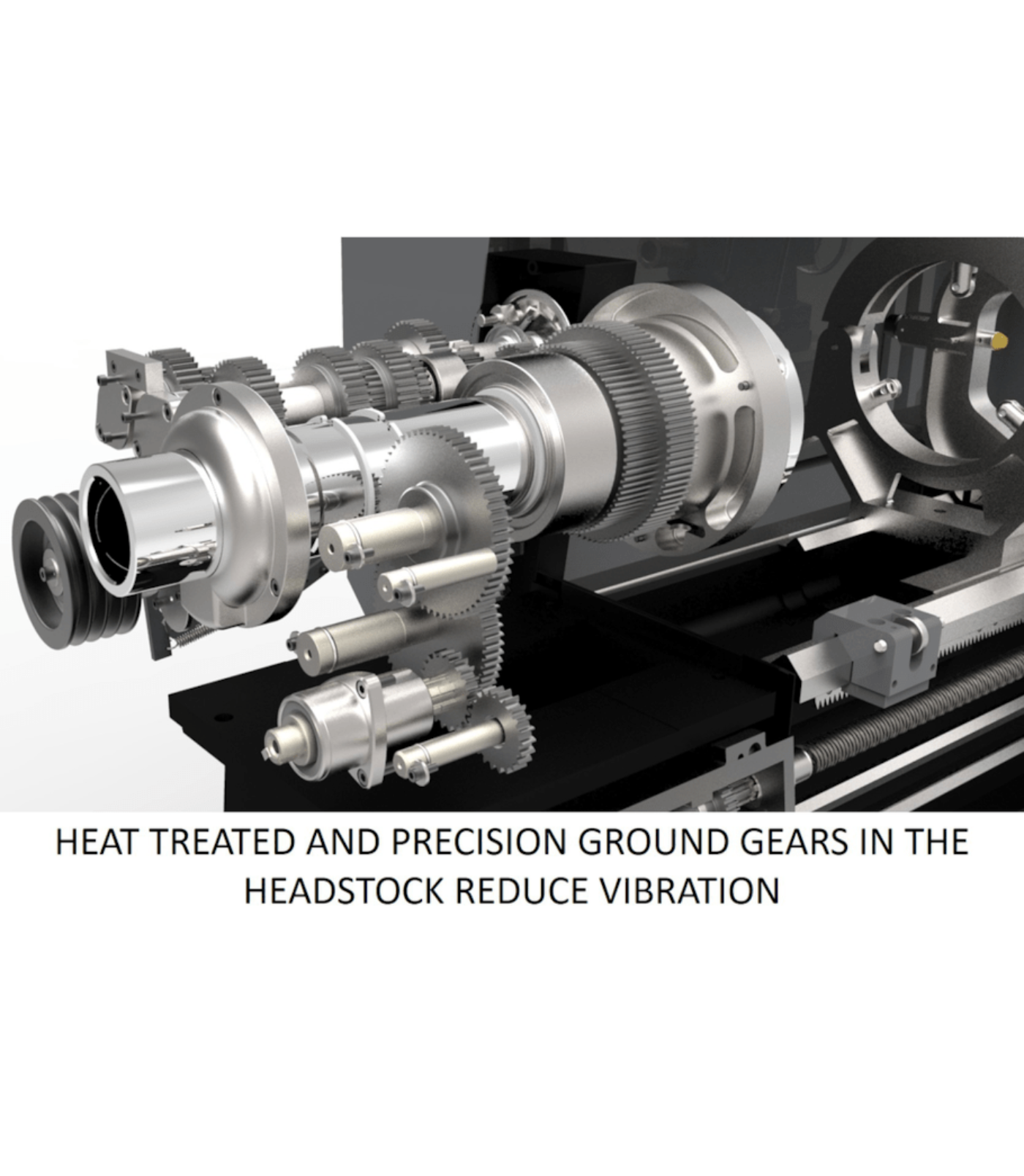

    Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.

    Features
    • 4-Position Carriage Stop
    • Anti-Float design eliminates backlash in the cross slide
    • Enclosed coolant system contains excess coolant for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine

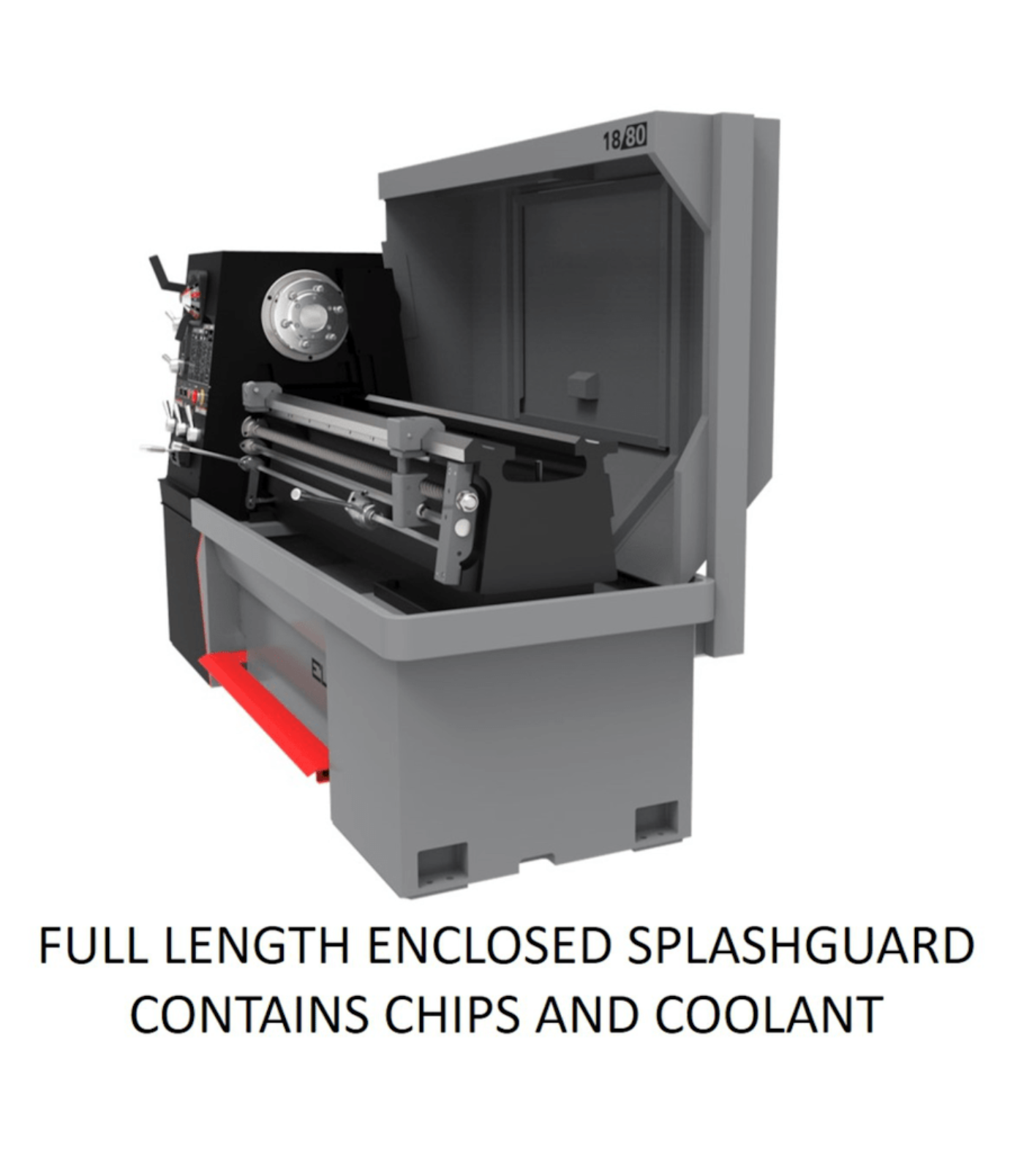

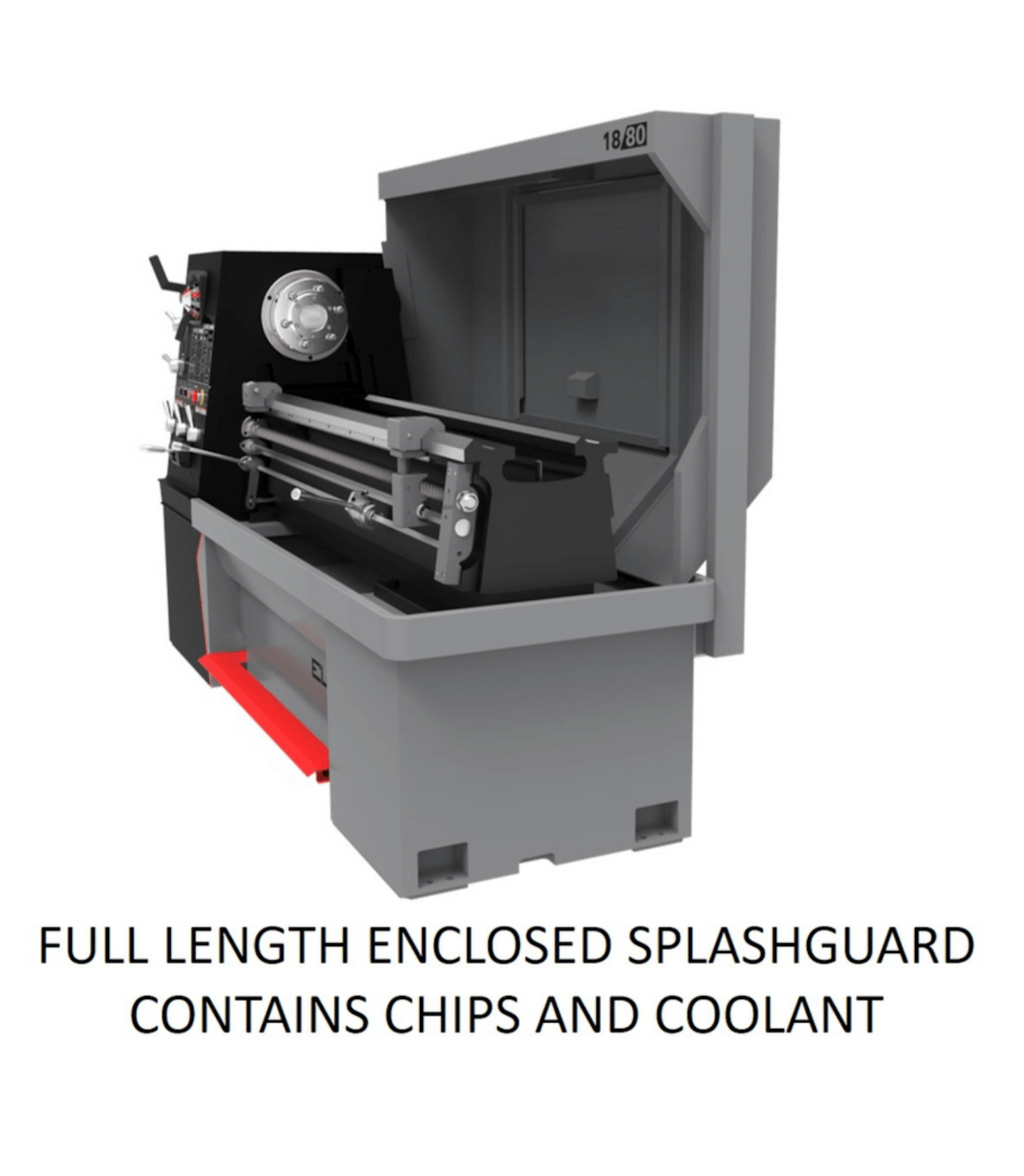

    • Full Length Splash Guard

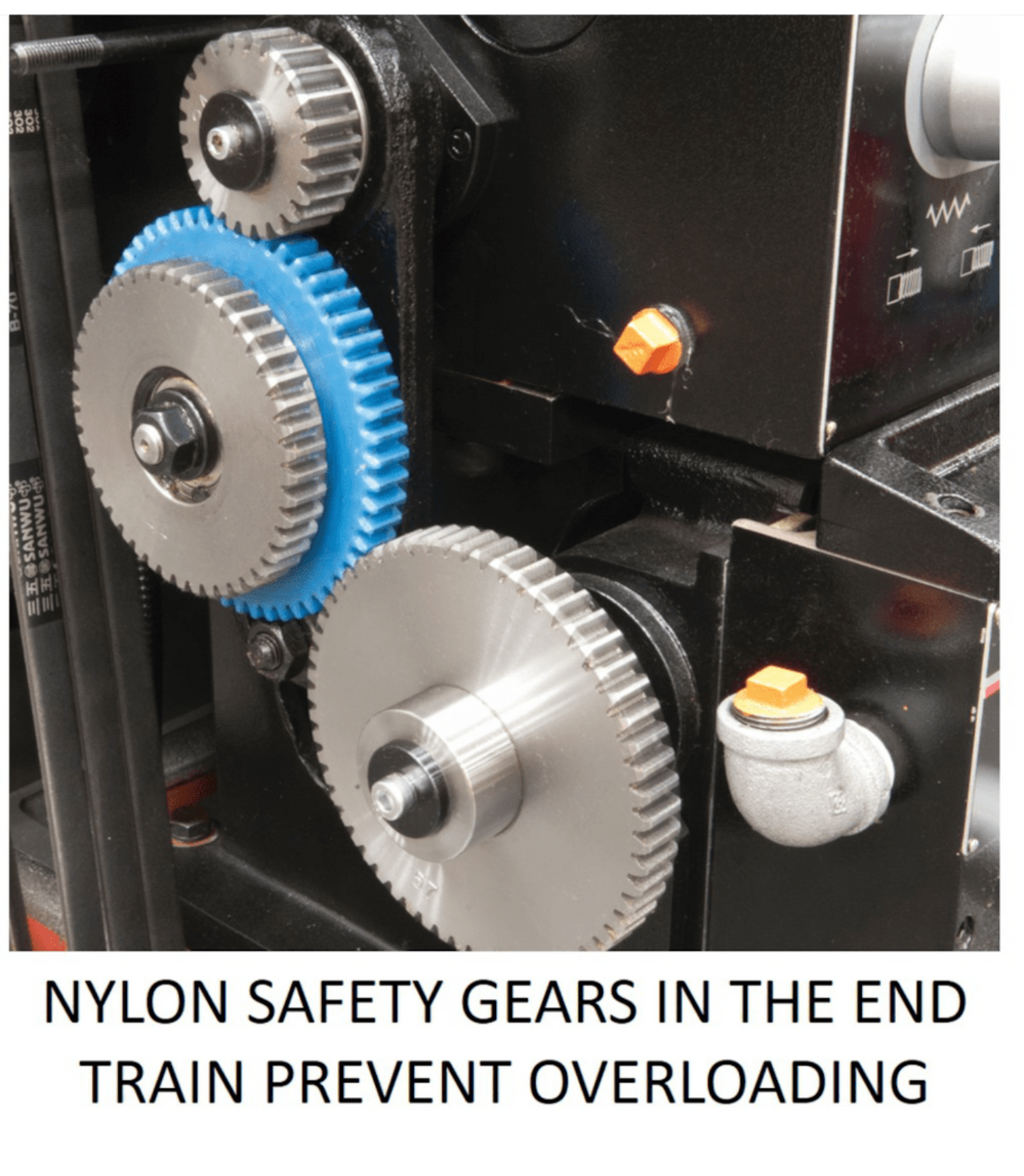

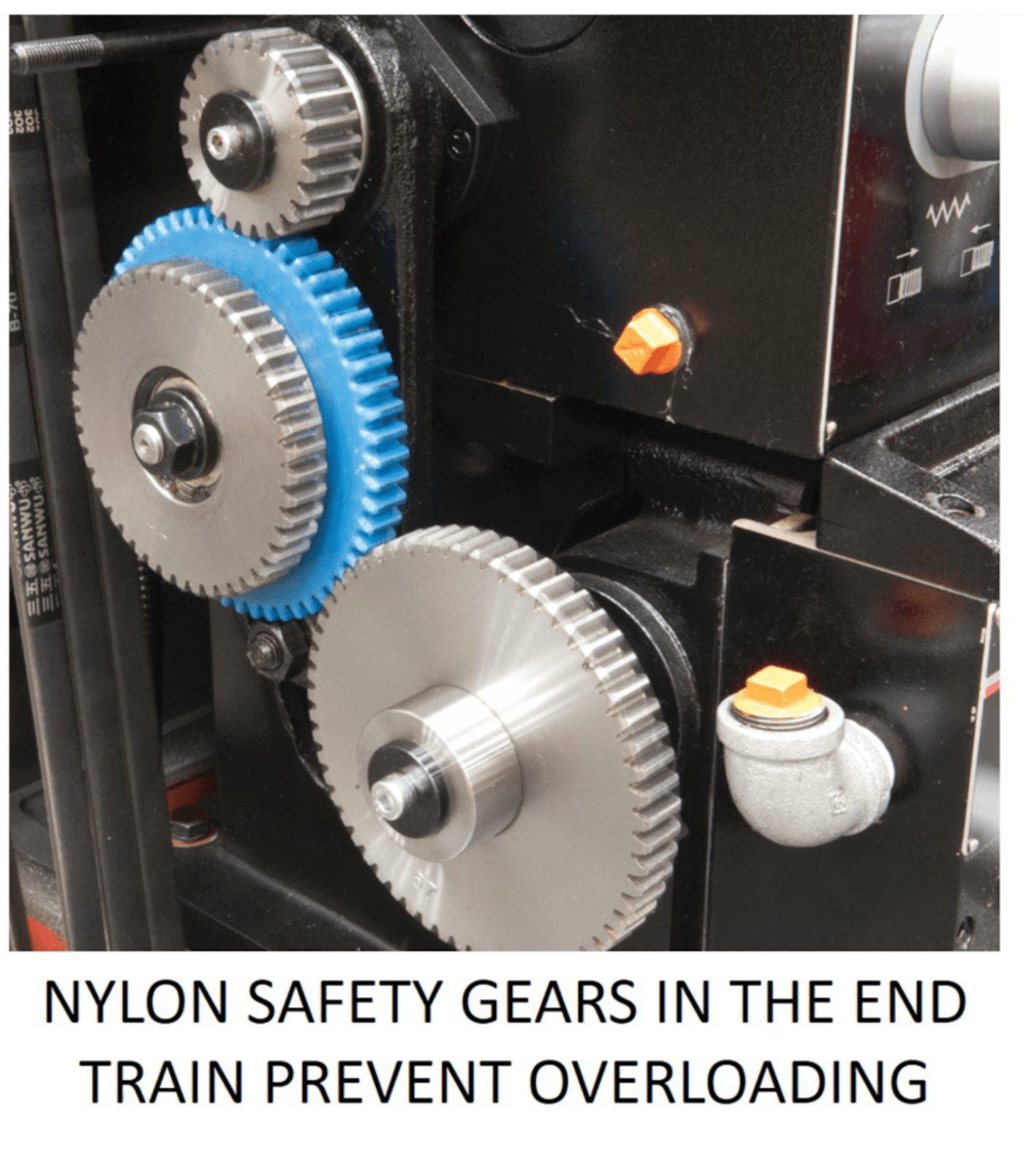

    • Nylon safety gears in the end train prevent overloading, increasing safety
    • One-Shot lubrication in the carriage reduces maintenance
    • Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
    • Steady rests feature ball bearing guides for smooth material movements
    Specifications
    Size 17 x 40
    Style (Type) Engine
    Swing Over Bed (In.) 17
    Swing Over Cross Slide (In.) 11
    Swing in Gap (In.) 7-2/3

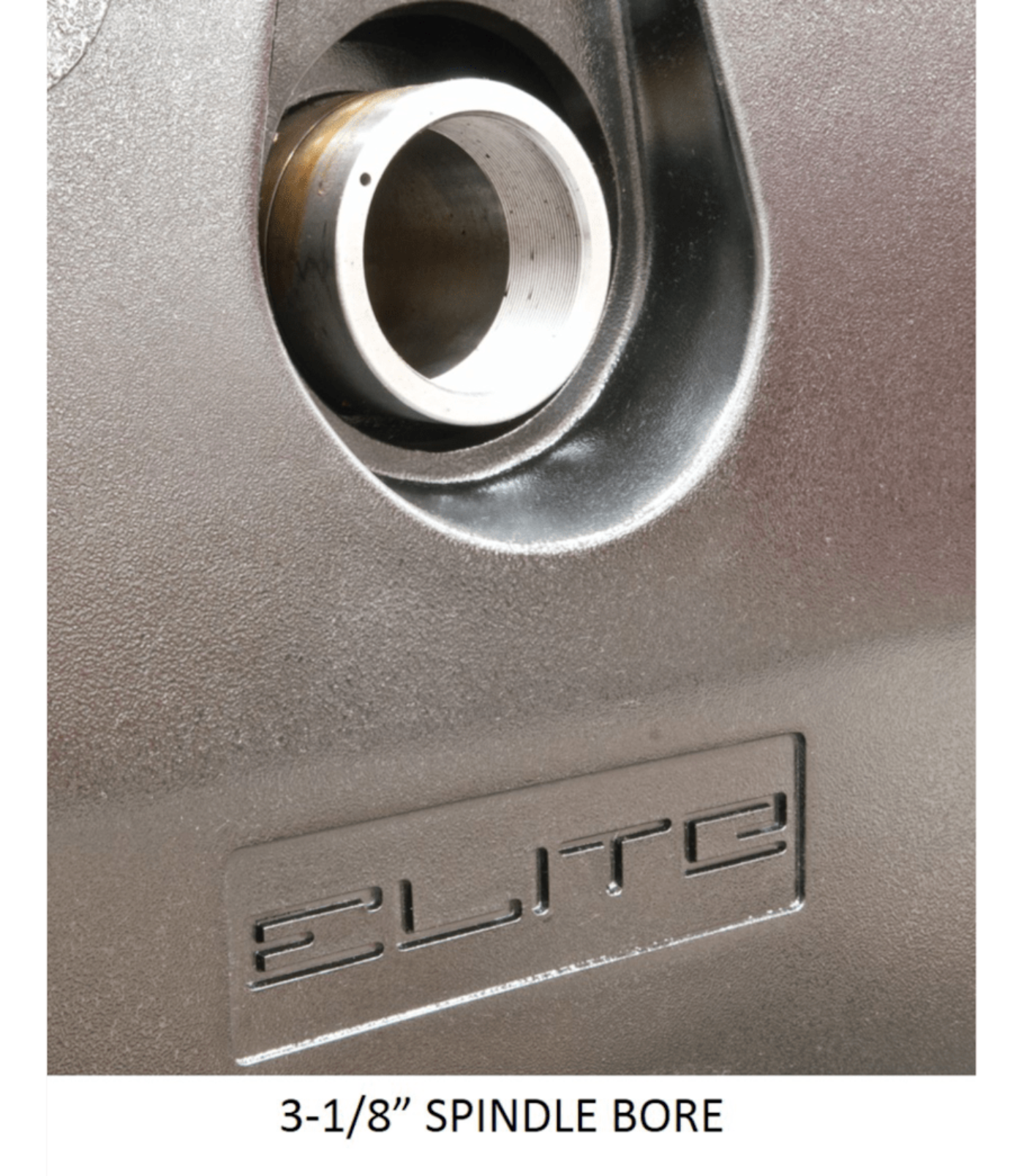

    Spindle Bore (In.) 3-1/8
    Spindle Mount D1-6
    Spindle Taper with Sleeve MT-5
    Number of Spindle Speeds 12
    Range of Spindle Speeds (RPM) 36 – 1,800
    Range of Longitudinal Feeds (IPR) 0.0015 – 0.04
    Range of Cross Feeds (IPR) 0.00075 – 0.02
    Number of Inch Threads 45
    Range of Inch Threads (TPI) 2 – 72
    Diametrial Pitch Threads Number 21
    Modular Pitch Threads Number 18
    Number of Metric Threads 39
    Range of Metric Threads 0.2 – 14
    Max Tool Size (In.) 1 x 1
    Compound Slide Travel (In.) 6-2/7
    Tailstock Spindle Travel (In.) 5
    Steady Rest Capacity (In.) 3/8 – 6-3/4
    Width of Bed (In.) 12
    Weight (Lbs.) 3,747
    Amperage Draw @ 230V 3Ph 22
    Amperage Draw @ 460V 3Ph 11

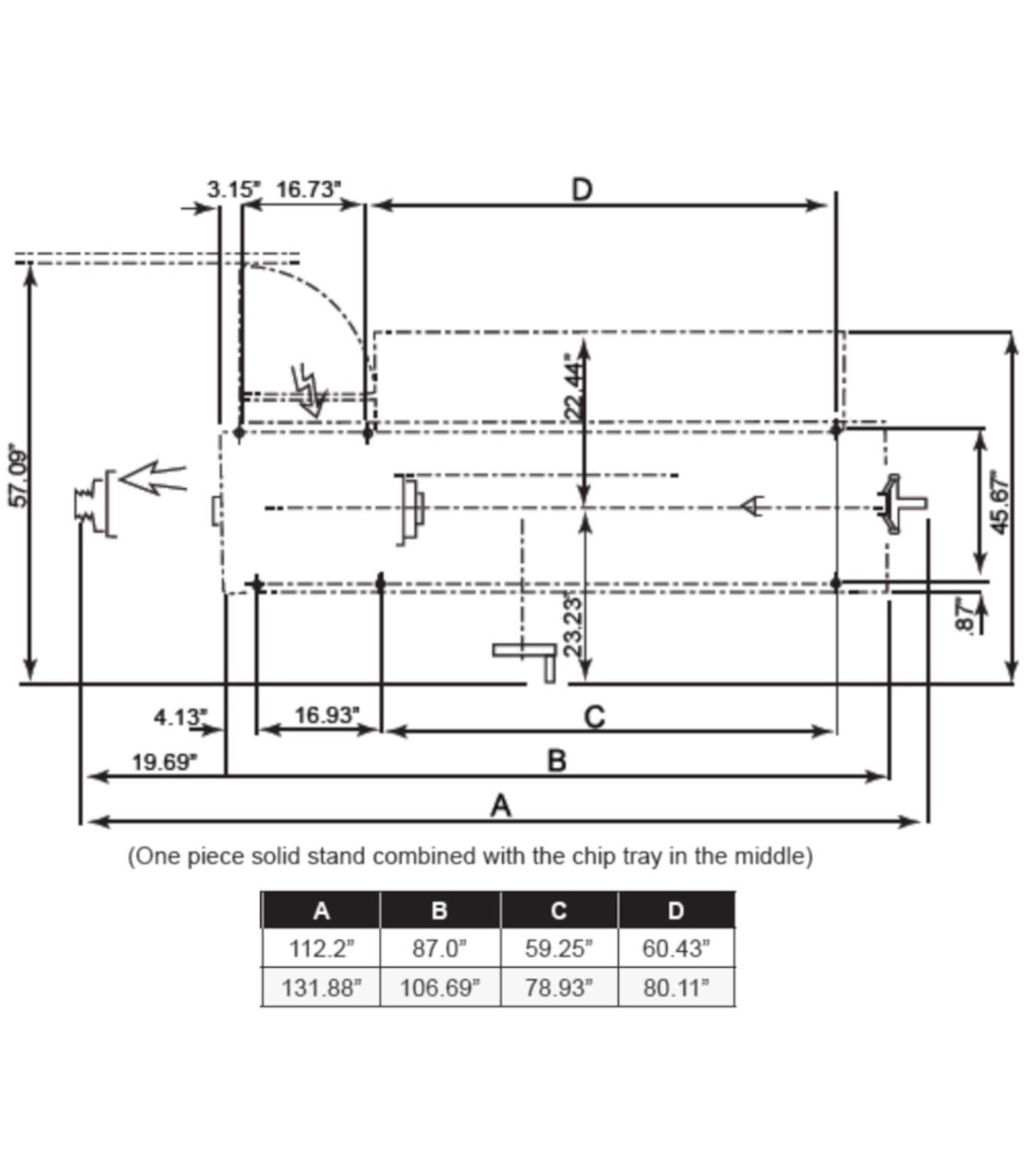

    Overall Dimensions (L x W x H) 94 x 44 x 68 in.
    Drive Geared Head
    What our Experts Think
    • Precision Machining – Geared head lathe delivers consistent, accurate performance for professional applications.

    • ACU-RITE 303 DRO – Digital readout system improves measurement accuracy and operator efficiency.

    • Taper Attachment – Expands capability, allowing smooth, accurate taper cutting without complex setups.

    • Heavy-Duty Construction – Cast-iron base and headstock provide rigidity and durability for long-term use.

    • Versatile Applications – Ideal for threading, turning, and general-purpose machining.

    • Industrial Reliability – Built for continuous operation in machine shops, production facilities, and technical training programs.

    Q&A

    Q: What is the JET Elite EGH-1740 Lathe?
    A: A 17" x 40" geared head precision lathe featuring an ACU-RITE 303 digital readout and taper attachment for accurate, heavy-duty machining.

    Q: What makes this lathe unique?
    A: It combines a robust geared head design with precision DRO measurement and a taper attachment for versatile cutting capability.

    Q: What materials can it machine?
    A: Suitable for steel, aluminum, brass, and other metals in professional and industrial applications.

    Q: Why is the ACU-RITE 303 DRO important?
    A: It provides precise, reliable digital measurement, reduces operator error, and increases shop productivity.

    Q: What is the benefit of the taper attachment?
    A: It allows accurate taper cutting without offsetting the tailstock, saving time and ensuring consistency.

    Q: What size capacity does it have?
    A: 17" swing over bed and 40" distance between centers.

    Q: Where is it best used?
    A: Perfect for machine shops, industrial manufacturing, prototyping, and maintenance departments.

    Q: How does it improve efficiency?
    A: The geared head drive, DRO system, and taper attachment reduce setup time, expand machining options, and deliver consistent precision.

    Maintenance Tips
    • Clean bedways, carriage, and tooling after every use to prevent chip buildup

    • Lubricate gears, bearings, and moving parts as specified in the manufacturer’s schedule

    • Inspect belts, gears, and spindle components regularly for wear or misalignment

    • Keep taper attachment clean, properly adjusted, and lightly oiled for smooth travel

    • Maintain DRO display and electrical connections clean, dry, and dust-free

    • Verify alignment and calibration periodically for precise machining

    • Schedule annual professional servicing for long-term accuracy and performance
