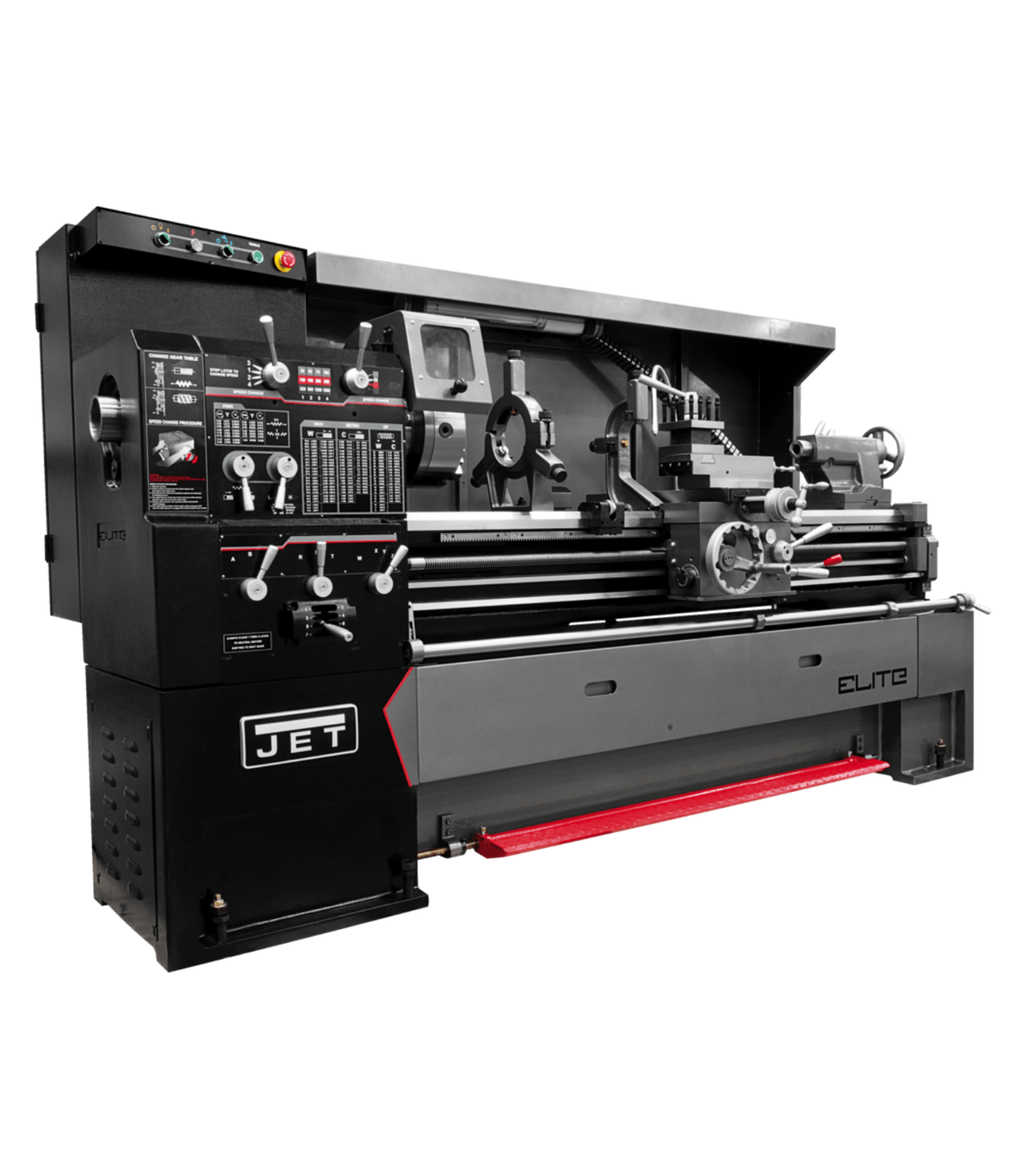

    JET Elite Lathe EGH-1740 with Taper Attacment - JT9-892500

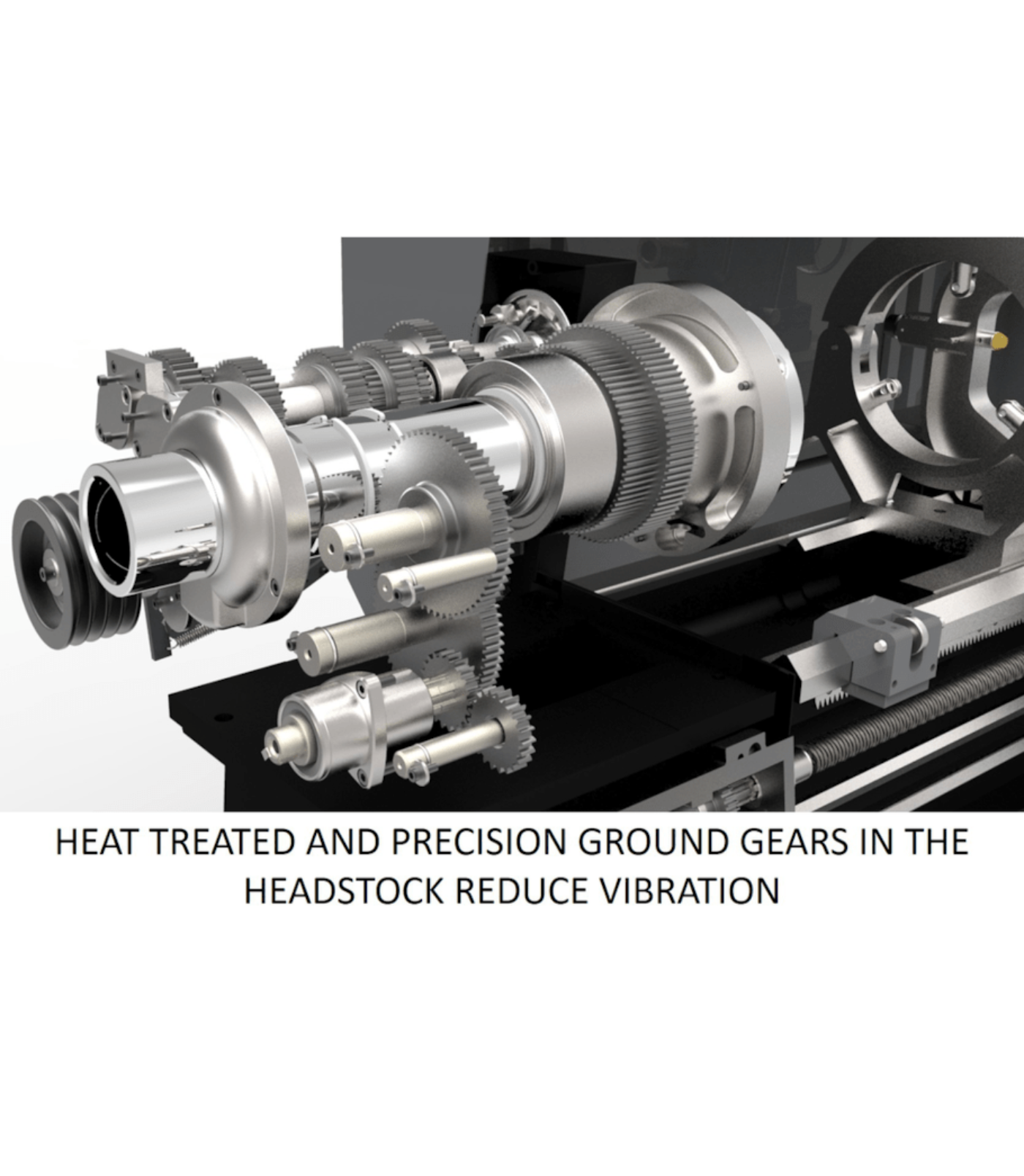

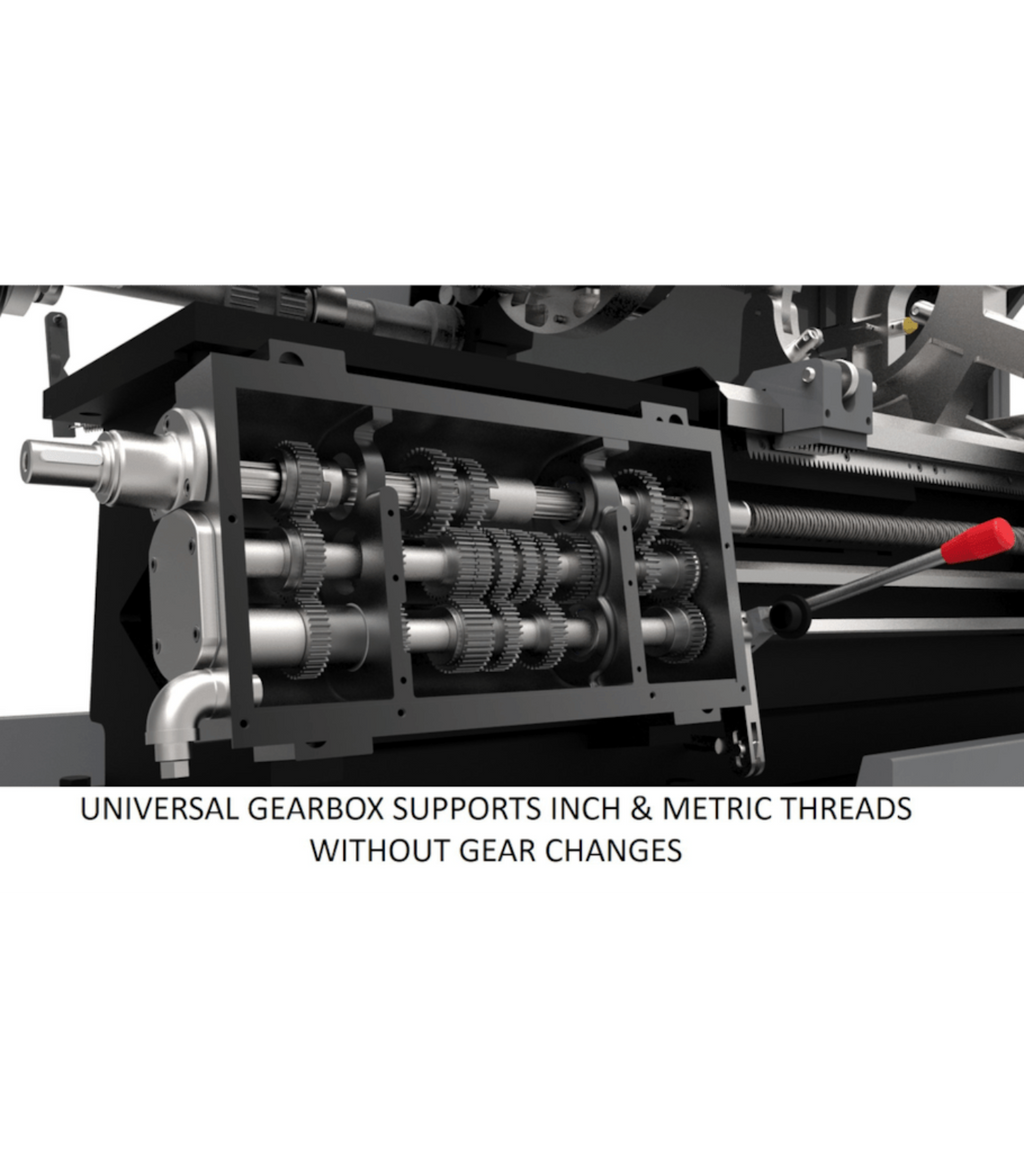

    Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.

    Features
    • 4-Position Carriage Stop
    • Anti-Float design eliminates backlash in the cross slide
    • Enclosed coolant system contains excess coolant for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine

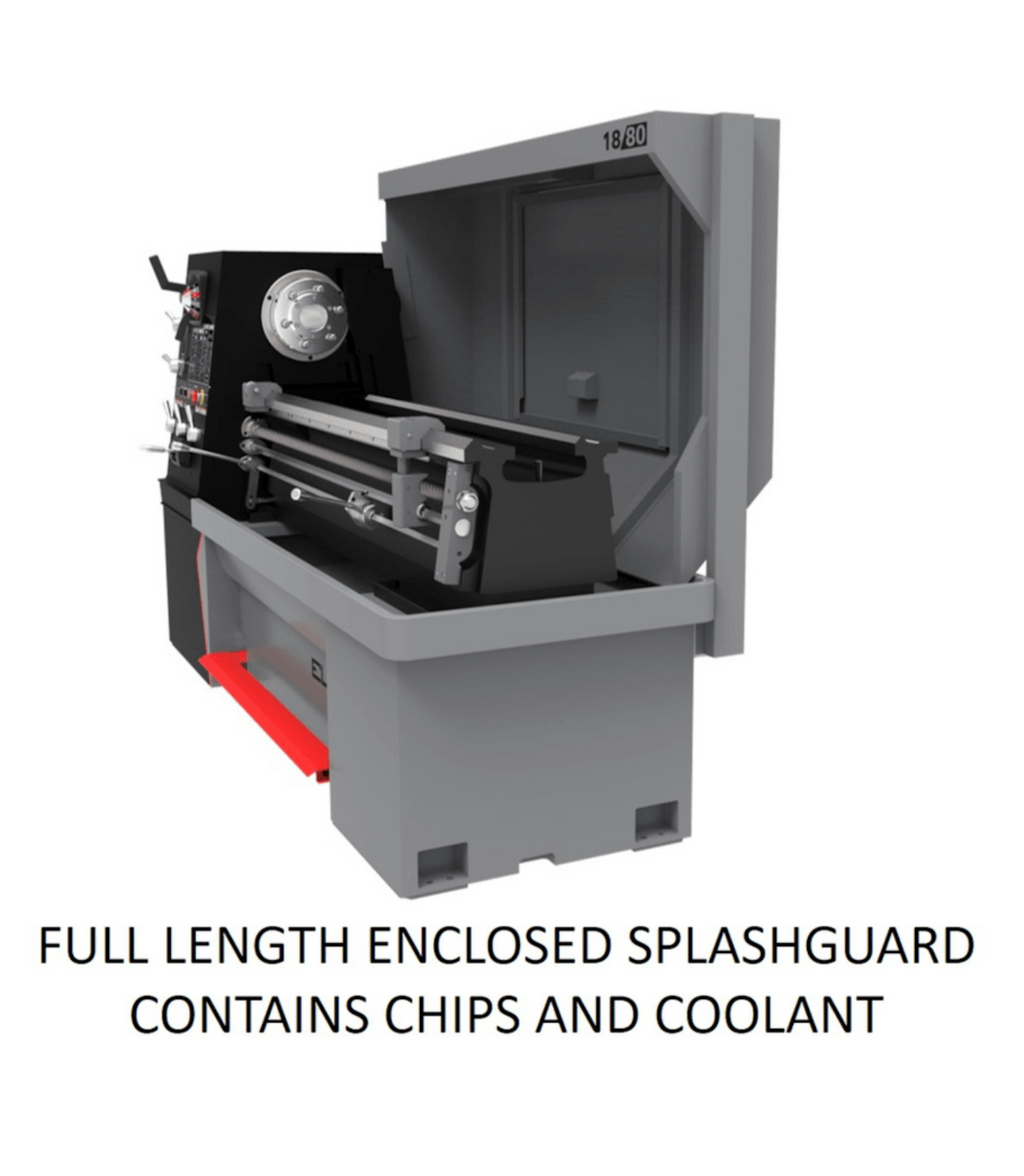

    • Full Length Splash Guard

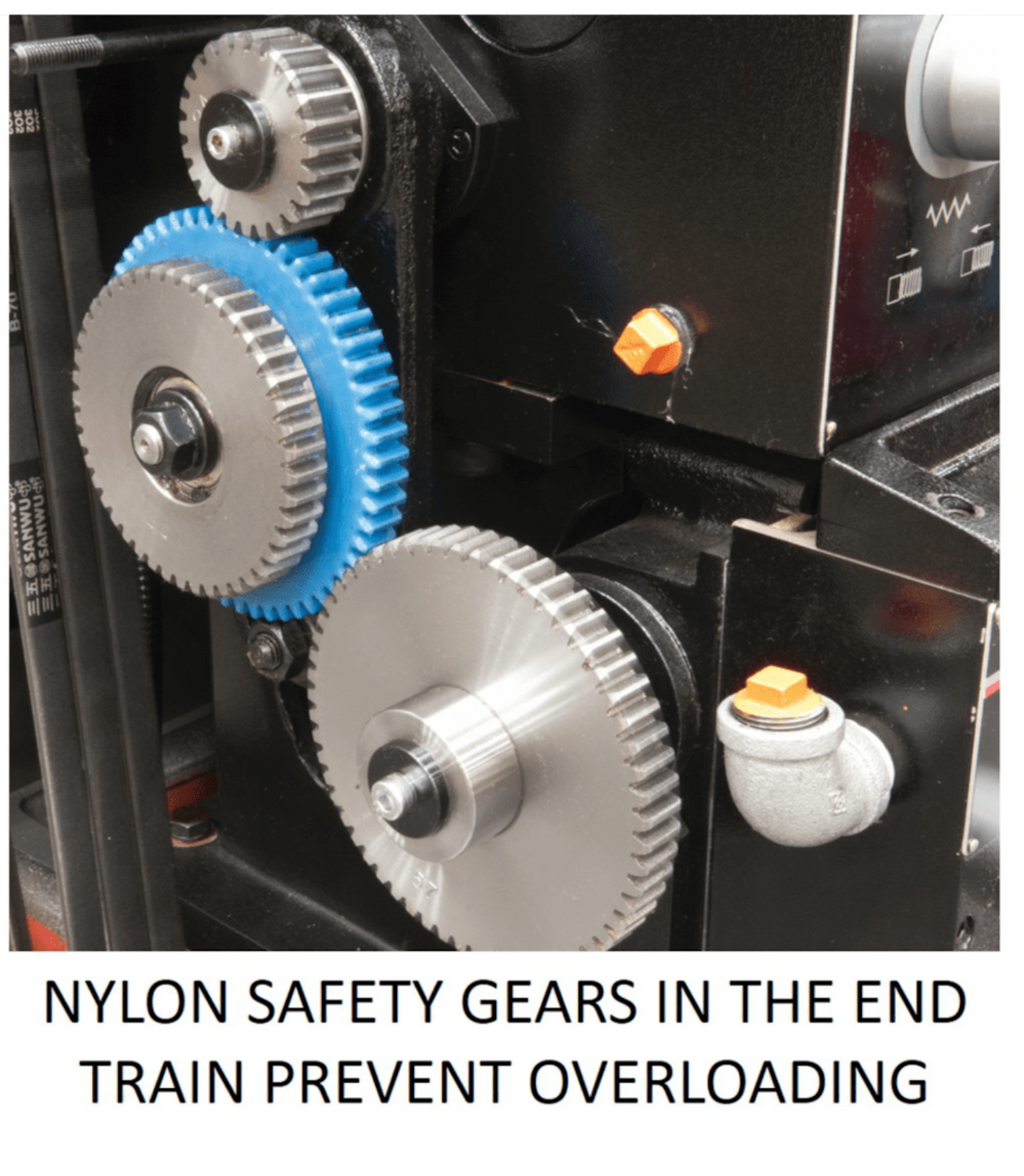

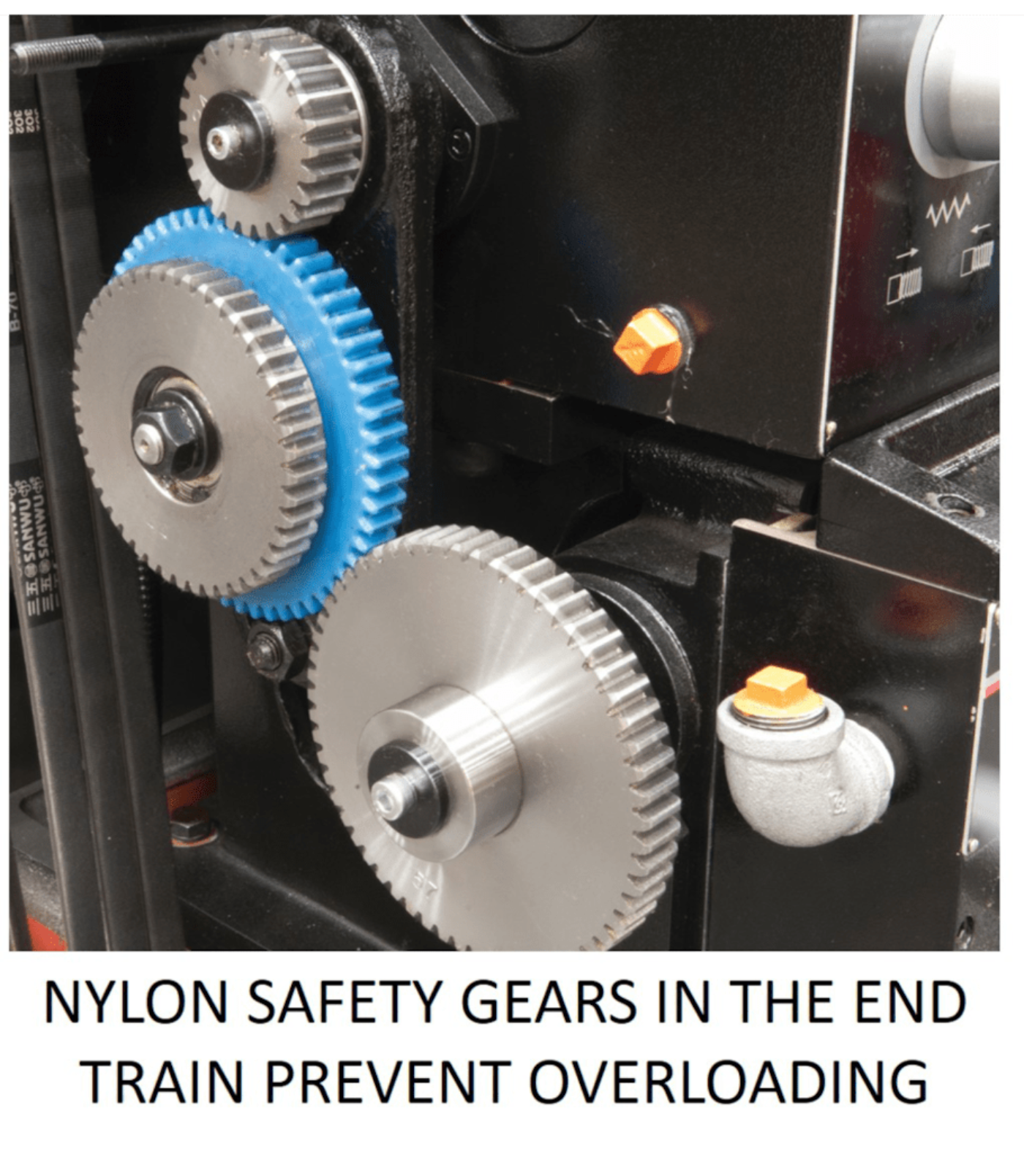

    • Nylon safety gears in the end train prevent overloading, increasing safety
    • One-Shot lubrication in the carriage reduces maintenance
    • Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
    • Steady rests feature ball bearing guides for smooth material movements
    Specifications
    Size 17 x 40
    Style (Type) Engine
    Swing Over Bed (In.) 17
    Swing Over Cross Slide (In.) 11
    Swing in Gap (In.) 7-2/3

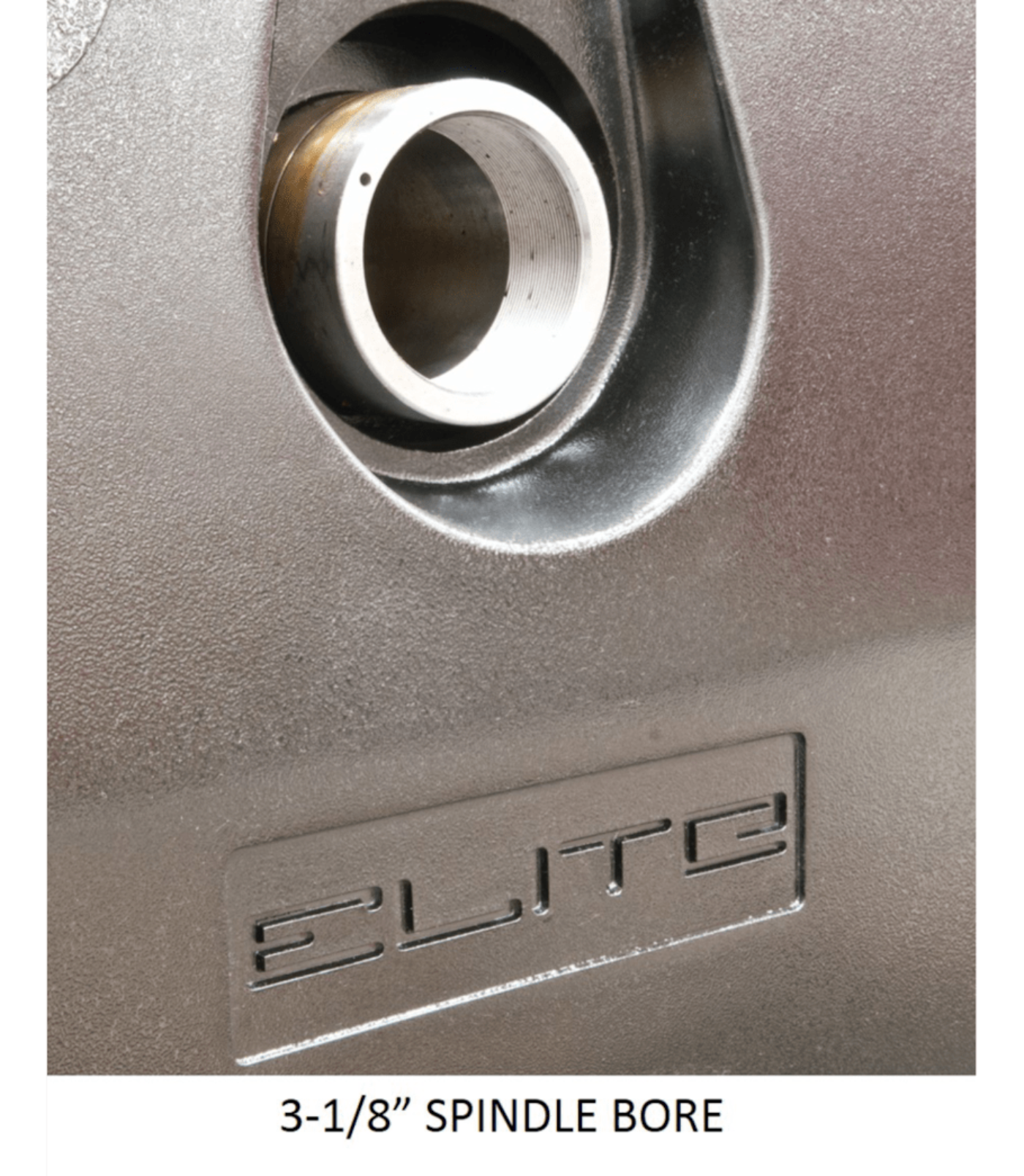

    Spindle Bore (In.) 3-1/8
    Spindle Mount D1-6
    Spindle Taper with Sleeve MT-5
    Number of Spindle Speeds 12
    Range of Spindle Speeds (RPM) 36 – 1,800
    Range of Longitudinal Feeds (IPR) 0.0015 – 0.04
    Range of Cross Feeds (IPR) 0.00075 – 0.02
    Number of Inch Threads 45
    Range of Inch Threads (TPI) 2 – 72
    Diametrial Pitch Threads Number 21
    Modular Pitch Threads Number 18
    Number of Metric Threads 39
    Range of Metric Threads 0.2 – 14
    Max Tool Size (In.) 1 x 1
    Compound Slide Travel (In.) 6-2/7
    Tailstock Spindle Travel (In.) 5
    Steady Rest Capacity (In.) 3/8 – 6-3/4
    Width of Bed (In.) 12
    Weight (Lbs.) 3,747
    Amperage Draw @ 230V 3Ph 22
    Amperage Draw @ 460V 3Ph 11

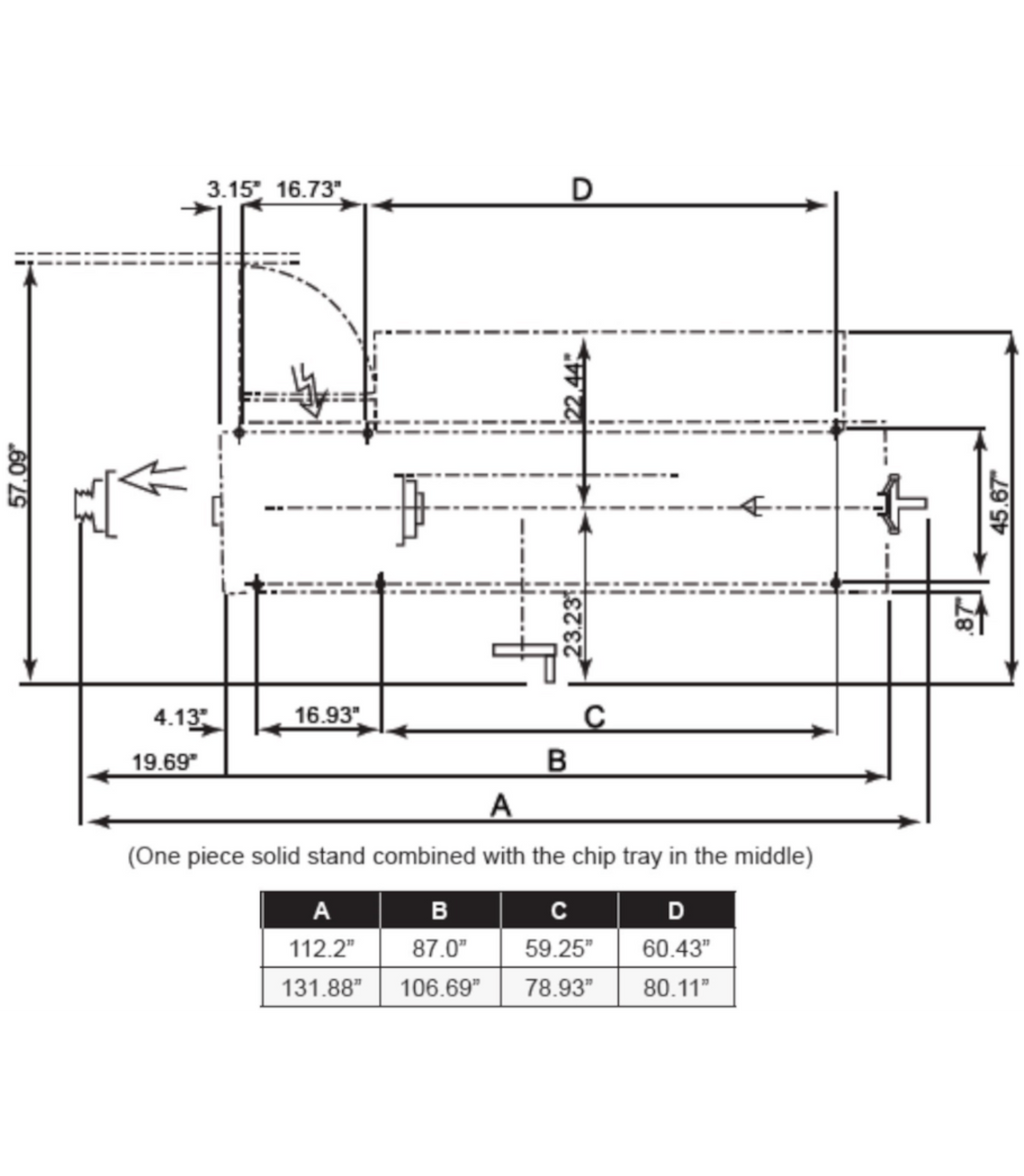

    Overall Dimensions (L x W x H) 94 x 44 x 68 in.
    Drive Geared Head
    What our Experts Think
    • High Precision: Gear-head lathe delivers consistent accuracy for demanding metalworking tasks.

    • Enhanced Versatility: Includes taper attachment for complex turning applications.

    • Heavy-Duty Construction: Rugged cast-iron build ensures stability and reduces vibration.

    • Operator-Friendly: Smooth controls and ergonomic layout support efficient workflow.

    • Industrial Performance: Designed for machine shops and professionals requiring reliability and power.

    Q&A

    Q: What is the JET Elite EGH-1740 Lathe?
    A: A heavy-duty gear head lathe designed for precision metalworking, equipped with a factory-installed taper attachment.

    Q: What makes it unique?
    A: Its precision-ground bedways, hardened gears, and integrated taper attachment ensure accuracy, power, and versatility for machining.

    Q: Where can it be used?
    A: Perfect for machine shops, industrial fabrication, tool rooms, and production environments.

    Q: What style of work does it suit?
    A: High-precision turning, threading, facing, boring, and taper cutting on metals and alloys.

    Q: What materials is it made from?
    A: Rugged cast iron base with precision-engineered components for stability and long-lasting durability.

    Q: What are its key features?
    A: 17" swing, 40" center distance, gear head drive, D1-6 spindle mount, and taper attachment for accurate taper cuts.

    Maintenance Tips
    • Clean the bedways, carriage, and leadscrews after each use to prevent wear.

    • Lubricate gears, bearings, and sliding components per manufacturer’s guidelines.

    • Inspect belts, gibs, and fasteners regularly for proper adjustment and safety.

    • Keep electrical panels dry and free from dust buildup.

    • Cover the lathe when idle to protect against shop debris and corrosion.
