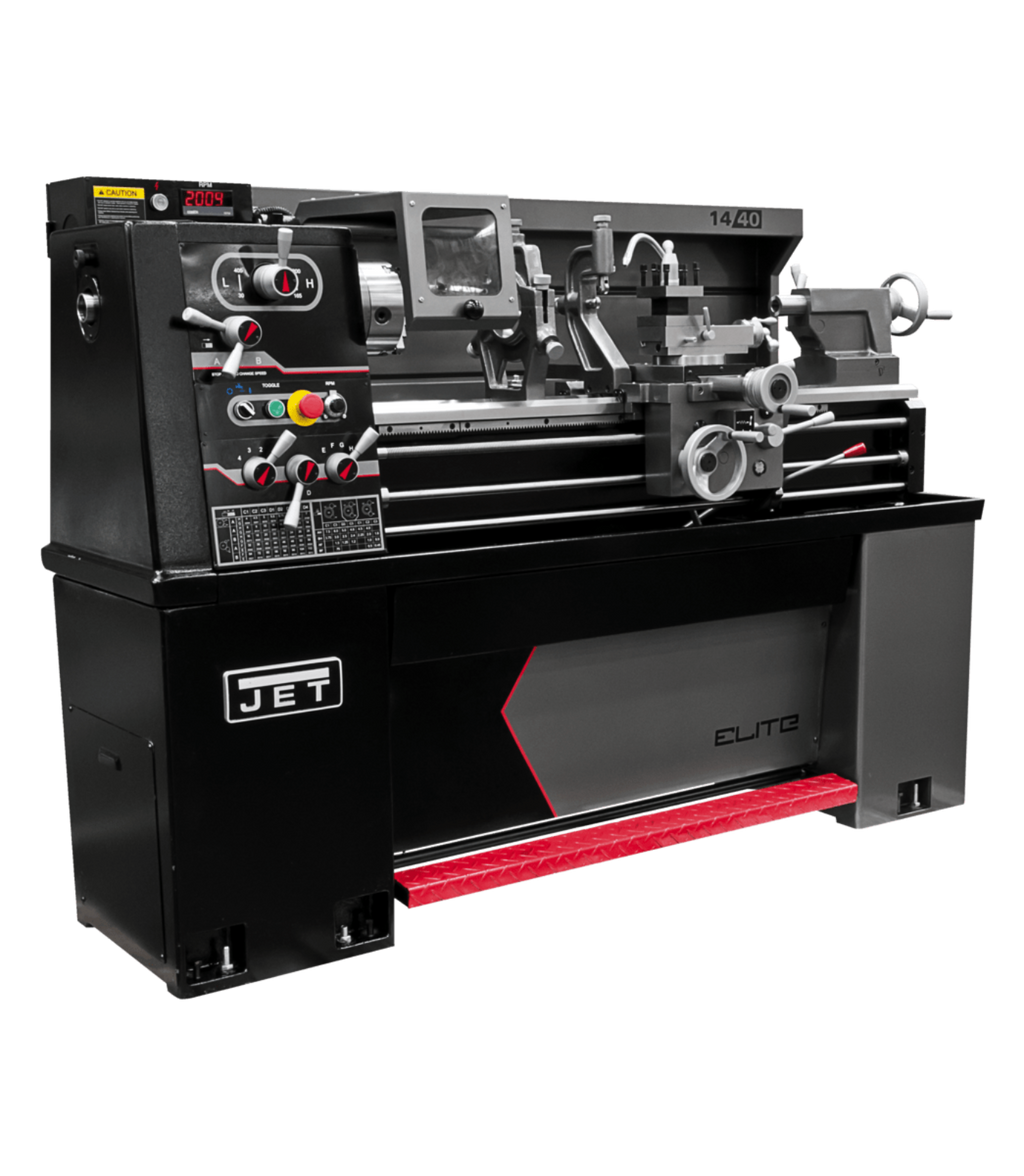

JET Elite LatheE-1440VS with ACU-RITE 303 CSS DRO - JT9-892465

JET Elite LatheE-1440VS with ACU-RITE 303 CSS DRO - JT9-892465

$19,657.99
Sale price  $19,657.99 Regular price  $26,209.99
Skip to product information
JET Elite LatheE-1440VS with ACU-RITE 303 CSS DRO - JT9-892465
🌸 Offre de printemps : -15% uniquement cette semaine avec le code SPRINGBREAK
(offre valable jusqu'au 12 avril)

JET Elite LatheE-1440VS with ACU-RITE 303 CSS DRO - JT9-892465

$19,657.99
Sale price  $19,657.99 Regular price  $26,209.99
In stock
⚡ Commandez avant 00h 00m 00s .
zephyrtrack livraison

Expédition 72h Protection 90j

zephyr android ios

Compatible Android ou iOS

4,7/5 sur 600+ avis

Payment methods
    Livraison et retours
    • Traitement et expédition : 1 à 3 jours après validation de votre commande
    • Livraison en France métropolitaine : 6 à 9 jours. Lien vers la politique
    • Retours : vous disposez de 30 jours après réception pour nous retourner vos articles. Lien vers la politique

    JET Elite LatheE-1440VS with ACU-RITE 303 CSS DRO - JT9-892465

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine
    • Hardened and ground gears in headstock reduce vibration and deflection
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 14 x 40
    Style (Type) ELITE EVS
    Swing Over Bed 14 in.
    Swing Over Cross Slide 8-5/8 in.
    Swing Through Gap 20 in.
    Length of Gap 9 in.
    Spindle Bore 1-1/2 in.
    Spindle Mount D1-4
    Weight 1,653 lbs.
    Amperage Draw @ 230V 3Ph 9 A
    Spindle Taper with Sleeve MT5
    Range of Spindle Speeds 0 – 2,200 RPM
    Number of Longitudinal & Cross Feed Rates 80
    Range of Longitudinal Feeds (IPR) 0.0012 – 0.0294
    Range of Cross Feeds (IPR) 0.0003 – 0.01
    Number of Inch Threads 40
    Range of Inch Threads (TPI) 4 – 112
    Number of Metric Threads 22
    Range of Metric Threads (mm) 0.45 – 7.5
    Compound Slide Travel 4 in.
    Cross Slide Travel 7 in.
    Motor 3 HP, 230V, 3Ph
    Tailstock Spindle Travel 5 in.
    Taper in Tailstock Spindle MT3
    Steady Rest Capacity 1/4 – 2-3/4 in.
    Width of Bed 8-1/2 in.
    Overall Dimensions (L x W x H) 77 x 30 x 58 in.
    Drive EVS
    What our Experts Think
    • Precision & Control: Variable speed and ACU-RITE 303 DRO system ensure accurate, repeatable results.

    • Advanced Features: CSS (Constant Surface Speed) enhances efficiency in complex turning applications.

    • Heavy-Duty Build: Solid cast-iron construction minimizes vibration and maximizes stability.

    • User-Friendly Operation: Digital readout, smooth controls, and ergonomic layout improve productivity.

    • Professional Performance: Ideal for machine shops and industrial environments needing high accuracy and reliability.

    Q&A

    Q: What is the JET Elite E-1440VS Lathe?
    A: A precision-engineered variable speed metal lathe equipped with the ACU-RITE 303 CSS digital readout system for enhanced accuracy.

    Q: What makes it unique?
    A: Its electronic variable speed drive, constant surface speed control, and factory-installed DRO deliver efficiency, precision, and ease of use.

    Q: Where can it be used?
    A: Ideal for machine shops, tool rooms, fabrication facilities, and industrial production.

    Q: What style of work does it suit?
    A: High-precision turning, threading, facing, tapering, and metal shaping.

    Q: What materials is it made from?
    A: Heavy-duty cast iron frame with hardened, precision-ground bedways for stability and long-term durability.

    Maintenance Tips
    • Wipe down bedways, carriage, and toolpost after each use to remove chips and debris.

    • Lubricate gears, bearings, and sliding components according to manufacturer’s schedule.

    • Inspect DRO system connections and keep sensors clean for precise readouts.

    • Check belts, gibs, and fasteners regularly for wear and secure adjustment.

    • Cover the lathe when not in use to protect from dust and shop contaminants.
