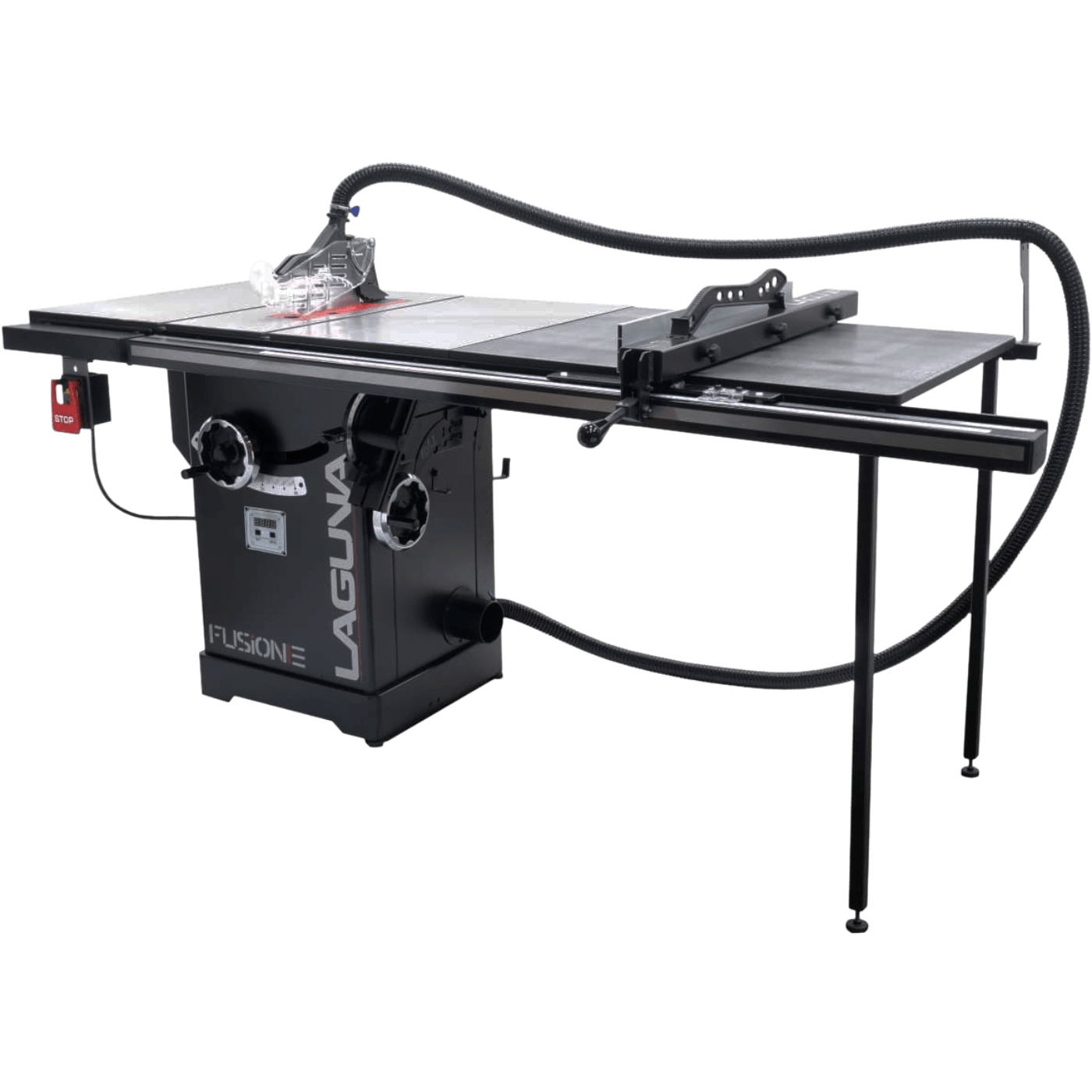

    Laguna Tools Classic Machinery F3 Fusion Tablesaw 52″ - MTSF3362203-0130-52

    The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.

    All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 3 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner.

    Features
    • 52″ Rip Capacity
    • 3HP TEFC Motor
    • 220V, Single-Phase, 60Hz Power Requirement
    • Fusion Dust Collection System
    • Industrial Cabinet, Fence & Trunnions
    • Included Tools, Tables & Integrated Tool Storage

    F3 52″ Features

    • 52″ Rip Capacity
    • Industrial 14 Gauge Cabinet
    • Accessory Tables (Outfeed & Rip)
    • Industrial Fence Rail
    • Industrial Fusion Fence
    • Premium Electrical & Hardware Components
    • Premium Miter Gauge
    • Cast Iron Fusion Trunnions
    • Cabinet Mounted Arbor
    • Cast Iron Table & Wings
    • European Hi-Lo Fence
    • Premium Zero Clearance Throat Plate
    • Fusion Hi-Lo Dust Collection
    • Maginetic Contractor Switch
    • Quick-Release Blade Guard & Spreader
    • Riving Knife Included
    • Push Stick Included
    • Miter Gauge Included
    • Blade Changing Tool Included
    • 10 x 60T Carbide-Tipped Blade Included
    • Premium Arbor & Motor Bearing
    Specifications
    • Dust Port Size: 4″
    • Blade Guard Dust Port Size: 1-½″
    • Table Saw Type: Cabinet
    • Maximum Blade Diameter: 10″
    • Arbor Size: ⅝″
    • Arbor Speed: 4500 RPM
    • Maximum Width Of Dado: ¾″
    • Blade Tilt Direction: Left
    • Max Blade Tilt: 45°
    • Maximum Depth Of Cut At 90°: 3-⅛″
    • Maximum Depth Of Cut At 45°: 2-⅛″
    • Max Rip Right Of Blade With Included Fence & Rails: 37 ″ *

    Blade,Table & Fence

    Blade Information

    • Included Blade Information: 10″ x 60T
    • Riving Knife/Spreader Thickness: 3/32″
    • Required Blade Body Thickness: > ⅛″
    • Required Blade Kerf Thickness: < 5/64″

    Table Information

    • Floor To Table Height: 35″
    • Table Size With Extension Wing Width: 77″
    • Table Size With Extension Wings Depth: 27″
    • Distance – Front Of Table To Center Of Blade: 13-7/16″
    • Distance – Front Of Table To Blade At Maximum Cut: 8-⅝″
    • Main Table Size Thickness: 1-½″

    Fence Information

    • Fence Type: Camlock T-Shape With Aluminum European Hi-Lo Face
    • Fence Size Length: 33-7/16″
    • Fence Size Width: 16″
    • Fence Size Height: 3″
    • Fence Rail Type: Aluminum Extrusion/Angle Steel
    • Fence Rail Length: 67-⅞″
    • Fence Rail Width: 3″
    • Fence Rail Height: 2″

    Dimensions

    Product Dimensions

    • Weight (Net): 405 lbs
    • Overall Width (Side-To-Side): 85″
    • Overall Depth (Front-To-Back): 56″
    • Overall Height: 43″
    • Footprint Width: 48″
    • Footprint Length: 42-½″
    • Space Required For Full Range Of Movement Width (Side-To-Side): 85″
    • Space Required For Full Range Of Movement Depth (Front-To-Back): 56″

    Construction Information

    • Table: Precision-Ground Cast Iron
    • Wings: Precision-Ground Cast Iron
    • Cabinet: 14 Gauge Steel
    • Trunnions: Cast Iron
    • Body Assembly: 14 Gauge Steel
    • Fence Assembly: Steel Body
    • Rails: Industrial Steel
    • Miter Gauge Construction: Cast Iron With Steel Bar, Aluminum Fence
    • Guard: Steel And Clear Plastic
    • Body/Cabinet Paint Type/Finish: Powder Coated
    • Arbor Bearings: Sealed & Permanently Lubricated

    Video





    What Our Experts Think
    • Designed for precision and reliability in serious woodworking.

    • 3HP motor delivers strong performance for demanding cuts.

    • 52″ rip capacity handles large panels and full sheets easily.

    • Cast-iron table and cabinet-mounted trunnions ensure stability.

    • Hybrid fence system provides smooth, accurate alignment.

    Q&A

    Q: What is the rip capacity of this model?
    A: It offers a full 52″ rip capacity, ideal for cutting large materials.

    Q: What size blade does it use?
    A: Uses a standard 10″ blade with a ⅝″ arbor.

    Q: What’s the motor power?
    A: Equipped with a 3HP, 220V single-phase motor.

    Q: How deep can it cut?
    A: Cuts up to 3⅛″ at 90° and 2⅛″ at 45°.

    Q: Is dust control efficient?
    A: Yes, features dual dust ports for cleaner operation.

    Maintenance Tips
    • Keep the cast-iron surface clean and rust-free.

    • Check fence alignment regularly for accurate cuts.

    • Lubricate height and tilt gears periodically.

    • Clear dust from ports and interior frequently.

    • Inspect the blade and belts for wear and replace as needed.
