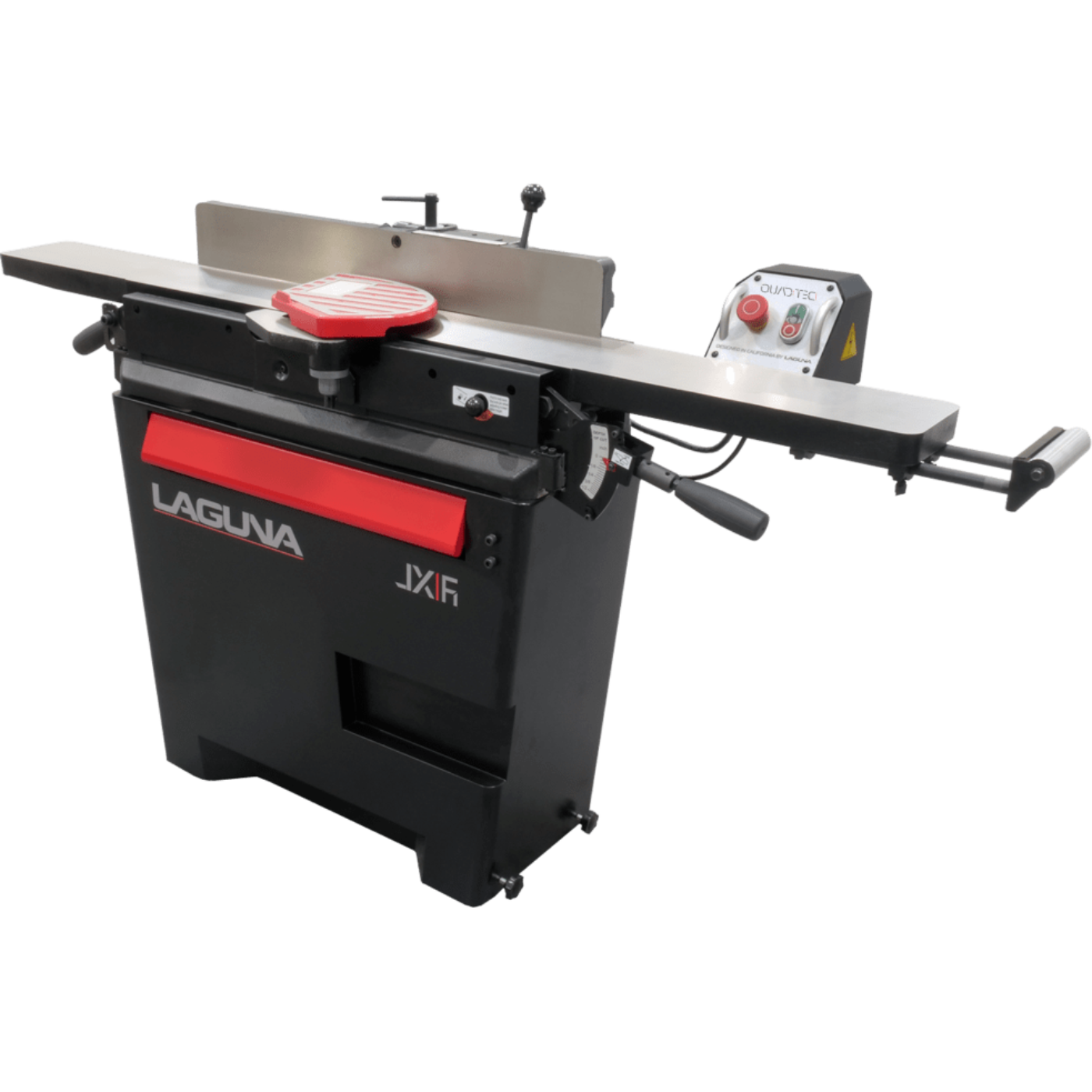

    Laguna Tools Classic Jointer - JX|6 Quadtec: I - 506601

    All-new for 2021, the Laguna JX|6 QuadTec I is loaded with highly desirable features to make jointing safer and more enjoyable.

    The Brand New QuadTec:I Is Designed To Offer An Amazing Finish On The Most Difficult Species Of Wood

    The inserts are solid carbide (14x14x2mm) so they can be rotated 4x to extend the already longer life Compared to HSS. The inserts are mounted on a straight line requiring less machining thus saving cost. The QuadTec: I is also quieter than conventional straight knives. Each insert is indexed requiring no jig when rotating or replacing.

    Features
    • Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
    • Emergency “Knee-Stop” – The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece
    • New Ergonomic Machine Body – The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine
    • In-feed Support Roller – Infeed tables are now fitted with pull out support roller to help support longer materials
    • QuadTec I Cutterhead – The all-new QuadTec I cuttherhead comes as standard equipment on the new JX-6. The QuadTec I produces an amazing surface finish on all woods including difficult The QuadTec I uses 4-sided carbide insert knives that are quieter and much more durable compared to straight HSS knives. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig
    • Built-In Wheels – No need to purchase a separate mobility kit
    • Cast-Iron Tables and Fence
    Specifications
    • Motor: 110V 1.5HP 1 Phase 60hz/13 Amp
    • CSA: Yes
    • Bed Size: 60″ x 6″
    • Infeed Table Pull-Out Extension: 8″
    • Rabbetting Capacity: ½″
    • Fence Size: 29″ x 3-¾″ Cast Iron
    • Fence Tilt: ±45/90°
    • Max. Depth Of Cut: ⅛″
    • Table Height From Floor: 31″
    • Safety Bar Shut-Off: Yes
    • Bracket To Mount Light: No
    • 110V Outlet For Light: No
    • Bracket To Mount Feeder: No
    • Dust Port Diameter: 4″
    • Plug (NEMA 5-15P): Yes
    • Cutterhead Insert #: 12 x 4-Sided Carbide, 4-Row
    • Cutterhead RPM: 5500
    • Cutterhead Diameter: 2-½″
    • Bed Adjustment: Parallelogram
    • Dimensions Set Up (Approx): 63″ x 22″
    • Dimensions Shipping: 65″ x 22″ x 13″ + 31″ x 16″ x 27″
    • Net/Ship Weight: 161/174 Lbs + 88/94 Lbs (2 Boxes)
    Manuals
    Video

    What Our Experts Think
    • Accurate & Smooth: The Laguna Tools Classic Jointer - JX|6 Quadtec: I - 506601 delivers precision jointing with a powerful 1.5 HP motor and QuadTec cutterhead.

    • Professional Finish: The 4-sided carbide inserts ensure smoother cuts and quieter operation than traditional knives.

    • Solid Build: Cast-iron tables and parallelogram design maintain perfect alignment and reduce vibration.

    • Compact & Efficient: Ideal for small shops needing industrial-quality results in a smaller footprint.

    Q&A

    Q: What is the jointing width capacity?
    A: It can joint boards up to 6 inches wide with consistent accuracy.
    Q: What type of cutterhead does it use?
    A: Features the QuadTec I cutterhead with replaceable carbide inserts.
    Q: What is the motor power?
    A: Runs on a 1.5 HP, 110V single-phase motor for reliable performance.
    Q: Does it include dust collection?
    A: Yes, it comes with a 4-inch dust port for efficient chip removal.

    Maintenance Tips
    • Clean tables regularly: Keep surfaces free of resin and dust for smooth feeding.

    • Rotate inserts: Turn or replace dull inserts to maintain cutting precision.

    • Lubricate moving parts: Apply oil to the table lifts and fence slides periodically.

    • Check belt tension: Ensure proper alignment for vibration-free operation.

    • Keep dust port clear: Maintain airflow for efficient dust extraction.
