    Laguna Tools Industrial Sliding Panel Saw - P12|5 - MPSP12-5-0135

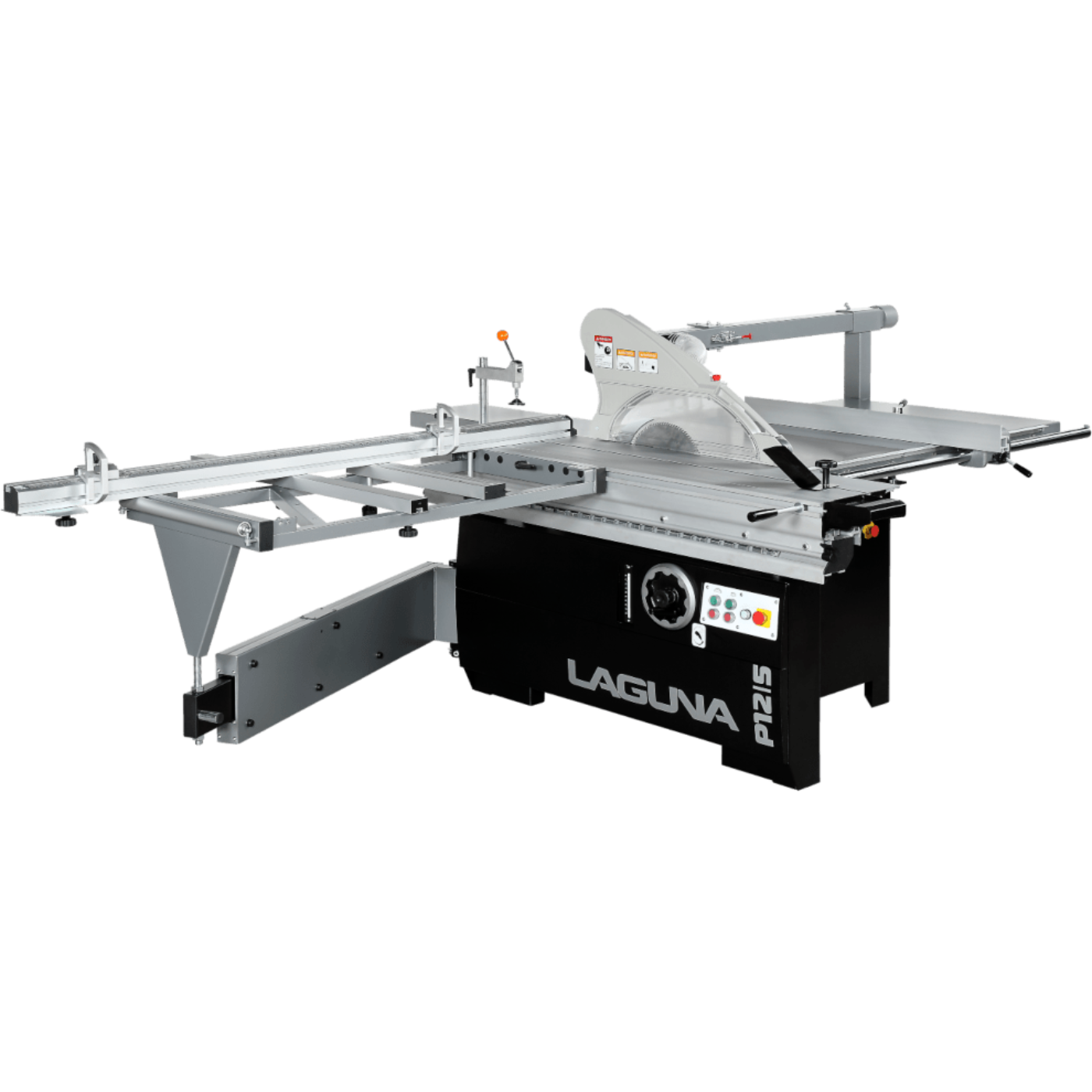

    The P12|5 was designed as a luxury panelsaw for the demanding pro shop. It has all the features and qualities of the bigger P12|8 but with a smaller stroke and a more compact cabinet. P12|5 features a 63″ dumbbell sliding table design, 5HP main motor, 3/4 HP scoring and swing-away overhead guard.

    The 63″ sliding table is constructed of anodized aluminum. The dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly.

    The European style 51″ rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar. On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally.

    The overhead guard comes standard with quick-change 90° and 45° guards; you can switch from one to the other in a matter of seconds. A nice detail is the swing-away function that allows you to quickly move the guard out of the way. Dust collection hookup is out of the way at the end of gantry (5″).

    The heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 108″), 45° miter and is ergonomically designed to make it easier to read the tape.

    Inside the P12|5 you will find heavy castings, solid gears and precision-machined trunnions mounted onto the solid steel frame. The Heavy Duty motor is equipped with soft start to minimize initial amperage draw.

    The P12|5 comes standard with hold-down clamp, rip shoe and push handle.

    Features
    • Motor: 5HP Main
    • Motor: 3/4 HP Scoring
    • Volt: 220, 1 phase, 60 Hz.
    • Blade Capacity: 12″, 14″/300mm, 355mm
    • Max. Blade: 14″/355mm (minimum height when lowered: 1?/25mm)
    • Max Scoring Blade: 4-3/4″ /120mm
    Specifications
    • Motor: 5HP Main
    • Motor: ¾ HP Scoring
    • Volt: 220, 1 Phase, 60 Hz
    • Blade Capacity: 12″, 14″ (300mm, 355mm)
    • Max Blade: 14″ (355mm)(Minimum Height When Lowered: 1″/25mm)
    • Max Scoring Blade: 4-¾″ (120mm)
    • Scoring Adjusting: T-Handle Through Cast Top
    • Arbor: 30mm (Main), 20mm (Scoring)
    • Max Cutting Height 90° 14″/35mm Blade: 4-½″ (155mm)
    • Max Cutting Height 90° 12″/305mm Blade: 3-½″ (90mm)
    • Max Cutting Height 45° 14″/355mm Blade: 2-¾″ (70mm)
    • Max Cutting Height 45° 12″/305mm Blade: 2-⅜″ (62mm)
    • Main Blade Speed: 4000 RPM
    • Scoring Blade Speed: 8000 RPM
    • Dust Collection Port Saw: 4″ (100mm)
    • Sliding Table: 63″ (1600mm)
    • Sliding Table Width: 14.88″ (378mm)
    • Main Cast Table: 21-½″ x 35-¼″
    • Rip Fence: 51″ (1300mm)
    • Rip Fence Micro Adjust: Included
    • Rip Fence Bar: 1-⅝″ (40mm) Solid Steel Micro Polished
    • Push Handle: Included
    • Rip Shoe: Included
    • Hold Down Clamp: Included
    • 32″ x 12″ Steel Extension Table: Included
    • Crosscut Fence: Flip-Stops
    • Crosscut Fence Readout: Inch/Metric
    • Crosscut Max Collapsed: 77″
    • Crosscut Fence Max Extended: 140″
    • Table Lock Positions: 2 Tabs, 20 Notches = 40 Total
    • Shipping Dimensions: 83″ x 46″ x 46″
    • Weight (Net/Ship): 1405/1525 lbs
    Video
    What Our Experts Think
    • The Laguna Tools Industrial Sliding Panel Saw P12|5 delivers professional accuracy for cabinet and furniture shops.

    • Powered by a 5 HP main motor and ¾ HP scoring motor for smooth, precise cutting.

    • The 63" sliding table ensures flawless sheet handling with excellent stability.

    • 51" rip capacity with micro-adjust fence gives fine control and repeatable accuracy.

    • Ideal for high-volume, precision panel processing in limited shop spaces.

    Q&A

    Q: What is the main motor power?
    A: 5 HP main motor with ¾ HP scoring motor.
    Q: What blade sizes are supported?
    A: Compatible with 12" to 14" blades.
    Q: What is the sliding table length?
    A: 63 inches.
    Q: What is the rip capacity?
    A: 51 inches.
    Q: What voltage does it require?
    A: 220V single-phase.

    Maintenance Tips
    • Clean and lubricate the sliding table regularly for smooth travel.

    • Check blade alignment to maintain precision cuts.

    • Inspect scoring blade for wear or buildup.

    • Tighten fence adjustments periodically for accuracy.

    • Keep dust ports clear to ensure efficient extraction and safety.
