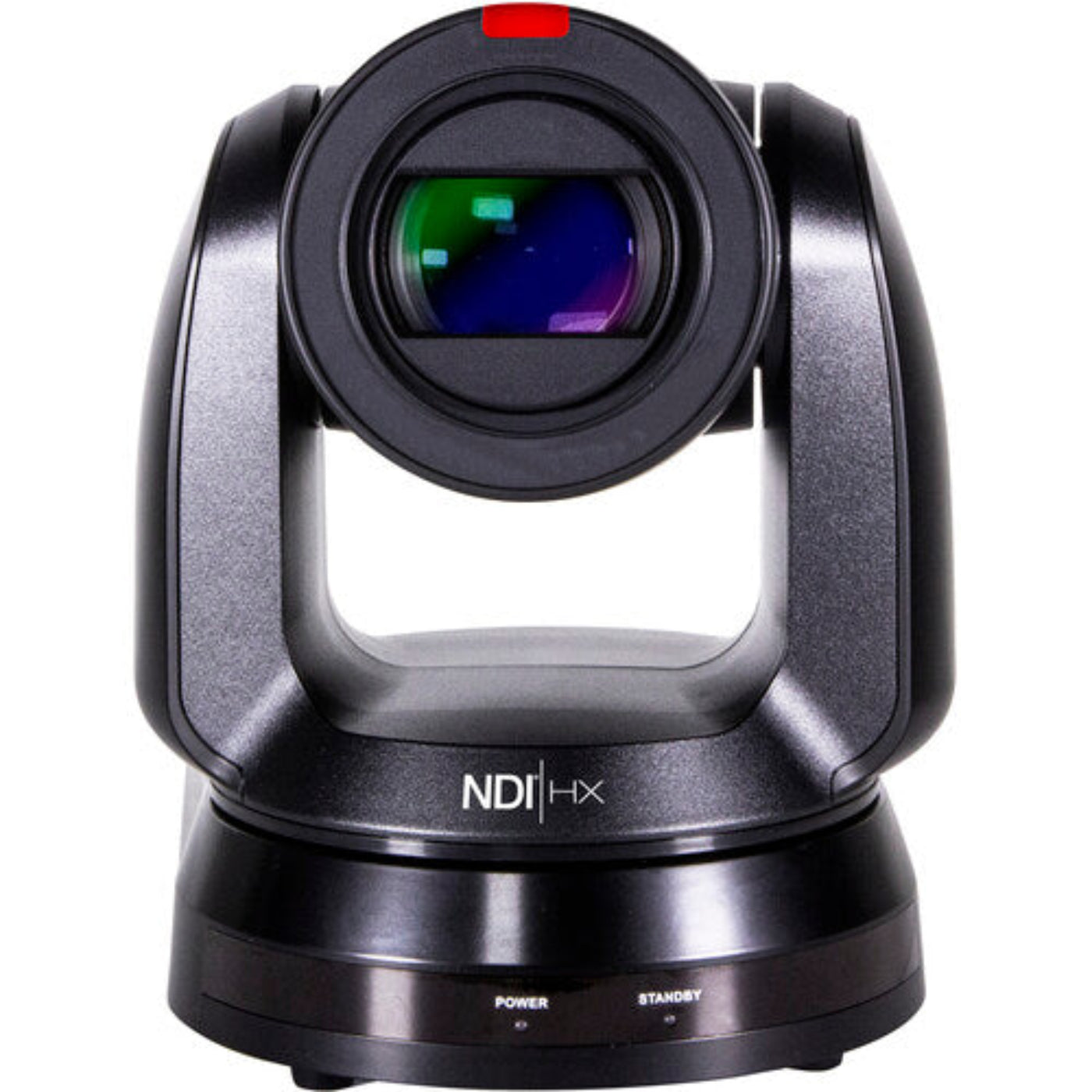

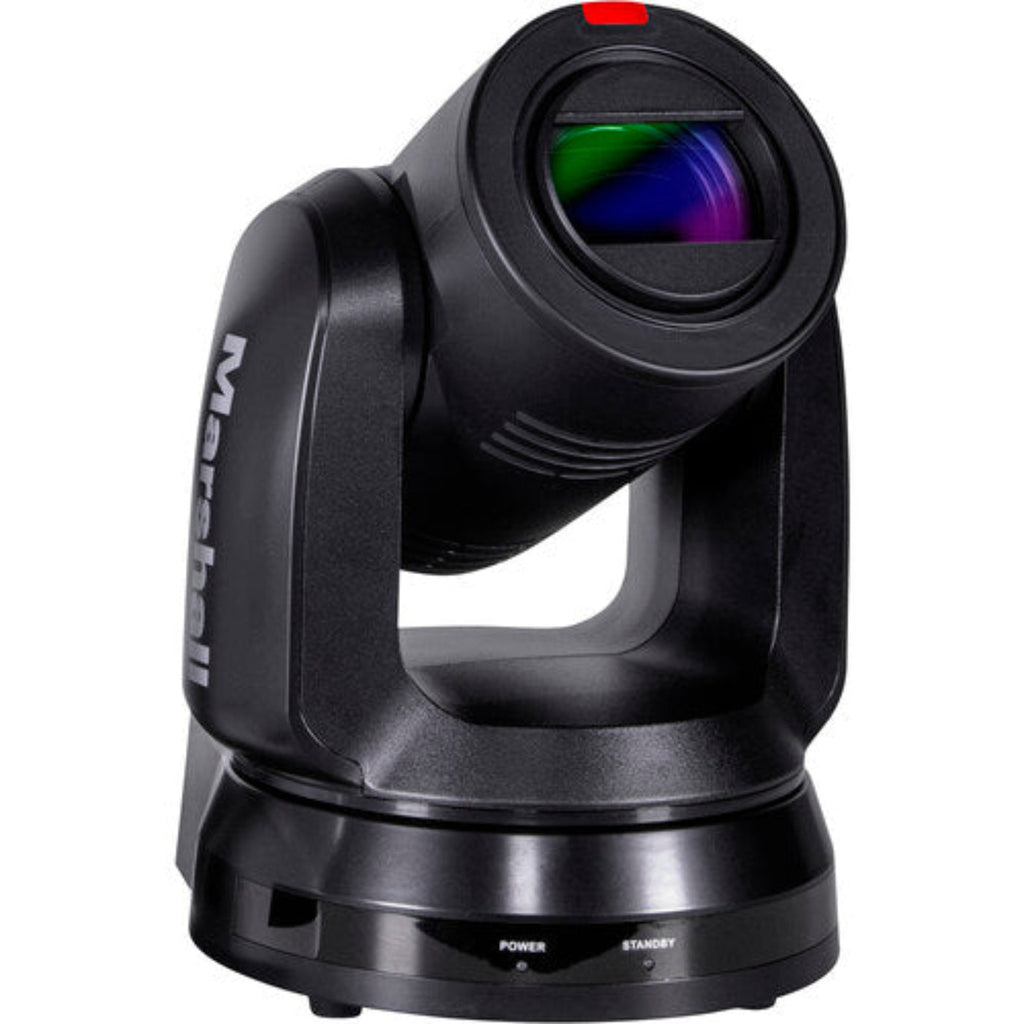

Marshall Electronics UHD 4K Broadcast PTZ Camera with NDI|HX - CV730-NDIB
Marshall CV730-NDIB highlights a 30x optical zoom block and convenient multiple 12GSDI and HDMI outputs with NDI|HX2. and amazingly clear UHD images up to 3840x2160p at 60fps. NDI|HX2. provides low latency, excellent quality, frame-accurate video, and audio in real time to IP workflows. NDI Tools opens the capability to incorporate more video devices and applications into your production workflow. CV730-NDIB is the first UHD60 PTZ camera with NDI|HX2..
Featuring 12GSDI, HDMI2.0, and NDI|HX2. from a professional level 8.5MP 1/1.8" UHD sensor and smooth synchronous movements. CV730-NDIB is the first to deliver UHD60 performance with NDI|HX2. ease-of-use delivering crystal-clear images up to 3840x2160p at 60fps. NDI|HX2. provides Video, Audio, Control, Tally and Power over one Ethernet cable for remote broadcast-style adjust & match settings control.
- Video Resolution up to UHD 4K60
- 8.5MP 1/1.8" Sony Sensor
- 6.5 to 202mm Lens, 30x Optical Zoom
- 12G-SDI, HDMI 2.0, and NDI|HX Outputs
- 65° AoV, PoE, Tally Support
- RS-232 & RS-422 Serial Control
- 340° Pan, 120° Tilt
- VISCA and Pelco-D Protocol Support
- IR Remote Included
- 8.5 Megapixel UHD Sensor (1/1.8")
- 30x optical zoom (6.5mm~202mm) starting at 65° H.AOV
- 340° pan & 120° tilt range with select-able transition speeds (5~300° per second)

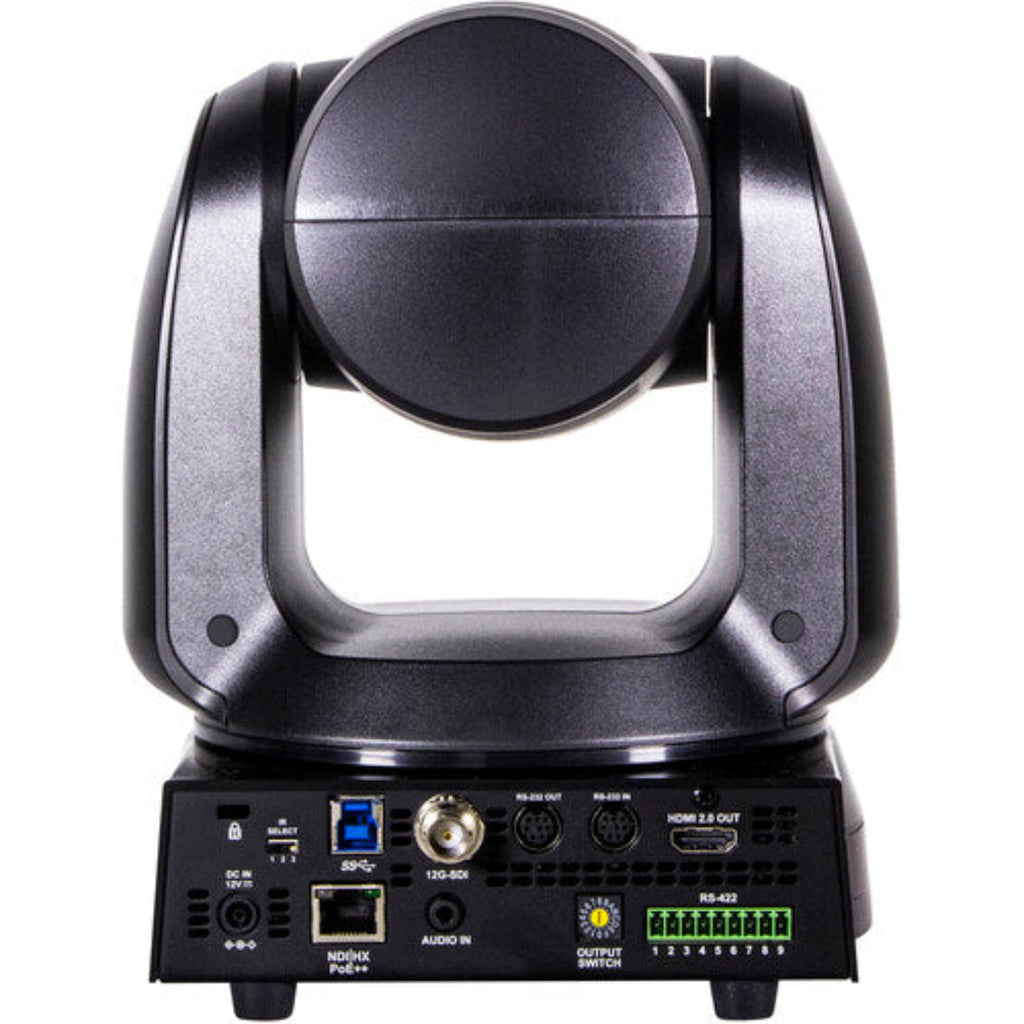

- 12G/6G/3G-SDI, HDMI2.0, USB3.0 and NDI|HX2. simultaneous outputs
- 3840x2160p (UHD), 1920x1080p (HD), 1920x1080i (HD) & 1280x720p
- 59.94, 50, 29.97, 25fps options up to 4K60 and HD60
- 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
- 12V Power Supply included and PoE++ (IEEE802.3bt)
What our Experts Think
-
True quad-view monitoring for multi-camera setups
View up to 4 simultaneous 3G-SDI feeds on a single screen—perfect for live production, broadcast control rooms, and surveillance applications.
-
Flexible 4K workflow compatibility
Supports UHD/4K input signals and can combine inputs into a full-screen 4K view or split into quad mode—ideal for modern production pipelines.
-
Sharp 17" Full HD display
Native 1920×1080 resolution with 400 nits brightness ensures clear, accurate monitoring across all quadrants.
-
Advanced IMD & broadcast tools
Built-in IMD (In-Monitor Display), audio meters, timecode, and tally give operators real-time production data without external systems.
-
Reliable SDI connectivity with loop-through
Features quad 3G-SDI inputs with active loop outputs, enabling seamless signal distribution in professional environments.
-
Designed for both desktop & rack use
Includes a desktop stand plus rack-mount capability, offering flexibility for studios, OB vans, and control rooms.
-
Precision monitoring tools included
Tools like pixel-to-pixel mode, color temperature control, and gamma presets ensure accurate image evaluation.
Q&A
Q1: What is the Marshall QVW-1708-3G-DT?
A professional 17-inch quad-view desktop monitor with 4K-compatible 3G-SDI inputs, designed for multi-camera monitoring in broadcast and production environments.
Q2: What is the screen size and resolution?
It features a 17.3" display with native Full HD 1920 × 1080 resolution for sharp image clarity.
Q3: How many video inputs does it support?
It includes 4 x 3G-SDI inputs with loop-through outputs, enabling simultaneous monitoring of multiple video sources.
Q4: Does it support quad view monitoring?
Yes, it allows viewing up to four camera feeds at once, each displayed in real-time within customizable layouts.
Q5: Is it compatible with 4K signals?
Yes, it accepts UHD and DCI 4K signals and can display them across quadrants or scaled to the screen.
Q6: What are IMD (In-Monitor Display) features?
IMD enables display of audio levels, timecode, and signal information directly on-screen, controllable via Ethernet or RS-485.
Q7: Can it be used in both desktop and rack setups?
Yes, it includes a desktop stand and rack-mount capability for flexible installation.
Maintenance Tips
-
Keep Screen Clean & Clear
Use a microfiber cloth to maintain the 17" native resolution display and avoid image distortion.
-
Inspect SDI Inputs Regularly
Check 3G-SDI connections for secure fit and minimal wear to ensure stable quad-view signal monitoring.
-
Optimize Ventilation
Allow proper airflow around the monitor to prevent overheating during multi-channel 4K viewing.
-
Firmware & System Updates
Install updates to maintain compatibility with evolving broadcast and production equipment.
-
Power Protection
Use a surge protector or UPS to safeguard against power fluctuations and data loss.
-
Calibrate Display Settings
Periodically adjust brightness, contrast, and color for accurate multi-camera monitoring.
-
Cable Organization
Manage SDI and power cables to reduce signal interference and physical strain on ports.
-
Safe Handling & Placement
Use the desktop stand securely and avoid impacts or vibrations that could damage internal components.
