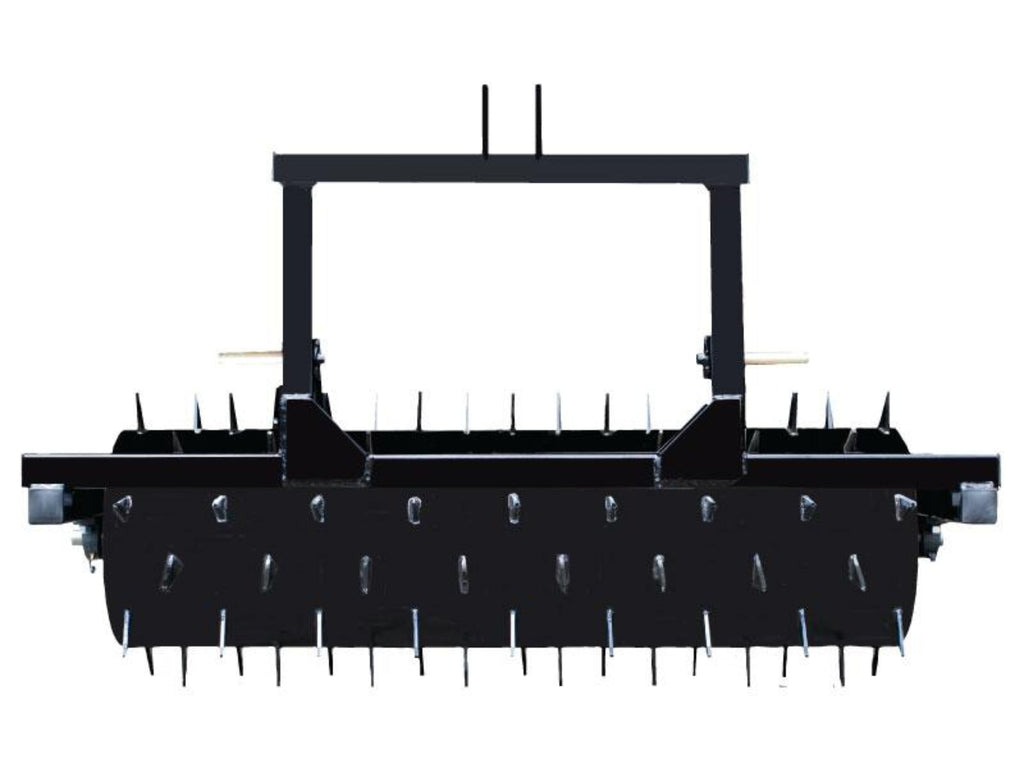

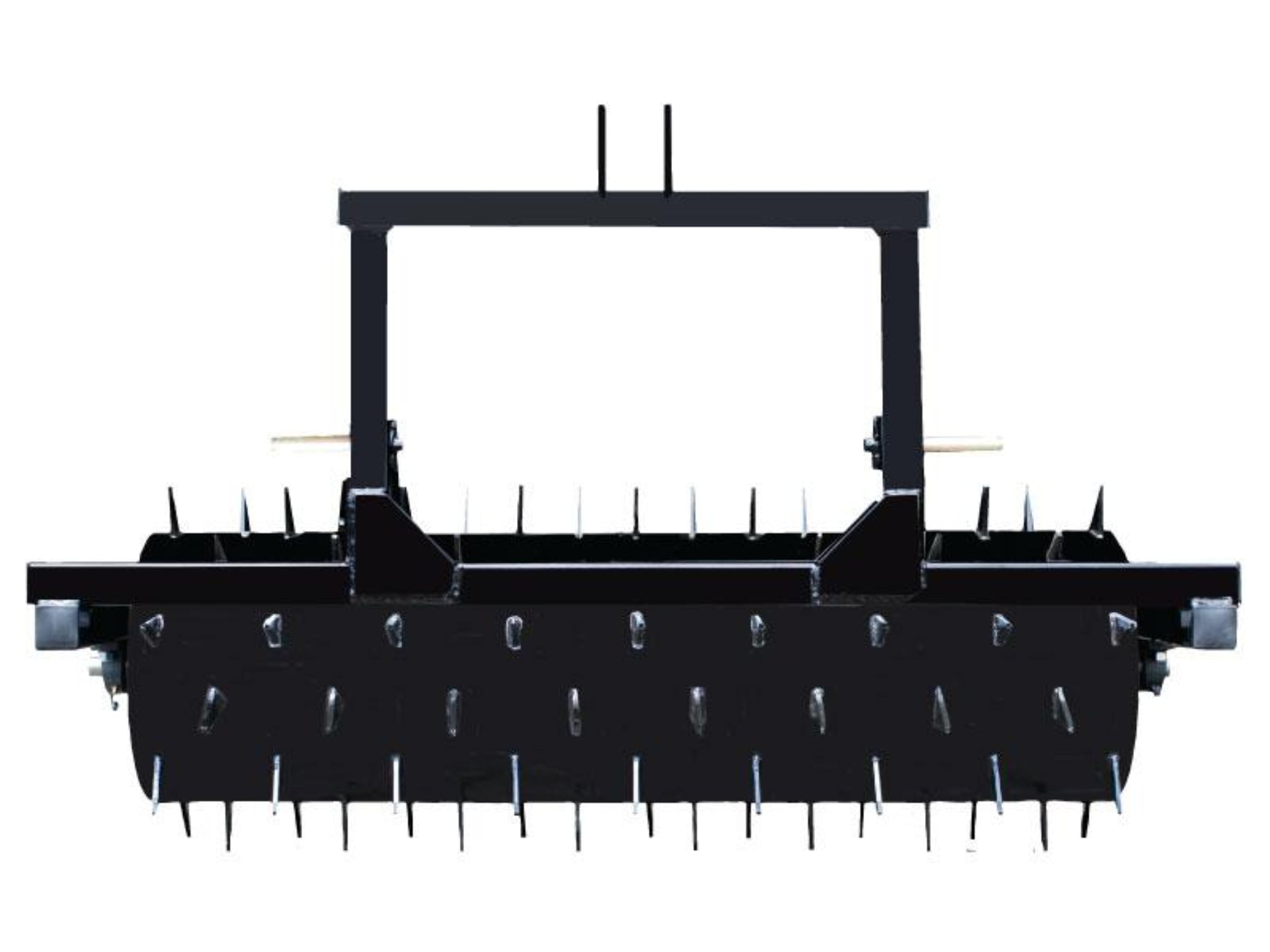

Maxim 48" 3-Point Hitch Spike Aerator - MSA3P48
The MSA3P48 3-point hitch aerator by Maxim is the time-saver you've been looking for during aeration season! Knock out acres of turf in a fraction of the time with this 3-point hitch-connected aerator.
Please note about lift gate delivery: You must select the lift gate option if you can’t unload the crate off the freight truck. You will not have to pay the charge if you can ship to a business and you can unload the crate off the back of the freight truck. Shipping to a business is your best choice if possible. These deliveries are “curb-side” only, please read the details about curb-side, lift-gate and residential freight deliveries.
Please note about lift gate delivery: You must select the lift gate option if you can’t unload the crate off the freight truck. You will not have to pay the charge if you can ship to a business and you can unload the crate off the back of the freight truck. Shipping to a business is your best choice if possible. These deliveries are “curb-side” only, please read the details about curb-side, lift-gate and residential freight deliveries.
Features
- Tank can be filled with water for added weight
- Unit is heavy to begin with
- Wheels are bolted in place with no pins or latches to rotate the tow bar 180 degrees while lowering or lifting the drum
- Loosen soil
- Increase water filtration
- Increase oxygen
- Release carbon dioxide
- Encourage root growth
- Rolls on 1" grease-able pillow block bearings
Specifications
| Specification |
Details |
| Aeration Width |
48" |
| Overall Width |
64" |
| Tines |
Welded Steel Tines |
| Spike Quantity |
102 |
| Spike Penetration Depth |
2-3/4" |
| Water Capacity |
32 gallons / 267 lbs |
| Hitch |
3-point hitch (Category 1) |
| Tires |
N/A (3-point hitch model — no transport tires) |
| Towing Speed |
N/A |
| Height |
18-1/2" |
What Our Experts Think
-
Enhanced Soil Aeration: Features 102 welded steel spikes that penetrate up to 2.75 inches, improving oxygen, water, and nutrient flow to grass roots.
-
Adjustable Weight Capacity: Equipped with a 32-gallon tank, allowing you to add up to 267 lbs of water weight for deeper soil penetration when needed.
-
Efficient Transport and Operation: Designed with bolted wheels that rotate 180 degrees without pins or latches, simplifying the transition between transport and aeration modes.
-
Durable Construction: Built with a heavy-duty drum and 1-inch greaseable pillow block bearings, ensuring longevity and minimal maintenance.
-
Easy Attachment: Compatible with category 1 3-point hitch systems, facilitating straightforward attachment to various lawn tractors and ATVs.
-
Ideal for Large Properties: With a 48-inch aeration width, it's well-suited for commercial and expansive residential lawns, effectively covering large areas efficiently.
Q&A
Q: What is the Maxim 48" 3-Point Hitch Spike Aerator (Model MSA3P48)?
The Maxim MSA3P48 is a 48-inch wide spike aerator designed for use with category 1 three-point hitch systems. It's ideal for aerating large lawns, golf courses, and commercial properties, promoting healthy turf by allowing air, water, and nutrients to reach the roots.
Q: How does the adjustable water ballast system work?
The MSA3P48 features a tank that can be filled with up to 32 gallons of water, adding approximately 267 lbs of weight. This added weight enhances the aerator's penetration into the soil, effectively addressing soil compaction and promoting healthier turf.
Q: How are the transport tires utilized?
The aerator is equipped with 410/350-4, 2-ply pneumatic tires, which facilitate easy movement between work areas. The wheels are bolted in place without the need for pins or latches, simplifying the process of rotating the tow bar 180 degrees when lowering or lifting the drum
Q: What benefits does spike aeration offer over plug aeration?
Spike aeration involves slicing holes into the turf, pushing soil aside to allow oxygen, water, and nutrients to reach grass roots. This method promotes quicker turf healing without leaving behind plugs of grass and dirt, resulting in a healthier lawn
Q: Is assembly required for the MSA3P48 aerator?
Yes, some assembly is required upon delivery. Detailed instructions are provided to guide you through the setup proces
Maintenance Tips
-
Tines: Regularly inspect the spikes for wear or damage. Replace any worn or bent spikes to maintain effective aeration.
-
Water Tank: Ensure the water tank is securely filled and that there are no leaks. Empty the tank after use to prevent rusting or clogging.
-
Wheels and Bearings: Lubricate the transport wheels and check the tire pressure periodically to maintain smooth transportation and operation.
-
Frame: Keep the aerator's frame clean and free from debris to avoid obstruction and wear. Check for any loose bolts or parts before each use.
