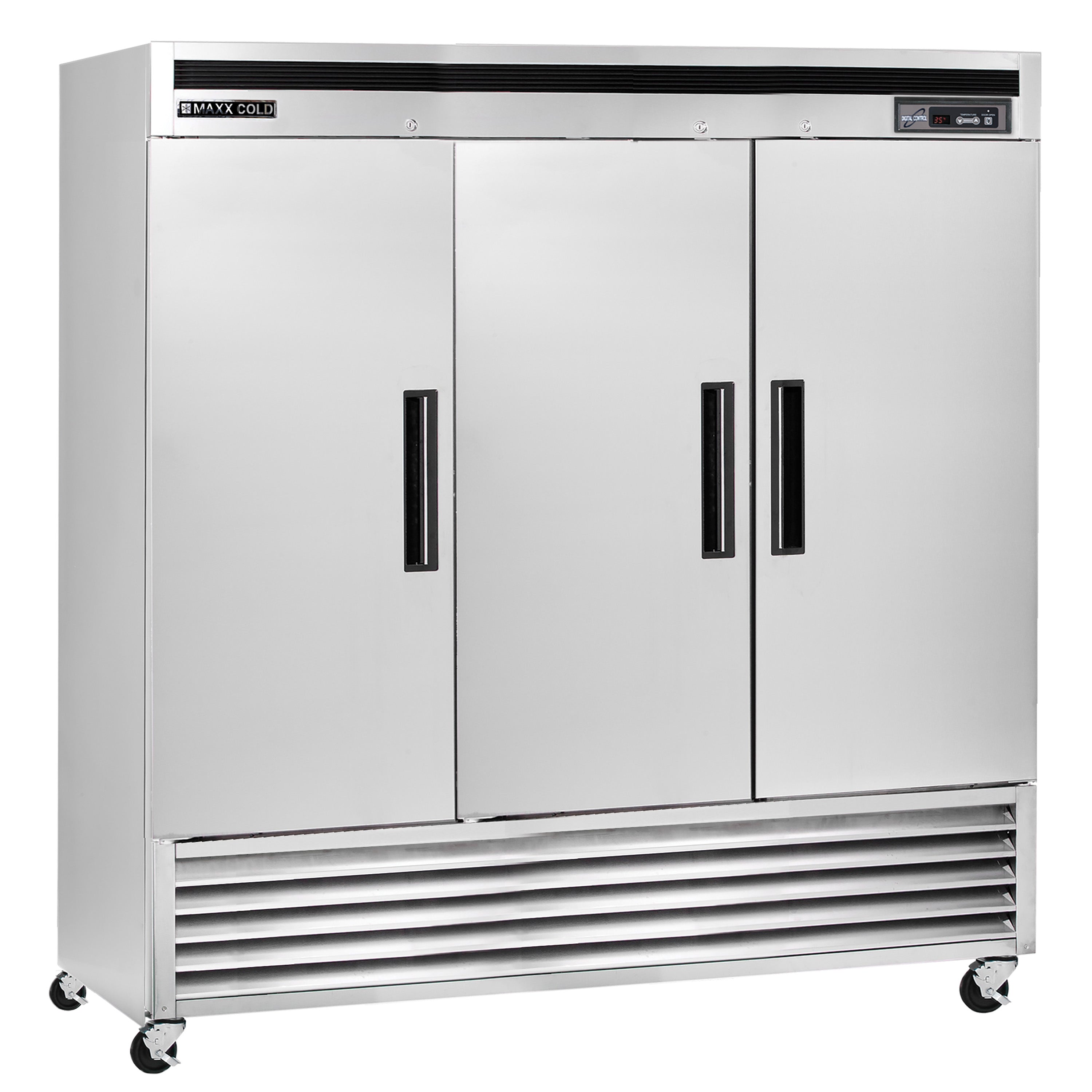

Maxx Cold Triple Door Reach-In Freezer, Bottom Mount, 81"W, 72 cu. ft. Storage Capacity, Energy Star Rated, in Stainless Steel - MCF-72FDHC
Maxx Cold 81-inch-wide triple door reach-in freezer is an absolute must have for any commercial kitchen. This extra-large freezer unit is designed to assist commercial operations in meeting all food service industry requirements and is equipped with 9 heavy-duty, fully adjustable and easy to clean PE coated wire shelves, which can hold full size sheet pans. The storage capacity of this triple door commercial freezer provides up to 72 cubic ft. (2,038 L) of readily available space to meet your commercial food storage needs. It’s recessed handles with door locks and self-closing doors that stay open past 90 degrees make it ideal for an efficient operation and a great fit for limited spaces, while it’s substantial storage capacity will provide you the needed reach for successful performance in the food service industry. In addition, this three-door commercial freezer model is designed with an open-door alert that beeps if the unit is left open for five minutes. This Energy Star reach-in commercial grade freezer is constructed from stainless steel (interior and exterior) and is mounted on 5” diameter swivel caster wheels, making it easy to maneuver when needed. Standard features on this premium indoor freezer include integrated energy saving interior LED lighting, automatic defrost function, lock and key set for security and digital temperature control which maintains optimum temperature. Digital temperature display can be viewed from outside the cabinet, which is engineered with an integrated condensate evaporator; meaning no drain line connection is needed. Additionally, the environment friendly polyurethane foam insulation on this three-door commercial freezer provides outstanding thermal regulation and is energy efficient. This refrigerant is Energy Star certified.
Features
- Durable stainless steel exterior and interior
- Environment friendly CFC-free polyurethane foam insulation
- Nine (9) heavy-duty, adjustable, PE coated wire shelves per section hold full size sheet pans
- Recessed handles with door locks
- 5" diameter swivel casters with front brakes
- Automatic defrost system and interior lighting
- Digitally controlled temperature system maintains optimum temperature and LED display is easily viewed from exterior
- Equipped with integrated condensate evaporator therefore no drain line connection is needed
- Holding temperature -10°F to 10°F (-23°C to 12°C)
- Open door alert beeps when door has been open for 5 minutes
- Self-closing door, stays open past 90 degrees
- Available in 120V/60Hz/1pH and International voltage available
- Net storage capacity of 66.7 Cubic Ft. (1,889 L)
- Gross storage capacity of 72 Cubic Ft. (2,038 L)
Specifications
| Adjustable Shelves |
Yes |
| Adjustable Temperature Control |
Yes |
| Amperage |
9.9A |
| Assembled Dimensions (LxWxH) |
31" x 81" x 82.75" |
| Assembled Weight (lb) |
650.0 |
| Assembly Required |
No |
| Batteries Required |
No |
| Capacity |
72 cu. ft. |
| Caster Size |
5" |
| Casters |
Yes |
| Color |
Stainless Steel |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
55.75" |
| Depth - Excluding Door |
31" |
| Depth - Excluding Handles |
31" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Stainless Steel |
| Door Material |
Stainless Steel |
| Door Swing Orientation |
French-Door |
| Electric |
Yes |
| First Zone Maximum Temperature |
10° |
| First Zone Minimum Temperature |
-10° |
| Freezer Capacity |
66.7 cu. ft. |
| Freezer Type |
Full Freezer |
| Height - Excluding Top Hinge |
82.75" |
| Ice Maker Included |
No |
| Included Components |
Freezer, Instruction Manual, Casters, PE Coated Shelves |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Material |
Stainless Steel |
| Number of Doors |
3.0 |
| Number of Items |
1.0 |
| Number of Shelves |
9.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Size |
81" |
| Temperature Range |
-10° - 10° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Voltage |
120V |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
1200W |
| Case Pack Dimensions |
82" x 33" x 85" |
| Case Pack Weight |
647.0 |
| Case Quantity |
1.0 |
| Country of Origin |
Korea |
| Freight Class |
150.0 |
Manual
Spec Sheet
What Our Experts Think
-
72 cu. ft. Capacity – Massive storage space for large quantities of frozen goods, ideal for high-volume commercial use.
-
Bottom-Mount Compressor – Enhances efficiency and simplifies maintenance by positioning the compressor at the bottom.
-
Energy Star Rated – Meets high-efficiency standards, reducing energy consumption and lowering operational costs.
-
Durable Stainless Steel – Built to last with a professional, easy-to-clean finish that can withstand heavy use.
-
Reliable Freezing Performance – Maintains optimal temperatures to keep frozen products at peak quality.
Q&A
Q: What are the main features of the Maxx Cold Triple Door Reach-In Freezer?
A: The Maxx Cold MCF-72FDHC features a bottom-mounted compressor, 81" width, 72 cu. ft. storage capacity, and a durable stainless steel construction. It is Energy Star rated for efficiency.
Q: How much storage space does the Maxx Cold Reach-In Freezer offer?
A: It provides 72 cu. ft. of storage, making it ideal for storing large quantities of frozen goods in commercial kitchens or foodservice establishments.
Q: Is the Maxx Cold Freezer energy-efficient?
A: Yes, it is Energy Star rated, ensuring it meets high-efficiency standards, helping reduce energy costs.
Q: Can the Maxx Cold Freezer handle heavy-duty use?
A: Yes, its stainless steel construction and bottom-mount compressor make it durable enough for constant, high-demand use in commercial environments.
Q: Is the Maxx Cold Freezer easy to clean?
A: Yes, the stainless steel exterior and smooth interior design make it easy to clean and maintain for a hygienic environment.
Maintenance Tips
-
Clean the condenser coils regularly to avoid dust buildup, ensuring efficient cooling.
-
Check door seals for damage and replace if necessary to prevent cold air loss.
-
Defrost as needed to maintain proper temperature and prevent ice buildup.
-
Wipe down interior and exterior with a mild cleaner to ensure hygiene and a polished appearance.
-
Ensure proper airflow around the unit for better energy efficiency.
-
Monitor temperature regularly to maintain the ideal storage conditions for your products.
