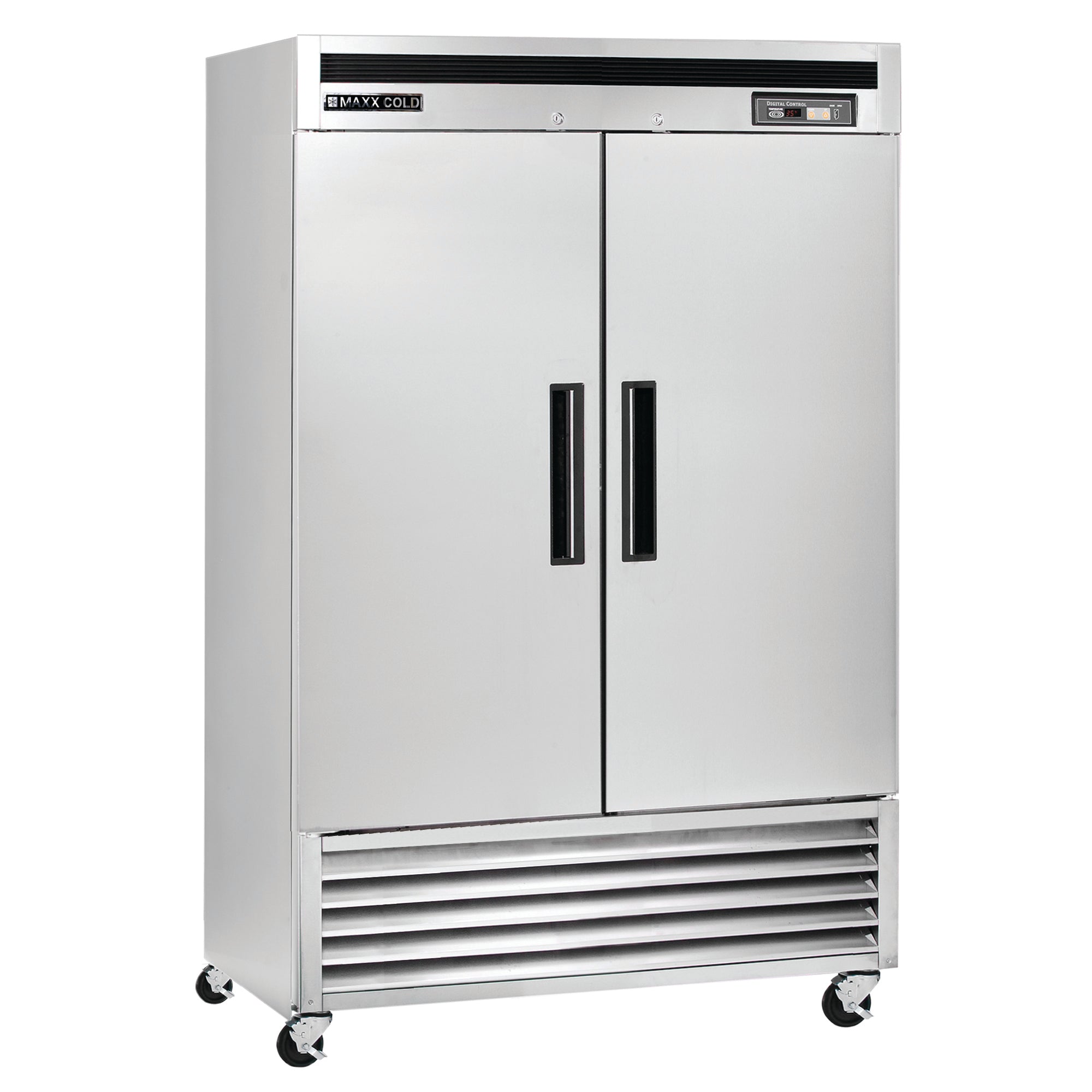

Maxx Cold Double Door Reach-In Refrigerator, Bottom Mount, 54"W, 49 cu. ft. Storage Capacity, in Stainless Steel - MCR-49FDHC
Maxx Cold 54 inch wide double door, top mount reach-in refrigerator is an absolute must have for any commercial kitchen and is engineered to assist you in meeting all food service industry requirements. This large refrigerator unit is equipped with six heavy-duty, fully adjustable and easy to clean PE coated wire shelves, which can hold full size sheet pans. The storage capacity of this commercial double door refrigerator is up to 49 cubic ft. (1,387 L). The recessed handles with door locks and self-closing doors that stay open past 90 degrees render this two-door refrigerator which make it a great fit for limited spaces. In addition, the two-door model is designed with an open-door alert that beeps if the refrigerator is left open for five minutes. This Energy Star rated reach-in commercial grade refrigerator is constructed from durable, easy to clean stainless-steel (interior and exterior) and is mounted on 4” diameter swivel caster wheels that the operator can easily maneuver when needed. Standard features on this premium indoor refrigerator include integrated energy saving interior LED lighting, automatic defrost function, lock and key set for security and digital temperature control which maintains optimum temperature. Digital temperature display can be viewed from outside the cabinet, which is engineered with an integrated condensate evaporator; meaning no drain line connection is needed. The environment friendly polyurethane foam insulation on this two-door commercial refrigerator provides outstanding thermal regulation and is energy efficient. This unit is Energy Star certified.
Features
- Durable stainless steel exterior and interior
- Environment friendly CFC-free polyurethane foam insulation
- Six (6) heavy-duty, adjustable, PE coated wire shelves per section hold full size sheet pans
- Designed with recessed handles with door locks
- 4" diameter swivel casters with front brakes
- Automatic defrost system and interior lighting
- Digitally controlled temperature system maintains optimum temperature and LED display is easily viewed from exterior
- Equipped with integrated condensate evaporator therefore no drain line connection is needed
- Holding temperature 33°F to 41°F (1⁰C to 5⁰C)
- Open door alert beeps when door has been open for 5 minutes
- Self-closing door, stays open past 90 degrees
- Available in 120V/60Hz/1pH and International voltage options
- Net storage capacity of 42.8 Cubic Ft. (1,212 L)
- Gross storage capacity of 49 Cubic Ft. (1,387 L)
Specifications
| Adjustable Shelves |
Yes |
| Adjustable Temperature Control |
Yes |
| Amperage |
2.4A |
| Assembled Dimensions (LxWxH) |
31" x 54" x 82.75" |
| Assembled Weight (lb) |
397.0 |
| Assembly Required |
No |
| Batteries Required |
No |
| Capacity |
49 cu. ft. |
| Caster Size |
5" |
| Casters |
Yes |
| Color |
Stainless Steel |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
55.75" |
| Depth - Excluding Door |
31" |
| Depth - Excluding Handles |
31" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Stainless Steel |
| Door Material |
Stainless Steel |
| Door Swing Orientation |
French-Door |
| Electric |
Yes |
| First Zone Maximum Temperature |
41° |
| First Zone Minimum Temperature |
33° |
| Freezer Type |
No Freezer |
| Fresh Food Capacity |
42.8 cu. ft. |
| Height - Excluding Top Hinge |
82.75" |
| Ice Maker Included |
No |
| Included Components |
Refrigerator, Instruction Manual, Casters, PE Coated Shelves |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Material |
Stainless Steel |
| Number of Doors |
2.0 |
| Number of Items |
1.0 |
| Number of Shelves |
6.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Size |
54" |
| Temperature Range |
33° - 41° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Voltage |
120V |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
288W |
| Case Pack Dimensions |
56" x 33" x 84" |
| Case Pack Weight |
442.0 |
| Case Quantity |
1.0 |
Manual
Spec Sheet
What Our Experts Think
-
49 cu. ft. Capacity – Offers ample storage for refrigerated goods, making it ideal for larger kitchens and foodservice operations.
-
Bottom-Mount Compressor – Increases energy efficiency and makes maintenance easier by positioning the compressor at the bottom.
-
Energy Star Rated – Meets energy efficiency standards, helping reduce energy consumption and lower operational costs.
-
Durable Stainless Steel – Built to withstand high-use environments, with easy-to-clean surfaces that promote hygiene.
-
Reliable Cooling Performance – Ensures consistent temperatures, preserving the freshness and safety of food.
Q&A
Q: What are the main features of the Maxx Cold Double Door Reach-In Refrigerator?
A: The Maxx Cold MCR-49FDHC features a bottom-mounted compressor, 54" width, 49 cu. ft. storage capacity, and is Energy Star rated for energy efficiency. It is constructed from durable stainless steel for reliable, long-lasting performance.
Q: How much storage space does the Maxx Cold Reach-In Refrigerator offer?
A: It provides 49 cu. ft. of storage, ideal for storing large quantities of refrigerated items in high-demand commercial kitchens or foodservice establishments.
Q: Is the Maxx Cold Refrigerator energy-efficient?
A: Yes, it is Energy Star rated, ensuring energy-efficient operation and helping to lower energy costs.
Q: Can the Maxx Cold Refrigerator withstand heavy-duty use?
A: Yes, its stainless steel construction and bottom-mount compressor are built to endure heavy-duty use in commercial environments.
Q: Is the Maxx Cold Refrigerator easy to clean?
A: Yes, the stainless steel design ensures easy cleaning and maintenance, promoting a hygienic environment in your kitchen.
Maintenance Tips
-
Clean condenser coils regularly to prevent dust buildup, ensuring optimal cooling efficiency.
-
Inspect and clean door seals to prevent air leakage and maintain cold air retention.
-
Defrost the refrigerator as needed to avoid ice buildup and ensure consistent temperature control.
-
Wipe down the interior and exterior surfaces with a mild, non-abrasive cleaner to maintain hygiene and appearance.
-
Ensure proper ventilation around the unit to optimize airflow and cooling efficiency.
-
Monitor the temperature regularly to ensure the refrigerator maintains the ideal storage conditions.
