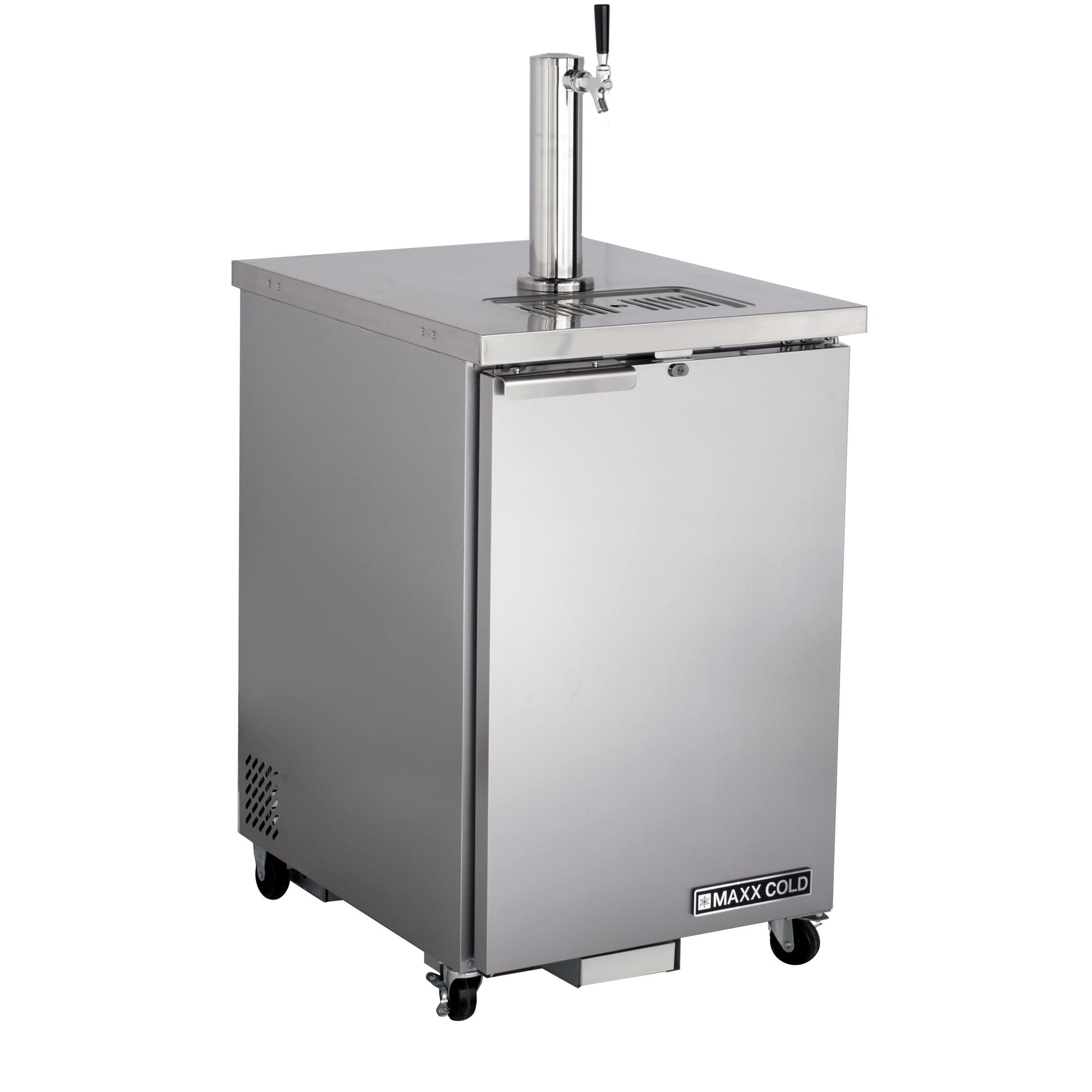

Maxx Cold Single Tower Beer Dispenser, 23.3"W, 7.2 cu. ft., 1 Barrel/Keg (204L) Storage Capacity, in Stainless Steel - MXBD24-1SHC
This 23.3 inch wide Maxx Cold X-Series Beer Tower Dispenser is engineered for durable usage, efficient performance, and easy cleaning. It accommodates 1 barrel/keg, providing up to 7.2 cubic feet (204L) of storage capacity. The single tower beer dispenser is ideal for pubs, bars, breweries, catering services, banquet halls or special events and parties requiring a draft brew. The exterior of the unit is constructed of durable stainless steel, while the interior of the cabinet is crafted in sanitary white coated steel paired with a stainless floorplate. This unit is fully insulated with 2” (50 mm) CFC-free polyurethane on both walls and doors. The standard 3-inch (77 mm) polished stainless-steel draft tower dispenser, which is mounted to the top center counter, is cooled by continuous cold air circulation to maintain tap temperature that reduces foam when dispensing and can easily fill pint beer glasses, frosted beer mugs and pitchers. Premium features on this model include a self-contained forced air refrigeration system which cools the base cabinet and tower to optimize temperature throughout your commercial operations. The solid-state digital control system is designed with LED temperature display. This beer tower dispenser is engineered to facilitate maintenance and maneuvering by the operator, with an easy to clean slide-out condensing unit, recessed drawer handles (with locks) and four (4) swivel casters (two of which come with brakes). The dispenser is equipped with integrated condensate evaporator, meaning no drain line connection is needed. Operation requires CO2 tank and regulator (not included).
Features
- Accommodates 1 barrel/keg with storage capacity of 7.2 cubic feet (204L)
- One 3” (77mm) diameter polished stainless steel insulated beer tower dispenser
- Interior is constructed of sanitary white coated steel with a stainless floorplate
- Exterior and top is constructed of stainless steel to prevent damage
- 2” (50mm) CFC-free polyurethane insulated walls and doors
- Self-contained forced air refrigeration system cools the base cabinet and tower
- Slide out condensing unit for easy maintenance
- Epoxy coated evaporator coils to resist corrosion
- Easy to grip recessed drawer handles with locks
- Adjustable heavy duty wire shelves (2 per section/door)
- Four 4” casters included, two (2) with brakes (Smaller casters available for ADA Compliance)
- Holding temperature of 34°F and 41°F (1⁰C to 5⁰C)
- Environmentally friendly R134A refrigerant
- Available in 120V/60Hz/1pH and International voltage options
Specifications
| Adjustable Shelves |
No |
| Adjustable Temperature Control |
Yes |
| Amperage |
2.2A |
| Assembled Dimensions (LxWxH) |
29.90" x 23.30" x 51.65" |
| Assembled Weight (lb) |
161.0 |
| Assembly Required |
Yes |
| Batteries Required |
No |
| Capacity |
1 Keg |
| Caster Size |
4" |
| Casters |
Yes |
| Color |
Stainless Steel |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
49.90" |
| Depth - Excluding Door |
29.90" |
| Depth - Excluding Handles |
29.90" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Stainless Steel |
| Door Material |
Stainless Steel |
| Door Swing Orientation |
Right |
| Electric |
Yes |
| First Zone Maximum Temperature |
41° |
| First Zone Minimum Temperature |
33° |
| Freezer Type |
No Freezer |
| Ice Maker Included |
No |
| Included Components |
Refrigerator, Instruction Manual, Casters |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Material |
Stainless Steel |
| Number of Doors |
1.0 |
| Number of Items |
1.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Size |
23" |
| Temperature Range |
33° - 41° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Voltage |
120V |
| Volume Capacity |
204L |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
260W |
| Case Pack Dimensions |
40" x 40" x 31" |
| Case Pack Weight |
178.0 lb |
| Case Quantity |
1.0 |
What Our Experts Think
-
7.2 cu. ft. Capacity – Ideal for smaller bars or establishments, with enough space to store one keg, perfect for low-to-moderate volume dispensing.
-
Single Tower Design – Allows for serving one type of beer, making it simple to focus on a specific selection.
-
Stainless Steel Construction – Durable, sleek, and easy to clean, built to withstand the high demands of commercial use.
-
Efficient Cooling – Maintains optimal beer temperatures, preserving the quality and taste of the beer served.
-
Compact Size – Space-saving design, making it a great choice for locations with limited space.
Q&A
Q: What are the main features of the Maxx Cold Single Tower Beer Dispenser?
A: The Maxx Cold MXBD24-1SHC features a 23.3" width, 7.2 cu. ft. storage capacity, and can hold 1 barrel/keg (204L). It has a durable stainless steel construction, designed for efficient beer dispensing in commercial or home settings.
Q: How much keg storage does the Maxx Cold Beer Dispenser offer?
A: It can store up to 1 barrel/keg with a total capacity of 204L, ideal for smaller-scale beer dispensing needs.
Q: Is the Maxx Cold Beer Dispenser energy-efficient?
A: Yes, it is designed to operate efficiently, helping maintain optimal beer storage temperatures while reducing energy consumption.
Q: Can the Maxx Cold Beer Dispenser be used in commercial settings?
A: Yes, its stainless steel build and reliable performance make it suitable for use in bars, restaurants, or small commercial spaces.
Q: Is the Maxx Cold Beer Dispenser easy to clean?
A: Yes, the stainless steel construction makes it easy to clean and maintain, ensuring a hygienic dispensing environment.
Maintenance Tips
-
Clean beer lines regularly to prevent buildup and ensure the beer tastes fresh.
-
Wipe down the exterior with a mild, non-abrasive cleaner to keep the unit looking clean and polished.
-
Inspect and clean the faucet to prevent clogging and ensure smooth dispensing.
-
Check the seals around the door to ensure they are intact and prevent cold air leakage.
-
Clean the condenser coils periodically to maintain efficient cooling and avoid dust buildup.
-
Monitor the temperature to ensure the beer is dispensed at the optimal temperature.
